DV2680/DV3070
26”/30” LCD TV
User's Manual
Welcome
Copyright
Copyright BENQ Corporation. All rights reserved. No part of this User's Manual may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of BENQ Corporation.
Disclaimer
BENQ Corporation makes no representations or warranties, either expressed or implied, with respect
to the contents of this User's Manual. BENQ Corporation reserves the right to revise this publication
and to make changes from time to time in the contents thereof without obligation to notify any person
of such revision or changes.
FCC Statement
FCC Notice
LCD TV DV2680/3070: A CLASS B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
FCC CAUTION
Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this monitor not
expressly approved by BENQ Corporation could cause harmful interference and would void the user's
authority to operate this device.
WARNING: This is a CLASS B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to counter interference.
WARNING: To reduce the risk of fire and electric shock, do not expose this product to rain or
moisture.
Table of Contents
Introduction............................................................................1
Functions and Features ...................................................................................... 1
Important Safety Instructions................................................2
Important Information ...................................................................................... 6
Safety Tips ........................................................................................................... 6
WARNING.......................................................................................................... 6
CAUTION........................................................................................................... 7
Package Contents....................................................................9
Setting up Your Television.....................................................10
Connecting the Power Cord .............................................................................. 10
Connecting the Antenna (For NTSC Systems)................................................. 10
Connecting CATV...............................................................................................................10
Antenna................................................................................................................................11
Installation of an Outdoor Antenna...................................................................................11
Controls and Terminals .........................................................12
Main Unit (Front View) .................................................................................... 12
Control Panel...................................................................................................... 12
Main Unit (Rear View)....................................................................................... 13
Making Connection............................................................................................ 14
Connecting AV Equipment................................................................................ 15
Connecting Composite Video Signal (RCA) .....................................................................15
Connecting S-Video Signal.................................................................................................15
Connecting Component Video Input (Y Cb/Pb Cr/Pr) Signals.......................................16
Connecting RGB (Min D-SUB 15 Pin Connector) Signals ..............................................17
Connecting DVI/HDCP Signals.........................................................................................18
Connecting Audio Output Signals (DV3070 Only) ..........................................................18
Remote Control ......................................................................19
Using the Remote Control ................................................................................. 20
Batteries............................................................................................................... 21
Notes on Using Batteries .................................................................................... 21
Using the Remote Control .....................................................22
Power on, Power off and Standby ..................................................................... 22
Switching Inputs ................................................................................................ 22
Adjusting Audio Volume ................................................................................... 23
Changing Channels............................................................................................. 23
Table of Contents i
Adjusting User Situation Modes........................................................................ 24
Freeze................................................................................................................... 24
Adjusting Aspect Ratio ....................................................................................... 25
Using the PIP/PBP Function.............................................................................. 25
Selecting PIP AUDIO ......................................................................................... 26
Setting Favorite Channels................................................................................... 26
Selecting TV or CATV ........................................................................................ 27
Adding/Deleting Channels ................................................................................. 27
Using the Sleep Timer ....................................................................................... 28
Adjusting Backlight ............................................................................................ 28
Displaying Information ...................................................................................... 29
Using the Auto Function.................................................................................... 29
The On-Screen Display (OSD) Menu ................................... 30

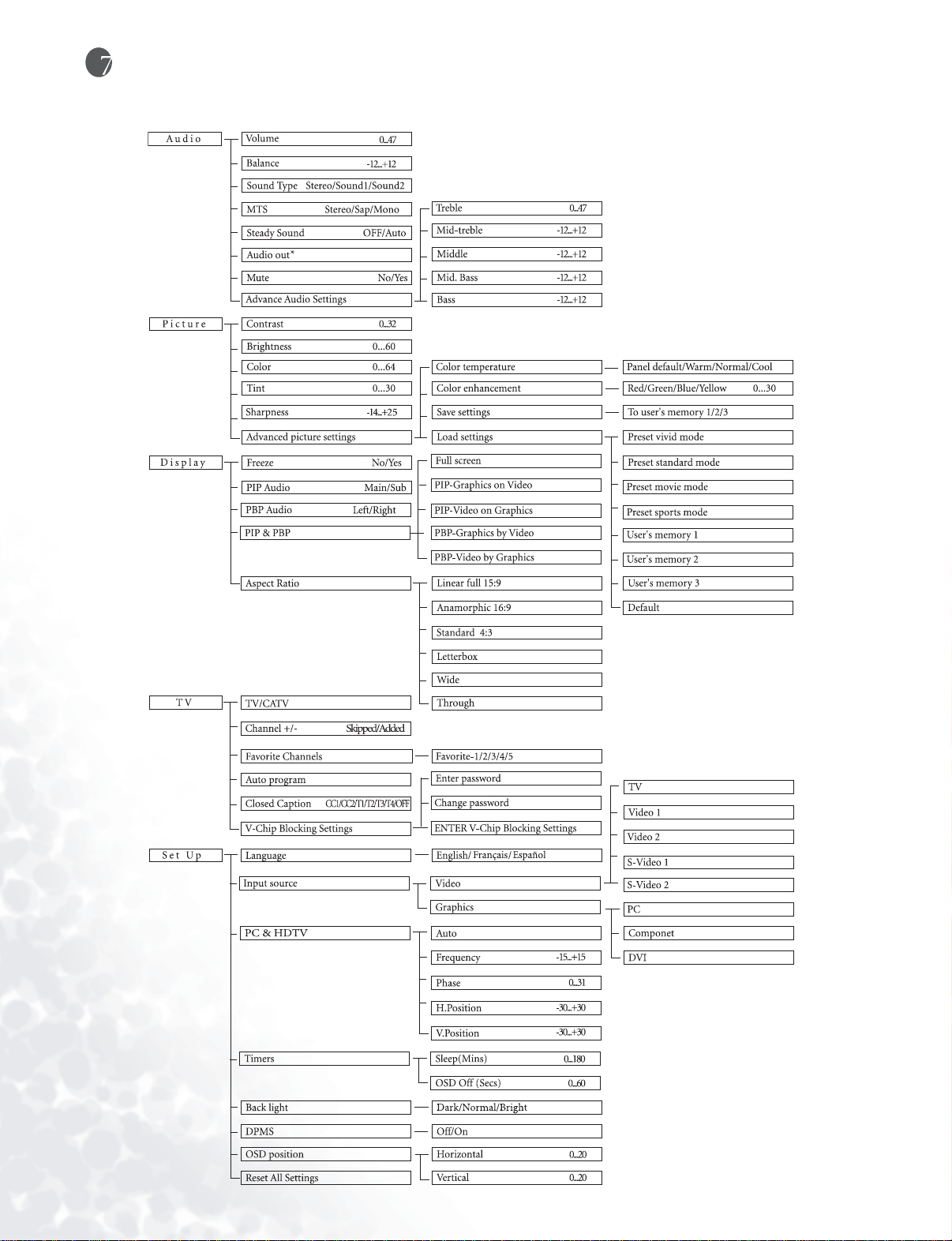

OSD Structure..................................................................................................... 30
How to Use the OSD Menu ............................................................................... 31
Audio Adjustment .............................................................................................. 32
Picture Adjustment............................................................................................. 34
Display Adjustment ............................................................................................ 36
TV Adjustment ................................................................................................... 37
Setting up Closed Caption.................................................................................................. 38
Setting up V-CHIP.............................................................................................................. 38
MPAA Rating ................................................................................................................ 38
TV Parental Guidelines ................................................................................................. 39
Adjusting V-Chip Setting ................................................................................................... 40
First-Time Setup! .......................................................................................................... 40
MPAA Rating ................................................................................................................ 41
TV Guidelines! .............................................................................................................. 41
Canceling the V-CHIP Block Screen While V-CHIP Block is Activated!.................. 41
Changing V-CHIP Blocking Password ........................................................................ 41
Setup .................................................................................................................... 43
Troubleshooting..................................................................... 45
TV ........................................................................................................................ 45
Antenna ............................................................................................................... 46
Specifications.......................................................................... 47
Supported Modes ................................................................... 48
Dimensional Drawings........................................................... 49
Table of Contentsii
Introduction
Thank you for purchasing the BenQ DV2680/DV3070 Liquid Crystal Display Television. Your
DV2680/DV3070 will bring you years of high-quality viewing enjoyment. Your television is
compatible with NTSC, PAL and SECAM systems, as well as the upcoming DTV standard. Your
new BenQ television is extremely easy to op erate, and has exceptionally high image quality.
The DV2680/DV3070 is also extremely versatile. You can install your television on the wall or set
it on a table, and it can be used under any type of illumination.
This manual will explain the operation of the DV2680/DV3070 Liquid Crystal Display
Television, including the set's functions and features and other important information. Before
installing or operating your liquid crystal display television, please take the time to thoroughly
read this manual, particularly the sections on safety!
Functions and Features
The DV2680/DV3070 Liquid Crystal Display Television has many useful functions, including:
• 1280 x 768 internal resolution
• 600 nit (DV2680) or 600 nit (DV3070) brightness
• 600:1 (DV2680) or 500:1 (DV3070) contrast ratio
• Compatibility with all digital television (DTV) formats (with external tuner), including 1080i,
720p, 480p
• 3-2 Pull Down Recovery
• 3D digital comb filter
• De-Interlacing
• Multiple image formats for diverse viewing conditions
• PIP
• Shortcut buttons:
1. Freeze frame
2. Multi-Channel Television Sound (MTS) (Bilingual)
3. Sleep timer
4. Back light adjustment
5. Auto Calibration
6. Aspect Ratio Adjustment
7. Graphic OSD
Introduction 1
Important Safety Instructions
Electrical energy can perform many useful functions, but it can also cause personal injury and
property damage if improperly handled. This product has been engineered and manufactured
with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL
ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe
the following instructions when installing, operating and cleaning the product. Proper care will
also prolong the service life of your BenQ LCD TV. Just follow these simple instructions before
using your TV.
1. Read instructionsAll operating instructions must be read and understood before the
product is operated.
2. Retain instructionsThese safety and operating instructions must be kept in a safe place for
future reference.
3. Observe warningsAll warnings on the product and in the instructions must be observed
closely.
4. Follow instructionsAll operating instructions must be followed.
5. Water and moistureDo not use this
product near water - for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a
swimming pool, and the like.Do not use
immediately after moving from a low
temperature to high temperature
environment, as this causes condensation,
which may result in fire, electric shock, or
other hazards.
6. CleaningUnplug this product from the
wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
7. VentilationThe vents and other
openings in the cabinet are designed to let
hot air escape from the TV. Do not cover
or block these vents and openings since
insufficient ventilation can cause
overheating and/or shorten the life of the
product. Do not place the TV on a bed,
sofa, rug or other similar surface, since
they can block ventilation openings. This
TV is not designed for built-in
installation; do not place the product in
an enclosed place such as a bookcase or
rack, unless proper ventilation is provided
or the manufacturer's instructions are
followed.
Important Safety Instructions2
8. Heat sourcesKeep the product away
from heat sources such as radiators,
heaters, stoves and other heat-generating
products (including amplifiers).
9. Grounding or Polarization This product may be equipped with either a polarized 2-wire AC
line plug (a plug having one blade wider than the other) or a 3-wire grounding-type plug, a
plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still fails to fit, contact your electrician to replace your
incompatible outlet. DO NOT ATTEMPT TO BYPASS THE SAFETY PURPOSE OF THE
POLARIZED AND GROUNDED PLUG. The 3-wir e grounding-type plug will fit into a
grounding type power outlet. This is a safety feature. If you are unable to insert the plug into
the outlet, contact your electrician to replace your incompatible outlet.
10. Power cord protectionThe power cords must be routed properly to prevent people from
stepping on them or objects from resting on them. Check the cords at the plugs and
product.Power-supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at doors,
plugs, receptacles, and the point where they exit from the product.
11. AttachmentsDo not use attachments not recommended by the manufacturer. Use of
improper attachments can result in accidents.
12. AccessoriesWhen the product is used on a trolley, care should be taken to avoid quick
stops, excessive force, and uneven surfaces that may cause the product and trolley to overturn,
damaging equipment or causing possible injury to the operator. Do not place this product on
an unstable trolley, stand, pedestal, bracket, or table. The product may fall, causing serious
injury to a child or adult and serious damage to the product. The product should be mounted
according to the manufacturer's instructions, and use only with a trolley, stand, pedestal,
bracket, or table recommended by the manufacturer.
13. ServicingDo not attempt to service the product yourself. Removing covers can expose you
to high voltage and other dangerous conditions. Request a qualified service person to
perform servicing.
14. Replacement partsIn case the product needs replacement parts, make sure that the service
person uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts can result in
fire, electric shock and/or other danger.
15. Power sourceThis product is intended to be supplied by a listed power supply, output
rated 19 V DC, 3A minimum, indicated on the marking label. If you are not sure of the type
of power supply to your home, consult your product dealer or local power company. For
added protection for your TV, unplug it from the wall outlet and disconnect the cable system
when it is left unattended and unused for long periods of time. This will prevent damage due
to lightning and power line surges. When the unit has to be used with another power supply
voltage, the power cable must be changed. Consult your product dealer. The socket outlet
should be installed near the equipment and easily accessible. The power supply voltage rating
of this product's AC adaptor is AC100-240V. The power cord attached conforms to the
following power supply voltage. Use only the power cord designated by our dealer to ensure
safety and EMC. When connecting other products such as VCRs and personal computers,
you should turn off the power of the unit for protection against electric shock. If the AC
adapter is misplaced or needs to be replaced, obtain the same type of adapter from a BenQ
service center or your dealer.
Important Safety Instructions 3
16. OverloadingDo not overload wall outlets, extension cords, or convenience receptacles on
other equipment as this can result in a risk of fire or electric shock.
17. Entering of objects and liquidsNever poke an object into the product through vents or
openings. High voltage flows in the product, and inserting an object can cause electric shock
and/or short internal parts. For the same reason, do not spill water or liquid on the product.
18. Damage requiring serviceIf any of the following conditions occurs, unplug the power cord
from the AC outlet, and request a qualified service person to perform repairs.
• When the power cord or plug is damaged.
• When a liquid is spilled on the product or when objects have fallen into the product.
• When the product has been exposed to rain or water.
• When the product does not operate properly as described in the operating instructions.
• Do not touch the controls other than those described in the operating instructions. Improper
adjustment of controls not described in the instructions can cause damage, which often
requires extensive adjustment work by a qualified technician.
• If the product has been dropped or the cabinet has been damaged in any way.
• When the product displays an abnormal condition or exhibits a distinct change in
performance. Any noticeable abnormality in the product indicates that the product needs
servicing.
19. Safety checks Upon completion of service or repair work, request the service technician to
perform safety checks to ensure that the product is in proper operating condition.
20. Wall or ceiling mountingWhen mounting the product on a wall or ceiling, be sure to
install the product according to the method recommended by the manufacturer.
This is a safety feature.
21. StandDo not place the product on an
unstable trolley, stand, tripod or table.
Placing the product on an unstable base
can cause the product to fall, resulting in
serious personal injuries as wellas damage
to the product. Use only a trolley, stand,
tripod, and bracket or table
recommended by the manufacturer or
sold with the product. When mounting
the product on a wall, be sure to follow
the manufacturer's instructions. Use only
the mounting hardware recommended by
the manufacturer.
22. Careful moveWhen relocating the
product placed on a trolley, it must be
moved with the utmost care. Sudden
stops, excessive force and uneven floor
surfaces can cause the product to fall from
the trolley.
Important Safety Instructions4
23. Panel protectionThe LCD panel used
in this product is made of glass.
Therefore, it can break when the TV is
dropped or hit by other objects. Beware of
injuries in the event of the LCD glass
screen breaking.
24. Pixel defectThe LCD panel is a high technology product, giving you finely detailed
pictures.Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue,
green or red.Please note that this does not affect the performance of your product.
If an outside antenna is connected to the
television equipment, be sure the antenna
system is grounded so as to provide some
protection against voltage surges and builtup static charges. Section 810 of the National
Electrical Code provides information with
respect to:
• proper grounding of the mast and
supporting structure;
• grounding of the lead-in wire to an antenna
discharge unit;
• size of grounding conductors;
• location of antenna-discharge unit;
• connection to grounding electrodes;
• and requirements for the grounding
electrode.
For added protection for this television
equipment during a lightning storm, or
when it is left unattended and unused for
long periods of time, unplug it from the wall
outlet and disconnect the antenna. This will
prevent damage to the equipment due to
lightning and power-line surges.
EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE
NEC - NATIONAL ELECTRICAL CODE
An outside antenna system should not be
located in the vicinity of overhead power
lines or other electric light or power circuits,
or where it can collide with such power lines
or circuits. When installing an outside
antenna system, extreme care should be
taken to keep from touching such power
lines or circuits, as contact with them might
be fatal.
Important Safety Instructions 5
Important Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this
equipment not expressly approved by the manufacturer could void the user's authority to
operate this equipment. (U.S.A. ONLY)
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
The lightning flash with arrowhead symbol
within a triangle, alerts the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may
constitute a risk of electric shock.
Note to CATV system installer: This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the National Electrical Code that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.”
Safety Tips
Please read and follow these safety tips to ensure the equipment is free from damage, and to
ensure that no injury will occur as a result of improper use.
• Do not insert any object (especially metal) or liquids, into the TV.
• Do not place any objects containing water or any other liquid on top of the TV.
• Do not place the unit in direct sunlight, near heaters or in extremely dusty or humid locations.
• Do not install this system outdoors or otherwise expose it to the elements.
• Do not place heavy objects on top of the TV.
• If the power cord is damaged or frayed in any way, electrical shock and/or fire may result.
• Please do not place objects on the power cord, and keep the cord away from heat-emitting
devices. Should the power cord become damaged in any way, please contact your dealer for a
replacement cord.
• Do not remove the cover of the TV for any reason. If any problems arise with the unit, please
contact your dealer for service. Removing the covers will void the warranty.
WARNING
Before Setting Up
Do not place the TV on sloped or unstable surfaces.
• The TV may fall or tip over.
Do not place any objects on top of the TV.
Important Safety Instructions6
• If water spills onto the TV or foreign objects get inside it, a short-circuit may occur which
could result in fire or electric shock. If any foreign objects get inside the TV, please consult an
Authorized Dealer.
Do not cover the ventilation holes.
• Doing so may cause the TV to overheat, which can cause fire or damage to the set.
AC Power Supply Cord
The TV is designed to operate on 100~240 V AC, 50/60 Hz. Securely insert the power cord plug
as far as it will go.
• If the plug is not fully inserted; heat may be generated which could cause fire. If the plug is
damaged or the wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that might damage the power cable. When disconnecting the power cable,
hold the plug, not the cable.
• Do not make any modifications, place heavy objects on, place near hot objects, heat, bend,
twist or forcefully pull the power cable. Doing so may cause damage to the power cable, which
can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an
Authorized Service Center.
If the TV is not to be used for a long period of time, unplug the power cord from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is
detected from the TV, unplug the power cord immediately.
• Continuous use of the Display under these conditions might cause fire or permanent damage
to the unit. Have the Display evaluated at an Authorized Service Center. Services to the Display
by any unauthorized personnel are strongly discouraged due to its dangerous high voltage
nature.
If water or foreign objects get inside the TV, if the TV is dropped, or if the cabinet becomes
damaged, disconnect the power cord plug immediately.
• A short-circuit may occur, which could cause fire. Contact an Authorized Service Center for
any repairs that need to be made.
CAUTION
When using the LCD TV
To turn off the main power, be sure to remove the plug from power outlet. The power outlet
socket should be installed as near to the equipment as possible, and should be easily accessible.
Be sure to disconnect all cables before moving the LCD TV.
• Moving the Display with its cables attached might damage the cables, which, in turn, can cause
fire or electric shock.
Disconnect the power plug from the wall outlet as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it from becoming dusty.
• Built-up dust on the power cord plug can increase humidity, which might damage the
insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.
• Do not insert any objects or liquids into the unit.
• Do not expose the unit to water or moisture, or otherwise to the elements
Important Safety Instructions 7
• Do not open the unit for any reason. Doing so will void the warranty!
• Unplug the unit if it will not be used for an extended period of time
• Avoid placing the unit near sources of heat
• Avoid placing the unit in direct sunlight
In any event, if any problems arise, contact your dealer immediately!
Important Safety Instructions8
Package Contents
Please ensure that the following items are included with your DV2680/DV3070 Liquid Crystal
Display TV. If any item is missing or damaged, contact an authorized dealer immediately.
DV2680/DV3070 LCD TV (x1)
Power cord (x1)
S-video cable (x1)
User's manual (x1)
Composite video cable (x1)
Component video cable (x1)
Different countries have different AC pow er cord types.
AAA batteries (x2)
)
1
x
l
(
o
r
t
n
c
o
e
t
o
m
e
R
Package Contents 9
Setting up Your Television
Connecting the Power Cord
1. Connect the female end of the AC power cord to the AC input on the television.
2. As shown in the diagram, connect the male end to a wall power outlet.
S-VIDEO VIDEOAUDIO
AV2
• T h is product must be operated only fro m the typ e of po w er source indicated on the m arking
label (AC 100~240V 50/60 Hz).
• If the television will not be used for a long period of time, it should be unplugged fro m the wall
outlet.
AC-INLET
Connecting the Antenna (For NTSC Systems)
Connecting CATV
Your BenQ television has an in ternal 75 ohm coaxial cable connector, so antennal hook-up is
very easy.When connecting a 75-ohm coaxial cable to your BenQ television, secure it firmly to
the ANT connector. Some cable television companies provide "pay per view" programming.
Since the signal for these paid channels is encoded, most cable television companies provide
their own tuners/ decoders. You must install a tuner/ decoder to be able to view locked encoded
programming. If you require special instructions on how to install cable service, please contact
your cable television provider. The tuner/decoder provided by your cable television company
can be used according to the following instructions.
Please note: you must have an RF switch with two inputs (A and B) (not supplied).
The "A" input on the RF switch (not supplied) allows you to use the television's channel selector
button to view unlocked channels. The "B" input on the RF switch (not supplied) allows you to
use the channel selection button on your cable box to view locked encoded programming via the
tuner/decoder.
Setting up Your Television10
Antenna
AV1
S-VIDEO
VIDEO
AUDIOIDEO
AV2
S-VIDEO AUDIO
ANTENNA
The antenna equipment has far more effect on reception for color televisions than on black and
white models. We suggest you use a good-quality outdoor antenna. Following are simple
explanations for the connection of various types of antennas.
1. Generally speaking, 75 ohm systems have a
round cable with an F-shaped connector
which requires no tools. Attach the cable
directly to the input (not included).
2. 300 ohm systems have a flat "dual lead" type
cable. A 300-75 ohm transformer may be
used to attach the antenna to a 75 ohm input
(not included).
Installation of an Outdoor Antenna
If an outdoor antenna is required, use any of the following.
A: Use a combination VHF/UHF outdoor antenna.
B: Use separate VHF and/ or UHF outdoor antennas.
Connect the lead from the outdoor antenna to the ANT input on the rear of the television.
Setting up Your Television 11
Controls and Terminals
MENU INPUT
Main Unit (Front View)
1
No. Name Description
1 Speaker High-quality speakers for delivering excellent sounds.
2 Power indicator
3 Remote control sensor window Receives the signal from the remote control.
Control Panel
5
4
1
2
3
When the unit is powered on, the power indicator light
is green.When the set is in standby mode, this light is
red.
3
1
2
No. Name Description
1 Power
2 INPUT This button allows you to switch among TV/Video/PC signal sources.
3 Channel ()/() These two buttons allow direct selection of channels.
Controls and Terminals12
• Press the PPower button to turn on the DV2680/DV3070 when it is in
"standby" mode.
• Press the Power button once more to turn the DV2680/DV3070 "off"
by placing it into "standby" mode.
• Press VVolume to increase the volume, or VVolume to decrease it.
4 Volume ()/()
• On the OSD main screen, pressing these buttons allows selection of
options.
5 MENU Press this button to display the on-screen display (OSD) menu.
The "P o w e r", "Channel ()/()", "V olum e ()/()", "Input" and "M e n u " buttons on the main unit
function in the sam e way as their counterparts on the re m o te contro l. Inform ation in this m anual
is based on the use of the re m o te con tro l to operate the television.
Main Unit (Rear View)
DV2680
DVI
AUDIO DVI/HDCP
6
COMPONENT
PC
Cr/PR Cb/Pb Y
D-SUB AUDIO AUDIO
5
AV1
S-VIDEO
ANTENNA AC-INLET
AUDIO
VIDEO
24
3
DV3070
S-VIDEO VIDEOAUDIO
AV2
2
1
DVI
AUDIO DVI/HDCP
6
COMPONENT
PC
Cr/PR Cb/Pb Y
D-SUB AUDIO AUDIO
5
AV1
S-VIDEO
ANTENNA AC-INLET
AUDIO
VIDEO
24
3
S-VIDEO VIDEOAUDIO
AV2
2
1
7
Controls and Terminals 13
No. Name Description
1 AC INLET Connect the power cord (provided) to this input.
•VVIDEO (Composite (AV) signal input, RCA connector): Attach the
Composite video output of your DVD player or other AV device.
•AAUDIO(Audio input, L/R): Attach the audio out of your DVD
2 AV1 & AV2
player or other AV device here. This input is used with combination
(AV) and S-VIDEO input.
•SS-VIDEO (S-VIDEO input): Attach the S-VIDEO OUT of your
DVD player or other AV device here.
3 ANTENNA Attach your antenna (not provided) to this input.
•YY (Component video input, Y CB/Pb Cr/Pr): Attach the component
image input of your standard progressive scan DVD player or
HDTV here. The *Y connector (green) can also be used as a second
4 COMPONENT
composite signal input.
•AAUDIO(Audio input, L/R): Attach the audio out of your DVD
player or other AV device here.
•PPC D-SUB (15-pin D-SUB computer signal input): Connect your
5 PC
computer's monitor (analog RGB) output here.
•PPC AUDIO: Connect your desktop or notebook computer's audio
output here.
•DDVI/HDCP (Digital Video Input): Attach the digital output (digital
DVI (Digital Video
6
Interface)
RGB) from your PC or video here.
•DDVI AUDIO (Audio input, L/R): Connect the audio output of
digital signal here.
OUTPUT (L/R/
7
WOOFER)
Attach the audio input of an amplifier here.
Making Connection
• Before connecting any component, please familiarize yourself with the location and type of
each input. If incorrect connections are made, picture or color quality may be adversely
affected. Please ensure that all connectors are firmly seated.
• Your DVD player, VCR or home theatre system can be connected to the rear of the television so
that you can enjoy a complete audio-visual experience. Before connecting external devices,
turn off the power to the television for safety.
Controls and Terminals14
Connecting AV Equipment
Connecting Composite Video Signal (RCA)
Connect the Composite signal terminal on
the TV to the output of AV equipment via
an Composite video cable (RCA
connector) as illustrated.
The DV2680/DV3070 provides two sets of
Composite video inputs (AV1 & AV2).
Video game
Com posite video input is the most com m only used signal input. H ow ever, this type of input also
provides a less optimal image quality. Many video sources can only output C om posite video signals, for exam ple, VCRs and cam corders. Other video sources, su ch as laser disc players, actually produce slightly better results when using C om posite video.
Connecting S-Video Signal
Connect your AV equipment to the
television's S-VIDEO terminal using an Svideo cable. The DV2680/DV3070 provides
two S-video inputs (AV1 & AV2).
DVD player
Of all the signal types, S-video provides the second-best quality, and it is far superior to C om posite video signals. Because of this, when using satellite receivers, high-quality VCRs and DVD
players (without Com posite video output) as sources, S-video will provide a clearer, sharper signal.
Controls and Terminals 15
Connecting Component Video Input (Y Cb/Pb Cr/Pr) Signals
S
COMPONENT
Cr/Pr Cb/Pb YAUDIO
AUDIO
Connect your AV equipment to the
television's Component Cb/Pb Cr/Pr intput
using a Component video cable.
DVD player
1.Of th e c u rre n tly available input signal types, Com ponent video input offers the best quality.
Most commonly, C om ponent video output co m es fro m DVD players. Therefore, when using a
DVD player, we suggest that you use C om ponent video input. The image quality with this type
of input is superior to that obtained with S-video. All HDTV signals must go through this input.
This input can also be used for high-resolution signals, such as for progressive scanning DVD
players or com puters.
2. Connect to the Com ponent video input (Y Pb Pr) if your D VD player is a progressive scan
m odel.
3. Connect to the C om ponent video input (Y Cb Cr) for stan dard DVD players.
4. Your BenQ television supports 480p, 720p and 1080i HDTV signals.
Controls and Terminals16
Connecting RGB (Min D-SUB 15 Pin Connector) Signals
COM
Cr/PR Cb/Pb
DVI/HDCP
PC
D-SUB AUDIO
Connect your computer's output cable to
the D-SUB input using a Min D-SUB 15
pin cable.
Connect your computer's audio out to the
television using an appropriate cable.
PC D-Sub cable
Audio cable
PC
1.The native disp lay resolution of the television is1280 x 768. If the signal re s o lution is greater
than the native re s o lution, the screen may be unable to display image details clearly.
2. You will need a converter to connect a M acintosh com puter to the television using a PC D-SUB
15P cab le.
3. Certain PC models canno t be con nected to the television.
4. If your com puter has a DOS/V com patible D-SUB 15P, no adapter is require d .
5. The com puter in the illustra tion is show n only for re ference; your equipm ent may vary.
6. Additional equipm ent show n in the illustra tion is not provided.
7. Do not set the com puter's horizontal and vertical scanning fre q u e n c ies, because these scanning frequencies are less than or greater than the frequency range.
8. If you require more inform ation on how to connect your equipm ent, please re fer to the m anual
for the piece of equipm ent you wish to attach.
Controls and Terminals 17
Connecting DVI/HDCP Signals
DVI
AUDIO DVI/HDCP D-SUB
Connect the computer equipment or
digital video source to the DVI/HDCP
input on the Television using a DVI-D
cable.
Connect using a cable appropriate for your
computer's audio output.
DVD player
Connecting Audio Output Signals (DV3070 Only)
The DV3070 model provides extra audio
output terminals for delivering TV audio
signal to an amplifier, subwoofer or other
audio devices.
Connect the OUTPUT AUDIO L/R and
WOOFER terminals on the TV to the signal input terminals of an amplifier or subwoofer using the AV cable.
PC
Controls and Terminals18
Remote Control
1. POWER
INFO
PIP/PBP
PIP AUDIO
Press this button to power on the television. Press
again to put the set into standby mode.
2. INFO
Press this button to display the TV channel message
SLEEP
ASPECT
FREEZE
CH+/-
POWER
BACKLIGHT
PRESET
and any signal message (including video or
computer signals). Press the E
EXIT button to turn it
off.
PENTER
3. ASPECT
Press this button to adjust screen image display
settings.
MUTE
4. TV/CATV
VOL
CH
MTS
Press this button to select television or cable system
mode.
5. BACKLIGHT
Press this button to select the desired backlight
level.
RTN
6. PIP/PBP
Press this button to simultaneously view signals
from two different sources on the screen.You may
choose picture-in-picture (PIP) mode or pictureby-picture (PBP) mode.
7. FREEZE
Press this button to freeze the screen (the signal will
continue to be broadcast). Press the button again to
release.
8. SLEEP
Press this button to set the automatic shut-off timer.
9. PRESET
Press this button to select from among 4 user situation modes.
10. PIP AUDIO
Press this button while in PIP or PBP mode to select audio from the main/sub picture or the left/
right picture respectively.
11. CH +/-
Press this button to add current TV channel. Press again to erase current TV channel.
12. "i" key
Press this button to let the television automatically adjust frequency, phase and image position
in PC or HDTV modes, or search for signal source and properly display the video format in the
video mode.
Remote Control 19
13. MENU
Press this button to display the OSD (on-screen display) menu for adjusting the image, sound
and functions. The function table allows you to use the or buttons to select items. Pressing
the button again removes the OSD display.
14. INPUT
Press this button to select an input source.
15.
///and ENTER button
• : press the or buttons to select settings.
• : press the or buttons to adjust OSD menu settings.
• Press EENTER to execute selections, or to enter a submenu you have selected.
16. FAVORITE
Press this button to jump to the five favorite channels you have set.
17. EXIT
When operating the on-screen display, press this button to return to the next higher menu level.
18. CH /
Press this button to change channels.
19. VOL /
Press these buttons to raise or lower the volume.
20. MUTE
Press this button to mute the sound. Press it again to restore audio.
21. MTS
Press this button to select various audio systems (different television systems have different
selections).
22. Channel select
Press these buttons to select the channel you wish to view.
23. RTN
Press this button to toggle between two channels.
Using the Remote Control
When using the remote control, aim it at the remote control sensor window on the television. If
there is an object between the remote control and the signal remote control sensor window on
the television, the remote may not operate.
When using the re m o te contro l, please note:
• Do not strike or drop the re m o te. Do not expose the re m o te contro l to liquids and do not place it
in hum id environm ents.
• Do not install or place the re m o te contro l in dire c t sunlight. The heat may dam age the re m o te
contro l.
• If the rem ote contro l sensor window on the television is in dire c t sunlight or strong light, the
re m o te contro l m ay not operate norm ally. In this situation, change the light so urce or readjust
the angle of your television, or operate the re m o te contro l fro m a location closer to the re m o te
contro l sensor window on the television.
Remote Control20
Batteries
If the remote control does not operate, replace the batteries following the instructions below.
1. Open the lid of the remote control battery compartment
(slide the lid backward while pressing down.)
2. Insert two size-AAA batteries (included).
Ensure that the batteries are inserted with the positive and
negative terminals in the correct direction corresponding to
the (+) and (-) marks in the battery compartment.
3. Press down on the lid of the battery compartment and
gently push it back into position until it is firmly seated.
Notes on Using Batteries
The use of the wrong type of batteries may cause chemical leaks and/or explosion. Please note
the following:
• Always ensure that the batteries are inserted with the positive and negative terminals in the
correct direction as shown in the battery compartment.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or
cause chemical leaks from the old batteries.
• When batteries fail to function, replace them immediately.
• Chemicals which leak from batteries may cause skin irritation. If any chemical matter seeps out
of batteries, wipe it up immediately using a dry cloth.
• Due to varying storage conditions, the battery life for the batteries included with your
television may be shortened. If the remote control is not used for a long period of time, remove
the batteries.
Remote Control 21
Using the Remote Control
Before first use, ensure that the television is set up correctly and adjust it in accordance with the
broadcasting system in your territory.
Power on, Power off and Standby
Turning on the television
1. Plug the television's power cord into a wall outlet (after
this step, the main unit will turn on and enter standby
mode automatically). (The power indicator will be red.)
Switching Inputs
2. Press the P
POWER button on the remote control. The television
will turn on.
3. The television will automatically search for a signal. If
the set is already connected to a signal source, the
television will display that signal.
Turning off the television
Press the PPower button on the television again, or press the
POWER button on your remote control again, and the
television will go into standby mode. (The power indicator
will turn red).
1.Turn on all connected equipment or computers.
Power button on the television, or press the
INPUT
Using the Remote Control22
2. Press the IINPUT button on your television several
times, or press the IINPUT button on your remote con-
trol to display the signal input selection menu.
If the television detects a signal already connected, that
signal will be displayed on the screen.
Adjusting Audio Volume
Adjusting the volume
1. Press the VVolume button on your television or press
the VVOL button on your remote to increase volume.
The volume indicator will increase in length as volume
rises.
2. Press the VVolume button on your television, or press
the VVOL button on your remote to decrease volume.
The volume indicator will decrease in length as volume
falls.
Changing Channels
MUTE
MTS
Mute setting
1. Press the M
MUTE button on your remote control to
temporarily cut off sound.
2. Press the MMUTE button once more, or press the VVolume
or PPower button on your television or the remote con-
trol to restore audio function.
NTSC MTS system
Press the MMTS button on your remote control to select
"Stereo", "SAP (Second Audio Program)", or "Mono"
systems.
Using the "Channel Selection" on the Remote to Change
Channels
If you select a one- or two-digit channel (for example,
Channel 8), you should complete the following steps
within 3 seconds:
1. Press the "0" button.
2. Press the "8" button.
If you select a three-digit channel (for example, 120), you
should complete the following steps within 3 seconds:
1. Press the "100" button.
2. Press the "2" button.
3. Press the "0" button.
Using the channel up/down button to change channels:
Press CCH or CCH on your remote control, or press
CHANNEL or CCHANNEL on the television.
Using the channel button to return to the previous channel.
To return to the previous channel, press the RRTN button
on your remote control.
Using the Remote Control 23
Adjusting User Situation Modes
To adjust user situation modes, press the PPRESET button
on the remote control. This enables you to select from
among 4 modes (Vivid, Standard, Movie and Sports).
Freeze
Press the FFREEZE button on the remote control to
free the image on the screen.
Press the FFREEZE button again to restore normal
motion.
Using the Remote Control24
Adjusting Aspect Ratio
Press the AASPECT button on your remote control to
select the image aspect ratio you prefer.
Press the button several times to cycle through
various ratios.
Using the PIP/PBP Function
If your television is connected to two or more
different video and audio inputs, pressing the PPIP/
PBP button on your remote allows you to display
two images on the screen at once in PIP or PBP
mode.
Using the Remote Control 25
Selecting PIP AUDIO
If your television is connected to two different video
and audio inputs, pressing the PPIP AUDIO button
on your remote allows you to select the sound from
either the main or sub screen in PIP mode, or from
the left or right screen in PBP mode.
Setting Favorite Channels
1. Pres the FFAVORITE button on your remote control to
jump back to your preset favorite channel 1.
2. Press the FFAVORITE button again to jump to your preset
favorite channel 2, and so on.You may select from up to 5
channels set as your favorites.
Using the Remote Control26
Selecting TV or CATV
To select between the TV/CATV systems, press the TTV/
CATV button on the remote control.
Adding/Deleting Channels
To add or delete a channel, press the CCH+/- button on your
remote control.
Using the Remote Control 27
Using the Sleep Timer
1. Press the SSLEEP button on your remote control to set the
automatic sleep timer.
2. Use the or buttons to adjust the time. Time is set in
increments of 30 minutes, from 0 to 180 minutes.
Adjusting Backlight
If you need to adjust the intensity of your television's backlight,
press the BBACKLIGHT button on your remote control and select
"Dark" "Normal"or "Bright".
Using the Remote Control28
Displaying Information
Press the IINFO button on your remote control to display the signal
information, including input video signal source, TV/CATV system,
current audio selection and channel.
Using the Auto Function
Press the "i" key on your remote control to have your television
automatically adjust the frequency, phase, horizontal and vertical
positions in PC and HDTV modes.
Using the Remote Control 29
The On-Screen Display (OSD) Menu
OSD Structure
Internal/External
*AAudio out is only available with the
DV3070 model.
The On-Screen Display (OSD) Menu30
How to Use the OSD Menu
You can use the OSD menu screen to adjust all the settings on your television. Follow the steps
outlined below to select the function you desire, and refer to the pages indicated for more
information.
MENU
ENTER
1. As shown in the diagram, pressing the MMENU button on your
remote control, or the MMenu button on your television will
bring up the following main menu on your screen:
2. press the or buttons to select items on the main menu,
choose functions or change settings.
3. Press E
ENTER to enter the submenu.
4. Press EEXIT to exit from the main menu or submenu.
The On-Screen Display (OSD) Menu 31
Audio Adjustment
The Audio Adjustment Menu
1. Press the MMENU button on the remote control or
the MMenu button on the television to display the
main menu.
2. Press the or buttons to select AAudio and
then press the EENTER button to enter the
submenu.
3. Press the or buttons to select an item.
4. In the AAudio menu, after selecting the desired
option, and pressing EENTER, use the or
buttons to adjust the setting or select the options.
Item Function Operation Range
Volume Adjust volume
Balance
Adjust left and right
levels
When audio source is
stereo, you may choose
Sound Type
stereo sound from the
left channel (SOUND1)
or from the right channel
(SOUND2)
MTS Select television audio
Automatically adjusts the
Steady sound
strength of the source
signals
Audio out
(DV3070 only)
Select audio from internal or external speakers
Mute Mute the sound
Advanced Audio Settings
Treble Adjust treble tones
Mid-treble Adjust mid-treble tones
Use to increase and to
decrease.
Use to increase right
volume, to increase left
volume.
Use the and buttons
on the remote control or the
Volume and V
Volume
keys on the television to
select it.
Use the and buttons
on the remote control or the
Volume and VVolume
keys on the television to
select it.
Use the and buttons
on the remote control or the
Volume and V
Volume
keys on the television to
select it.
Use the and buttons
on the remote control or the
Volume and VVolume
keys on the television to
select it.
Use the and buttons
on the remote control or the
Volume and V
Volume
keys on the television to
select it.
Useto increase treble,
to decrease treble.
Use to increase midtreble, to decrease midtreble.
0 to 47
-12 to +12
Stereo, Sound1
Sound2
Stereo, Sap (Second
audio program),
Mono (NTSC,
monaural)
OFF, Auto
Internal, External
No, Yes
0 to 47
-12 to +12
The On-Screen Display (OSD) Menu32
Middle Adjust mid tones
Mid. Bass Adjust mid-bass tones
Bass Adjust bass tones
Use to increase mid
tones, to decrease mid
tones.
Use to increase mid-bass
; to decrease mid-bass.
Use to increase bass,
to decrease bass.
-12 to +12
-12 to +12
-12 to +12
The On-Screen Display (OSD) Menu 33
Picture Adjustment
Picture Menu
1. Press the MMENU button on the remote or the
Menu key on the television to display the main
menu.
2. Press the or buttons to select PPicture and
then press EENTER to enter the submenu.
3. Press the or buttons to select an item.
4. In the PPicture Menu, after selecting the desired
option, and pressing EENTER, use theor
buttons to adjust the setting or select the options.
Item Function Operation Range
Contrast Adjust image contrast
Brightness
Adjust screen
brightness
Color Adjust color saturation
Tint Adjust tint
Adjust image
Sharpness
sharpness for a sharper
Advanced Picture Settings
Color temperature
Adjust color
temperature
Color enhancement
Red Adjust red in image
Green Adjust green in image
Blue Adjust blue in image
Yellow Adjust yellow in image
Different users can
Save settings
store up to three
profiles
Adjust preset user
Load settings
modes or select from
any of the 3 user's settings
Use to increase contrast,
or to reduce it.
for brighter screen,
for darker screen.
for higher saturation,
for lower saturation.
for redder tones,
for greener tones.
for a sharper image,
for less sharpness.
Use the and buttons on the
remote control or the C
Channel
and CChannel keys on the
television to select it.
for more red concentration,
for less red concentration.
for more gree concentration,
for less green concentration.
for more blue concentration,
for less blue concentration.
for more yello concentration,
for less blue concentration.
Use or buttons to select a
stored profile.
Use or buttons to switch
0 to 32
0 to 60
0 to 64
0 to 30
-14 to +25
• Panel default
• Warm: Biased
toward red
• Normal: Standard
color temperature
• Cool: Biased
toward blue
0 to 30
0 to 30
0 to 30
0 to 30
User's memory 1,
2, and 3
Vivid, standard,
movie and sports;
user memory 1, 2
and 3
The On-Screen Display (OSD) Menu34
Display Adjustment
Display Menu
1. Press the MMENU button on the remote control or
the MMenu key on the television to display the main
menu.
2. Press the or buttons to select DDisplay and
then press EENTER to enter the submenu.
3. Press the or buttons to select an item.
4. In the DDisplay Menu, after selecting the desired
option, and pressing EENTER, use theor
buttons to adjust the setting or select the options.
Item Function Operation Range
Use the and
Freeze
PIP Audio
PBP Audio
Freeze motion of screen
image (however, broadcast
continues)
Select audio from main or
sub picture in PIP mode
Select audio from left or
right picture in PBP mode
buttons on the remote
control or the V
Volume
and VVolume keys on
the television to select it.
Use the and
buttons on the remote
control or the VVolume
and VVolume keys on
the television to select it.
Use the and
buttons on the remote
control or the VVolume
and VVolume keys on
the television to select it.
No, Yes
Main , Sub
Left, Right
Display Video and Graph-
PIP & PBP
ics simultaneously and
options for PIP or PBP
modes
Aspect Ratio
Linear full 15:9Adjust aspect ratio to 15:9
Anamorphic
16:9
Adjust aspect ratio to 16:9
Standard 4:3 Adjust aspect ratio to 4:3
When using 16:9 aspect
Letterbox
ratio, a black area appears
at the top and bottom of
the screen.
Wide
Through
Translate 4:3 material to
16:9 wide-screen display
1:1 material, no change to
ratio
Use the and
buttons on the remote
control or the C
Channel
and CChannel keys
on the television to select
it.
Use the and
buttons on the remote
control or the CChan-
nel and CChannel
keys on the television to
select it.
• Full screen
• PIP - Graphics on
video
• PIP- Video on graphics
• PBP- Graphics by
video
• PBP - Video by
graphics
PIP Functions recom m ended for use in 480p, 720p, 1080i form ats.
The On-Screen Display (OSD) Menu 35
TV Adjustment
TV Menu
1. Press the MMENU button on the remote or the
Menu key on the television to display the main
menu.
2. Press the or buttons to select TTV and then
press EENTER to enter the submenu.
3. Press the or buttons to select an item.
4.In the TTV menu, after selecting the desired option,
and pressing EENTER, use theor buttons to
adjust the setting or select the options.
Item Function Operation Range
Use the and
buttons on the remote
TV/CATV
Select TV or cable
system mode
control or the V
and VVolume keys
on the television to
select it.
Volume
TV, CATV
Add weak or additional channels or
Channel +/-
delete unwanted
channels from television memory
Favorite Channels
Set or change favorite
channels
Tuner will search
Auto program
through all available
channels and add
them to memory
Closed Caption
Adjust Closed Caption
setting
V-CHIP Block Settings Adjust V-Chip setting
Use the and
buttons on the remote
control or the VVolume
and VVolume keys
on the television to
select it.
Set favorite channels
using the or
button, and then press
EXIT to save your settings.
ENTER on the
Press E
remote control or
INPUT on the
television to begin
search.
Press EENTER to enter
the sub menu.
Press EENTER to enter
the sub menu.
Skipped, Added
Favorite channels 1, 2,
3, 4, 5
CC1, CC2, T1, T2, T3,
T4, Off
The On-Screen Display (OSD) Menu36
Setting up Closed Caption
This television is equipped with an internal Closed Caption decoder.
Closed Caption is a system which allows conversations, narration, and
sound effects in TV programs and home videos to be viewed as
captions on the TV screen (see the illustration).
Not all the programs and videos will offer closed captioning. Please
look for the symbol to ensure that captions will be shown.
1. Press the M
MENU button on the remote or the
Menu key on the television to display the main
menu.
2. Press the or buttons to select TTV and then
press EENTER to enter the submenu.
3. Press the or buttons to select CClosed
Caption.
4. Press EENTER to enter the sub menu,and then
choose between available choices for the selected
option.
• Closed Caption m ay malfunction (white blocks, strange characters, etc.) if signal conditions are
poor or if there are problem s at the broadcast source. This does not necessarily indicate a
problem with your set.
• If no TEXT broadcast is being received w hile view ing in the [TEXT] mode, the screen m ay
becom e dark and blank for som e program s. Should this occur, sw itch the Closed Caption
m ode to OFF.
Setting up V-CHIP
This function allows TV programs to be restricted and TV usage to be controlled based on FCC
data. It prevents children from watching violent or sexual scenes that may be harmful.
Restriction of TV programs includes two ratings that contain information about the program:
the MPAA rating and the TV Parental Guidelines. The MPAA rating is restricted by age. TV
Parental Guidelines are restricted by age and content.
Since a TV program may use either the MPAA rating or the TV Guidelines, both should be
adjusted for complete control.
MPAA Rating
Ratings
G GENERAL AUDIENCES. All ages admitted.
PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable
PG
for children.
PARENTAL STRONGLY CAUTIONED. Some material may be
inappropriate for children under 13.
Age base
PG-13
R RESTRICTED. Under 17 requires accompanying parent or adult guardian.
NC-17 NO ONE 17 AND UNDER ADMITTED.
X is an older rating that is unified with NC-17 but may be encoded in the
X
data of older movies.:
MPAA rating (examples)
Example 1
PG-13 in the age-based rating is blocked, this will also automatically block the higher ratings R,
NC-17 and X.
The On-Screen Display (OSD) Menu 37
Example 2
R in the age-based rating is blocked, this will also automatically block the higher ratings NC-17
and X.
The M PAA ra ting is only age-based.
TV Parental Guidelines
Content base
Rating
TV-Y (All
children)
FV (Fantasy
Violence)
V (Violence)
S (Sexual
Situation)
L (Adult
Language)
VVVVV
D (Sexually
Suggestive
Dialog)
TV-Y7 (Direct
to Older
XVVVV
Children)
Age
Base
TV-G (General
Audience)
TV-PG
(Parental
Guidance
VVVVV
VXXXX
Suggested)
TV-14 (Parents
Strongly
VXXXX
Cautioned)
TV-MA
(Mature
VXXXV
Audience Only)
V: The content rating is always blocked.
X: you can set the content rating.
Example
When TV-Y7 in the age-based rating is set to BLOCK, this will automatica lly block the higher
ratings: TV-G, TV-PG, TV-14 and TV-MA. In addition, D, L, S, Settings are blocked
automatically and FV can be set manually.
• Age-based ratings can be modified by the content-based ratings, but only in the combinations
indicated by an X in the table above.
• Choosing a lower age-based rating blocks the higher age-based ratings regardless of content
rating settings.
The On-Screen Display (OSD) Menu38
Adjusting V-Chip Setting
First-Time Setup
1. Press the MMENU button on the remote or the
Menu key on the television to display the main
menu.
2. Press the or buttons to select TTV and then
press EENTER to enter the submenu.
3. Press the or buttons to select VV-CHIP
Blocking Settings and then press EENTER to enter
the submenu.
The sequence is as follows:
4. Press the or buttons to select
"ENTER pass-
word",and then input 4-digit password to EENTER
V-CHIP Blocking Setting (the factory-preset password is "0" " 0" " 0" " 0").
Enter "0" " 0" " 0" " 0"
Enter V-CHIP Blocking Settings
The On-Screen Display (OSD) Menu 39
MPAA Rating
TV Guidelines
1. After entering V-CHIP Blocking Settings, press the
or buttons to select M
2. Use the or buttons to switch between
available choices for the selected option.
1. After entering V-CHIP Blocking Settings, press the
or buttons to select TV Guide.
2. Each time you select different settings, it display
different V(FV), L, S, D settings.
3. Use the or buttons to select VV (FV),LL,SS, or
D, and then press the or buttons to select
Block or SShow.
MPAA.
Canceling the V-CHIP Block Screen While V-CHIP Block is Activated
1. ""The program is blocked" will appear on the
screen if you watch a program that matches
the Program Rating data you configured.
correct password
incorrect password
2. Enter the 4-digit password by using the
channel selection keys.V-CHIP Block will be
temporarily canceled. If an incorrect password is entered, it cannot be unblocked.
Changing V-CHIP Blocking Password
1. Press the MMENU button on the remote control or the MMenu key on the television to select the
TV main menu page.
2. Press the or buttons to select VV-CHIP Blocking Settings and then press EENTER to enter
the submenu.
3. Press the or buttons to select CChange password and then press EENTER to enter the
submenu.
4. Enter the new password using the channel selection buttons.
5. You will be prompted to enter the new password again.
6. Password changed will appear on the screen. Now you have successfully changed the V-CHIP
Blocking password.
The On-Screen Display (OSD) Menu40
The sequence is as follows:
Incorrect password
Enter change password
Input the 4-digit password you
set before
Input the new 4-digit password
you like
confirm your new password
If you forget the password you set before,you can press""2" "4" "6" "8"when the ""old password"
information is displayed,then you can set a new password .
The On-Screen Display (OSD) Menu 41
Setup
Setup Menu
1. Press the MMENU button on the remote control or
the MMenu key on the television to display the
main menu.
2. Press the or buttons to select SSetup and
then press EENTER to enter the submenu.
3. Press the or buttons to select an item.
4. In the SSetup menu, after selecting the desired
option, and pressing EENTER, use theor
buttons to adjust the setting or select the options.
Item Function Operation Range
Use the and buttons on the remote
Language
Select language for the
OSD menu
control or the C
and CChannel
Channel
keys on the television
to select it.
Input source
Video
Use the and but-
tons on the remote
Display input signal
information
Graphics PC, Component, DVI
control or the CChannel
and CChannel
keys on the television
to select it.
PC & HDTV Adjust RGB levels for PC or DTV
Auto
Frequency
Automatically adjust
frenquency, phase, H.
position and V.
position
Adjust signal source
frequency
Use the E
on the remote control
or the IINPUT button
on the television to
select it.
Use the or
buttons to adjust
ENTER button
English, Espanol,
Francais
TV, Video1, Video2, SVideo1, S-Video2
-15 to 15
Phase
H. Position
V. Position
Timers
Sleep (Mins)
OSD Off (Secs)
The On-Screen Display (OSD) Menu42
Adjust signal source
phase
Adjust horizontal
position of the image
Adjust vertical
position of the image
Set Sleep to
automatically turn
television off
Set duration of the
OSD menu
Use the or
buttons to adjust
Use the or
buttons to adjust
Use the or
buttons to adjust
Use the or
buttons to select dif-
ferent setting values.
Use the or
buttons to select dif-
ferent setting values.
0 to 31
-30 to 30
-30 to 30
0, 30, 60, 90, 120, 150,
180 minues
0 to 60 seconds
Backlight
DPMS
OSD position
Horizontal
Ve r t i c a l
Reset All Settings
Adjust backlight
intensity
Protect screen and
enter powersaver
mode when no signal
input detected
Adjust the position of
OSD menu on the
screen
Restore all settings to
default values
Use the and buttons on the remote
control or the C
Channel
and CChannel
keys on the television
to select it.
Use the and buttons on the remote
control or the CChannel
and CChannel
keys on the television
to select it.
Use the or
buttons to select it.
Use the or
buttons to select it.
Press the EENTER but-
ton on the remote
control or the IINPUT
button on the
television to execute it.
Dark, Normal, Bright
On, off
0 to 20
0 to 20
The On-Screen Display (OSD) Menu 43
Troubleshooting
Before calling a service center, attempt the following steps to diagnose the problem.
TV
Symptoms Possible Causes
Power does not turn ON
There is no picture or sound
There are spots on the screen
Degraded colors or tints
Improper screen position or size
The image appears distorted Ensure the television's aspect ratio is properly set.
The image is purple
Ensure whether the power plug is securely inserted into the
receptacle.
• Ensure the television power is ON (Indicated by the green
LED on the front of the unit)
• Reception other than those of broadcasting stations can be
considered.
• Check for connection to wrong terminal or for wrong input
mode.
• Ensure the communication cable is properly connected
between the Video Source and the television.
Check whether your AV equipments is affected by
interference from automobiles, trains, high-voltage
transmission lines, neon signs or other potential sources of
interference.
Check whether all image adjustments have been properly
adjusted.
Check whether screen position and size have been properly
adjusted.
Check the "Component" or "RGB" setting in the television
and set it for the appropriate signal type.
The image appears too bright,
and there is a loss of definition
in the brightest areas of the
image.
The image appears too 'washed
out', or the darkest areas of the
image appear too bright.
If "xxx searching" appears, the
image or signal cannot be
produced by display.
Power indicator lamp appears
flashes blue
"Out of range" appears
Remote control does not
function properly
• Check whether the contrast setting is too high.
• The DVD player is set for a high-level output.
• The video signal has not been terminated properly
somewhere in the system.
• Check whether Brightness is set too high.
• The DVD player may be set at too high a brightness level.
• Check the cable for disconnection.
• Check for connection to proper terminal or for proper input
mode.
• Check the cable for disconnection.
• Check whether the screen is on power saving status (DPMS)
• Check whether the input signal is acceptable to the display.
• Check for incorrect battery orientation.
• Check for dead batteries
• Check for distance and angle from the television.
• Check whether remote control is properly being pointed at
the television's remote control sensor window.
• Check for any obstacle between the remote control and the
remote control sensor window.
• Check that the remote sensor window is not under strong
fluorescent lighting.
Troubleshooting44
There is no picture or sound,
just noise
• Make sure the antenna cable is properly connected.
• Consider whether TV signals are being properly received.
Picture is not clear
No sound
Some lines occur at the bottom
of pictures when playing VHS
tapes
The video picture is abnormal
The PC picture is abnormal
Antenna
• Make sure the antenna cable is properly connected.
• Consider whether TV signals are being properly received.
• Check whether you have selected Mute for Audio setting.
• Make sure the volume is not set to minimum.
• Make sure that headphones are not connected.
• Check cables for disconnection.
VHS tapes sometimes can't provide stable pictures when
playing or pausing. And the unstable pictures may cause the
television to display incorrectly. If this situation happens,
please press "i" key on the remote controller to let the television check the signal again and display the pictures correctly.
Press "i" key on the remote control to force the television to
check the signal system again and auto select the correct video
system.
Press the "i" key on the remote control. If this causes no
improvement, try a few more time. If the picture still does not
improve, enter "Setup" in the OSD menu, and select PC &
HDTV to adjust phase, H.position or V. position.
Symptoms Possible Causes
The picture is not sharp or the
picture moves
The picture is doubled or tripled
The picture is spotted
There are stripes on the screen or
colors fade
• The reception may be weak.
• The state of the broadcast may also be bad.
• Make sure the outside antenna is not disconnected.
• Make sure the antenna is facing the right direction.
• Make sure the antenna is facing the right direction.
• There may be reflected electric waves from mountains or
buildings.
• There may be interference from automobiles, trains, high
voltage lines, neon lights, etc.
• There may be interference between the antenna cable and
power cable. Try positioning them further apart.
• Is the television receiving interference from other devices?
Transmission antennas of radio broadcasting stations and
transmission antennas of amateur radios and cellular phones
may also cause interference.
• Use the television as far apart as possible from devices that
may cause possible interference.
Troubleshooting 45
Specifications
Model DV2680 DV3070
Size 26 inches 30 inches
Aspect ratio Wide-screen
Resolution 1280 x 768
Pitch 0.4425 x 0.4425 (mm) 0.5025 x 0.5025 (mm)
Brightness 600 nit 500 nit
Contrast ratio 600:1 500:1
Response time 16ms 16.6ms
Amplifier Speaker 10W x 2
TV TV tuner x1
AV in (RCA pin) x 2
Video
S-VIDEO (Mini din 4 pin) x 2
Composite image (RCA pin) x1
Signal inputs
Audio input (L/R, RCA pin) x 6
DVI/HDCP input DVI-D Connector,
PC D-sub (Mini D-sub 15 pin) x 1
PC & HDCP
DVI audio input RCA (L/R) x 2
PC audio (M3.5 jack) x 1
Signal outputs (None)
Video Systems
Scan modes
NTSC、PAL、SECAM
480i、480p、720p、1080i
Audio output (L/R, RCA) x1,
Woo fer x 1
PC horizontal frequency 31.5 ~ 60 kHz
PC vertical frequency 60 ~ 75Hz
Power supply
• D e s ign and specifications are subject to change without notice. Weights and dimensions
shown are ap proximate values.
• Specifications and external appearance may be changed due to product im pro vem ent.
AC 100-240 V、50/60 Hz
Specifications46
Supported Operating Modes
Resolution Horizontal Freq. (khz) Vertical Freq. (Hz) Bandwidth (Mhz) Notes
720×400 31.47 70.08 28.32 DOS
640×480 31.47 60.00 25.18 DOS
640×480 37.50 75.00 31.50 VESA
640×480 37.86 72.80 31.50 VESA
800×600 37.88 60.32 40.00 VESA
800×600 46.86 75.00 49.50 VESA
800×600 48.08 72.19 50.00 VESA
1024×768 48.36 60.00 65.00 VESA
1024×768 56.48 70.10 75.00 VESA
1024×768 60.02 75.00 78.75 VESA
• We suggest yo u set the sigual re s o lution as listed above. If not,it may not show fine detail with-
sufficient clarity.
• If picture is abnorm al when setting modes are changed, press the "i" key to re s tore.
Supported Operating Modes 47
Dimensional Drawings
86.40
DV2680
66.00
86.00
49.40
444.00
56.14
849.99
40.00
86.00
444.00
56.14
Unit: mm
Dimensional Drawings48
DV3070
922.18
720
93.39
475
527
203.81
Unit: mm
Dimensional Drawings 49
651.00
Dimensional Drawings50
Loading...
