BenQ Wireless LAN USB Adapter
AWL300
User Manual
Version 1.0 – 2002
Federal Communications Commission (FCC) Requirements, Part 15
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum distance 20cm between the
radiator and your body. Use on the supplied antenna. Unauthorized antenna,
ification, or attachments could damage the transmitter and may violate FCC
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the
instructions included in the user documentation provided with the product. Any changes
or modifications (including the antennas) made to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution of the connecting cables and
equipment other than manufacturer specified. It is the responsibility of the user to correct
any interference caused by such unauthorized modification, substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for any
damage or violation of government regulations arising from failing to comply with these
guidelines.
mod
regulations.
Benq Wireless LAN
Contents
Contents ..........................................................................................................................i
1. Installation..................................................................................................................1
1.1 Driver Installation....................................................................................1
1.2 Application Installation............................................................................3
1.3 Application & USB Driver Installation...................................................7
2. Uninstallation...........................................................................................................13
3. Configuration & Monitor Utility .............................................................................16
3.1 Monitor...................................................................................................16
3.2 Statistics .................................................................................................18
3.3 Site Survey.............................................................................................19
3.4 Encryption..............................................................................................20
3.5 Advanced ...............................................................................................21
3.6 Version...................................................................................................22
AWL300 USB Adapter User Manual i
Benq Wireless LAN
1
1. Installation
1.1 Driver Installation
Insert AWL300 USB Adapter into your PC, and then Windows will show the dialog –
‘Add New Hardware Wizard’.
Select ‘Specify the location of the driver’ and press Next button.
AWL300 USB Adapter User Manual
Benq Wireless LAN
2
Select ‘Specify a location’ and browse the Benq Wireless LAN CD to find AWL300.
For example, if your CD-ROM is drive D, the location is D:\AWL300.
Windows has found Benq AWL300 Wireless LAN USB Adapter. Press Next button.
Please wait while coping files.
AWL300 USB Adapter User Manual
Benq Wireless LAN
3
Press Finish.
Press Yes and restart your computer.
1.2 Application Installation
Execute Setup.exe in the AWL300 directory in Benq Wireless LAN CD. For example,
if your CD-ROM is drive D, please execute D:\AWL300\Setup.exe.
AWL300 USB Adapter User Manual
Benq Wireless LAN
4

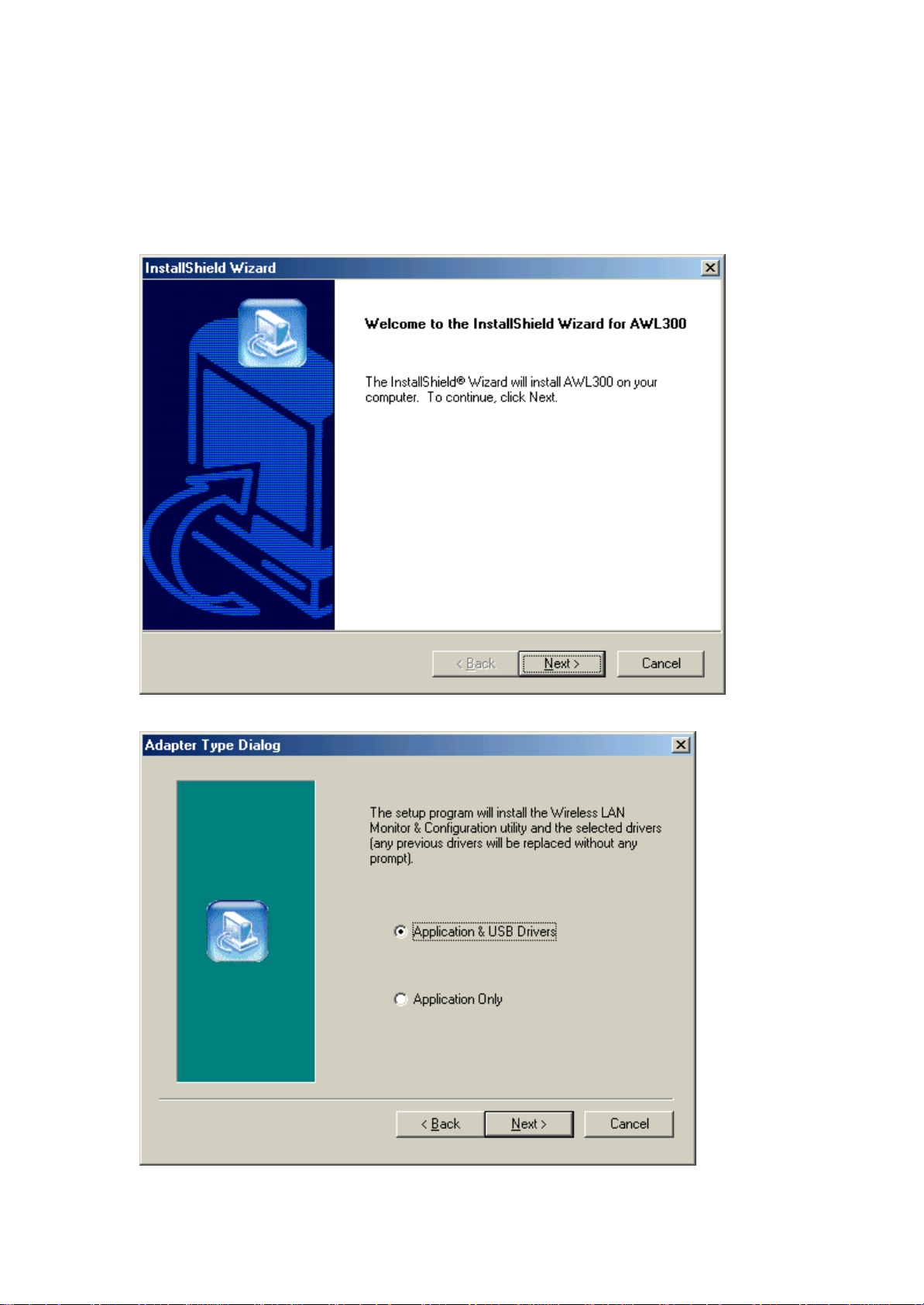

Press Next button
Select ‘Application & USB Drivers’ to install both of them if you don’t have USB
Drivers installed yet. Select ‘Application Only’ to insta ll only AWL300 applications.
AWL300 USB Adapter User Manual
Benq Wireless LAN
5

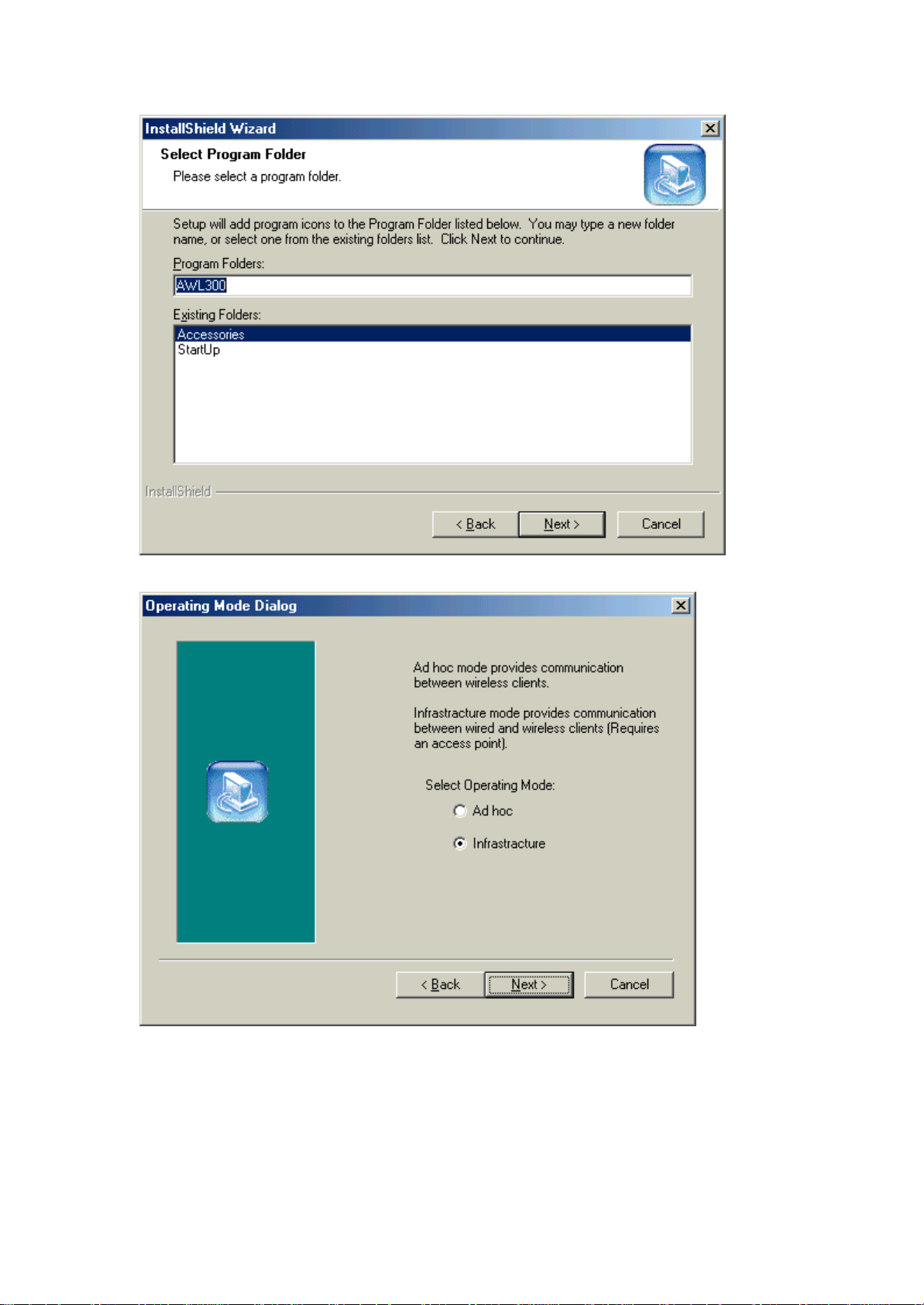

Press Browse if you want to change destination location of applications, and then
press Next button.
The folder name will be AWL300. Press Next button if you don’t want to change it.
AWL300 USB Adapter User Manual
Benq Wireless LAN
6
Press Next button.
Press Finish and restart your computer.
AWL300 USB Adapter User Manual
Benq Wireless LAN
7
1.3 Application & USB Driver Installation
Execute Setup.exe in the AWL300 directory in Benq Wireless LAN CD. For example,
if your CD-ROM is drive D, please execute D:\AWL300\Setup.exe.
Press Next button
AWL300 USB Adapter User Manual
Benq Wireless LAN
8
Select ‘Application & USB Drivers’ to install both of them if you don’t have USB
Drivers installed yet.
Press Next button
Press Next button
AWL300 USB Adapter User Manual
Benq Wireless LAN
9
Press Next button
Select the operating mode and then press Next button
AWL300 USB Adapter User Manual
Benq Wireless LAN

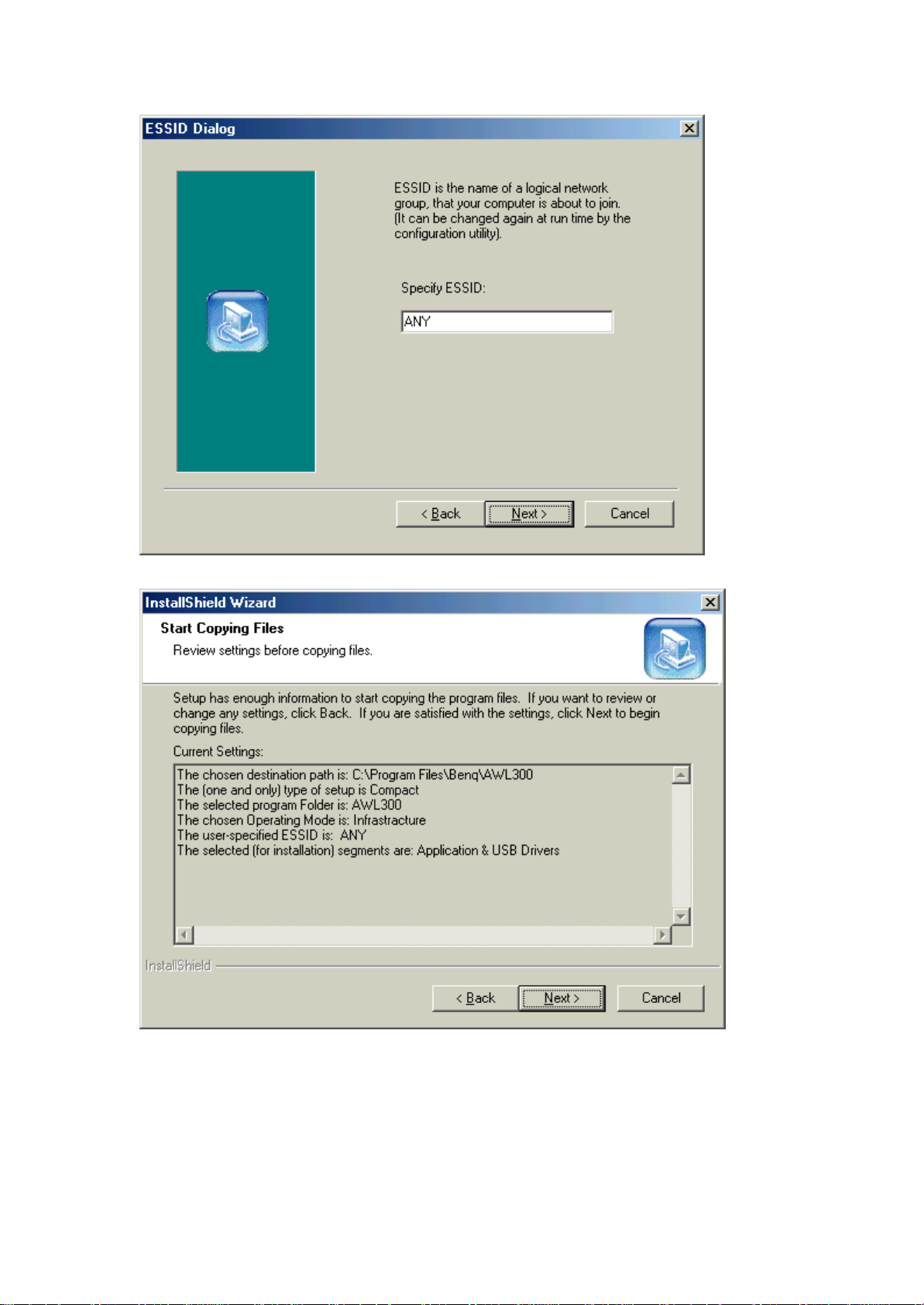

Specify ESSID and then press Next button
Press Next button
AWL300 USB Adapter User Manual 10
Benq Wireless LAN
Press Finish and restart your computer.
AWL300 USB Adapter User Manual 11
Benq Wireless LAN
After complete installation, you will get the following screen.
AWL300 USB Adapter User Manual 12
Benq Wireless LAN
2. Uninstallation
To uninstall AWL300, you can run the “Uninstall Configuration & Monitor Utility” as
the following figure.
Press OK if you really want to remove AWL300.
AWL300 USB Adapter User Manual 13
Benq Wireless LAN
Press OK when uninstall successfully completed.
You must restart your computer. Press OK to do it.
AWL300 USB Adapter User Manual 14
Benq Wireless LAN
You can also remove AWL300 from Add/Remove Programs Properties in Control
Panel
AWL300 USB Adapter User Manual 15
Benq Wireless LAN
3. Configuration & Monitor Utility

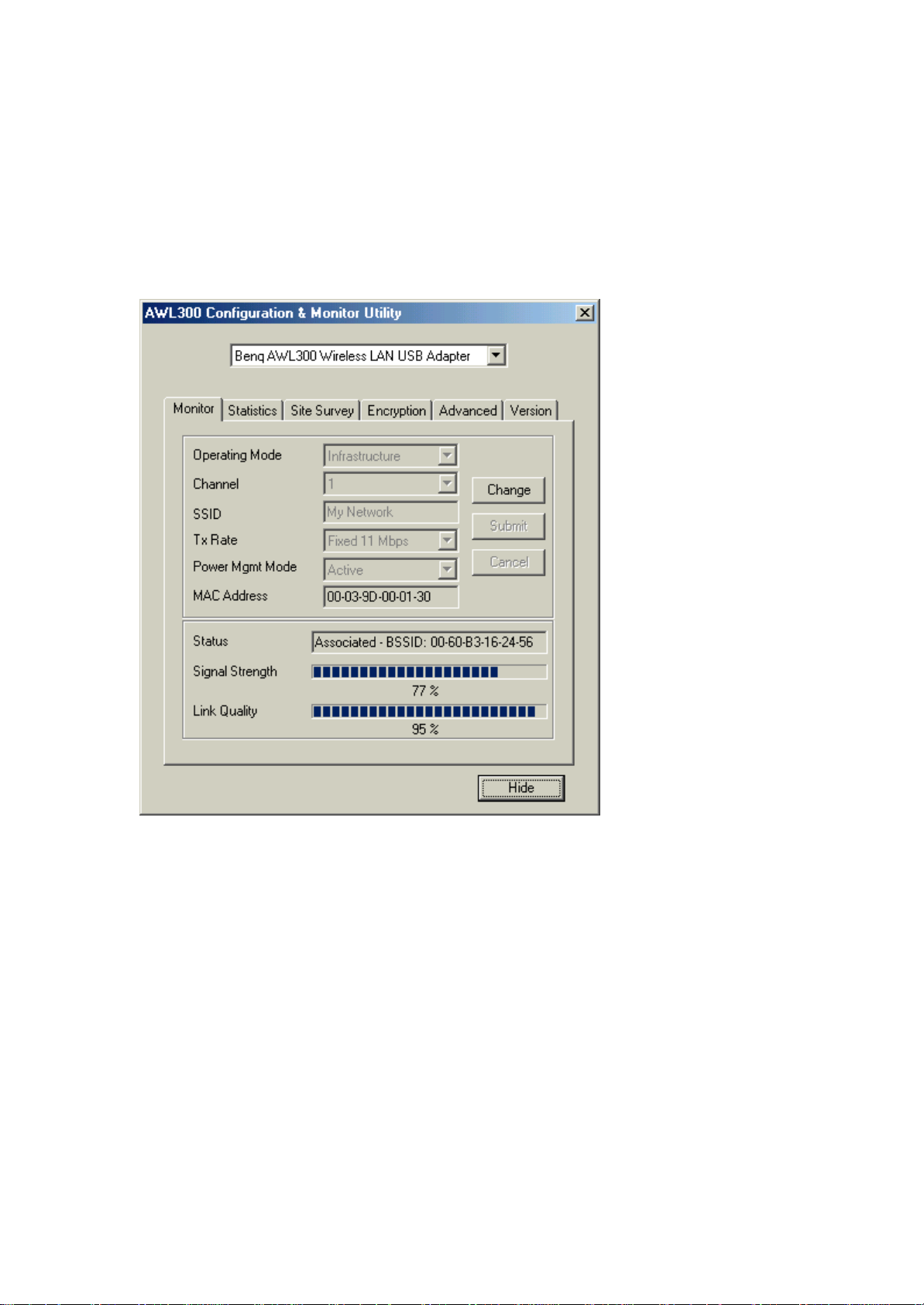

3.1 Monitor
Operating Mode
Infrastructure Mode
In this mode, the driver will scan all available channels continuously until one or
more Access Points which matches its SSID are found. When it gets to that point, it
will try to authenticate and associate with the Access Point.
Ad Hoc Mode
In this mode, the driver will scan for 5 seconds to look for an existing Ad Hoc
network which uses the same SSID.
Channel
This field shows the current radio channel used for an active connection.
AWL300 USB Adapter User Manual 16
Benq Wireless LAN
SSID
Service Set Identity
Tx Rate
This field shows the current transmit rate which are being used for an active
connection.
Power Mgmt Mode
Power Management Mode – Active or Power Save
MAC Address
MAC Address of this USB Wireless LAN Adapter
Status
The current state of the driver is displayed in this field. If the state reveals
“Associated,“ it means that the normal flow of operation is in Infrastructure mode.
This shows that the PC is already connected to access point and BSSID is also shown
in the form of hex digits. At the same time, the networking is available for the device.
In “Scanning ” state, it means that the node can not detect the SSID to get an access
point within range and is searching for an available access point. Also, if the driver
failed to initialize for some unknown reasons, this field will display an error message.
Link Quality
This field reveals the quality of the current connection. Only when the node is in
Infrastructure Mode does the Link Quality bar graph become active. The bar graph
displays the link quality between the node and its Access Point.
Signal Strength
Only when the node is in Infrastructure Mode does the Signal Strength bar graph
become active. This bar graph shows normalized signal strength as reported by the
radio, averaged over all frames over 100 bytes long which are received from the
Access Point.
AWL300 USB Adapter User Manual 17
Benq Wireless LAN
3.2 Statistics
The Statistics Page shows the counts of packets transmitted and received. Press Clear
button to set these numbers to zero.
AWL300 USB Adapter User Manual 18
Benq Wireless LAN

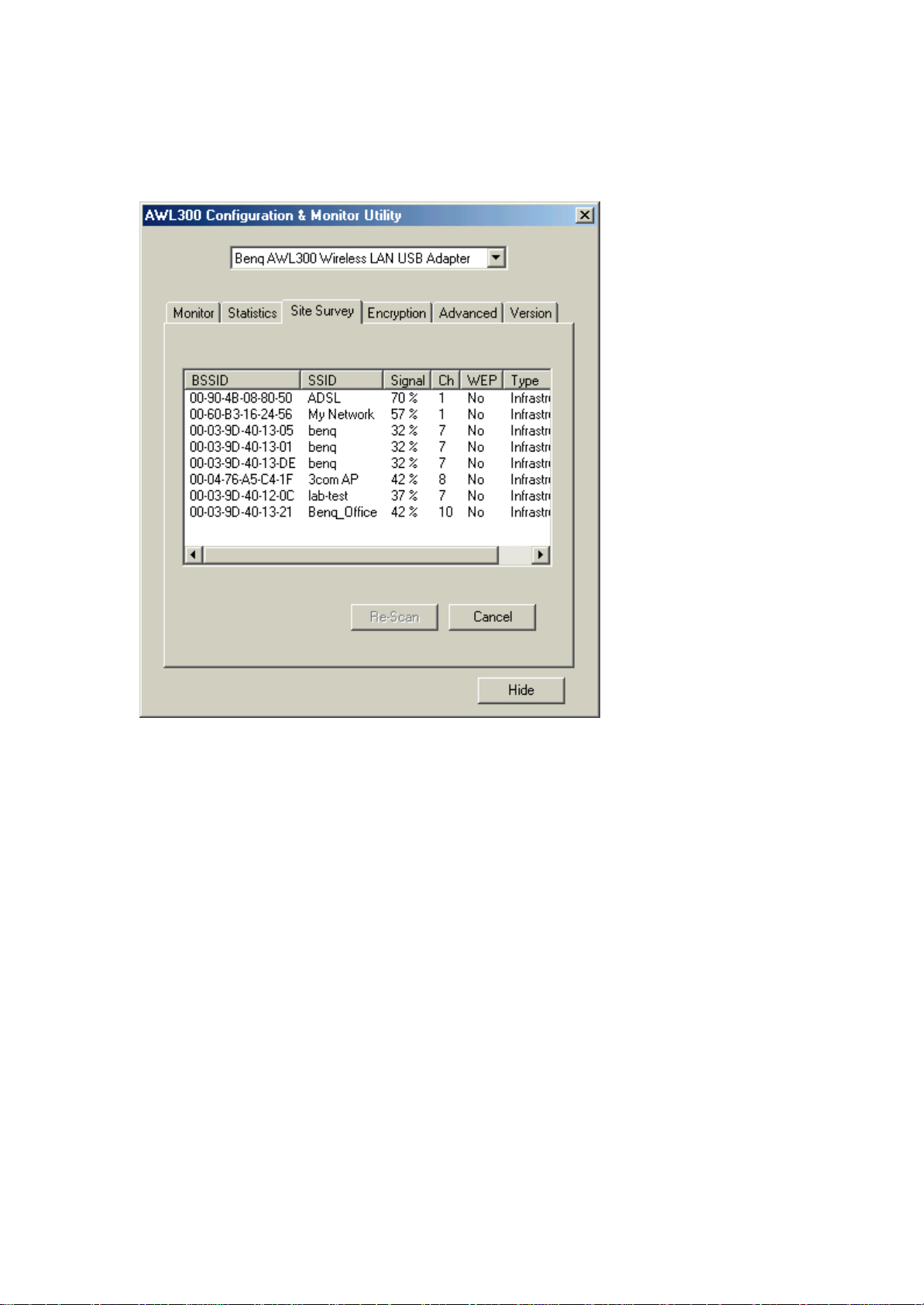

3.3 Site Survey
The Site Survey Page shows the APs nearby. Press Re-Scan button to search APs
nearby.
AWL300 USB Adapter User Manual 19
Benq Wireless LAN

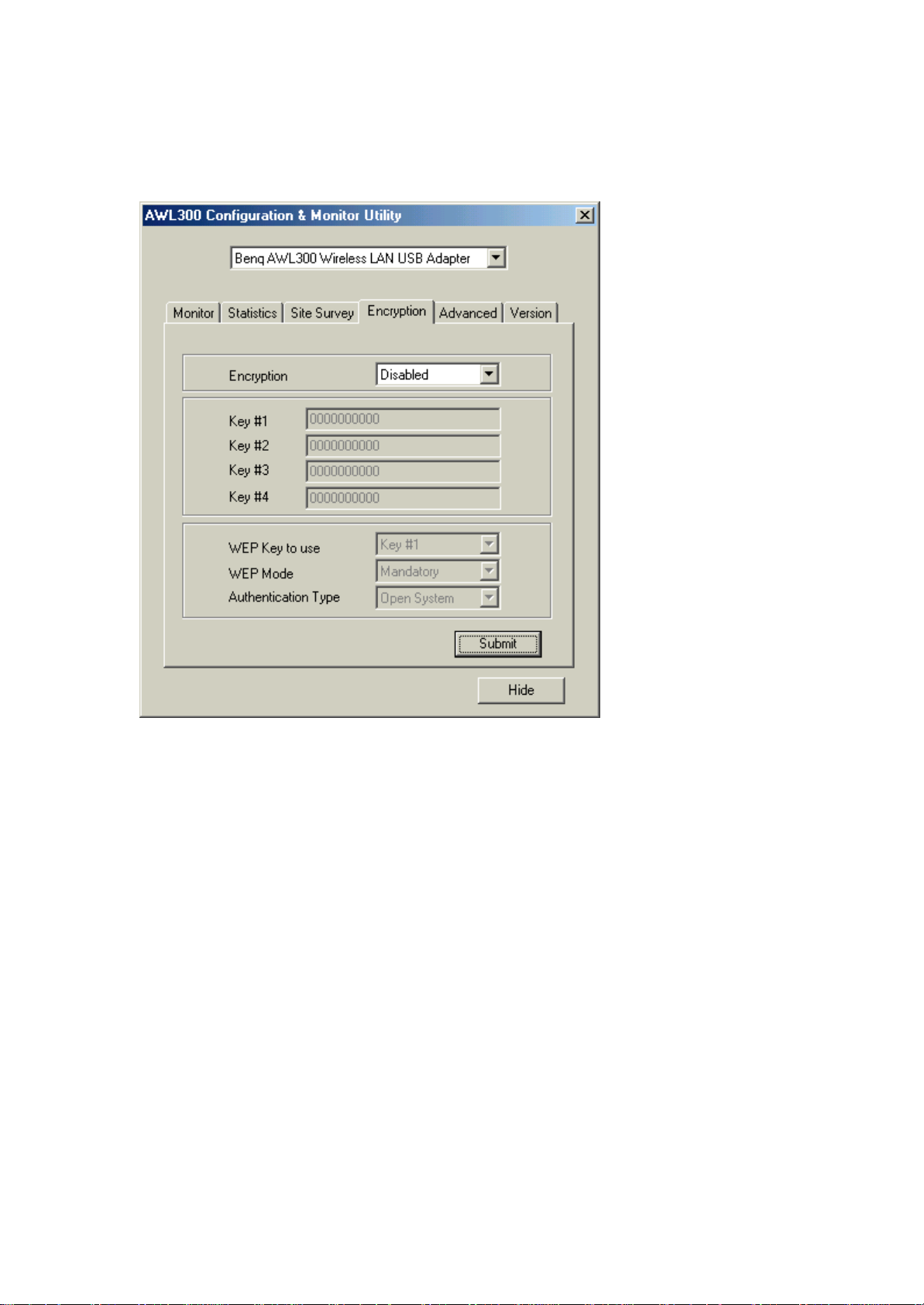

3.4 Encryption
According to WEP function select, this panel allows the entry of 64-bit encryption
and 128-bit key. Each key must consist of hex digits to be written to the driver and
registry. This means that only digit 0-9 and letters A-F are valid entries. Therefore, if
entered incorrectly, the program will not write keys to a driver.
Encryption
Disabled – Disable WEP function
64 Bit – Enable WEP with 64 bit Key
128 Bit – Enable WEP with 128 bit Key
WEP Key to use
Select one of these four keys.
WEP Mode
Select WEP mode – Mandatory or Optinal
AWL300 USB Adapter User Manual 20
Benq Wireless LAN
Authentication Type
Select Open System type or Shared Key type

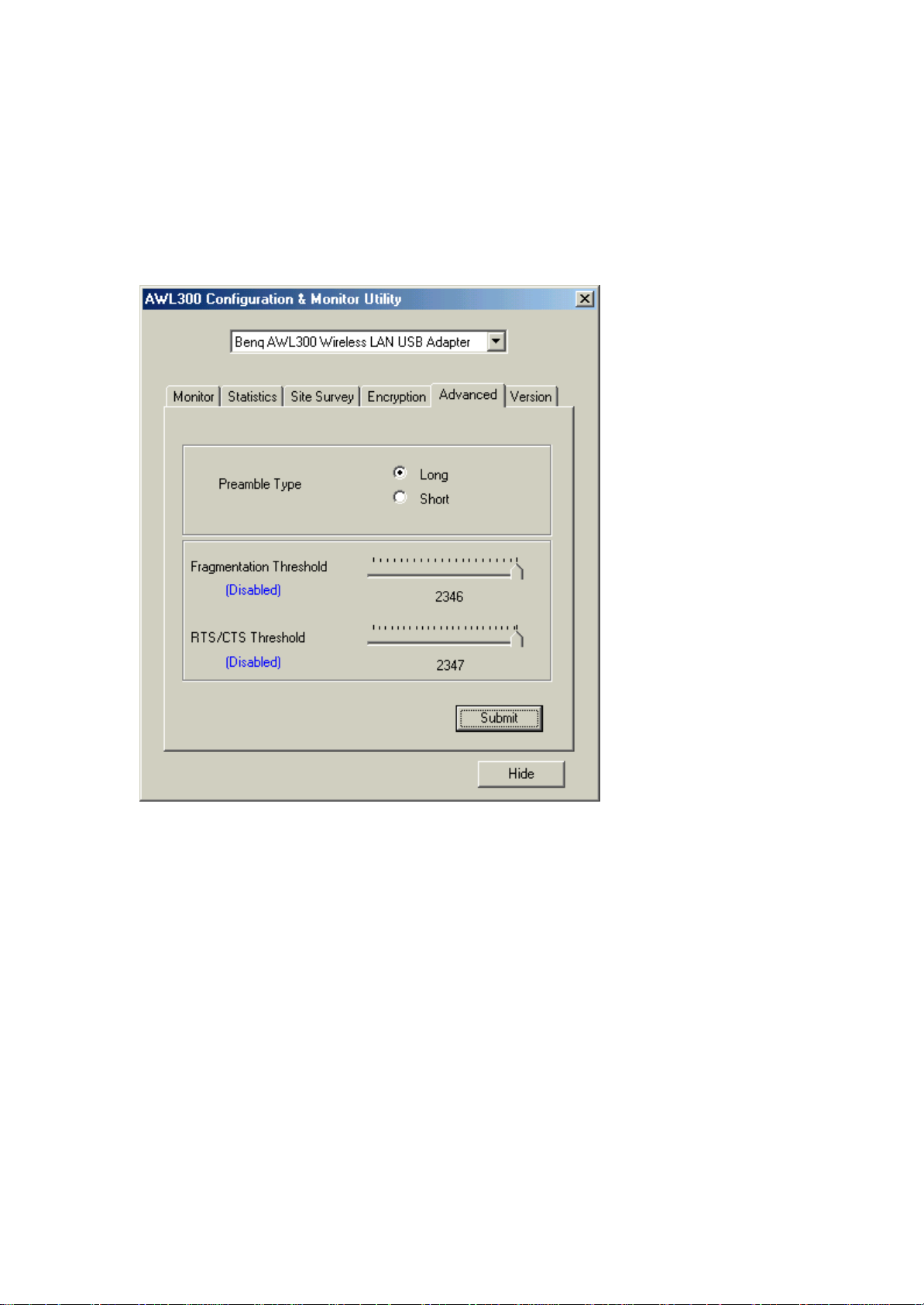

3.5 Advanced
The Advanced Page sets the preamble type and threshold of fragmentation and
RTS/CTS. Press Submit button to apply your changes
AWL300 USB Adapter User Manual 21
Benq Wireless LAN

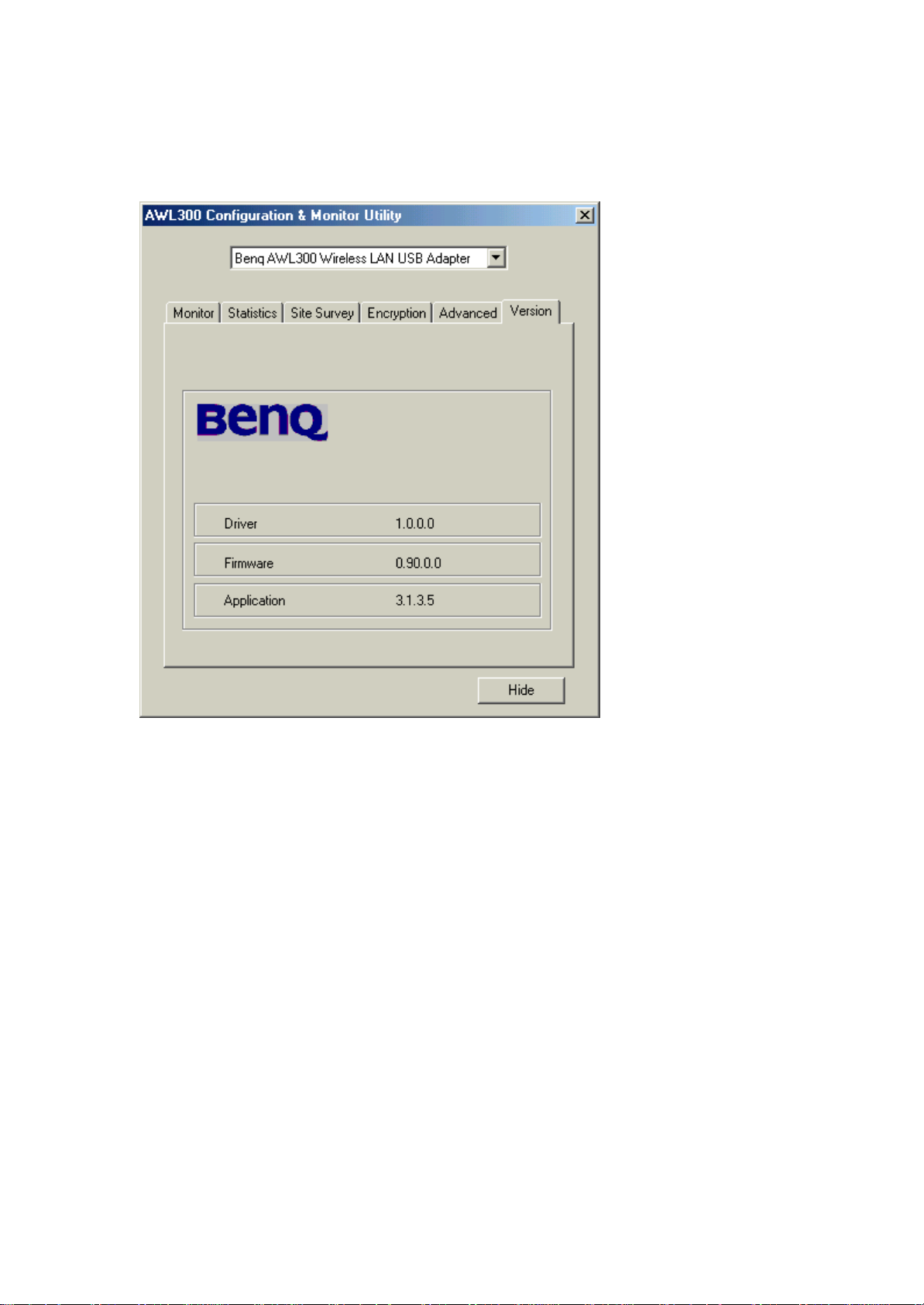

3.6 Version
You may learn the product version including the detail of Driver, Firmware, and
Application from this “About” tab. When users want to report their problems to
technical support, they must use this version number.
AWL300 USB Adapter User Manual 22
