Page 1
str ip

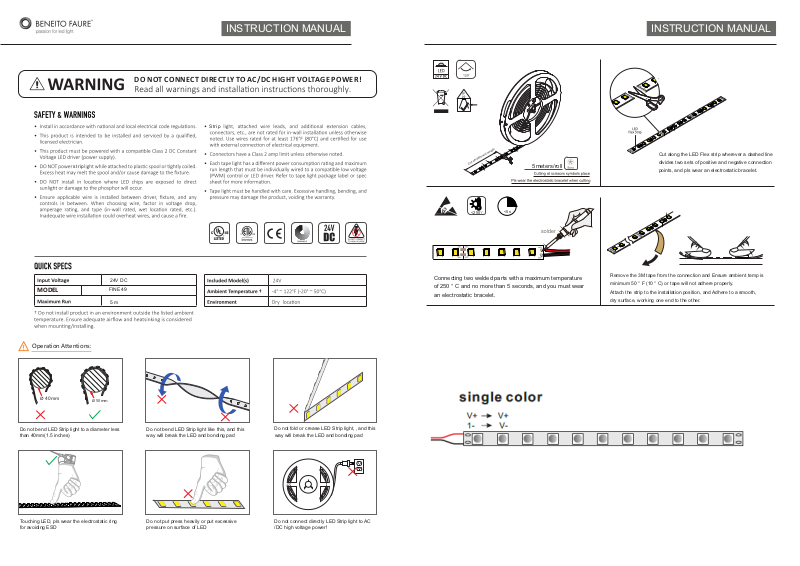

INSTRUCTION MANUAL
DO NOT CONNECT DIRECTLY TO AC/DC HIGHT VO LTAGE POWER!
Str ip
5meters/roll
INSTRUCTION MANUAL
Cut along the LED Flex strip wherever a dashed line
divides two sets of positive and negative connection
points, and pls wear an electrostatic bracelet.
24V DC
MODEL
FINE 49
5 m
Operation Attentions:
Ø 40
mm
Do not bend LED Strip light to a diameter less
than 40mm(1.5 inches)
mmØ 50
Do not bend LED Strip light like this, and this
way will break the LED and bonding pad
Do not fold or crease LED Strip light, , and this
way will break the LED and bonding pad
<25 0
<5s
Connecting two welded parts with a maximum temperature
of 250 ° C and no more than 5 seconds, and you must wear
an electrostatic bracelet.
Remove the 3M tape from the connection and Ensure ambient temp is
minimum 50 ° F (10 ° C) or tape will not adhere properly.
Attach the strip to the installation position, and Adhere to a smooth,
dry surface, working one end to the other.
Touching LED, pls wear the electrostatic ring
for avoiding ESD
Do not put press heavily or put excessive
pressure on surface of LED
Do not connect directly LED Strip light to AC
/DC high voltage power!
