Product: TGP71EU & TGP73EU
12.12.2000
SERVICE MANUAL
Gp_71ugbTOC.fm
Benefon Twin
TGP71EU
Benefon Twin DS (Dual SIM)
TGP73EU
1
Product: TGP71EU & TGP73EU
12.12.2000
CONTENTS
1.0 PRODUCT FEATURE DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.1 Network standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.2 Physical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.3 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.4 SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.5 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
1.6 Operating voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
1.7 Battery packs and operating times . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
1.8 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
1.9 Main features of Benefon Twin . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.1 User changeable mask . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.2 Location based services . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.3 T9, text input with nine keys . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.4 Abbreviated dialling memory . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.5 Recent calls memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.9.6 Personal organiser (Clock & calendar functions) . . . . . . . . 1 - 3
1.10 Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
1.11 PRODUCT FAMILY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
2.0 OWNER’S MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
3.0 LIGHT CAR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
4.0 TG Local feature description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
4.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
4.1.1 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
4.1.2 Hardware requirements of TG Service software . . . . . . . . 4 - 1
4.2 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
4.3 List of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2
Gp_71ugbTOC.fm
4.1.3 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
4.3.1 File menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
4.3.2 Edit menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4
4.3.3 View menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
4.3.4 Device menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
4.3.5 Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7
2
Product: TGP71EU & TGP73EU
12.12.2000
4.3.6 Tuning menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
4.3.7 Help menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9
5.0 TECHNICAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
5.0.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
5.0.2 Antenna connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
5.0.3 System connector description . . . . . . . . . . . . . . . . . . . . . . 5 - 1
5.0.4 Charging & battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4
5.0.5 HW and SW version numbering . . . . . . . . . . . . . . . . . . . . 5 - 5
5.1 Logic/audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6
5.1.1 General description for the baseband . . . . . . . . . . . . . . . . 5 - 6
5.2 RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
5.2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
5.2.2 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
5.2.3 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
5.2.4 Synthesizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
5.2.5 Power supply and power switching . . . . . . . . . . . . . . . . . 5 - 11
5.2.6 Antenna and antenna connector . . . . . . . . . . . . . . . . . . . 5 - 11
5.2.7 Parts list OC2300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 12
5.3 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 29
5.3.1 Parts list OK2300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 29
5.4 MECHANICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 33
Gp_71ugbTOC.fm
3
Product: TGP71EU & TGP73EU
12.12.2000
1.0 PRODUCT FEATURE DESCRIPTION
1.1 Network standard
Benefon Twin is a dual band GSM phone operating seamlessly between the bands.
For GSM900 Benefon Twin operates only on primary P-GSM band, i.e. transmitting
on 890 - 915 MHz (mobile transmit, base receive) and receiving on 935 - 960 MHz
(base transmit, mobile receive) For GSM1800 Benefon Twin transmits on
1 710 - 1 785 MHz ( m obile transmit, base receive) an d receiving on 1 805 - 1 880
MHz (base transmit, mobile receive). Benefon Twin does not support E-GSM band.
Maximum output power on low er band is 2 W and on up per band 1 W. Th us Benefon
Twin belongs to power class 4 on lower band and to power class 1 on higher band.
Benefon Twin standard GSM Full Rate speech coding and Enhanced Full Rate
speech coding EFR. Benefon Twin supports full duplex, circuit switched asyncronous data services on data rates 300 bit/s, 1200 bit/s, 4.8 kbit/s, 9.6 kbit/s and
14.4 kbit/s. These data rates can be used for sending PC FAX. Additionally Twin
supports V.1 10 ISDN connection, Rad io Link Protocol , RLP., and a set of GSM 0 7.07
AT commands. No syncronous data ser vi ces an d n o al ter n ate sp eech /da t a ca l ls ar e
supported.
Benefon Twin supports Short Message Service and Short Message Service Cell
Broadcast. Depending on the network configuration Twin also supports concatenated short messages up to length of 640 c haracters.
1.2 Physical dimensions
Maximum length of the Twin is 1 12 mm; maximum width 49 mm and maximum thickness is 27 mm.
Weight of the phone is 108 g with 650 mAh Li-On battery pack and 126 g with 800
mAh NiMH and 1050 mAh Li-On battery pack.
1.3 Display
Display is a custom full-graphic display. It will have 48 pixel rows and 100 columns.
1.4 SIM
Benefon Twin is using small plug-in SIM card. SIM interface is guaranteed to work
only with 5 V SIM cards.
2gp_71gb.fm
1
1.5 Connectors
Benefon Twin has offers several types of connectors, namely
- battery connector with 4 connectors for battery pack
- charging connector with 2 connectors for chargers
- SIM connector with 6 pins for SIM card
- RF -connector (female SMA type) for integral antenna
- system connector with 16 pins for various accessories
There is no auxiliary RF -connector. However it’s possible to detach integral antenna
and connect an external antenna to its connector.
1.6 Operating voltages
Product: TGP71EU & TGP73EU
12.12.2000
Maximum operating voltage is 5.2 V, minimum voltage 3.3 V. Nominal voltage 4.0 V.
1.7 Battery packs and operating times
Initially three battery packs are available for Benefon Twin, namely
Battery type Talk time up to Stand-by time up to
Li-On 650 mAh 320 min 120 h
NiMH 800 mAh 375 min 125 h
Li-On 1050 mAh 540 min 200 h
NiMH battery pack contains t hree NiMH cells and Li-On battery packs one Li-On cell.
Talk and standby times vary a lot depending on the network conditions.
1.8 Accessories
- belt clip
- portable hands-free kit
2gp_71gb.fm
- light car cradle
- simple hands-free kit to use in car integrated to cigarette lighter adapter
charger
- cigarette lighter adapter charge r with hands-free kit
- two different mains chargers, other slightly fa ster than other
- PC support software for administration of abbreviated dialling entries and
sending SMS to several recipients
- PC adapter cable for PC support software and data services
2
Product: TGP71EU & TGP73EU
12.12.2000
1.9 Main features of Benefon Twin
This section list some of the most important features of Benefon Twin
1.9.1 User changeable mask
Lens mask framing the display can be detached and changed by the user. Many different colour options are available.
1.9.2 Location based services
Benefon Twin has a capability to send information of the base stations it can receive.
This information is wrapped into a SMS message including some service requests.
Network can calculate the location of the mobile based on this network information.
Thereafter network service can handle the service request and reply to the mobile
according to its locati on. This fea ture is avail able only i n limited nu mber of ne tworks.
1.9.3 T9, text input with nine keys
While writing text into Benefon Twin, user may switch T9 active and make the writing
significantly easier and faster. While using T9, user has to press a key only once per
letter and the user interface suggests matching words to user.
1.9.4 Abbreviated dialling memory
Up to 255 Abbreviated Diallin g entries on SIM card are supported. There’s no ADN
memory in the phone’s memory.
1.9.5 Recent calls memory
Twin separates calls to three different categories and stores the associated telephone numbers if available from the network. Twin stores last 15 dialled calls, last 10
unanswered calls and last 10 answered calls.
1.9.6 Personal organiser (Clock & calendar functions)
Benefon twin has an in-built real time clock and calendar that operates for a significant period even if battery is detached. Several features on the user interface of the
phone use this information, namely recent call timestamps, text message handling,
alarm clock and calendar with its reminders.
2gp_71gb.fm
3
1.10 Manufacturer
BENEFON OYJ
P.O. Box 84
(Meriniitynkatu 11)
FIN 24101 SALO
FINLAND
Telephone: + 358 2 77 400
Facsimile: + 358 2 332 633
Product: TGP71EU & TGP73EU
12.12.2000
2gp_71gb.fm
4
1.11 PRODUCT FAMILY
- BENEFON TWIN HANDPORTABLE TGP71EU / TGP73EU
- MAINS CHARGER
- CIGARETTE LIGHTER CHARGER
- LIGHT HOLDER
- PORTABLE HANDS FREE
- BENEWIN
- BELT CLIP
Product: TGP71EU & TGP73EU
12.12.2000
2gp_71gb.fm
5
Product: TGP71EU & TGP73EU
12.12.2000
2gp_71gb.fm
6
Product: TGP71EU & TGP73EU
12.12.2000
2gp_71gb.fm
7
2.0 OWNER’S MANUAL
1user_gb.fm 1
Product: TGP71EU & TGP73EU
12.12.2000
3.0 LIGHT CAR INSTALLATION
6gp_71gb.fm
1
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.0 TG Local feature d escription
Local Service Mode
4.1 General
4.1.1 Scope
This document briefly describes the TG Service software for Benefon products
belonging to the Twin Generation, namely Benefon Twin, Benefon Twin DS, Benefon
Q, Benefon Esc! and Benefon Track.
4.1.2 Hardware requirements of TG Service software
The use of TG Service software requires a proper service adapter ( APD 70 ). The
standard data adapter for TG products does not work with TG Service software.
It’s advisable co nnect the s ervic e PC to also a Rohde&Sw artz CMD 55 or CTS 55 or
a Wavetek 4400M. This is required for automatic tuning.
4.1.3 Revision history
This document is ba sed on TG Service sof tware version 1.8.
4.2 Getting started
First connect the service adapter to th e PC and phone. Che ck that the COM port setting is correctly set in TG Service software in menu item “Device->Options->Phone”.
The TG Service software works best on a phone without a SIM. During power-up:
reading the content s of a SIM car d uses quite a lo t of phone ’s p roc essing p owe r an d
during this time the Service mode software works slowly. Using TG Service software
without a SIM card in the phone overcomes this problem.
3gp_71gb.fm
1
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
To establish a connection between the TG Service softwar and the phone do following
1. Connect the phone to the Service adapter an d check that ph one can be
started up. You can us e a powe r supp ly (reco mme nded) or a pro perly cha rged
battery.
2. Click the leftmo st Toolbar button to establish a connection between TG
Service software and the phone. Check the “Communication trace” for this.
3. Click the second Toolbar button from the left to change to phone mode into
Service (Local) mode. Now you can use all the functions available in TG
Service software. Note that some functions work only in Normal Operation
mode and some functions work only in Service (local) mode.
While the phone is control le d by TG Servic e mo de softw ar e, the user can read the
phone type, HW version and SW version number from the phone’s display.
4.3 List of Features
The opening screen of the service software looks like this.
3gp_71gb.fm
2
4.3.1 File menu
The file menu al lows the user to handl e th e t unin g p ar amet er f ile. I t c ont ain s the tuning parameters of an individual phone.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.1.1 Load from mobile
With this option user can read all the tuning parameters from the phone’s non-volatile memory.
4.3.1.2 Save to mobile
With this option user can save the tuning parameters from the phone.
4.3.1.3 Load from file
With this option user can read all the tuning parameters from PC.
4.3.1.4 Save to file
With this option user can save the tuning parameters to a file onto PC.
3gp_71gb.fm
3
4.3.2 Edit menu
This menu item has only one functi on to cl ea r th e trace box at the bottom of the window.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.2.1 Clear Trace Log
This menu item allows user to clear the trace log at bottom of TG Service software
window.
3gp_71gb.fm
4
4.3.3 View menu
This menu item allows the user to adjust some TG Serv ice software window settings.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.3.1 Toolbar
With this setting the user can toggle the toolbar on and off. With the visible Toolbar,
the user can access the most often needed functions faster than through the menu.
4.3.3.2 Status bar
With this setting, the user can toggle the Status Bar on and off. With the visible Status Bar the user can get some help on different features and follow the signalling
traffic between the PC and phone.
4.3.3.3 Keypad window
With this setting, the user can hide and show the Keypad window. With the visible
Keypad window, the user can “press” some keys on the phone by clicking the Keypad window on the PC screen. The Keypad window is available only in the Normal
operating mode, no t in Service mo de . Note, the user c an toggle the Keyp a d wi n dow
on/off with the Toolbar by clicking the third button from the left. Note that not all the
TG Phones have separate audio volume keys.
4.3.3.4 Channel window (Radio service window)
In this menu item, the user can open a window to control the radio part. Functions
include setting the active TX, RX and MON channels, type of burst transmitted etc.
This window can be used only in Service mode.
Note the user ca n toggle the Channel window on/off with the Toolbar by clickin g the
fourth button from left.
4.3.3.5 Show RFG settings
In this menu item, it shows RF generator settings when RX Gain control is active.
3gp_71gb.fm
5
4.3.4 Device menu
This menu item allow s the user to in itial ise a co nnecti on be tween the PC an d phone
plus toggle the mode of the ph one between Service (Lo c al ) mode and Normal Oper ation mode.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.4.1 Connected
By clicking this line the user can establish a connection between the PC and phone
and also disconnect. Note, that this men u ite m can be accessed through th e to olba r
of clicking the leftmost button.
4.3.4.2 Local mode
By clicking this line, the user can change the phone mode to Service (Local) mode
and back to the normal operating mode. Note that this menu item can be accessed
through toolbar by clicking the second button from the left.
4.3.4.3 Options
In this menu item user change var iou s setti n gs of the TG Se rvic e softwa re . The u se
of default settings is recommended.
3gp_71gb.fm
6
4.3.5 Service menu
This menu item allows the service personnel to use the service functions needed
during unit repair and view related tune-up values.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.5.1 View tuning values
This menu item allows t he u s er to view the LCD contrast se tti ng an d b atte r y vol t a ge
correction value. A proper and valid battery voltage correction value is very important for the battery charging algorithm. The value is used to stop the charging process at the right point in time.
4.3.5.2 View TX tuning values
This menu item allows the user to view the tuning values related to the transmitter
part.
4.3.5.3 View RX tuning values
This menu item allows the use r to view the tuni ng values rela ted to the recei ver p art.
4.3.5.4 Sim Lock
4.3.5.5 MoviStar Sim Lock
4.3.5.6 Reset phone code
This menu item allows the user resets phone code to 1234.
3gp_71gb.fm
7
4.3.6 Tuning menu
This menu item allows the user to tune an individual setting related to the phone.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
4.3.6.1 TX Power ramp
This menu item allows the user to adjust the TX power levels on both GSM and DCS
bands.
4.3.6.2 RX Gain control
This menu item allows the user to adjust the RX gain control values for different signal levels. A routine for automatic adjustment with CMD 55 is available.
4.3.6.3 LCD & Buzzer test
This menu item allow s user t o change t he L CD con trast se tting. N ote th at too dark a
setting may cause the display to “flicker” in the light of fluorescent tubes.
Buzzer test enables to check the buzzer functioning.
4.3.6.4 Battery values
This menu item allows the user to measure and store the battery voltage correction
value. Be sure to apply to the phone’s exact operating volta ge of 4,32 V with external
power adapter.
3gp_71gb.fm
8
4.3.7 Help menu
This menu allows the user to check the version of the TG Service software.
Product: TGP71EU & TGP73EU / Local Service
12.12.2000
3gp_71gb.fm
9
Product: TGP71EU & TGP73EU /
12.12.2000
5.0 TECHNICAL DESCRIPTION
5.0.1 General
Benefon Twin and Benefon Twin DS has two circuit boards, PCBs. Main PCB has all
the GSM specific function on board, both rad io and baseban d section. Auxil iary PCB
provides a platform for LCD display and keypad. Circuit boards are connected to
together with a 32 pin connector.
5.0.2 Antenna connector
Antenna connector is SMA compatible and tilted 5 degrees away from the user
head. Connector is matched to 50 ohms.
5.0.3 System connector description
This section describes the female system connector in the phone.
5.0.3.1 Pin numbering
With Benefon Twin the system connector pin numbering starts from the right when
looking the phone from front, i.e. the display side.
Note that in other TG products the system connector may be assembled upside
down. Another way to re member pin numbering is to know that the charg ing pins are
the pins 17-20, i.e. the num b er ing starts as far as possible from charging conne c tor.
Note that pi ns NMEA pins are act i ve only in Benefon Esc! and Benefon Locus.
Pin
Nbr
1 AGND Analog Ground 0V
2RS1CTS /
3 EXTMIC External MIC line 0V -1.5V pp
NAME FUNCTION STATE IN/
!2CINT
RS1 Clear to Send /
I2C Interrupt (NMT)
0V
2.7V
DC
OUT
in
in
out
9gp_71gb.fm
4RS1RTS /
ACCPWR
5 EXTERP External ERP line +
RS1 Ready to Send /
Accessory pwr control0V2.7V
BOOT pin
0V -1.5V pp
0V/12V DC
out
out
in
1
Product: TGP71EU & TGP73EU /
12.12.2000
6 CHARGE Charging Current +
in
Power On
7 HEADSETDET Headset Detector /
0V
in/out
Accessory pwr control
2.7V
8 RS1RX RS1 Receive Data 0V
in
2.7V
9 VBAT Battery Voltage 2.7V -6.0V out
10 RS1TX RS1 Transmit Data 0V
out
2.7V
11 NMEAIN /
I2CDATA
12 NMEAOUT /
I2CCLK
13 AUXDET Headset Hook /
NMEA input (GPS) /
I2C data (NMT )
NMEA output (GPS) /
I2C clock (NMT)
Accessory Detector
0V
2.7V
0V
2.7V
0V
2.7V
in/out
out
in
14 RS2RX RS2 Receive Data 0V
2.7V
15 RS2TX RS2 Transmit Data 0V
2.7V
16 DGND Digital Ground 0V
17 NC Not connected in
18 DGND Digital Ground 0V
19 NC
Not connected
20 CHARGE Charging Current +
Power On
5.0.3.2 Pin descriptions
PIN 1: An alog Grou nd sho uld be conne cted to d igital g roun d at only one p oint
inside the mobile phone. This point is the analog ground pin of the first
microphone amplifier stage.
in
out
in
in
9gp_71gb.fm
PIN 2: CTS signal for asynchronic serial line number 1 (RS232). Used for data
communication between the GSM mobile phones and PC. With NMT
phones this pin is used to detect I2C interrupt. The pin is normally in
logical ‘1’ state and I2C i nterrupt pulls the pin to logical ‘0’.
2
Product: TGP71EU & TGP73EU /
12.12.2000
PIN 3: External MIC line is used as an audio input for the mobile phone. There
is a DC level in this pin for headset. The DC level h as b ee n ma de by
connecting the pin to 2.2V voltage via 2.2 kohm resistor.
PIN 4: RTS sig nal for asynchro nic serial line n umber 1 ( RS232). Used for da ta
communication between the GSM mobile phones and PC. When there
is other accessory than data cable connected to the mobile phone this
pin can be used to control the accessory power. Logical ‘1’ turns the
accessory power on and logical ‘0’ turns the accessory power off. With
MiniHF this same feature ca n be used to mute the audio line s.
PIN 5: If boot signal is 12V when resetting the phone, the phone will start
performing software from the BOOT ROM memory. This is used for
FLASH downloading. Otherwise this pin is used as an EXTERP pin to
get the analog audio out from the mobile phone. The analog audio is
connected to this pin via 10 uF capacitor and there is not any DC level
in audio out signal.
PIN 6: Charging current input, max. 1.0A. Connecting a char ger to this pin w ill
also power on the mobi le phon e. Pow ering o ff the m obile h appen s wit h
EMMI command (see pins 14 & 15).
PIN 7: The headset detector signal is normally at logic ‘1’ state (2.7V). When
pulling this signal to ground outside the mobile the mobile knows that
either the headset or the MiniHF car kit is connected to the phone.
When the mobile phone pulls this signal to ground it disables the
accessory regulator preventing the accessory to take power. With
MiniHF this same feature can be used to mute the audio lines. This can
be done with next circuit:
With this circuit the 10 0k r esisto r can be om itted if the in/out pin ha s an
internal pull-up when in inpu t mode. The maximum voltage of VCC
connected to 100 kohm resistor in the accessory side is 2.7V. The in/
out pin is in output mode only when there is a need to power off an
accessory or to mute the audio lines of MiniHF car kit.
PIN 8 & 10: Asynchronic serial line number 1 (RS232).
PIN 9: The maximum current from the VBAT line is 300 mA.
9gp_71gb.fm
PIN 11 & 12: NMEA 0183 signals for GPS and I2C lines for NMT phones.
PIN 13: Hook line for active headset and MiniHF detection line. This line is
normally at logic ‘1’ state (2.7V). When pulling this signal to ground
after the headset accessory has been detected the mobile phone
assumes that the hook of the headset has been pressed.
If pins 13 and 7 have been pulled to ground and the charger has been
3
Product: TGP71EU & TGP73EU /
12.12.2000
connected to pin 6 (CHARGE) within 100ms, the mobile phone
assumes that the connected accessory is MiniHF car kit.
If this signal has been pulled to groun d and th e headset detector (pin 7)
is in logic ’1’ state the mobile assumes that there is an accessory using
serial port connected to the system connector.
PIN 14 & 15: Asynchronic serial line number 2 (RS232) for accessories and for
debugging mobile’s software. This line does not have CTS or RTS
signals. The data is transferred according EMMI protocol defined in
GSM phase2 specific ation 11 .10-1 section 3 6.3.5.; 9600 bit/s, 1 star t bit
(S), 8 bits (D1 to D8), no parity, 1 stopbit (E). The flow control is not
used.
PIN 16: The maximum current of DGND pin is 1,0A.
PIN 17: Not connected. If connecte d, Char ger S witch 0 ( CHGSW0) is norm ally
in logic ‘1’ sta te (2.7V) and groun de d w h en the charger is con nected to
DC jack.
PIN 18: Same as pin 16. The maximum current of DGND pin is 1.0A.
PIN 19: Not connected. If connecte d, Char ger S witch 1 ( CHGSW1) is norm ally
grounded and goes to logic ‘1’ state when the charger is co nnected to
DC jack.
PIN 20: Same as pin 6. The maximum current of CHARGE pin is 1.0A.
The maximum current of all pin s except pi ns 6, 9 and 16 - 20 is 10 mA.
5.0.4 Charging & battery
During charging the charger provides a constant current that can be cut off by the
phone. After main charging phase phone uses short current pulses to keep up the
fully charged. Charging connector uses only two leads and therefore the charging
cable and connector can be simple.
The estimate of remaining battery capacity is based on both battery voltage and
used current integra tion. Current integration means that phone makes “notes” on the
current used and the period this current was used.
9gp_71gb.fm
TG charging concept has charger options. Slow “overnight” charger and fast
charger.
TG battery concept uses to pins to read battery type. The pins can only have fixed
setting, low (g round) and high. This limits the number of battery categories to four.
Note that within a category the battery capacity can vary up to 10-15%, but the cell
type remains the same.
4
Product: TGP71EU & TGP73EU /
12.12.2000
5.0.5 HW and SW version numbering
Both HW and SW version are displayed in Service (local) mode.
From idle mode SW versio n can be r ead fro m the ph one by ke ying in *# 0000 #. Addi -
tionally this display shows also the SW compilation date.
5.0.5.1 Hardware version
HW version number consists of 8 digits like SBBRRDDZ. HW version numbers
are issued in alphabetical order (numbers preceding letters). i.e. later HW
versions come later in alphabetical order. HW version can be read with the
same key sequence as SW version.
5.0.5.2 Software version
Software version code has format X.XXXXXA, for example 1.290162F. SW version
numbers are issued in alphabetical order (numbers preceding letters), i.e. later SW
versions come later in alphab eti ca l order .
9gp_71gb.fm
5
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
5.1 Logic/audio
OC2300
5.1.1 General description for the baseband
The baseband is built with Analog Devices components.
The baseband can be devided into six major parts:
1. Enhanced GSM Processor
2. Voice Band Codec
3. Memory
4. Display
5. Power
4c2300gb.fm
Ramp
AFC
6
5.1.1.1 Enhanced GSM Processor
The EGSMP (ADI chip AD6426) performs all the baseband functions of the
layer 1 processing of the GSM interface. This includes all data encoding and
decoding processes as well as timing radio sub-system control functions.
In the EGSMP there is a DSP (speech codec and channel equalizer), main
processor ( Hitac hi H8/300H proces sor) and also the interfaces ( all the subsystem of the therminal, including the keypad, memories, display driver, SIM,
DTE and DTA data services interface and radio).

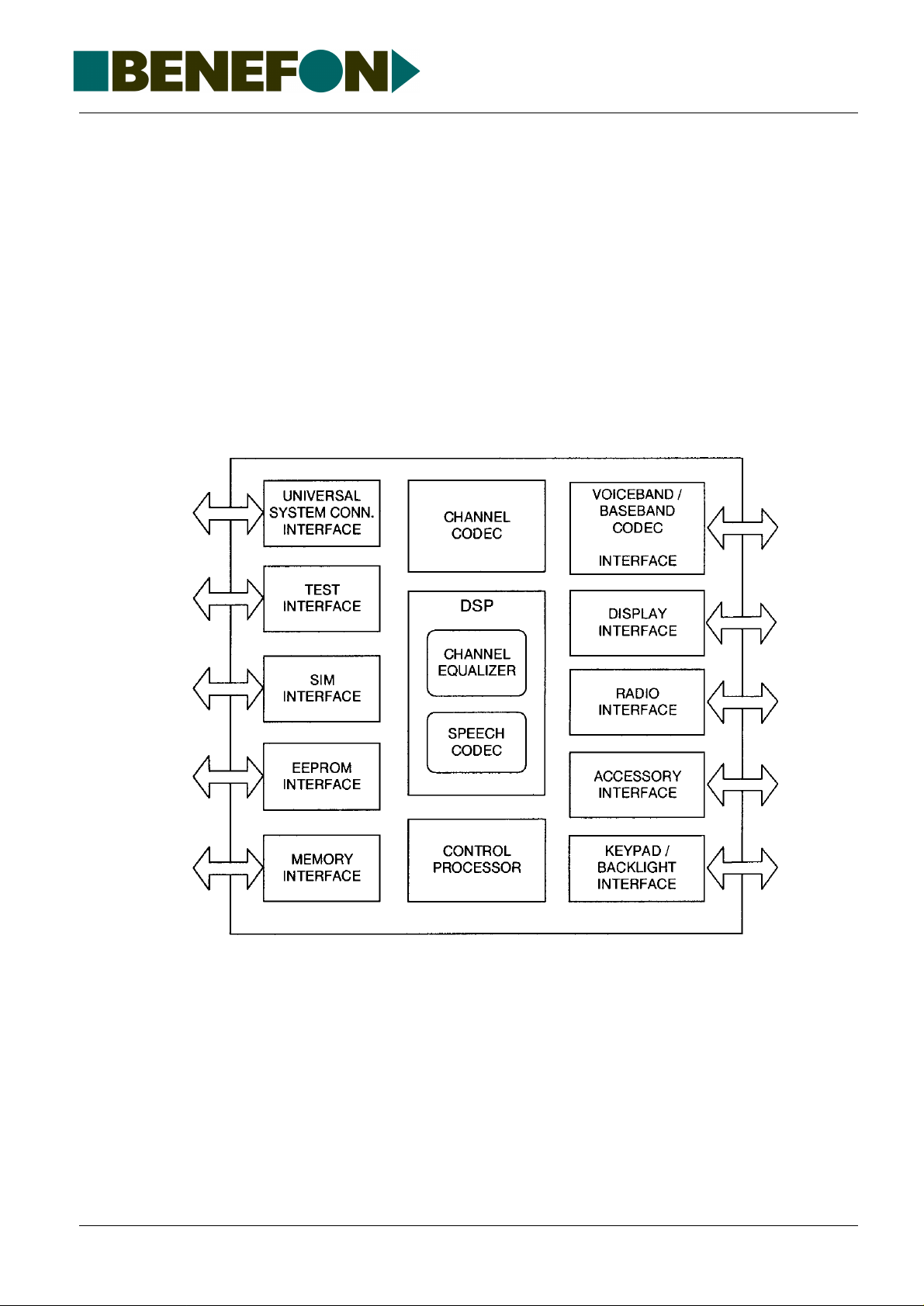

Functional block diagram
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
7
5.1.1.2 Voice Band Codec
The VBC (ADI chip AD 6425) contains c omplete codecs for the conversion of
voiceband and ba seband signa ls as well as D/A- conve rters to c ontrol th e radio
subsystem and auxiliary A/D-converter for signal monitoring purposes.
The voiceband codec is a complete analog front-end, which can interface
directly with a microphone and a speake r.
The baseband codec is a complete low power, two channel, in put/output port
with signal condit io ning. The tran smit p ath cons ist s of an on -chi p burst store, a
GMSK modulator a nd tw o h i gh spe ed D ACD s w it h o utp ut re con s tr uctio n filters.
The receive path consists of two 15 bit Sigma Delta A/D converters, which
include high performance digital filters for RF-channel selection.
The auxiliary section of the VBC consi sts of D/A converters for AFC, AGC and
for control of the transmit-burst envelope.
The auxiliary section also includes A/D converters that measures different voltages and temperatures.
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
8
5.1.1.3 Memory
The memories consists of Fla sh SRAM and EEPROM. Th e Flash and RAM are
16 bits wide with total size of 32Mbit (Flash) and 4Mbit (RAM). The EEPROM is
a 2-Wire Serial m emory with the size of 128kbit.
5.1.1.4 Display
The Display is a Seiko Epson FSTN LCD module (100*48 dots 2.7V) The
module have a possibility to be driven either in parallel or serial mode.
5.1.1.5 Power management
The power management is mainly handled by the Analog Device Regulator
(ADP3401) wich consists of four LDOs, charge pump (5V) for SIM card and
logic level translations for SIM card (3 to 5V). The chip also handles the
charging of the litium battery for the real time clock.
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
The charging of main battery is made so that the charger gives a constant
current and its switched in the phone to the right level for the battery. The
battery is Lithium, Lithium Polymer or Nickel Metal Hydride, NiMH.
4c2300gb.fm
9
5.2 RF
5.2.1 General
The RF-part is based on Hitachi dualband GSM RF-chip HD155121F, which
includes receiver circuit, offset loop modulation TX architecture and IF-VCO.
The final power amplifier is Hitachi PF08103B dualband TX module. RF parts
are powered by three 2.8V linear regulators, which provide separate power
supply for PLL synthesizer and VCO, modulator and TX-parts, and other RFparts such as AGC-amplifier and LNA etc.
5.2.2 Receiver
The incoming RX signal from antenna front-end switch X403 is fed via front
end filter X301 to the LNA-block, which consists of two amplifiers, one for each
band. After LNA-block RX signal is filtered again in filter X302 and applied to
the input of first mixe r i n th e R F- chi p w he r e the signal is converted to first IF of
225MHz. The channel filtering is accoplished with first IF filter X303. After
filtering the signal is fed back to the RF-chip for second frequency conversion.
Second IF-frequency is 45 MHz. The seco nd local oscillator signa l and 45MHz
signal required for IQ demodulation is generated in RF-chip. Automatic Gain
Control (AGC) is made by changing the gain of both mixer stages and by
adjusting the gain of 45 MHz second IF-amplifier.
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
5.2.3 Transmitter
The TX signal is genera ted by di vid in g th e 5 40 MH z IF- VCO fr eq ue ncy by 2 or
by 4. This 270 MHz signal ( 135 MHz in DCS-1800 band ) is then modulatid
with I and Q signals. The IQ modulated signal is fed to the phase comparator
where it is compar ed to th e m i xed sig na l of RF -V C O X3 04 a nd TX- VC O X4 01 .
The phase comparator output is then filtered and applied to TX-VCO. This
architecture makes it possible to use oscillators running at final frequency.
Modulated RF-signal from TX-VCO is then amplified in dualband TX module
I405 and routed via antenna front-end switch X403 to the antenna connector.
The power control loop consists of directional coupler X402, detector diodes
D401 and comparator I404.
5.2.4 Synthesizer
RF-synthesizer, which controls RF-c hannel frequenc y, is made of serial
controlled dual synthesizer chip I304 and dualband VCO-module X304. IFsynthesizer includes the same synthesizer chip I304 and IF-VCO, which is
integrated in Hitachi RF-chip, resonator circuits is excluded. Loopfilters of both
synthesizers are passive type. 13 MHz reference signal is generated in
VCTCXO module X1. The frequency of IF-synthesizer is switched 4 MHz
depending on TX / RX cycle and uset RF channel.
4c2300gb.fm
10
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
5.2.5 Power supply and power switching
The battery volt age is regulated in switchable regulators I302, I3 03 and I401.
The used supply voltage for RF-components is 2.8 V, except dual-band TXmodule.The power on/off switching is controlled from baseband-processor
using output-enabl e pin of each reg ul ato r.
5.2.6 Antenna and antenna connector
The RF-signal from antenna front-end switch X403 is applied to the antenna
connector V2. The antenna connector is SMA-type and the nominal impedance
is 50 ohm. Antenna itself is a helical type dualband antenna.
4c2300gb.fm
11
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
5.2.7 Parts list OC2300
CODE PART DESCRIPT. VALUE MANUF. TYPE
CG0101 C100 SMD capasitor X7R 100pF ñ5% Murata
CG0330 C101 SMD capasitor NPO 33pF ñ5% Murata
CG0103 C102 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C150 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C151 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C152 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0104 C160 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C161 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0101 C162 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C163 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C164 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C165 SMD capasitor X7R 100pF ñ5% Murata
CG0332 C180 SMD capasitor X7R 3.3nF ñ10% Murata
CG0471 C181 SMD capasitor X7R 470pF ñ10% Murata
CH0105 C182 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0332 C183 SMD capasitor X7R 3.3nF ñ10% Murata
CG0682 C184 *** EI KOODATTU V A RAS-
TOON ***
CG0104 C185 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C186 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C187 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C188 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0330 C190 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C191 SMD capasitor NPO 33pF ñ5% Murata
CG0104 C200 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C201 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0223 C202 SMD capasitor X7R 22nF 20% Murata
CF0105 C210 SMD capasitor 1uF 10% 6,3V X5R AVX CM105X5R105K06AT
CG0471 C211 SMD capasitor X7R 470pF ñ10% Murata
CU1106 C212 SMD tantal 10uF/16V AVX TAJB106M016R
CC2103 C213 SMD capasitor 10nF 10% 100V X7R AVX 12061C103KAT2A
CH0105 C215 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CH0105 C216 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0104 C217 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C218 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C219 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C220 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C221 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C222 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C225 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C226 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C227 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C228 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C229 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0104 C230 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0223 C232 SMD capasitor X7R 22nF 20% Murata
CU3106 C233 SMD tantal 10uF / 6V +-20% AVX TAJA106M006R
CH0105 C234 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CU3106 C235 SMD tantal 10uF / 6V +-20% AVX TAJA106M006R
CU3106 C236 SMD tantal 10uF / 6V +-20% AVX TAJA106M006R
CG0104 C237 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0103 C241 SMD capasitor X7R 10nF ñ10% Murata ‘
CH0105 C242 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0101 C243 SMD capasitor X7R 100pF ñ5% Murata
CG0680 C244 SMD capasitor NPO 68pF ñ5% Murata
CG0104 C245 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0102 C248 SMD capasitor X7R 1nF ñ10% Murata
4c2300gb.fm
12
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
CG0104 C249 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CH0105 C250 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0101 C251 SMD capasitor X7R 100pF ñ5% Murata
CG0102 C252 SMD capasitor X7R 1nF ñ10% Murata
CG0101 C253 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C254 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C255 SMD capasitor X7R 100pF ñ5% Murata
CU3106 C260 SMD tantal 10uF / 6V +-20% AVX TAJA106M006R
CG0104 C261 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0223 C263 SMD capasitor X7R 22nF 20% Murata
CG0223 C264 SMD capasitor X7R 22nF 20% Murata
CG0680 C270 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C271 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C272 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C273 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C274 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C275 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C276 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C277 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C278 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C279 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C280 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C281 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C282 SMD capasitor NPO 68pF ñ5% Murata
CG0104 C290 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0680 C291 SMD capasitor NPO 68pF ñ5% Murata
CF0105 C294 SMD capasitor 1uF 10% 6,3V X5R AVX CM105X5R105K06AT
CG0680 C295 SMD capasitor NPO 68pF ñ5% Murata
CG0471 C3 SMD capasitor X7R 470pF ñ10% Murata
CG0330 C301 SMD capasitor NPO 33pF ñ5% Murata
CG0279 C302 SMD capasitor NPO 2.7pF ñ0,25pF Murata
CG0129 C303 SMD capasitor NPO 1.2pF ñ0,25pF Murata
CG0109 C304 SMD capasitor NPO 1.0pF ñ0,25pF Murata
CG0103 C305 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0221 C306 SMD capasitor X7R 220pF ñ10% Murata
CG0109 C307 SMD capasitor NPO 1.0pF ñ0,25pF Murata
CG0100 C308 SMD capasitor NPO 10pF-+0.25pF Murata
CG0279 C311 SMD capasitor NPO 2.7pF ñ0,25pF Murata
CG0229 C313 SMD capasitor NPO 2.2pF ñ0,25pF Murata
CG0680 C321 SMD capasitor NPO 68pF ñ5% Murata
CG0270 C322 SMD capasitor NPO 27pF ñ5% Murata
CG0229 C323 SMD capasitor NPO 2.2pF ñ0,25pF Murata
CG0109 C324 SMD capasitor NPO 1.0pF ñ0,25pF Murata
CG0103 C325 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0221 C326 SMD capasitor X7R 220pF ñ10% Murata
CG0399 C327 SMD capasitor NPO 3.9pF ñ0,25pF Murata
CG0479 C328 SMD capasitor NPO 4.7pF ñ0,25pF Murata
CG0129 C331 SMD capasitor NPO 1.2pF ñ0,25pF Murata
CG0189 C332 SMD capasitor NPO 1.8pF ñ0,25pF Murata
CG0220 C333 SMD capasitor NPO 22pF ñ5% Murata
CG0101 C334 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C335 SMD capasitor X7R 100pF ñ5% Murata
CG0103 C336 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0102 C337 SMD capasitor X7R 1nF ñ10% Murata
CG0103 C338 SMD capasitor X7R 10nF ñ10% Murata ‘
CH0105 C339 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0103 C341 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0121 C343 SMD capasitor X7R 120pF ñ5% Murata
CG0121 C344 SMD capasitor X7R 120pF ñ5% Murata
CG0339 C345 SMD capasitor NPO 3.3pF ñ0,25pF Murata
4c2300gb.fm
13
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
CG0339 C346 SMD capasitor NPO 3.3pF ñ0,25pF Murata
CG0339 C347 SMD capasitor NPO 3.3pF ñ0,25pF Murata
CG0151 C348 SMD capasitor X7R 150pF ñ5% Murata
CG0103 C351 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C352 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0102 C353 SMD capasitor X7R 1nF ñ10% Murata
CU3475 C354 SMD tantal 4.7uF/10V 20% AVX TAJA475M010R
CU3475 C355 SMD tantal 4.7uF/10V 20% AVX TAJA475M010R
CG0102 C356 SMD capasitor X7R 1nF ñ10% Murata
CU3475 C357 SMD tantal 4.7uF/10V 20% AVX TAJA475M010R
CG0680 C360 SMD capasitor NPO 68pF ñ5% Murata
CG0101 C361 SMD capasitor X7R 100pF ñ5% Murata
CG0331 C362 SMD capasitor X7R 330pF ñ10% Murata
CH0105 C363 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0103 C364 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0270 C365 SMD capasitor NPO 27pF ñ5% Murata
CG0100 C366 SMD capasitor NPO 10pF-+0.25pF Murata
CH0105 C367 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0101 C368 SMD capasitor X7R 100pF ñ5% Murata
CP2223 C371 SMD film capasitor 22nF/16V +-5% Panasonic ECHU1C223JB5
CG0152 C372 SMD capasitor X7R 1.5nF ñ10% Murata
CH0105 C373 SMD capasitor 1uF/-20/+80%/16V TaiyoYuden EMK212 F105Z00T
CG0102 C374 SMD capasitor X7R 1nF ñ10% Murata
CG0152 C375 SMD capasitor X7R 1.5nF ñ10% Murata
CP2223 C376 SMD film capasitor 22nF/16V +-5% Panasonic ECHU1C223JB5
CG0102 C378 SMD capasitor X7R 1nF ñ10% Murata
CG0100 C380 SMD capasitor NPO 10pF-+0.25pF Murata
CG0100 C381 SMD capasitor NPO 10pF-+0.25pF Murata
CG0569 C382 SMD capasitor NPO 5.6pF ñ0,25pF Murata
CG0103 C383 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0220 C384 SMD capasitor NPO 22pF ñ5% Murata
CG0689 C385 SMD capasitor NPO 6.8pF ñ0,25pF Murata
CG0689 C388 SMD capasitor NPO 6.8pF ñ0,25pF Murata
CG0331 C389 SMD capasitor X7R 330pF ñ10% Murata
CG0100 C390 SMD capasitor NPO 10pF-+0.25pF Murata
CG0220 C401 SMD capasitor NPO 22pF ñ5% Murata
CG0220 C402 SMD capasitor NPO 22pF ñ5% Murata
CG0101 C403 SMD capasitor X7R 100pF ñ5% Murata
CG0103 C404 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C405 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0103 C406 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0100 C407 SMD capasitor NPO 10pF-+0.25pF Murata
CG0100 C408 SMD capasitor NPO 10pF-+0.25pF Murata
CG0101 C409 SMD capasitor X7R 100pF ñ5% Murata
CP2682 C411 SMD film capasitor 6,8nF/16V +-5% Panasonic ECHU1C682JB5
CG0471 C412 SMD capasitor X7R 470pF ñ10% Murata
CD0103 C413 SMD capasitor 10 nF 10% 50 V X7R Philips
CG0680 C414 SMD capasitor NPO 68pF ñ5% Murata
CG0121 C416 SMD capasitor X7R 120pF ñ5% Murata
CG0120 C420 SMD capasitor NPO 12pF ñ5% Murata
CG0102 C421 SMD capasitor X7R 1nF ñ10% Murata
CU3475 C422 SMD tantal 4.7uF/10V 20% AVX TAJA475M010R
CG0104 C423 SMD capasitor 100nF/10% 6,3V X5R AVX CM05X5R104K06AH
CG0339 C424 SMD capasitor NPO 3.3pF ñ0,25pF Murata
CG0100 C425 SMD capasitor NPO 10pF-+0.25pF Murata
CG0471 C426 SMD capasitor X7R 470pF ñ10% Murata
CG0220 C427 SMD capasitor NPO 22pF ñ5% Murata
CG0680 C428 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C429 SMD capasitor NPO 68pF ñ5% Murata
CU1107 C430 SMD tantal 100uF/10V -+20% AVX TAJD107M010R
4c2300gb.fm
14
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
CU1107 C431 SMD tantal 100uF/10V -+20% AVX TAJD107M010R
CG0680 C432 SMD capasitor NPO 68pF ñ5% Murata
CG0103 C433 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0680 C434 SMD capasitor NPO 68pF ñ5% Murata
CG0103 C435 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0680 C436 SMD capasitor NPO 68pF ñ5% Murata
CG0330 C437 SMD capasitor NPO 33pF ñ5% Murata
CG0101 C438 SMD capasitor X7R 100pF ñ5% Murata
CG0229 C439 SMD capasitor NPO 2.2pF ñ0,25pF Murata
CG0680 C440 SMD capasitor NPO 68pF ñ5% Murata
CG0101 C441 SMD capasitor X7R 100pF ñ5% Murata
CG0101 C442 SMD capasitor X7R 100pF ñ5% Murata
CF0689 C443 SMD capasitor 6.8 pF/0.25pF 50 V NP0 Philips
CG0680 C445 SMD capasitor NPO 68pF ñ5% Murata
CG0330 C446 SMD capasitor NPO 33pF ñ5% Murata
CG0680 C447 SMD capasitor NPO 68pF ñ5% Murata
CG0330 C448 SMD capasitor NPO 33pF ñ5% Murata
CG0680 C450 SMD capasitor NPO 68pF ñ5% Murata
CG0680 C451 SMD capasitor NPO 68pF ñ5% Murata
CG0102 C452 SMD capasitor X7R 1nF ñ10% Murata
CG0330 C456 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C457 SMD capasitor NPO 33pF ñ5% Murata
CG0101 C458 SMD capasitor X7R 100pF ñ5% Murata
DY0016 D200 SMD shottky diode 40V/1,33A VF=0.55V Shindengen M1FS4
DS0019 D201 SMD diode 100v / 200mA Philips BAS19
DC0229 D301 SMD silicon tuning diode 1V/19pF...4V/11pF Toshiba 1SV229
DY0062 D401 SMD shcott ky diode 40V 20mA Siemens BAT 62
AF1035 F251 PolySwitch Raychem miniSMDC035-2
IX6426 I100 Enhanced GSM prosessor AnalogDevi AD6426AB
IX6425 I101 Analog/Digital IC GSM AnalogDevi AD6425AST
IM8421 I110 Flash+SRAM memory 16MB + 2MB Fujitsu MB84VD21091-85PB
IM0128 I115 EEPROM 128K(16.384x8) Atmel AT24C128N-10SI2,
IR3401 I120 Regulator AnalogDevi ADP3401ARU-REEL
IX0826 I122 EL-lamp driver 4,5V / 120V Supertex HV826MG
IF1551 I301 RF-circuit Bright II GSM Tx/Rx Hitachi HD155121FEB
IR2982 I302 Regulator 2,8V 50mA NationalSe LP2982IMS-2,8
IR2982 I303 Regulator 2,8V 50mA NationalSe LP2982IMS-2,8
IS1503 I304 PLL frequency synthesize Fujitsu MB15F03SLPV-ER
IR2982 I401 Regulator 2,8V 50mA NationalSe LP2982IMS-2,8
IH0126 I403 Quad tri state buffer Fairchild MM74HC126MTC
IA4165 I404 Op Amps 2,7V--6,5V/80mA Maxim MAX4165
IW0810 I405 RF-power amplifier 900/1800MHz Hitachi PF08103B
LC0567 L200 SMD inductors 560uH 10% 3,2x2,5m m Murata LQH3C561K34
LG0332 L301 SMD inductor 3n3 +-0,3nH TaiyoYuden HK1005 3N3J-T
LG0103 L302 SMD inductor 10n +-5% TaiyoYuden HK1005 10NJ-T
LG0392 L303 SMD inductor 3n9 +-0,3nH TaiyoYuden HK1005 3N9J-T
LG0332 L304 SMD inductor 3n3 +-0,3nH TaiyoYuden HK1005 3N3J-T
LG0822 L305 SMD inductor 8n2 +-5% TaiyoYuden HK1005 8N2J-T
LG0682 L306 SMD inductor 6n8 +-5% TaiyoYuden HK1005 6N8J-T
LG0682 L307 SMD inductor 6n8 +-5% TaiyoYuden HK1005 6N8J-T
LC4104 L311 SMD inductor 100n +-5% TaiyoYuden HK1608 R10J- T
LC4104 L312 SMD inductor 100n +-5% TaiyoYuden HK1608 R10J-T
LC4154 L313 SMD inductor 150n +-5% TaiyoYuden HK1608 R15J-T
LC3823 L314 SMD inductor 82n +-5% TaiyoYuden HK1608 82NJ-T
LC3823 L315 SMD inductor 82n +-5% TaiyoYuden HK1608 82NJ-T
LG0103 L317 SMD inductor 10n +-5% TaiyoYuden HK1005 10NJ-T
LC4822 L318 SMD inductor 8n2 +-0,2n Murata LQP21A8N2C14M00
LG0103 L402 SMD inductor 10n +-5% TaiyoYuden HK1005 10NJ-T
QS0060 Q150 SMD transistor arrey NPN/PNP 100mA/50V Siemens BCR 10PN
QF6702 Q200 P-channel MOSFET Vdss 20V rds 0,2 ohm I&R IRLMS6702
4c2300gb.fm
15
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
QS1847 Q201 piensignaali yleistransi NPN 100mA/45V hfe=200...450 Philips BC847BW
QS1847 Q210 piensignaali yleistransi NPN 100mA/45V hfe=200...450 Philips BC847BW
QS0060 Q220 SMD transistor arrey NPN/PNP 100mA/50V Siemens BCR 10PN
QS1847 Q241 piensignaali yleistransi NPN 100mA/45V hfe=200...450 Philips BC847BW
QS1847 Q250 piensignaali yleistransi NPN 100mA/45V hfe=200...450 Philips BC847BW
QA0420 Q301 RF transistor NPN silicon 1.8GHz Siemens BFP420
QA0420 Q302 RF transistor NPN silicon 1.8GHz Siemens BFP420
QS1857 Q401 piensignaali yleistransi PNP 100mA/45V hfe=220...470 Philips BC857BW
QS0060 Q402 SMD transistor arrey NPN/PNP 100mA/50V Siemens BCR 10PN
QS1857 Q403 piensignaali yleistransi PNP 100mA/45V hfe=220...470 Philips BC857BW
QS1847 Q404 piensignaali yleistransi NPN 100mA/45V hfe=200...450 Philips BC847BW
RG0151 R100 SMD resistor 150R 5% 0.063W Kamaya RMC1/16S
RG0103 R102 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0103 R103 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RF0106 R104 SMD resistor 10 M 5% 0.125 W K amay a
RG0103 R105 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0104 R113 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R114 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R117 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0000 R121 SMD resistor 0 ohm
RG0564 R150 SMD resistor 560k 5% 0.063W Kamaya RMC1/16S
RG0104 R151 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0684 R152 SMD resistor 680k 5% 0.063W Kamaya RMC1/16S
RT2500 R153 NTC resistor 150k+-5% B=4750 TaiyoYuden TBPS1R154J475H5Q
RG0105 R154 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0104 R155 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R160 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R161 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0103 R162 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0472 R163 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R164 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R165 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R166 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R170 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R171 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R172 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R173 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0104 R174 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0272 R180 SMD resistor 2k7 5% 0.063W Kamaya RMC1/16S
RG0101 R181 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0272 R183 SMD resistor 2k7 5% 0.063W Kamaya RMC1/16S
RG0103 R190 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0103 R191 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0272 R192 SMD resistor 2k7 5% 0.063W Kamaya RMC1/16S
RG0102 R202 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0103 R203 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0105 R204 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0103 R205 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0103 R206 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0103 R207 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0104 R208 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0102 R210 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0220 R211 SMD resistor 22R 5% 0.063W Kamaya RMC1/16S
RG0564 R212 SMD resistor 560k 5% 0.063W Kamaya RMC1/16S
RG0105 R213 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0472 R215 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R216 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0103 R220 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0101 R221 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0103 R241 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
4c2300gb.fm
16
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
RG0220 R242 SMD resistor 22R 5% 0.063W Kamaya RMC1/16S
RG0222 R243 SMD resistor 2k2 5% 0.063W Kamaya RMC1/16S
RG0104 R244 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0222 R245 SMD resistor 2k2 5% 0.063W Kamaya RMC1/16S
RG0220 R246 SMD resistor 22R 5% 0.063W Kamaya RMC1/16S
RG0151 R247 SMD resistor 150R 5% 0.063W Kamaya RMC1/16S
RG0105 R250 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0105 R251 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0103 R255 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0104 R260 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R261 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0101 R262 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0102 R263 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0101 R264 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R265 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R266 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R267 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R268 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R269 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R270 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R271 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R272 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R273 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0104 R274 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R275 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R276 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R277 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R278 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0103 R281 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0102 R282 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0104 R283 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0223 R290 SMD resistor 22k 5% 0.063W Kamaya RMC1/16S
RG0223 R291 SMD resistor 22k 5% 0.063W Kamaya RMC1/16S
RG0000 R292 SMD resistor 0 ohm
RG0104 R293 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0102 R294 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0151 R301 SMD resistor 150R 5% 0.063W Kamaya RMC1/16S
RG0472 R302 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R303 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0101 R304 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0471 R305 SMD resistor 470R 5% 0.063W Kamaya RMC1/16S
RG0100 R306 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0222 R307 SMD resistor 2k2 5% 0.063W Kamaya RMC1/16S
RG0100 R311 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0100 R312 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0101 R313 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R314 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R315 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R316 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R317 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0102 R319 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0100 R321 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0100 R322 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0180 R324 SMD resistor 18R 5% 0.063W Kamaya RMC1/16S
RG0472 R326 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0182 R327 SMD resistor 1k8 5% 0.063W Kamaya RMC1/16S
RG0101 R328 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0100 R331 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0103 R332 SMD resistor 10k 5% 0.063W Kamaya RMC1/16S
RG0100 R333 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
4c2300gb.fm
17
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
RG0100 R334 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0100 R335 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0270 R336 SMD resistor 27R 5% 0.063W Kamaya RMC1/16S
RG0222 R337 SMD resistor 2k2 5% 0.063W Kamaya RMC1/16S
RG0562 R338 SMD resistor 5k6 5% 0.063W Kamaya RMC1/16S
RG0472 R339 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0101 R341 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R342 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R343 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0102 R400 SMD resistor 1k0 5% 0.063W Kamaya RMC1/16S
RG0101 R401 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R402 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R403 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0101 R404 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0100 R405 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0100 R406 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0223 R408 SMD resistor 22k 5% 0.063W Kamaya RMC1/16S
RG0100 R409 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0473 R410 SMD resistor 47k 5% 0.063W Kamaya RMC1/16S
RG0100 R411 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0560 R412 SMD resistor 56R 5% 0.063W Kamaya RMC1/16S
RG0101 R413 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0121 R415 SMD resistor 120R 5% 0.063W Kamaya RMC1/16S
RG0270 R416 SMD resistor 27R 5% 0.063W Kamaya RMC1/16S
RG0390 R417 SMD resistor 39R 5% 0.063W Kamaya RMC1/16S
RG0151 R418 SMD resistor 150R 5% 0.063W Kamaya RMC1/16S
RG0101 R422 SMD resistor 100R 5% 0.063W Kamaya RMC1/16S
RG0472 R423 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0473 R424 SMD resistor 47k 5% 0.063W Kamaya RMC1/16S
RG0105 R426 SMD resistor 1M0 5% 0.063W Kamaya RMC1/16S
RG0563 R427 SMD resistor 56k 5% 0.063W Kamaya RMC1/16S
RG0104 R428 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0472 R429 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0470 R430 SMD resistor 47R 5% 0.063W Kamaya RMC1/16S
RG0104 R431 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R432 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0104 R433 SMD resistor 100k 5% 0.063W Kamaya RMC1/16S
RG0100 R435 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0100 R436 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0470 R437 SMD resistor 47R 5% 0.063W Kamaya RMC1/16S
RG0472 R440 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R441 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R442 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R443 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0472 R444 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
RG0473 R445 SMD resistor 47k 5% 0.063W Kamaya RMC1/16S
RG0100 R446 SMD resistor 10 R 5% 0.063W Kamaya RMC1/16S
RG0472 R447 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
VN2302 V100 In phone connector L&K HO1433GB
VM0002 V101 Modulat cntact 2pin 2A/pin Bours 70AAJ002M0
VM0002 V102 Modulat cntact 2pin 2A/pin Bours 70AAJ002M0
VW0109 V105 Connector 32-pin 1mm pitch Elco 589158032000011
VI2302 V120 S IM -reader Siemens V23533-A9222-A20
VR0248 V2 SMA connector ????????? 982589
XO0174 X1 VCTCXO 3,5*6,0mm 13.0 MHz 2,5ppm 3V+-5% Raltron RTVY-174EF230S13
X32766 X100 SMD crystal 32.768kHz +-30ppm MicroCryst MS1V-TK
LF0062 X 250 SMD EMI filter 10nF/2A Panasonic ELKE103FA
LF0062 X 251 SMD EMI filter 10nF/2A Panasonic ELKE103FA
XW8425 X301 Rx Dual SAW-filter for GSM Panasonic F ARG6CH1G8425L22
XW9418 X302 SAW-filter Rx dual Panasonic EFCH9418MTYB
4c2300gb.fm
18
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
CODE PART DESCRIPT. VALUE MANUF. TYPE
XW0225 X303 SAW filter, GSM 225MHz Murat a MKFC225.000MBA
XO0490 X304 Dual Rx-VCO for GSM Panasonic ENFVZ4G90
XO0473 X401 Dual Tx-VCO for GSM Panasonic ENFVZ4G73
XI1519 X402 Direk tional coupler Dual coupler Murata LDC15D190A0007AH
ID2300 X403 Dual switch diplexer 900/1800MHz Murata LMC36-07A0501PTA
PC2300 Y240 *** EI KOODATTU VARAS-
Last
update
08.05.00
TOON ***
There are some differences between the single (TGP71EU) and dual SIM
(TGP73EU) in the OC2300 module
CODE PART VALUE 1sim 2si m
VI1707 V121 SIM-reader - X
IC0454 I121 ana switch - X
RG0000 R292 0R X -
4c2300gb.fm
19
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
20
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
21
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
22
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
23
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
24
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
25
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
26
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
27
Product:TGP71EU & TGP73EU / OC2300
12.12.2000
4c2300gb.fm
28
Product:TGP71EU & TGP73EU / OK2300
12.12.2000
5.3 Keyboard
OK2300
5.3.1 Parts list OK2300
CODE PART DESCRIPT. VALUE MANUF. TYPE
AM1846 A1 Electret condenser mocro phone with rubber holder+zeb BSE OBG18S46-C33
AE0023 A2 Dynamic transducer 13,3x2,6 low Z P hilips WD00518/32U
AE0024 A3 Buzzer 10x10x3mm 1,5V/70mA Citizen CHB-03E
AB0621 A5 Backup-akku 3,4V Lithium-ion/Manganese Oxide Varta MC621
CG0330 C1 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C10 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C11 S MD capas itor NPO 33pF ñ5% Murata
CG0330 C12 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C13 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C14 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C15 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C16 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C17 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C18 S MD capasitor NPO 33pF ñ5% Murata
CG0330 C2 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C3 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C4 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C5 SMD capasitor NPO 33pF ñ5% Murata
CG0103 C6 SMD capasitor X7R 10nF ñ10% Murata ‘
CG0330 C7 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C8 SMD capasitor NPO 33pF ñ5% Murata
CG0330 C9 SMD capasitor NPO 33pF ñ5% Murata
DS1070 D1 SMD diode pair 70V/100mA common cathode Philips BAV 70W
QF0200 Q1 N-c hannel MOSF ET 20V/0,73A T EMIC TN0200T
RG0472 R4 SMD resistor 4k7 5% 0.063W Kamaya RMC1/16S
VN2303 V2 SMD connector 18 pin 0,5mm pitch Elco 046239018001800
PK2300 Y41 *** EI KOODATTU VARAS-
TOON ***
Last
update
24.01.00
4k2300gb.fm
29
Product:TGP71EU & TGP73EU / OK2300
12.12.2000
4k2300gb.fm
30
Product:TGP71EU & TGP73EU / OK2300
12.12.2000
4k2300gb.fm
31
Product:TGP71EU & TGP73EU / OK2300
12.12.2000
4k2300gb.fm
32
5.4 MECHANICS
Product:TGP71EU & TGP73EU /
12.12.2000
7gp_71gb.fm
33
Loading...
