Bendix® PP-DC® Park Control Valve
SD-03-3619
BUTTON
SUPPLY
12
SUPPLY
11
FIGURE 1 - BENDIX® PP-DC® PARK CONTROL VALVE
EXHAUST
3
DELIVERY
21
SUPPLY
12
DESCRIPTION
The Bendix® PP-DC® park control valve is a push-pull,
manually operable on/off valve. It is dash board-mounted
and provides in-cab control of truck or bus parking brakes.
The valve is pressure sensitive—it automatically
moves from the applied to the exhaust position when
total system pressure drops below 20 to 40 psi. (Note
that this is a Bendix
mandated requirement. Refer to Bendix Technical
Bulletin TCH-003-051). Also, manually pulling the
button will apply the parking brakes.
The PP-DC valve body is made of non-metallic, noncorrosive material, and the cover is available in several
variations (see Figure 1). The valve is designed to accept
pipe thread fi ttings or push-to-connect fi ttings that use SAE
J844 non-metallic air brake tubing.
Ports:
Port Embossed I.D.
Primary Reservoir Supply SUP 11
Secondary Reservoir Supply SUP 12
Delivery DEL 21
Exhaust EXH 3
®
product specification and not a
BUTTON
COVER
EXHAUST
3
SUPPLY
12
EXHAUST
3
OPERATION
GENERAL
The PP-DC valve receives its supply of air from the primary
service reservoir or the secondary service reservoir,
whichever is at the higher pressure. When the button
is pushed in, the valve delivers air to the spring brake
chambers (usually through a spring brake valve such as
the Bendix
valve). The air releases the spring brakes for normal vehicle
operation.
To apply the parking brakes, the button is pulled out, which
exhausts the PP-DC valve delivery and releases air from
the spring brake chambers.
When total system pressure drops below 20 to 40 psi,
the valve will automatically “pop out,” which removes the
hold-off air in the chambers and applies the spring brakes.
PARKING BRAKES RELEASED
To release the parking brakes, the push-pull button is
pushed in. The PP-DC valve plunger moves, closing the
exhaust port with the exhaust seal and allowing the plunger
o-ring to move past the guide spool. Supply air then travels
out the delivery port to release the brakes.
®
SR-7® valve and a relay, or quick release,
1
Bendix®
ADB-22X
Disc Brake
Antilock
Modulator
(4 places)
Quick Release
Valve
™
Brake Valve
To Accessories
Air Dryer
®
Bendix
PP-DC®
Park Control
Valve
®
Bendix
PR-3™/ PR-4™
Valve
Bendix
EC-60
Controller
Front
Axle Reservoir
®
™
Electronic
Disc Brake
Service
Relay
Valve
ADB-22X
™
®
Bendix
®
SR-7
Spring Brake
Modulating
Valve
Supply
Reservoir
Air Compressor
Air disc & drum brake actuation combined on a single axle are shown for pictorial purposes only.
FIGURE 2 - TYPICAL 4 X 2 TRUCK SCHEMATIC WITH BENDIX
Note that Figure 3 shows the primary service reservoir
supplying the Bendix
®
PP-DC® valve. The double check
valve diaphragm has sealed the secondary reservoir supply
port and allows air to pass from the primary reservoir into
the PP-DC valve.
If primary service reservoir pressure drops below secondary
service reservoir pressure, the double check valve reacts
as shown in Figure 4. It seals the primary service reservoir
supply port and supplies the Bendix PP-DC park control
valve with air from the secondary service reservoir. The
push-pull button remains in and the spring brakes remain
released.
PARKING BRAKES APPLIED
Figure 5 shows the PP-DC valve in the parking-brakesapplied position. This will occur when the driver manually
pulls out the push-pull button, or when the total system
pressure drops to below 20 to 40 psi.
As shown in Figure 6, when the button “pops” out, the
exhaust seal moves to open the exhaust port to the
atmosphere, allowing delivery line pressure to exhaust.
The plunger o-ring moves to seal off supply pressure.
Spring brake hold-off air is exhausted through the spring
brake relay valve.
Rear
Axle Reservoir
®
PP-DC® PARK CONTROL VALVE

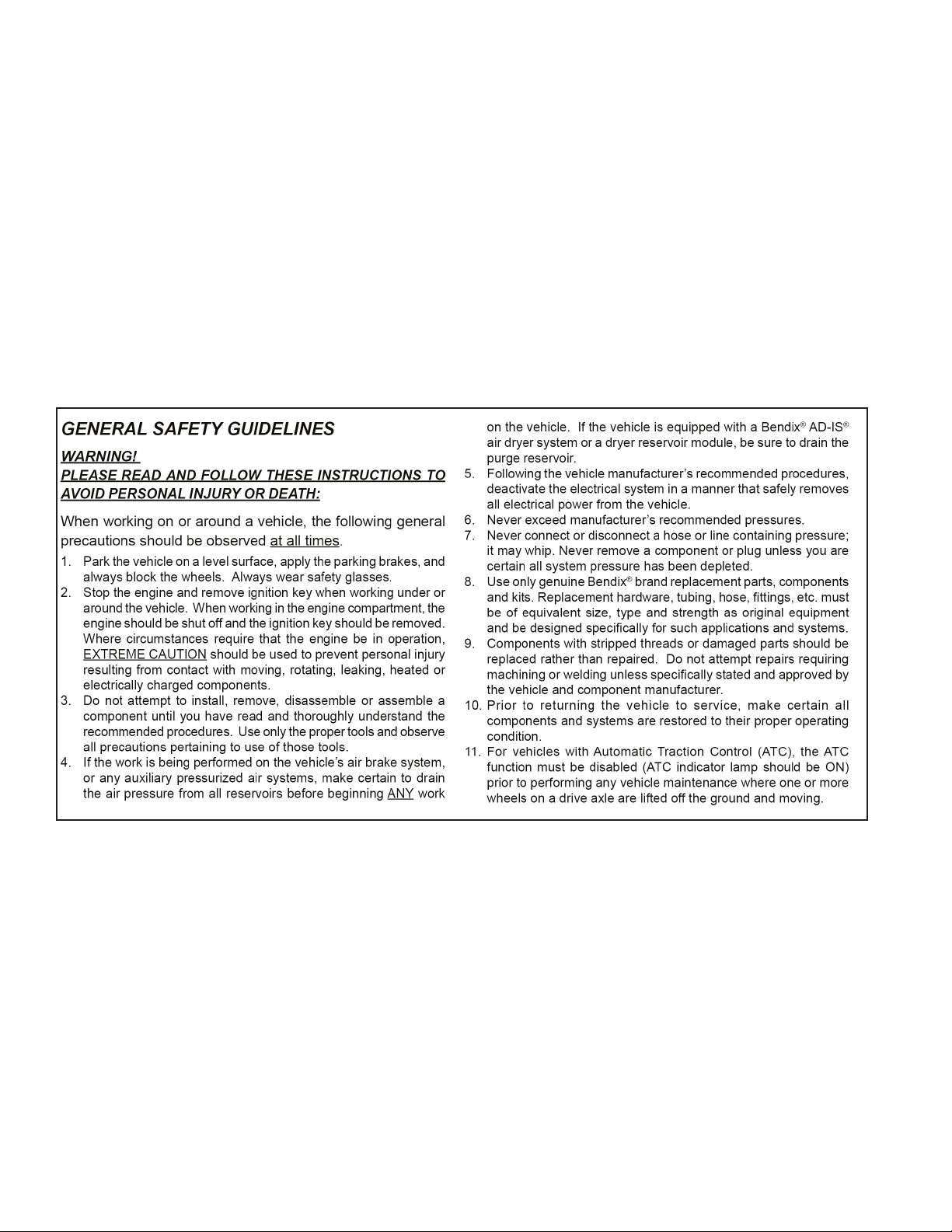

PREVENTIVE MAINTENANCE
Important: Review the Bendix Warranty Policy before
performing any intrusive maintenance procedures. A
warranty may be voided if intrusive maintenance is
performed during the warranty period.
No two vehicles operate under identical conditions; as
a result, maintenance intervals may vary. Experience is
a valuable guide in determining the best maintenance
interval for air brake system components. At a minimum, the
PP-DC valve should be inspected every six (6) months or
1500 operating hours, whichever comes fi rst, for proper
operation. Should the PP-DC valve not meet the elements
of the Operational Tests noted in this document, further
investigation and service of the valve may be required.
SERVICE CHECKS
1. Remove any accumulated contaminants. Visually
inspect the valve’s exterior for excessive wear or
physical damage. Repair/replace as nec essary.
2. Inspect all air lines connected to the valve for signs of
wear or physical damage. Repair/replace as necessary.
3. Test air line fi ttings for excessive leakage. Repair or
replace as necessary.
2
