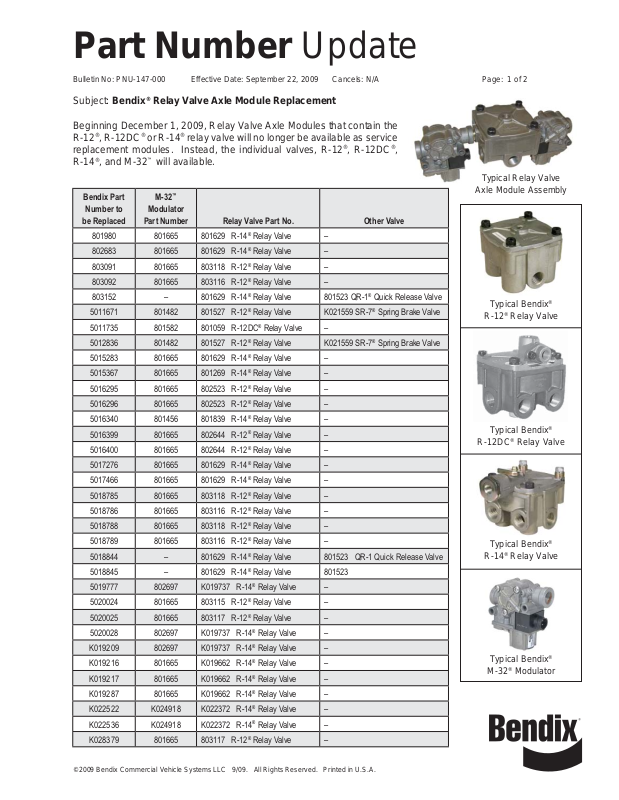

Part Number Update

Bulletin No: PNU-147-000 Effective Date: September 22, 2009 Cancels: N/A Page: 1 of 2

Subject: Bendix® Relay Valve Axle Module Replacement Beginning December 1, 2009, Relay Valve Axle Modules that contain the

R-12®, R-12DC® or R-14® relay valve will no longer be available as service replacement modules. Instead, the individual valves, R-12®, R-12DC®, R-14®, and M-32™ will available.

Typical Relay Valve

™

Bendix Part

Number to

be Replaced

M-32

Modulator

Part Number Relay Valve Part No. Other Valve

801980 801665 801629 R-14

802683 801665 801629 R-14

803091 801665 803118 R-12

803092 801665 803116 R-12

803152 – 801629 R-14

5011671 801482 801527 R-12

5011735 801582 801059 R-12DC

5012836 801482 801527 R-12

5015283 801665 801629 R-14

5015367 801665 801269 R-14

5016295 801665 802523 R-12

5016296 801665 802523 R-12

5016340 801456 801839 R-14

5016399 801665 802644 R-12

5016400 801665 802644 R-12

5017276 801665 801629 R-14

5017466 801665 801629 R-14

5018785 801665 803118 R-12

5018786 801665 803116 R-12

5018788 801665 803118 R-12

5018789 801665 803116 R-12

5018844 – 801629 R-14

5018845 – 801629 R-14

5019777 802697 K019737 R-14

5020024 801665 803115 R-12

5020025 801665 803117 R-12

5020028 802697 K019737 R-14

K019209 802697 K019737 R-14

K019216 801665 K019662 R-14

K019217 801665 K019662 R-14

K019287 801665 K019662 R-14

K022522 K024918 K022372 R-14

K022536 K024918 K022372 R-14

K028379 801665 803117 R-12

Relay Valve –

Relay Valve 801523 QR-1® Quick Release Valve

Relay Valve K021559 SR-7® Spring Brake Valve

Relay Valve –

Relay Valve K021559 SR-7® Spring Brake Valve

Relay Valve –

Relay Valve 801523 QR-1 Quick Release Valve

Relay Valve 801523

Relay Valve –

Axle Module Assembly

Typical Bendix

R-12® Relay Valve

Typical Bendix

R-12DC® Relay Valve

Typical Bendix

R-14® Relay Valve

Typical Bendix

M-32® Modulator

Bulletin No: PNU-147-000 Effective Date: September 22, 2009 Cancels: N/A Page: 2 of 2

Subject: Bendix® Relay Valve Axle Module Replacement

Bendix Part

Number to

be Replaced

M-32 Modulator Part Num-

ber Relay Valve Part No. Other Valve

K028380 801665 803115 R-12 K029064 801665 803115 R-12 K029090 801665 803115 R-12

Relay Valve –

K029091 801665 803117 R-12® Relay Valve –

K034765 801665 803115 R-12 K034766 801665 803115 R-12 K034767 801665 803115 R-12

Relay Valve –

K035401 801665 803115 R-12® Relay Valve –

K035615 801665 803117 R-12 K036973 801665 K036175 R-14

Relay Valve –

Relay

Valve

K036977 802697 803118 R-12

Relay Valve –

K036978 801665 801629 R-14® Relay Valve –

K037005 802697 803118 R-12 K037016 802697 803118 R-12 K039051 802697 K038194 R-14

Relay Valve –

Relay

Valve

K039052 802697 K038194 R-14

Relay

Valve

K039138 802697 K019737 R-14

Relay

Valve

K039139 802697 K019737 R-14

Relay

Valve

–
