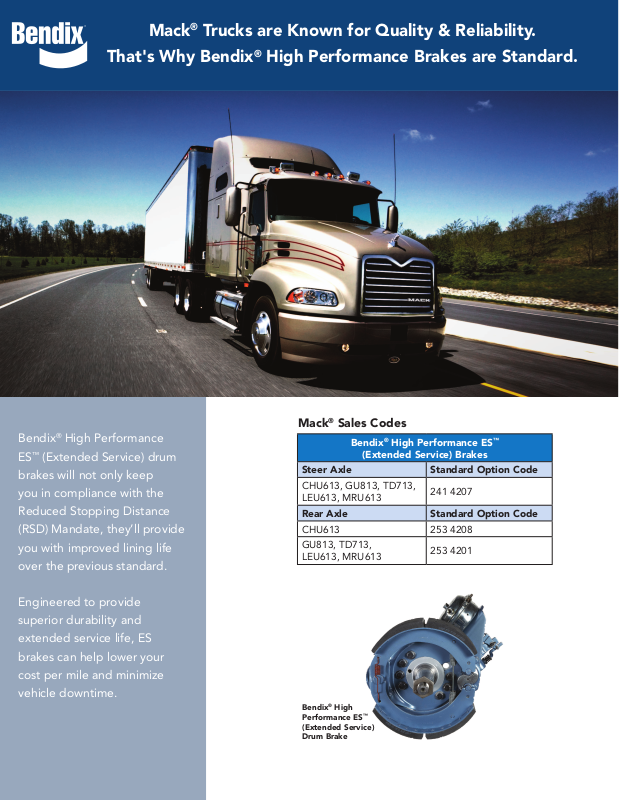

Mack® Trucks are Known for Quality & Reliability.
That's Why Bendix® High Performance Brakes are Standard.
Bendix® High Performance
ES™ (Extended Service) drum
brakes will not only keep
you in compliance with the
Reduced Stopping Distance
(RSD) Mandate, they’ll provide
you with improved lining life
over the previous standard.
Engineered to provide
superior durability and
extended service life, ES
brakes can help lower your
cost per mile and minimize
vehicle downtime.
Mack® Sales Codes
Bendix® High Performance ES
(Extended Service) Brakes
Steer Axle Standard Option Code
CHU613, GU813, TD713,
LEU613, MRU613
Rear Axle Standard Option Code
CHU613 253 4208
GU813, TD713,
LEU613, MRU613
Bendix® High
Performance ES™
(Extended Service)
Drum Brake
241 4207
253 4201
™
0
100
200
300
400
500
600
0 5 10
Lining Temp (°F)
0
10
20
30
40
50
60
70
80
90
100
Brake Pressure (psi)
Bendix® High Performance ES™ (Extended Service) Brakes...
St
R
St
RS
Printed on recycled paper
lower cost per mile and less vehicle downtime.
• 9% more wearable lining in the same envelope due
to single anchor pin design
• E-Coat2 virtually eliminates rust jacking
• Heat treated camshafts deliver superior durability
• Bronze camshaft bushings extend service life
Bendix High Performance Friction Resists Fade for Maximum
Braking Power
Unlike competitor products, as our friction heats up during the
stop, it resists fade to enable shorter stops.
FMVSS-121 Fade / 12K GAWR
Fade
}
more wearable lining
Single
Anchor
Pin Design
Bendix brakes have 9% more
wearable lining volume than a
leading competitor's brakes.
Bendix
Friction
Competitor
Friction
Heat Treated
Camshaft
Contact your Bendix Account Manager today or call us at 1-866-610-9709.
Brake Applications
Standard Drum Initial Drum Temp.
Bendix High Performance Drum Initial Drum Temp.
Standard Drum Max Brake Pressure
Bendix High Performance Drum Max Brake Pressure
Find out more about the superior performance of Bendix ES Brakes.
901 Cleveland Street • Elyria, OH 44035 • 1-866-610-9709 • www.foundationbrakes.com
BW7521M © 2013 Bendix Spicer Foundation Brake LLC • 08/13 • All Rights Reserved
Virtually
eliminates
rust jacking
2
E-Coat
