BENDIX BTD 01 Operating & Installation Instructions Manual

TUMBLE DRYER

BTD 01

OPERATING & INSTALLATION

INSTRUCTIONS

125994680

2

Installation

■

This appliance is heavy. Care should be taken
when moving it.

■

It is dangerous to alter the specifications or
attempt to modify this product in any way.

■

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

■

Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.

■

If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.

■

If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).

Child Safety

■

This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.

■

Pets and children have been known to climb into
tumble dryers. Please check your drum before
use.

■

Keep all packaging well away for children.

Use

■

Do not overload the appliance (see programme

chart).

■

Clothes which are dripping wet should not be
placed in the dryer.

■

As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.

■

Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking the latter.

■

Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.

■

Danger of explosion: Never tumble dry items
that have been in contact with inflammable
solvents (petrol, methylated spirits, dry cleaning
fluid and the like). As these substance are volatile,
they could cause an explosion. Tumble dry only
items washed with water.

■

In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:

■

Cushions, quilts and the like (these items
accumulate heat).

■

Items containing rubber foam or materials similar
to rubber foam.

■

Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.

■

Clean fluff filter after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filter is damaged or without the filter.

■

Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Electrolux Service Centre. Always insist on
genuine Electrolux spare parts.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.

3

For the User

Important Safety Information

2

■

Installation 2

■

Child Safety 2

■

Use 2

Your New Tumble Dryer

4

Description of the Appliance

4

The Control Panel

5

■

Water full indicator light 5

■

Mains-on light 5

■

Time selector dial/ON-OFF switch 5

Programme Chart

6

Operating Sequence

7

■

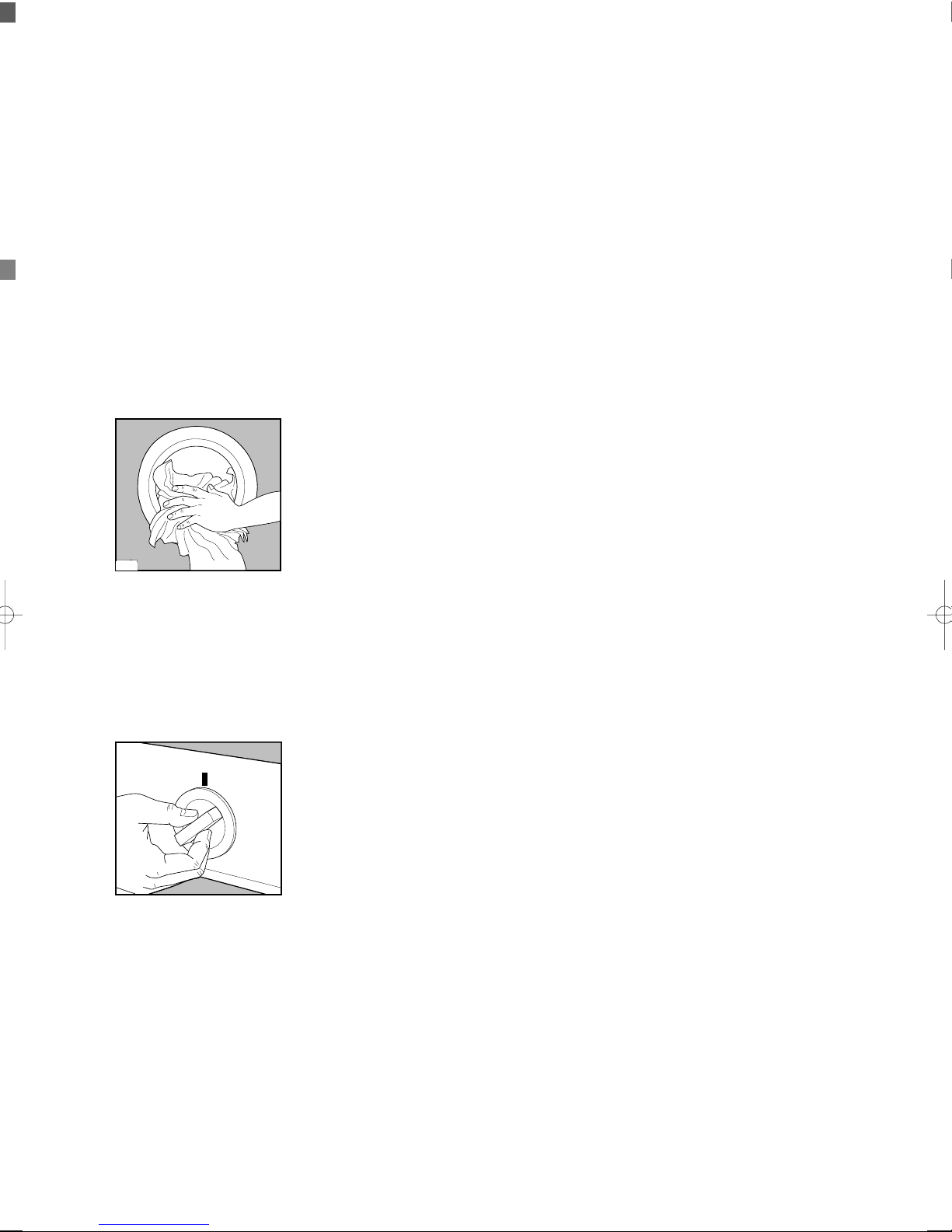

Load the laundry 7

■

Select the drying time 7

■

When drying is completed 7

Hints & Tips on Drying

8

Maintenance and Cleaning

9

■

External cleaning 9

■

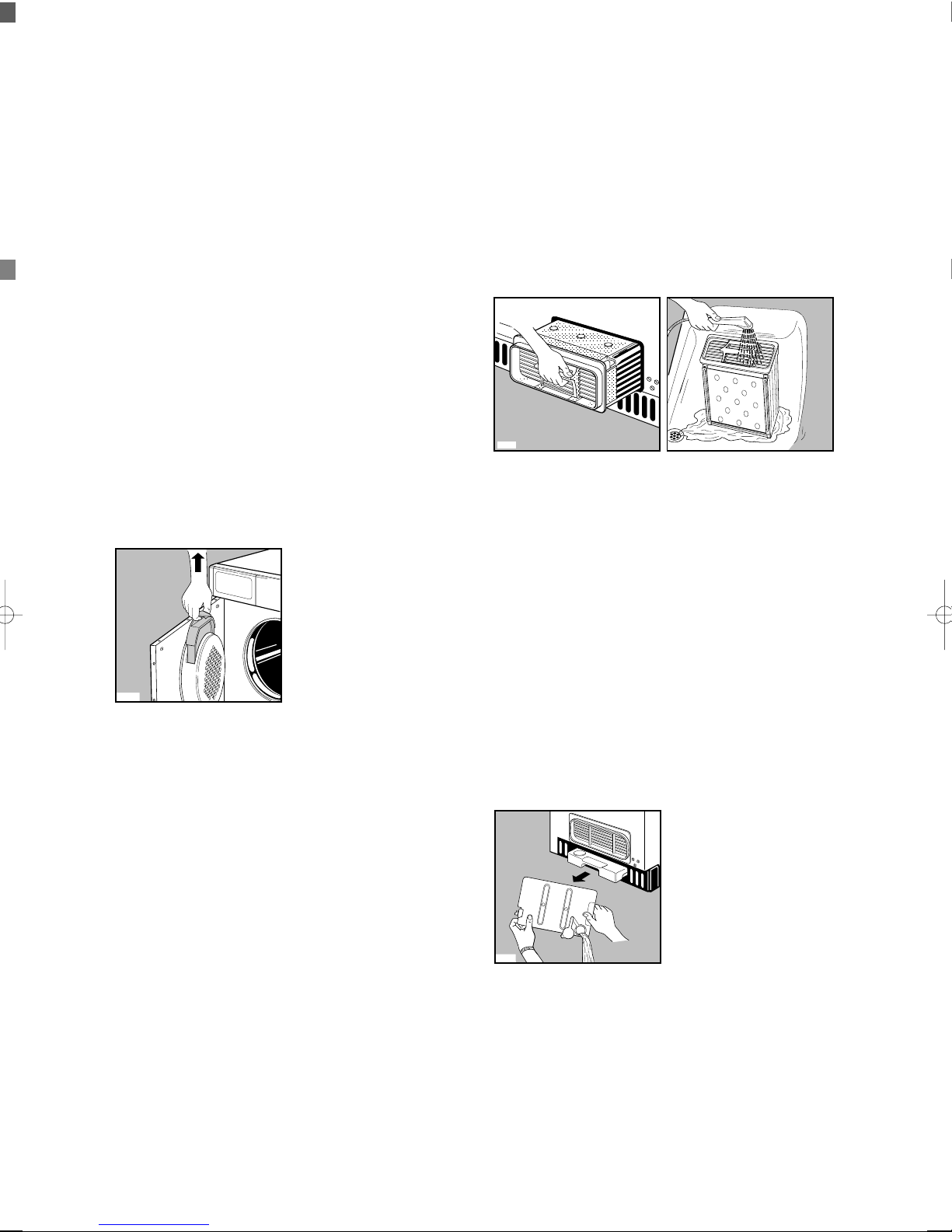

Cleaning fluff filter 9

■

Cleaning the condenser unit 9

■

Emptying the water reservoir 9

Something Not Working

10

Service and Spare Parts

10

Customer Care

10

Guarantee Conditions

11

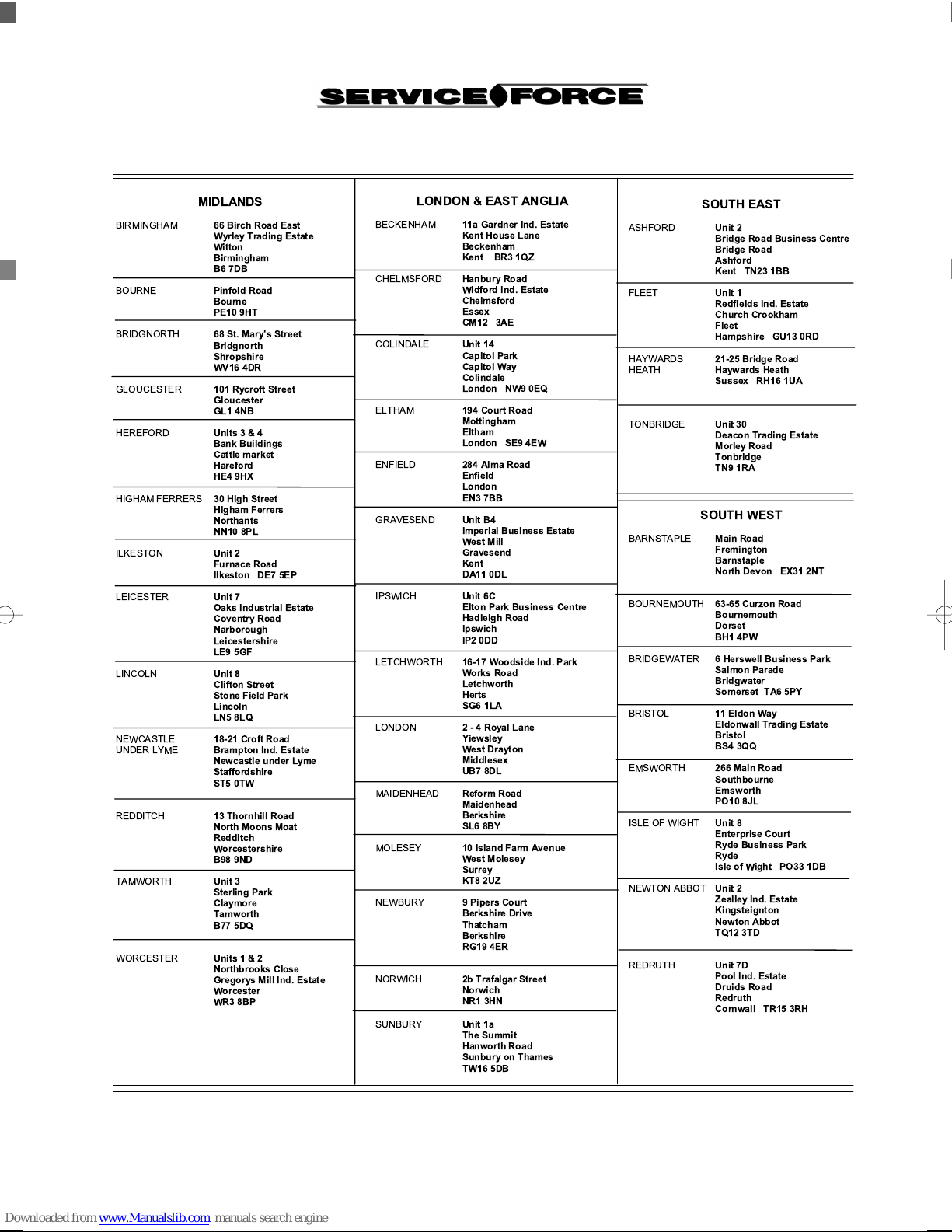

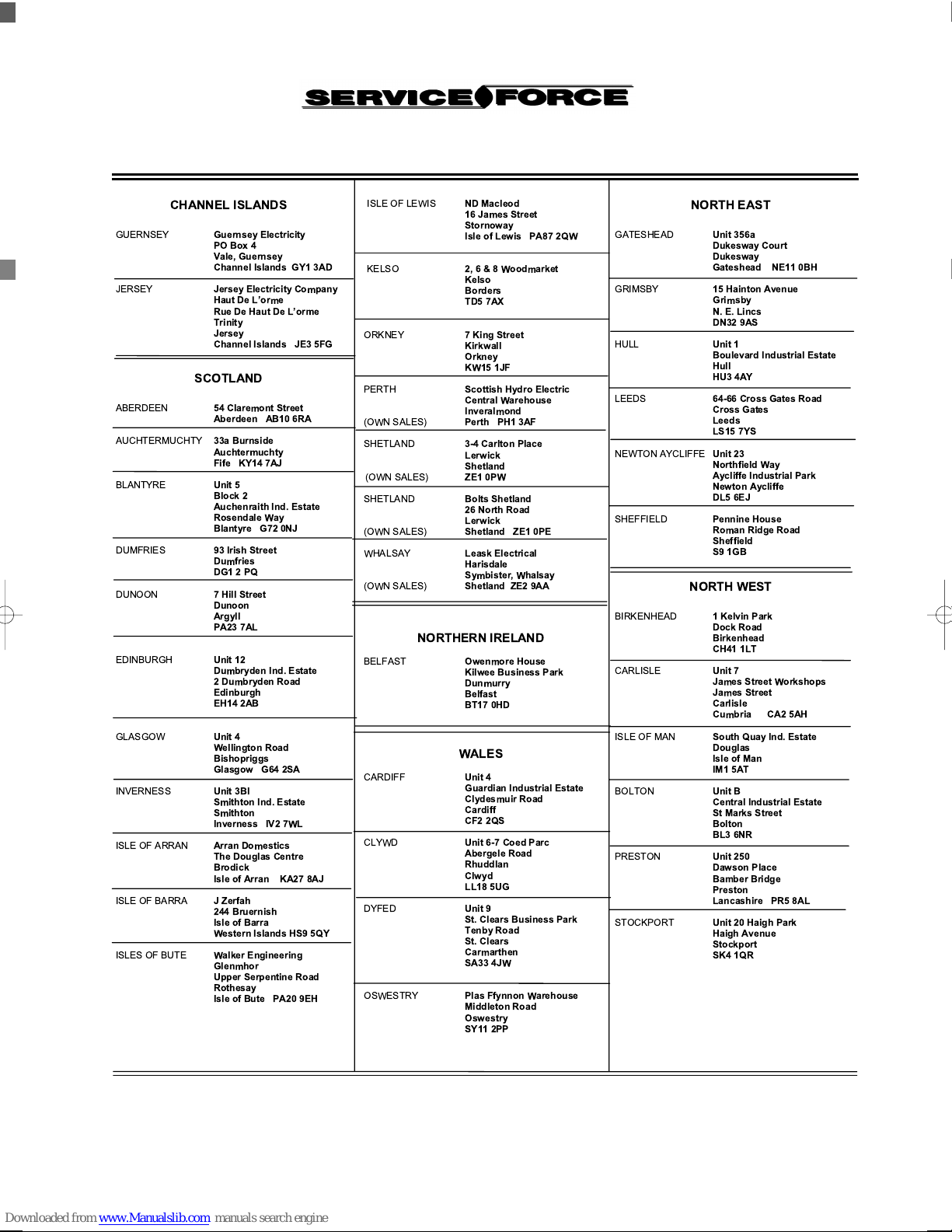

Electrolux Service Centres

12-13

For the Installer

Installation Instructions

14

Technical Specifications

14

■

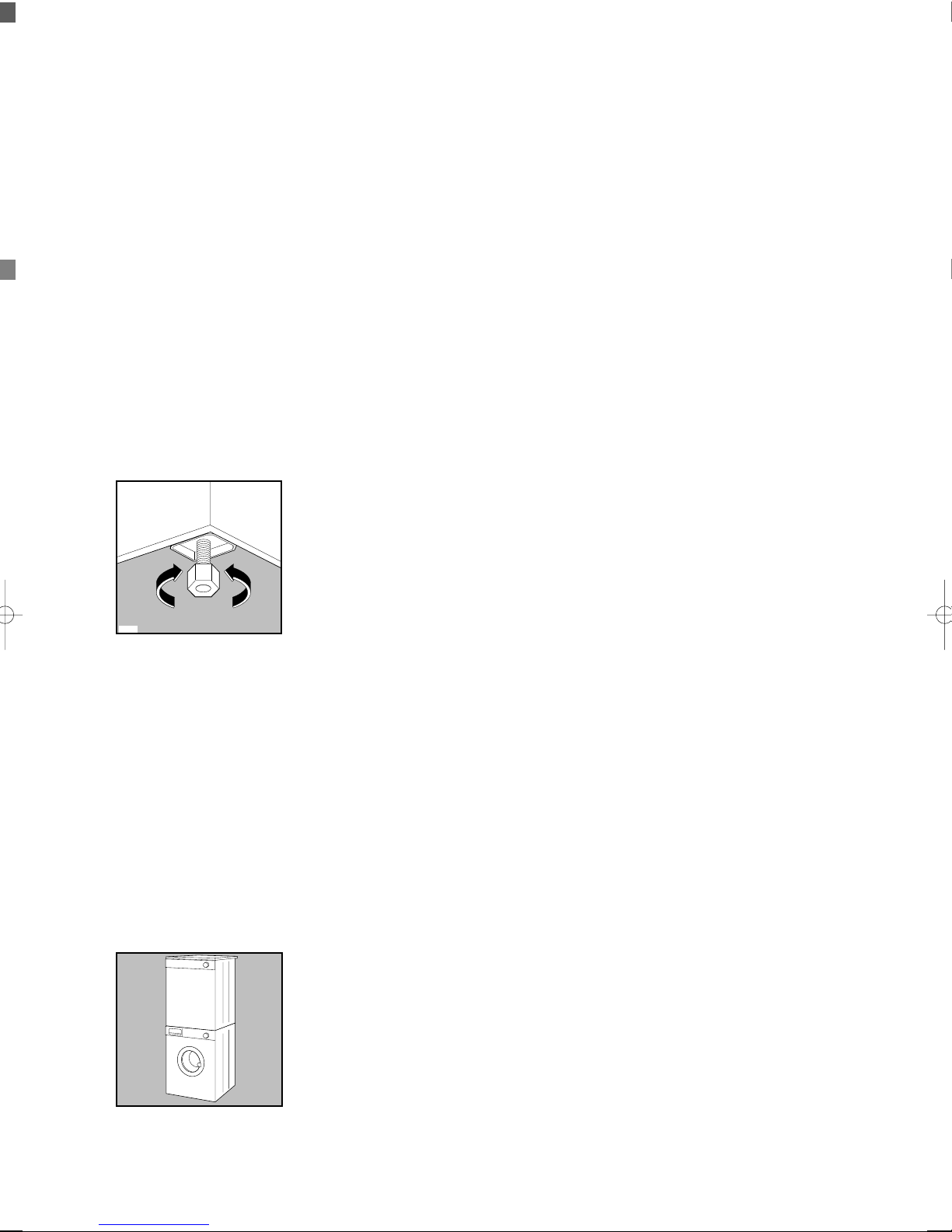

Positioning 15

■

Stacking kit (optional accessory) 15

■

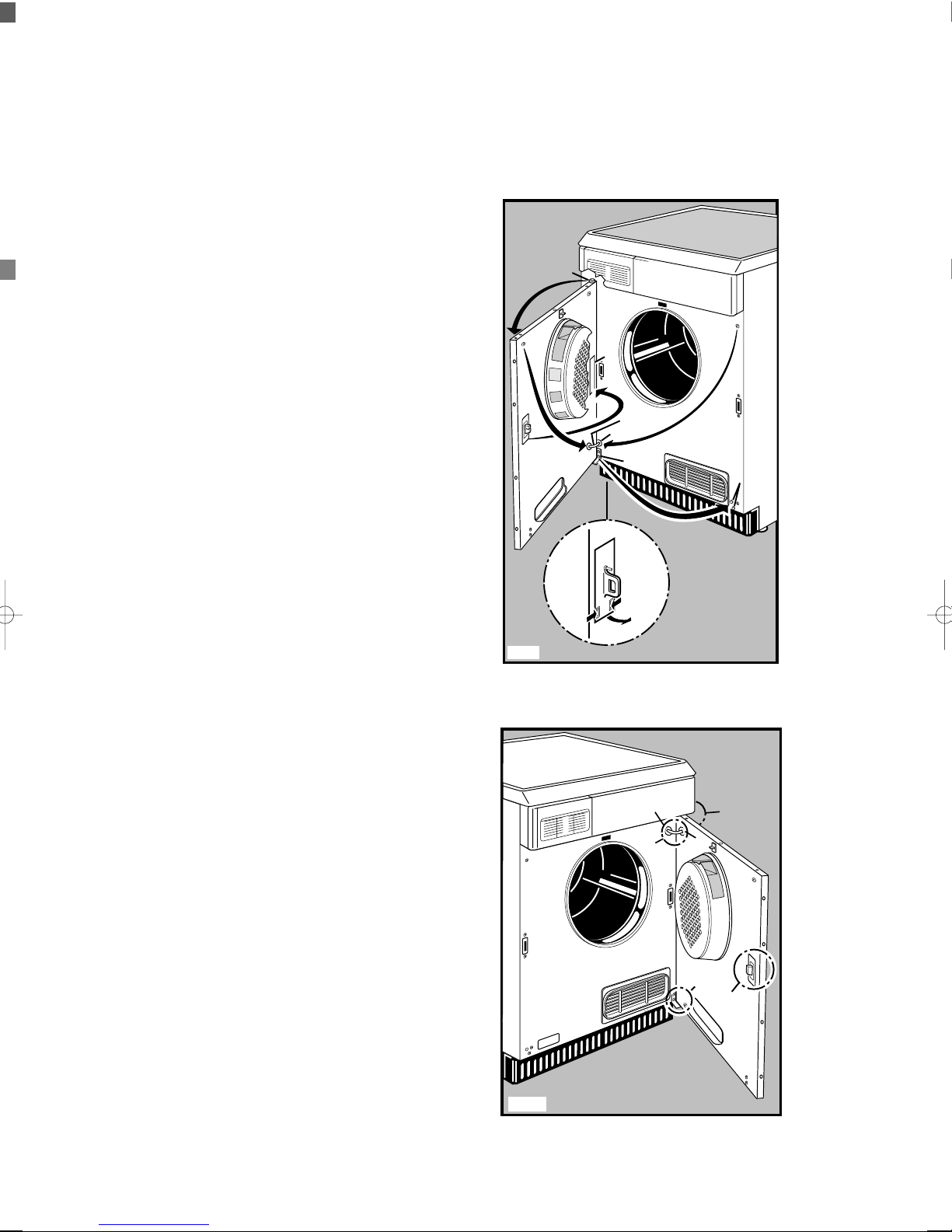

Door reversal 16

■

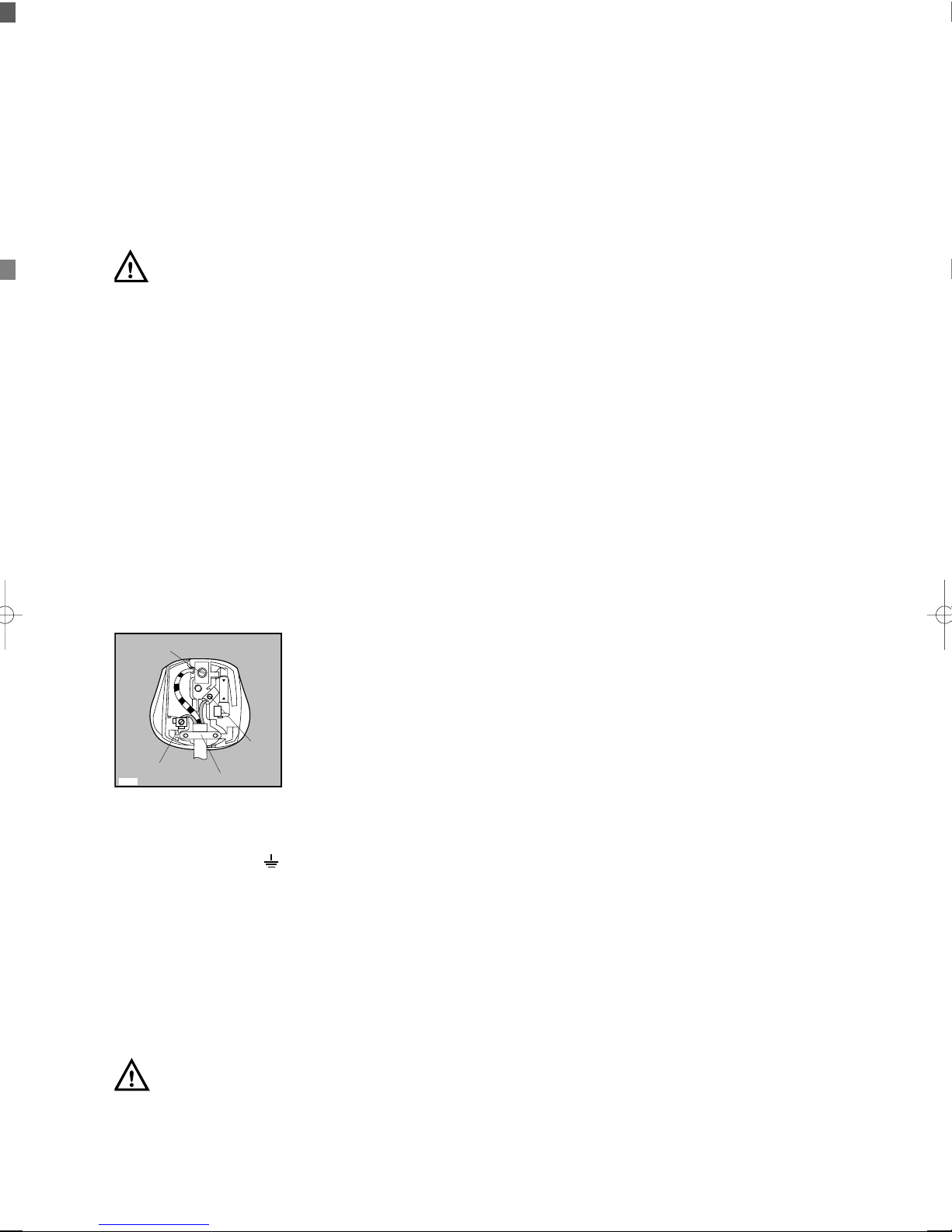

Electrical connection 17

Contents

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions
Hints and tips
Environmental information

4

Description of the Appliance

This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.

Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.

Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.

Your New Tumble Dryer

In the interest
of the environment

■

Materials marked with the symbol are
recyclable.

■

Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.

■

When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.

■

Help to keep your country tidy - use authorised
disposal sites for your old appliance.

How do we help to protect the
environment? We use recycled paper!

Energy saving tips

To save energy we recommend that you follow these
hints:

■

Try to load the maximum capacity of the machine
as small loads are uneconomical.

■

Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.

■

Do not over-dry laundry, this avoids creasing and
saves energy.

■

Clean the filter regularly to avoid excessive
drying times and high electricity consumption.

■

Ventilate the room well. The room temperature
should not exceed +35°C during drying.

1 Worktop
2 Programme Chart
3 Full Tank Indicator Light
4 Mains-On Light
5 Door Opening Button
6 Time Selector Dial-ON/OFF switch
7 Fluff Filter
8 Door Catch

9 Rating Plate
10 Ventilation Grille
11 Condenser Unit
12 Water Reservoir (Tank)
13 Adjustable Feet

7

6

9

23415

8

1110

13

12

M
A

IN
S

O
N

SYNTHETICS MIXED FABRICS

1

k
g

C

u
p

b
o

a
r
d

D
r

y

m
i
n

2
,
5

k
g

C

u
p

b
o

a
r
d

D

r
y

m
i
n

1

k
g

I

r
o
n

D
r

y

m
i
n

2
,
5

k
g

I
r

o
n

D
r

y

m
i
n

R
e

f
r
e

s
h
e

r

m
i
n

I
M
PO

R
T
A
N

T
: P
LE

A
S
E

R
E
A

D
TH

E
IN

S
T
R
U
C
T

I
O
N

B
O
OK

B

E
FO
R

E
U
S

E.

F
U
L

L
T
A
N

K

D
O

O
R

O

P
E
N

I
N
G

B

T
D

0
1

COTTONS - LINENS

2
.
5

k
g

C

u
p
b

o
a

r
d

D
r
y

m

i
n

5

k
g

C

u
p
b

o
a

r
d

D
r
y

m

i
n

2
.
5

k
g

I
r

o
n

D
r
y

m

i
n

5

k
g

I
r

o
n

D
r
y

m

i
n

R

e
f
r

e
s
h
e

r

m

i
n

30

- 4
0

65

- 7
5

2

5

- 3
5

45

-

55

- 12

DRYING TIME

5
5 -

75

85

­110

40 -

60

65 - 9

5

- 1

2

5

1 2 3 4 5

MAINS ON

SYNTHETICS MIXED FABRICS

1 kg Cupboard Dry min
2,5 kg Cupboard Dry

min

1 kg Iron Dry

min

2,5 kg Iron Dry

min

Refresher min

IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USE.

FULL TANK

DOOR OPENING

BTD 01

COTTONS - LINENS

2.5 kg Cupboard Dry min
5 kg Cupboard Dry min

2.5 kg Iron Dry min
5 kg Iron Dry min

Refresher min

30 - 40
65 - 75
25 - 35
45 - 55

- 12

DRYING TIME

55 - 75
85 -110
40 - 60
65 - 95

- 12

The Control Panel

1 Programme Chart

This will help you to select the correct time for
drying.

2 Full Tank Indicator Light

This light illuminates when the water reservoir is full
or improperly fitted.
The programme will be interrupted.
Attention: The time selector dial continues to turn
towards the “0” position, but the drying cycle is
stopped, that means that the laundry is not dried.
After having emptied the tank, you have to select the
drying programme again for the time required to
complete drying.

After this operation, the dryer can remain inactive for
20 seconds before starting the programme and during
this period the FULL TANK light remains alight.

3 Mains-On Light

This light indicates operating status. It switches off at
the end of the programme.

4 Door Opening Button

Depress this button to open the door.
Should the door be opened while appliance is
working, the tumble dryer will stop functioning but
the time selector dial continues to turn.

5 Time Selector Dial-On/Off

Switch

Turn the dial clockwise (to the right) to select the
time for drying (see Chart page 6). At the same time
the machine is switched on and the programme starts.

This dryer has two drying cycles of up to 120 and 80
minutes, giving a high or low heat temperature
according to the type of fabric.

When selecting the drying time you should remember
that it includes a 12 minute cooling phase (position

on the dial).

This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damage to
the laundry.

6

Programme Chart

Cottons and linens

Selector dial up to 120 minutes (high temperature section)

Type of laundry:

Cotton
Towelling
Shirts
Sheets
Hand towels
Tablecloths
Table napkins

Degree of drying

Cupboard dry

(wardrobe dry)

5 kg

2.5 kg

85-110

55-75

5 kg

2.5 kg

65-95

40-60

Iron dry

(not completely dry;

suitable for ironing)

Max. amount

of laundry

Drying time in minutes

for laundry spun at

1000/1200 rpm

Synthetics

Selector dial up to 80 minutes (low temperature section)

Type of laundry:

Synthetics or mixed fabrics
which do not require
ironing.

Degree of drying

Cupboard dry

2.5 kg 65-75

30-40

45-55

25-35

1 kg

2.5 kg

1 kg

Max. amount of

laundry

Drying time in minutes for laundry

spun at a minimum speed of 650 rpm

ATTENTION! Please follow the instructions on labels when drying mixed fabrics.

Synthetics or mixed fabrics
suitable for ironing.

Iron dry

Never overfill the drum (do not load large quilts, for example).

Drying times vary according to:

■ The type of laundry

■ The size of the load

■ The degree of spinning prior to drying

■ The degree of drying required

Refresher

This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls).

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:

■ cotton, linen: drum full but not too tightly packed

■ synthetics: drum no more than half full

7

Before using your tumble dryer for the first time, we
recommend you place a few damp cloths inside the
appliance and dry for approximately 20 minutes.
There may be dust inside a brand new tumble dryer.

1. Load the laundry

Open the door by pressing the relevant button.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught between
the door and filter.

2. Select the drying time

Turn the selector dial clockwise to the desired time
(in the high or low temperature section, according to
the fabric).
The mains-on light illuminates and the programme
starts.

3. When drying is completed

The machine stops automatically and the mains-on
light goes out.

Open the door and take out the laundry.

Clean the filter and empty the tank after every
drying programme.
A clean filter ensures correct functioning of the
appliance.

P0122S

60

P0871

Operating Sequence

8

Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.

Care Labels you may find on your laundry

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

may be tumble dried

Do not overload the appliance.

Here is a list of the approximate weight of some
common laundry items.

Sheet 700 to 1000 g
Pillowcase 100 to 200 g
Tablecloth 400 to 500 g
Table Napkin 50 to 100 g
Kitchen Towel 70 to 120 g
Linen Hand Towel 100 to 150 g
Hand Towel 150 to 250 g
Bath Towel 700 to 1000 g
Bathrobe 1000 to 1500 g
Shirt 200 to 300 g
Apron 150 to 200 g

■

Always load well spun laundry. The higher the
spin speed the lower the electricity consumption
and the shorter the drying time.

■

DO NOT load dripping wet laundry into the
dryer. Roll the article in a towel or spin to remove
excess water.

■

Close poppers and zips and fasten any buttons.

■

Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.

■

Remove the laundry immediately after the
programme has finished.

■

Use a fabric conditioning sheet to reduce static.
We recommend the sheet is pinned to an article of
laundry (using a safety pin).

■

Mix the load i.e. large and small articles.

■

When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.

DO NOT use the tumble dryer to dry the
following:

■

Articles contaminated with inflammable
substances e.g. petrol, cleaning solvents, cooking
oil, fats or hair lacquer.

■

Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.

■

Very delicate articles such as silk.

■

Very large and bulky items such as duvets or
sleeping bags.

Hints & Tips on Drying

9

You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.

Cleaning the filter

The tumble dryer cannot operate efficiently with a
clogged filter. The filter collects all the fluff which
forms during drying and it is therefore essential to
remove and clean this filter after each drying
programme before removing the laundry.
Remove the fluff around the filter too.

You should not be alarmed by the amount of fluff
which collects on the filter; this is due to normal
wearing of the fabrics dried and not to incorrect
operation of your machine. Rubbing of the fibres
during normal wear and washing forms fluff. If
laundry is dried on a line, this fluff simply flies away,
whereas inside the tumble dryer it collects together
and swells considerably as a result of the drying
action.

P0638S

Cleaning the condenser unit

Clean the air condenser periodically, 3 or 4 times a
year depending on how frequently the dryer is used.
Pull out the condenser, holding it at the top, and
remove all fluff. Clean it with a brush and rinse it
under the shower if necessary.

Also clean the outside, removing all fluff.
Clean the rubber seal round the porthole door and the
seal of the condenser in the inner door with a damp
cloth.

Emptying the water reservoir(tank)

Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
If this is not done a safety device trips: pilot light
FULL TANK on the control panel comes on and the
programme stops, leaving the laundry damp.

The reservoir can be emptied even in the middle of a
programme.

The reservoir must be re-inserted correctly.

Important: When emptying the reservoir during the

drying cycle, the machine stops drying, but the
drying time selector dial will continue to step on.

Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).

P0637

P0639

P0636

Maintenance and Cleaning

10

The tumble dryer does not start

■

The door has not been closed.

■

The plug is not properly inserted in the power
socket.

■

There is no current at the socket

■

The main fuse or the fuse in the plug has blown.

■

A drying time has not been selected.

■

The water reservoir is full or not properly
inserted (the pilot light FULL TANK is on).

Drying takes too long or laundry is not
dry enough.

■

The laundry has not been spun properly.

■

The filter and/or air condenser are clogged up.

■

The water reservoir is full during operation.

■

The room temperature is too high.

■

The selected time or section was not suitable for
the laundry

■

There is too much laundry inside the appliance.

■

The dryer is not correctly installed.

Something Not Working

Symptom Possible causes

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.

IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect
use or installation, a charge will be made even if the appliance is under guarantee.

If after the above checks, there is still a fault, call
your local Electrolux Service Force Centre.

Service & Spare Parts

If you require an engineer or wish to purchase spare
parts contact your local Electrolux Service Force
Centre by telephoning:

0870 5 929929

Your telephone call will be routed to the Service
Centre covering your post code area.
The addresses are detailed in this instruction book on
the pages headed Electrolux Service Force Centres,
and can also be found in your local telephone
directory under “E”.
When you call the Service Force Centre please make
sure you give the model and serial number of the
appliance.

This information can be found on the rating plate
(see picture on page 4 ) or on the guarantee card.

In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown. Please note that proof of
purchase is required for any in-guarantee service
calls.

Customer Care

For general enquiries concerning your Electrolux
appliance or for further information on Electrolux
products, please contact our Customer Care
Department by letter or telephone as follows:

Customer Care Department

Electrolux

55-57 High Street

Slough

Berkshire

SL1 1DZ

Tel [phone]*

* calls to this number may be recorded for training
purposes.

11

To contact your local Service Force Centre telephone [phone]

CHANNEL ISLANDS

GUERNSEY

Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD

JERSEY

Jersey Electricity Company
Haut De Lorme
Rue De Haut De Lorme
Trinity
Jersey
Channel Islands JE3 5FG

SCOTLAND

ABERDEEN

54 Claremont Street
Aberdeen AB10 6RA

AUCHTERMUCHTY

33a Burnside
Auchtermuchty
Fife KY14 7AJ

BLANTYRE

Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ

DUMFRIES

93 Irish Street
Dumfries
DG1 2 PQ

DUNOON

7 Hill Street
Dunoon
Argyll
PA23 7AL

EDINBURGH

Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB

GLASGOW

Unit 4
Wellington Road
Bishopriggs
Glasgow G64 2SA

INVERNESS

Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7WL

ISLE OF ARRAN

Arran Domestics
The Douglas Centre
Brodick
Isle of Arran KA27 8AJ

ISLE OF BARRA

J Zerfah
244 Bruernish
Isle of Barra
Western Islands HS9 5QY

ISLES OF BUTE

Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH

ISLE OF LEWIS

ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW

KELSO

2, 6 & 8 Woodmarket
Kelso
Borders
TD5 7AX

ORKNEY

7 King Street
Kirkwall
Orkney
KW15 1JF

PERTH

Scottish Hydro Electric
Central Warehouse
Inveralmond

(OWN SALES)

Perth PH1 3AF

SHETLAND

3-4 Carlton Place
Lerwick
Shetland

(OWN SALES)

ZE1 0PW

SHETLAND

Bolts Shetland
26 North Road
Lerwick

(OWN SALES)

Shetland ZE1 0PE

WHALSAY

Leask Electrical
Harisdale
Symbister, Whalsay

(OWN SALES)

Shetland ZE2 9AA

NORTHERN IRELAND

BELFAST

Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD

WALES

CARDIFF

Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS

CLYWD

Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG

DYFED

Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW

OSWESTRY

Plas Ffynnon Warehouse
Middleton Road
Oswestry
SY11 2PP

NORTH EAST

GATESHEAD

Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH

GRIMSBY

15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS

HULL

Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY

LEEDS

64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS

NEWTON AYCLIFFE

Unit 23
Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ

SHEFFIELD

Pennine House
Roman Ridge Road
Sheffield
S9 1GB

NORTH WEST

BIRKENHEAD

1KelvinPark
Dock Road
Birkenhead
CH41 1LT

CARLISLE

Unit 7
James Street Workshops
James Street
Carlisle
Cumbria CA2 5AH

ISLE OF MAN

South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT

BOLTON

Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR

PRESTON

Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL

STOCKPORT

Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR

12

To contact your local Service Centre telephone [phone]

MIDLANDS

BIRMINGHAM

66 Birch Road East
Wyrley Trading Estate
Witton
Birmingham
B6 7DB

BOURNE

Pinfold Road
Bourne
PE10 9HT

BRIDGNORTH

68 St. Marys Street
Bridgnorth
Shropshire
WV16 4DR

GLOUCESTER

101 Rycroft Street
Gloucester
GL1 4NB

HEREFORD

Units3&4
Bank Buildings
Cattle market
Hareford
HE4 9HX

HIGHAM FERRERS

30 High Street
Higham Ferrers
Northants
NN10 8PL

ILKESTON

Unit 2
Furnace Road
Ilkeston DE7 5EP

LEICESTER

Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF

LINCOLN

Unit 8
Clifton Street
Stone Field Park
Lincoln
LN5 8LQ

NEWCASTLE

18-21 Croft Road

UNDER LYME

Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW

REDDITCH

13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND

TAMWORTH

Unit 3
Sterling Park
Claymore
Tamworth
B77 5DQ

WORCESTER

Units1&2
Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP

LONDON & EAST ANGLIA

BECKENHAM

11a Gardner Ind. Estate
Kent House Lane
Beckenham
Kent BR3 1QZ

CHELMSFORD

Hanbury Road
Widford Ind. Estate
Chelmsford
Essex
CM12 3AE

COLINDALE

Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ

ELTHAM

194 Court Road
Mottingham
Eltham
London SE9 4EW

ENFIELD

284 Alma Road
Enfield
London
EN3 7BB

GRAVESEND

Unit B4
Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL

IPSWICH

Unit 6C
Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD

LETCHWORTH

16-17 Woodside Ind. Park
Works Road
Letchworth
Herts
SG6 1LA

LONDON

2 - 4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL

MAIDENHEAD

Reform Road
Maidenhead
Berkshire
SL6 8BY

MOLESEY

10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ

NEWBURY

9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 4ER

NORWICH

2b Trafalgar Street
Norwich
NR1 3HN

SUNBURY

Unit 1a
The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB

SOUTH EAST

ASHFORD

Unit 2
Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB

FLEET

Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD

HAYWARDS

21-25 Bridge Road

HEATH

Haywards Heath
Sussex RH16 1UA

TONBRIDGE

Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA

SOUTH WEST

BARNSTAPLE

Main Road
Fremington
Barnstaple
North Devon EX31 2NT

BOURNEMOUTH

63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW

BRIDGEWATER

6 Herswell Business Park
Salmon Parade
Bridgwater
Somerset TA6 5PY

BRISTOL

11 Eldon Way
Eldonwall Trading Estate
Bristol
BS4 3QQ

EMSWORTH

266 Main Road
Southbourne
Emsworth
PO10 8JL

ISLE OF WIGHT

Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB

NEWTON ABBOT

Unit 2
Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD

REDRUTH

Unit 7D
Pool Ind. Estate
Druids Road
Redruth
Cornwall TR15 3RH

13

Guarantee Conditions

Standard guarantee conditions

We, Electrolux, undertake that if, within 12 months
of the date of the purchase, this Electrolux appliance
or any part thereof is proved to be defective by
reason only of faulty workmanship or materials, we
will, at our option, repair or replace the same FREE
OF ANY CHARGE for labour, materials or carriage
on condition that:

■

The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.

■

The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.

■

The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.

All service work under this guarantee must be
undertaken by an Electrolux Service Force Centre.
Any appliance or defective part replaced shall
become the Company’s property.
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.

Exclusions

This guarantee does not cover:

■

Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.

■

Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.

■

Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.

■

Products of Electrolux manufacture which are
NOT marketed by Electrolux.

European guarantee

If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:

■

The guarantee starts from the date you first
purchased your product.

■

The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.

■

The guarantee relates to you and cannot be
transferred to another user.

■

Your new home is within the European
Community (EC) or European Free Trade Area.

■

The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.

■

The product is installed taking into account
regulations in your new country.

Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.

France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

14

Installation Instructions

Technical Specifications

It is dangerous to alter the specifications or
attempt to modify this product in any way.

Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

DIMENSIONS Height 85 cm (33.5”)

Width 60 cm (23.6”)
Depth 60 cm (23.6”)

POWER SUPPLY VOLTAGE 230-240 V/50 Hz
TOTAL POWER ABSORBED 2650 W (13A)

MAXIMUM RECOMMENDED LOAD Cotton, linen 5 kg

Synthetics, delicates 2.5 kg

DRUM VOLUME 108 Lts

CONSUMPTIONS Cotton, linen 3.9 kWh (5 kg cupboard dry)

Cotton, linen 3.1 kWh (5 kg iron dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

15

Positioning

It is recommended that, for your convenience, the
dryer is positioned close to your washing machine.

The tumble dryer must be installed in a clean place,
where dirt does not build up.

Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles in the back of the machine.

To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the four adjustable
feet until it is.

The feet must never be removed.

Do not restrict the floor clearance through deep­pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.

Important

When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.

Stacking kit

A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.

P1044

P0046

16

Door Reversal Instructions

The appliance is supplied with the door opening from
right to left. If you wish to change the opening
direction, proceed as follows (see picture A):

1. Unhook door stopper «A» from its seat «a» and
loosen from hole «b» by a 90° rotation.

2. Remove the plastic plug from hole «c» by a 90°
rotation and re-fix in hole «b».

3. Unscrew hinge «B» (loosen the 2 screws, holding
the door securely) and lower the door from the
top pivot.

4. Re-insert pin «F» from the door above and below
on opposite sides respectively.

5. Loosen door catch «C» by pressing both lugs
together (see small illustration).

6. Loosen opposite plastic part «D» as in step 5
(you may need to use a screwdriver to assist in
both steps 5 and 6 ).

7. Interchange and insert parts «C» and «D».

8. Remove screws «E» and refit on the opposite
side. Fix hinge «B» on the right handside.
Do not fully tighten the screws.

9. To mount door, see picture B:

■

First locate into upper right hand hole with upper
pin «F».

■

Then place lower pin into the hinge «B» at the
bottom of the door.

■

Align door before tightening hinge.

■

Tighten hinge.

10. Remove the plug from hole «d» and refix in
hole«a» (Fig. A).

11. Fix door stopper «A» in hole «c» by 90° rotation.

12. Hook door stopper «A» into hole «d».

D

b

c

E

B

A

d

F

1

1

2

C

P0866

a

C

A

B

F

A

C

P0865S

c

d

B

17

Electrical connection

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

WARNING: THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability

should this safety measure not be observed.

Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture on page 4).

The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol or coloured green and
yellow.

The wire coloured blue must be connected to the
terminal marked «N» or coloured black.

The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket

is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13A

P1041

E

N

L

Permanent connection

In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.

The switch must not break the yellow and green earth
cable at any point.

Electrolux, 55-77High Street, Slough, Berkshire SL1 1DZ

Consumer care telephone number 08705 950950

© Electrolux Household Appliances Limited 2001
