Benchmark Orbi-Shaker Operation Manual

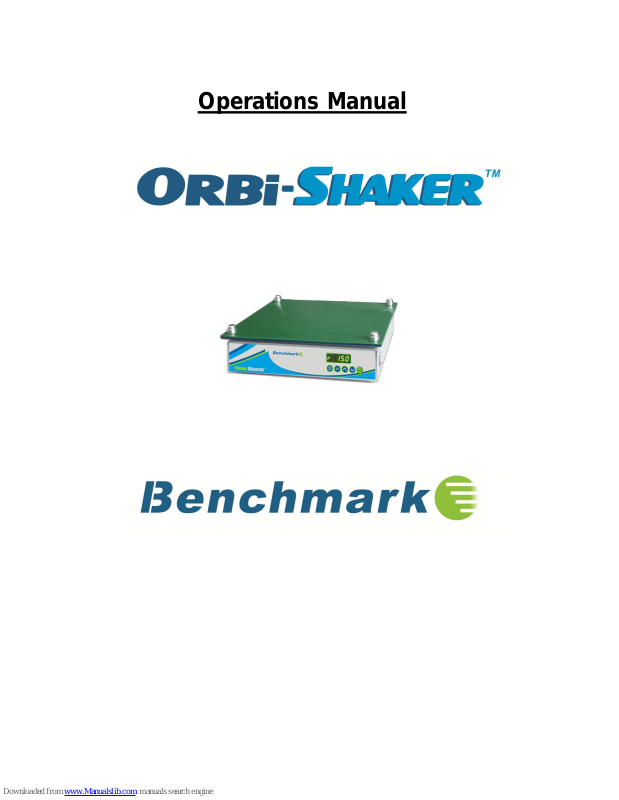

Operations Manual

Index:

I. General Information

II-1. Introduction
II-2. Installation
II-3. Specifications
II-4. Features

III-1, Operation
III-2. Platform Installation
III-3. Error Messages
III-4. Maintenance

IV-1. Service and Contact

I. General Information

NOTE : Before operating the Orbi-Shaker, please take a few minutes to
familiarize yourself with the contents of this manual.

Thank you for purchasing the Orbi-Shaker. This operations manual contains
instructions for the care of this Instrument. In order to use the instrument
properly, please read this manual carefully before operation. Please keep it
available for future use.

Prior to the initial operation:
Please check the Instrument and the accessories against the packing list when

you first open the shipping carton. If you find there is damage, a discrepancy,
or missing items, please contact your supplier immediately.

II-1. Introduction

The Orbi-Shaker is designed for many applications used in general research
laboratories. The Microprocessor’s constant monitoring system ensures accurate
shaking speed. The beltless drive system minimizes noise and vibration while
increasing the life span of the unit. Optional accessories are available for
compatibility with a wide variety of laboratory vessels, including flasks, tubes, dishes
and trays.

II-2. Installation

- Choose a location that is free from rapidly changing temperature conditions (away
from a heating or cooling vent).

- To assure proper ventilation, allow a minimum of 2 inches (5 Cm) of the clearance
between the rear and side of the unit and the adjacent wall.

- Always ensure that the machine is installed on a level surface.

- Before plugging the machine into the outlet, ensure that the electrical

specifications (listed on the serial number label on the rear side of the unit)
matches the electrical specifications of your outlet.

- Always

- Avoid a direct ray and light.

- Avoid high humidity and dust air.

- Avoid cool areas (below 5℃).

II-3. Specification

1) Dimension (Exterior) : 28(W) X 33(D) X 9(H) cm / 11(W) x 13.D) x 3.5(H) in.
(Platform): 30(W) x 33(D) cm / 12(W) x 13(D) in.

2) Speed range : 30 - 300 RPM

3) Shaking Orbit: 19mm (3/4”)

4) Timer : Digital - 1 min. to 47hr 59min. (1 min. increments)

5) Motor : Brushless DC - Beltless

6) Weight: 25 lbs / 11.5 kg

7) Electrical: 120V or 230V, 50-60Hz / 200W

II-4. Features

1) Constant Monitoring System (CMS) ensures precise control over speed

2) Extremely compact

3) MAGic Rack platform available as optional accessory.

4) Blushless DC motor and beltless drive system minimizes noise and vibration.

5) Digital control panel displays speed and time .

6) Wide variety of optional accessories available for most common laboratory vessels

III-1. Operation

1) Place the power switch (located on the rear of the machine) in the "ON" position
(the display will illuminate).

2) To set the desired time, Press and hold the "RPM/TIME" key for approximately 2
seconds until LED displays "t” followed by the current set time. Press the "SET"
key located underneath the time/speed display. The set time is displayed and will

blink continuously. It can be adjusted by using the UP (▲) and DOWN (▼) keys.

Once the desired time is displayed, press the “SET” key to confirm.

* If you do not press the "SET" key to store the desired time the new time will not
be saved and the set time will return to the prior setting.

3) To set the desired mixing speed, Press and hold the "RPM/TIME" key for
approximately 2 seconds until LED displays “r” followed by the current set mixing
speed. Press the "SET" key located underneath the time/speed display. The set
speed is displayed and will blink continuously. It can be adjusted by using the UP
(▲) and DOWN (▼) keys. Once the desired speed is displayed, press the “SET”
key to confirm.
* If you do not press the "SET" key to store the desired speed the new speed will
not be saved and the set speed will return to the prior setting.

III-2. Platform Installation

The Orbi-Shaker includes a flat non-slip platform for low speed operation with many
common vessels, including trays and dishes. For installation of any of the optional
platform the user must:

1.) Unscrew the four metal, platform screws from the corners of the internal
platform and remove the green rubber mat.

2.) Clean any dirt or debris from the metal base-platform and apply the desired
optional platform so that the four corner holes are aligned.

3.) Screw in the four plastic, platform screws tightly by hand.

* I you have ordered the optional MAGic Clamp platform, the installation procedure
is slightly different than the above. These instructions are included with the
platform. If you are unable to locate these instructions, please contact your
supplier.

III-3. Error Messages

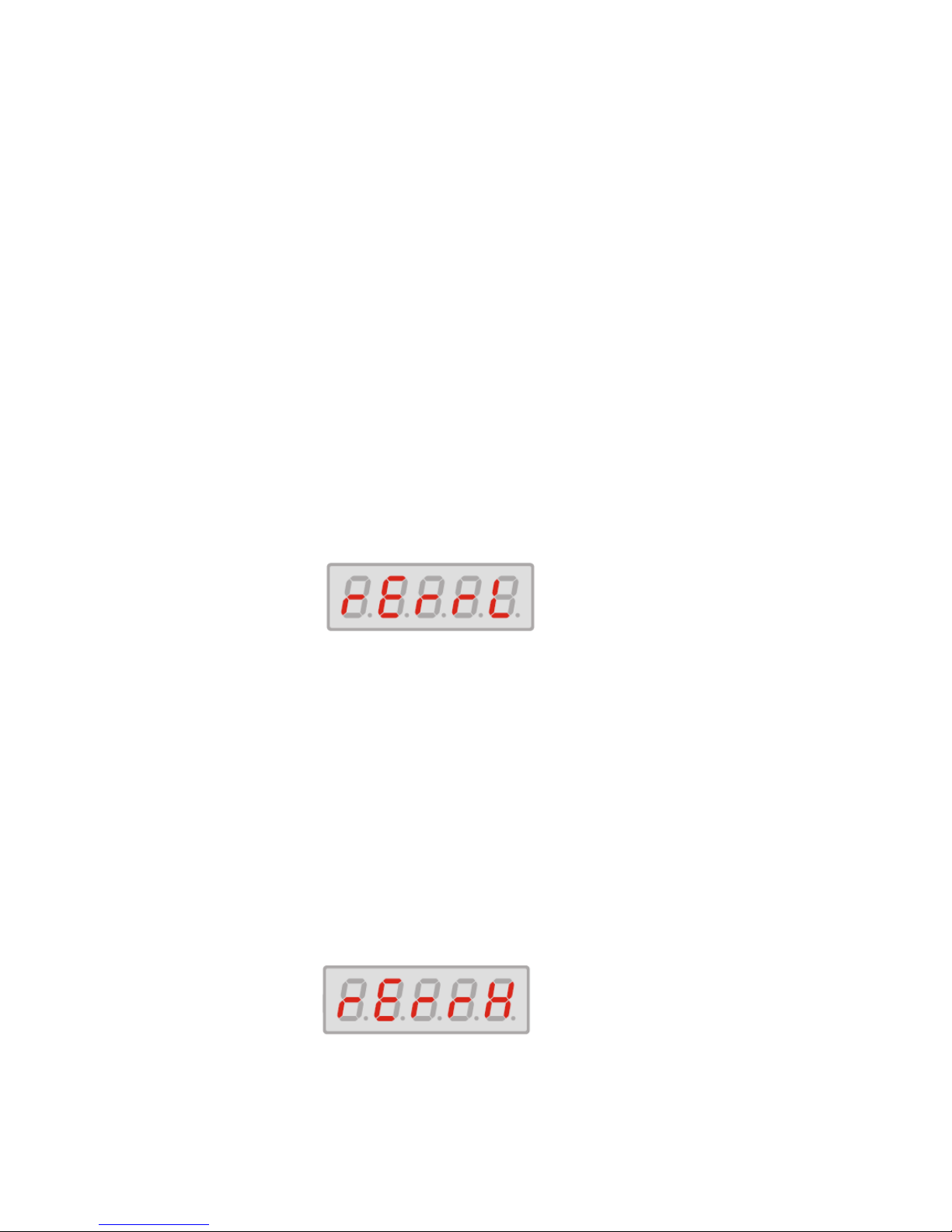

1) This message “rErrL” represents a low speed speed error

- Check the platform to ensure that nothing is obstructing it’s movement

- Check the set speed to make sure that it is within the acceptable range (30 to

300rpm)
Solution : Use your hand to move platform. While the platform is moving press and
hold the "STOP" and "SET" keys simultaneously.

2) This message “rErrH” represents a high speed error.

- Removal of load or partial load.
Solution : If a vessel has been removed, replace the vessel or restart the machine.

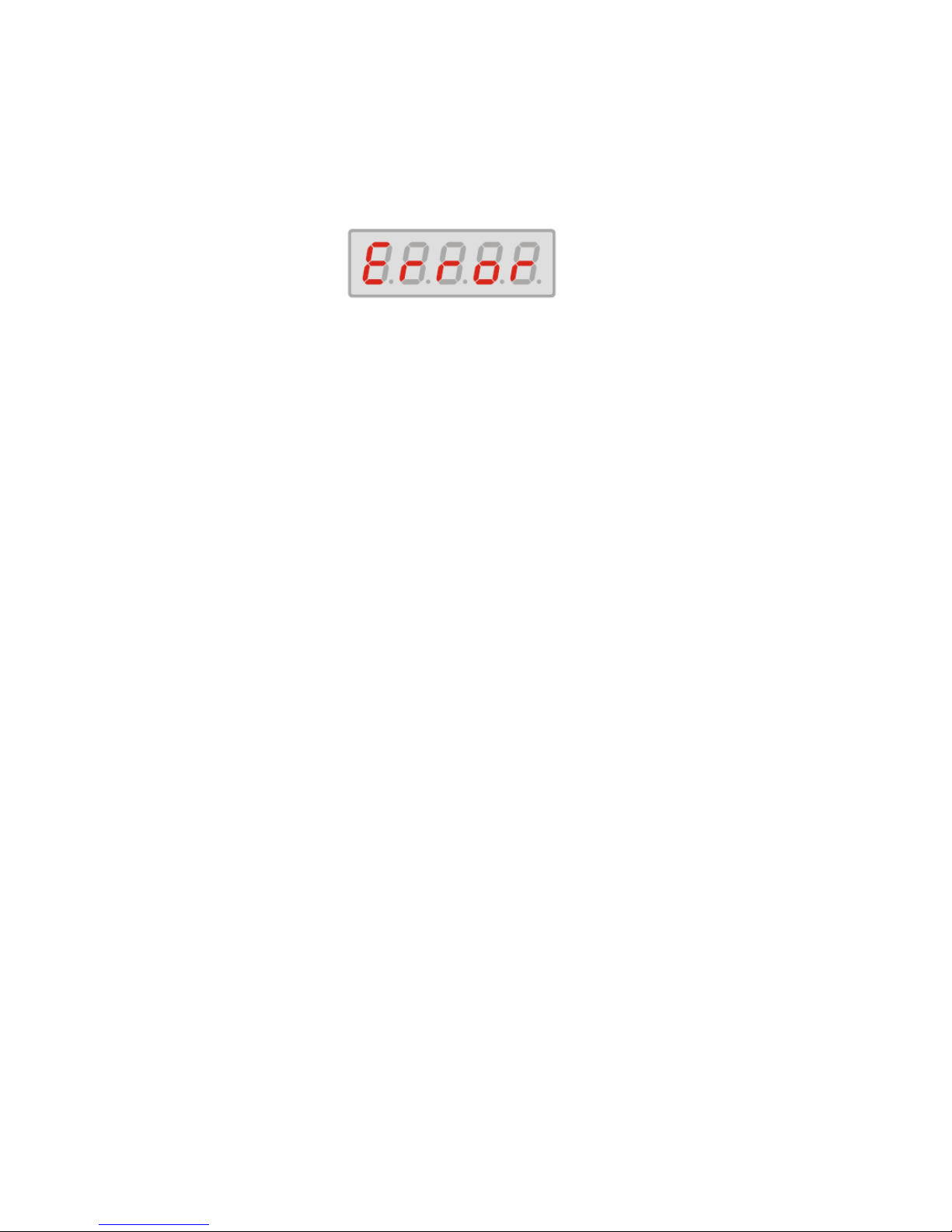

3) This message, “Error” represents an electrical error.

- Machine has lost power during the run.
Solution : Check that the power cord is properly installed and restart or check that
the circuit has not been interrupted and restart.

4.) Display will not illuminate
(1) Electrical connection - Please disconnect main power cord and connect again.
(2) Voltage supply - Please check to voltage.
(3) Check the fuse
(4) Verify voltage on the serial number label of the machine
(5) Defective power switch (check voltage at switch)

III-4. Maintenance:
The platform of the Orbi-Shaker should be cleaned regularly with a soft cloth
dampened with water or alcohol. (Always ensure that the machine has been
powered down prior to cleaning.

In the event of a spillage: Power down the unit, remove the platform and dry the
internal chamber with a soft cloth. DO NOT attempt to operate the unit until the
spillage had been properly dried.

IV-4. Service and Contact
Service on the Orbi-Shaker Mini should only be performed by qualified service
personnel. To request service or technical support, please contact Benchmark
Research Products or your local Benchmark Research Products representative.

Ph: [phone] Fax: [phone]
Em: [email protected] Web: www.BenchmarkRP.com
P.O. Box 709 Edison, NJ 08817, USA
