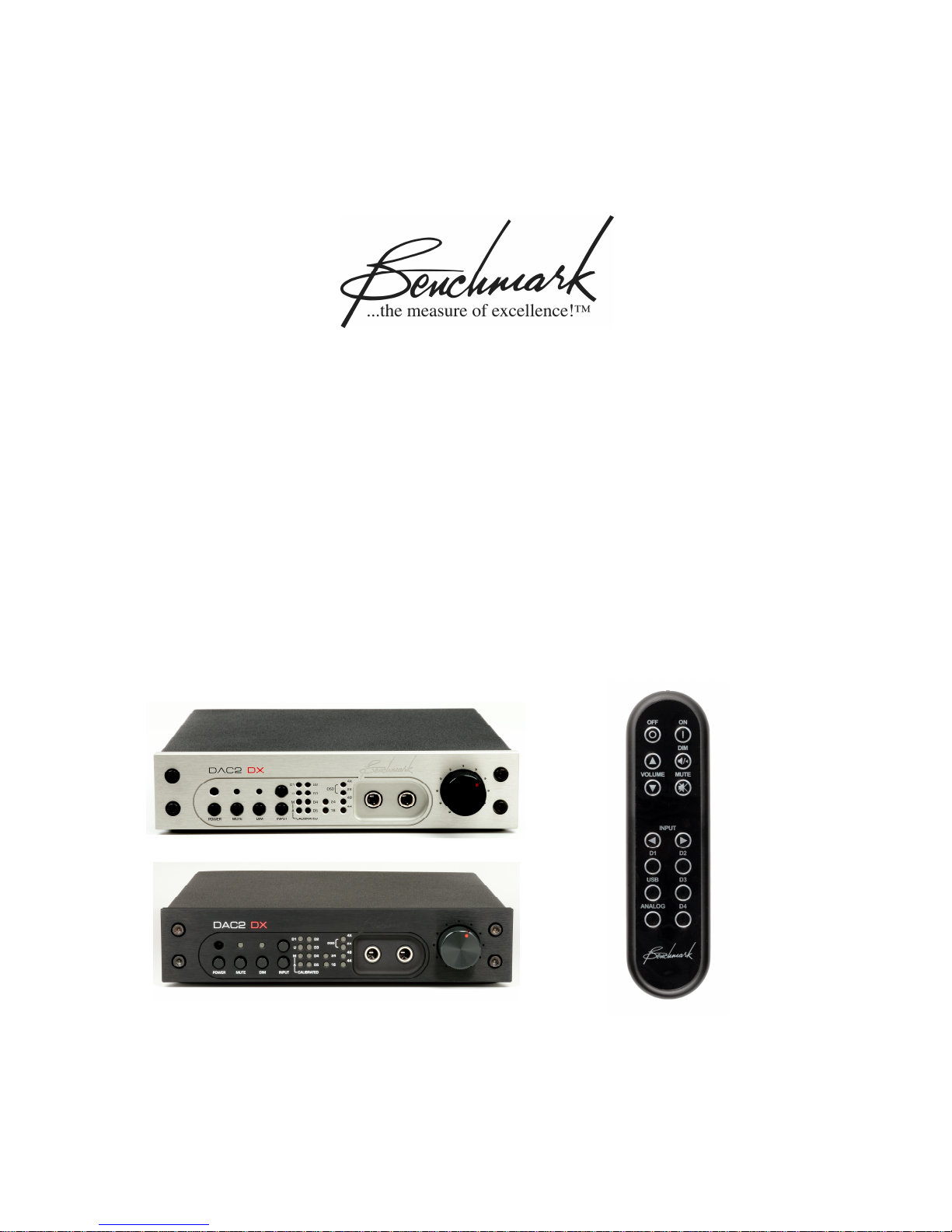

Benchmark DAC2 DX Instruction Manual

Download

Page 1

Benchmark

DAC2 DX

Instruction Manual

Reference Stereo D/A Converter

Native PCM and DSD Conversion

Headphone Amplifier

Dual Output Buses

Asynchronous USB

Page 2

Contents

Safety Information 4

Fuses 4 Voltage Selection 4 Power Cord 4 Modifications 4 Repairs 4

Quick Start Guide 5

Rear Panel 5 Front Panel 6 Control Functions 8

Applications 9

Professional Applications 9 HI-FI Applications 9 Computer Sound Card Elimination 9 Standalone Headphone Amplifier 9

DAC2 vs. DAC1 10

New Features 10 Performance Improvements 10

DAC2 DX Features 11

Feature List 11 Special DAC2 DX Features 12 Feature Details 13

DAC1 and DAC2 Product History 16

DAC1 Series History 16 DAC2 Series History 17

Digital Inputs 18

Input Formats 18 Limitations of Optical Inputs 18 Consistent Performance 18 USB - Computer Input 19 D1 and D2 - Optical Digital Inputs 20 D3 - AES XLR Digital Input 20 D4 and D5 - Coaxial Digital Inputs 20 D5 - Coaxial Digital Output 21 AES XLR to Coaxial Adapters 21

Analog Outputs 22

Main Output Bus 22 AUX Output Bus 22 Balanced Analog XLR Line Outputs 22

XLR Wiring 23 Unbalanced Analog RCA Line Outputs 23

AC Power-Entry and Fuses 24

Fuses 24 Voltage Selection 24 Power Cord 24

Internal Settings 25

Jumper-Configured Options 25 Removing Top Cover 25 XLR Output Pads 26 Digital Pass-Through Function 30

Rackmounting Options 31

Rackmount Version of the DAC2 DX 31 Connector Block 31 Premium ½-Wide Blank Rack Panel 32 Black ½-Wide Rack Panel 32 Universal Rack Adapter Tray 32 Rackmounting Example 33

Benchmark Technologies 34

Hybrid Gain Control™ 34 Native DSD Conversion 34 Multi-Mode Asynchronous AdvancedUSB Audio™ 34 Jitter-Immune UltraLock2™ 35 High Head-Room DSP 35 32-bit SABRE Conversion System 35 Diagnostic Display 35 Bi-Directional 12 Volt Trigger 35 Distributed Power Regulation 35 HPA2™ Headphone Amplifier 36 Differential Amplifiers 36 UltraLock2™ Clock System 36

USB Audio System Setup 40

USB Driver Installation - Windows XP, Vista, 7 41

Performance Graphs - DAC2 Series 47

Specifications 63

Audio Performance 63 Group Delay (Latency) 64 Digital Audio Inputs 64 Jitter Tolerance 65 Balanced Analog Outputs 66

DAC2 DX Instruction Manual Rev B Page 2

Page 3

Unbalanced Analog Outputs 66

HPA2TM Headphone Outputs 67

Status Display 67 AC Power Requirements 68 Dimensions 68 Weight 68

Regulatory Compliance 69

FCC and RoHS Compliance Statements 69 FCC Notice (U.S. Only) 69 RoHS Compliance Information 69

CE Certificate of Conformity 70

Warranty Information 71

Benchmark 1 Year Warranty 71 The Benchmark 1 Year Warranty 71 Benchmark Extended Warranty 72 The Benchmark Extended 5* Year Warranty 72 The Benchmark’s Extended 2** Year International Warranty 72 Notes on Warranty Repairs 72

DAC2 DX Instruction Manual Rev B Page 3

Page 4

Safety Information

Fuses

CAUTION: FOR CONTINUED FIRE HAZARD

PROTECTION ALWAYS REPLACE THE FUSES WITH THE CORRECT SIZE AND TYPE (0.5A 250 V SLO-BLO® 5 X 20 MM – LITTELFUSE® HXP218.500 OR EQUIVALENT). THE FUSE DRAWER INCLUDES TWO FUSES. ALWAYS REPLACE BOTH FUSES AT THE SAME TIME.

Voltage Selection

THE DAC2 IS EQUIPPED WITH A UNIVERSAL POWER SUPPLY. THERE IS NO VOLTAGE SELECTION SWITCH. AC VOLTAGE RANGE IS 88-264 VAC, 50-60 HZ. THE PRODUCT MAY ALSO BE OPERATED FROM DC POWER OVER A VOLTAGE RANGE OF 125-373 VDC.

Power Cord

Modifications

CAUTION: DO NOT SUBSTITUTE PARTS OR

MAKE ANY MODIFICATIONS WITHOUT THE WRITTEN APPROVAL OF BENCHMARK MEDIA SYSTEMS, INC. MODIFICATION MAY CREATE SAFETY HAZARDS AND WILL VOID THE WARRANTY.

NOTICE: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY BENCHMARK MEDIA SYSTEMS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT UNDER FCC REGULATIONS.

Repairs

CAUTION: DO NOT SERVICE OR REPAIR

THIS PRODUCT UNLESS PROPERLY QUALIFIED. ONLY A QUALIFIED TECHNICIAN SHOULD PERFORM REPAIRS.

CAUTION: ALWAYS USE A GROUNDED POWER CORD. THE PRODUCT IS EQUIPPED WITH A STANDARD IEC POWER ENTRY MODULE. USE AN IEC POWER CORD THAT IS EQUIPPED WITH THE APPROPRIATE CONNECTOR FOR YOUR LOCATION. CORDS ARE AVAILABLE FROM YOUR DEALER.

DAC2 DX Instruction Manual Rev B Page 4

Page 5

Quick Start Guide

Rear Panel

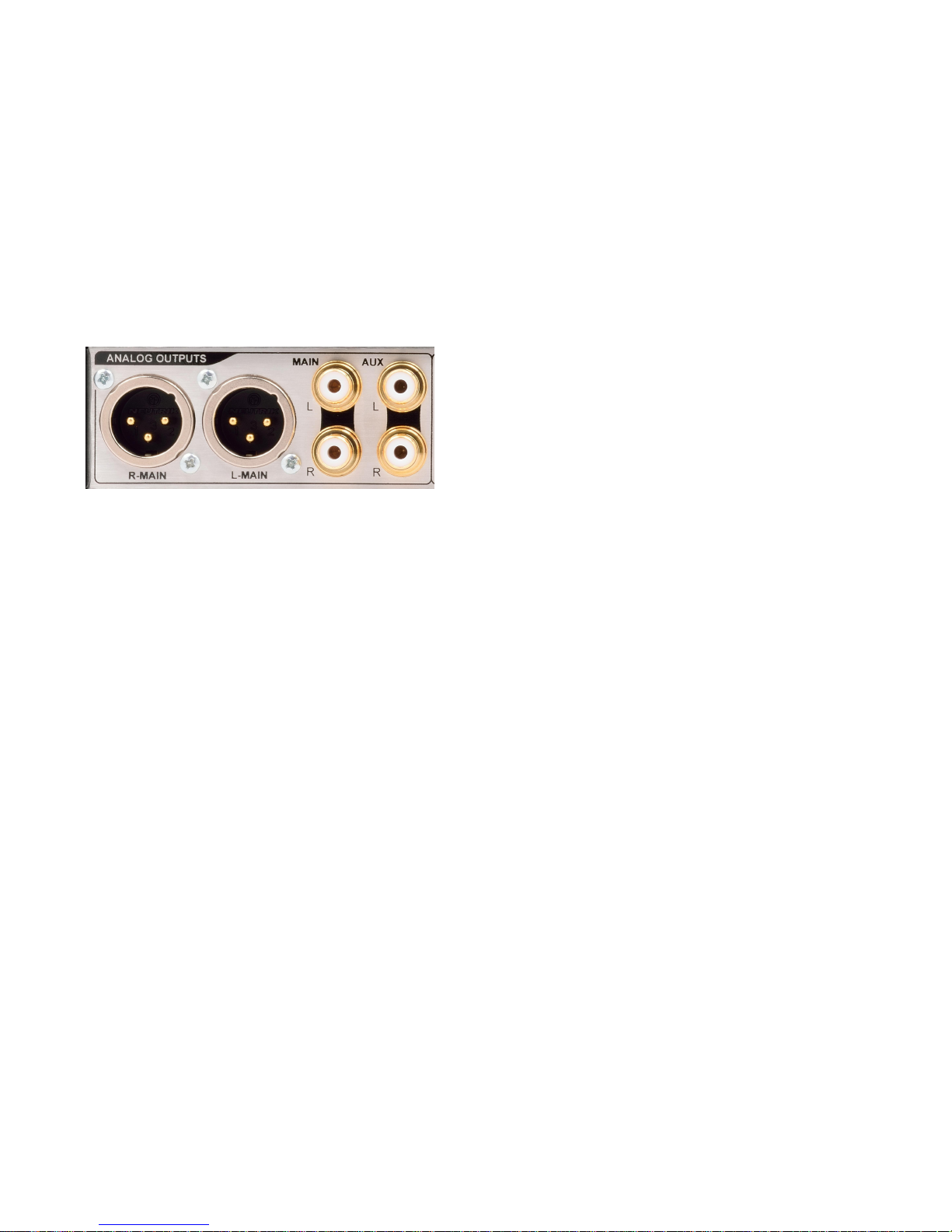

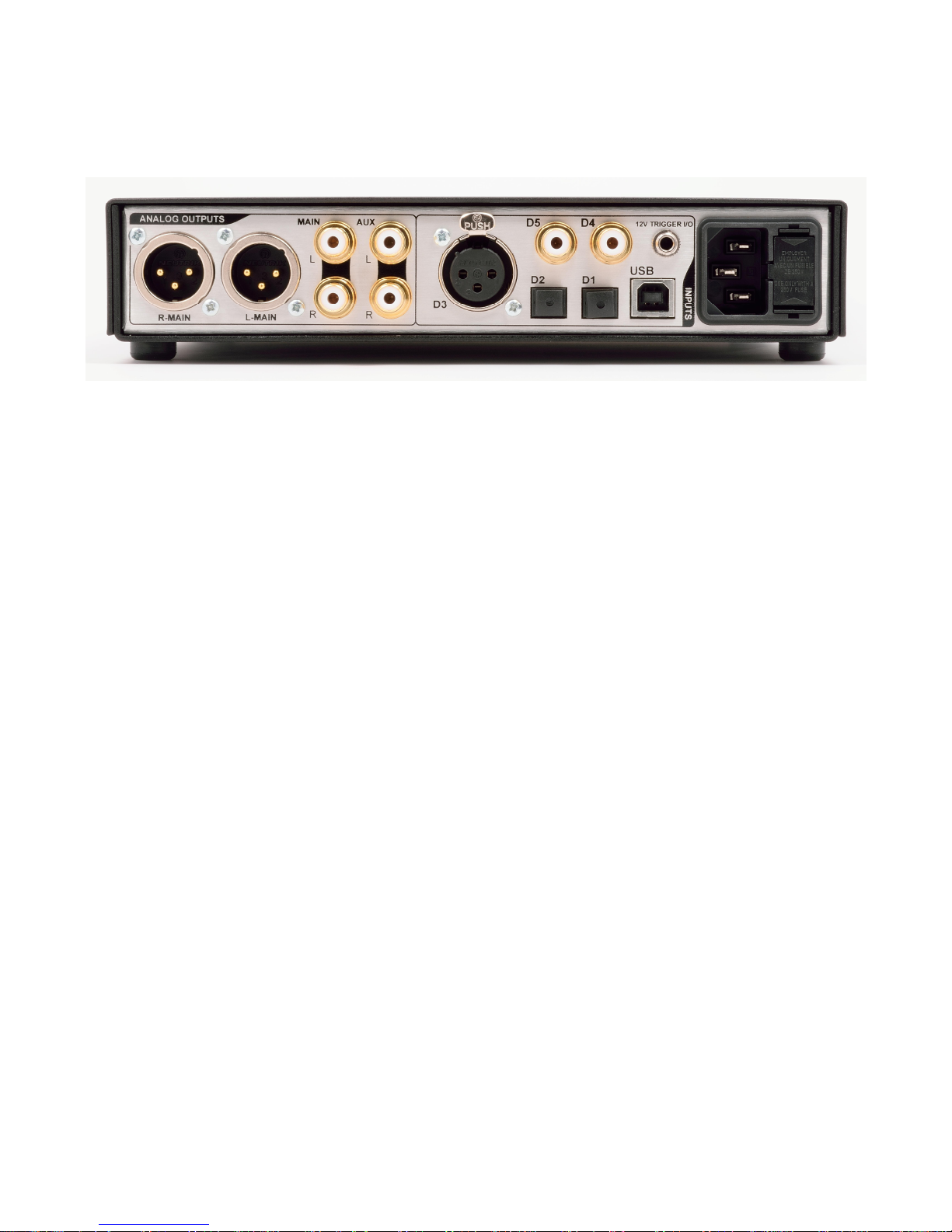

Analog Audio Outputs

The DAC2 DX has three stereo analog outputs driven from two separate output busses. By default both busses are controlled from the front panel volume control. Either or both busses may be programmed to BYPASS the volume control. When an output bus is set to BYPASS, the output level is set to a calibrated maximum level. The XLR outputs can deliver +24 dBu. The RCA outputs can deliver 2 Vrms (8.2 dBu).

The MAIN output bus drives a pair of balanced XLR outputs and a pair of unbalanced RCA outputs.

The AUX output bus drives a pair of unbalanced RCA outputs.

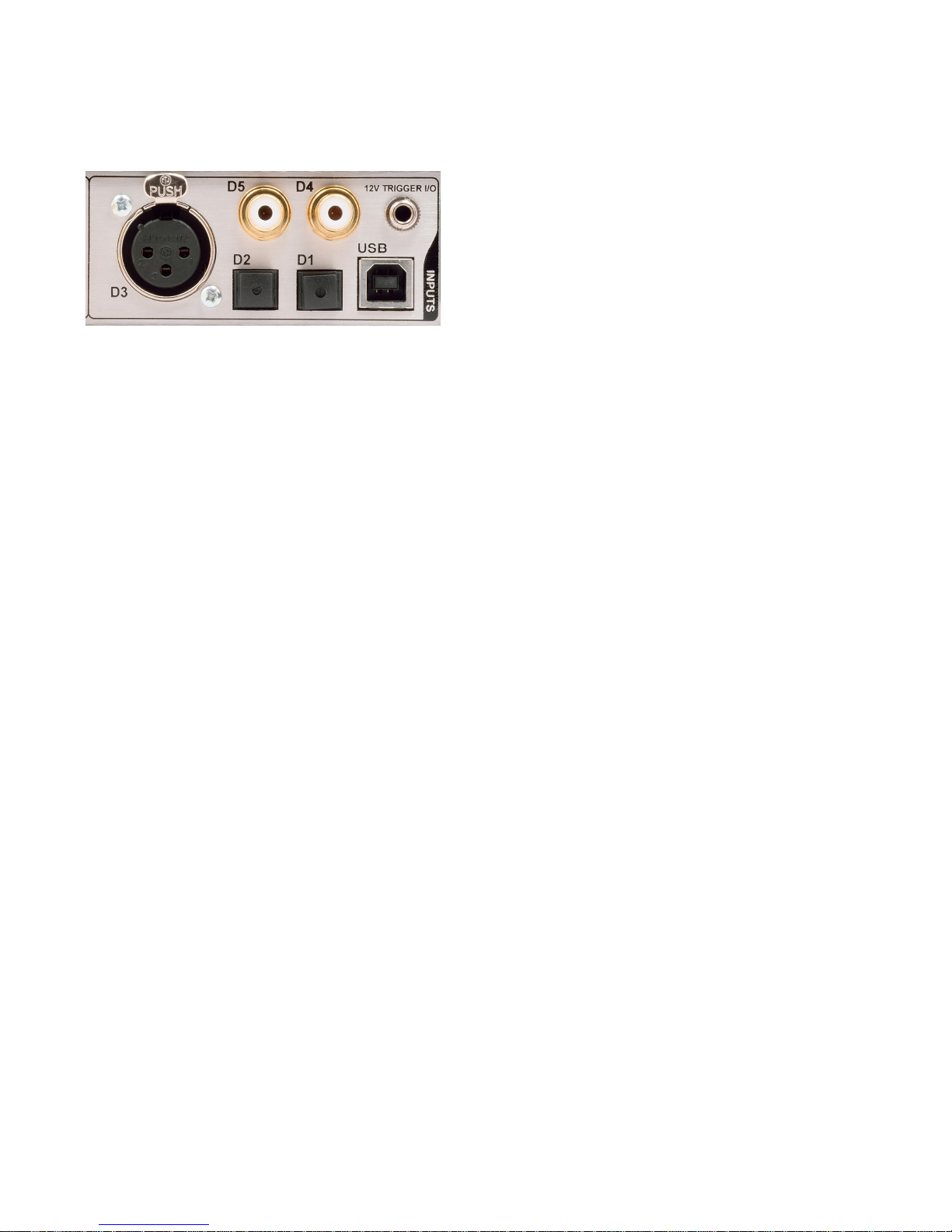

Digital Audio Inputs

The DAC2 DX has six stereo digital inputs (1 USB, 1 AES XLR, 2 optical and 2 coaxial). The XLR, coaxial and optical inputs accept professional (AES) and consumer (S/PDIF) data formats at word lengths up to 24-bits. The optical inputs are limited to 96 kHz sample rates. All other inputs support sample rates up to 192 kHz.

12V Trigger I/O

The 1/8” TRS jack on the rear panel is a bi-directional 12V trigger connection to enable power sequencing between the DAC2 DX and other audio devices in the signal chain. If the tip of the TRS connector is driven to 12 volts, the DAC2 DX will turn on. If the DAC2 DX is turned on locally, the DAC2 DX will drive the tip of the TRS connector to 12 V to turn on other linked devices.

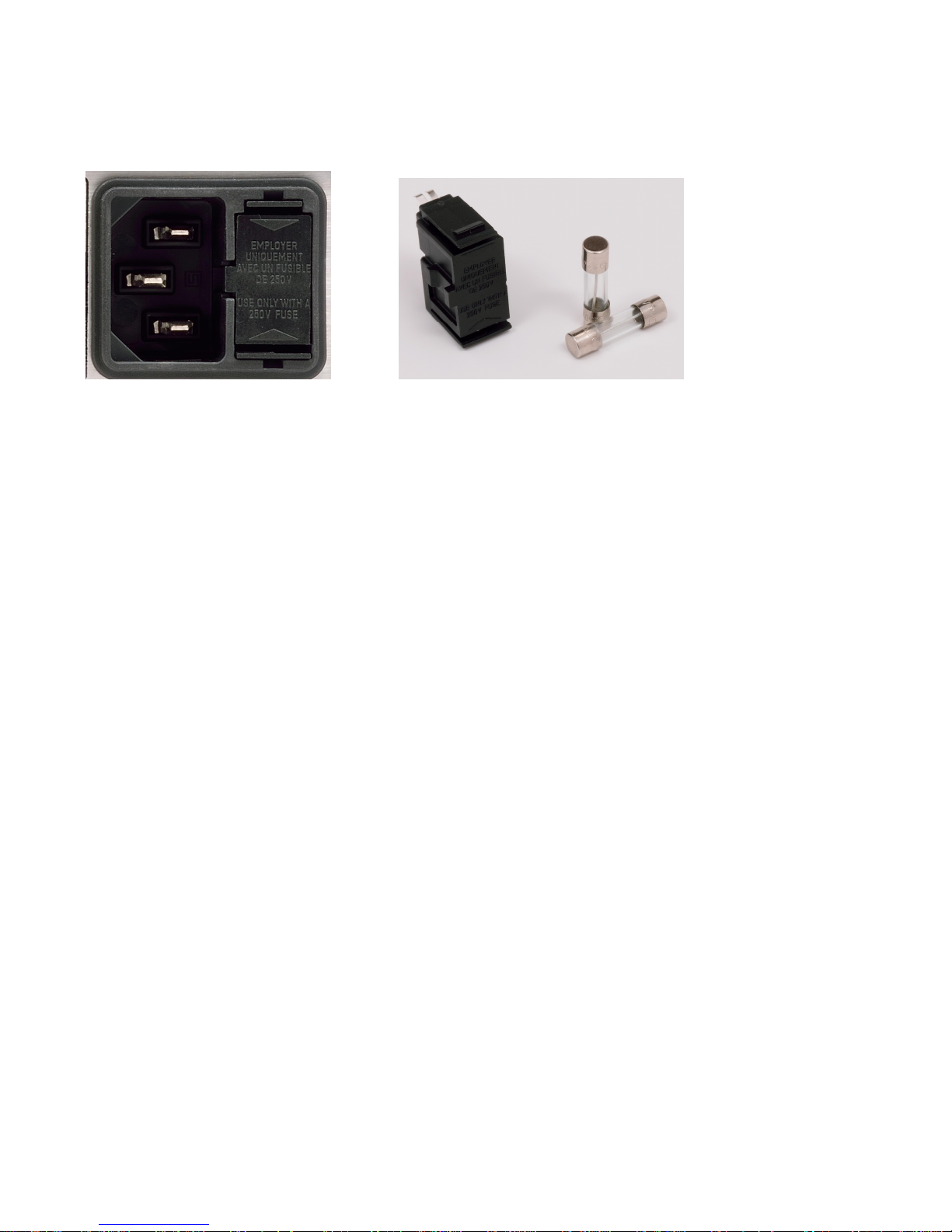

AC Power Input

The DAC2 DX is equipped with a universal power supply. There is no voltage selection switch. AC voltage range is 88-264 VAC, 50-60 HZ. The fuse drawer contains two fuses, always use exact replacements.

DAC2 DX Instruction Manual Rev B Page 5

Page 6

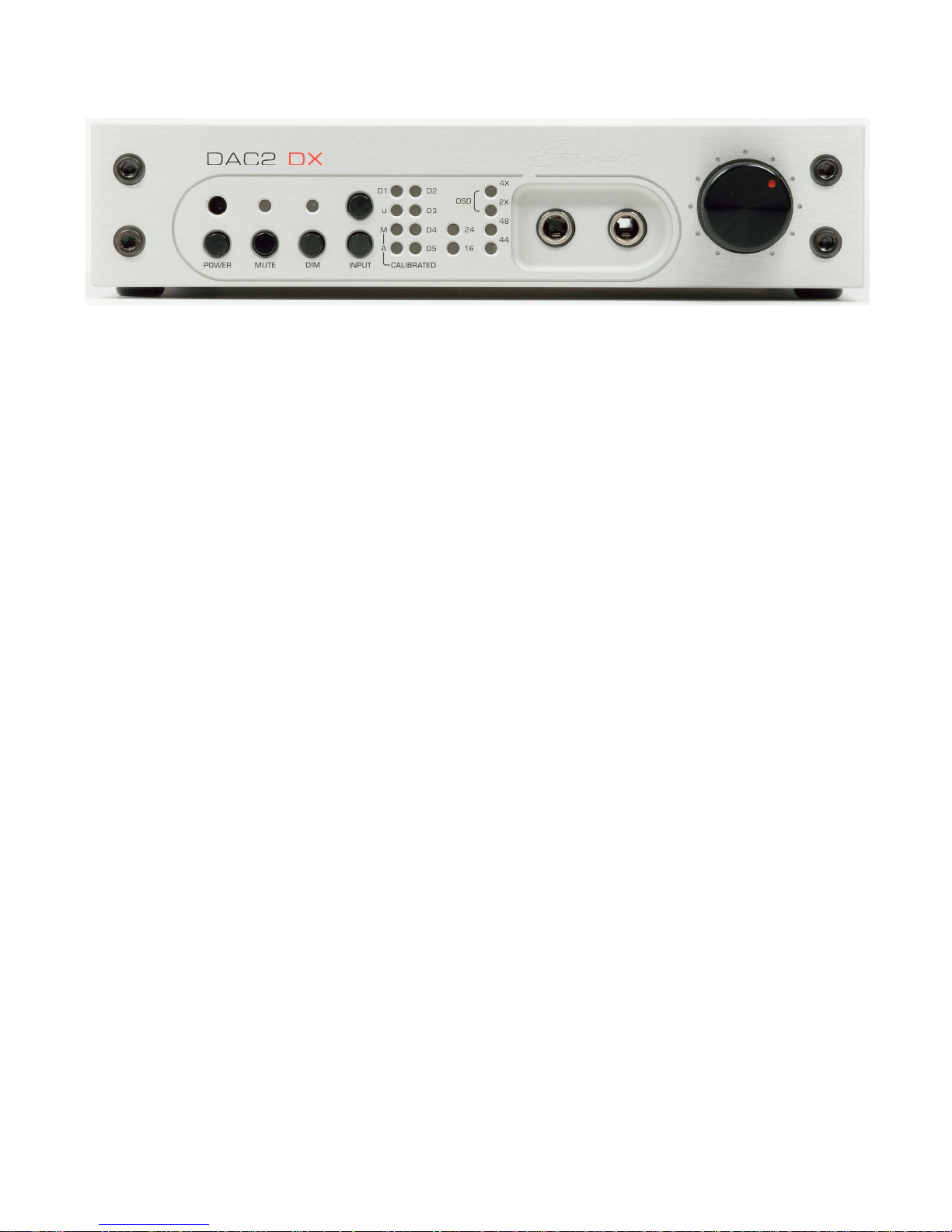

Front Panel

Power Switch

Press once to turn on. Press once to turn off.

IR Receiver

The IR receiver for the remote control is located directly above the power switch. Do not block this opening.

MUTE Switch and Light

Press to MUTE all outputs. Press again to release.

DIM Switch and Light

Press to reduce the level of all outputs by 20 dB. Press again to release.

Input Selector Switches and Lights

Press the INPUT buttons to select a digital input.

If an input light is on, the corresponding input is selected and operating normally:

· U - USB digital audio input

· D1 - First optical digital audio input

· D2 - Second optical digital audio input

· D3 - XLR digital audio input

· D4 - First coaxial digital audio input

· D5 - Second coaxial digital audio input

If an input light is flashing, the selected input is not connected or is not working properly:

· Slow Flashes (2 flashes/second) – No input signal, transmission errors, or Non-PCM

· Rapid flashes – Non-audio (input is flagged as data)

· Intermittent flashes – Invalid sample (v-bit), unreliable connection

DAC2 DX Instruction Manual Rev B Page 6

Page 7

Output Calibration Lights

If a CALIBRATION light is on, the corresponding output bus is set to the calibrated maximum output level and the volume control is bypassed (BYPASS mode).

If a CALIBRATION light is flashing slowly, the corresponding output bus is set to BYPASS mode, but the output is muted or dimmed.

· A - AUX analog output bus is in BYPASS

· M – MAIN analog output bus is in BYPASS

NOTE: If a bus is not in bypass mode, the corresponding CALIBRATION light will flash rapidly when the volume control is adjusted. This feature shows which busses are being adjusted.

Word Length Display

The DAC2 monitors bit activity to determine the input word length. This gives an accurate indication even when status bits are set incorrectly.

· 24 – The word length is 24-bits.

· 16 – The word length is 16-bits.

· 16 & 24 – The word length is 17 to 23 bits.

· None - No input, DSD, or word length less than 16 bits.

Sample Rate Display

The DAC2 measures the incoming sample rate and uses 4 lights to indicate the rate and format.

· 44.1 – Sample rate is 44.1 kHz

· 48 – Sample rate is 48 kHz

· 44.1 & 2X – Sample rate is 88.2 kHz

· 48 & 2X – Sample rate is 96 kHz

· 44.1 & 4X – Sample rate is 176.4 kHz

· 48 & 4X – Sample rate is 192 kHz

· 2X & 4X – DSD

Headphone Jacks

The headphone jacks are driven by Benchmark’s “zero-Ohm” HPA2™ headphone power amplifier. Both jacks can be used simultaneously. Both jacks are equipped with switches that can be programmed to mute the MAIN audio output bus when headphones are inserted. By default, the left headphone jack is programmed to mute the MAIN output bus while the right jack will not mute the audio. Internal jumpers can be moved to enable or disable the headphone switches. Other internal jumpers can be moved to adjust the headphone gain range.

Volume Control

The volume control is a motor-driven rotary potentiometer. The position of the control sets the 32bit digital attenuation. Audio does not pass through the potentiometer.

DAC2 DX Instruction Manual Rev B Page 7

Page 8

OFF

Press once to turn the unit off.

Press once to turn the unit on.

POWER

Press once to turn the unit on or off.

VOLUME

Press and hold to tu

rn volume up or down.

DIM Press once to toggle the

20 dB

DIM function.

MUTE Press once to toggle the

MUTE function.

INPUT

Press to change the input.

USB Press to select

USB digital input.

D1 Press to select 1st optical input

(remote only)

. D2 Press to select 2nd optical input

(remote only)

. D3 Press to select digital XLR input

(remote only)

. D4 Press to select 1st coaxial input

(remote only)

. D5 Press to selec

t 2st coaxial input if enabled (remote only)

. ANALOG

Not used on

DAC2 DX

(no analog inputs)

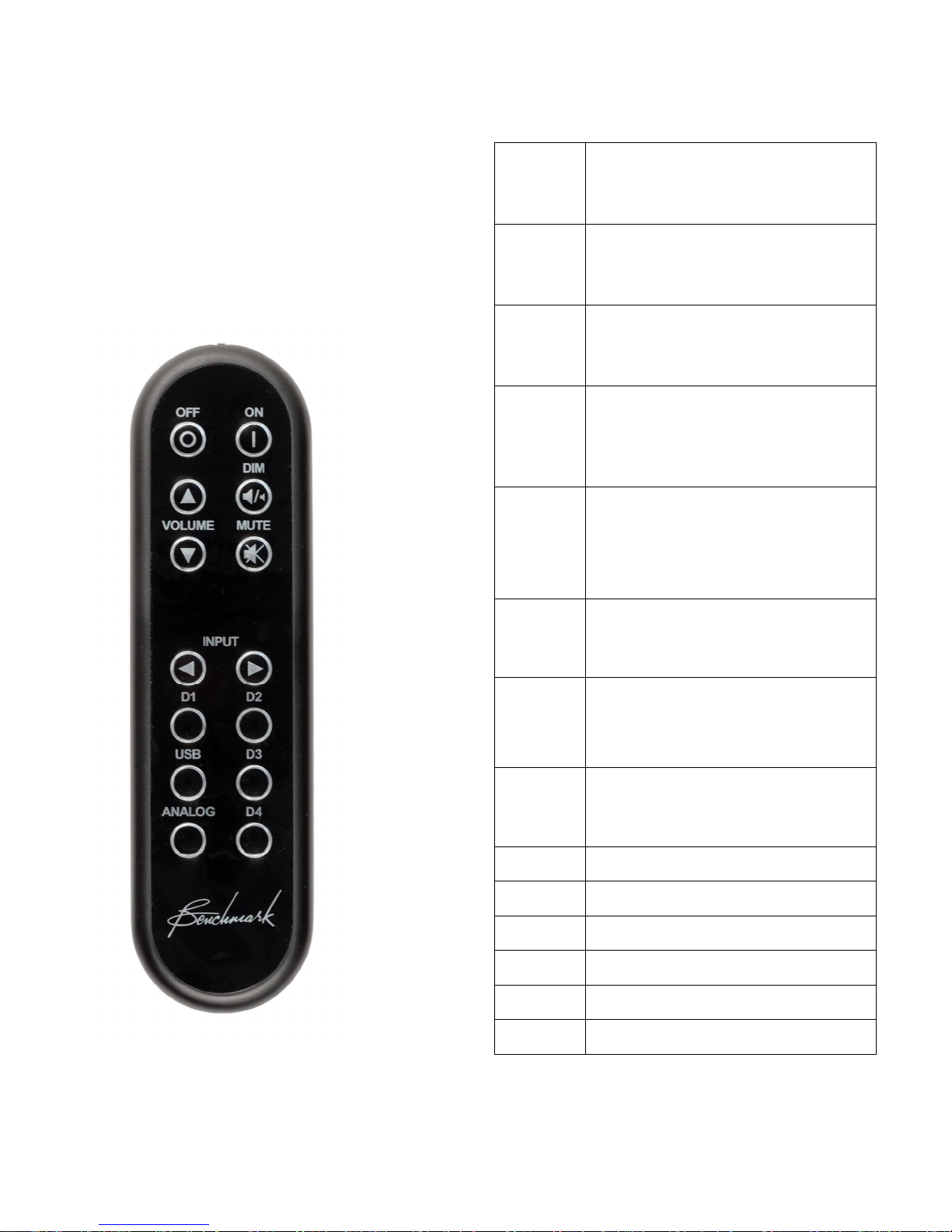

Control Functions

All DAC2 DX functions can be controlled from the IR remote control or from the front panel. In most cases, operation is identical (see table to the right for a summary of front panel and remote control functions).

(remote only)

* Press and hold to turn off all devices connected to the 12V TRIGGER.

* If the unit is already on, pressing ON will cancel MUTE and DIM.

(front panel

only)

U/D

(remote only)

U/D

* Press and hold POWER to turn off all devices connected via the 12V TRIGGER.

* VOLUME UP will cancel MUTE.

*DIM will cancel MUTE.

* Press and hold DIM for 10 seconds to toggle the AUX bus VOLUME CONTROL BYPASS function.

* Press and hold MUTE for 10 seconds to toggle the MAIN bus VOLUME CONTROL BYPASS function.

* Press and hold both front panel INPUT buttons while computer is connected to toggle between USB 2.0 and USB 1.1.

DAC2 DX Instruction Manual Rev B Page 8

* Press and hold remote USB button while computer is connected to toggle between USB 2.0 and USB 1.1.

Page 9

Applications

The DAC2 DX is a professional reference-grade digital to analog converter with two independent analog output busses. It includes Benchmark's reference-quality HPA2™ headphone amplifier, Benchmark's hybrid gain control system, and Benchmark's UltraLock2™ jitter attenuation system. The DAC2 DX is designed to connect directly to power amplifiers and powered monitors. It is also capable of delivering +24 dBu studio interface levels.

The DAC2 DX is available with an optional IR remote control which makes it equally well-suited for home applications. In a home Hi-Fi system, the DAC2 DX provides digital source selection, volume control, and direct drive to the power amplifier. The DAC2 DX is the only component required between digital sources and the power amplifier.

The DAC2 DX has 6 digital inputs, 2 headphone outputs, a volume control, and 3 sets of analog outputs. It supports D/A conversion of PCM sample rates up to 192 kHz, as well as direct DSD conversion.

Professional Applications

The DAC2 DX is designed for maximum transparency and purity. The sonic integrity of the DAC2 DX makes it well suited for critical playback in recording studio control rooms and mastering rooms. It includes features that are targeted at the needs of the audio professional.

HI-FI Applications

The versatility and performance of the DAC2 DX also makes it an asset to any high-end audiophile system. Digital signal sources may include HDTV, DVD, digital cable, music servers, digital radio, portable devices, etc. In a Hi-Fi system, the DAC2 DX replaces the low-performance D/A converters that are built into these low-cost devices.

Computer Sound Card Elimination

Benchmark’s Multi-Mode Asynchronous USB™ interface makes the DAC2 an ideal output device for computer-based media playback, including: home media servers, digital audio workstations, desktop audio editing applications, and computer-based radio broadcast systems.

Standalone Headphone Amplifier

The “zero-Ohm” HPA2™ headphone amplifier delivers reference-quality performance. The full performance of the DAC2 is delivered to the headphones. Difficult loads are driven with ease.

DAC2 DX Instruction Manual Rev B Page 9

Page 10

DAC2 vs. DAC1

The DAC2 series builds upon Benchmark’s highly successful DAC1 product family. Every DAC1 subsystem has been redesigned and upgraded to achieve higher performance. The DAC2 includes an updated version of Benchmark's highly-effective UltraLock™ jitter-attenuation system.

New Features

The DAC2 series introduced new features that add improve the listening experience while extending the versatility of the product.

The DAC2 series introduced the following features:

· Native DSD conversion

· Asynchronous USB 2.0

· Asynchronous USB 1.1

· Volume-control bypass

· Digital pass-through

· Word-length display

· Sample-rate display

· Bi-directional 12V trigger

· More I/O than DAC1 Series

Performance Improvements

Lower Noise than the DAC1

An array of balanced 32-bit digital-to-analog audio converters are summed together to form each balanced output channel. The summing reduces noise. The result is that the DAC2 is about 10 dB quieter than the DAC1. Low-level musical details are faithfully reproduced over a breathtakingly quiet noise floor.

Lower Distortion than the DAC1

Benchmark’s DAC1 converters are known for their very low distortion (THD and IMD). But, the DAC2 sets new benchmarks for clean and transparent musical reproduction. The DAC2 is designed

to provide the cleanest possible path from digital to analog.

Lower Power Consumption than the DAC1

The DAC2 complies with the latest international environmental regulations and consumes less than

0.5 W when turned off. The unit runs cool while providing substantial power to the headphone and output drivers. Power can be turned on or off from the front panel, from the remote control, or from the 12V trigger I/O port.

DAC2 DX Instruction Manual Rev B Page 10

Page 11

DAC2 DX Features

Feature List

Ÿ HGC™ (Hybrid Gain Control) – combines a motor-driven rotary control and a 32-bit digital

attenuator with passive analog attenuators, to achieve state-of-the-art performance

Ÿ SABRE ES9018 - 32-bit PCM D/A conversion system, multiple 32-bit D/A converters per

channel

Ÿ SABRE ES9018 – Native DSD D/A conversion system, multiple 1-bit DSD D/A converters per

channel

Ÿ HPA2™ reference-grade headphone amplifier - “0-Ohm” high-current high-power outputs Ÿ Dual Headphone Outputs – jacks can be programmed to mute main output bus Ÿ HPA2™ gain jumpers - 0 dB, -10 dB, and -20 dB - optimize headphone output levels to match

a wide variety of headphone sensitivities

Ÿ Multi-Mode Asynchronous USB Audio 2.0 – 24 bit/192 kHz, DSD (DoP 1.1) Ÿ Driverless Asynchronous USB Audio 1.1 – 24-bit/96 kHz Ÿ Benchmark UltraLock2™ Jitter Attenuation System – eliminates jitter-induced distortion Ÿ Sample Rate Display – 44.1, 48, 88.2, 96, 176.4, 192 kHz and DSD Ÿ Word Length Display – 16-bit, 24-bit Ÿ 1 AES XLR Digital Input – 24-bit/192 kHz PCM, DSD (DoP 1.1) Ÿ 2 Coaxial Digital Inputs – 24-bit/192 kHz PCM, DSD (DoP 1.1) Ÿ 2 Optical Digital Inputs – 24-bit/96 kHz PCM Ÿ 1 Coaxial Digital Output – digital pass through from USB, XLR, Coax, and optical inputs Ÿ Aluminum IR Remote - optional remote provides control of all functions Ÿ 3 Stereo Analog Outputs – 1 pair, balanced (XLR), plus 2 pairs unbalanced (RCA) Ÿ 2 Stereo Analog Output Busses – either or both busses can be set to fixed gain Ÿ Low-Impedance Passive Output Pads – 0, 10, and 20 dB pads – optimize output level to

power amplifiers to maximize SNR over a wide variety of interface levels

Ÿ 12V Trigger I/O – bi-directional 12V trigger can act as input, output, or both - links with

power amplifier to sequence on/off functions

Ÿ Volume-Control Bypass – places one or both analog output busses in a calibrated fixed-gain

mode

Ÿ Mute Function – accessible from remote or front panel, mutes all analog outputs Ÿ Dim Function – accessible from remote or front panel, reduces level of all outputs by 20 dB Ÿ Automatic De-Emphasis - responds to consumer pre-emphasis bit (44.1, 48 kHz) Ÿ Power Switch - accessible from remote or front panel, very low standby power - <0.5 W at

120 VAC

Ÿ High-Efficiency Low-Noise Power Supply – only 12-15 W, 88-264 VAC, 50-60 Hz Ÿ Meets FCC Class B and CE emissions requirements Ÿ Tested for immunity to radiated and conducted RF interference

DAC2 DX Instruction Manual Rev B Page 11

Page 12

Special DAC2 DX Features

The DAC2 DX has some special features that set the DAC2 DX apart from the rest of the DAC2 product family:

· AES XLR digital input

· Dual Analog Output Busses

· Relay-Muted Analog Outputs

These features are tailored to the needs of professional users but some Hi-Fi users may also find them useful.

AES XLR Digital Input

Many professional users have requested an AES XLR digital input. We have added this to the DAC2 DX without removing any of the other digital outputs.

The DAC2 DX has:

· 1 USB audio input

· 1 AES XLR input

· 2 optical inputs

· 2 coaxial inputs (or 1 input and 1 pass-through)

The DAC2 DX does not have analog inputs.

Dual Analog Output Busses

The MAIN and AUX busses can be programmed to BYPASS the volume control. When set to BYPASS the output is set to a fixed calibrated level.

The MAIN and AUX busses are independently programmable for each digital input. This versatility is useful when one input (such as a digital console) has a digital level control while other signal sources do not. The console input could be set to BYPASS while an input from a CD player could be used in VARIABLE mode.

The MAIN bus BYPASS function can be toggled by pressing and holding the MUTE button for 10 seconds. The AUX bus bypass function can be toggled by pressing and holding the DIM button for 10 seconds. This delay is intentionally long so that the function will not be toggled accidentally. The A light will be illuminated when the AUX bus is in BYPASS. The M light will be illuminated when the main bus is in BYPASS. These functions can be toggled from the front pannel or the remote.

Relay-Muted Analog Outputs

The XLR and RCA analog outputs are equipped with mute relays that keep the outputs muted while powering on or off. These relays eliminate pops and clicks at the unit power up or down.

DAC2 DX Instruction Manual Rev B Page 12

Page 13

Feature Details

UltraLock2™ Clock System

UltraLock2™ provides the outstanding jitter attenuation of the older UltraLock™ system while

providing a higher SNR.

High-Headroom Digital Processing

All digital processing includes at least 3.5 dB headroom above an input level of 0 dBFS. This unique and important feature prevents all clipping in the digital processing, and provides clean, smooth, and transparent audio reproduction. Most competing products lack this important feature.

Native DSD Conversion

All DAC2 converters support native DSD conversion. DSD signals can be delivered to the USB or Coaxial inputs in DoP 1.1 format. The DSD signal is then routed directly to a bank of 1-bit DSD D/A converters. An array of balanced 1-bit converters are summed together to form each balanced output.

Asynchronous USB 2.0

The USB interface supports DSD and 192 kHz, 24-bit PCM. The DAC2 generates the conversion clocks and totally eliminates the USB interface as a source of jitter. No drivers are required for Apple operating systems. Drivers are provided for Windows operating systems at: http://www.benchmarkmedia.com/dac/dac2-drivers

Native Asynchronous USB 1.1

The DAC2 has a driverless USB 1.1 mode that supports 96 kHz, 24-bit PCM with most operating systems. This mode provides quick and easy connection to a wide variety of computers and tablets.

HGC™ Hybrid Gain Control

HGC™ is Benchmark’s unique Hybrid Gain Control that combines 32-bit digital attenuation with

passive analog attenuation. The dual-domain HGC™ system combines the accuracy of digital control while preserving dynamic range through the use of passive analog output attenuators. HGC™ outperforms traditional analog or digital volume controls. Musical details are preserved over a very wide range of output levels.

Digital inputs are controlled by a 32-bit DSP that feeds a 32-bit signal to the 32-bit conversion system. The output of the conversion system passes through low-impedance passive output attenuators that can be configured to match the output range to the sensitivity of the downstream device.

The volume control is a motor-driven analog potentiometer that supplies a DC control signal to the 32-bit DSP system. The volume control rotates in response to commands from the remote control while providing the convenience quick and easy manual adjustments. This topology has the look,

DAC2 DX Instruction Manual Rev B Page 13

Page 14

feel, and convenience of an analog control while providing the accuracy, transparency, and precision of 32-bit digital control.

MUTE Function

The MUTE function mutes all analog outputs. The MUTE function does not mute the DIGITAL PASS-THROUGH.

DIM Function

The DIM function fades all analog outputs to a level that is 20 dB lower than normal. This feature is intended to provide a convenient means to fade to and from a temporary background level without changing the volume control setting. DIM should not be used for normal listening. If DIM is required to achieve a normal playback level, this is an indication that the OUTPUT

ATTENUATORS are set incorrectly (add more attenuation to fix this problem).

Volume-Control BYPASS (Calibrated Output Level)

The volume control BYPASS function sets analog outputs to the maximum volume (BYPASS mode). In this mode, the 32-bit digital attenuator is bypassed and a full-level output signal is passed to the analog outputs. This is useful when volume is controlled before or after the DAC2.

HPA2™ "Zero-Ohm" Headphone Power Amplifier

The HPA2™is one of the most transparent headphone amplifiers available. It also is able to deliver high current and/or high signal levels. This makes it well suited for cleanly driving virtually any set of headphones. The near 0-Ohm output impedance provides outstanding damping of headphone drivers. This damping reduces distortion, and maintains precise control of the frequency response.

Headphone Mute Switches

The left-hand headphone jack mutes the MAIN analog outputs. In contrast, the right-hand headphone jack allows simultaneous use of the MAIN outputs and headphones. The left-hand jack provides automatic switching between loudspeaker and headphone monitoring. The right-hand jack allows simultaneous use of loudspeakers and headphones.

On the DAC2 DX, either or both headphone switches can be enabled or disabled using internal jumpers. The switches and jumpers control logic-level signals, no audio passes through these components. By default, the switch function is enabled on the left-hand jack but disabled on the right-hand jack.

The high-power HPA2™ headphone amplifier can easily drive two sets of headphones simultaneously. Both headphones should have similar voltage sensitivities.

DAC2 DX Instruction Manual Rev B Page 14

Page 15

Direct Interfacing to Power Amplifiers

All Benchmark DAC1 and DAC2 converters are designed to directly drive power amplifiers and powered studio monitors. For best performance, no additional devices should be inserted between the DAC and the power amplifier. A direct connection between the DAC and the power amplifier always provides the cleanest and shortest path from the digital source to the monitor outputs. This direct connection often produces a substantial improvement in sound quality.

The DAC2’s XLR output is equipped with 0, 10 and 20 dB output attenuators for optimal interfacing. The pads optimize the output signal level of the DAC2 to the input sensitivity of virtually any amplifier. Most power amplifiers and powered monitors require the 10 dB or 20 pad setting. Use the 0 dB setting with the Benchmark AHB2 power amplifier. The DAC2 DX output attenuators are factory-set to the 0 dB.

Direct Interfacing to +4 dBu Studio Gear

If the DAC2 DX will be feeding other professional +4 dBu audio gear, the 0 dB setting should be used. In this setting, the output will reach exactly +24 dBu at 0 dB FS when the volume control is bypassed or to maximum. In other words, the calibration is +4 dBu at -20 dB FS.

Digital Pass-Through

The second coaxial input (D5) can be reconfigured as a digital output. When operating as an output, any selected digital input is passed through to (D5) without any processing. Optical, coaxial, AES XLR, and USB inputs can be passed through to the (D5) connector. This even includes special digital signals such as DoP, DTS, and Dolby Digital. This feature is particularly useful for connecting digital devices to computers that are not equipped with coaxial digital outputs. The DAC2 can connect to the computer via USB and provide a coaxial digital output to another digital audio device.

Bi-directional 12V Trigger

The 12V trigger can be connected to other audio components so that an entire audio system can turn on and off in a sequenced fashion. The DAC2 trigger I/O could be connected to a preamplifier, power amplifier, or both. The DAC2 will drive the trigger I/O to 12 volts DC when the DAC2 turns on. If an external device pulls the trigger I/O to 12 volts, the DAC2 will turn on. If an external device pulls the trigger I/O to 0 volts, the DAC2 will turn off. The timing of the trigger system is optimized to minimize any transient pops and clicks during turn-on and turn-off sequences.

Low-Noise Power Supplies

The DAC2 uses high-efficiency low-noise power supplies. Each critical subsystem has at least one dedicated low-noise regulator. The unit runs cool while providing substantial power to the headphone and output drivers. Power can be turned on or off from the front panel, from the remote control, or from the 12V trigger I/O port.

DAC2 DX Instruction Manual Rev B Page 15

Page 16

DAC1 and DAC2 Product History

The pristine audio performance of the award-winning DAC1 made it the ‘Benchmark’ of stand-alone D/A converters. The DAC1 USB and DAC1 PRE, and DAC1 HDR added features and minor performance improvements.

DAC1 Series History

The classic DAC1 was the first member of the Benchmark DAC1 family.

The DAC1 introduced:

· The 1/2-wide 1-RU form factor

· UltraLock™ Jitter attenuation

· Passive output attenuators

· Analog volume control

· HPA2™ Headphone amplifier

The DAC1 USB added:

· The first 96 kHz/24-bit USB audio input

· Headphone switch

· Headphone gain jumpers

· High-current LM562/LME49860 output drivers

· Low-Impedance passive output pads

The DAC1 PRE added:

· A stereo analog input

· 3 S/PDIF digital inputs

· LM4562/LME49860 opamps throughout

· Premium Teflon-insulated bulkhead-mounted RCA connectors

The DAC1 HDR added:

· IR remote-control

· HDR™ motor-driven volume control

· MUTE feature

· DIM feature

DAC2 DX Instruction Manual Rev B Page 16

Page 17

DAC2 Series History

The DAC2 series represents a complete redesign of the DAC1. Our goal was to improve every aspect of the DAC1 while adding many of the most requested features.

The DAC2 HGC series introduced:

· HGC™ Hybrid Gain Control

· 32-bit PCM D/A conversion

· Native DSD conversion

· Multi-mode Asynchronous USB

· Sample rate and word length displays

· UltraLock2™ jitter attenuation system

· Volume control bypass

· Bi-directional 12V trigger

· More I/O than any member of the DAC1 family

· Ultra low-noise high-efficiency power supplies

· Universal power supply

· Power Switch

The DAC2 D was a lower-cost digital-only version of the DAC2 HGC

· Analog inputs were removed

· Trigger I/O was removed

The DAC2 L is a lower-cost non-headphone version of the DAC2 HGC

· Headphone amplifier and jacks were removed

The DAC2 DX replaces the DAC2 D and shares flagship status with the DAC2 HGC.

The DAC2 DX adds these features to the DAC2 D:

· Dual output busses

· Output mute relays

· Dedicated MUTE and DIM buttons

· AES XLR input

· Bi-directional 12V trigger

DAC2 DX Instruction Manual Rev B Page 17

Page 18

Digital Inputs

There are six stereo digital audio connectors on the DAC2 DX:

· USB - USB Audio 1.1 or 2.0 Input

· D1 - TOSLINK Optical Input

· D2 - TOSLINK Optical Input

· D3 - XLR Input

· D4 - Coaxial Input

· D5 - Coaxial Input or Output

Input Formats

The optical, XLR, and coaxial inputs can decode AES/EBU or S/PDIF PCM input signals. Professional or consumer data formats are automatically recognized.

The USB, XLR and Coaxial inputs can also decode DSD when transmitted in DoP 1.1 format. This format transmits native DSD64 data over conventional digital audio interfaces.

The DAC2 will not decode AC3, Dolby, or other compressed formats. The ‘Status Display’ will flash when AC3, Dolby, or other compressed formats are connected to the selected digital input.

Limitations of Optical Inputs

TOSLINK optical connections are generally limited to sample rates up to 96 kHz. Sample rates above 96 kHz, and DSD inputs may not work through TOSLINK connections.

The optical inputs do not accept ADAT format.

Consistent Performance

The Benchmark UltraLock2™ system removes interface jitter from all digital inputs (including the USB input). The result is that all digital inputs have identical jitter performance.

DAC2 DX Instruction Manual Rev B Page 18

Page 19

USB - Computer Input

The USB input supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz sample rates at word lengths up to 24-bits. The USB also accepts DSD. Mac operating systems support all sample rates and formats without drivers. Windows operating systems require drivers for DSD and PCM sample rates above 96 kHz.

The USB input accepts a male ‘B-type’ male USB connector. An ‘A-B type’ USB cable is provided with the DAC2. The USB cable connects the DAC2 directly to a standard 'A-type' USB port on the host computer.

USB Audio Modes

The USB input can be toggled between two different modes:

· USB AUDIO 1.1 - PCM sample rates up to 96 kHz

· USB AUDIO 2.0 - PCM sample rates up to 192 kHz, and DSD64 in DoP 1.1 format.

USB 1 ports only support the USB Audio 1.1 mode. USB 2 and USB 3 ports support both modes.

USB Mode Indication

The 2X or 4X lights will flash once when the USB input is selected. This flash indicates the USB mode:

· The 2X light will flash if the DAC2 is set to USB AUDIO 1.1 mode.

· The 4X light will flash if the DAC2 is set to USB AUDIO 2.0 mode.

Changing the USB Mode

The USB MODE can be changed using the front panel or the remote control.

To change the USB MODE from the front panel:

1. Select the USB input

2. Press and hold the lower INPUT button for 10 seconds

3. When the mode changes, the 2X or 4X light will flash once to indicate the new mode

To change the USB MODE from the remote control:

1. Press and hold the USB button for 10 seconds

2. When the mode changes, the 2X or 4X light will flash once to indicate the new mode

USB AUDIO 1.1 MODE (Factory Default)

The USB AUDIO 1.1 MODE provides a plug-and-play solution that works with many different operating systems. In most cases, the DAC2 can begin streaming high resolution 24-bit/96 kHz audio bit-transparently within seconds after being plugged into a computer for the first time. Little or no software or hardware configuration is required in this mode.

DAC2 DX Instruction Manual Rev B Page 19

Page 20

The DAC2’s USB AUDIO 1.1 MODE provides driverless operation with Windows XP/Vista/7/8, Mac OS X, and many Linux operating systems.

USB AUDIO 2.0 MODE

The DAC2’s USB AUDIO 2.0 MODE provides driverless operation with Mac OS X. It is compatible with Windows XP/Vista/7/8 if the Benchmark driver is installed. It has been tested on Mac OS X versions 10.6, 10.7, and 10.8.

For the up-to-date information about more recent operating systems and suggestions for optimization, go to:

http://benchmarkmedia.com/pages/dac2-drivers

D1 and D2 - Optical Digital Inputs

The optical input connector is commonly known as a TOSLINK connector. The TOSLINK optical connector used on the DAC2 is designed to work well at sample rates up to 96 kHz. Maximum word length is 24-bits. All sample rates between 28 and 96 kHz are supported. The optical input will accept professional AES/EBU data formats or consumer S/PDIF data formats. The optical inputs do not accept ADAT format.

In some cases, TOSLINK connections will operate at sample rates above 96 kHz, but the connection is usually not reliable.

Many MAC computers have a TOSLINK optical output hidden in the 1/8" headphone output. A special 1/8" optical connector is required to access this cool feature. Benchmark sells the appropriate cables.

D3 - AES XLR Digital Input

The AES XLR digital input is transformer isolated. Input impedance is 110 Ohms. Maximum word length is 24 bits. All sample rates between 28 and 195 kHz are supported.

The AES XLR input is DC isolated, transformer coupled, current limited, and diode protected. The XLR body and pin 1 are both bonded directly to the chassis to prevent currents in the internal ground system. This direct bonding also maximizes RF shielding.

TIP: Shielded 110-Ohm digital audio cable is required for stable performance. Do not use analog XLR cables.

D4 and D5 - Coaxial Digital Inputs

The coaxial inputs use female RCA connectors that are securely mounted directly to the rear panel. The input impedance is 75 Ohms. Maximum word length is 24-bits. All sample rates between 28 and 195 kHz are supported.

DAC2 DX Instruction Manual Rev B Page 20

Page 21

The Coax inputs are DC isolated, current limited, and diode protected. The RCA body is bonded directly to the chassis to prevent currents in the internal ground system. This direct bonding also maximizes RF shielding.

TIP: Shielded 75-Ohm coaxial cable is required for stable performance. Do not use 50Ohm cables or twisted pair cables, or any non-coaxial cables.

The Coaxial inputs accept AES/EBU or S/PDIF digital audio formats. AES3-id and SMPTE 276M standards specify 75-Ohm 1 Vpp professional format digital audio signals and these are commonly used in video production facilities. IEC 609588-3 specifies 75-Ohm 0.5 Vpp consumer-format digital audio signals (commonly known as S/PDIF). The coaxial inputs on the DAC2 are designed to accept either type of signal.

D5 - Coaxial Digital Output

Coaxial connector D5 is a bi-directional port. D5 is factory configured as a digital input. Internal jumpers can be moved to configure D5 as a digital output.

When configured as an output, D5 acts as a digital pass-through. Any selected digital input will be routed to D5 without any processing.

PASS-THROUGH MODE can be use for:

· USB to Coax conversion

· Toslink to Coax conversion

· AES XLR to Coax conversion

· Coax to Coax buffering

· Digital routing

· Pass-through to slave DAC2 converters

AES XLR to Coaxial Adapters

Transformers are available to match adapt balanced 110-Ohm AES connections to unbalanced 75Ohm coaxial connections. Our experience is that these work well. Coaxial to XLR adapters should be located near the XLR connector when possible.

DAC2 DX Instruction Manual Rev B Page 21

Page 22

Analog Outputs

The DAC2 DX has two independent stereo output busses. By default, both busses are controlled by the front panel volume control. Either or both busses can be set to bypass the volume control. When the volume control is bypassed the volume is set to a calibrated maximum level.

The DAC2 DX features high-current output drivers that are capable of driving 300-Ohm loads without an increase in distortion. They are also well suited for driving long cables or highcapacitance loads. All connector pins have their own dedicated drivers. No pins are wired in parallel.

Main Output Bus

The DAC2 has one pair of balanced XLR outputs and one pair of unbalanced RCA outputs that are driven by the MAIN bus.

AUX Output Bus

The DAC2 has one pair of unbalanced RCA outputs that are driven by the MAIN bus.

Balanced Analog XLR Line Outputs

The Left and Right balanced outputs use Neutrik™ gold-pin male XLR jacks. The XLR shell and pin 1 (ground) are both directly bonded to the chassis to prevent currents in the internal ground system. This direct bonding also maximizes RF shielding.

The XLR outputs have passive attenuators that allow direct connections to a wide variety of audio devices without a loss of dynamic range. The 10 or 20 dB pads are usually required for direct interfacing to power amplifiers and powered speakers. The DAC2 DX ships with the pads disabled (0-dB setting). A full description of the output attenuators and instructions for configuration is located in the Internal Setting section of this manual.

The XLR output level is 24 dBu at maximum volume (or in BYPASS mode) when the output attenuators are set to 0 dB.

The XLR output level is 14 dBu at maximum volume (or in BYPASS mode) when the output attenuators are set to -10 dB.

The XLR output level is 4 dBu at maximum volume (or in BYPASS mode) when the output attenuators are set to -20 dB.

DAC2 DX Instruction Manual Rev B Page 22

Page 23

XLR Wiring

The DAC2 uses industry-standard XLR wiring:

· XLR pin 2 = + Audio Out

· XLR pin 3 = - Audio Out

· XLR pin 1 = Cable Shield

CAUTION: If the balanced XLR outputs are wired to an unbalanced input (using a special adapter cable), pin 3 must be left floating. Shorting pin 3 to ground will increase the temperature of the output drivers, will increase power consumption, and may cause distortion.

Unbalanced Analog RCA Line Outputs

The Left and Right unbalanced outputs use standard RCA style jacks. The ground connections are bonded to chassis ground at the location where analog ground is bonded to the chassis. This minimizes the effects of ground loops caused by AC currents in the cable shield.

The XLR output level is 2 Vrms at maximum volume (or in BYPASS mode). This is the same as 8.2 dBu.

Note: The XLR pads do not have any effect on the level of the RCA outputs.

The RCA output impedance is very low (30 Ohms). This makes these outputs well suited for driving high-capacitance loads and/or high-capacitance cables.

TIP: The RCA outputs are capable of driving cables as long as 1360 feet (see Table 1). But, long un-balanced cables will generally suffer from hum problems due to ground loops. We highly recommend using balanced interconnects for long runs.

TIP: Mono summing with an RCA ‘Y’ cable is not recommended as this will cause high amounts of distortion. Mono summing with a ‘Y’ cable can be accomplished with the use of a modified cable by implementing a 1k Ohm series resistor in each leg of the ‘Y’.

DAC2 DX Instruction Manual Rev B Page 23

Page 24

AC Power-Entry and Fuses

Fuses

CAUTION: FOR CONTINUED FIRE HAZARD PROTECTION ALWAYS REPLACE THE FUSES WITH THE

CORRECT SIZE AND TYPE (0.5A 250 V SLO-BLO® 5 X 20 MM – LITTELFUSE® HXP218.500 OR EQUIVALENT). THE FUSE DRAWER INCLUDES TWO FUSES. ALWAYS REPLACE BOTH FUSES AT THE SAME TIME.

Voltage Selection

Power Cord

The AC power input uses a standard IEC type connector. One USA-compatible power cord is included with DAC2 converters. IEC style power cords in country-specific configurations are available in your locality.

DAC2 DX Instruction Manual Rev B Page 24

Page 25

Internal Settings

Jumper-Configured Options

The following functions are jumper configured:

· XLR Output Pads

· Headphone Switches

· Headphone Gain

· Digital Pass-Through

Removing Top Cover

The DAC2 top cover must be removed to gain access to the jumpers. Do not attempt to remove the faceplate or the rear panel.

CAUTION: The DAC2 contains static sensitive components. Static discharge may cause component failures, may affect the long-term reliability, or may degrade the audio performance. Use a static control wrist strap when changing jumper settings.

· Disconnect AC power by unplugging the power cord at the back of the DAC2 DX.

· Remove only the 8 screws holding the cover (4 on each side).

· Do not remove any screws on front or rear panels!

· Never remove the power entry safety cover in the rear corner of the DAC2 DX.

· Always connect a static-control wrist strap to the chassis before touching any internal

component.

DAC2 DX Instruction Manual Rev B Page 25

Page 26

XLR Output Pads

Impedance

The XLR outputs are equipped with low-impedance passive pads that may be used to reduce the output levels while preserving the full dynamic range of the DAC2 DX. The unit ships with the pads disabled (0 dB setting).

When the output pads are enabled, the output impedance changes slightly, and the maximum allowable cable length should be reduced as shown in Table 1 (assuming 32 pF/foot and a maximum allowable loss of 0.1 dB at 20 kHz).

Balanced Output Drive Capability:

TIP: To set the XLR outputs to typical professional studio levels, set the pads to 0 dB.

Attenuator Output Maximum Loss in dB

Setting (dB)

0 60 680 0.1 10 425 96 0.1 20 135 302 0.1

Cable (ft) at 20 kHz

For most home installations, set the pads to 10 dB or 20 dB. Use the 0 dB setting when driving the Benchmark AHB2 power amplifier.

TIP: When directly driving power amplifiers and powered speakers, start with the 10 dB pad

Unbalance d Output Drive Capability:

Output Maximum Loss in dB

Cable (ft) at 20 kHz

30 1360 0.1

setting. If necessary, change the pads so that normal listening levels are achieved with the ‘Volume Control’ above the 11 o’clock position. Use the 0 dB setting with Benchmark's AHB2 power amplifier.

Table 1 - Cable Drive Capability

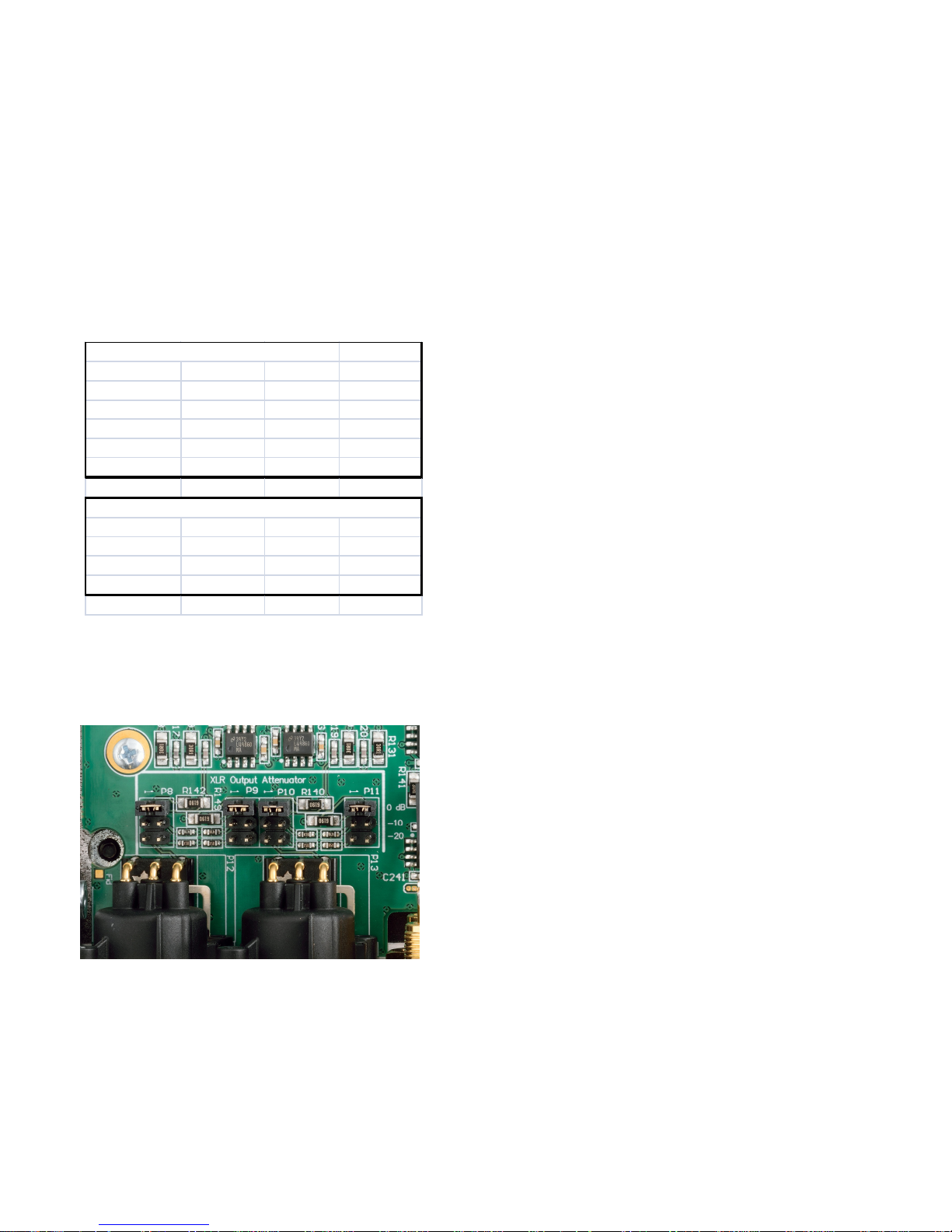

XLR Output Pad Selection (P8, P9, P10, and 11):

Four 6-pin headers (P8, P9, P10, and P11) allow selection of the analog output level at the XLR jacks.

Figure 1 - 0 dB Pad Setting (Factory Default)

· 0 dB - Jumper plug between pins 1 and 2 of each header – Factory Default

· -10 dB – Jumper plug between pins 3 and 4 of each header

· -20 dB – Jumper plug between pins 5 and 6 of each header

DAC2 DX Instruction Manual Rev B Page 26

One pair of 6-pin headers controls the output level at each XLR jack as follows:

· 0 dB Attenuation = +24 dBu at full output

· -10 dB Attenuation = +14 dBu at full output

· -20 dB Attenuation = +4 dBu at full output

Page 27

Headphone Switch Configuration:

The DAC2 is configured so that the MAIN analog outputs will mute when a headphone plug is inserted into the left-hand jack. This is convenient when the user wishes to switch between headphones and speakers. This feature can be changed or defeated by moving jumpers at P1 on the back of the front panel. Either headphone switch can be enable or disabled by moving the jumpers.

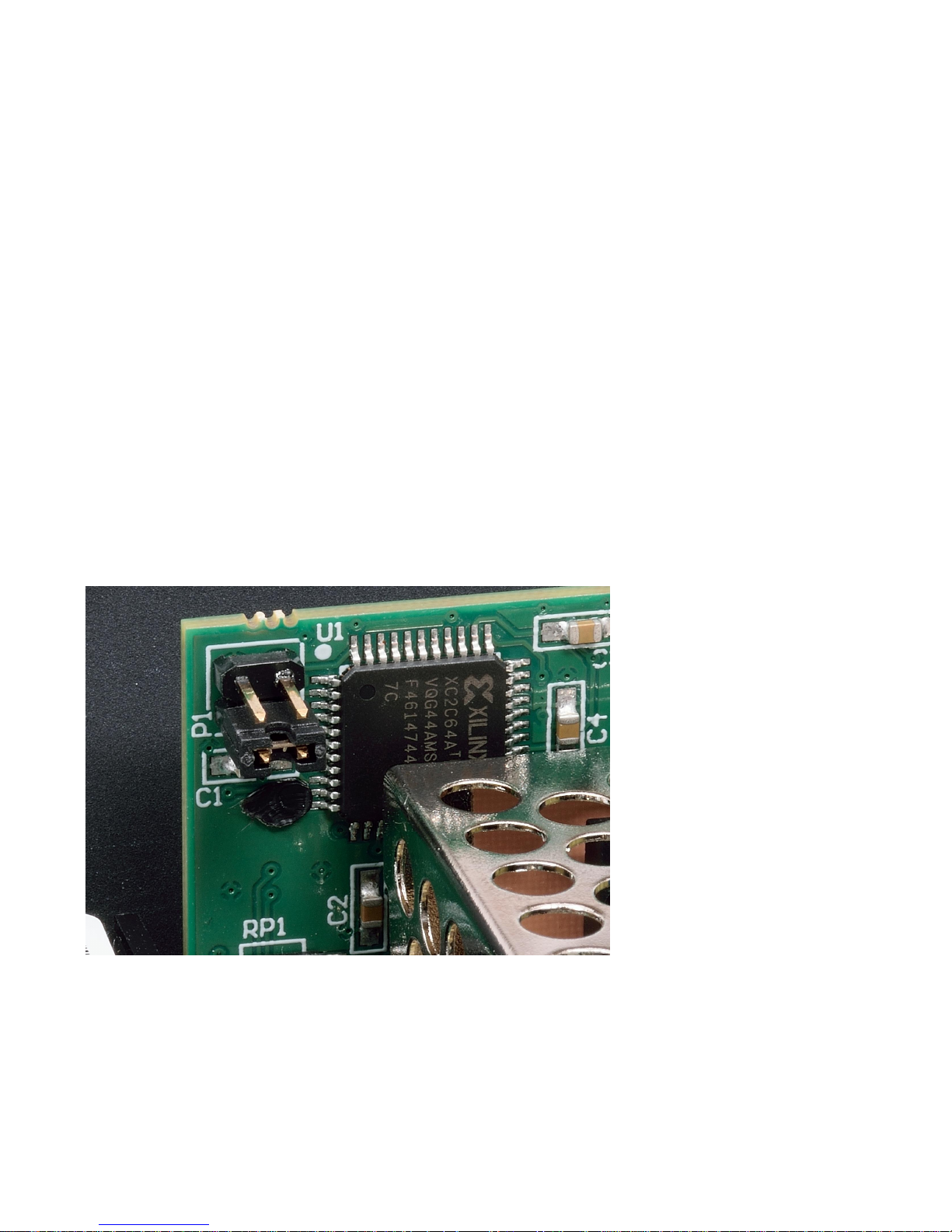

Connect the bottom two pins with a jumper to enable the mute switch for the left-hand jack Factory Default (see Figure 2).

Connect the top two pins with a jumper to enable the mute switch for the right-hand jack. Add a second jumper if necessary.

· No Jumpers - Both switched disabled

· Top Jumper Only - Right-hand switch enabled

· Bottom Jumper Only - Left-hand switch enabled - Factory Default

· Top and Bottom Jumpers - Both switches enabled

· Jumper(s) rotated vertically - Storage of unused jumper(s)

Unused jumper(s) may be stored vertically on either pair of pins.

Figure 2 - Left Headphone Switch Enabled (Factory Default)

DAC2 DX Instruction Manual Rev B Page 27

Page 28

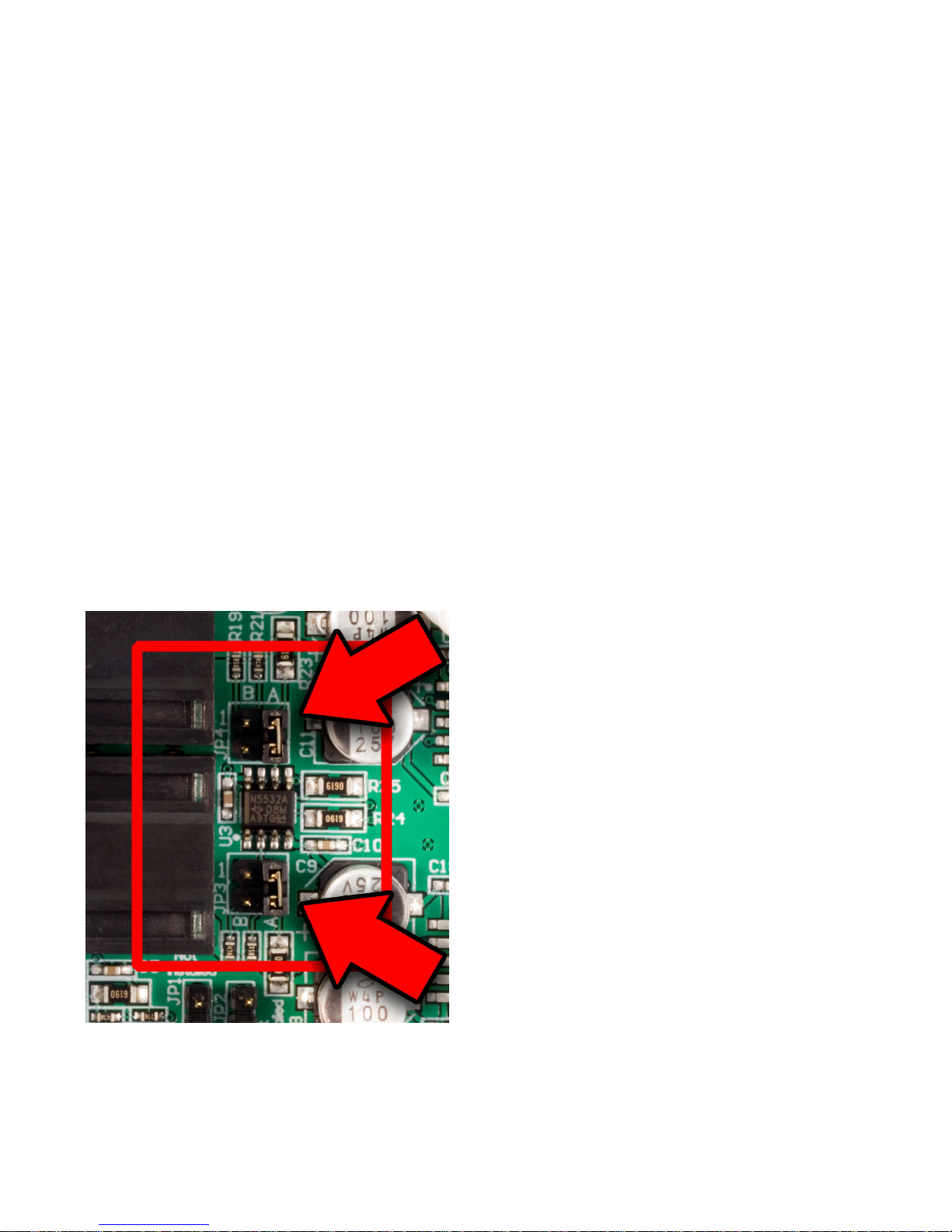

Headphone Attenuation Jumpers (JP3 and JP4):

The gain range of the HPA2™ can be set using jumpers JP3 and JP4:

· 0 dB attenuation - see Figure 3

· 10 dB attenuation - see Figure 4 (Factory Default)

· 20 dB attenuation - see Figure 5

The attenuation is inserted before the HPA2™ headphone amplifier. This attenuator location keeps the output impedance of the HPA2™ constant and very near 0 Ohms. External attenuators should never be inserted after a headphone amplifier as this would change the output impedance.

Proper attenuator settings are important for maximizing the SNR of the headphone monitoring system. With proper settings, the full performance of the DAC2 can be delivered to the headphones for critical monitoring tasks, or maximum musical enjoyment.

When the headphone attenuation jumpers are set properly, a normal listening level will be achieved between the 10 o'clock and 2 o'clock volume-control positions.

If a normal listening level is achieved below a 10 o’clock volume-control position, the headphone gain is too high, and the attenuation should be increased.

If the level is too low at a 2 o-clock volume-control position, the headphone gain is too low, and the attenuation should be decreased.

Figure 3 - 0 dB Headphone Attenuation

DAC2 DX Instruction Manual Rev B Page 28

Page 29

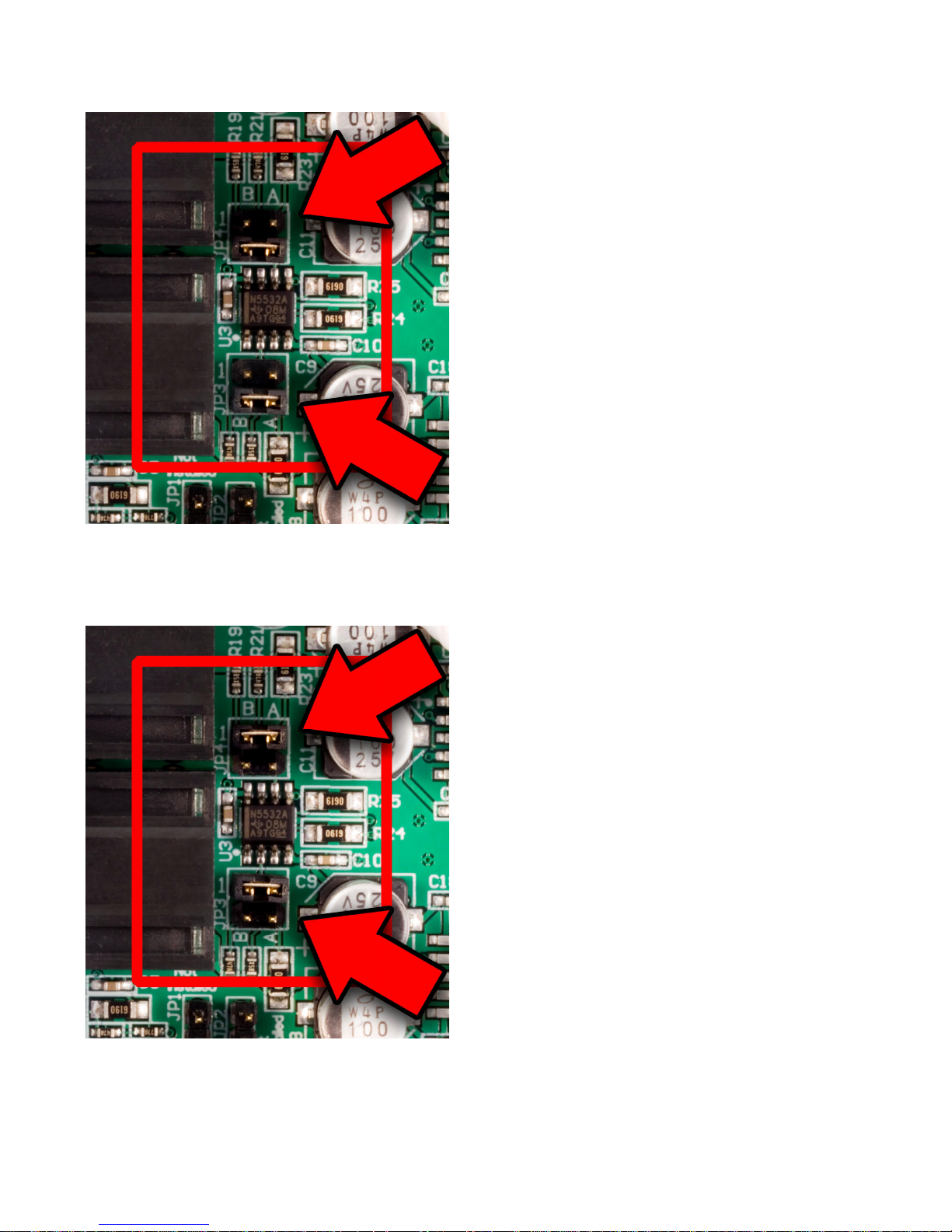

Figure 4 - 10 dB Headphone Attenuation - (Factory default)

Figure 5 - 20 dB Headphone Attenuation

DAC2 DX Instruction Manual Rev B Page 29

Page 30

Digital Pass-Through Function

Coaxial connector D5 is factory configured as an input. This connector can be reconfigured as a digital output by moving both P14 jumpers toward the faceplate. When re-configured as an output, the raw data from any selected digital input is buffered passed out through D5.

The Digital Pass-Through is bit-transparent. No data is modified. MUTE, DIM, and VOLUME control functions do not change the data in any way.

The Digital Pass-Through function can be used for the following purposes:

· USB to Coaxial Transfers

· Optical to Coaxial Transfers

· AES XLR to Coaxial Transfers

· Coaxial to Coaxial Buffering

· Slaving another DAC2

When the Digital Pass-Through function is enabled, D5 cannot be selected as an input. If D5 can be selected, the Digital Pass-Through function is disabled. Figure 7 shows the factory default position (Digital Pass-Through function disabled, D5 is an input).

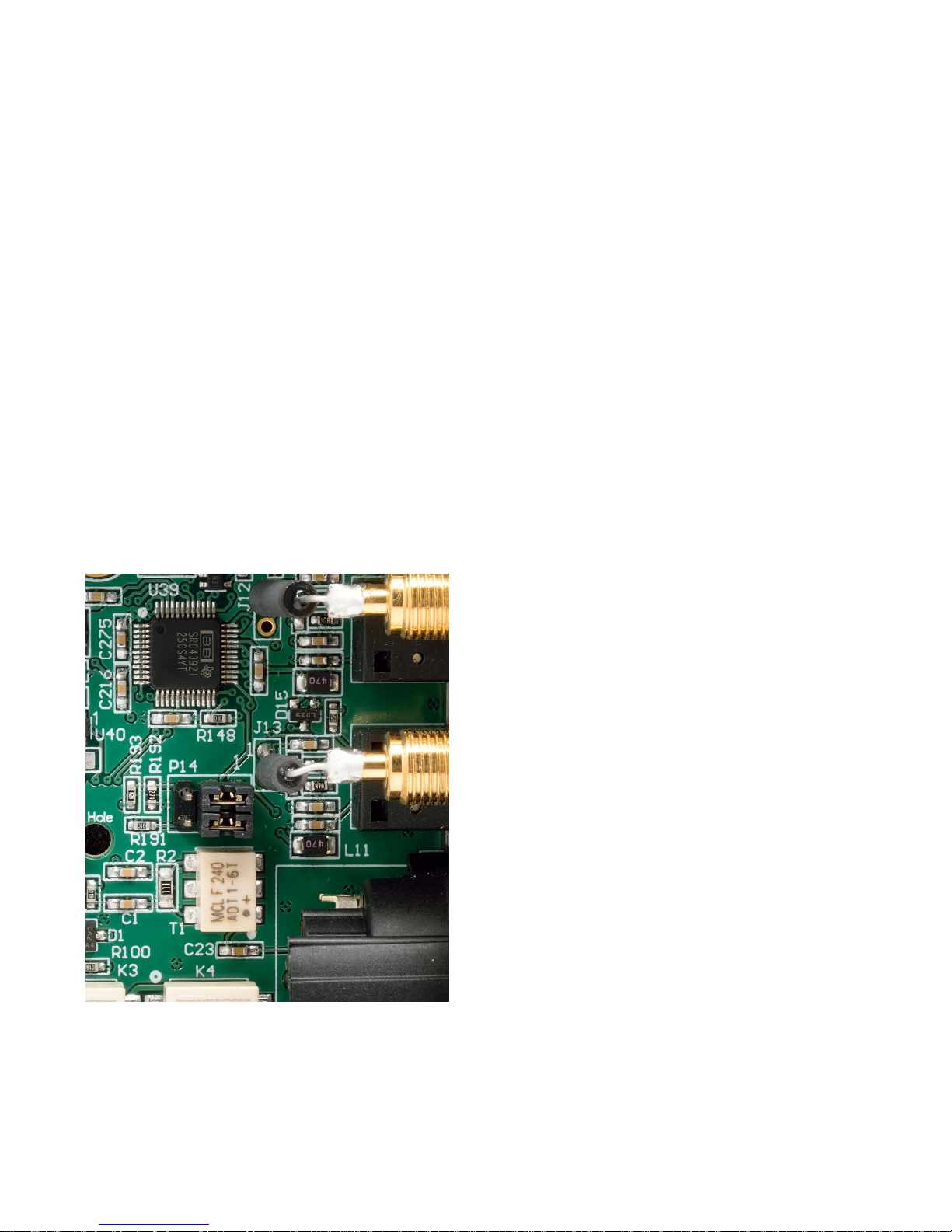

Figure 7 – Digital Pass Through - Disabled (Factory Default)

DAC2 DX Instruction Manual Rev B Page 30

Page 31

Rackmounting Options

The DAC2 DX is available with or without rackmount ears. Either version can be rackmounted with the appropriate accesories. There are several accesories availabe for rackmounting a DAC2 DX:

· Connector Block - Joins two ½-wide Benchmark products when both have rackmount-type

faceplates. It can also join a rackmount DAC2 DX directly to a blank plate (no tray required).

· Premium ½-Wide Blank Panel - Fills one side of the rack tray, or mounts directly to a

rackmount DAC2 DX. Panel is 1/4" brushed aluminum with a durable clear-anodized finish. This premium panel is styled to match the silver rackmount DAC2 DX, and includes a large engraved Benchmark logo.

· Black ½-Wide Blank Panel - Fills one side of the rack tray, or mounts directly to a

rackmount DAC2 DX. Panel is 1/8" brushed aluminum with a durable black-anodized finish.

· Universal Rack Adapter Tray - Mounts two ½-wide Benchmark products with any

combination of rackmount and non-rackmount faceplates.

Call us, contact your dealer, or visit http://www.BenchmarkMedia.com to purchase accessories for your DAC2.

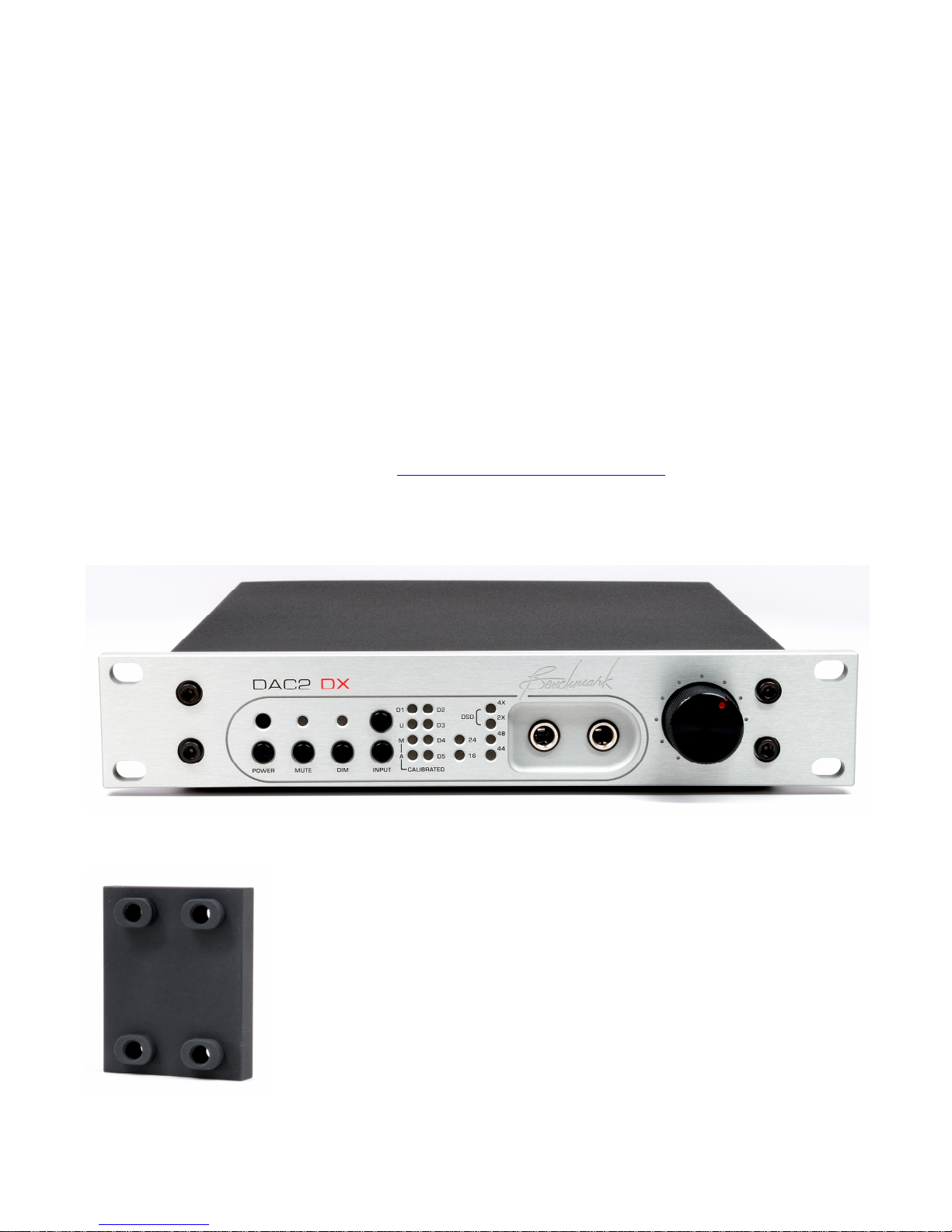

Rackmount Version of the DAC2 DX

Connector Block

The connector block joins two ½-wide Benchmark products with rackmount type faceplates. The joined units fill a standard 19 inch wide 1-RU rack space. The connector block can also join a single ½-wide Benchmark product to a Benchmark ½-wide blank panel.

DAC2 DX Instruction Manual Rev B Page 31

Page 32

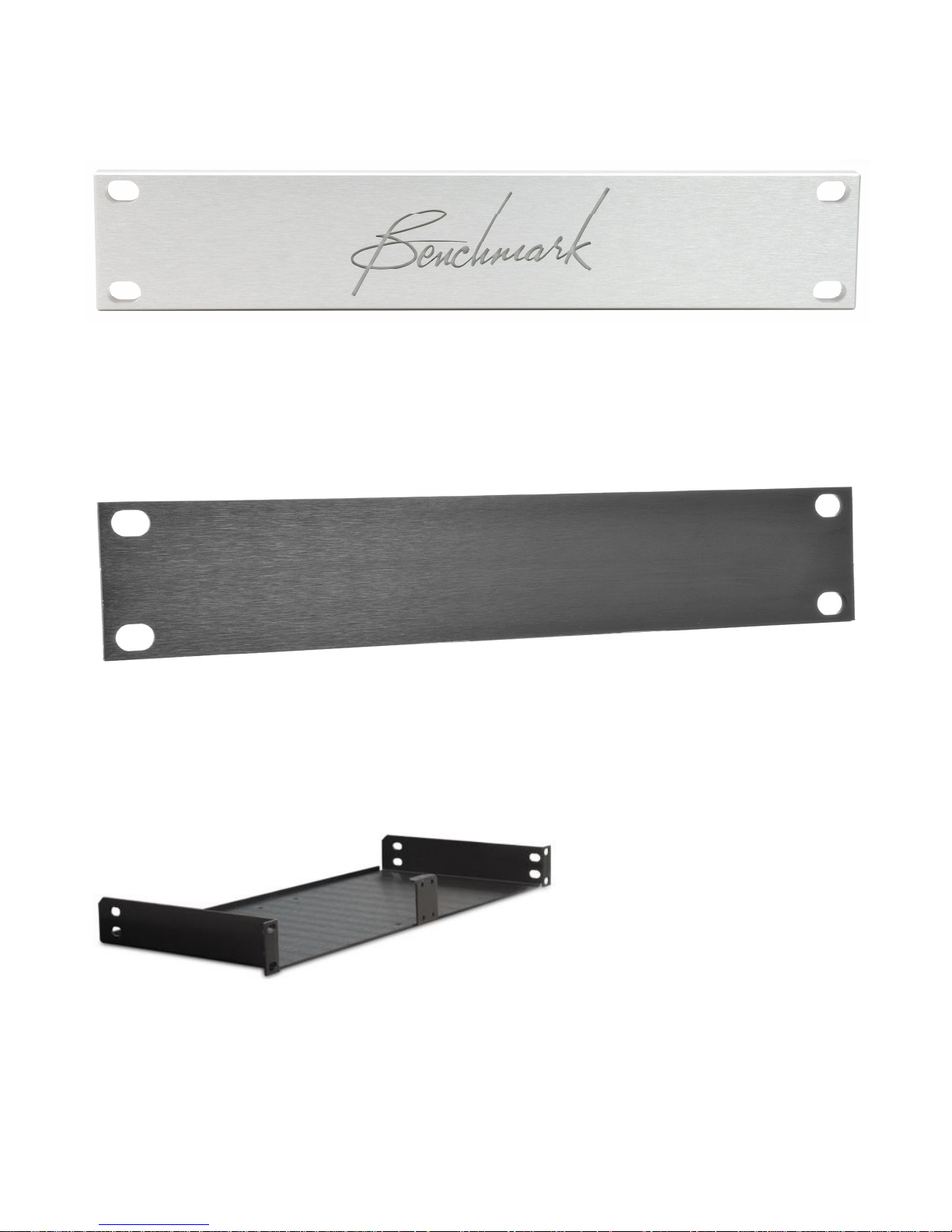

Premium ½-Wide Blank Rack Panel

This premium ¼" thick blank panel matches the finish on the silver rackmount version of the DAC2 DX and features an engraved Benchmark logo. It can also be used to cover an unused slot in the Universal Rack Adapter Tray.

Black ½-Wide Rack Panel

This ⅛" thick blank panel matches the finish on the black non-rackmount version of the DAC2 DX. This panel can be used to cover an unused slot in the Universal Rack Adapter Tray. It can also be mounted directly to a rackmount version of the DAC2 DX.

Universal Rack Adapter Tray

The Universal Rack Adapter Tray is a tray that mounts up to two ½-wide Benchmark products in a standard 19 inch wide 1-RU rack space. The tray accepts any combination of ½-wide Benchmark products (with or without rack-mount type faceplates).

DAC2 DX Instruction Manual Rev B Page 32

Page 33

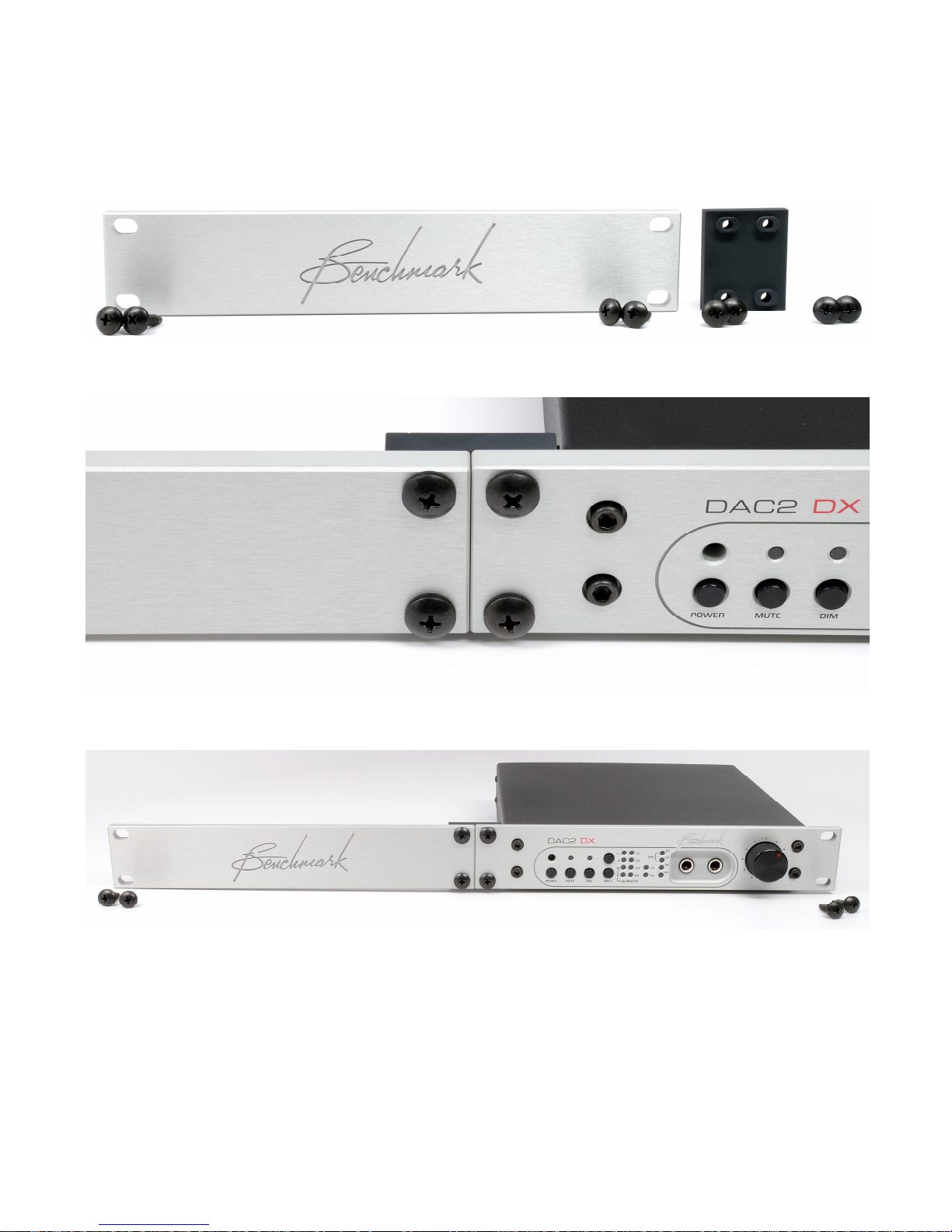

Rackmounting Example

Blank Plate and Connector Block:

The Connector Block creates a rigid connection:

Ready to mount in a standard 19" rack:

DAC2 DX Instruction Manual Rev B Page 33

Page 34

Benchmark

Visit our website for an up-to-date list of DSD and PCM high resolution download sites.

Technologies

Hybrid Gain Control™

"HGC" is Benchmark's unique Hybrid Gain Control™ system. The DAC2 combines

active analog gain control, passive lowimpedance attenuators, a 32-bit digital gain control, and a servo-driven volume control. All inputs are controlled by the rotary volume control. This volume control moves in response to commands from the remote control. Analog inputs are never converted to digital, and digital inputs never pass through an analog potentiometer. Digital inputs are precisely controlled in the 32-bit DSP system. The DSP system preserves precise L/R balance, and precise stereo imaging, while avoiding any source of noise and distortion. Benchmark's unique passive output attenuators provide distortion-free gain reduction without reducing the dynamic range of the converter. The attenuators optimize the gain staging between the DAC2 and the power amplifier. This optimization is absolutely essential for maximizing the dynamic range of the entire playback system. Much of the success of the DAC1 converters can be attributed to the passive output attenuators. Musical details can be obscured by system noise whenever a preamplifier and power amplifier are improperly matched. The "HGC" system will make full use of your power amplifier's dynamic range. Experience the new details in your favorite recordings.

Multi-Mode Asynchronous AdvancedUSB Audio™

Benchmark's USB system supports USB Audio

2.0, DSD, and USB Audio 1.1. It is frequency agile, and will follow sample rate changes initiated by the computer and/or the media playback software. In all modes the USB communications are asynchronous in order to eliminate unnecessary sources of jitter.

The DAC2 has a low-jitter master clock which controls the transfer of audio data from the computer to the USB sub-system. The computer asynchronously transfers audio data to a buffer in the DAC2. The contents of the buffer are then asynchronously transferred to the D/A conversion sub-system. This second asynchronous transfer eliminates any traces of jitter that accumulate as the data is transferred between the USB and conversion subsystems. No traces of jitter-induced distortion are measurable to our measurement limits (better than -160 dBFS). This truly represents the state-of-the art. Enjoy the convenience of computer playback without compromise.

The Asynchronous USB system supports USB Audio 2.0 for high-resolution 192kHz, and DSD playback. No drivers are required for MAC operating systems. An easy-to-install driver adds 192 kHz and DSD capabilities to Windows operating systems. You can download the latest drivers from:

Native DSD Conversion

The digital coaxial, XLR, and USB 2.0 inputs on the DAC2 DX support native DSD conversion. DoP 1.1 is automatically detected on all digital inputs, and the system seamlessly switches to native DSD conversion. DoP 1.1 is supported by many media players, and DSD downloads are now available from several sources.

DAC2 DX Instruction Manual Rev B Page 34

http://www.benchmarkmedia.com/dac/dac2drivers

An asynchronous driverless USB Audio 1.1 mode supports sample rates up to 96 kHz. This USB mode can be selected from the front panel or from the remote control. The driverless USB Audio 1.1 mode allows quick plug-and-play connections to Windows, MAC, iOS, and Linux operating systems without installing drivers. Just plug in the USB, and the DAC2 becomes an available audio device.

Page 35

The USB sub-system remains active when the DAC2 is powered down. This prevents interruptions to the computer playback operations and eliminates the need to reconfigure the computer every time the converter is turned on.

Jitter-Immune UltraLock2™

UltraLock2™ is an improved version of the UltraLock™ system used in the DAC1

product family. DSP processing is 32-bits, DSP headroom is 3.5 dB, sample rate is 211 kHz, and jitter-induced distortion and noise is at least 160 dB below the level of the music well below the threshold of hearing. Benchmark's UltraLock2™ system eliminates all audible jitter artifacts.

High Head-Room DSP

All of the digital processing in the DAC2 is designed to handle signals as high as +3.5 dBFS. Most digital systems clip signals that exceed 0 dBFS. The 0 dBFS limitation seems reasonable, as 0 dBFS is the highest sinusoidal signal level that can be represented in a digital system. However, a detailed investigation of the mathematics of PCM digital systems will reveal that inter-sample peaks may reach levels slightly higher than +3 dBFS while individual samples never exceed 0 dBFS. These inter-sample peaks are common in commercial releases, and are of no consequence in a PCM system until they reach an interpolation process. But, for a variety of reasons, virtually all audio D/A converters use an interpolation process. The interpolation process is absolutely necessary to achieve 24-bit state-of-the art conversion performance. Unfortunately, inter-sample overs cause clipping in most interpolators. This clipping produces distortion products that are non-harmonic and non-musical. We believe these broadband distortion products often add a harshness or false high-frequency sparkle to digital reproduction. The DAC2 avoids these problems by maintaining at least

3.5 dB of headroom in the entire conversion system. We believe this added headroom is a groundbreaking improvement.

32-bit SABRE Conversion System

Four balanced 32-bit D/A converters deliver audio to Benchmark's low-impedance current to voltage converters. The MAIN bus uses 3:1 redundancy to reduce noise and distortion to insignificant levels. The conversion system at the core of the DAC2 is as good as it gets. The analog circuits that follow the D/A converter are carefully designed. Benchmark has leveraged its long history of building reference analog audio equipment to create an outstanding output stage.

Diagnostic Display

Ever wonder why that 192 kHz 24-bit download on your computer just doesn't sound right? Your media player may be down-sampling to 44.1 kHz and/or truncating to 16-bits. Many media players apply poorquality sample rate conversion and truncation. Fortunately these problems can be eliminated with the selection of a good frequency-agile media player. The samplerate and word-length displays on the DAC2 confirm the proper operation of your media player.

Bi-Directional 12 Volt Trigger

Benchmark re-invents the 12 volt trigger. The trigger connection on the DAC2 can be used as an input or output or both, and is compatible with any common 12 volt trigger input or output. The trigger can be used to turn a power amplifier on or off automatically. The DAC2 will also respond to a 12 volt trigger and follow the actions of another audio component.

Distributed Power Regulation

To achieve the lowest possible noise, the DAC2 uses distributed power supply regulation. Each critical sub-system has at least one dedicated low-noise voltage regulator.

DAC2 DX Instruction Manual Rev B Page 35

Page 36

HPA2™ Headphone Amplifier

The DAC2 headphone output is driven by Benchmark’s signature HPA2™ headphone amplifier. This high-current, high-output amplifier has an output impedance of near 0Ohms. It is designed to drive loads as low as 30 Ohms without any increase in distortion. It also has sufficient amplitude to drive lowsensitivity 600-Ohm headphones.

The HPA2™ includes current-limiting circuits that fully protect against damage from short circuits. This is important because the right channel of a headphone amplifier will experience a short whenever a mono phone plug is inserted into the stereo headphone jack. Shorts may also occur when a plug is partially inserted.

'0-Ohm' Output Impedance

Most headphone amplifiers use series resistors to maintain stability and protect against short-circuit conditions. These resistors are usually at least 30 Ohms, and have a negative impact on performance. A headphone amplifier with series resistors may measure very well when driving resistive loads. However, the same amplifier will measure very poorly when driving a headphone load. Unfortunately, most manufacturers do not specify headphone amplifier performance with anything other than ideal resistive loads. Our measurements show that headphones do not behave like resistive loads.

Headphone Performance

In our tests we have measured substantial distortion across resistors that are wired in series with headphones. We conducted measurements with a variety of headphones. In general, distortion increases as headphone impedance decreases. This distortion can be eliminated with a properly designed 0-Ohm headphone amplifier.

The performance of the HPA2™ does not change when headphones are driven. THD+N measurements for no-load, 30-Ohm resistive

loads, 30-Ohm headphone loads, and 600Ohm headphone loads are virtually identical. The HPA2™ will substantially improve the sound of 30 and 60-Ohm headphones. It will make very noticeable improvements with 600-Ohm headphones.

Differential Amplifiers

Differential amplifiers remove common-mode distortion components from the D/A converter outputs. This feature is critical for achieving low-distortion in down-stream devices. Benchmark addresses common-mode distortion so that it will not cause distortion in power amplifiers and other connected devices. Common-mode distortion can cause audible distortion while escaping the scrutiny of an audio analyzer. The balanced and unbalanced outputs on the DAC2 deliver very similar performance.

Many D/A converters omit the differential amplifiers after the converters. Specifications usually ignore common-mode distortion. A balanced signal with high common-mode distortion can measure just fine when feeding a precisely balanced input on a high-quality audio analyzer. However, any imbalance in a downstream device will expose the common-mode distortion.

UltraLock2™ Clock System

Accurate 24-bit audio conversion requires a very low-jitter conversion clock. Jitter can very easily turn a 24-bit converter into a 16bit converter (or worse). There is no point in buying a 24-bit converter if clock jitter has not been adequately addressed.

Jitter is present on every digital audio interface. This type of jitter is known as ‘interface jitter’ and it is present even in the most carefully designed audio systems. Interface jitter accumulates as digital signals travel down a cable and from one digital device to the next. If we measure interface jitter in a typical system we will find that it is 10 to 10,000 times higher than the maximum allowable level for accurate 24-bit conversion.

DAC2 DX Instruction Manual Rev B Page 36

Page 37

Fortunately, interface jitter has absolutely no effect on the audio unless it influences the conversion clock in an analog-to-digital converter (A/D) or in a digital-to-analog converter (D/A).

Many converters use a single-stage Phase Lock Loop (PLL) circuit to derive their conversion clocks from AES/EBU, Wordclock, or Superclock reference signals. Single-stage PLL circuits provide some jitter attenuation above 5 kHz but none below 5 kHz. Unfortunately, digital audio signals often have their strongest jitter components at 2 kHz. Consequently, these converters can achieve their rated performance only when driven from very low jitter sources and through very short cables. It is highly unlikely that any converter with a single-stage PLL can achieve better than 16 bits of performance in a typical installation. Specified performance may be severely degraded in most installations.

Better converters usually use a two-stage PLL circuit to filter out more of the interface jitter. In theory, a two-stage PLL can remove enough of the jitter to achieve accurate 24-bit conversion (and some do). However, not all two-stage PLL circuits are created equal. Many two-stage PLLs do not remove enough of the low-frequency jitter. In addition, twostage PLL circuits often require several seconds to lock to an incoming signal. Finally, a two-stage PLL may fail to lock when jitter is too high, or when the reference sample frequency has drifted.

UltraLock™ converters exceed the jitter performance of two-stage PLL converters, and are free from the slow-lock and no-lock problems that can plague two-stage PLL designs. UltraLock™ converters have extremely high immunity to interface jitter under all operating conditions. No jitterinduced artifacts can be detected using an Audio Precision System 2 Cascade test set. Measurement limits include detection of artifacts as low as –160 dBFS, while applying jitter amplitudes as high as 12.75 UI, over a frequency range of 2 Hz to 200 kHz. Any AES/EBU signal that can be decoded by the

AES/EBU receiver will be reproduced without the addition of any measurable jitter artifacts.

The DAC2 employs Benchmark’s UltraLock2™ technology to eliminate jitter- induced performance problems. UltraLock2™ technology isolates the conversion clock from the digital audio interface clock. Jitter on a D/A digital audio input, or an A/D reference input can never have any measurable effect on the conversion clock of an UltraLock2™ converter. In an UltraLock2™ converter, the conversion clock is never phase-locked to a reference clock. Instead the converter oversampling-ratio is varied with extremely high precision to achieve the proper phase relationship to the reference clock. The clock isolation of the UltraLock2™ system ensures that interface jitter can never degrade the quality of the audio conversion. Specified performance is consistent and repeatable in any installation with cables of any quality level!

How does conversion clock jitter degrade converter performance?

Problem #1: Jitter phase-modulates the

audio signal. This modulation creates sidebands (unwanted tones) above and below every tone in the audio signal. Worse yet, these sidebands are often widely separated from the tones in the original signal.

Jitter-induced sidebands are not musical in nature because they are not harmonically related to the original audio. Furthermore, these sidebands are poorly masked (easy to hear) because they can be widely separated above and below the frequencies of the original audio tones. In many ways, jitter induced distortion resembles intermodulation distortion (IMD). Like IMD, jitter induced distortion is much more audible than harmonic distortion, and more audible than THD measurements would suggest.

Jitter creates ‘new audio’ that is not harmonically related to the original audio signal. This ‘new audio’ is unexpected and unwanted. It can cause a loss of imaging, and

DAC2 DX Instruction Manual Rev B Page 37

Page 38

can add a low and mid frequency ‘muddiness’ that was not in the original audio.

Put UltraLock™ converters to the test:

Jitter induced sidebands can be measured using an FFT analyzer.

Problem #2: Jitter can severely degrade the anti-alias filters in an oversampling converter. This is a little known but easily measurable effect. Most audio converters operate at high oversampling ratios. This allows the use of high-performance digital anti-alias filters in place of the relatively poor performing analog anti-alias filters. In theory, digital anti-alias filters can have extremely sharp cutoff characteristics, and very few negative effects on the in-band audio signal. Digital anti-alias filters are usually designed to achieve at least 100 dB of stop-band attenuation. But, digital filters are designed using the mathematical assumption that the time interval between samples is a constant. Unfortunately, sample clock jitter in an A/D or D/A varies the effective time interval between samples. This variation alters the performance of these carefully designed filters. Small amounts of jitter can severely degrade stop-band performance, and can render these filters useless for preventing aliasing.

The obvious function of a digital anti-alias filter is the removal of audio tones that are too high in frequency to be represented at the selected sample rate. The not-so-obvious function is the removal of high-frequency signals that originate inside the converter box, or even originate inside the converter IC. These high-frequency signals are a result of crosstalk between digital and analog signals, and may have high amplitudes in a poorly designed system. Under ideal (low jitter) conditions, a digital anti-alias filter may remove most of this unwanted noise before it can alias down into lower (audio) frequencies. These crosstalk problems may not become obvious until jitter is present.

Stop-band attenuation can be measured very easily by sweeping a test tone between 24 kHz and at least 200 kHz while monitoring the output of the converter.

We encourage our customers to perform the above tests on UltraLock2™ converters (or let your ears be the judge). There will be absolutely no change in performance as jitter is added to any digital input on an UltraLock2™ converter. Try the same tests on any converter using conventional single or two-stage PLL circuits. Tests should be performed with varying levels of jitter and with varying jitter frequencies. The results will be very enlightening. Jitter related problems have audible (and measurable) effects on A/D and D/A devices. Practitioners of Digital Audio need to understand these effects.

Is it possible to eliminate all of the effects of jitter in an entire digital audio system?

Interface jitter will accumulate throughout

even the most carefully designed digital audio system. Fortunately, interface jitter can only degrade digital audio if it affects the sampling circuit in an analog-to-digital or digital-to-analog converter. Any attempt to cure jitter outside of an A/D or D/A will prove expensive and, at best, will only partially reduce jitter-induced artifacts. Dedicated clock signals (word clock, and super clock, etc.) are often distributed to A/D converters and D/A converters in an attempt to reduce jitter. Again, these are only partial solutions because jitter even accumulates in these clock distribution systems. Furthermore, a poor quality master clock generator can degrade the performance of the entire system (if converter performance is dependent upon reference clock quality). Jitter free A/D and D/A converters are the only true ensurance against the ill effects of jitter. UltraLock2™ converters are jitter-immune under all operating conditions (they will never add audible jitter induced artifacts to an audio signal).

DAC2 DX Instruction Manual Rev B Page 38

Page 39

What UltraLock™ converters cannot do:

UltraLock2™ converters cannot undo damage that has already been done. If an A/D with a jitter problem was used to create a digital audio signal, then there is nothing that can be done to remove the damage. Jitterinduced sidebands are extremely complex and cannot be removed with any existing audio

device. Therefore, it is very important to attack jitter at both ends of the audio chain. The DAC2 is a great start, as it will allow accurate assessment of various A/D converters. It is impossible to audibly evaluate A/D performance without a good D/A. The consistent performance delivered by the DAC2 eliminates one major variable: jitter.

DAC2 DX Instruction Manual Rev B Page 39

Page 40

USB Audio System Setup

Plug it in and Start Listening… Immediately

Benchmark's Advanced USB Audio technology is truly 'Plug and Play'. When connecting to a USB port on a computer running Windows or Mac OSX, the computer will automatically and instantaneously recognize the presence of the Benchmark USB device in USB 1.1, playing tracks up to 96 kHz 24-bit. Any audio played from the computer will then be routed to the Benchmark USB device immediately. There is no software to install or configure.

To play tracks up to 192 kHz or DSD, the DAC2 needs to be engaged in USB 2.0 mode. To engage it in USB 2.0 mode, hold down the USB button on the remote control until you see the 4X LED blink. If the 2X LED blinks instead of the 4X LED, hold down the USB button again on the remote control until you see the 4X LED blink. In Mac OS X, no driver is required to play tracks up to 192 kHz or DSD. On Windows XP, Vista, or 7, a driver is required for 192 kHz or DSD playback.

To download the driver and get the instructions for Windows XP, Vista, 7, and 8, please visit:

http://www.benchmarkmedia.com/dac/dac2-drivers

DAC2 DX Instruction Manual Rev B Page 40

Page 41

USB Driver Installation - Windows XP, Vista, 7

Note: The DAC2 driver is available for download at: http://www.benchmarkmedia.com/dac/dac2-

hgc/driver

Before you install the driver, make sure the USB is unplugged before installation of the driver.

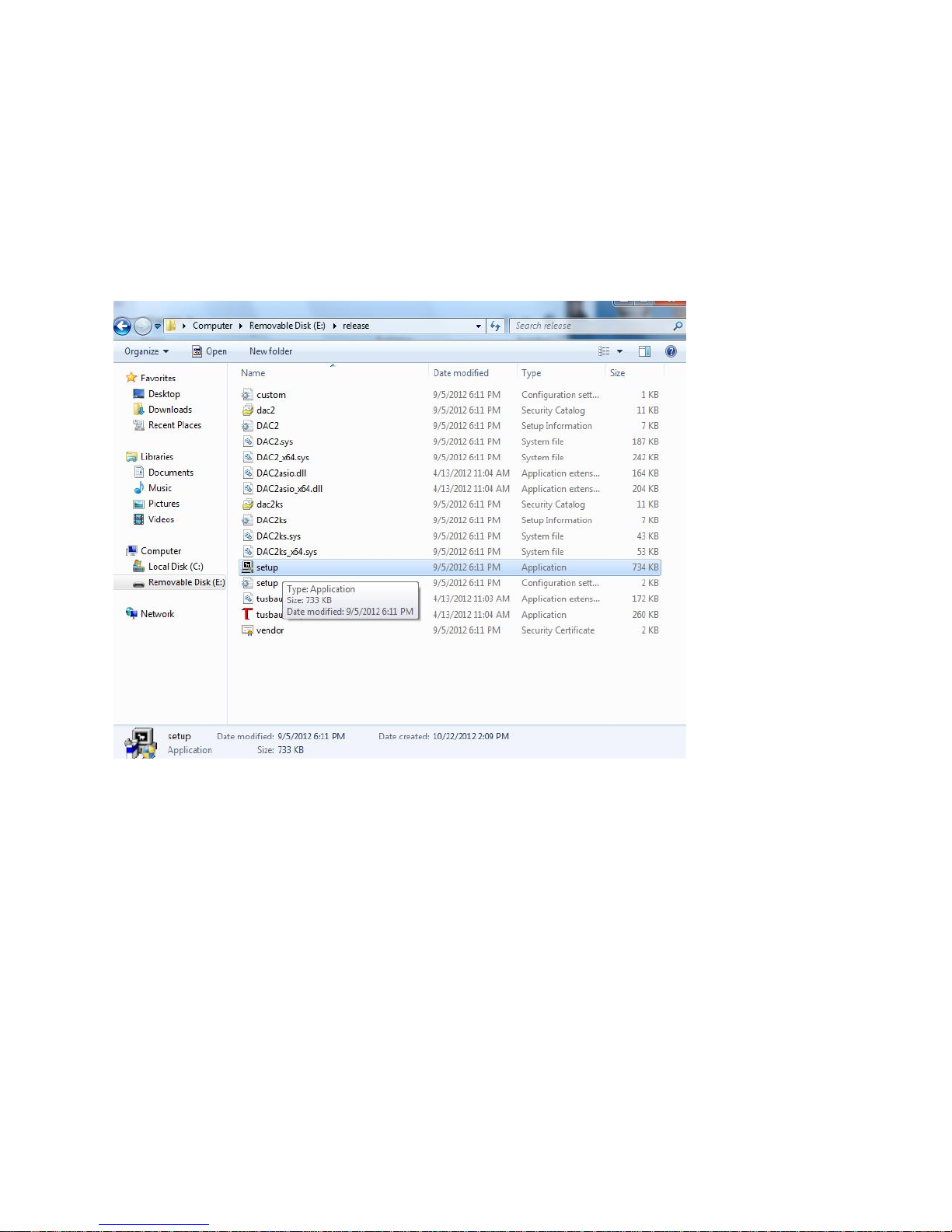

1. In the DAC2 Driver folder, double click “setup.exe.”

DAC2 DX Instruction Manual Rev B Page 41

Page 42

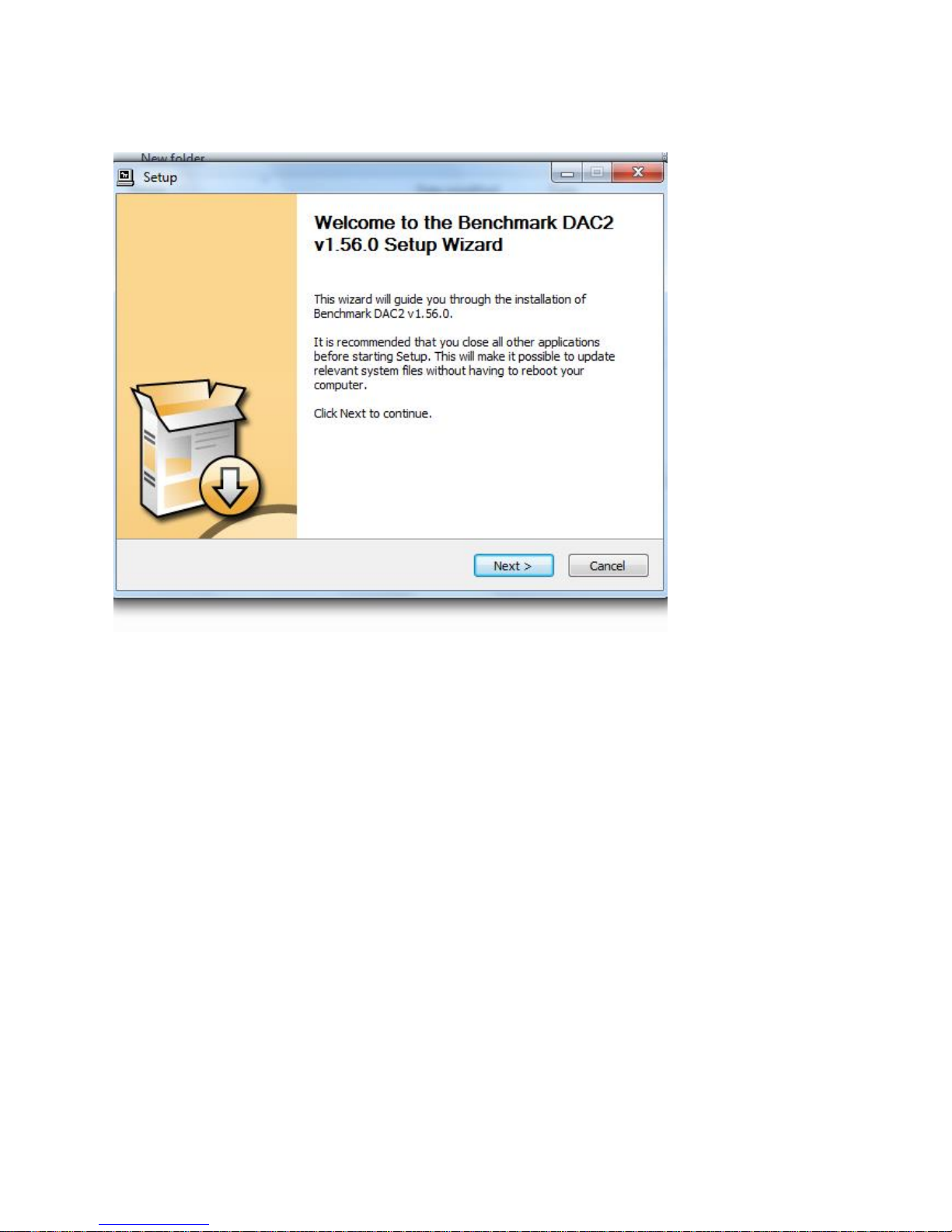

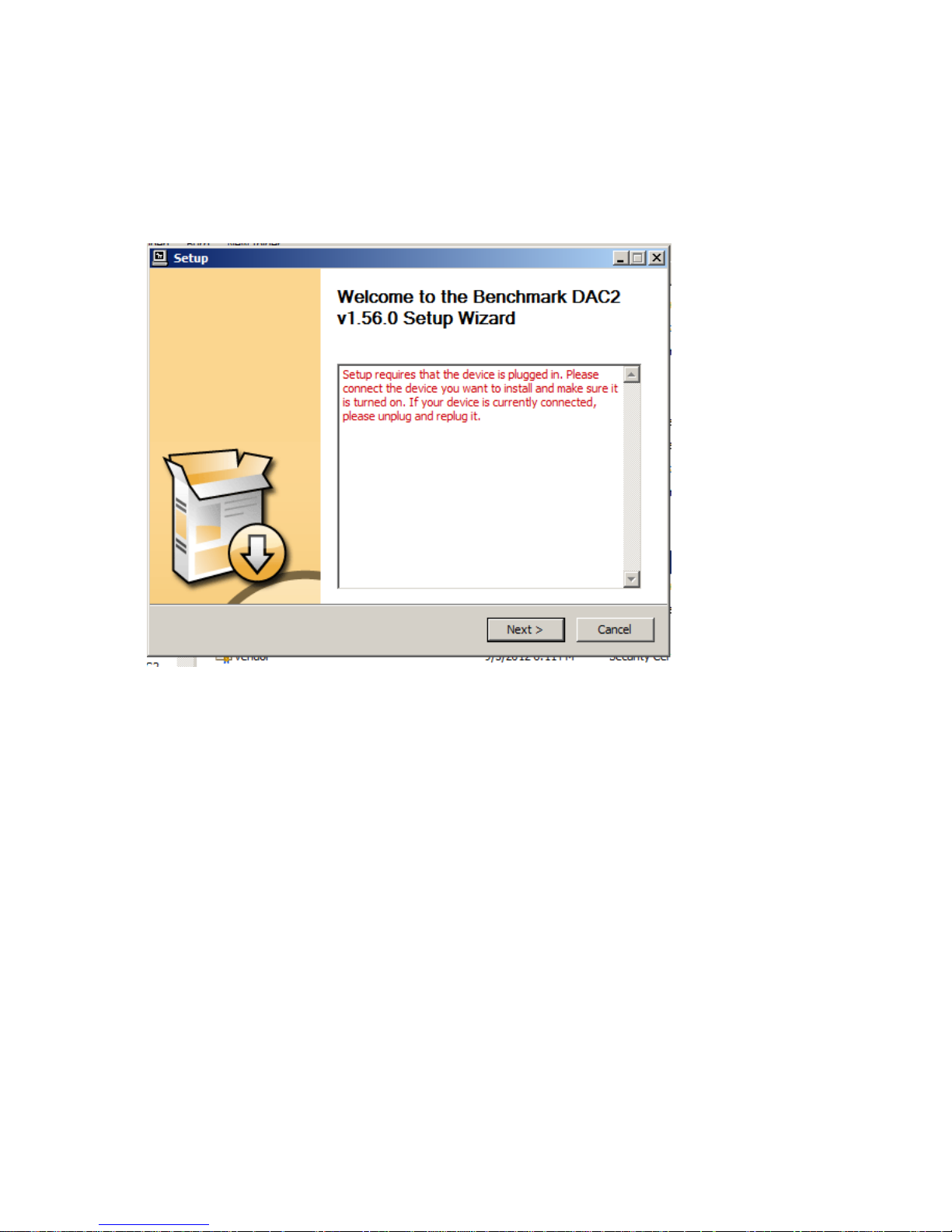

2. A welcome screen will pop-up. Click “Next.”

DAC2 DX Instruction Manual Rev B Page 42

Page 43

3. When you see the following screen, turn on the DAC2, and select USB as your

input. By default, the DAC2 is shipped in USB 1.0 mode. You can enable your DAC2 in USB 2.0 mode in two ways. 1) Using your remote control, hold down the USB button on your remote control for 3-4 seconds until you see the 4X LED light up for 3-4 seconds. 2) From the front faceplate, hold down both input buttons until you see the 4X LED light up for 3-4 seconds.

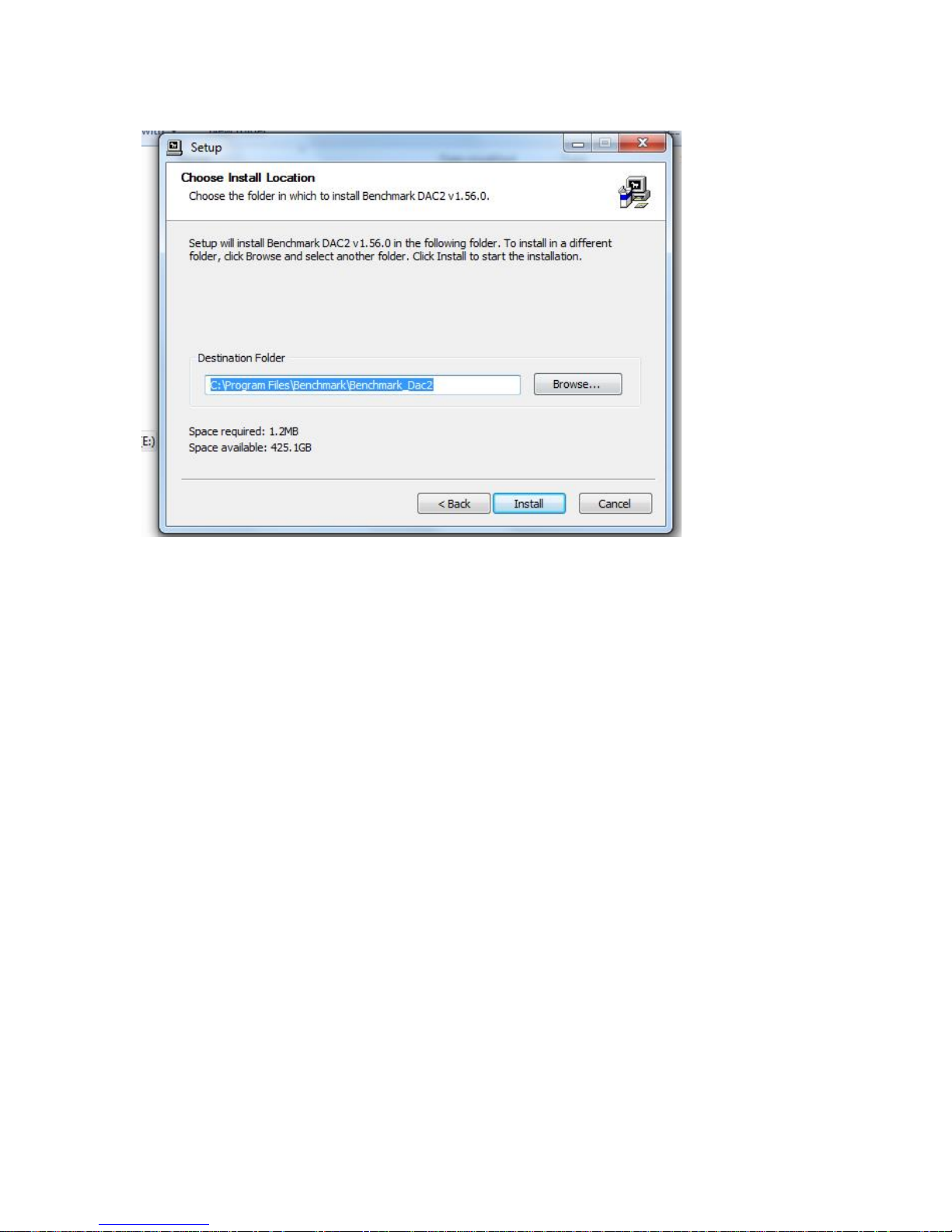

4. You will be prompted to select a location to install the driver in. It will default to

your Program Files folder. If you wish to install it another location, you can change the location. We suggest keeping it in the default destination folder.

DAC2 DX Instruction Manual Rev B Page 43

Page 44

Press “Install”

DAC2 DX Instruction Manual Rev B Page 44

Page 45

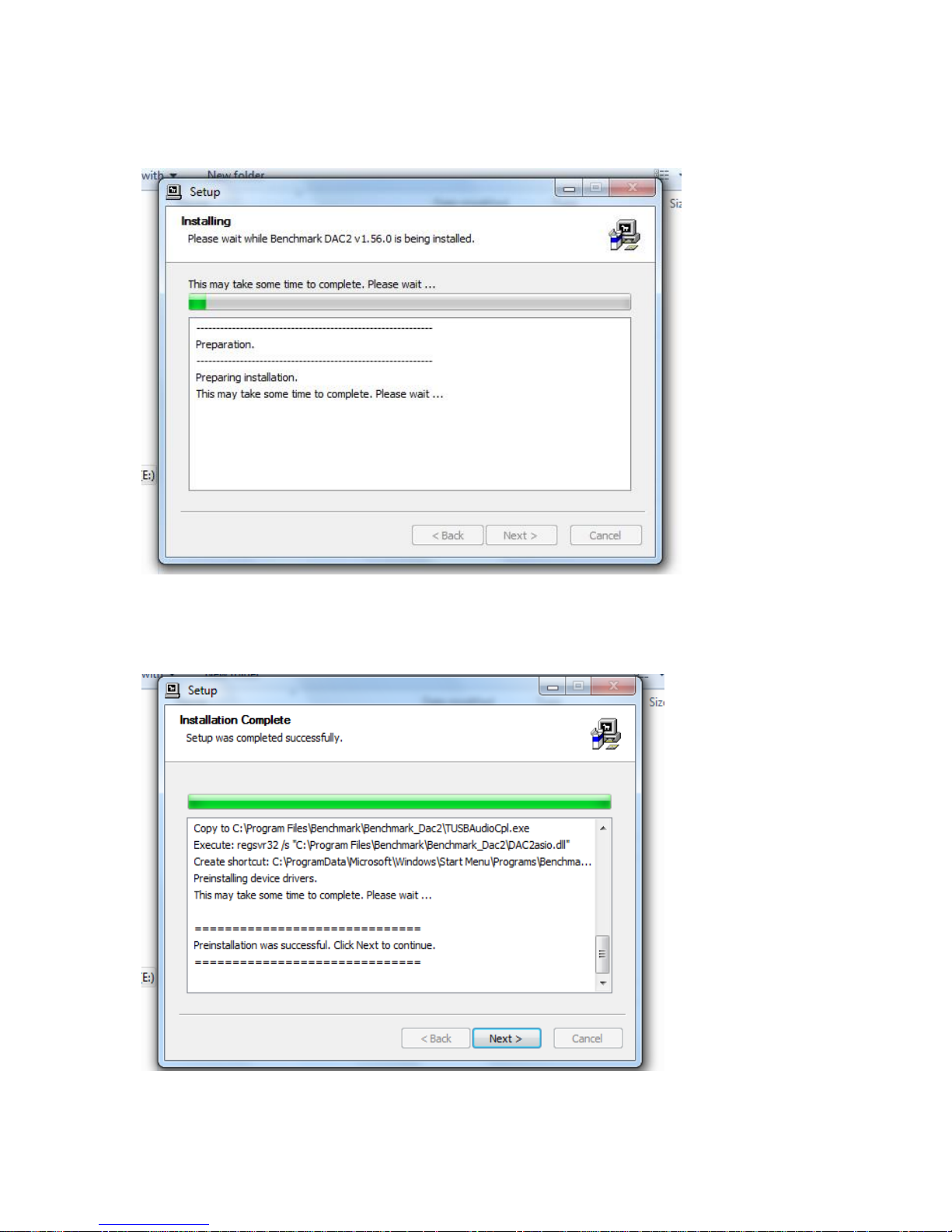

5. When the installation begins you will see the following screen. Please be patient

while the driver installs. Installation time is between 1-5 minutes.

6. Once the installation finishes a message at the top will say “Installation

Complete.” Press “Next” to continue.

DAC2 DX Instruction Manual Rev B Page 45

Page 46

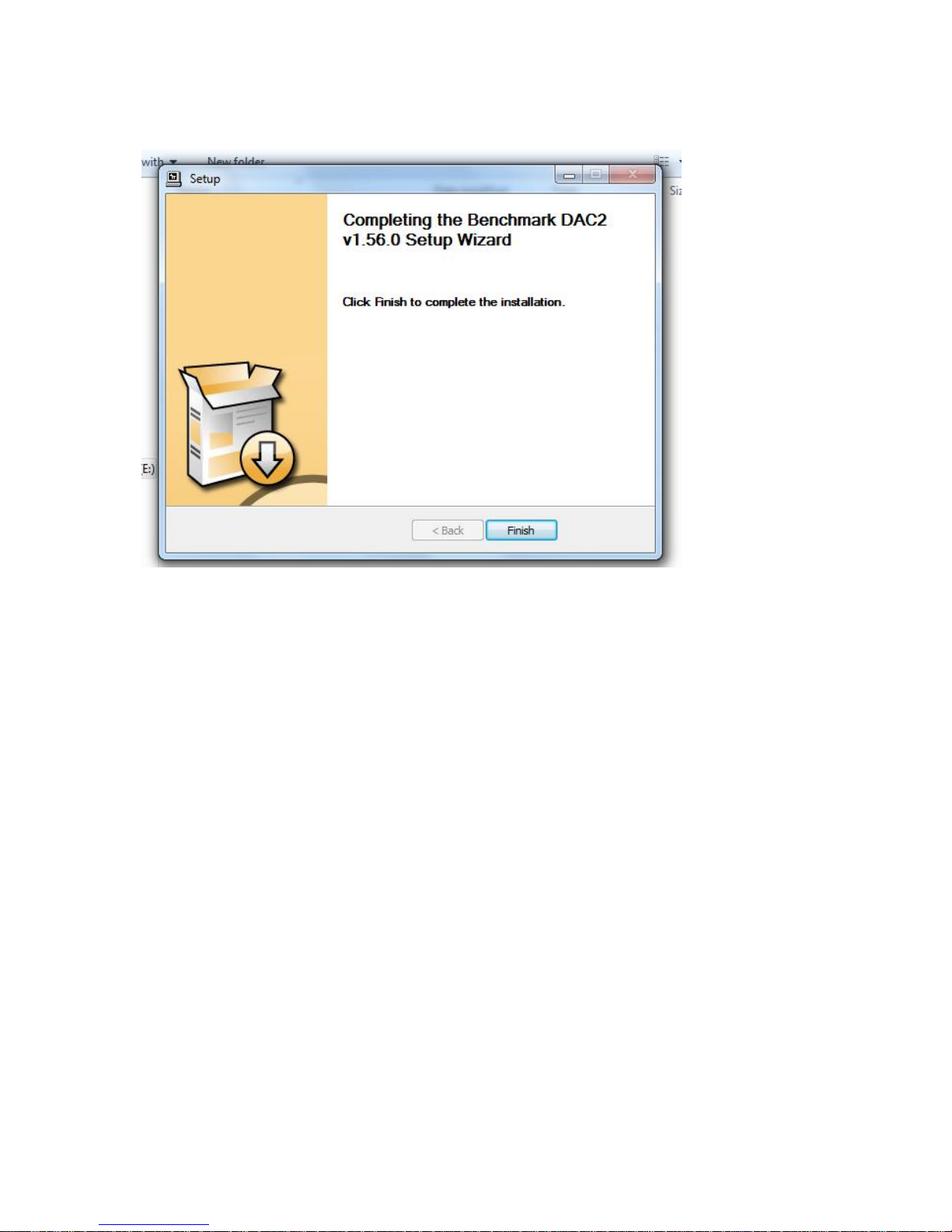

7. Click “Finish.” The Setup will close automatically and this completes the

installation process. You can now enjoy music up to 192 kHz and DSD.

DAC2 DX Instruction Manual Rev B Page 46

Page 47

Performance Graphs - DAC2 Series

The following graphs were produced using a DAC2 HGC. The DAC2 DX provides similar performance.

Audio Precision FFT Idle Channel Noise, 0 dBr = 0 dBFS = 23 dBu

-20

-40

-60

-80

-100

-120

-140

-160

0 32k2k 4k 6k 8k 10k 12k 14k 16k 18k 20k 22k 24k 26k 28k 30k

ColorSweep Trace Line Style Thick Data Axis Comment

1 1 Green Solid 4 Fft.Ch.1 Ampl Left 1 2 Red Solid 4 Fft.Ch.2 Ampl Right

DAC2 - FFT Idle Channel Noise.at27

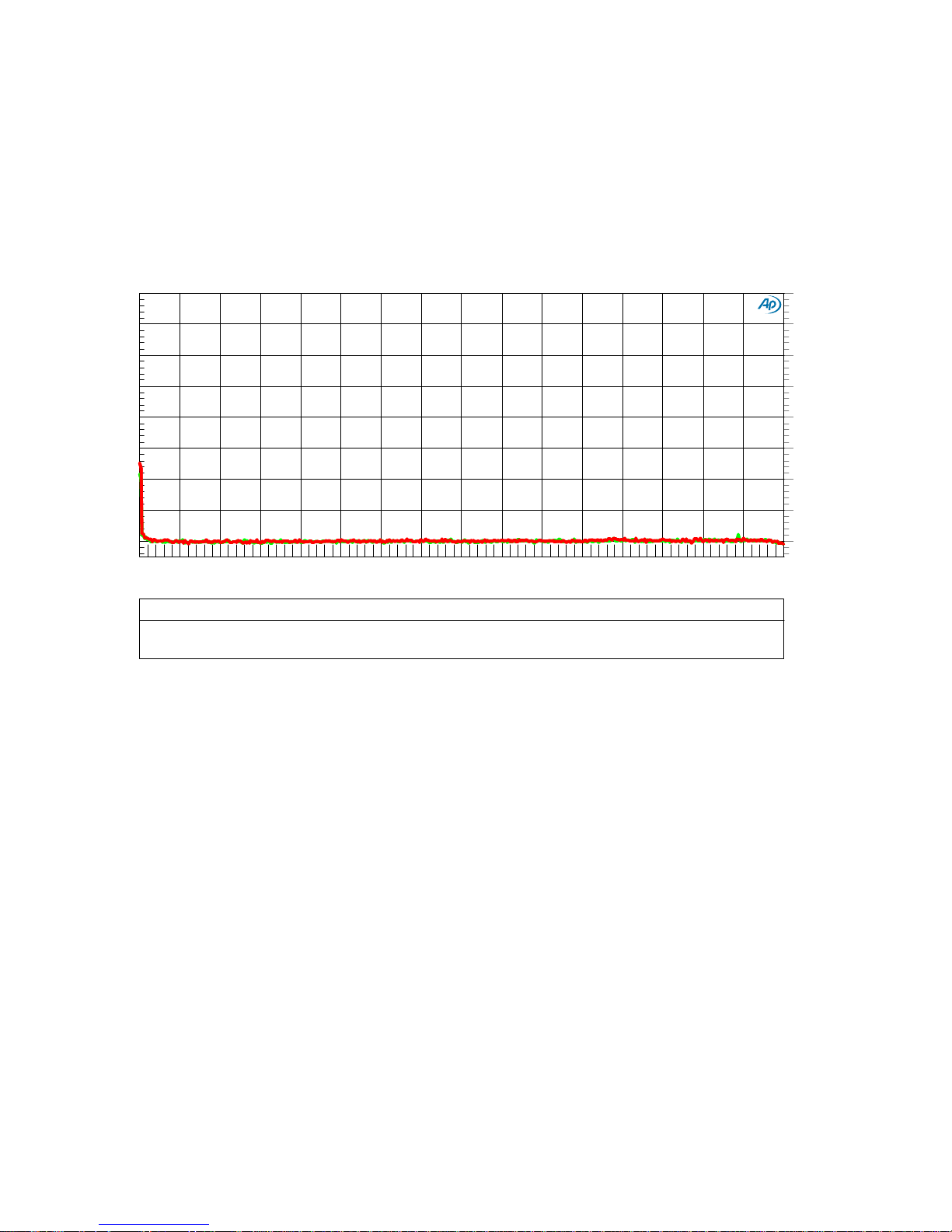

Graph Plot 1 – FFT Idle Channel Noise

-20

-40

-60

-80

-100

-120

-140

-160

d B

The extraordinary performance of the DAC2 is demonstrated by the FFT plot shown above. There is no sign of any AC hum, there are no idle tones, and there are no spurious tones detected at a measurement limit of -160 dBFS.

The rise at 0 Hz is normal in an FFT analysis and is not an indication of noise. This 32k point FFT analysis uses a Blackman-Harris window with 16x power averaging, and spans a frequency range of DC to 32 kHz.

DAC2 DX Instruction Manual Rev B Page 47

Page 48

Audio Precision FFT Idle Channel Noise - Low Frequency, 0 dBr = 0 dBFS = 23 dBu

-156.413

-157.539

dx=120.470 Hz

dy=-1.126 dB

-20

-40

-60

-80

-100

-120

-140

-160

25 400 50 75 100 125 150 175 200 225 250 275 300 325 350 375

1 1 Green Solid 4 Fft.Ch.1 Ampl Left *-156.413 dBr *-157.539 dBr 1 2 Red Solid 4 Fft.Ch.2 Ampl Right -159.813 dBr A -158.700 dBr A

60.1566 180.626

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

DAC2 - FFT Idle Channel Noise - Low Frequency.at27

Graph Plot 2 - LOW FREQUENCY FFT - AC LINE-RELATED HUM

-20

-40

-60

-80

-100

-120

-140

-160

d B

The DAC2 shows no evidence of AC line-related hum to a measurement limit of -160 dBFS. The cursors are placed at 60 Hz and 180 Hz (frequencies where we would expect to see interference from the 60 Hz AC input. There is absolutely no sign of any AC hum.

DAC2 DX Instruction Manual Rev B Page 48

Page 49

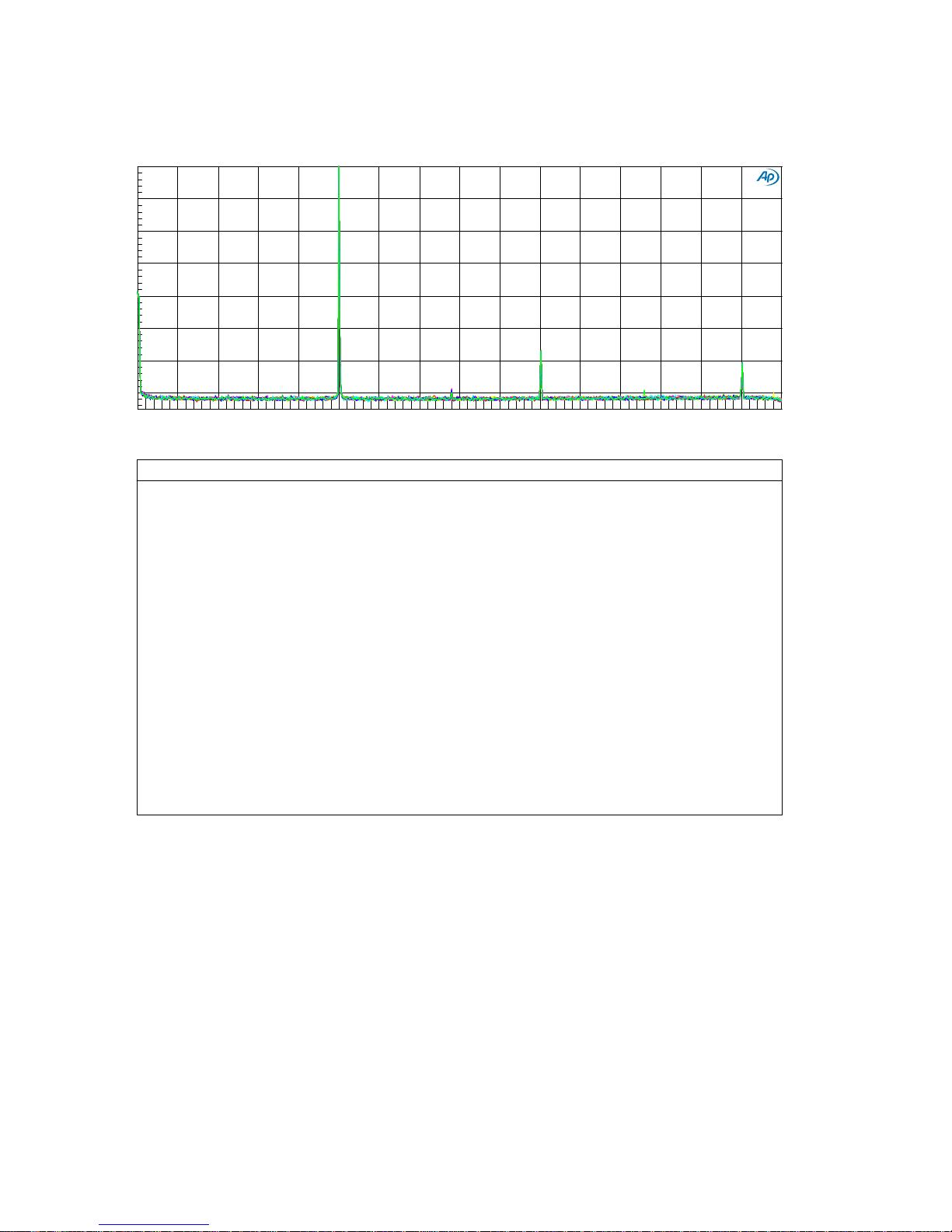

Audio Precision DAC2 - FFT 10 kHz, 0 dBr = 0 dBFS = 23 dBu

-114.636

dx=10.0196 kHz

dy=-5.604 dB

-20

-40

-60

-80

-100

-120

-120.24

-140

-160

0 32k2k 4k 6k 8k 10k 12k 14k 16k 18k 20k 22k 24k 26k 28k 30k

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

1 1 Green Solid 4 Fft.Ch.1 Ampl Left *-114.636 dBr *-120.240 dBr 1 2 Red Solid 4 Fft.Ch.2 Ampl Right -116.765 dBr A -122.816 dBr A

Graph Plot 3 - FFT 10 kHz

DAC2 - FFT 10 kHz.at27

20.0391k 30.0587k

-20

-40

-60

-80

-100

-120

-140

-160

d B

The 10 kHz FFT analysis is an excellent test for detecting sample clock jitter. Jitter will create sidebands (unwanted tones) above and below the 10 kHz test tone. A jitter frequency of 1 kHz would create two sideband tones; a lower sideband at 9 kHz, and an upper sideband at 11 kHz. Similarly, a jitter frequency of 2 kHz would produce sideband tones at 8 kHz and 12 kHz. The above plot shows no evidence of jitter-induced sidebands to a measurement limit of about -140 dBFS.

The -140 dB measurement limit is due to the SNR limitations of the Audio Precision 2700 test set, and not the DAC2. Note the very low harmonic distortion; -114 to -116 dB 2nd harmonic (20 kHz), and -120 to -122 dB 3rd harmonic (30 kHz). Please note that these are almost exactly the same harmonic distortion levels that occur with a 1 kHz tone (see Graph Plot 4 - FFT 1 kHz). This demonstrates that the DAC2 analog stages have the high slew rates required to pass high- amplitude high-frequency signals without an increase in harmonic distortion.

DAC2 DX Instruction Manual Rev B Page 49

Page 50

Audio Precision DAC2 - FFT 1 kHz, 0 dBr = 0 dBFS = 23 dBu

dx=.995695 kHz

dy=-13.022 dB

-20

-40

-60

-80

-100

-115.268

-120

-128.29

-140

-160

0 3.2k200 400 600 800 1k 1.2k 1.4k 1.6k 1.8k 2k 2.2k 2.4k 2.6k 2.8k 3k

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

1 1 Green Solid 4 Fft.Ch.1 Ampl Left *-115.268 dBr *-128.290 dBr 1 2 Red Solid 4 Fft.Ch.2 Ampl Right -115.954 dBr A -130.429 dBr A

Graph Plot 4 - FFT 1 kHz

DAC2 - FFT 1 kHz.at27

2.00391k 2.99961k

-20

-40

-60

-80

-100

-120

-140

-160

d B

The 1 kHz FFT analysis demonstrates the low harmonic distortion of the DAC2. Second harmonic distortion (2 kHz) measures about -115 dB, while 3rd harmonic distortion measures -128 to -130 dB.

DAC2 DX Instruction Manual Rev B Page 50

Page 51

Audio Precision 10/24/12 16:02:03DAC2 - FREQUENCY RESPONSE

dx=40.4114 kHz

dy=-0.011 dB

Fs = 96 kHz

-0

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

10.0021 40.4214k

1 1 Green Solid 4 Anlr.Level A Left -0.011 dBr A -0.026 dBr A 1 2 Red Solid 4 Anlr.Level B Right *-0.009 dBr *-0.020 dBr

5k 45k10k 15k 20k 25k 30k 35k 40k

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

DAC2 - Frequency Response.at27

Graph Plot 5 - FREQUENCY RESPONSE

-0

-0.009-0.02

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

d B

This plot demonstrates the ruler-flat frequency response of the DAC2. Note that the frequency response measures - 0.01 dB at 10 Hz and -0.02 dB at 40 kHz.

DAC2 DX Instruction Manual Rev B Page 51

Page 52

Audio Precision DAC2 - Differential Phase

dx=19.7956 kHz

dy=+0.23 deg

Fs = 96 kHz

+0.8

+0.6

+0.47

+0.4

+0.24

+0.2

e g

-0.2

-0.4

-0.6

-0.8

-1

2.5k 45k5k 7.5k 10k 12.5k 15k 17.5k 20k 22.5k 25k 27.5k 30k 32.5k 35k 37.5k 40k 42.5k

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

1 1 Green Solid 4 Anlr.Phase Left -0.09 deg -0.21 deg 2 1 Red Solid 4 Anlr.Phase Left *+0.24 deg *+0.47 deg

20.2555k 40.0511k

DAC2 - Differential Phase.at27

Graph Plot 6 - Differential Phase

This plot demonstrates the inter-channel phase accuracy of the DAC2. From this plot, the interchannel phase accuracy is calculated to be +/- 0.17 degrees at 20 kHz, and +/- 0.34 degrees at 40 kHz.

The phase accuracy of the DAC2 is almost the same as the phase accuracy of the Audio Precision 2700 test set. For this reason, the phase error in the AP must be subtracted from the measurement. The green trace assigns the left channel to channel 1 of the AP, and the right channel to channel 2 of the AP. The red trace reverses the inputs. The two traces must be averaged to remove the phase errors of the AP test set.

DAC2 converters are phase-accurate between boxes. Three DAC2 converters can be used as a group to form a phase-accurate 5.1 surround system. Four DAC2 converters can be combined to form a 7.1 system. The phase accuracy between any two channels will match the phase accuracy shown above.

DAC2 DX Instruction Manual Rev B Page 52

Page 53

Audio Precision DAC2 - THD+N vs AMPLITUDE AT 1 KHZ (w/20 kHz LPF unweighted)

Balanced Outputs, Relative to 0 dBFS, 0 dBFS = +23 dBu

-96

-98

-100

-102

-104

-106

-108

-110

-112

-114

-116

-118

-120

-14 -0-13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1

ColorSweep Trace Line Style Thick Data Axis Comment

1 1 Green Solid 4 Anlr.THD+N Ampl Left 1 2 Red Solid 4 Anlr.THD+N Ampl Left

DAC2 - Balanced THD+N vs AMPLITUDE.at27

dBFS

Graph Plot 7 - Balanced THD+N vs. Amplitude

This plot demonstrates the very low harmonic distortion produced by the DAC2 at signal levels ranging from -14 dBFS to 0 dBFS. All variations below -4 dBFS are due to the measurement limits of the AP 2700 system. The peaks at -13 dBFS are due to an AP 2700 gain range change. In almost all listening environments, THD will be below the threshold of hearing. The DAC2 is virtually uncolored by any trace of harmonic distortion.

The DAC2 includes differential amplifiers that remove common-mode distortion components. This is important, because common-mode distortion is not detected when measuring with the preciselybalanced inputs on the AP 2700 test set. The THD+N measurements on the unbalanced outputs confirm the effectiveness of the differential amplifiers. Similar results are obtained by measuring either side of the balanced outputs relative to ground.

DAC2 DX Instruction Manual Rev B Page 53

Page 54

Audio Precision DAC2 - THD+N vs AMPLITUDE AT 1 KHZ (w/20 kHz LPF unweighted)

-95

-96

-97

-98

-99

-100

-101

-102

-103

-104

-105

-106

d B

-107

-108

-109

-110

-111

-112

-113

-114

-115

-116

-117

-118

-119

-120

-14 -0-13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1

ColorSweep Trace Li ne Style Thick Data Axis Comm ent

1 1 Green Solid 4 Anlr.THD+N Ampl Left 1 2 Red Solid 4 Anlr.THD+N Ampl Left

Unbalanced Outputs, Relative to 0 dBFS, 0 dBFS = +7.2 dBu

dBFS

DAC2 - Unbalanced THD+N_VS_AMPLITUDE.at27

Graph Plot 8 - Unbalanced THD+N versus Amplitude

This plot shows the THD+N performance of the unbalanced outputs. Note that the THD+N performance of the unbalanced outputs approaches that of the balanced outputs. The DAC2 includes differential amplifiers that remove common-mode THD from the balanced outputs of the SABRE converters. These differential amplifiers give the unbalanced outputs the ability to approach the performance of the balanced outputs. Please note that the differential amplifiers also eliminate common-mode distortion on the balanced outputs.

DAC2 DX Instruction Manual Rev B Page 54

Page 55

Audio Precision DAC2 - THD+N vs AMPLITUDE AT 1 KHZ (w/20 kHz LPF unweighted)

Headphone Outputs, Relative to 0 dBFS, 0 dBFS = +7.2 dBu

-86

-88

-90

-92

-94

-96

-98

-100

-102

-104

-14 -0-13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1

ColorSweep Trace Line Style Thick Data Axis Comment

1 1 Green Solid 4 Anlr.THD+N Ampl Left 1 2 Red Solid 4 Anlr.THD+N Ampl Left

DAC2 - HEADPHONE - THD+N_VS_AMPLITUDE.at27

dBFS

Graph Plot 9 - Headphone Amplifier – THD+N versus Amplitude

This plot shows the THD+N performance of the headphone outputs under load. Note that the THD+N performance of the headphone outputs approaches that of the balanced outputs. The DAC2 includes Benchmark's HPA2(TM) headphone amplifier. The HPA2(TM) has a near 0-Ohm output impedance which provides outstanding control and damping of the headphone drivers. The HPA2(TM) has the voltage and current drive necessary to drive a wide variety of headphones.

DAC2 DX Instruction Manual Rev B Page 55

Page 56

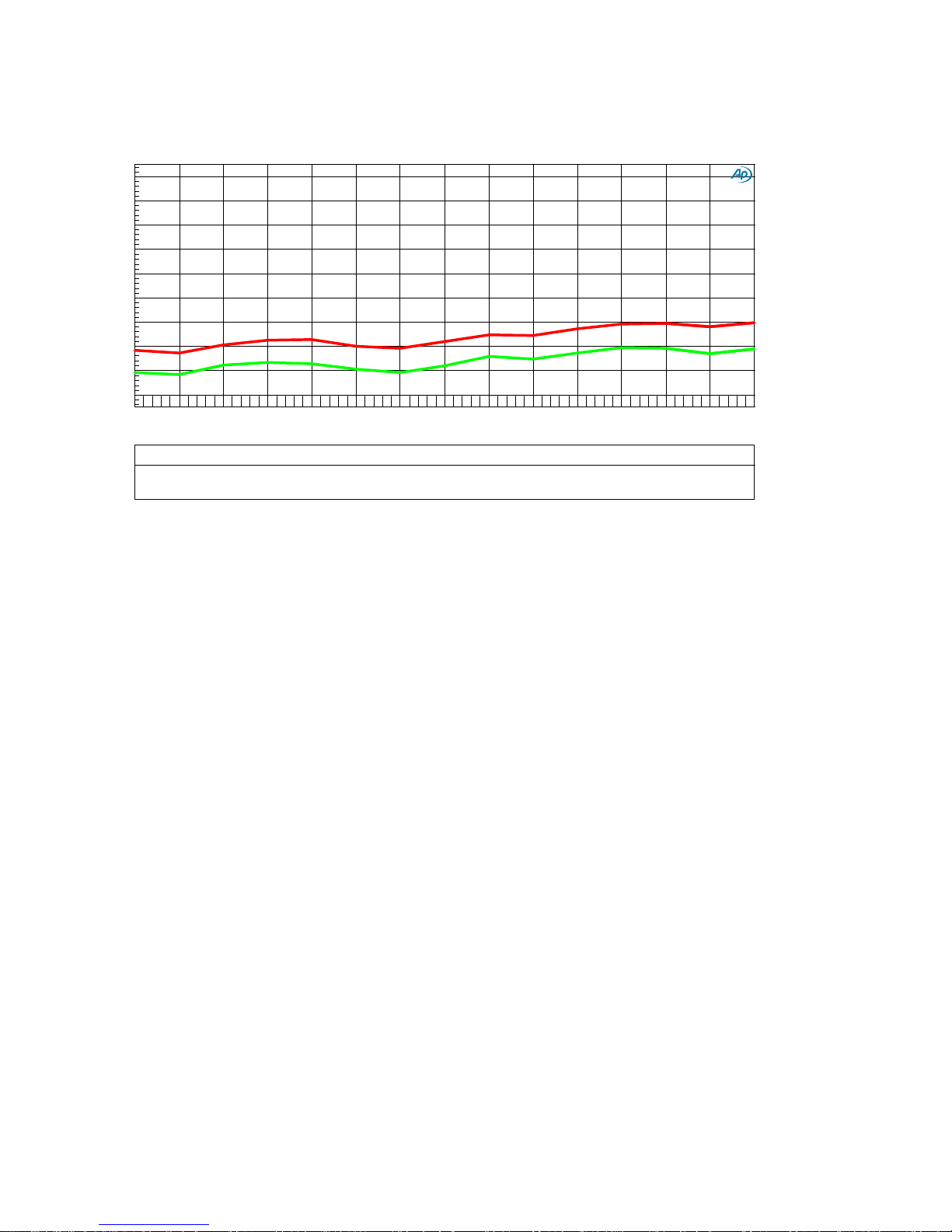

Audio Precision DAC2 - THD+N VS FREQ AT 0 dBFS (w/80 kHz LPF

unweighted)

Balanced Outputs

-90

-92.5

-95

-97.5

-100

-102.5

-105

-107.5

-110 20 20k 50 100 200 500 1k 2k 5k 10k

DAC2 - THD+N vs FREQUENCY 80kHZ.at27

Graph Plot 10 - THD+N vs. FREQUENCY 80 kHz

The analog output stages on the DAC2 have high slew rates and are capable of maintaining low THD levels at high frequencies even when driven to 0 dBFS. Note that there is almost no rise in THD+N with frequency, even when operating at maximum output levels.

DAC2 DX Instruction Manual Rev B Page 56

Page 57

Audio Precision DAC2 - THD VS FREQ AT 0 dBFS

dx=8.99682 kHz

dy=+3.144 dB

Balanced Outputs

-90

-95

-100

-105

-110

-112.066

-115

-115.21

-120

-125

-130 20 10k 50 100 200 500 1k 2k 5k

ColorSweep Trace Line Style Thick Data Axis Comment Cursor1 Cursor2

1 1 Green Solid 4 Distortion.Ch.1 Harm Sum1 Ratio Left *-115.210 dB *-112.066 dB 1 2 Red Solid 4 Distortion.Ch.1 Harm Sum2 Ratio Right -115.165 dB -120.544 dB

GREEN = EVEN HARMONIC DISTORTION (2,4,6,8,10,12,14) RED = ODD HARMONIC DISTORTION (3,5,7,9,11,13,15)

DAC2 - EVEN AND ODD THD vs FREQUENCY.at27

1.00318k 10k

-90

-95

-100

-105

-110

-115

-120

-125

-130

Graph Plot 11 - EVEN AND ODD THD vs. FREQUENCY

This plot demonstrates that the harmonic distortion of the DAC2 is lower than the THD+N numbers would suggest. This plot shows THD not THD+N. Even and odd harmonic distortions are plotted separately. Note that odd harmonics are lower than the more "musical" even harmonics. Both sets of harmonics are very low in amplitude (-112 dB to -120 dB), and should be entirely inaudible.

DAC2 DX Instruction Manual Rev B Page 57

Page 58

Audio Precision DAC2 - THD VS FREQ AT 0 dBFS

dx=8.99682 kHz

dy=+8.088 dB

- ALL OUTPUTS

-90

-95

-100

-105

-110

-115

-120

-125

-130 20 10k 50 100 200 500 1k 2k 5k

ColorSweep Trace Line Style Thick Data Axis Comment Source 2 Cursor1

1 2 Blue Solid 4 Distortion.Ch.1 Harm Sum1 Ratio Left : 1.00000 =Swr.Ch. A+B Input -112.557 dB 1 3 Cyan Solid 4 Distortion.Ch.2 Harm Sum1 Ratio Right : 1.00000 =Swr.Ch. A+B Input -112.453 dB 2 2 Red Solid 4 Distortion.Ch.1 Harm Sum1 Ratio Left : 3.00000 =Swr.Ch. A+B Input -113.919 dB 2 3 Magenta Solid 4 Distortion.Ch.2 Harm Sum1 Ratio Right : 3.00000 =Swr.Ch. A+B Input -113.349 dB 3 2 Green Solid 4 Distortion.Ch.1 Harm Sum1 Ratio Left : 5.00000 =Swr.Ch. A+B Input -117.017 dB 3 3 Yellow Solid 4 Distortion.Ch.2 Harm Sum1 Ratio Right : 5.00000 =Swr.Ch. A+B Input *-114.827 dB

1=Balanced L 2=Balanced R 3=Unbalanced L 4=Unbalanced R 5=Headphone L 6=Headphone R

DAC2 - THD vs FREQUENCY.at27

1.00318k 10k

-90

-95

-100

-105

-106.739

-110

-115

-114.827

-120

-125

-130

d B

Graph Plot 12 - THD vs. Frequency - All Outputs

This plot demonstrates that all of the analog outputs on the DAC2 have very similar performance over the entire audio band. The unbalanced outputs, and the headphone outputs, closely match the performance of the balanced outputs. Like Graph Plot 11 - EVEN AND ODD THD vs.

FREQUENCY, this plot shows THD (not THD+N).

DAC2 DX Instruction Manual Rev B Page 58

Page 59

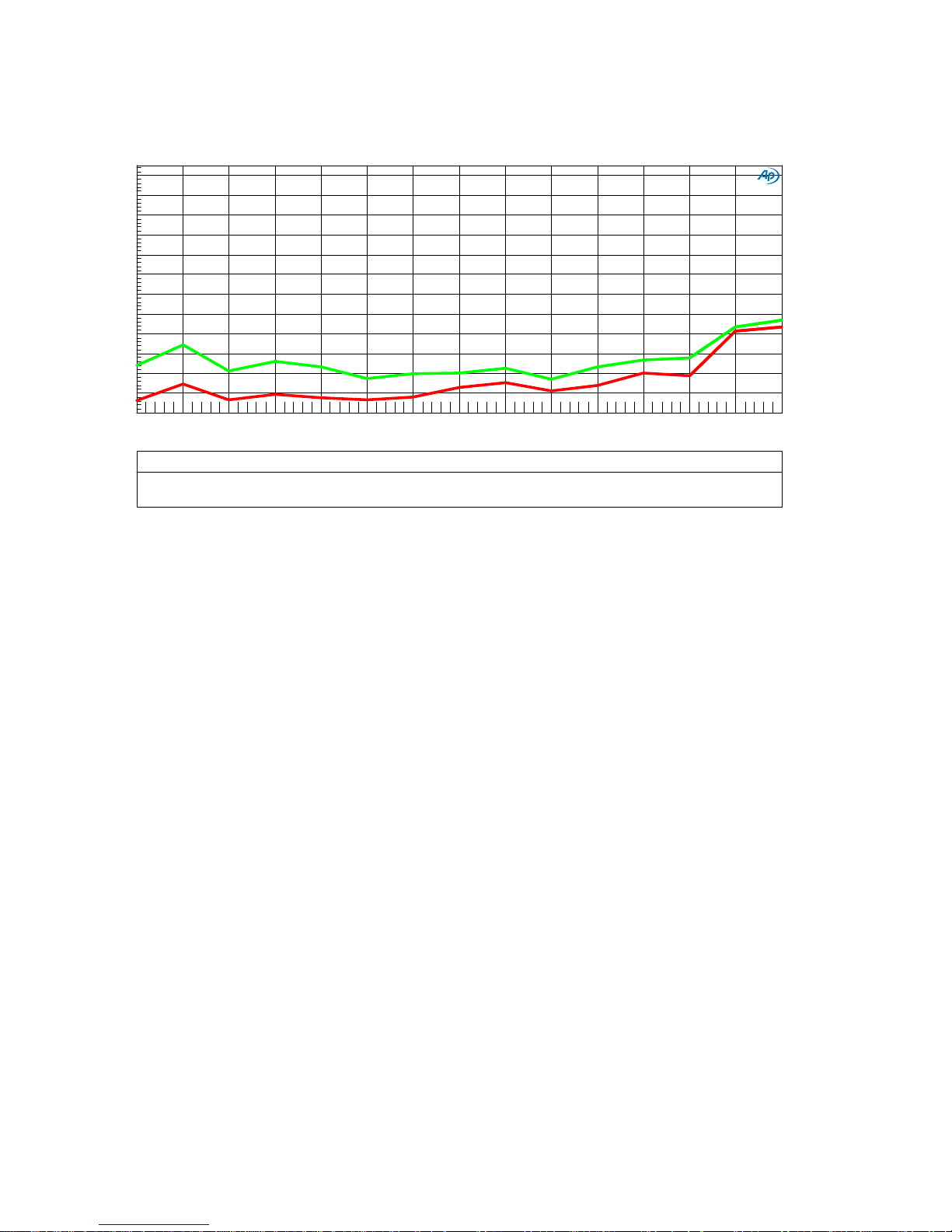

Benchmark Media Systems, Inc. DAC2 - THD+N vs Sample Rate, 1 kHz at 0 dBFS (w/20 kHz LPF unweighted)

Balanced Outputs

-90

-92.5

-95

-97.5

-100

-102.5

-105

-107.5

-110

-112.5

-115

-117.5

-120

40k 200k60k 80k 100k 120k 140k 160k 180k

ColorSweep Trace Line Style Thick Data Axis Comment

1 1 Green Solid 4 Anlr.THD+N Ratio Left 1 2 Red Solid 4 Anlr.THD+N Ratio Left

DAC2 - THD+N vs Sample Rate.at27

Graph Plot 13 - THD+N versus Sample Rate

The THD+N performance of the DAC2 is identical at all Sample Rates.

DAC2 DX Instruction Manual Rev B Page 59

Page 60

Audio Precision DAC2 - INTERFACE JITTER TOLERANCE - Distortion vs Jitter

3.456 kHz Test Tone at 0 dBFS, THD+N 22 to 22 kHz BW

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

-110 100 90k200 500 1k 2k 5k 10k 20k 50k

ColorSweep Trace Line Style Thick Data Axis Comment

1 1 Green Solid 4 Anlr.THD+N Ratio Left 1 2 Red Solid 4 Dio.Interface Jitter Right

DAC2 THD+N (22-22kHz) (Green Trace) vs. Interface Jitter (Red Trace) Digital Input = 3.456 kHz Tone at 0 dBFS, Fs = 48 kHz

DAC2 - JITTER TOLERANCE.at27

Graph Plot 14 - JITTER TOLERANCE

500m

200m

100m

50m

20m

10m

The Audio Engineering Society (AES) has created a jitter tolerance template for testing digital audio devices. The red curve shows the AES jitter tolerance template. Induced jitter approaches 5 UI at 200 Hz, and is reduced to 0.125 UI above 8 kHz. The green trace shows the THD+N of the DAC2 while being driven with the jitter shown on the red curve. Over the entire range of the AES jitter tolerance test, the THD+N performance of the DAC2 is unchanged. The DAC2 easily passes the AES jitter tolerance test without any THD+N performance degradation.

DAC2 DX Instruction Manual Rev B Page 60

Page 61

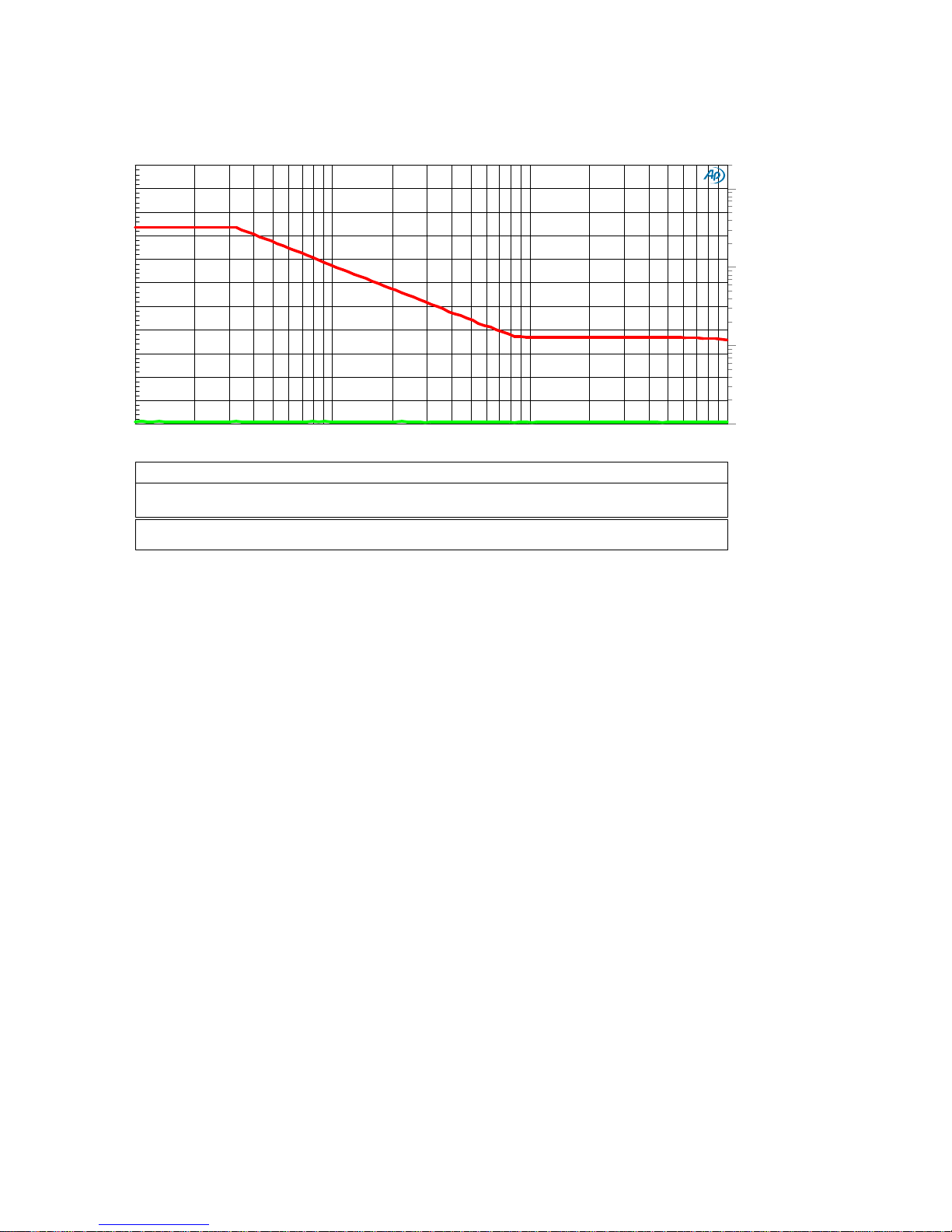

Audio Precision DAC2 - INTERFACE JITTER TOLERANCE FFT

10 kHz Test Tone at 0 dBFS, AES Jitter Tolerance Sweep

-20

-40

-60

-80

-100

-120

-140

0 32k 2k 4k 6k 8k 10k 12k 14k 16k 18k 20k 22k 24k 26k 28k 30k

ColorSweep Trace Line Style Thick Data Axis Comment Source 2

1 2 Green Solid 4 Fft.Ch.1 Ampl Left : 100.000 Hz=Dio.Jitter Freq 2 2 Red Solid 4 Fft.Ch.1 Ampl Left : 125.893 Hz=Dio.Jitter Freq 3 2 Red Solid 1 Fft.Ch.1 Ampl Left : 158.489 Hz=Dio.Jitter Freq 4 2 Magenta Solid 1 Fft.Ch.1 Ampl Left : 199.526 Hz=Dio.Jitter Freq 5 2 Blue Solid 1 Fft.Ch.1 Ampl Left : 251.189 Hz=Dio.Jitter Freq 6 2 Cyan Solid 1 Fft.Ch.1 Ampl Left : 316.228 Hz=Dio.Jitter Freq 7 2 Green Solid 1 Fft.Ch.1 Ampl Left : 398.107 Hz=Dio.Jitter Freq 8 2 Yellow Solid 1 Fft.Ch.1 Ampl Left : 501.187 Hz=Dio.Jitter Freq 9 2 Red Solid 1 Fft.Ch.1 Ampl Left : 630.957 Hz=Dio.Jitter Freq 10 2 Magenta Solid 1 Fft.Ch.1 Ampl Left : 794.328 Hz=Dio.Jitter Freq 11 2 Blue Solid 1 Fft.Ch.1 Ampl Left : 1.00000 kHz=Dio.Jitter Freq 12 2 Cyan Solid 1 Fft.Ch.1 Ampl Left : 1.25893 kHz=Dio.Jitter Freq 13 2 Green Solid 1 Fft.Ch.1 Ampl Left : 1.58489 kHz=Dio.Jitter Freq 14 2 Yellow Solid 1 Fft.Ch.1 Ampl Left : 1.99526 kHz=Dio.Jitter Freq 15 2 Red Solid 1 Fft.Ch.1 Ampl Left : 2.51189 kHz=Dio.Jitter Freq 16 2 Magenta Solid 1 Fft.Ch.1 Ampl Left : 3.16228 kHz=Dio.Jitter Freq 17 2 Blue Solid 1 Fft.Ch.1 Ampl Left : 3.98107 kHz=Dio.Jitter Freq 18 2 Cyan Solid 1 Fft.Ch.1 Ampl Left : 5.01187 kHz=Dio.Jitter Freq 19 2 Green Solid 1 Fft.Ch.1 Ampl Left : 6.30957 kHz=Dio.Jitter Freq 20 2 Yellow Solid 1 Fft.Ch.1 Ampl Left : 7.94328 kHz=Dio.Jitter Freq 21 2 Red Solid 1 Fft.Ch.1 Ampl Left : 10.0000 kHz=Dio.Jitter Freq 22 2 Magenta Solid 1 Fft.Ch.1 Ampl Left : 12.5893 kHz=Dio.Jitter Freq 23 2 Blue Solid 1 Fft.Ch.1 Ampl Left : 15.8489 kHz=Dio.Jitter Freq 24 2 Cyan Solid 1 Fft.Ch.1 Ampl Left : 19.9526 kHz=Dio.Jitter Freq 25 2 Green Solid 1 Fft.Ch.1 Ampl Left : 25.1189 kHz=Dio.Jitter Freq 26 2 Yellow Solid 1 Fft.Ch.1 Ampl Left : 31.6228 kHz=Dio.Jitter Freq 27 2 Red Solid 1 Fft.Ch.1 Ampl Left : 39.8107 kHz=Dio.Jitter Freq 28 2 Magenta Solid 1 Fft.Ch.1 Ampl Left : 50.1187 kHz=Dio.Jitter Freq 29 2 Blue Solid 1 Fft.Ch.1 Ampl Left : 63.0957 kHz=Dio.Jitter Freq 30 2 Cyan Solid 1 Fft.Ch.1 Ampl Left : 79.4328 kHz=Dio.Jitter Freq 31 2 Green Solid 4 Fft.Ch.1 Ampl Left : 100.000 kHz=Dio.Jitter Freq

DAC2 - JITTER TOLERANCE FFT.at27

Graph Plot 15 - JITTER TOLERANCE FFT

This figure shows an series of FFTs that were acquired while running the AES jitter tolerance test. Note that none of the 31 FFTs show any signs of jitter-induced sidebands. Note that the plots are identical to the plots shown in Graph Plot 3. The DAC2 shows no change in performance when the AES jitter tolerance test is applied to the digital inputs. No jitter-induced sidebands are visible to a measurement limit that exceeds -140 dBFS.

DAC2 DX Instruction Manual Rev B Page 61

Page 62

Audio Precision

11/06/12 08:15:12

dx=9.00196 kHz

dy=-6.731 dB

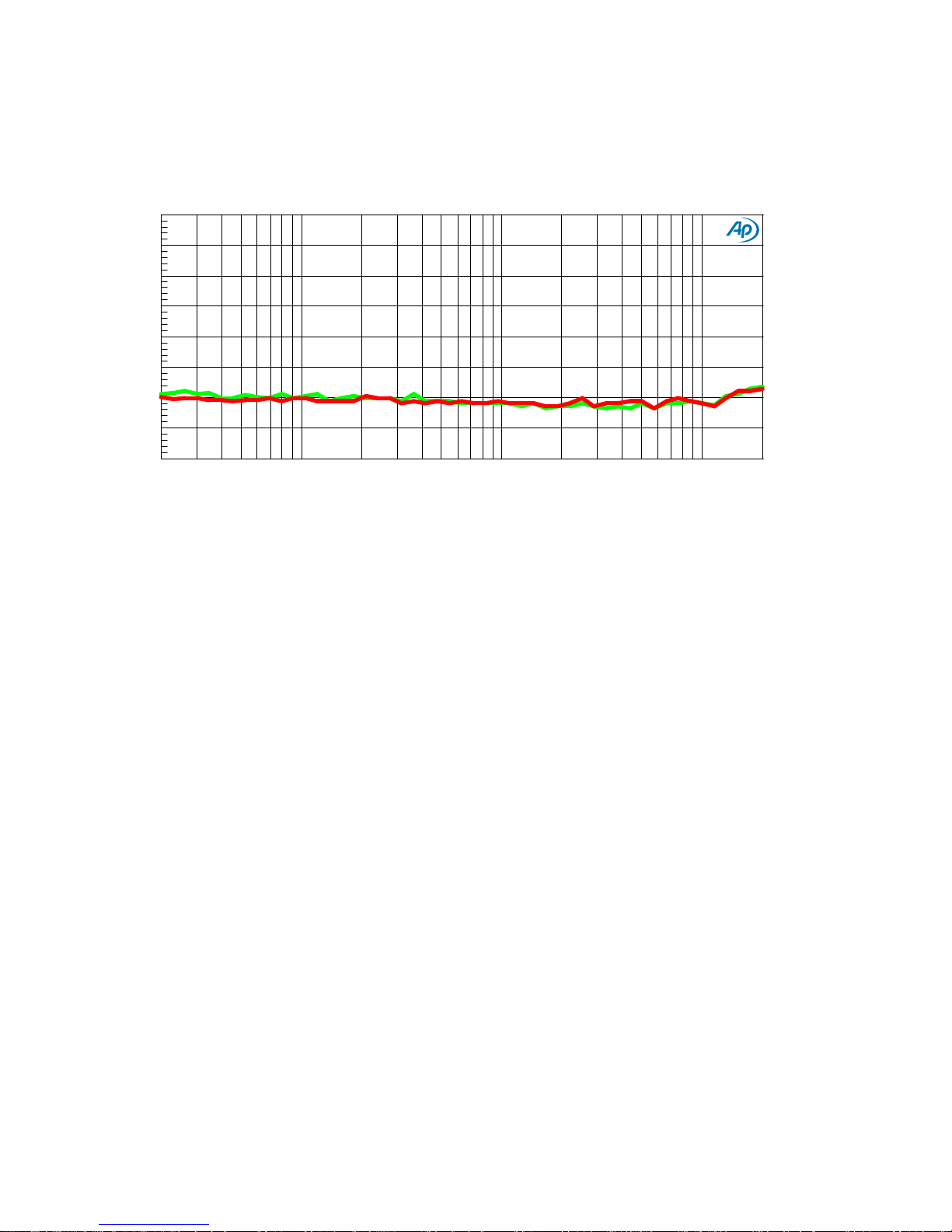

DAC2 - 11K 12K IMD

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

-110

-120

-122.154

-130

-128.885

-140

-150

-160

1.01761k 10.0196k

0 20k 2k 4k 6k 8k 10k 12k 14k 16k 18k

DAC2 - IMD 11K 12K.at27

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

-110

-120

-130

-140

-150

-160

Graph Plot 16 - IMD 11k 12K

This plot demonstrates that the DAC2 has very low IMD distortion. The 1 kHz difference frequency measures -122 dB, and the 10 kHz and 13 kHz products measure about -128 dB. IMD distortion should be well below audible levels.

DAC2 DX Instruction Manual Rev B Page 62

Page 63

Specifications

Fs = 44.1 to 96 kHz, 20 to 20 kHz BW, 1 kHz test tone, 0 dBFS = +24 dBu (unless noted)

SNR

– A-Weighted, 0 dBFS = +20 to +29 dBu

126 dB

SNR

– Unweighted, 0 dBFS = +20 to +29 dBu

123 dB

THD+N, 1 kHz at 0 dBFS

-109 dBFS,

109 dB, 0.00035%

THD+N, 1 kHz at

1 dBFS

-110 dBFS,

109 dB, 0.00035%

THD+N, 1 kHz at

–

3 dBFS

-113 dBFS,

109 dB, 0.00035%

THD+N, 20 to 20 kHz test tone at

–

3 dBFS

-112

dBFS,

108 dB, 0.00040%

Frequency Response at Fs=96 kHz

+0 dB,

0.04 dB (20 to 20 kHz)

Frequency Response at Fs=48 kHz

+0 dB,

0.04 dB (20 to 20 kHz)

Crosstalk

-116 dB at 20 kHz

Maximum Amplitude of Jitter Induced Sidebands (10

< -144 dB

Maximum Amplitude of Spurious Tones with 0 dBFS test

< -138 dB

Maximum Amplitude of Idle Tones

< -

147 dB

Maximum Amplitude of AC line related Hum & Noise

< -

140 dB

Inter

channel Differential Phase (Stereo Pair

– any

+/-

0.25 degrees at 20 kHz

Inter

channel Differential Phase (Between

DAC2 HGC

+/-

0.25 degrees at 20 kHz

Audio Performance

-0.04 dB at 10 Hz

-0.04 dB at 20 kHz

-0.04 dB at 40 kHz

-0.7 dB at 45 kHz

kHz 0 dBFS test tone, 12.75 UI sinusoidal jitter at 1 kHz)

signal

sample rate)

Units Fs<110 kHz) Any sample rate.

-0.04 dB at 10 Hz

-0.04 dB at 20 kHz

-130 dB at 1 kHz

-137 dB at 20 Hz

DAC2 DX Instruction Manual Rev B Page 63

Page 64

Audio Performance (continued)

Maximum Lock Time after Fs change

400 ms

Soft Mute Ramp Up/Down Time

50 ms

Mute on Receive Error

Yes Mute on Lock Error

Yes Mute on Idle Channel

50/15 us De

Emphasis Enable

Automatic in Consumer Mode

De-

Emphasis Method

Digital IIR

De-

Emphasis Supported at

Fs = 32, 44.1, 48 kHz

Delay

– Digital Input to Analog Output (function of

1.36 ms at 44.1 kHz

Number of Digital Inputs (switch selected)

(1 USB

2 Optical

1 AES

, 2 Coaxial)

Number of Channels

Input Sample Frequency Range

28 to

210 kHz (Coaxial

and XLR

)

Maximum Input Word Length

24 bits

Dig

ital Input Impedance

75 Ohms

Coaxial, 110 Ohms XLR

DC Blocking Capacitors on Digital Inputs

Yes (Coaxia

l and XLR Inputs

) Transient and Over

Voltage Protection on Digital Inputs

Yes (Coaxia

l and XLR Inputs

) Transformer Coupling on Digital Inputs

Yes (XLR Input)

Minimum Digital Input Level

250 mVpp (

Coaxial

and XLR Inputs)

Group Delay (Latency)

sample rate)

1.27 ms at 48 kHz

0.90 ms at 88.2 kHz

0.82 ms at 96 kHz

0.51 ms at 176.4 kHz

Digital Audio Inputs

0.47 ms at 192 kHz

28 to 96 kHz (Optical)

44.1, 48, 88.2, 96, 176.4, 192 kHz (USB)

DAC2 DX Instruction Manual Rev B Page 64

Page 65

Jitter Tolerance

>12.75 UI sine, 100 Hz to 3 kHz

Jitter Attenuation Method

Benchmark

UltraLock2™

all inputs

(With no Measurable Change in Performance)

>1.5 UI sine at 20 kHz

>1.5 UI sine at 40 kHz

>1.5 UI sine at 80 kHz

>1.5 UI sine at 90 kHz

>0.25 UI sine above 160 kHz

DAC2 DX Instruction Manual Rev B Page 65

Page 66

Balanced Analog Outputs

Number of Balanced Analog Outputs

Output Connector

Gold

Pin Neutrik™ male XLR

Output Impedance

60 Ohms (Attenuator off)

Analog Output Clip Point

+30 dBu

Factory Set Bypass Level (at 0 dBFS)

+24 dBu (Attenuator =

0 dB)

Output Level Range (at 0 dBFS) In ‘Variable’ Mode

Off to +2

4 dBu (Attenuator off)

Output Level Variation with Sample Rate (44.1 kHz vs.

< +/

- 0.006

Number of Unbalanced Analog Outputs

Output Connector

RCA

Output Impedance

30 Ohms

Analog Output Clip Point

+13.5 dBu

Factory Set Home Theater Bypass Output Level (at 0

8.2 dBu (

2 Vrms)

Output Level Range (at 0

dBFS)

Off to +

8.2 dBu Output Level Variation with Sample Rate (44.1 kHz vs.

< +/

- 0.006 dB

96 kHz)

Unbalanced Analog Outputs

425 Ohms (Attenuator = 10 dB)

135 Ohms (Attenuator = 20 dB)

Off to +14 dBu (Attenuator = 10 dB)

Off to +4 dBu (Attenuator = 20 dB)

dBFS)

96 kHz)

DAC2 DX Instruction Manual Rev B Page 66

Page 67

HPA2TM Headphone Outputs

Number of Headphone Outputs

Output Connectors

¼” TRS with switch on left

hand jack

Output Impedance

< 0.11 Ohms

Output

Level Control

Stereo Control on Front Panel

Output Level Range (at 0 dBFS) into 60

Ohm Load

Off to +17 dBu

Maximum Output Current

250 mA

Overload Protection (independent per channel)

Current limited at 300 mA, Thermal

Bandwidth

> 500 kHz

THD+N

-106

dB, 0.0005% into 30 Ohms at

Indicators

- Type and Location

16 LED’s on Front Panel

Selection/Status Indication

2 –

Dim/Mute

Status Display

+18 dBu (1.26W)

6 – Input 2 – Bypass/Calibrated Output 2 – Word length 4 – Sample Rate

DAC2 DX Instruction Manual Rev B Page 67

Page 68

Nominal Input Operating Voltage Range (VAC RMS)

100

– 240V

Frequency

50-

60 Hz

Power

< 0.5 Watts Idle

Fuses

5 x 20 mm (2 required)

Min/Max Operating range (VAC RMS)

90 –

260

Form Factor

½ Rack Wide, 1 RU High

Depth behind front panel

8.5” (216 mm)

Overall depth including connectors but without power

9.33” (237 mm)

Width

9.5” (249 mm)

Height

1.725” (44.5 mm)

DAC2

only

3 lb.

DAC2

with remote control, power cord, extra fuses, and

4 lb.

Shipping weight

7 lb.

AC Power Requirements

Dimensions

cord

12 Watts Typical Program 15 Watts Maximum

0.5 A 250 V Slo-Blo® Type

47 – 63Hz

Weight

manual

DAC2 DX Instruction Manual Rev B Page 68

Page 69

Regulatory Compliance

compliance could void the user's authority to operate the equipment.

FCC and RoHS Compliance Statements

FCC Notice (U.S. Only)

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

· Reorient or relocate receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received including interference that may cause

undesired operation.

Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that following conditions are met:

· RCA Digital Connections: Shielded 75-Ohm coaxial cable must be used.

NOTICE: Changes or modifications not expressly approved by the party responsible for

RoHS Compliance Information

This statement clarifies Benchmark Media Systems, Inc. product compliance with the EU’s (European Union) directive 2002/95/EC, or, RoHS (Restrictions of Hazardous Substances).

As of July 01, 2006, All Benchmark Media Systems, Inc. products placed on the European Union market are compliant (containing quantity limit weight less than or equal to 0.1% (1000 ppm) of any homogeneous Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr VI), and flame retardant Polybrominated Biphenyls (PBB) or Polybrominated Diphenyl Ethers (PBDE)).

DAC2 DX Instruction Manual Rev B Page 69

Page 70

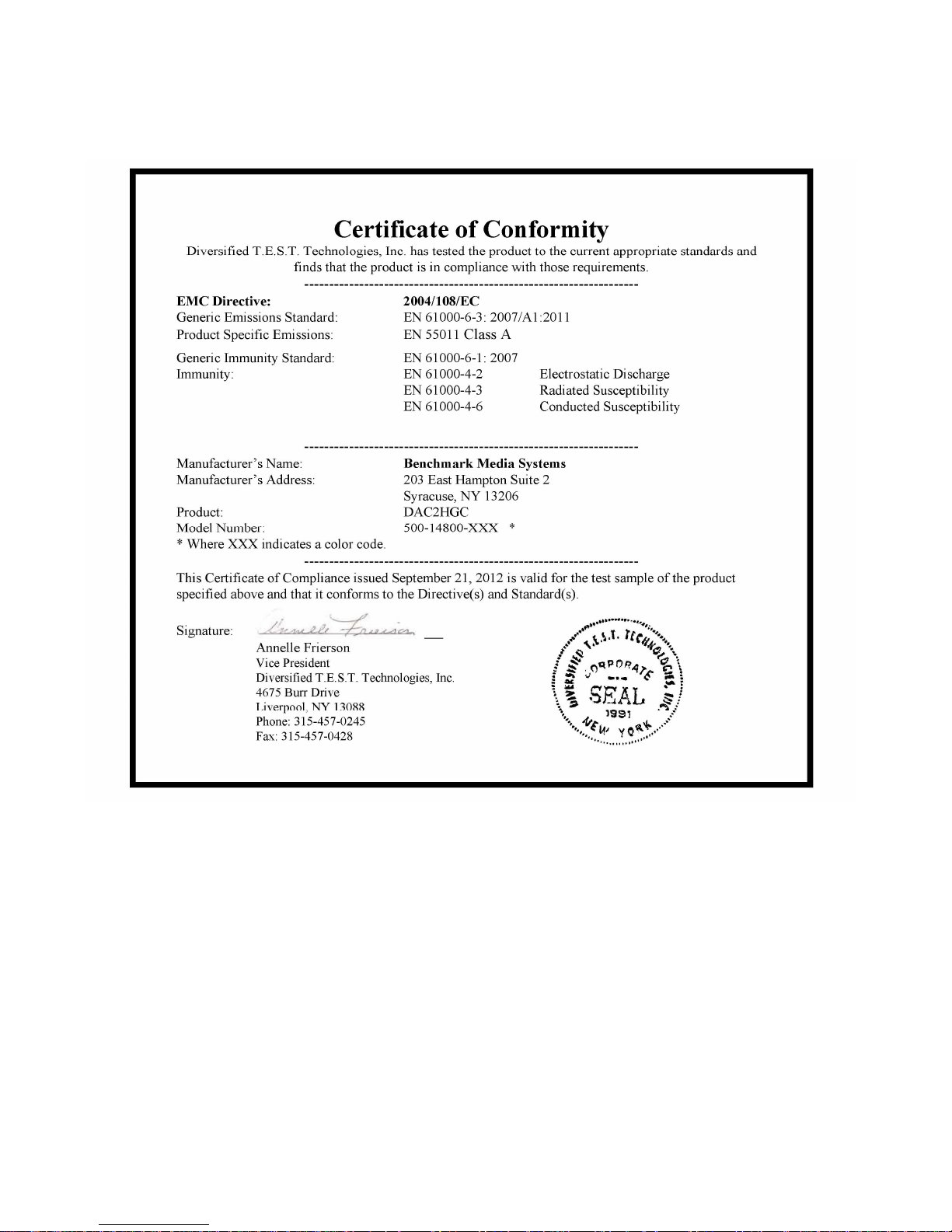

CE Certificate of Conformity

DAC2 DX Instruction Manual Rev B Page 70

Page 71

Warranty Information

Benchmark 1 Year Warranty

The Benchmark 1 Year Warranty

Benchmark Media Systems, Inc. warrants its products to be free from defects in material and workmanship under normal use and service for a period of one (1) year from the date of delivery.

This warranty extends only to the original purchaser. This warranty does not apply to fuses, lamps, batteries, or any products or parts that have been subjected to misuse, neglect, accident, modification, or abnormal operating conditions.

In the event of failure of a product under this warranty, Benchmark Media Systems, Inc. will repair, at no charge, the product returned to its factory. Benchmark Media Systems, Inc. may, at its option, replace the product in lieu of repair. If the failure has been caused by misuse, neglect, accident, or, abnormal operating conditions, repairs will be billed at the normal shop rate. In such cases, an estimate will be submitting before work is started, if requested by the customer.

Attempts to deliberately deface, mutilate, or remove the product's label will render this warranty void. Any DAC2 returned from the European Union for warranty repair must have the required RoHS logo on the product label; otherwise, repairs will be billed at the normal shop rate. Benchmark will not honor warranties for any products disingenuously purchased on the US or Canadian markets for sale outside the US or Canada.

The foregoing warranty is in lieu of all other warranties, expressed or implied, including but not limited to any implied warranty of merchantability, fitness or adequacy for any particular purpose or use. Benchmark Media Systems, Inc. shall not be liable for any special, incidental, or consequential damages, and reserves the right to charge this information without notice. This limited warranty gives the consumer-owner specific legal rights, and there may also be other rights that vary form state to state.

DAC2 DX Instruction Manual Rev B Page 71

Page 72

Extended Two (2)** Year International Warranty.

Benchmark Extended Warranty

The Benchmark Extended 5* Year Warranty

Benchmark Media Systems, Inc. optionally extends the standard one (1) year warranty to a period of five (5)* years from the date of delivery.

*For the extended warranty to become effective, the original purchaser must register the product at the time of purchase either by way of the enclosed registration card or through the product registration section of the Benchmark Media Systems, Inc. website. This optional warranty applies only to products purchased within the US and Canada and is extended only to the original purchaser.

Attempts to deliberately deface, mutilate, or remove the product's label will render this warranty void. Benchmark will not honor warranties for any products disingenuously purchased on the US or Canadian markets for export. The terms of the extended warranty are subject to change without notice. For products purchased outside the US and Canada, please refer to the

The Benchmark’s Extended 2** Year International Warranty

Benchmark Media Systems, Inc. optionally extends the standard one (1) year warranty to a period of two (2)** years from the date of delivery.

**For the extended warranty to become effective, the original purchaser must register the product at the time of purchase either by way of the enclosed registration card or through the product registration section of the Benchmark Media Systems, Inc. website. This optional warranty applies only to products purchased outside the US and Canada and is extended only to the original purchaser.

Notes on Warranty Repairs

An RMA (return merchandise authorization) number, issued by our Customer Service Department, is required when sending products for repair.

They must be shipped to Benchmark Media Systems prepaid and preferably in their original shipping carton with the RMA number clearly visible on the exterior of the packaging. A letter should be included giving full details of the difficulty.

DAC2 DX Instruction Manual Rev B Page 72

Page 73

Benchmark Media Systems, Inc.

203 East Hampton Place, STE 2

Syracuse, NY 13206-1633

USA

PHONE: +1-315-437-6300

FAX: +1-315-437-8119

www.benchmarkmedia.com

DAC2 DX Instruction Manual Rev B Page 73
