Page 1
User Manual
Model: BC268TMF
Refrigerator-Freezer
Page 2
CONTENTS
Safety Warnings
Safety Warnings
Refrigerator Features

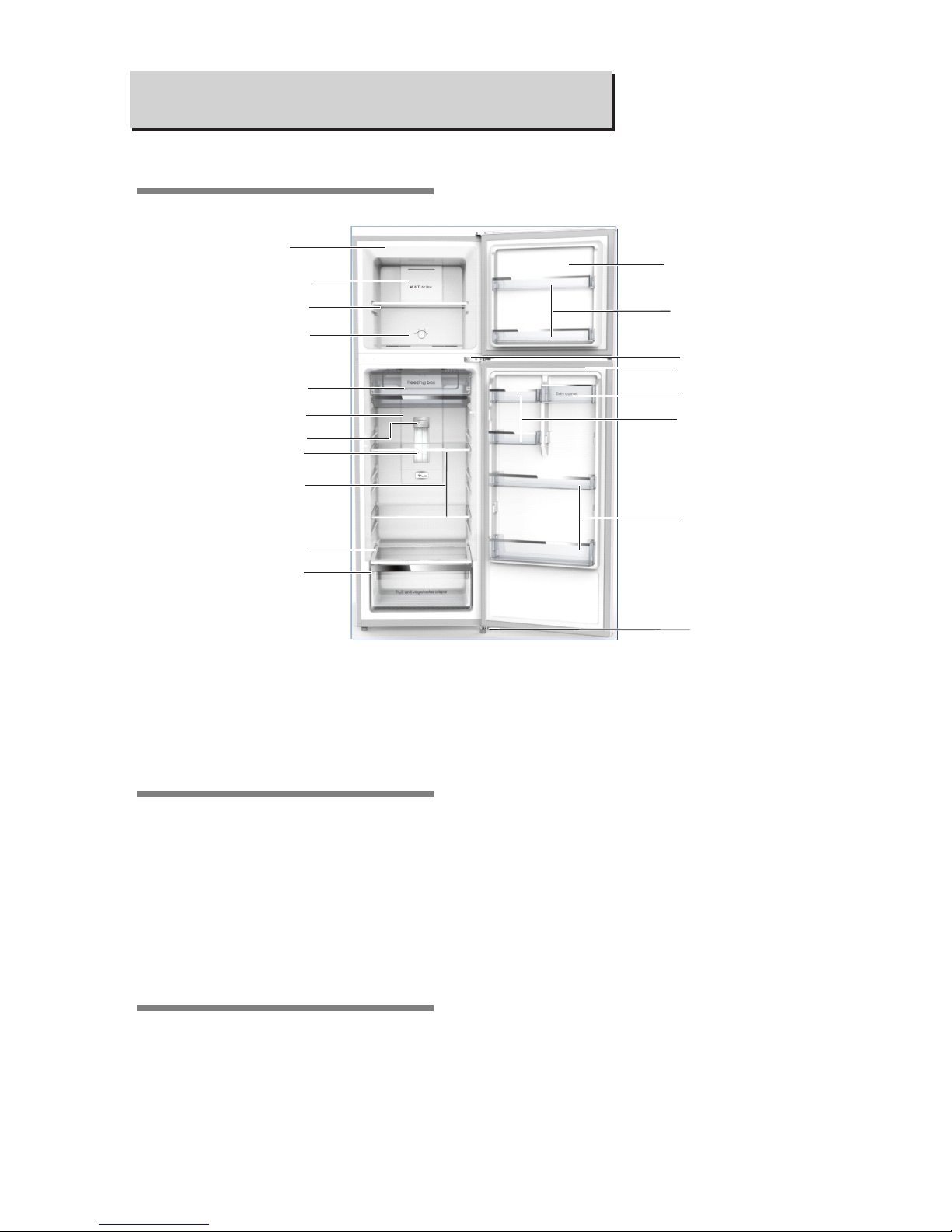

Names of components
Refrigerating chamber
009
009
Frequently Asked Questions
011
Installation Instruction
Placement Start
006
Ma in te na nc e o f Refrigerators
Cleaning
Defrost
Stop using
010
010
010
Temperature Control
Key Operation
007
Freezing chamber
009
002
Saving Tips and Service
012
Instructions of Door Replacement
008
Page 3
--- -
--- -
--- -
--- -
---
---
---
---
---
---
---
WARNING Keep ventil ation openings, in the a ppliance enclosure o r in the built- in structure,
clear of obst ruction.
WARNING Do not use mech anical devices or othe r means to accelerate th e defrosting process ,
other than th ose recommended by the m anufacturer.
WARNING Do not damage t he refrigerant circu it.
WARNING Do not use elec trical appliances in side the food storage co mpartment s of the
appliance , unless they are of the typ e recommended by the man ufacturer.
The applian ce has to be unplugged aft er use and before carryi ng out user mai ntenance on the
appliance .
This applia nce can be used by childre n aged from 8 years and abov e and persons w ith reduce
physical se nsory or mental capabi lities or lack of experi ence and know ledge if they have been
given super vision or instructio n concerning use of the ap pliance in a sa fe way and understand
the hazards i nvolved. Children sh all not play with the appl iance. Clea ning and user maintena nce
shall not be ma de by children without s upervision.
If the supply c ord is damaged, it must be r eplaced by the manufac turer, its service agen t or
similarly q ualified persons in or der to avoid a hazard.
Please aban don the refrigerator a ccording to local regu lators for it u se flamma ble blowing
gas and refri gerant.
Please acco rding to local regulat ions regarding dispo sal of the appl iance for its flammabl e
refrigera nt and blowing gas. Befo re you scrap the applian ce, please ta ke off th e doors to prev ent
children tr apped.
This applia nce is intended to be used i n household and simila r applicati ons such as
-staff kitchen are as in shops, offices a nd other work ing environments;
-farm house s and by clients in hotels , motels and other resid ential type environm ents;
-bed and brea kfast type environme nts;
-catering a nd similar non-retai l applications.
Do not store ex plosive substances s uch as aerosol cans with a f lammable pr opellan t in this
appliance .
Prohi bition sym bol s
The sym bols indic ate p rohibite d matters, a nd th ose
behav iors are for bid den. Non-c omplianc e wit h the
instr uctions ma y res ult in produ ct damages o r end anger
the per sonal safe ty of u sers.
War ning symbo ls
The sym bols indic ate m atters tha t must be foll owe d, and
those b ehaviors m ust b e strictly e xecuted in l ine w ith the
opera tion requi rem ents. Non- complian ce with the
instr uctions ma y res ult in produ ct damages o r end anger
the per sonal safe ty of u sers.
Note sy mbols
The sym bols indic ate m atters to pa y attentio n to, a nd
these b ehaviors s hal l be special ly noted. Du e
preca utions are n eed ed or minor or m oderate in juries
or dama ges of the pro duc t will be caus ed.
Indic ates a hazar dou s situatio n which, if no t avo ided,
could r esult in dea th or s erious inj ury
Indic ates a hazar dou s situatio n which, if no t avo ided,
will re sult in deat h or se rious inju ry
Indic ates a hazar dou s situatio n which, if no t avo ided,
could r esult in min or or m oderate in jury.
This chapter describes the important security matters to prevent
users from injury or property damage. Please understand fully the
following text (logo, icon) and comply with the safety warnings.
00 2
Safety Warnings
Page 4
Please use a dedicated power socket and the power socket shall
not be shared with other electrical appliances.
The power cord should be firmly contacted with thesocket or else
fires might be caused. Please ensurethat the grounding electrode
of the power socket is equipped with a reliable grounding line.
Do not pull the power cord when pulling the power plug of the
refrigerator. Please firmly grasp the plug and pull out it from the
socket directly.
Do not damage the power cord under any condition so as to
ensure safety use, do not use when the power cord is
damaged or the plug is worn.
Worn or damaged power cord shall be replaced in
manufacture-authorized maintenance stations.
The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations
over the range of 240V will cause malfunction or even damage.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances
considering that spark may cause a fire.
To ensure safety, it is not recommended that to place regulators,
rice cookers, microwave ovens and other appliances at the top of the
refrigerator, those recommended by the manufacture are not included.
Do not use electrical appliances in the food pantry.
Electricity related warnings
This chapter describes the important security matters to prevent
users from injury or property damage. Please understand fully the
following text (logo, icon) and comply with the safety warnings.
00 3
Safety Warnings
Page 5

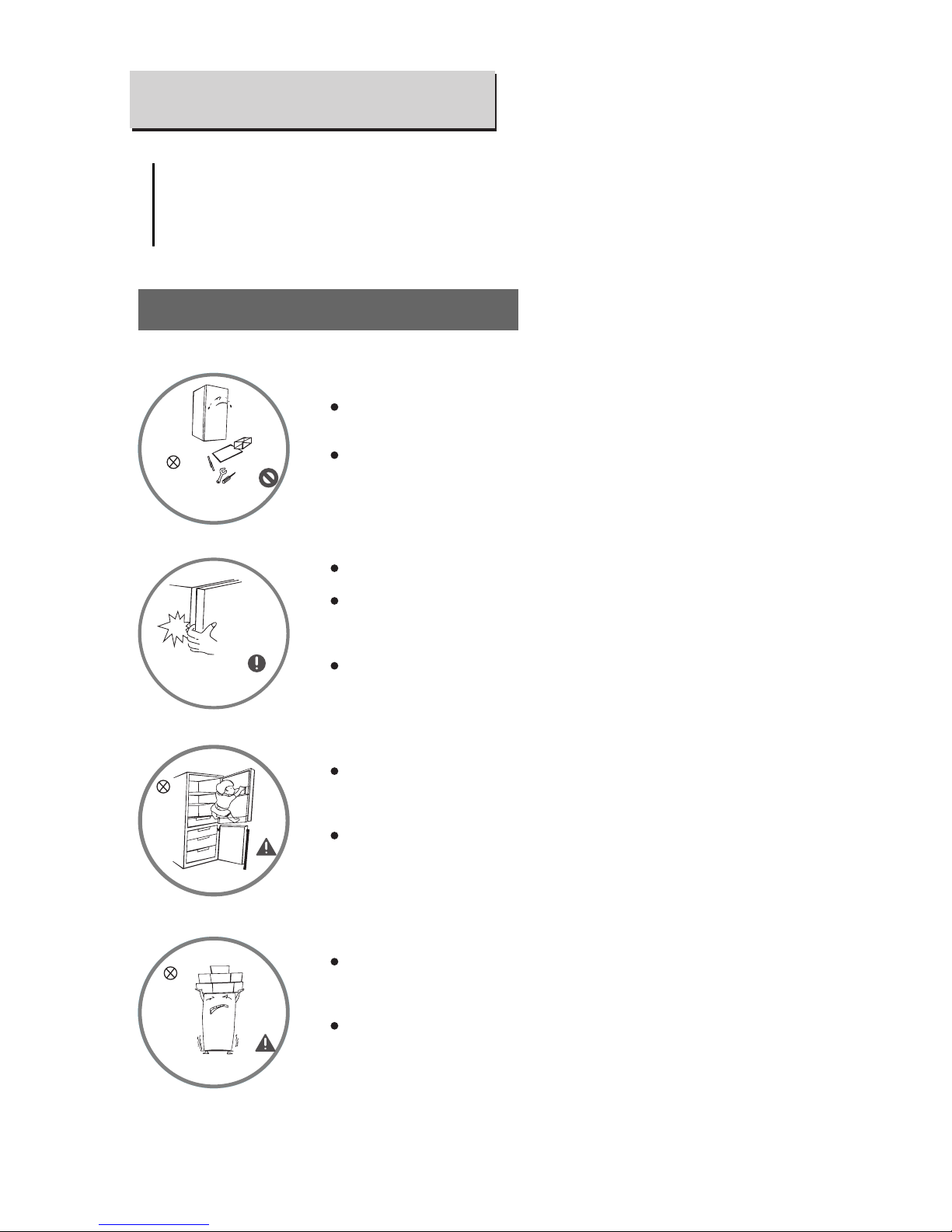

Related warnings for use
Authorized demolition or renovation of the refrigerator is not prohibited.
It is forbidden to damage the refrigerant lines and the repair and
maintenance of the refrigerator must be carried out by professionals.
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
The surrounding of the appliances around or the embedded structure
shall not be obstructed while good ventilation shall be maintained.
The gaps between refrigerator doors and between doors and
refrigerator body are small, be noted not to put your hand in these
areas to prevent squeezing the finger. Please be gentle when
switching off the refrigerator door to avoid falling articles.
Do not pick foods or containers in the freezing chamber when the
refrigerator is running, especially metal containers in order to avoid
frostbite.
Do not allow children to enter or climb the refrigerator to prevent that
children are sealed in the refrigerator or children are injured by the
falling refrigerator.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
Do not place heavy objects on the top of the refrigerator considering
that objectives may fall when switching the door, and accidental
injuries might be caused.
Please pull of the plug in case of power failure or cleaning. Do not
connect the freezer to power supply within five minutes to prevent
damages to the compressor due to successive starts.
This chapter describes the important security matters to prevent
users from injury or property damage. Please understand fully the
following text (logo, icon) and comply with the safety warnings.
00 4
Safety Warnings
Page 6

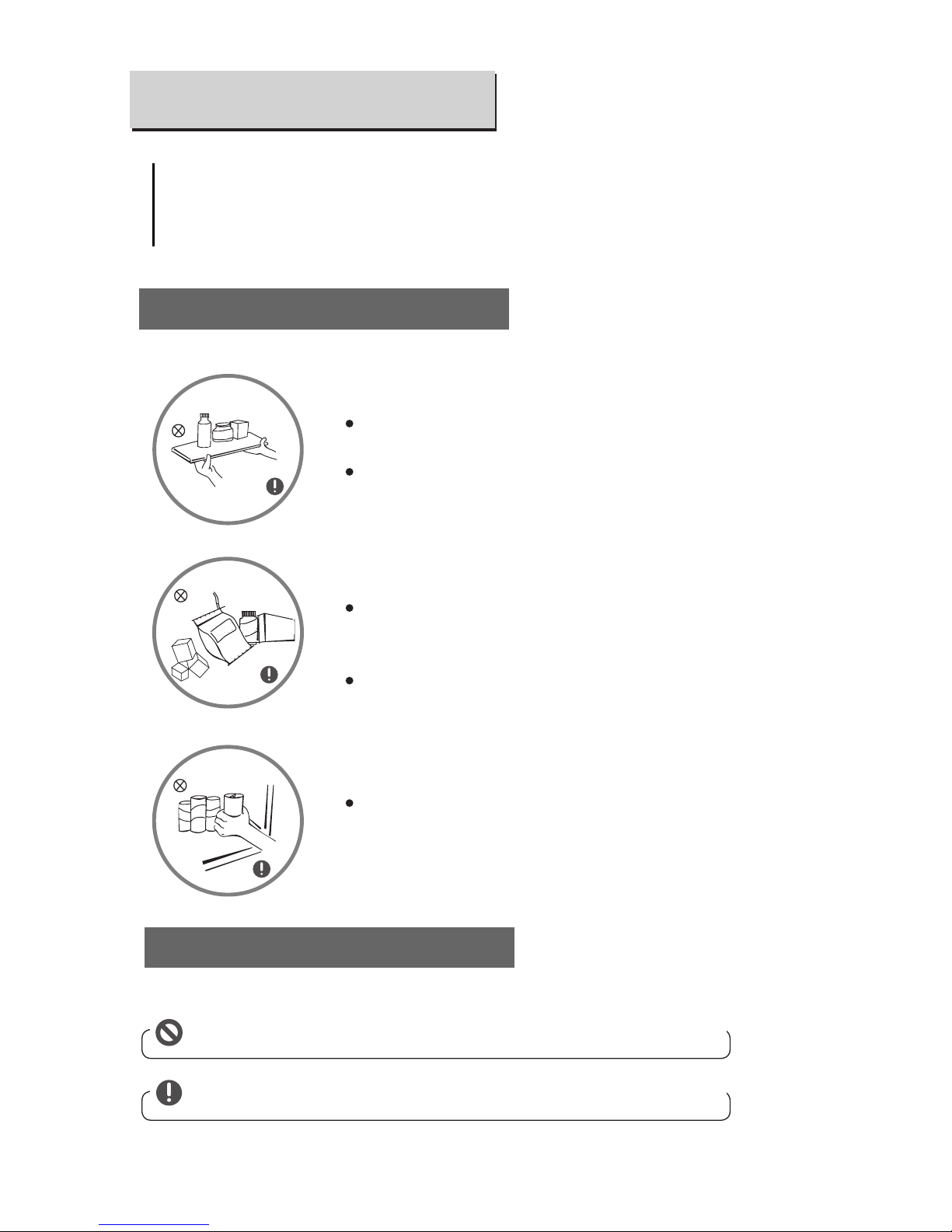

Warnings related to placing items
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for
the storage of foods. According to national standards, household
refrigerators shall not be used for other purposes, such as storage
of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such
as bottled beers and beverages in the freezer to prevent bursts and
other losses.
Warnings related to disposal
The refrigerator's R600a refrigerant and cyclopentane foam materials are combustible materials
and discarded refrigerators should be isolated from fire sources and can not be burned.
Please transfer the freezer to qualified professional recycling companies for processing to avoid
damages to the environment or other hazards.
Please remove the door of the refrigerator and shelves which shall be properly
placed to avoid accidents of children entering and playing in the refrigerator.
Beer
Freez er
Corr
osi
v
es
E
x
p
lo
si
ves
Flammable
B
lo
od
M
edi
ci
ne
bio
log
ical
s
D
r
y ice
Dry i
c
e
Do not store or p lace dry ice in the refrig erator.
This chapter describes the important security matters to prevent
users from injury or property damage. Please understand fully the
following text (logo, icon) and comply with the safety warnings.
00 5
Safety Warnings
Page 7

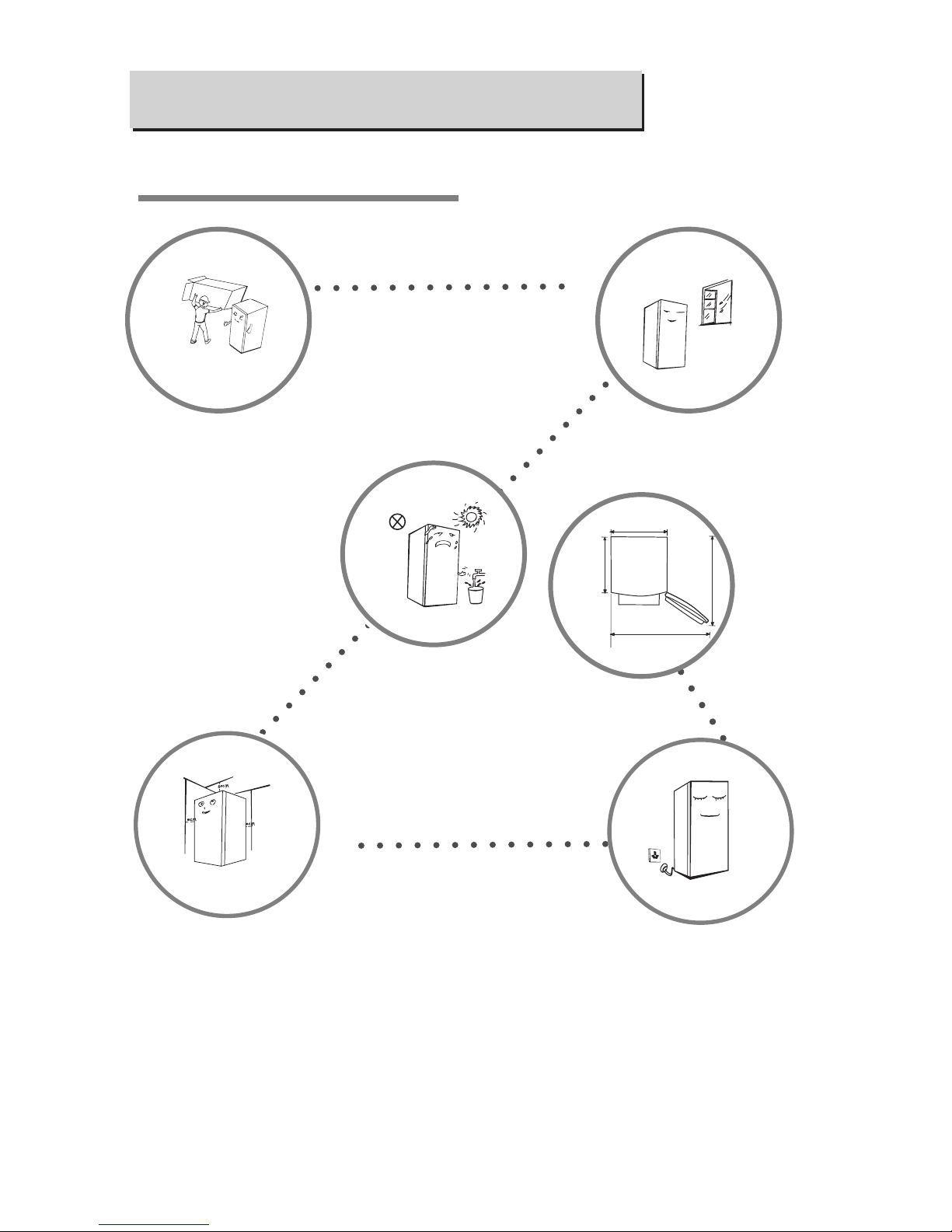

Before using the refrigerator, remove all
packaging materials including bottom
cushions and foam pads and tapes
inside the refrigerator, tear off the
protective film on the door and the
refrigerator body.
The refrigerator is placed in a
well-ventilated indoor place; the
ground shall be flat, and sturdy
(rotate left or right to adjust the
wheel for leveling if unstable).
Keep away from heat and avoid
direct sunlight. Do not place the
freezer in moist or watery places
to prevent rust or reduction of
insulating effect.
The top space of the refrigerator shall be
greater than 30cm, and the distances from
both sides and backside shall be more
than 10 cm to facilitate the opening and
closing and heat dissipation.Wipe the
refrigerator inside and outside with warm
moist rag (add a small amount of
detergent in the warm water and wipe
clean finally with clean water).
Placement
The refrige rator shall stay for hal f an
hour before c onnecting 220-240V /
50Hz power wh en it is firstly started .
The refrige rator shall run 2 to 3
hours befor e loading fresh or
frozen food s; the refrigerator sh all
run for more th an 4 hours in summer
in advance co nsidering that the
ambient tem perature is high.
Please leave enough space to ensure
feasible opening and drawer removal.
Dimensions shown are for reference only.
Start
Placement
Start
545 mm
555 mm
986 mm
934 mm
00 6
Installation Instruction
Page 8

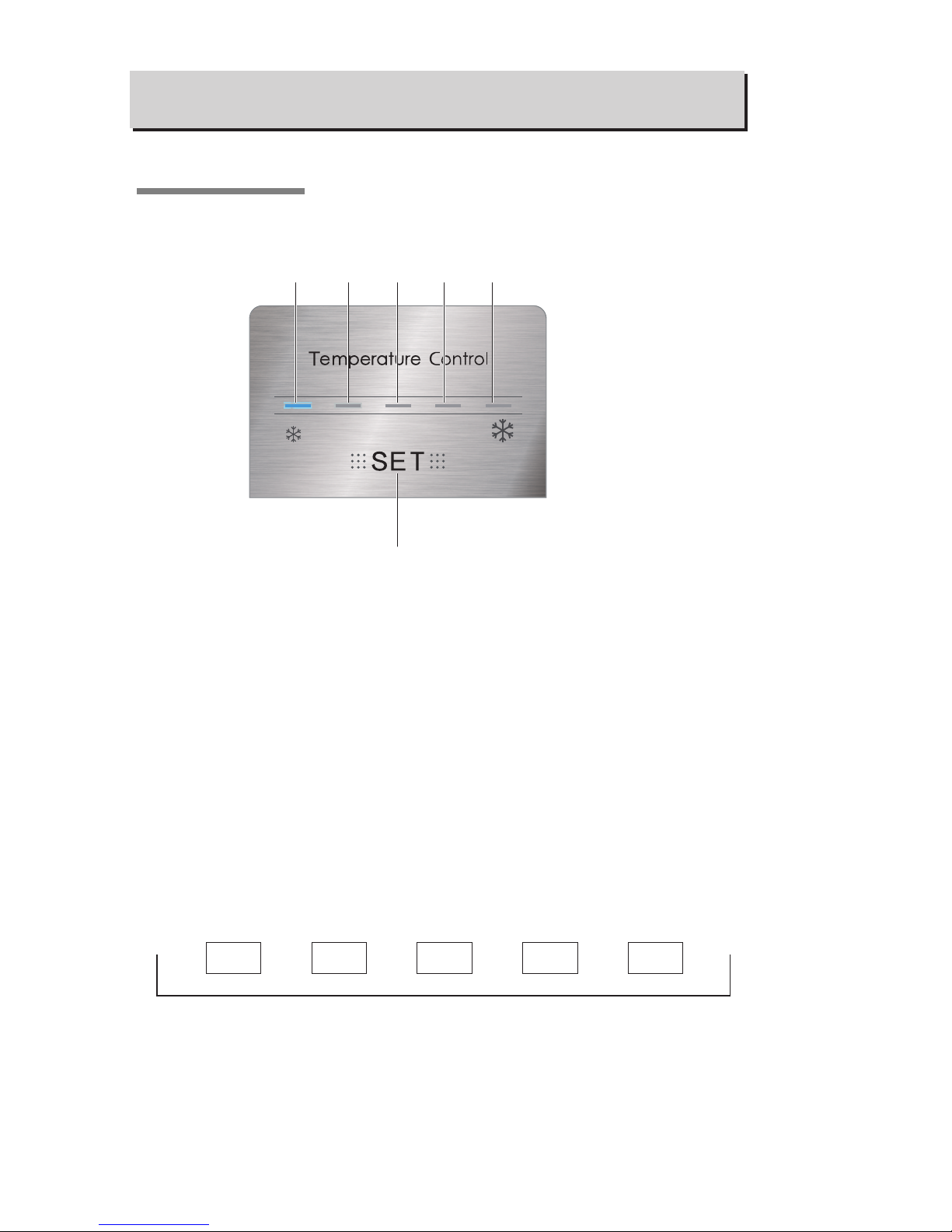

Key Operation
① ② ③ ④ ⑤
A
1.Key
A.SET: gear sett ing key
2.Display screen
①-Gear 1
②-Gear 2
③-Gear 3
④-Gear 4
⑤-Gear 5
3.Display
Wh en
4.Gear setting
The gear will b e changed once every tim e when you press the key SET . Then, the refriger ator
will run unde r the setting value afte r 15s.
the power-o n, the display screen wi ll be displayed in full fo r 3s,
and then the ge ar displays the state of r unning
Display of no rmal running.
On the occurr ence of a failure, the cor responding LED light w ill give a comb ined disp lay of failur e
code (loop di splay);
Where there i s no failure, the LED ligh t will display the curre nt running ge ar of the ref rigerator.
Gear 1
→ → → → →→
Gear 2 Gear 3 Gear 4 Gear 5
00 7
Interface and Key Operation
Page 9

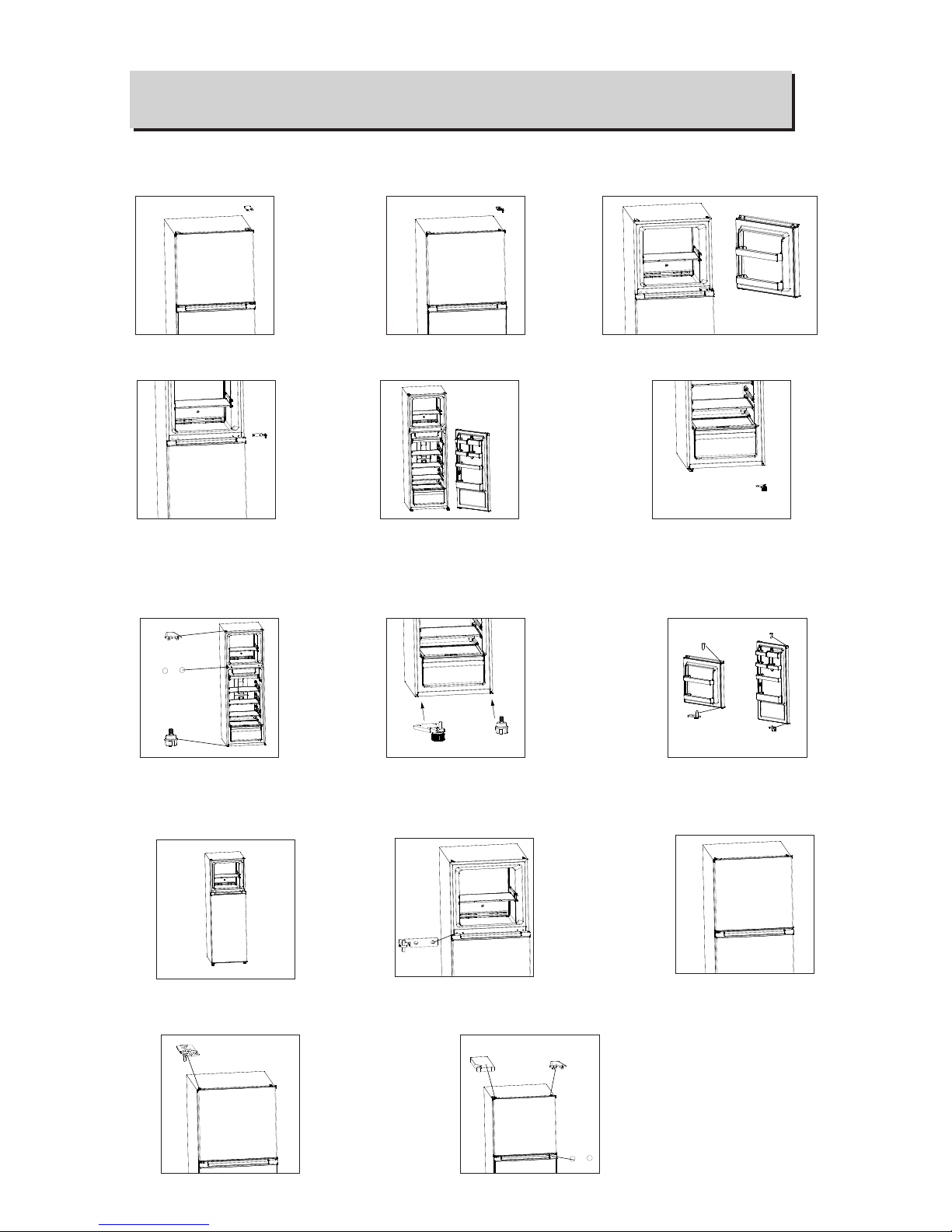

Step 1. Remov e the top right
hinge cover
Step 2. Remov e the top hinge
with screwd river
Step 3. Remov e the F-door
Step 4. Remov e the middle
hinge with sc rewdriver
Step 5. Remov e the R-door Ste p 6. Remove the lower
hinge with sc rewdriver
Step 7. Remov e the hinge shaft
cover, middl e beam hole cover,
and the adjus table feet.
Step 8. Insta ll the adjustable feet
to the right si de in front of the
refrigera tor; mount the lower hin ge
subassemb ly to the left side in front
of the refrig erator
Step 9. Remov e the hinge
bushing and d oor stop of the
R-door and F- door with
screwdriv er, and install them
to the other si de of the doors.
Step 10. Remo ve the hinge bushing
and door stop o f the R-door and
F-door with s crewdriver, and insta ll
them to the oth er side of the doors.
Step 11. Use a screwdri ver to mount
the middle hi nge to the left side of the
middle beam i n front of the refrigera tor
Step 12. Inst all the F-door onto
the middle hi nge.
Step 13. Use a sc rewdriver to mount
the top hinge t o the left side of the top
of the refrig erator
Step 14. Moun t the top left hinge cover t o the top hinge; mount the
hinge shaft c over to the top right of the r efrigerator; mount t he
middle beam h ole cover to the right sid e hole of the middle beam.
Instructions of Door Replacement
00 8
Page 10
Refrigerator Features
Names of components
Refrigerating chamber
1.The is suitable for storage of a variety of fruits,
vegetables, beverages and other food consumed in the short term.
2.Cooking foods shall not be put in the refrigerating chamber until cooled to
room temperature.
3.Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of
storage space and easy use.
Refrigerating Chamber
Freezing chamber
1.The low temperature freezing chamber may keep food fresh for a long time
and it is mainly used to store frozen foods and making ice.
2.The freezing chamber is suitable for storage of meat, fish, rice balls and other
foods not to be consumed in short term.
3.Chunks of meat are preferably to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
Pan el of fre ezing a ir duct
Fre ezing g lass sh elf
Fre ezer do or
Top bot tle box o f freez er door
Fri dge doo r
Sma ll bott le box of f ridge d oor
Lar ge bott le box of f ridge d oor
Cab inet
Cos metic b ox of fri dge doo r
Kno b of free zing ve ntila tion do or
Fli p mask
Pan el of ref riger ating a ir duct
LED l ampsh ade and l ight
Ref riger ating g lass sh elf
Gla ss shel f of frui ts and
veg etabl es cris per
Fru its and v egeta bles cr isper
Ref riger ating c ontro l panel
Mid dle hin ge
Bot tom hin ge
00 9
*Photo f or referenc e only. The interio r design will be slightl y different in different mode ls.
Page 11

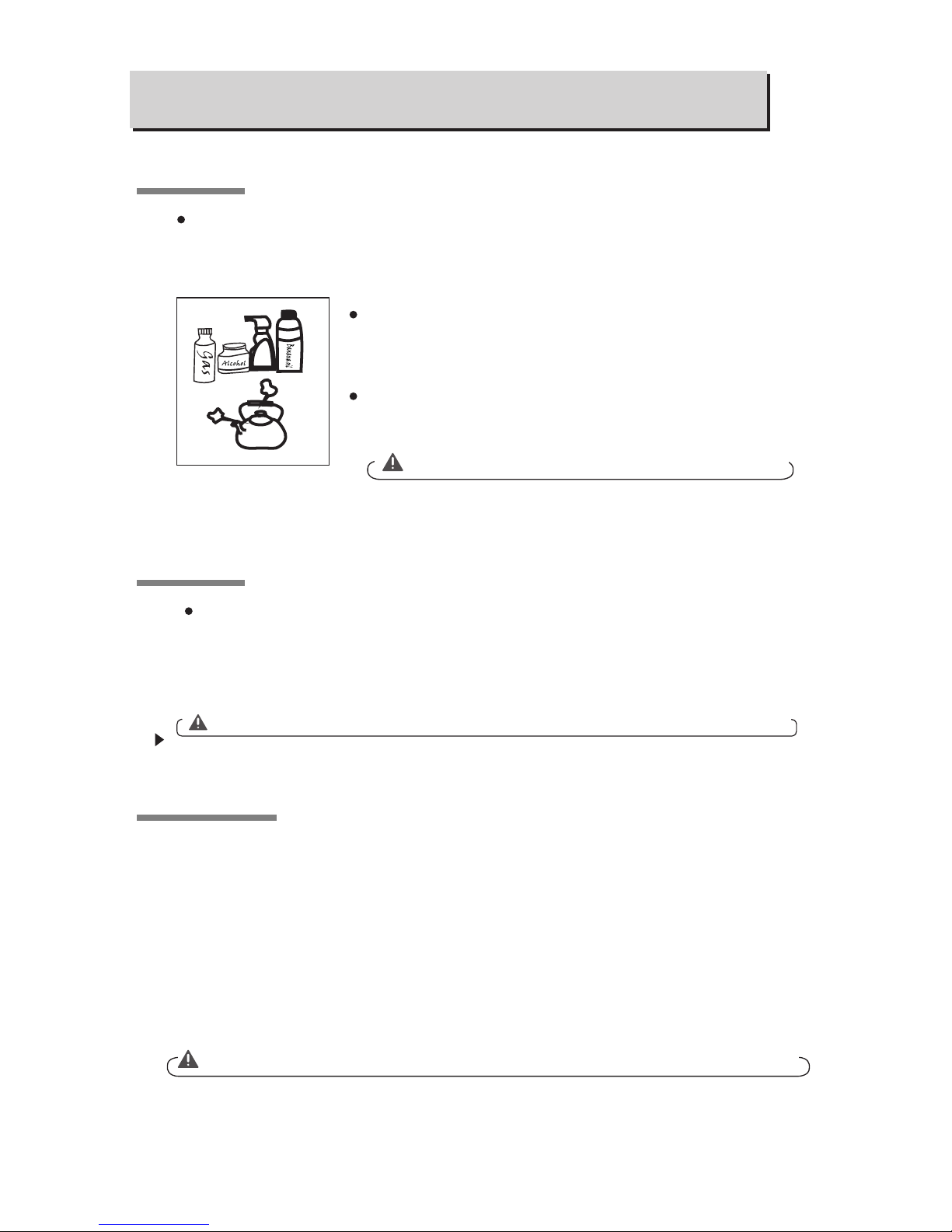

Cleaning
Stop using
Do not use hard b rushes, clean steel ba lls, wire brushes,
abrasives , such as toothpastes, o rganic solvents (suc h as
alcohol, ac etone, banana oil, etc .), boiling water, acid o r
alkaline it ems clean refrigerat or considering that th is may
damage the fr idge surface and inter ior.
Do not rinse wi th water so as not to affe ct the electrical insu lation
propertie s. Please use a dry cloth wh en cleaning lighting l amps,
temperatu re control knob and elec trical components.
Please unpl ug the refrigerator fo r defrost and cleaning .
Do not use metal utensils or electric heater for defrost so as not to damage the appliance. Please
remove the food and put in a cool place when defrosting before removing drawers and other accessories.
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.
Please unplug the refrigerator left unused for a long time for cleaning. Keep the door open to avoid
the bad odor.
Before moving the refrigerator, please emove all items in the refrigerator and fasten the glass
partitions, fruit and vegetable boxes, freezer drawers with taps lest the door opens during
displacement; Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can
not be greater than 45 ℃.
Continuous operation is recommended when the refrigerator is started. Please do not move
the refrigerator under normal circumstances so as not to affect the refrigerator's service life.
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling
effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor.
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for
cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for
natural drying before the power is turned on.
This product has the function of automatic defrosting, so you don't need to do that manually.
In case the frost exists in air duct panel, you can simply clean it with a cleaning rag.
Defrost
01 0
Maintenance of Refrigerators
Page 12
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Warm tips:
◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused by
the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensation can be wiped away with a dry towel.
◆Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and
grunts which is normal does not affect the cooling effect.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
◆Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon
and does not affect the operation.
◆The refrigerating chamber will periodically frost and defrost (water drops will be generated on the
backside of the refrigerating chamber when defrosting) which are normal.
Inoperation
Odor
Foods in the refrigerating
chamber are frozen
Long-term operation
of compressor
The refrigerator door
can not be properly
closed.
Loud noises
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Whether the thermostat is over adjusted;
Whether foods containing water is put in inside the
glass partition.
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door;
Whether the surrounding areas of the refrigerator doors are
closed tightly;
Air duct outlets are blocked by foods.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
01 1
Frequently Asked Questions
Page 13

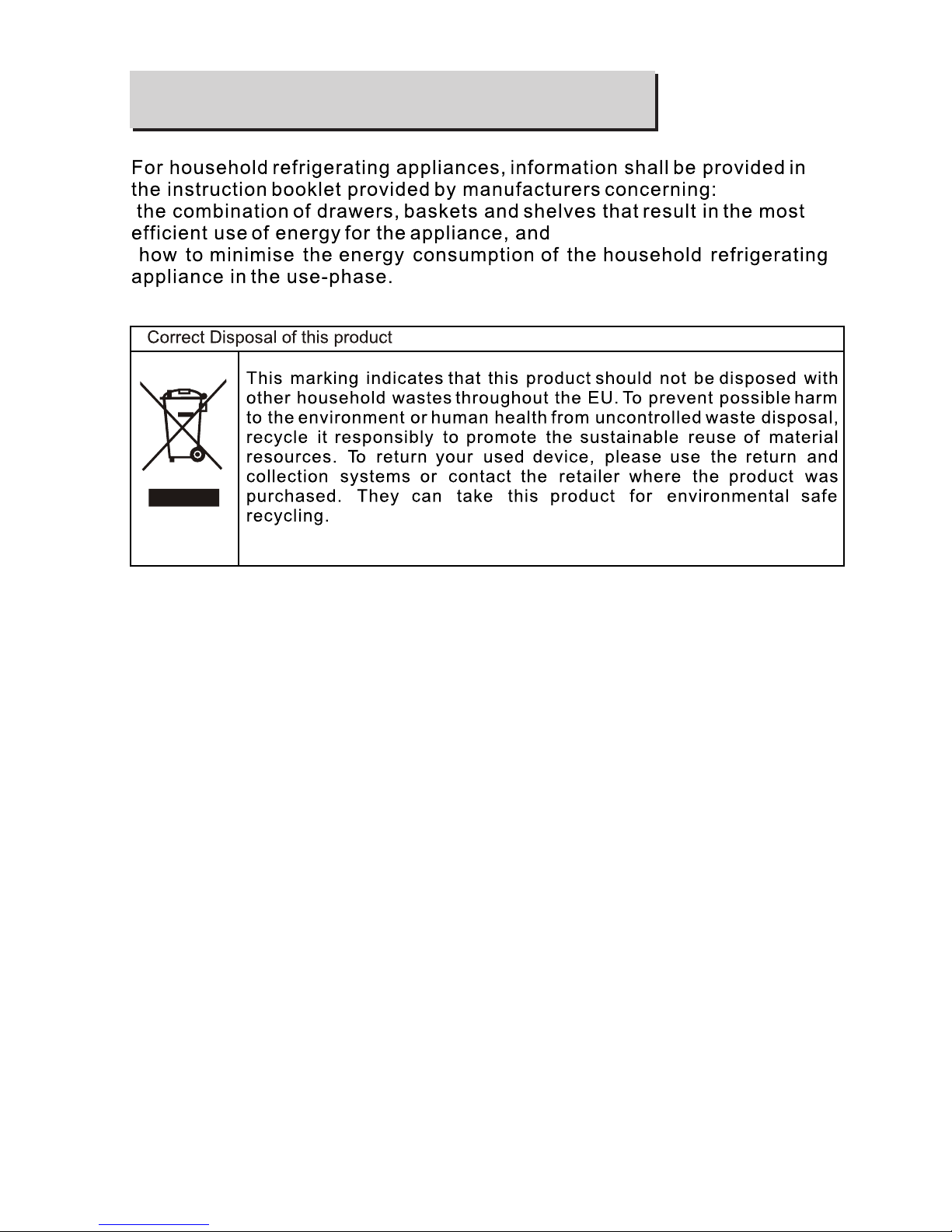

Saving Tips and Service
01 2
Loading...
