Page 1
Read this manual carefully before operation
INSTRUCT ON MANUALI
COOKER HOOD
Pictures in this manual are for reference only.
For Models:
BC60S / BC60B
BC90B / BC110B
Page 2
Contents
Warnings................................................................
2
01
02
03
04
05
06
07
08
Safety Warning.......................................................
3
Installation. ....................................
4
Use...................................................................
Maintenance......................................................... 8
Trouble Shooting.................................................. 9
1
Contents
10
7
Disposal................................................................
09
Specifications .......................................................
1
1
Contents.................................................................
0
.........................
Page 3
Contents
z
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
z
There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels.
z
The filter is made of high density aluminum.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
z
To protect the main body from corrosi
on caused by
long
time
accumulation of dirt, the cooker hood should
be cleaned with hot water with non-corrosive detergent
every two months.
z
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
z
The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
z
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part
of the range hood is 650 mm.
z
Regulations concerning the discharge of air have to be
fulfilled.
z
CAUTION :
used with cooking appliances.
Warnings
2
Accessible parts may become hot when
z
Page 4
3
The appliance is not intended for use by young children or infirm
persons without supervision.
Young children should be supervised to ensure they do not play with
the appliance.
This appliance must be plugged into an earthed power point.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.
according to the instructions.
If fault occurs with the appliance, please call after-sales
service department.
Please keep the kitchen ventilated.
Prior to any maintenance, cleaning operation, ensure the power is off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
Follow the local laws applicable for external air evacuation.
Safety Warning
The cooker hood and its filter should be cleaned regularly
Page 5
1
4
Installation
The bending of ventilation tube should be ≥120°,parallel or above the
start point/should be connected to the external wall.
placed horizontally to avoid
After installation, make sure that plug can be
removed
if necessary.

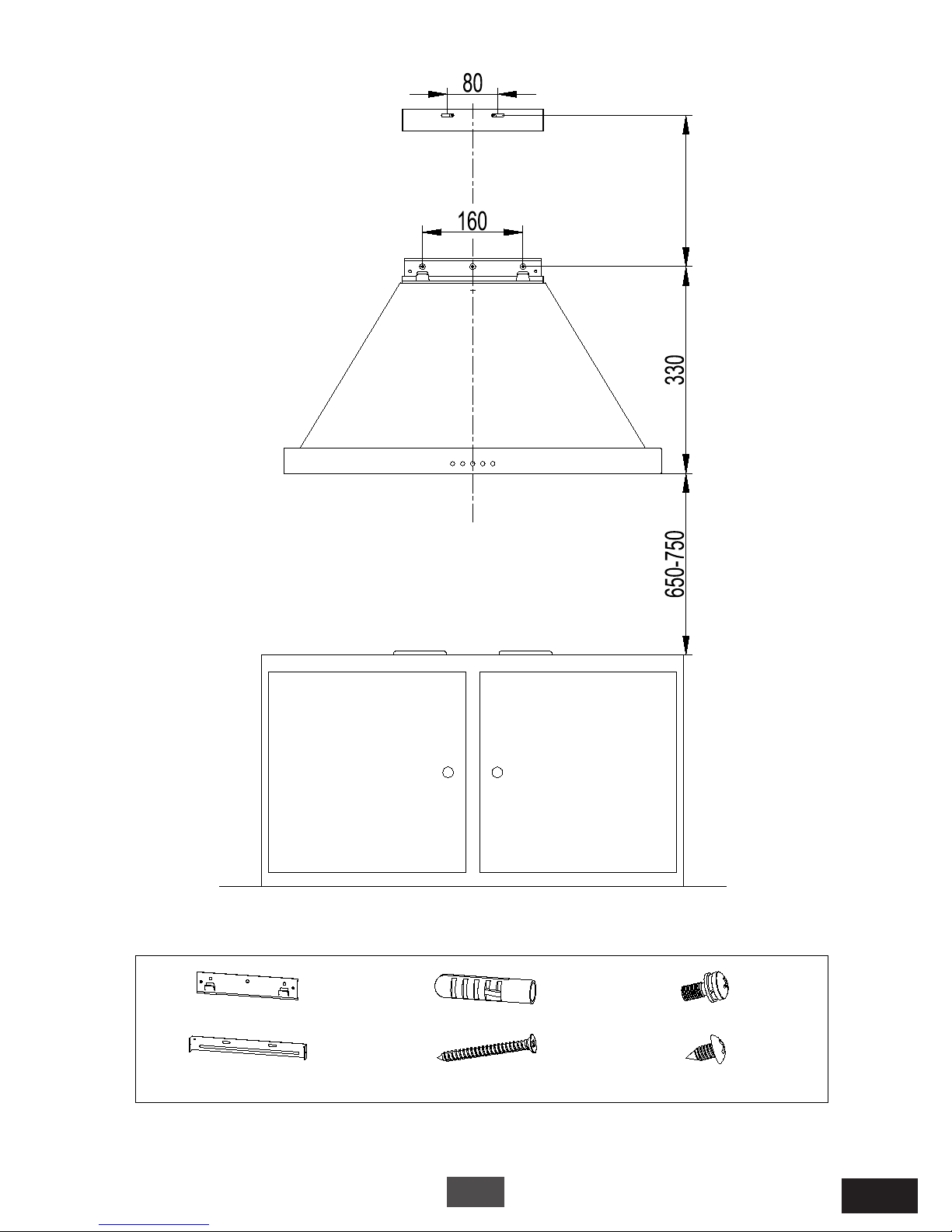

ed 650~750 mm up from the
Fig.1
Right Wrong
There shall be adequate ventilation of the room when the cooker
hood is working.
grease collection at one end. See Fig.1.
cooking plane for safe and a good effect. See Fig.2.
T he cooker hood should be plac
Please make sure the installation plate is
Page 6
1
Fig.2
5
Fig.3
1 x Installation plate
x Screws(M5*12)
5 x Plastic expansion pipes
4 x Screws(ST4.2*9.5)
1 x Chimney installation plates
5 x Screws(ST5*50)
2
390-630
Page 7
6

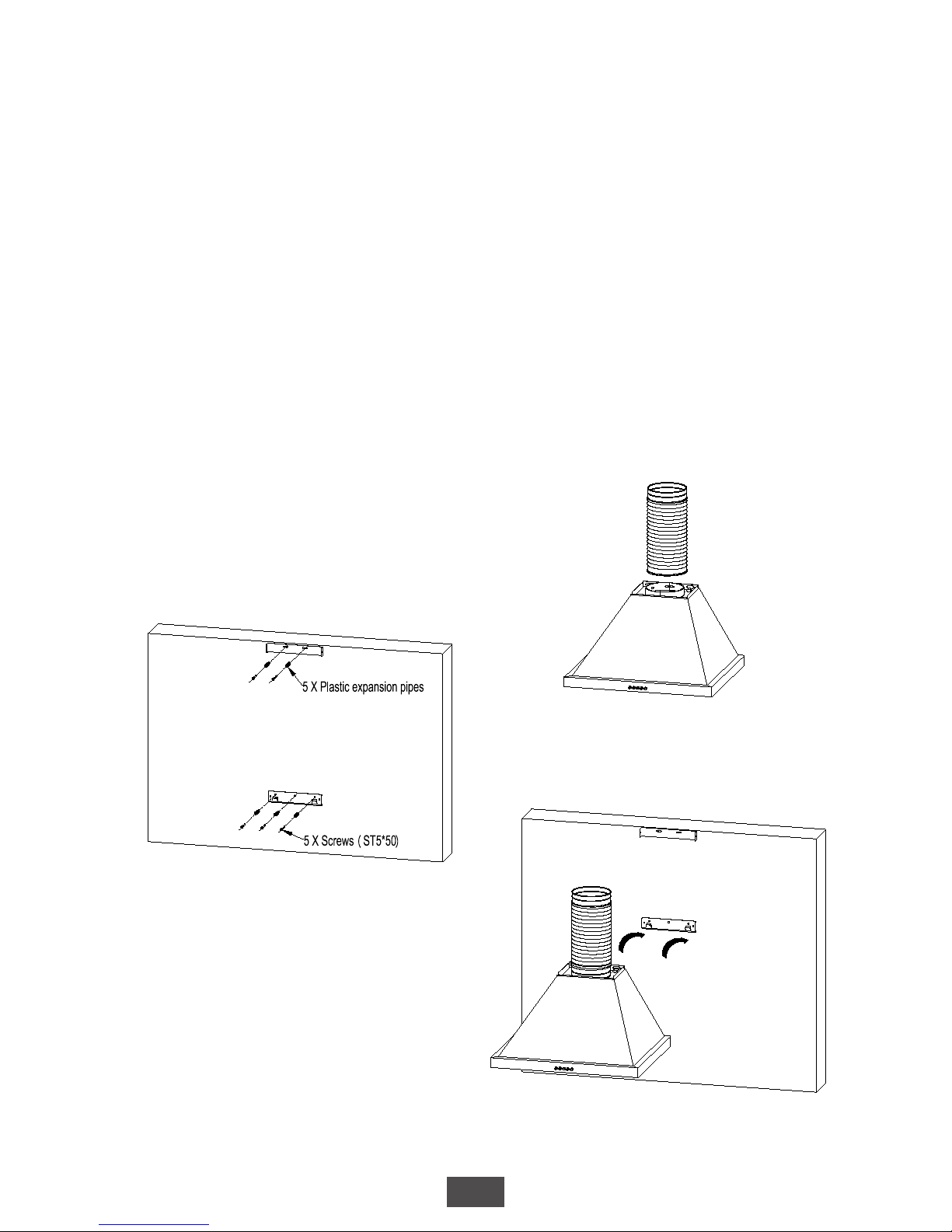

Fit installation plate and extension chim
ney installation plate, See Fig.4.
Fit
the
exhaust
pipe,
See
Fig.5.
Hang range hood on the installation plate. See Fig.6.

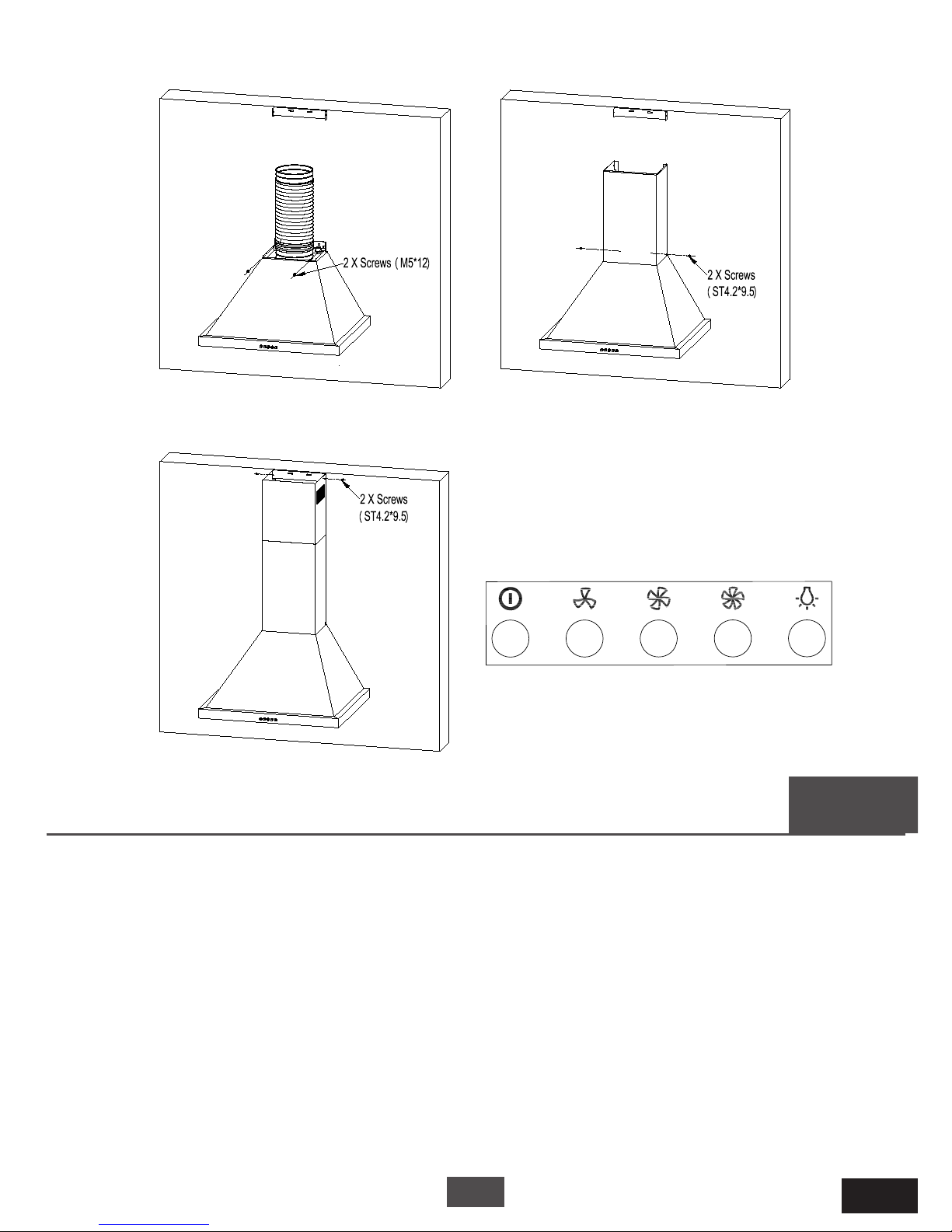

After connecting the exhaust pipe securely,
Fit the chimney. See Fig.8.
Installation
See Fig.7.
the
range
hood
from
accidently
sliding
off
the
installation
plate.
Accessories. See Fig.3. (Type and quantity of accessories is
subject to actual demand.)
Fig.4
Fig.5
lock screws (M
5*12) to
prevent
Fit the chimney. See Fig. .
extension 9
Fig.6
Page 8
1
7
Fig.7 Fig.8
Fig.9
7 X Screws(M5*50)
Fig.10.1
Stop Low Mid High Light
Use
Speed adjustment. See Fig.10.1.
Press
Stop
button, the motor will stop running.
Press the
Low
(speed) button, the motor runs at low speed.
Press the
Mid
(speed) button, th
e motor runs at mid speed.
Press the
High
(speed) button,
the motor runs at high speed.
Press the
Light
button, the two lighting lamps will come on.
Press it again and the lamps will be turned off.
(For some models)
Page 9
222
Contents
Maintenance
Cleaning of the filters
Removing the filters according to Fig.11.
Put into a dishwasher with detergent, set the temperature below
Please do not use abrasive detergent for it will damage the hood.
Make sure that the hood is shut off before cleaning.
Replacement of the carbon filters ( )
Remove the filters see Fig.11.
The carbon filters are located at both end of the motor.
Apply reverse procedure to
It should be replaced after approximately 2-3 months of use.
The carbon filer cannot be washed or recycled.
Carbon filter is not supplied with your appliance.
60 degrees.
Turn the carbon filters until they are locked. S ee Fig.1 .
Fig.11 Fig.1
al
remove the carbon filter.
Option
2
2
8
Page 10
222
Trouble Shooting
Cause Solution
Light on, but motor
does not work.
The blades are blocked.
The capacitor is damaged. Replace capacitor.
The motor is damaged. Replace motor.
The internal wiring of motor is cut off /
disconnected. An unpleaseant smell
may be produced.
Replace motor.
Both light and motor
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose.
Connect the wires as per the
electric diagram.
Oil leakage.
Outlet and the air ventilation entrance
are not tightly sealed.
Take down the outlet and seal with
glue.
Leakage from the connection of
U-shaped section and cover.
Take U-shaped section down and
seal with soap or paint.
Vibration.
The blade, if damaged, can cause
vibrating.
Replace the blade.
The motor is not tightly fastened. Fasten the motor tightly.
The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.
The distance between the cooker
hood and the cooker top is too large.
Readjust the distance.
Too much ventilation from open doors
or windows.
Choose a new place to install the
appliance or close some doors /
windows.
The machine inclines.
The fixing screws are not tight
enough.
Tighten the fixing screw and make
it horizontal.
The hanging screws are not tight
enough
Tighten the hanging screw and
make it horizontal.
do not work.
.
Fault
Electrical Diagram
Electrical diagram see label on main body of the actual product.
9
Page 11
222
Disposal
Please dispose of it at your local community waste collection /
recycling center and ensure it presents no danger to children
while being stored for disposal. The plug must be rendered
useless and the cable cut off to prevent misuse.
10
Specifications
egatloV
Rated Power
Lighting Power
Motor Power
Diameter of air tube
wolf riA
esioN
The air flow parameter is tested under conditions of 230V 50Hz when the
voltage is 220-240V
~
50/60Hz and without carbon filters.
~
220-240V~50/60Hz
333W
2 X 1.5W
330W
150mm
800m /h
3
≤
74dB
Page 12
recommendations and instruction regarding installation, maintenance
The manufacturer shall decline all responsibility if the foregoing
and use are not observed and respected when using the cooker hood.
Glen Dimplex Australia Pty Ltd
1340 Ferntree Gully Road
Scoresby VIc 3179
Ph: 1300 556 816
Fax: 1800 058 900
Web: www.belling.com.au
Glen Dimplex New Zealand
38 Harris Road
East Tamaki
Auckland New Zealand
Ph: 09 274 2865
Fax: 09 274 8472
Web: www.belling.co.nz
