INTRODUCTION

Thank you for buying this British-built appliance from us.

This user guide book is designed to help you through each step of owning your new product.

Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.

General information, spares and service information is available from our website.

If you should nd something missing from your product or have any questions that are not covered in

this user guide, please contact us (see contact information inside the front cover).

European Directives

As a producer and a supplier of cooking appliances we are committed to the protection of the environ-

ment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.

This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.

This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse­quent to publishing.

Disposal of Packaging Material

The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.

UK ONLY GAS WARNING:

If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.

Call the Gas Emergency Help line at 0800 111999

SAFETY

WARNING

• If the hob surface is cracked, broken or shattered, switch off the
appliance to avoid the possibility of electric shock and call for a
service engineer’s visit.

• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.

• The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised. This appliance can be used by children aged from 8
years and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.

• Do not use a steam cleaner on any cooking range, hob or oven
appliance.

• Metallic objects such a knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.

• If your appliance is tted with a lid, any spillage should be removed

from the lid before opening. The hob surface should be allowed to
cool before closing the lid.

• After use, switch off the hob element by its control and do not rely
on the pan detector.

• To avoid electric shock, ensure that the appliance is switched off
before replacing the lamp.

• The appliance is not intended to be operated by means of an
external timer or separate control system.

• Unattended cooking on a hob with fat or oil can be dangerous and
may result in re.

• NEVER try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or damp cloth.

• Danger of re: Do not store items on the cooking surfaces.

• Only use hob guards designed by the manufacturer of the cooking

appliance or indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards incorporated in
the appliance. The use of inappropriate hob guards can cause
accidents.

• If the cooker is placed on a base, measures have to be taken to
prevent the appliance slipping from the base.

• Never put items directly on the base of the oven or cover the oven
with foil, as this can cause the base element to overheat.

CAUTION

• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.

• This appliance must not be installed behind a decorative door in
order to avoid overheating.

• Fire Safety Advice

If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the

Fire Brigade.

Ifyouhaveanelectricalreinthekitchen:

• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme­diately

• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher

• Remember: never use water on an electrical or cooking oil re.

• Other Safety Advice

• Servicing should be carried out only by authorised personnel.

• Do not operate the appliance without the glass panel correctly tted.

• Do not modify the outer panels of this appliance in any way.

• This appliance must be earthed.

• The appliance must never be disconnected from the mains supply during use, as this will seriously

affect the safety and performance, particularly in relation to surface temperatures becoming hot and

gas operated parts not working efciently. The cooling fan (if tted) is designed to run on after the

control knob has been switched off.

• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE

Getting to know your product

Note: Your appliance layout may differ depending on the model.

Hob

Left hand rear

Left hand front

Right hand rear

Centre

Right hand front

Cook zones

Timer

Cook zones

Cook zones

Minus key

Cook zones

Bridge symbolBridge symbol

On/Off key

Cook zones

Control Panel

Oven

Top oven/Grill or Grill

Thermostat indicator (Top oven only)

Thermostat indicator

Clock/Programmer

Oven / Grill controls

Oven

Appliance functions

Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,

please preheat your oven for 15 minutes and 3-5 minutes for grilling.

Do not try to slow cook using any of the other oven functions.

S

Intense Baking

Base Heat with fan

Slow Cook

Fanned Grill

Oven Selector Control

Conventional Grill

Top Heat

Defrost

Conventional Oven

Fanned Oven

Low Grill

Single Grill

Dual Grill

Base Heat

Lights only

Single grill Dual Grill

OFF

1

7

8

2

3

4

5

6

OFF

1

2

3

4

5

1

2

3

4

5

D

u

a

l

G

r

i

l

l

S

i

n

g

l

e

G

r

i

l

l

100

220

OFF

60

80

120

140

160

180

200

220

240

S

Top oven/Grill Oven

OFF

60

80

120

260

240

140

160

180

200

Ovens and Grill

Main ovens and Top oven/Grill Grill only

When using the top oven or main oven, the red thermostat indicator will come on until the selected
temperature is reached.

When the Top oven/grill or grill is switched on, the cooling fans comes on to keep the fascia and control
knobs cool during cooking/grilling. The cooling fans may operate when the main ovens are in use,
depending on the temperature setting. The fans may continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle on and off, this is normal.

Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this
may cause the element to overheat. Always position items on the shelf.

The right hand main oven will not operate if the programmer is set to Auto, see clock/programmer

Inverted

section.

Grill

THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.

Grill pan, trivet and detachable grill pan handle

The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.

Hob Overview

Function Description Symbol

Power Level

Cook zone timer

Once a cook zone is selected, a power level can be set to a

low or high temperature.

Once a cook zone is selected, the cook zone timer can be activated

to sound after a pre-determined amount of time. When the alarm

sounds, the cook zone will turn off.

1-9

Residual Heat

Automatic switch off

Pan detection

Booster function

Bridge function

Pause

Recall function

After use, the cooking surface remains hot and the residual

heat symbol will be displayed.

Each cook zone is pre-set with a maximum operation time.
Once this time is reached, the zone will automatically switch
off. The residual heat symbol will be displayed if the surface

remains hot.

If no pan or an unsuitable pan is detected on an activated

cook zone, the pan detection symbol will be displayed.

Suitable pans - cast iron, metals with magnetic properties.

Non-suitable pans - copper, stainless steel, aluminium,

glass, ceramic, terra-cotta.

The booster function temporarily increases the power to a

cook zone allowing for a faster heat up time. It will deactivate

automatically after 10 minutes or if a lower power level is

selected.

Individual cook zones can be bridged or joined together to

create a larger, single controlled cook zone. By bridging the

left hand front and rear zones or the right hand front and rear

zones, two larger cook zones can be created.

When at least one cooking zone is in operation, the pause

function can be activated. This will pause all cooking on the

hob for up to 10 minutes.

While the hob is in use, if it is accidentally turned off, turn
the hob back on within 6 seconds and the settings will be

restored.

N/A

N/A

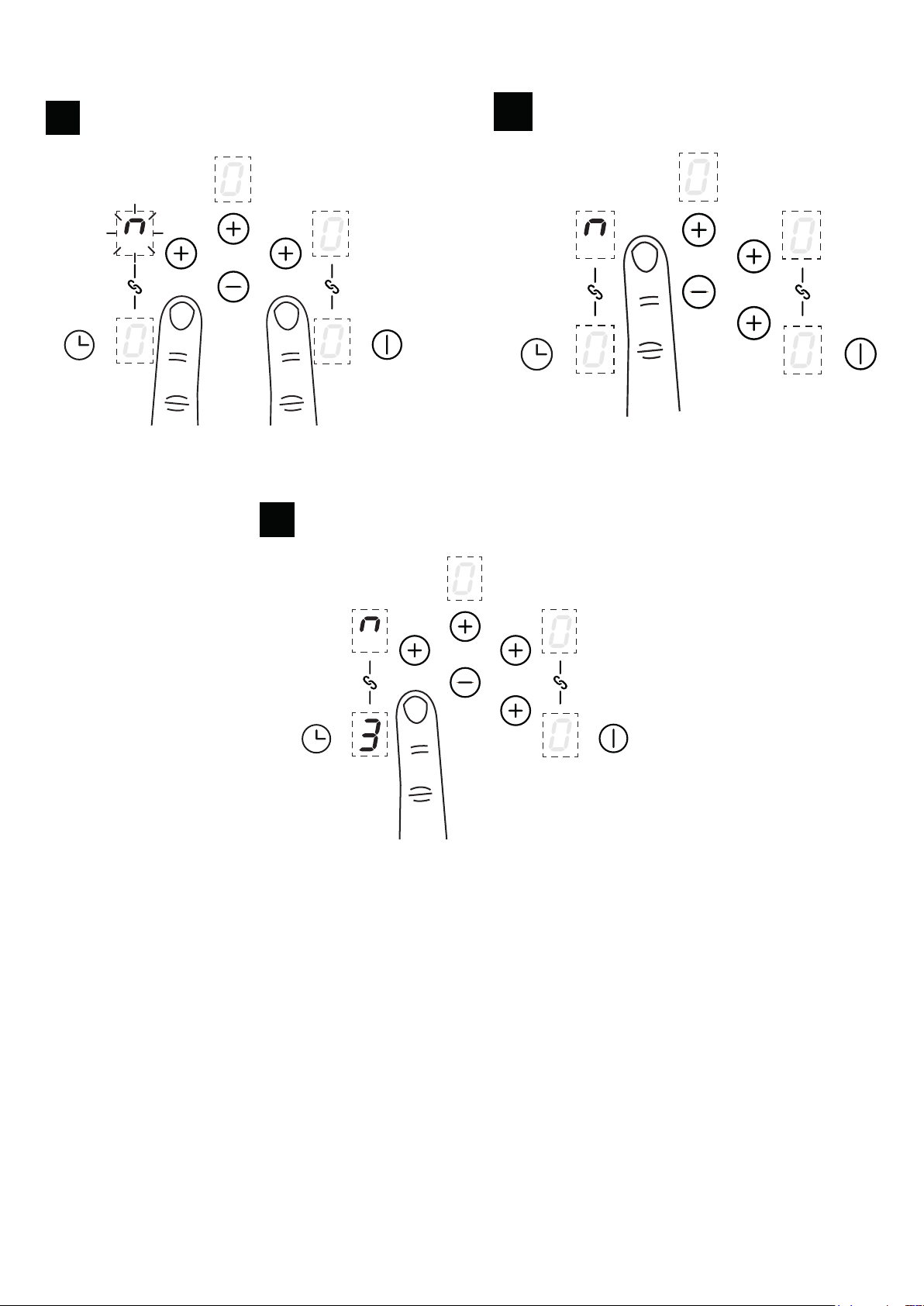

Child lock

Low temp/keep warm

Child lock can be activated to stop the hob from being

accidentally turned on.

This setting temperature is set to allows the user to keep

food warm without over cooking. This setting can also thaw

frozen foods.

Caution: Always ensure that induction pans remain within the marked cooking area when hot. Do not

1

Touch the plus key for the relevant cook zone

allow hob pans to rest on the user control panel at the front of the hob glass, as this will cause the
controls to overheat and the appliance to temporarily shut down.

Please be aware that the pans can make a noise during cooking. This is caused by vibration due to the
passage of energy from the hob to the pan.

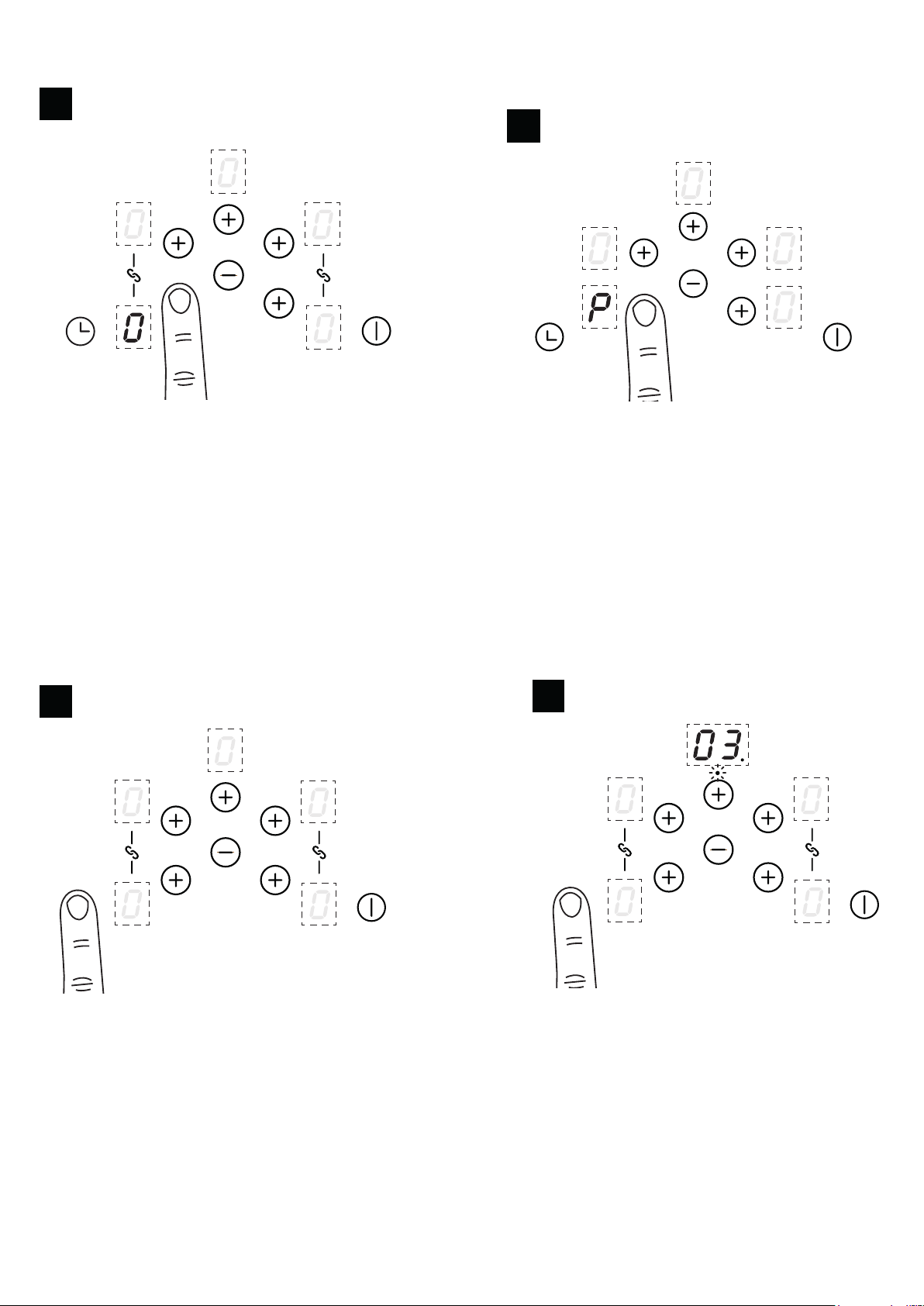

Switching the appliance On/Off

Press and hold the On/Off key to activate

1

the appliance

Press and hold the On/Off key to deactivate

2

the appliance

If within 20 seconds, no action (zone or timer selection) takes place the hob will automatically switch off.

Switching a cook zone On/Off

Touch the cook zone plus key and the

2

central minus key to set a power level

Note: Setting the power level to “0” will switch off the cook zone.

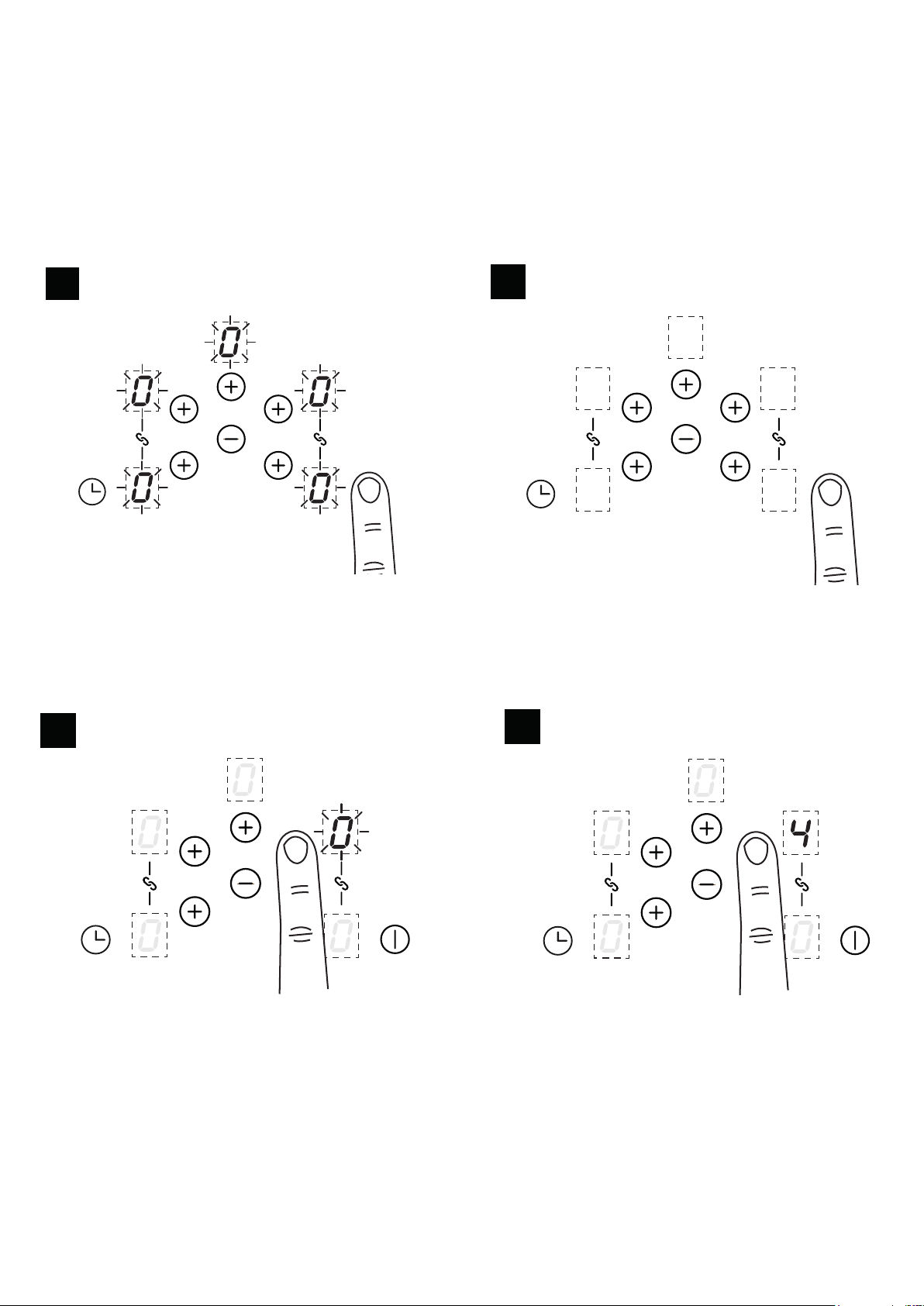

Griddle zone with bridge function

2

Press the corresponding rear key
immediately to activate

Press the Front Left or Front Right key and

1

hold until the bridge function blinks

Once activated, set the power level by touching

3

the front zone plus key and central minus key

The Left Hand and Right Hand zones can be used as 4 separate cooking zones which can be
controlled individually or they can be bridged to provide 2 large zones that can be controlled via one
setting on each side. Large pans and griddle plates can be placed across the bridged zones.

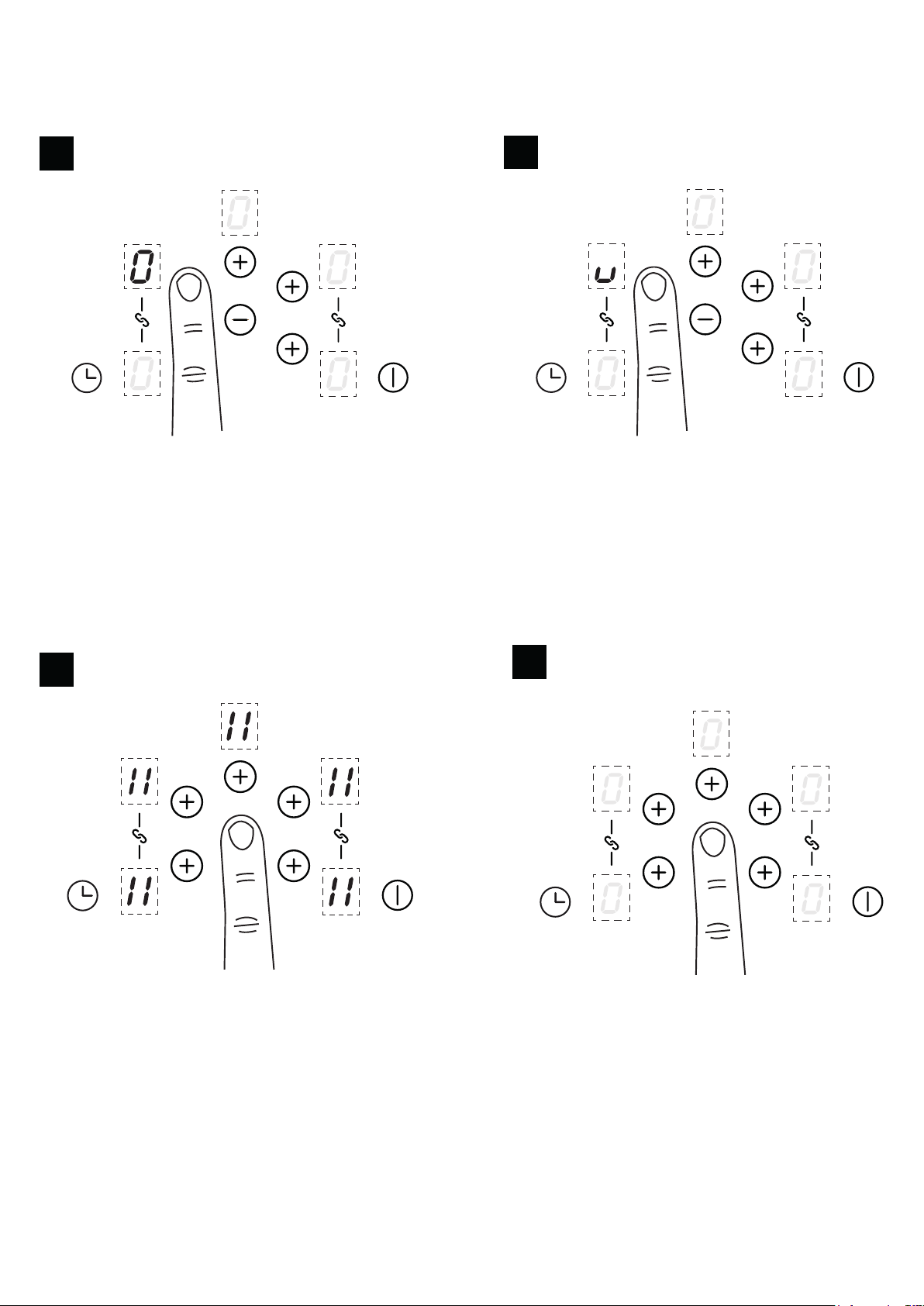

Low temperature setting/Keep warm

This function can be used when the cook zone(s) are in the bridge function.

Touch the plus key for the relevant cook zone

1

The “u” symbol can be found between power level “0” and “1”. Use the relevant cook zone plus key and

central minus key to scroll through the power levels.

Touch the cook zone plus key to select “u”

2

Pause key

Ensure a cooking level has been set

Press and hold central minus key until

Press and hold central minus key

1

If the pause mode is not de-activated within 10 minutes, the hob will switch off.

2

beep, then immediatley press any cook
zone plus key to de-activate

Recall

If the hob is switched off accidentally, all the settings can be restored within 6 seconds by pressing the
On/Off key, followed by the central minus key to resume cooking.

Booster function

Touch the plus key for the relevant cook zone

1

For quick operation, touch the minus key for quicker access to the Power Boost level.

The power boost function can temporarily boost the power to a cook zone. This function is not available
in bridge mode.

Use the cook zone plus key and the central

2

minus key to select “P”

Note: The Power Boost function will only operate for a limited time and will deactivate automatically if
the product is hot or overheating.

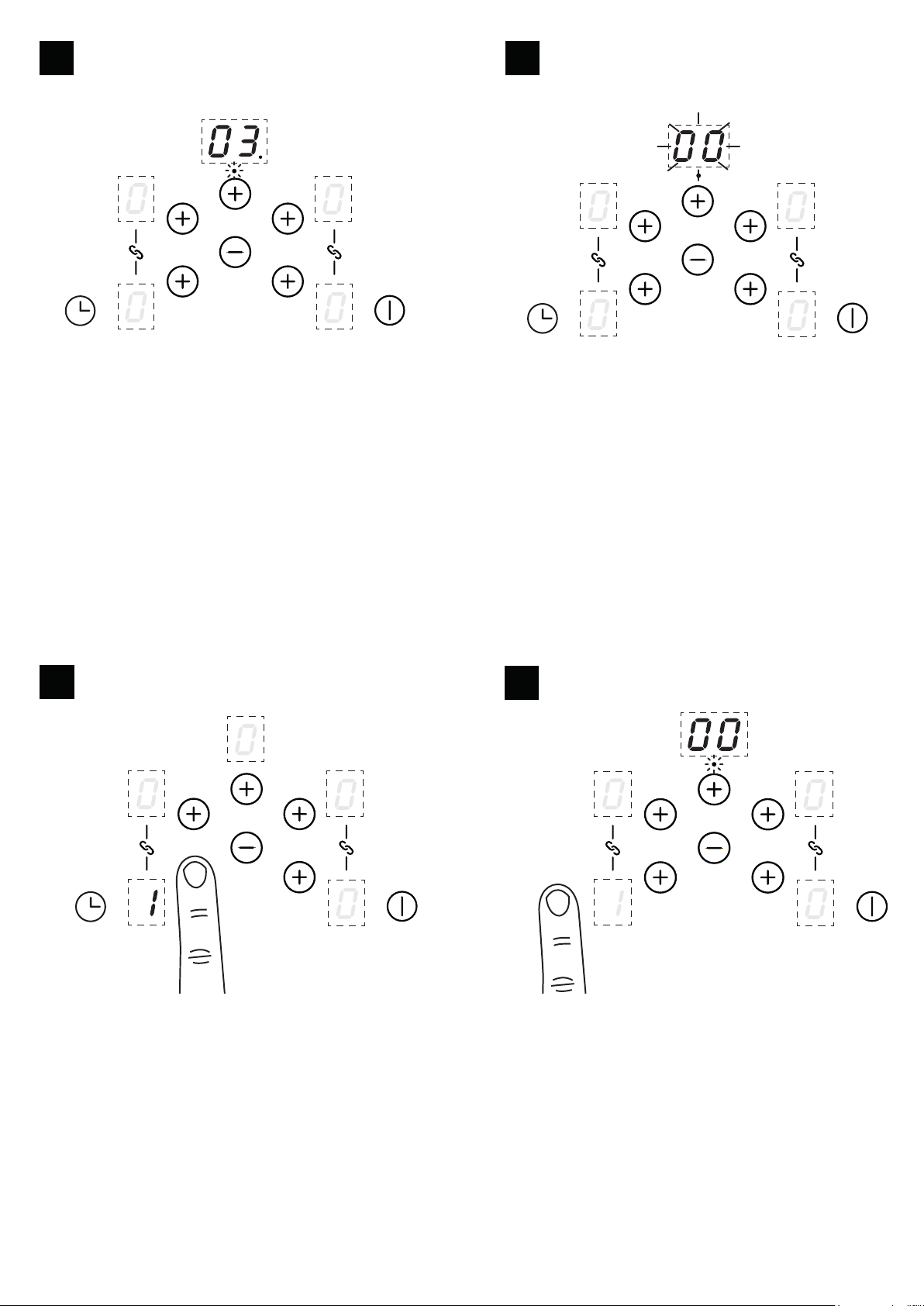

Setting the Minute minder

Set the time by pressing the timer key

Touch the timer key

1

2

or the minus key

The time will set when no key is pressed

2

Touch the timer key

3

after 1 second. A dot will flash in the
timer display. The time will count down

The maximum time that can be set is 99 minutes.

4

To modify or cancel the Minute minder

Repeat “Setting the Minute minder” steps to modify the timer.

The timer display will flash and beep will
be heard when the time is up. Touch any
key to stop the beeping

Setting the time back to “00” will cancel the minute minder.

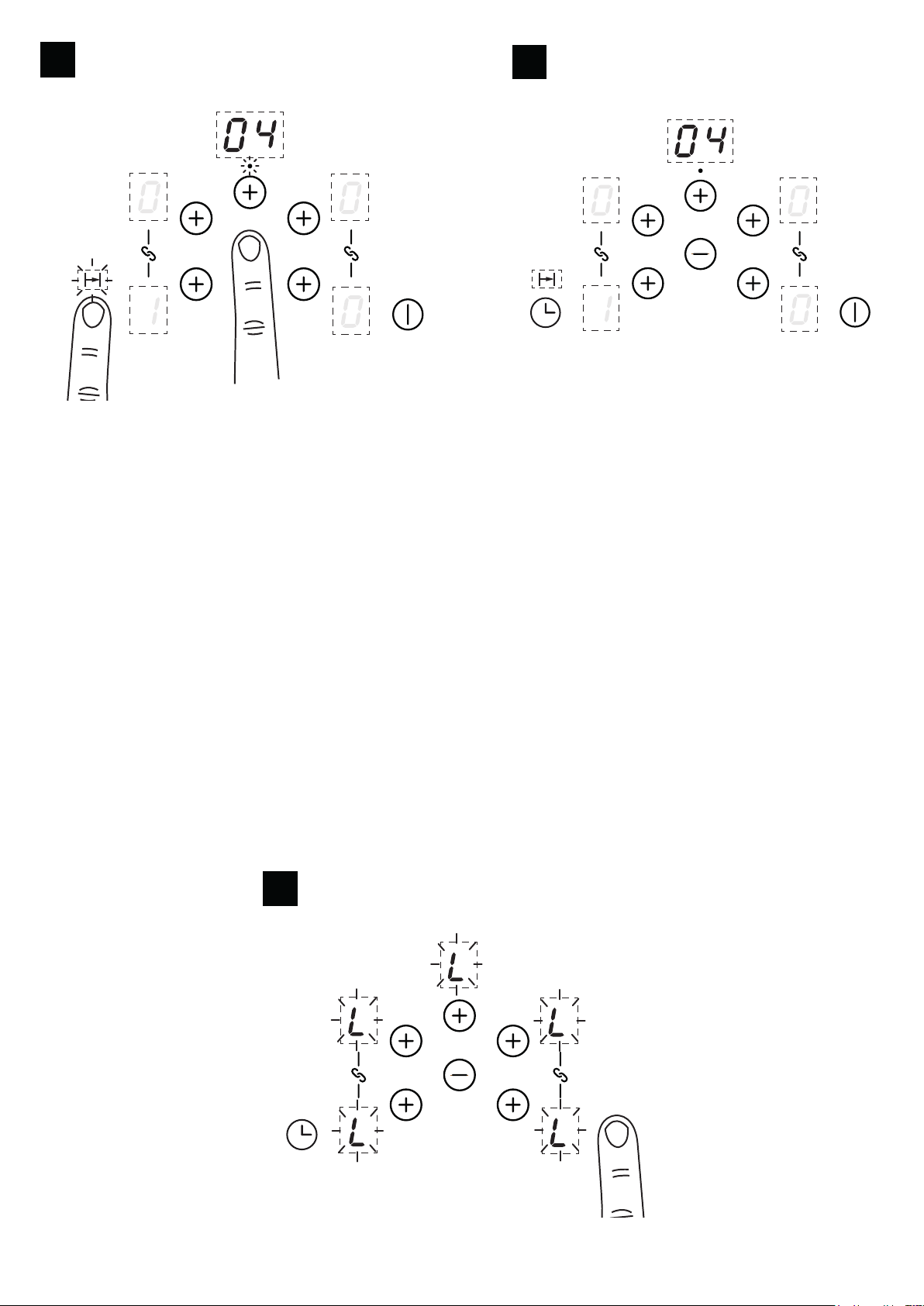

Timer auto switch off

Ensure power level is already set before selecting a cook zone to be timed.

Touch the cook zone plus key

1

3

Set the time by pressing the timer or the
minus key. The cook zone timer symbol
will appear next to the selected cook zone.

The time is set when no key is pressed

Touch and hold the On/Off key for 3

4

after 1 second

When the time is up, the timer display will ash, beep and the cook zone will automatically switch off.

Touch any key to stop the beeping.

To modify or cancel the auto switch off

Repeat the “Setting a cook zone timer” steps to set a time for other cook zones or modify a set time.

Setting the time back to “00” will cancel the minute minder.

Additional timer information

If multiple zones have been set for timed operation, the timer display will always display the time for the
cook zone with the shortest time remaining. To check the timer setting for a different cook zone, simply

select the required cook zone, the remaining time will briey appear in the timer display.

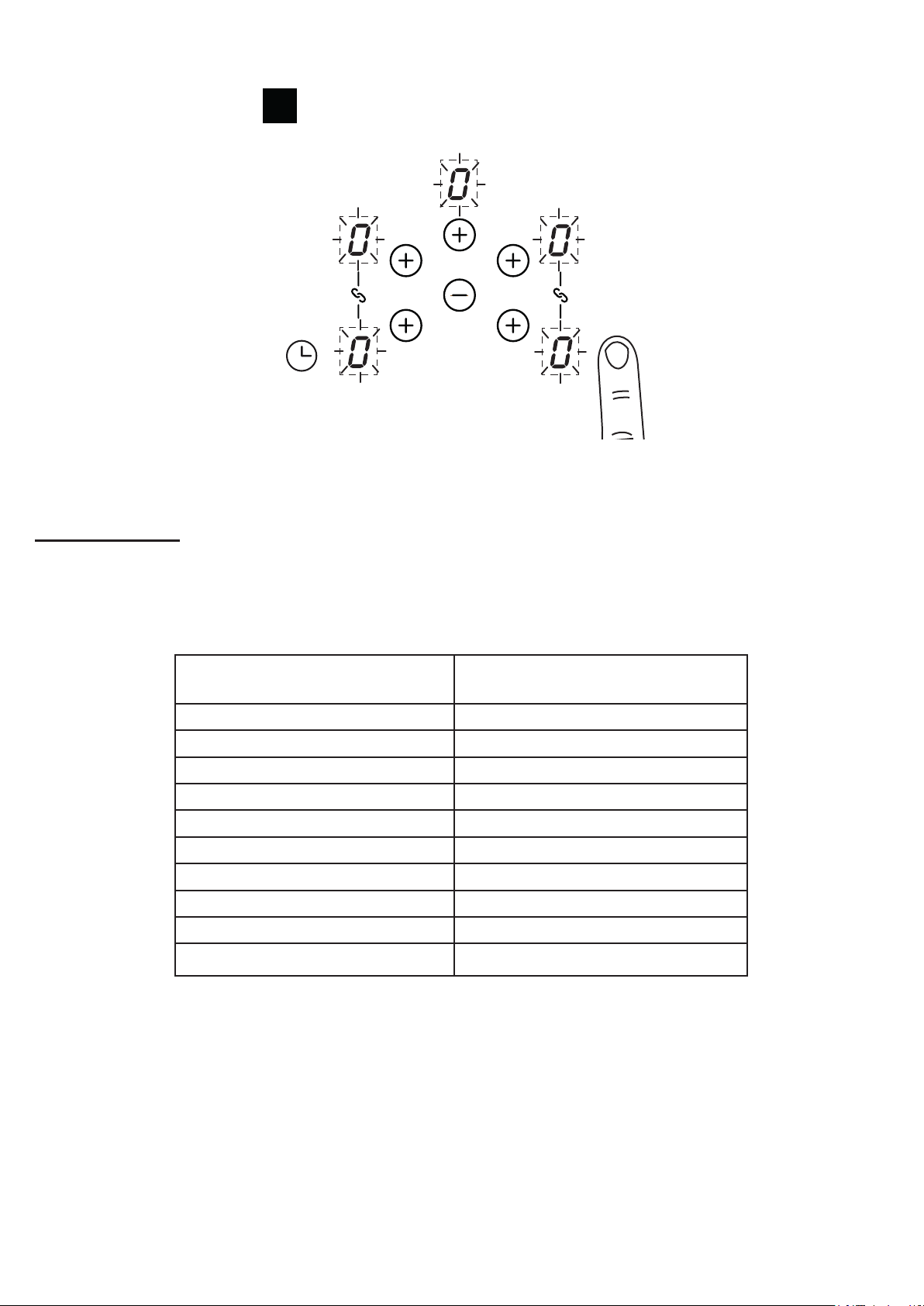

To activate child lock

The appliance must be switched on.

1

seconds until the “L” symbol appears on all
cook zone displays

When you now switch on the appliance “L” will appear in all the cook zone displays. The child lock fea­ture will be permanently activated.

To de-activate the child lock

1

Touch and hold the On/Off key to deactivate
the child lock. “L” symbol will disappear

Once the child lock is deactivated, the appliance can continued to be used.

Auto stand by

The hob will automatically switch off if left (with pan) on for an extended period of time, see maximum
running times below

Power Level

1 8
2 6
3 5
4 5
5 4
6 1.5
7 1.5
8 1.5
9 1.5

P (Power Boost) 5 minutes

Maximum Operation Time

hours

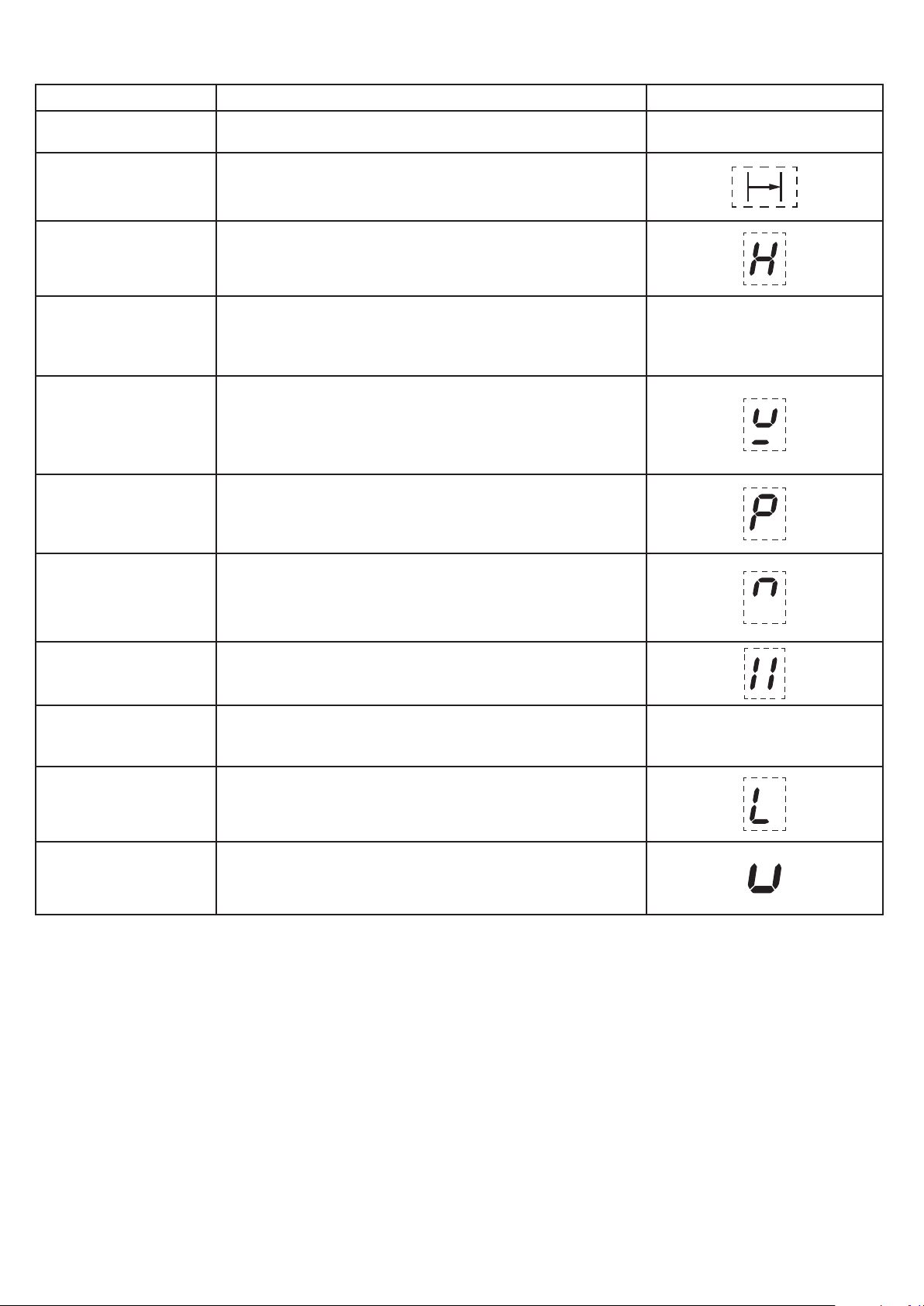

Appliance errors

Appliance

Errors

E2 Induction coil overheating Remove pans and allow to cool

E8 Fan blocked to appliance

E3

E6 Mains power disturbance

E/H Temperature sensor issue Allow system to cool

Fault Description Action

Check installation allows for free air ow,

clean cooling fan inlets on the underside of

Water or pans on the glass

above the user controls

Clean any water on the surface above user

controls/display

Supply to appliance must be checked-Contact

the hob

electrician

Please be aware that only the main oven is controlled by the programmer.

Clock / Programmer

Note: Your clock / programmer may not have all these functions

MenuMinus Plus

Minute minder

Cooking time / Duration

End of cooking time

Time of day

Keylock

Auto cooking

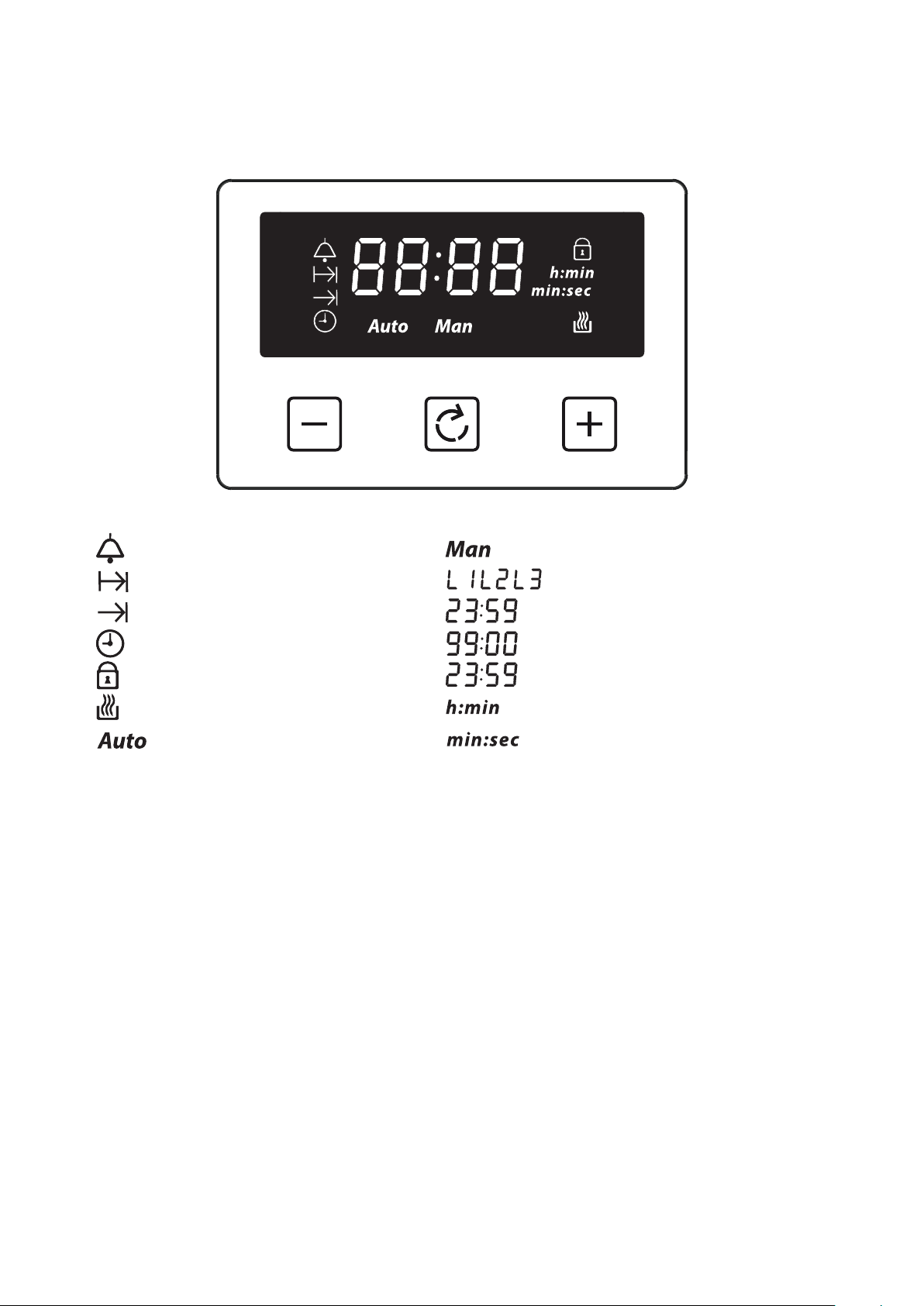

Automatic mode

Using the touch controls

Menu - Scroll through to select a function

Plus - Increase time or volume

Minus - Decrease time or volume

, ,

Manual mode

Volume level

7-segment display

Max. adjustable minute minder

Max. adjustable cooking time

Display hours:minutes

Display minutes:seconds

When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.

Manual Mode

If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

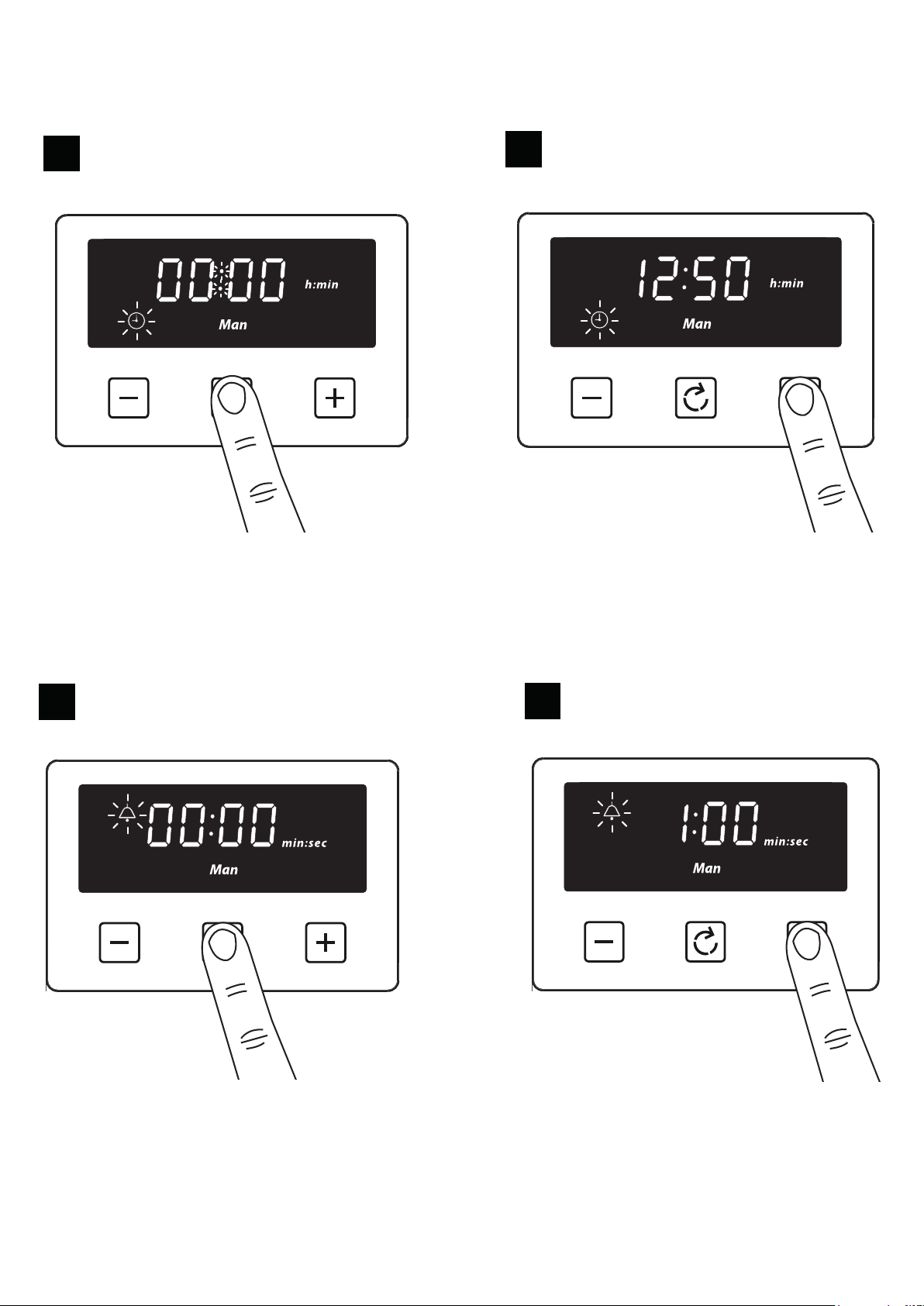

Setting the time of day

1

2

Press the plus or minus buttons to set a time

By pressing menu, scroll through the functions until you reach ‘time of day’.

Press the plus or minus buttons to set a time

1

2

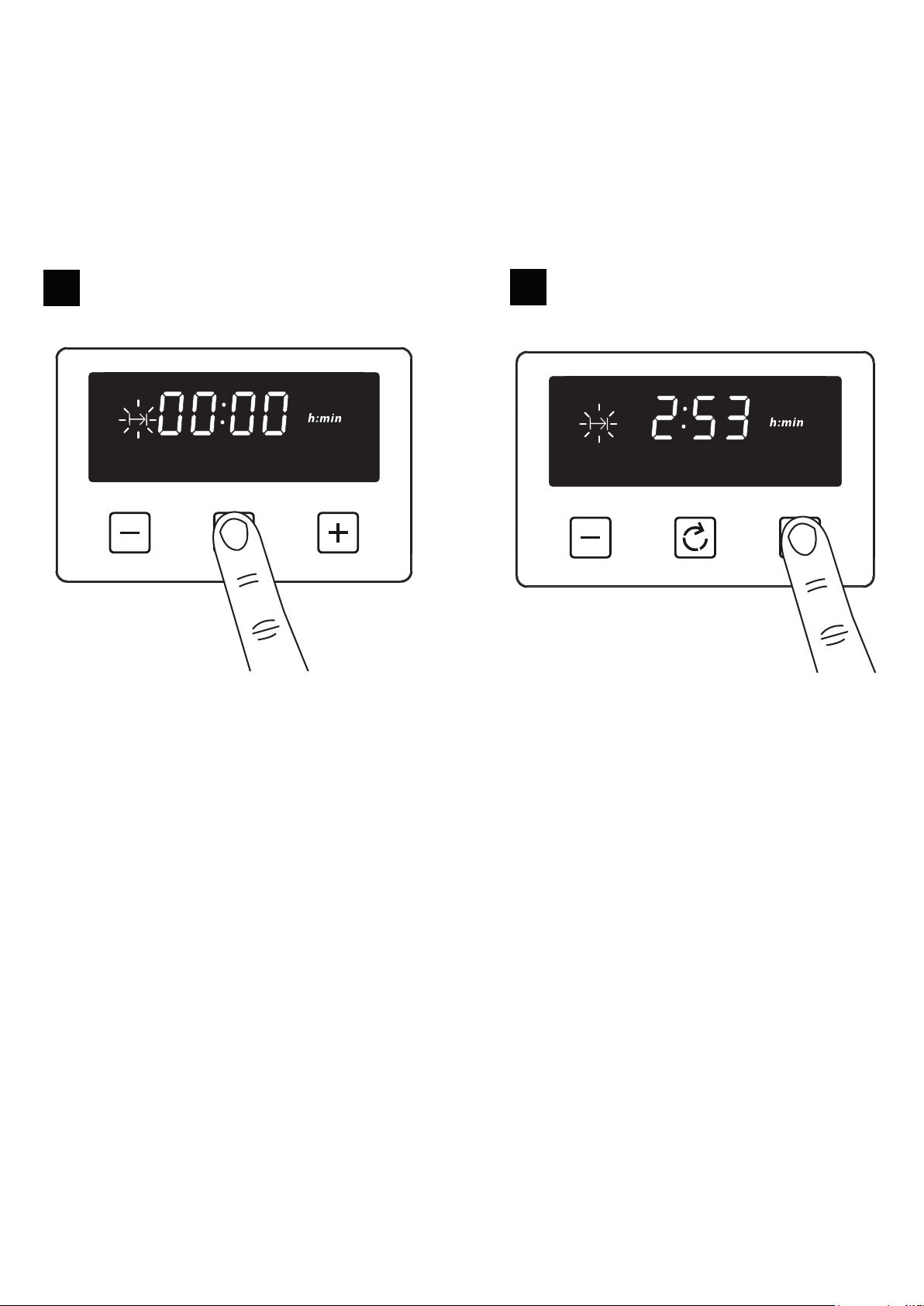

Setting the minute minder

The maximum cooking time that can be set is 99 minutes.

Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.

When the set time for the minute minder has completed, an alarm is heard and the minute minder

symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder

Return to the minute minder function and use either the plus or minus buttons to adjust the time. By
setting the time to ‘0.00’, this will cancel the countdown.

Setting the cooking time (the duration of time the oven will operate for)

The maximum cooking time that can be set is 23 hours and 59 minutes.

Press the plus or minus buttons to set a time

1

2

Once set, the automatic mode, auto cooking symbol and the time of day is displayed.

When cooking is completed, an alarm is heard and the manual mode symbol ashes on the display.

Press the Menu button to stop the alarm and then the ‘time of day’ will then be displayed. Pressing the
Menu button again will return to manual mode.

To modify or cancel the cooking time

Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.

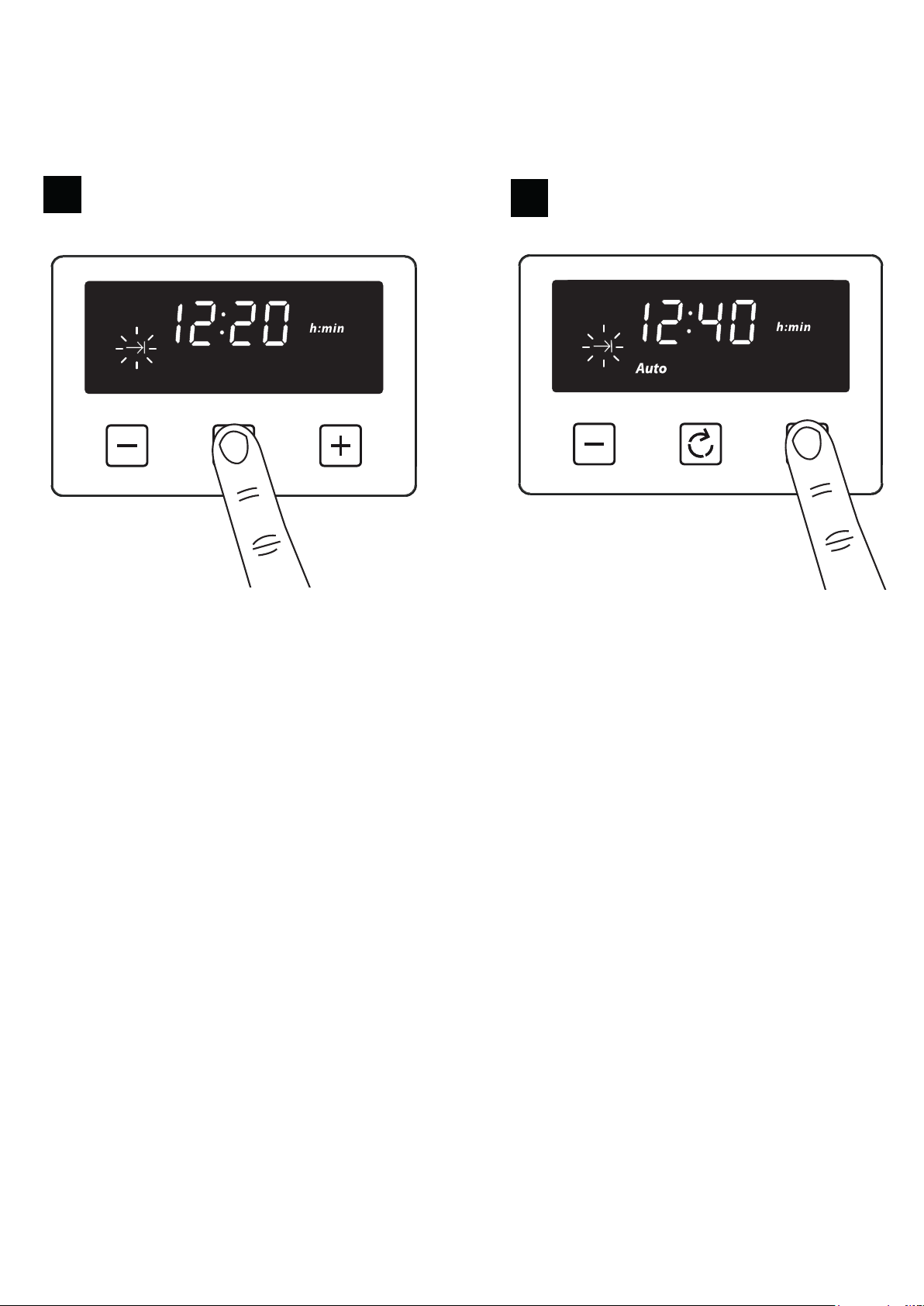

Setting the end of cooking time (to set a time for the oven to turn off)

The display shows the current ‘time of day’ plus the ‘end of cooking time’ symbol. The latest ‘end of
cooking time’ is limited to the current ‘time of day’ plus the maximum time that can be set (23 hours and
59 minutes).

1

The auto cooking symbol disappears from the display once the time, the required cooking settings and
temperature have been set. The appliance will not be switched on until the set cooking start time, that is
the difference between the cooking end time and the cooking duration.

Press the plus or minus buttons to set a time

2

When cooking is completed, an alarm is heard and manual mode symbol ashes on the display. Press

the menu button to stop the alarm. Pressing the Menu button again will return to manual mode.

To modify or cancel the end of cooking time

Return to the ‘end of cooking time’ function and use either the plus or minus buttons to set the time. The
‘end of cooking time’ can be deleted by counting back using the minus button until it equals the current
time of day.

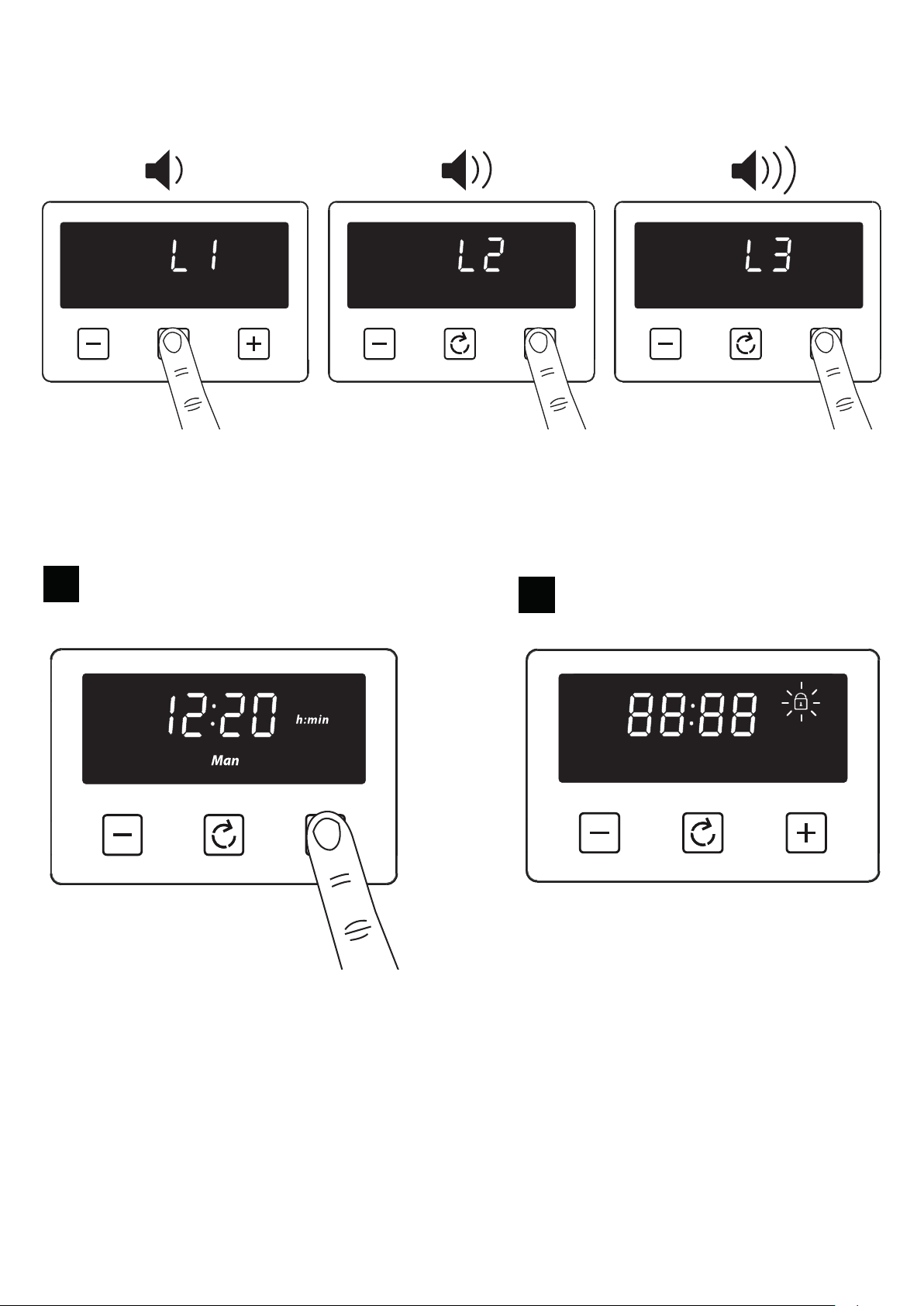

Setting the volume

1

Press and hold the plus button for 3-5
seconds

Press the menu button until “LX” (X = 1, 2 or 3) ashes on the display. Use the plus or minus buttons to

select a tone.

Note: Default tone is L3

Activating / deactivating Key lock

2

Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons

are pressed.

To deactivate the Key lock

Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance

can continue to be used.

Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status.

Key lock status and buzzer tone are memorized independent of the power loss duration.

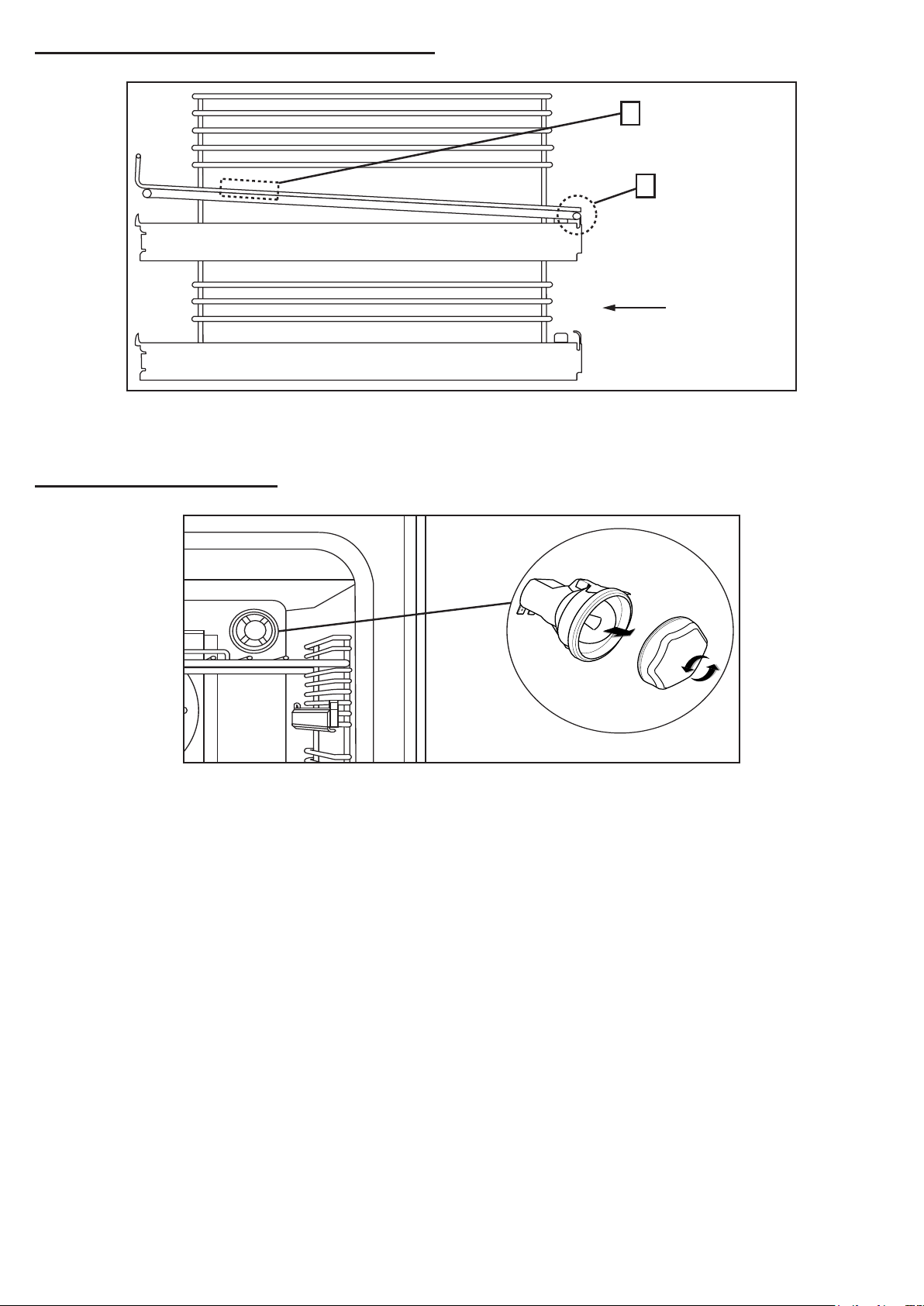

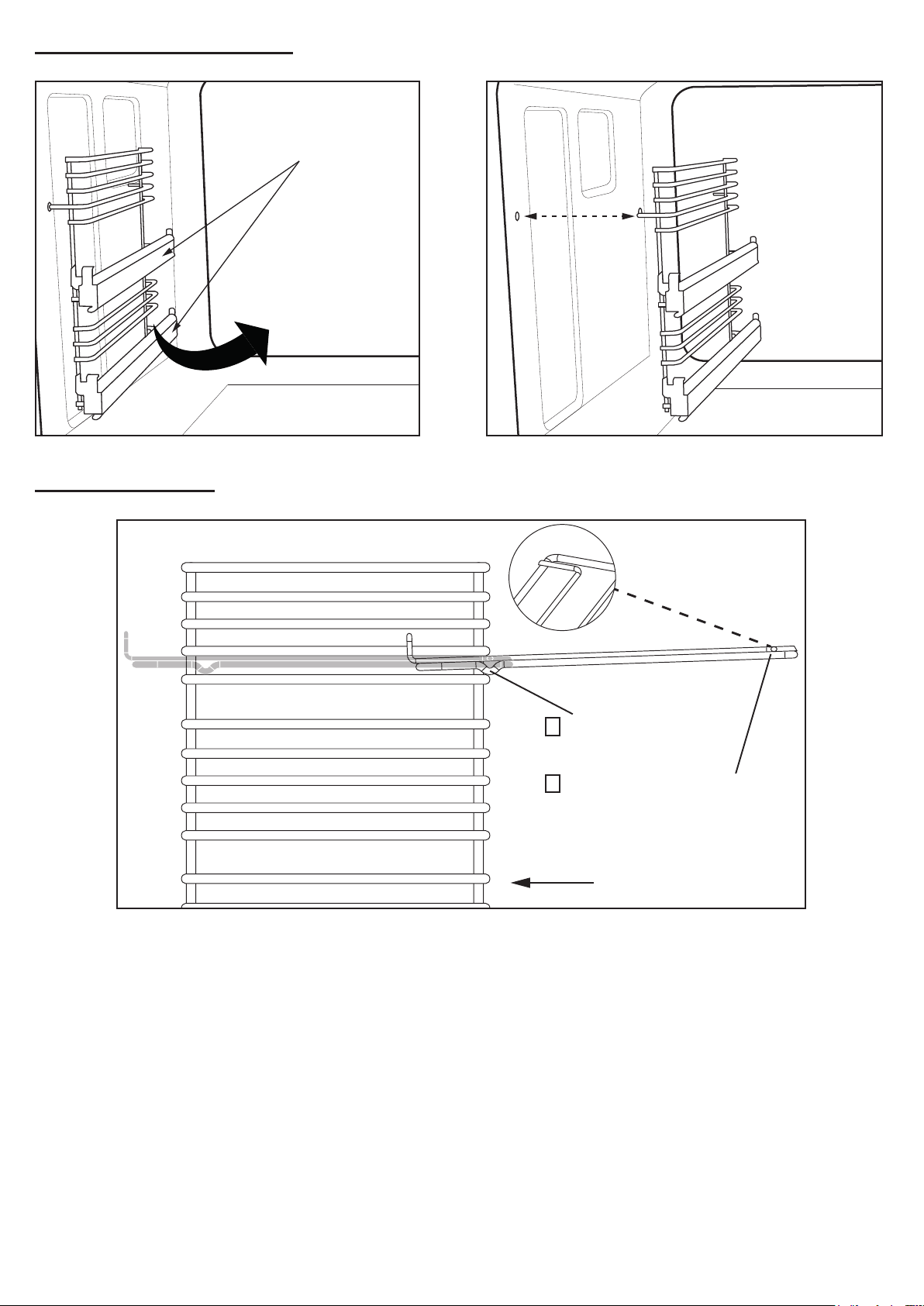

Removing Shelf Runners

Front of appliance

2

Ensure the shelf is fully pushed
back towards the back of the
oven, until the shelf stopper is
reached.

Slightly raise the shelf and
insert in the chosen shelf
position

1

Telescopic positions

Standard shelves

(if fitted)

RemovingTelescopicshelves(iftted)

1

2

Grasp and lift shelf

Lift shelf from the
retaining tabs.

Front of appliance

Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining
tabs.

Changing the light bulb

Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see
what type you have. Please remember that bulbs are not covered by your warranty.

Additional features

Plate rack (if supplied)

1. Pull the shelf out of the cavity.

2. Tilt the plate warmer towards you and make sure that it hooks underneath the shelf bars at the front.

3. Drop the plate warmer carefully into position.

The plate warmer is now secure and you can place your plates into it.

Always make sure that you use oven gloves if you are putting the plate warmer into a hot, or recently
used oven to prevent burns.

Always make sure that your plates are suitable for warming - some plates may shatter or crack when
exposed to heat.

We recommend that you heat the oven to 70°C, or below, if you are warming plates.

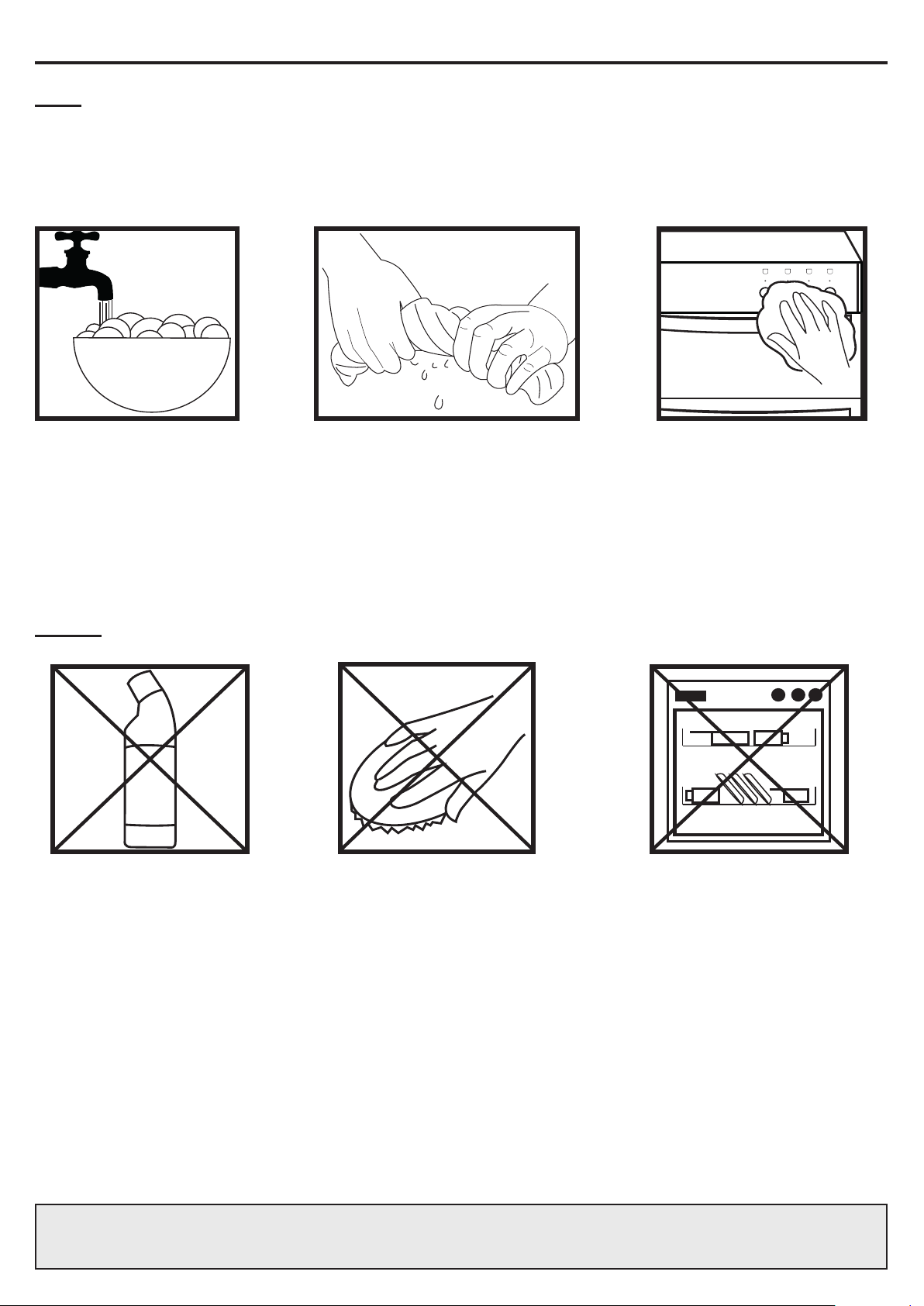

CLEANING YOUR APPLIANCE

H

Do’s

Note: Always switch off your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to

them fading.

• Warm, soapy water • Wipe with damp cloth

• Clean, wrung out cloth

• Dry with a soft cloth

Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.

Dont’s

• Undiluted bleaches

• Chloride products

• Wire Wool

• Abrasive cleaners

• Nylon pads

• Steam cleaners

Do not place in the
dishwasher:

• Cast iron griddle

• Pan supports

IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT IT’S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.

IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR

GLASS.

We offer a great range of cleaning products and accessories for your appliance.

To shop, please visit our website located at the front of this User Guide.

Please keep this handbook for future reference, or for anyone else

who may use the appliance.

TECHNICAL DATA

Electric Range

Hob top

Electrical supply / load

Electrical supply Hotplate Zone Appliance Size (cm) / Load kW

100 / 110

Left hand front 1.2 / 1.4

240v Induction

Ovens

Left hand rear 1.4 / 2.0

Right hand front 1.2 / 1.4

Right hand rear 1.4 / 2.0

Middle 2.3 / 3.0

Maximum load 7.5kW

Electrical supply / load

Electrical

supply

240v

Oven Lamps / Fans

Lamps 25W each
Cooling fans 10W each

Oven stir fan 30W each

Oven Load kW

Conventional 2.07
Fanned 2.00

Single variable grill (if tted) 1.85
Dual grill (if tted) 2.70
Conventional top (if tted) 1.39

Appliance

Electrical supply / load

Appliance type Electrical supply Max. load (kW)

Single grill models

240v ~ 50 Hz

Dual grill models 14.52

14.37
