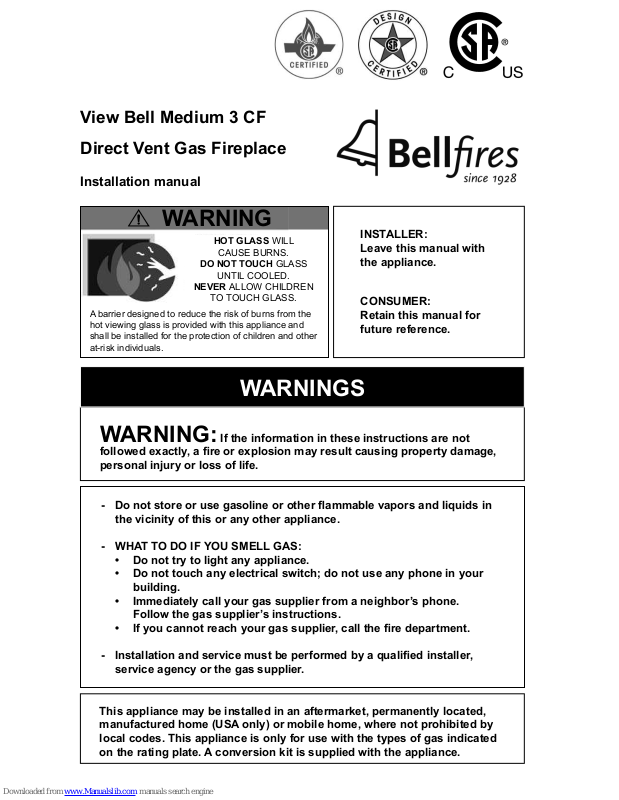

View Bell Medium 3 CF

Direct Vent Gas Fireplace

Installation manual

- Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

- Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

WARNING: If the information in these instructions are not

followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the types of gas indicated on the rating plate. A conversion kit is supplied with the appliance.

WARNINGS

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

WARNING

Page 2

Page 3

Bellﬁ res

Installation instructions

CONTENTS

Page

IMPORTANT SAFETY INSTRUCTIONS ................................................

.......

... 5

CODE APPROVAL .....................................................

.......

.........

...

.......

...

. 8

PRE INSTALLATION INSTRUCTIONS ............................

...............

...........

.....

. 9

GENERAL ................................................................

..................

.....

......

... 9

CONCENTRIC FLUE SYSTEMS ...............................

.........

..................... 10

INCLUDED WITH THE APPLIANCE ..........................

......................

........ 10

OPTIONS AND ACCESSORIES .............................................................. 1

CLEARANCES .....................................................................

..........................

.. 12

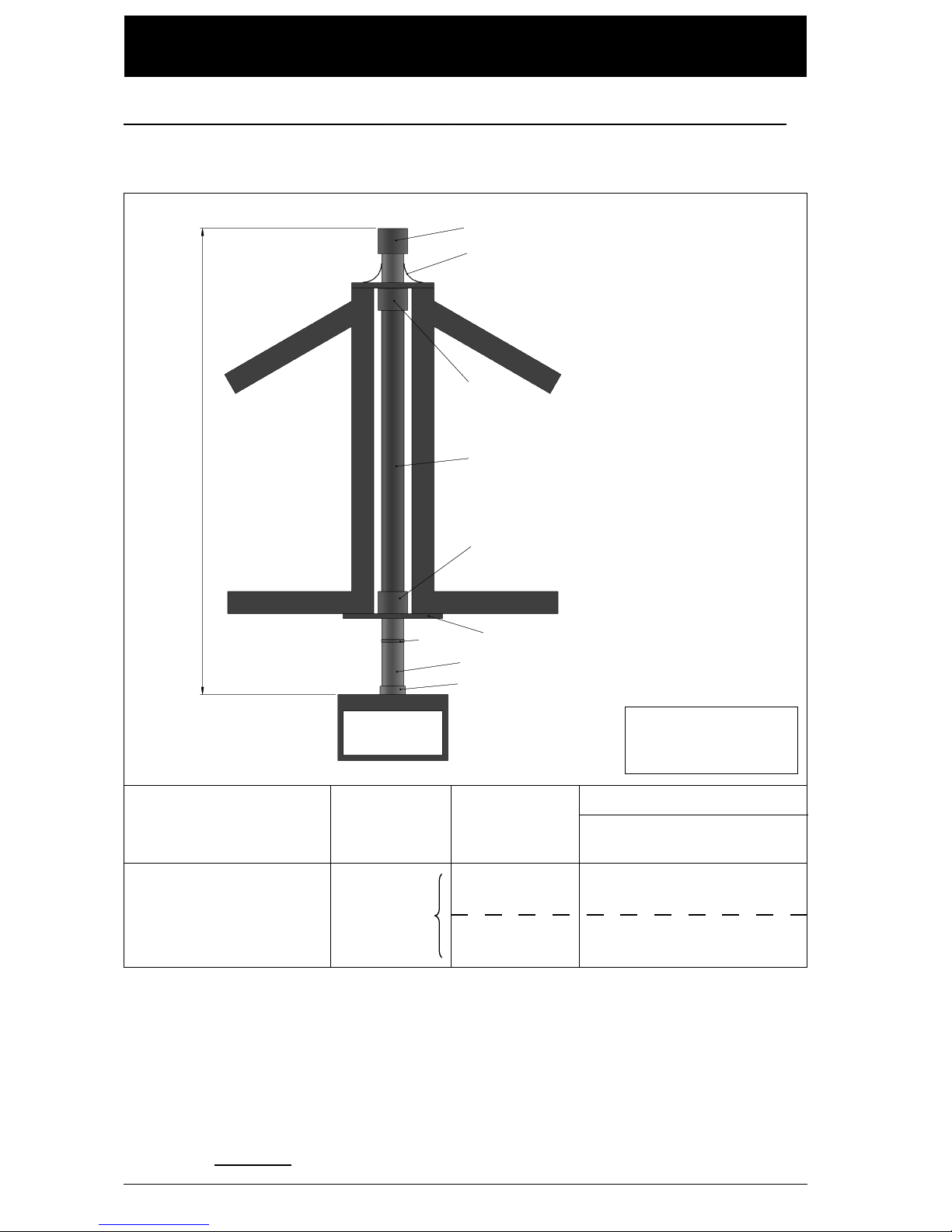

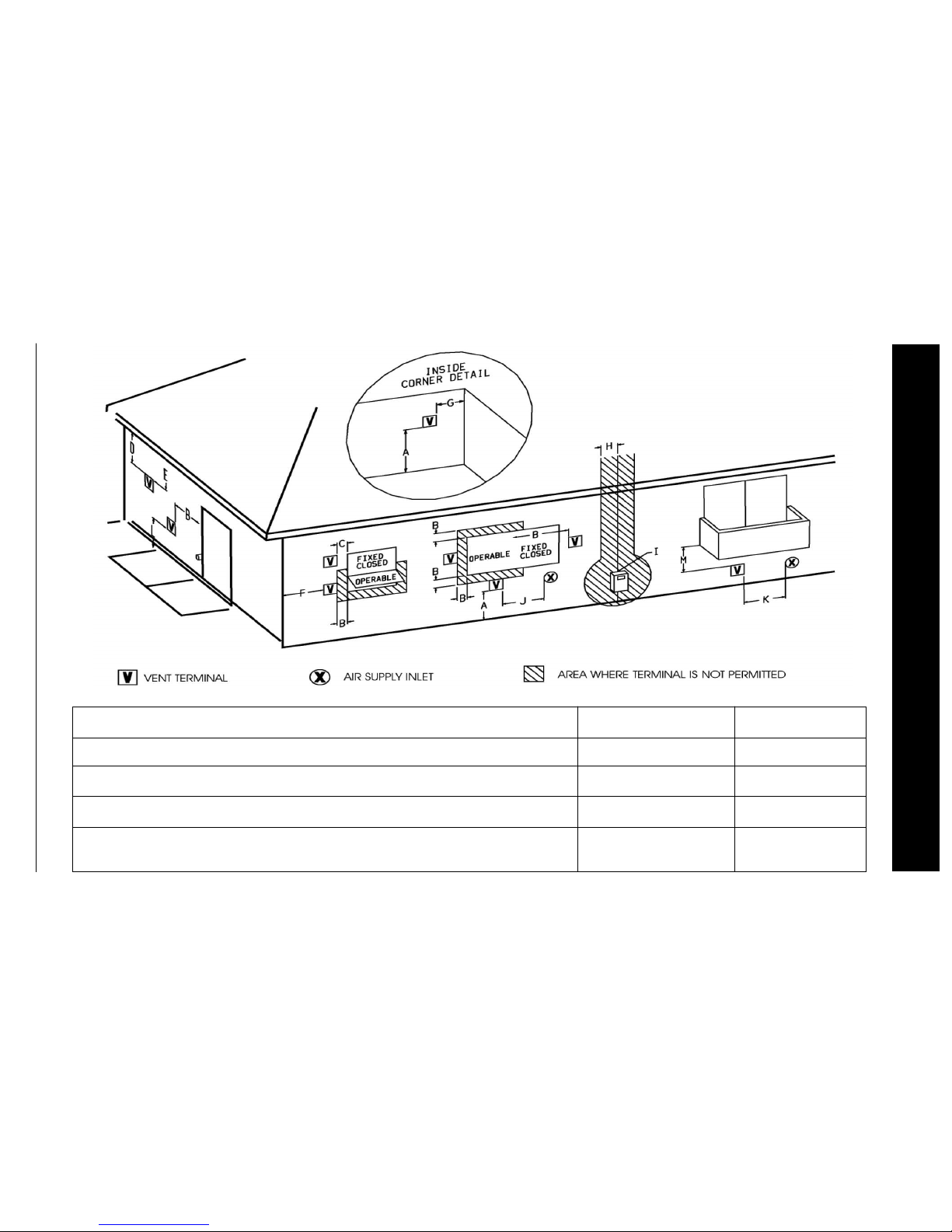

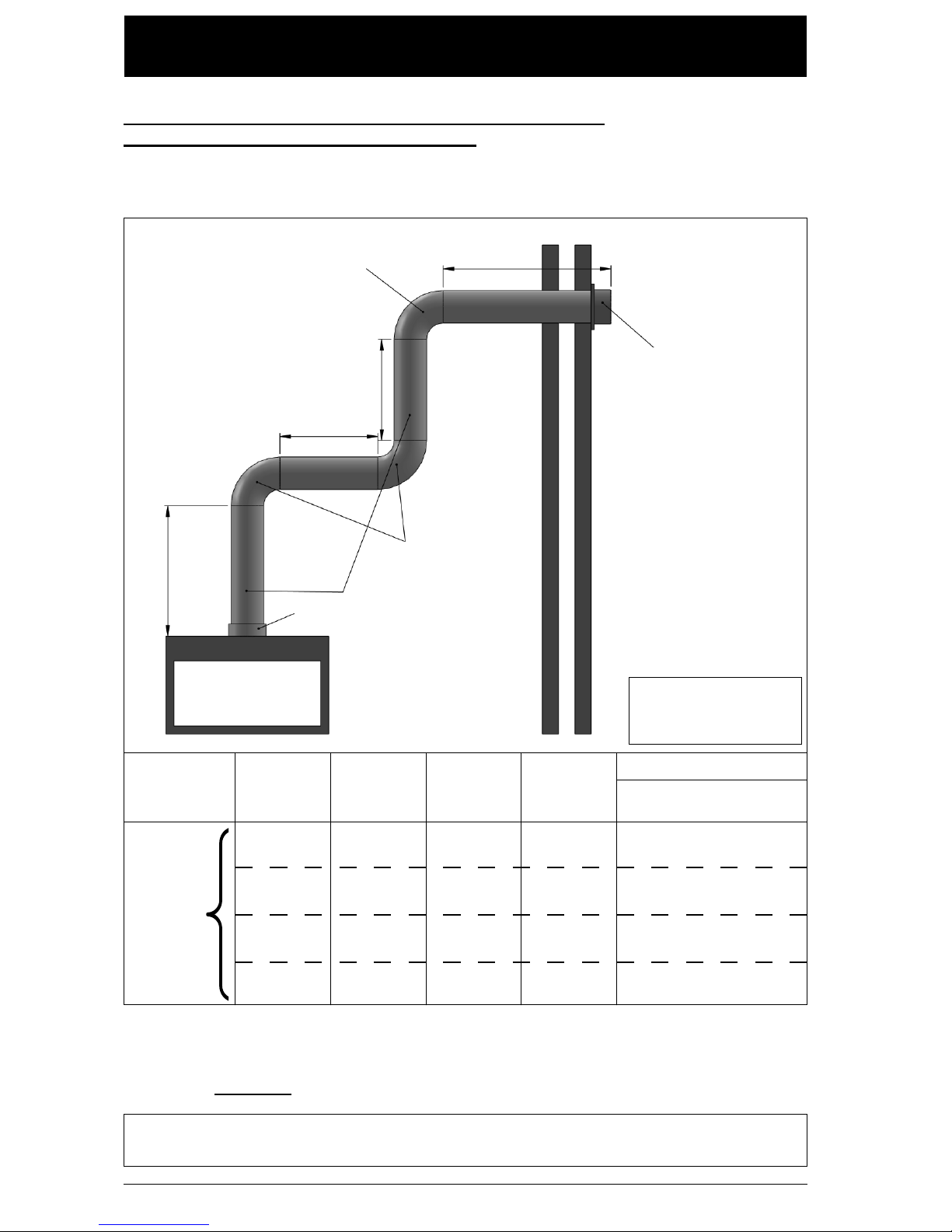

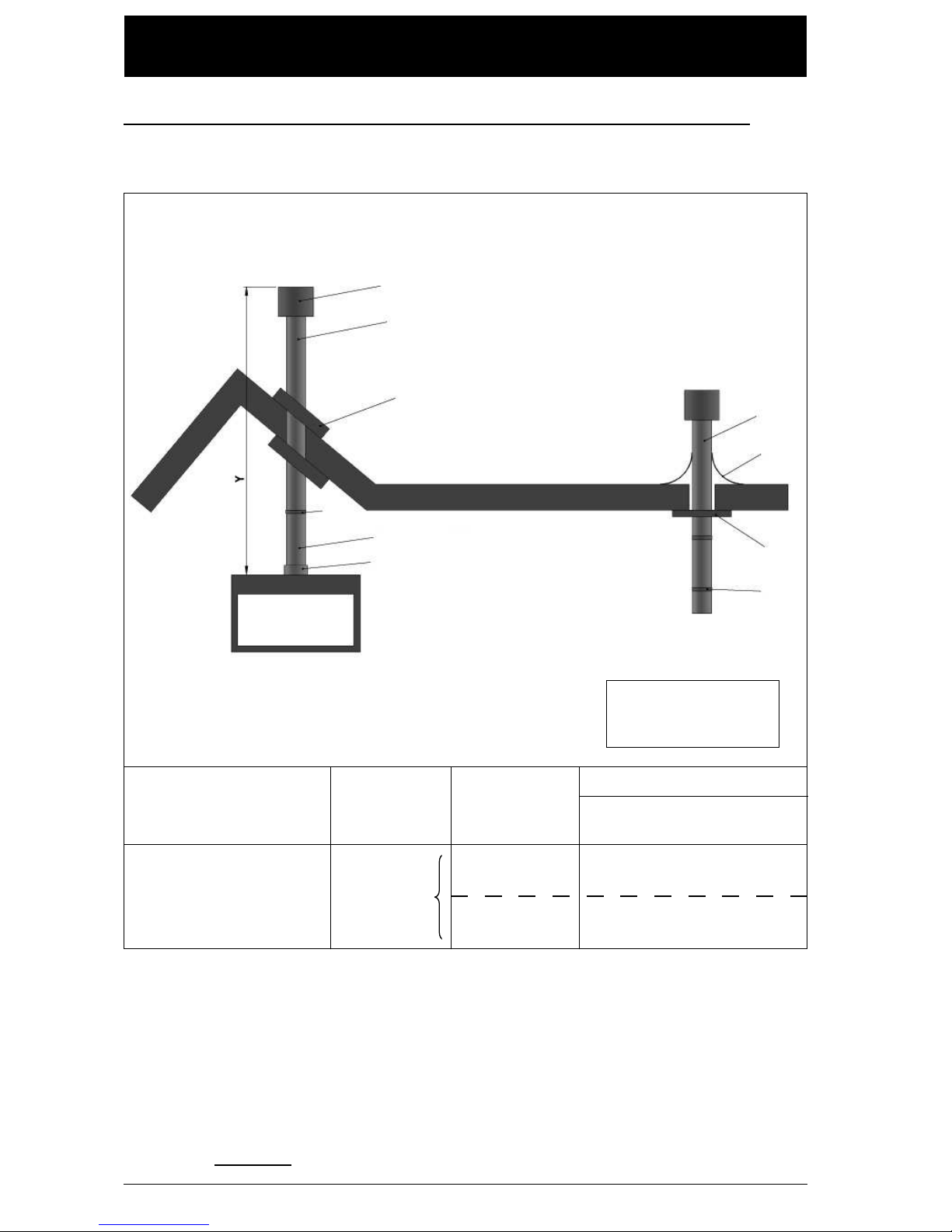

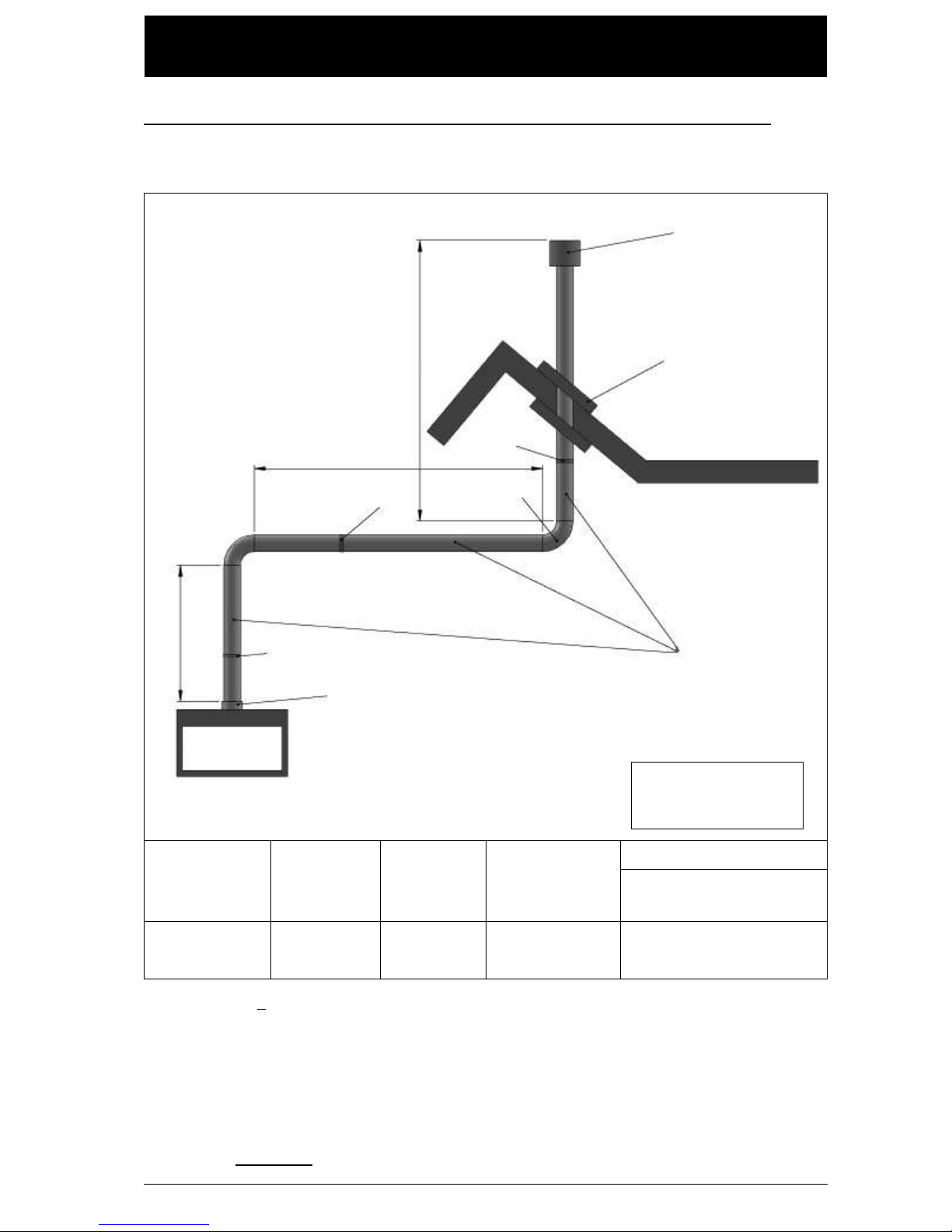

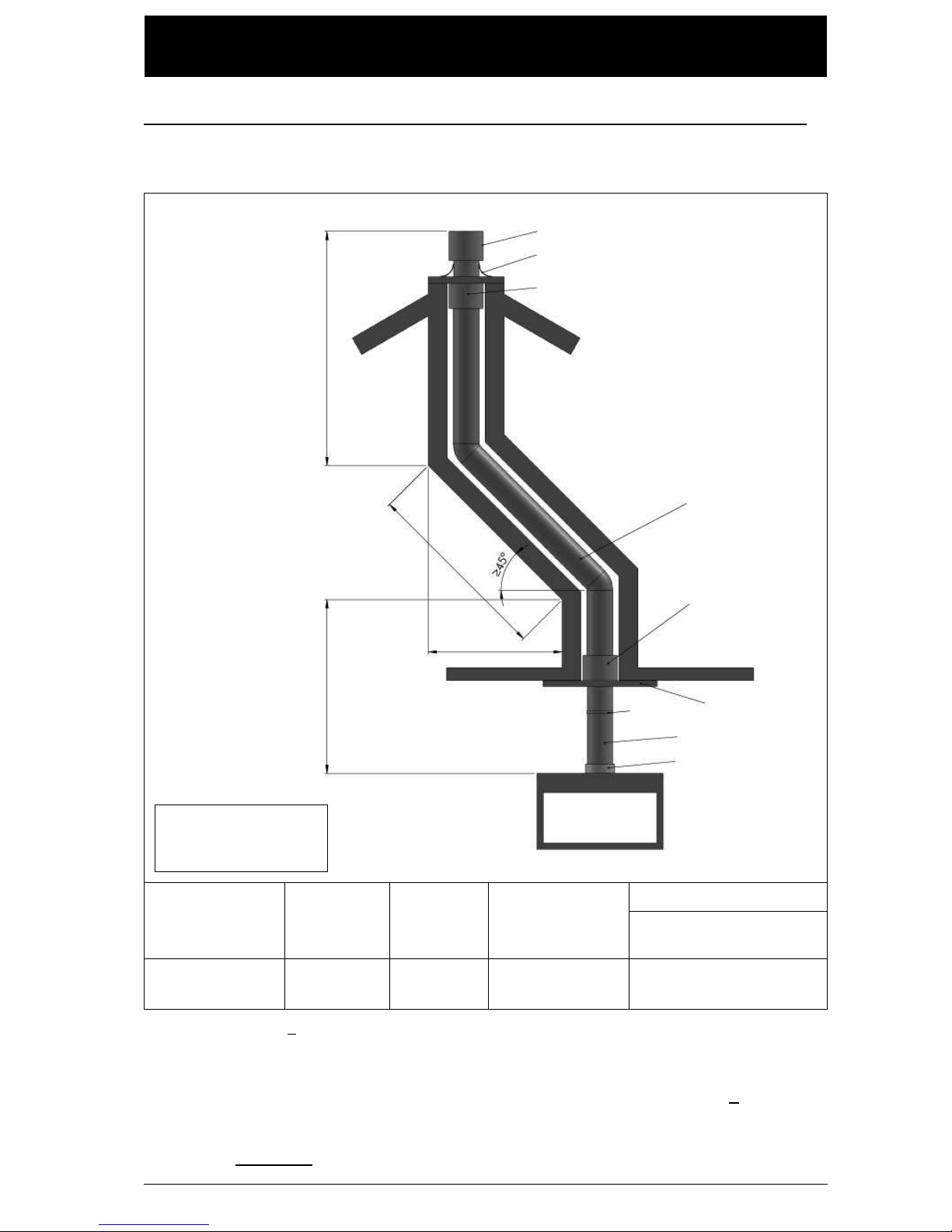

VENT INSTALLATION ......................................................

...............

......

...

........ 20

POSITIONING THE APPLIANCE ...................................................

.......

........... 36

GAS LINE INSTALLATION ...........................................................

...

....

..........

... 41

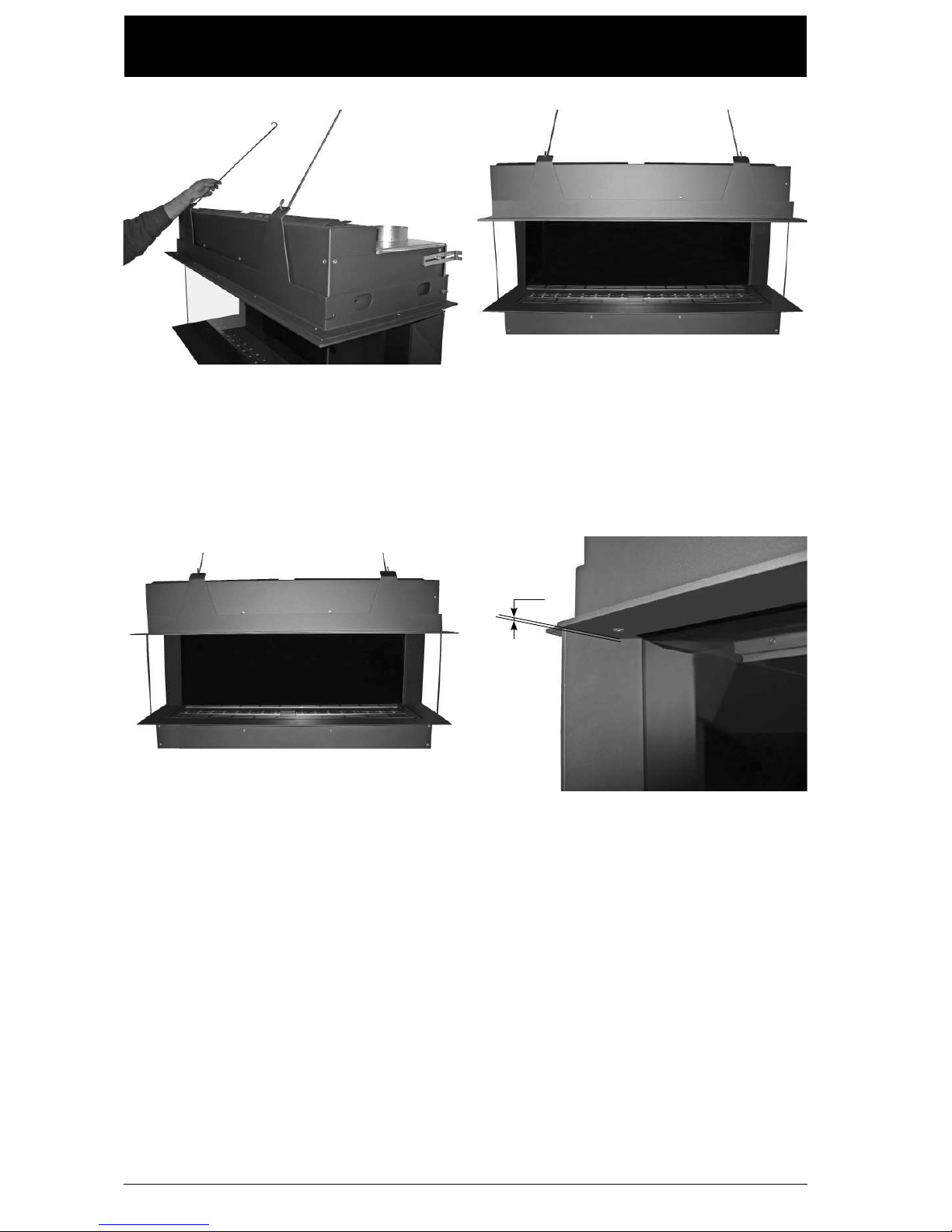

BUILDING IN THE APPLIANCE .........................................................

......

........ 46

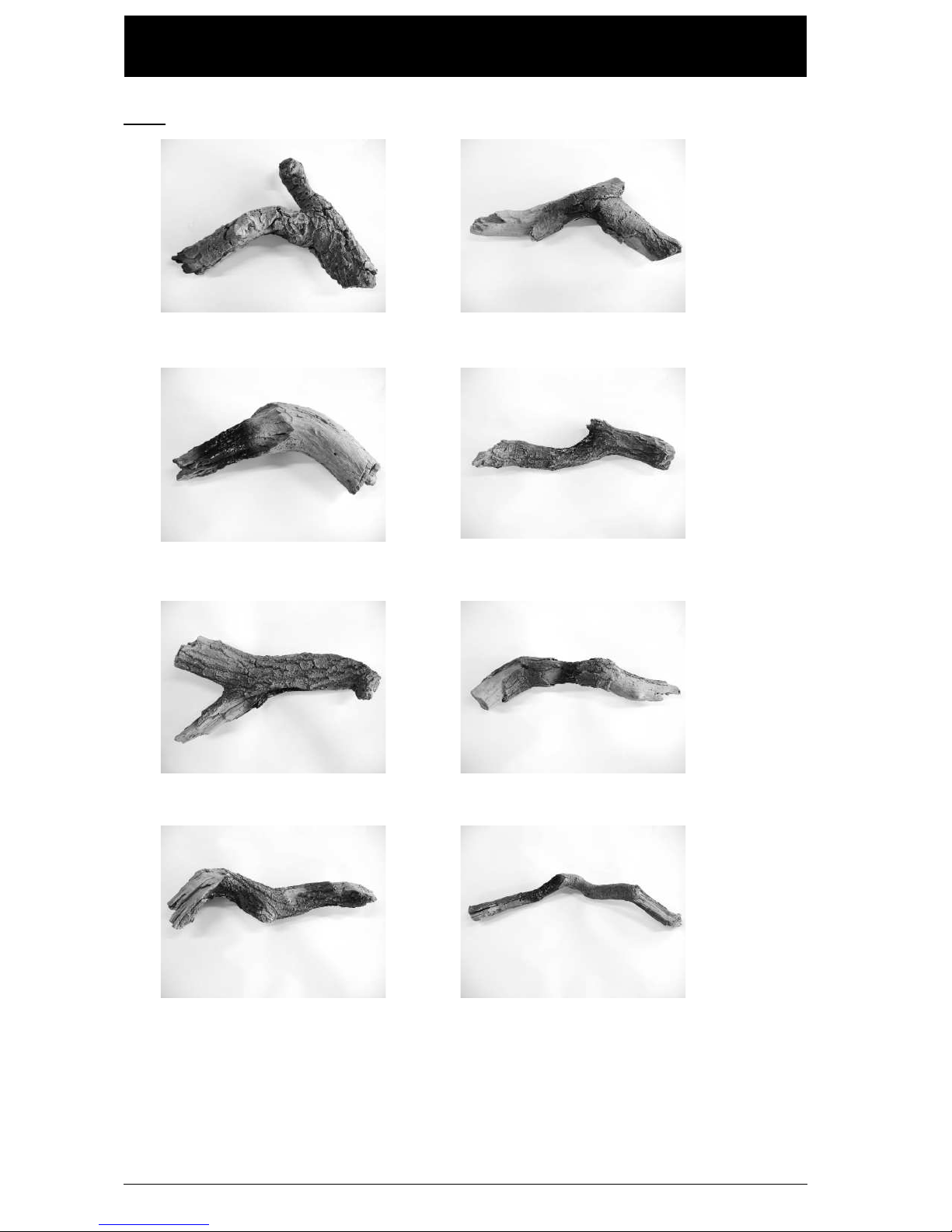

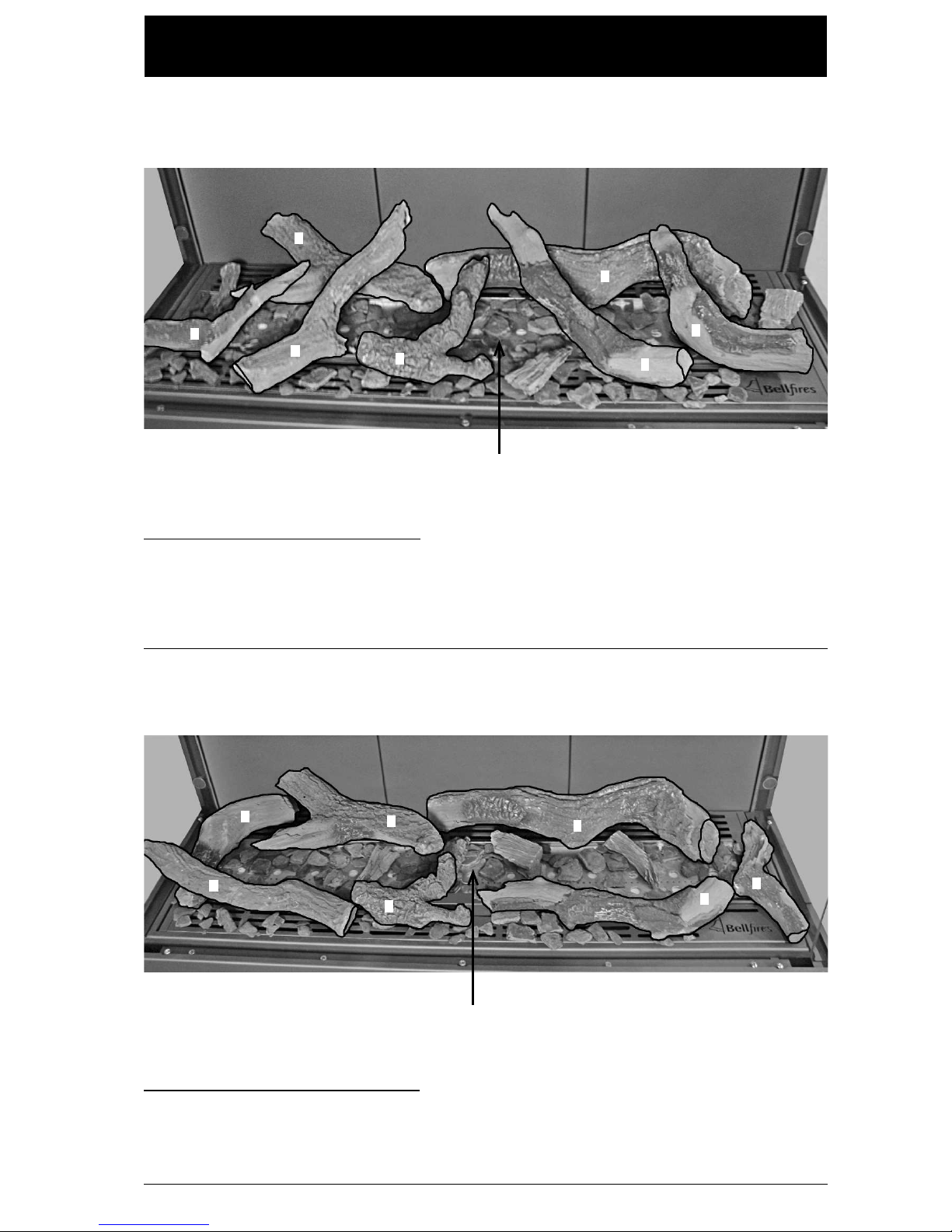

PLACING OF CERAMIC LOG SET .................................

.........

....

............

.......

. 50

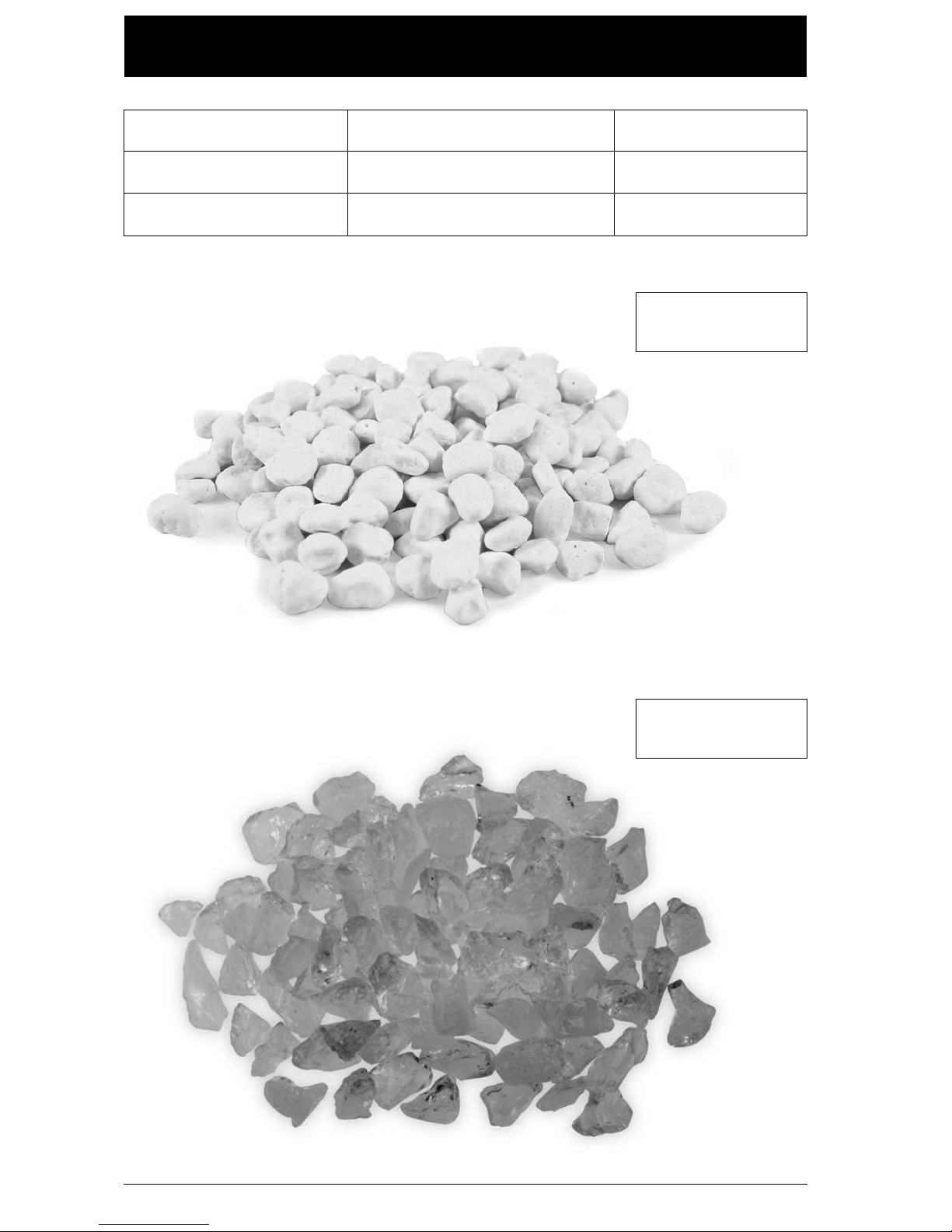

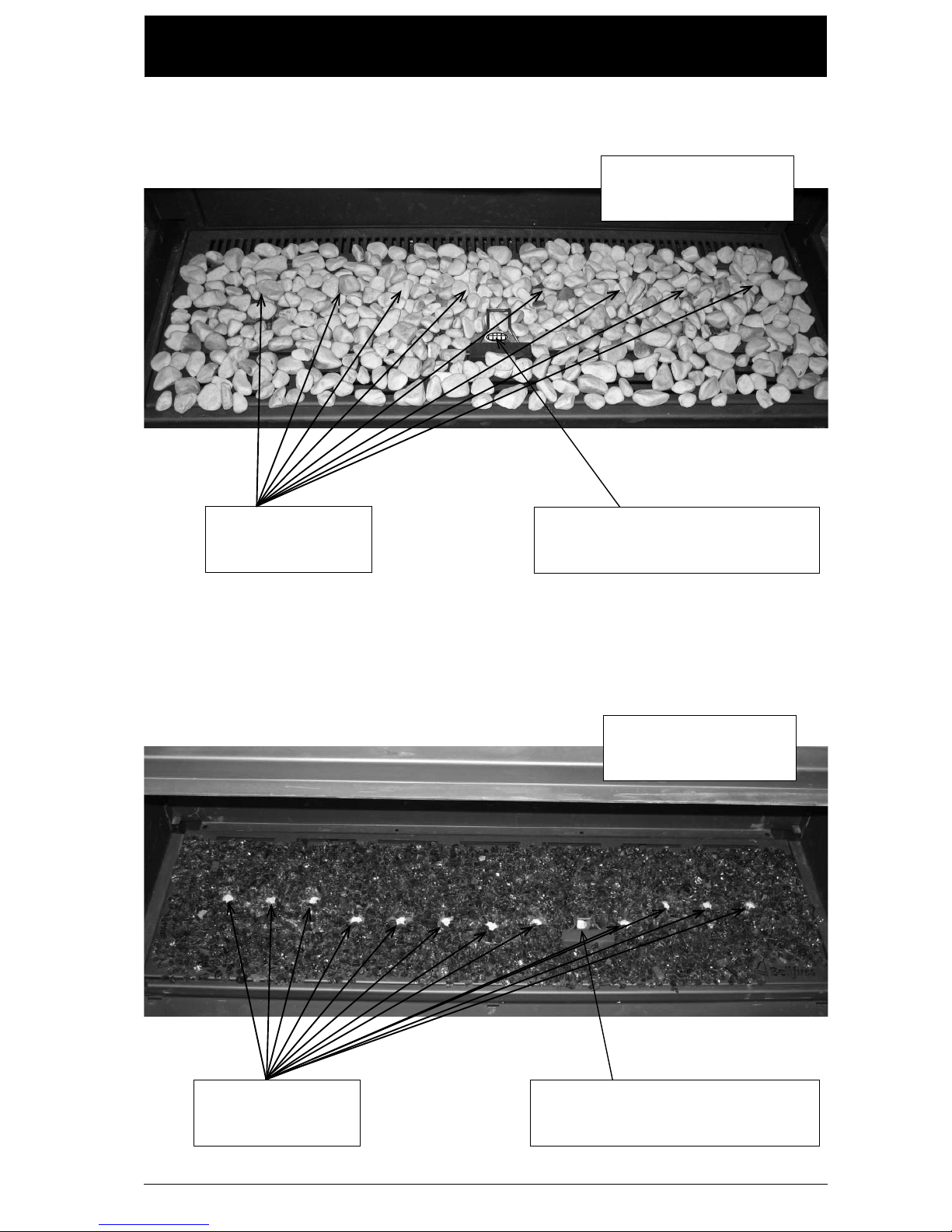

GAS FIRE DECORATION KITS .......................................

....................

............. 54

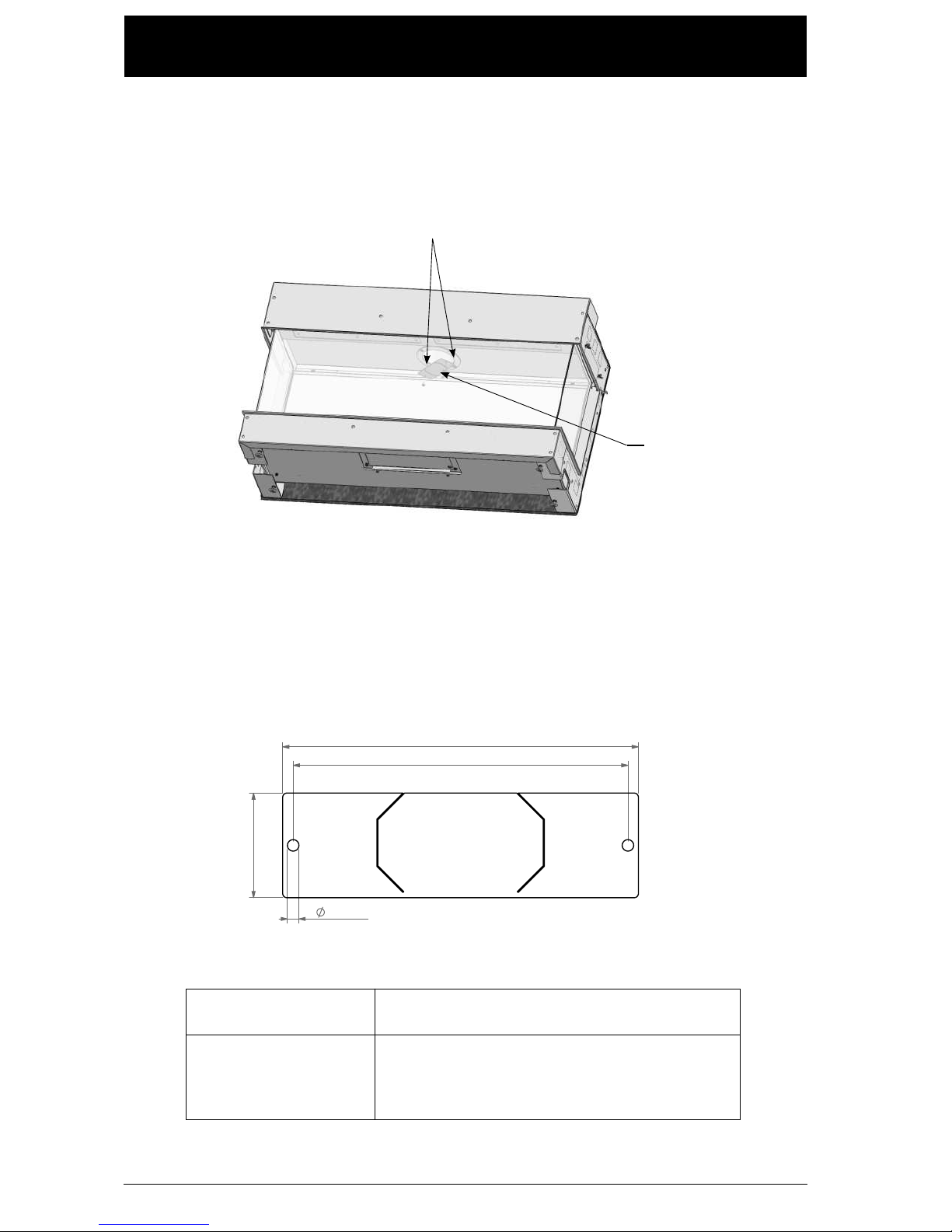

MOUNTING OF FLUE GAS RESTRICTION PLATE ...........................

........

..... 58

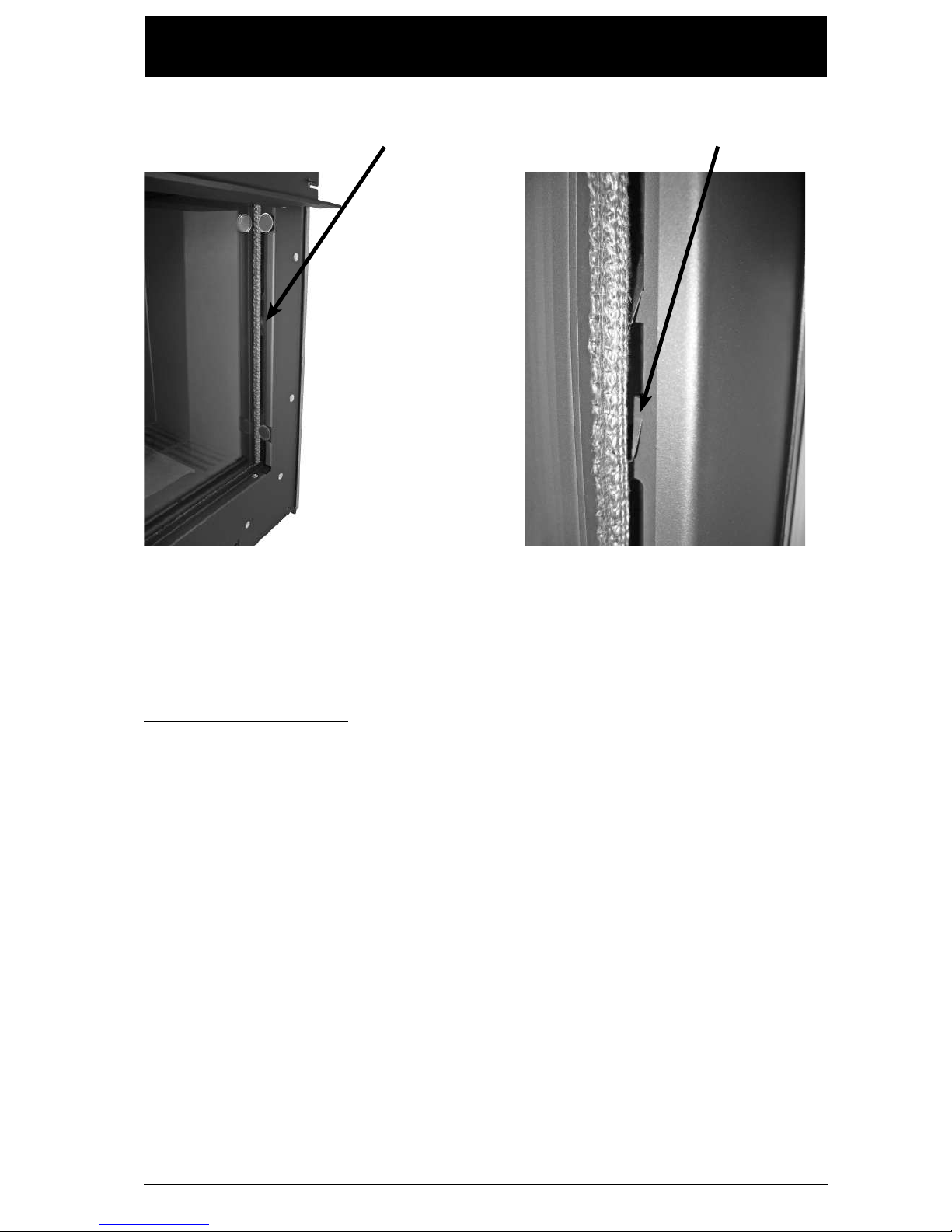

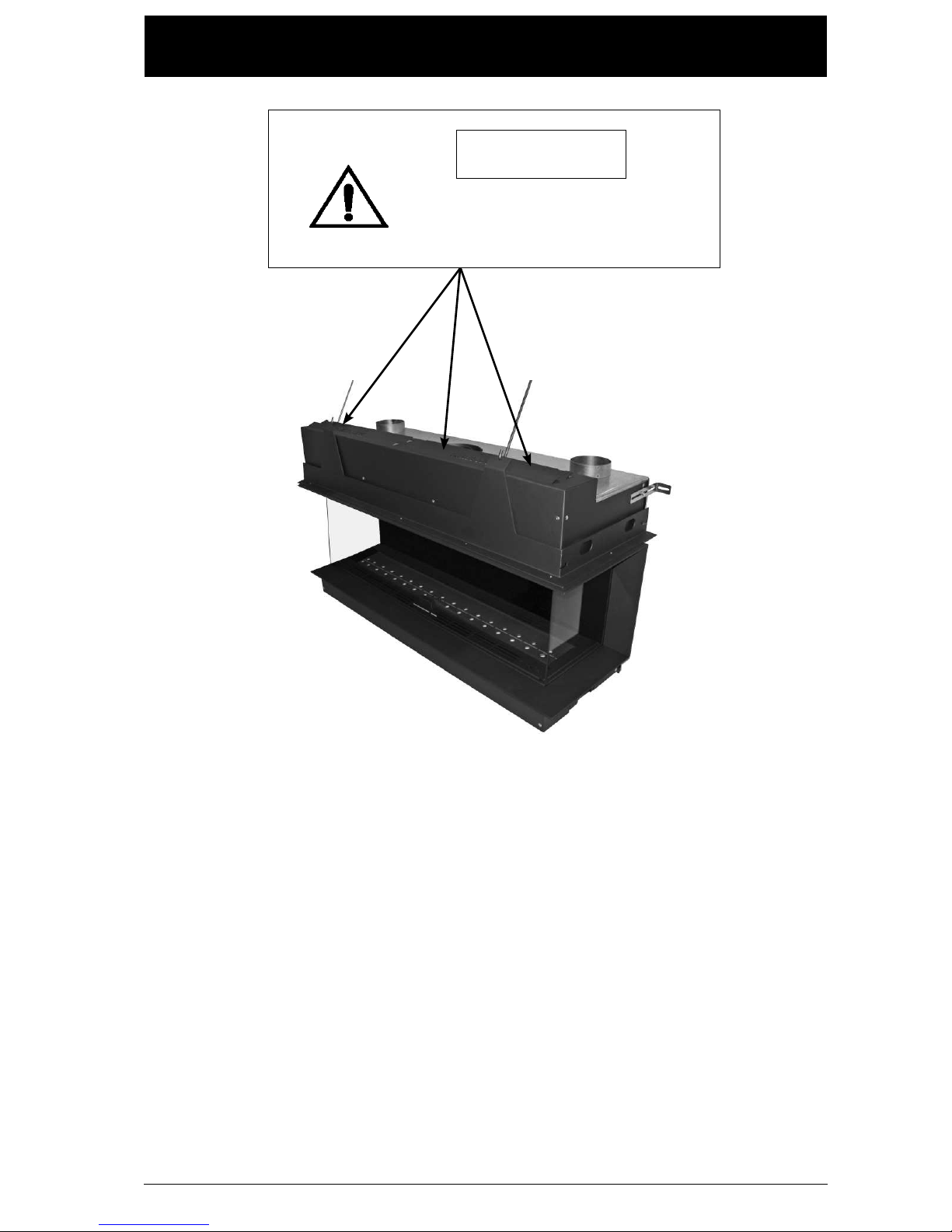

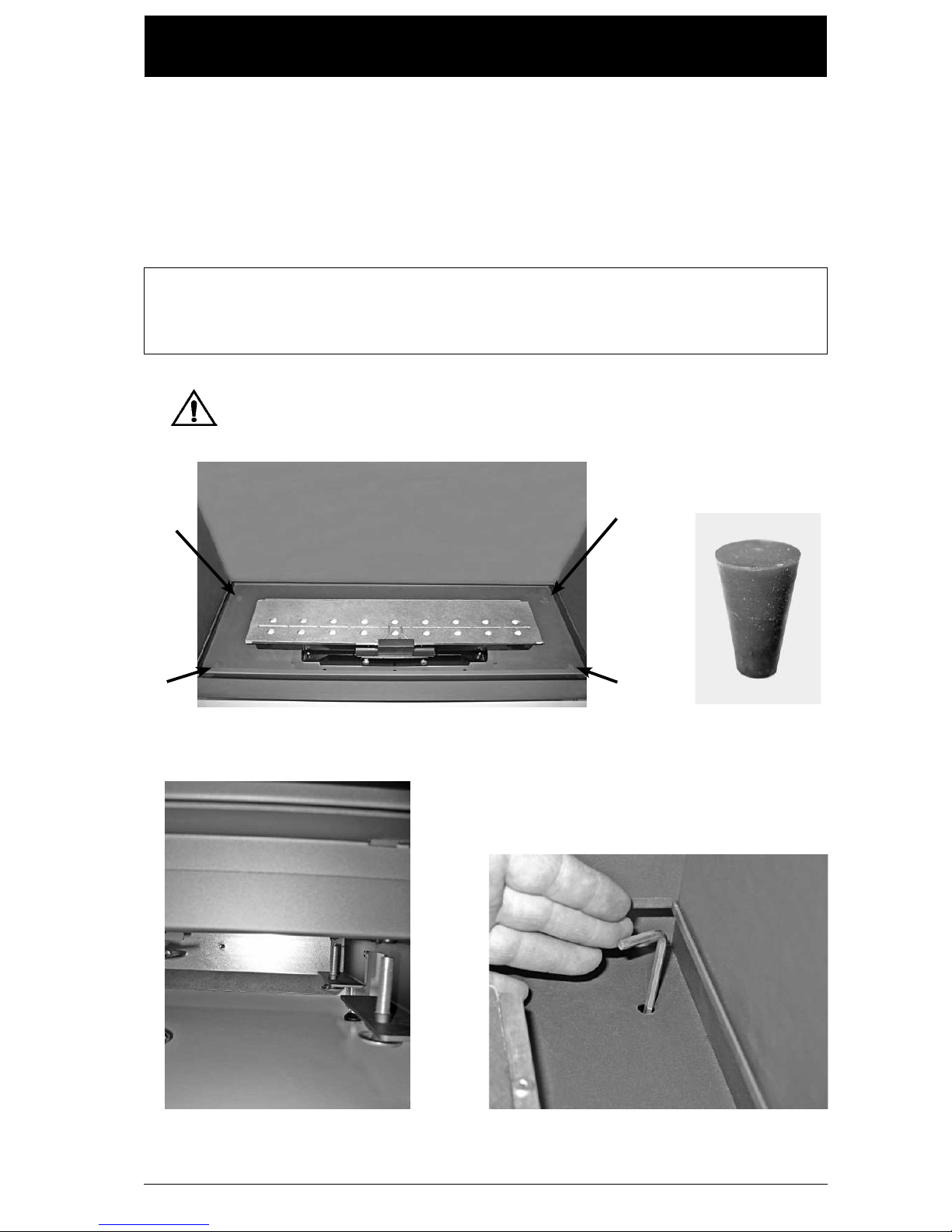

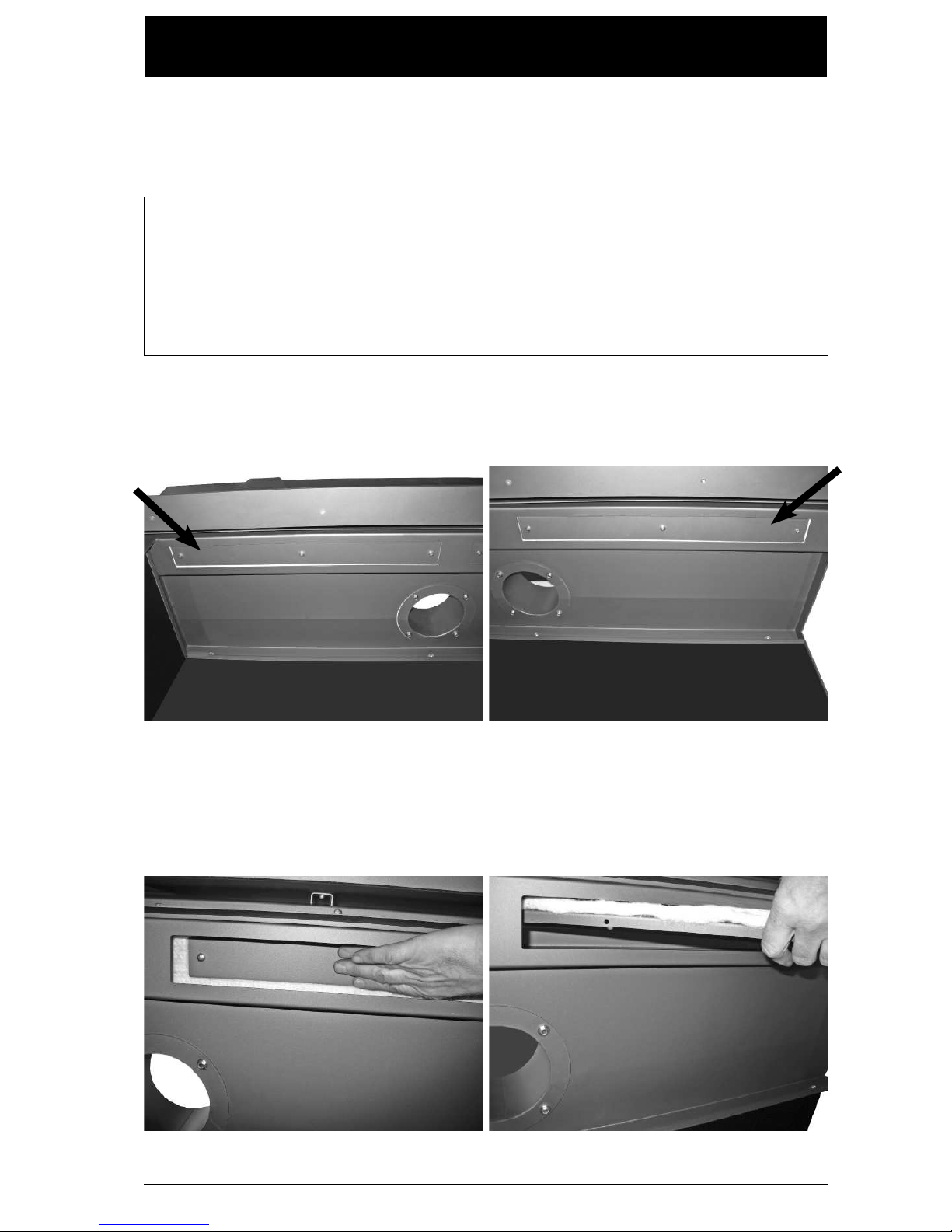

CHECK OVERPRESSURE HATCHES ................

...................

....

...............

...... 59

VISUAL CHECK OF GAS FLAMES ..

.........

............

...........................

............... 60

ANNUAL MAINTENANCE

....................................................

..........

...

............

... 61

FAULTS .............................................................................

...........................

..... 62

POSSIBLE REASONS ...................................................

.................

......... 62

SAFETY MEASURES IN THE APPLIANCE ............

..............

......

....

........

. 62

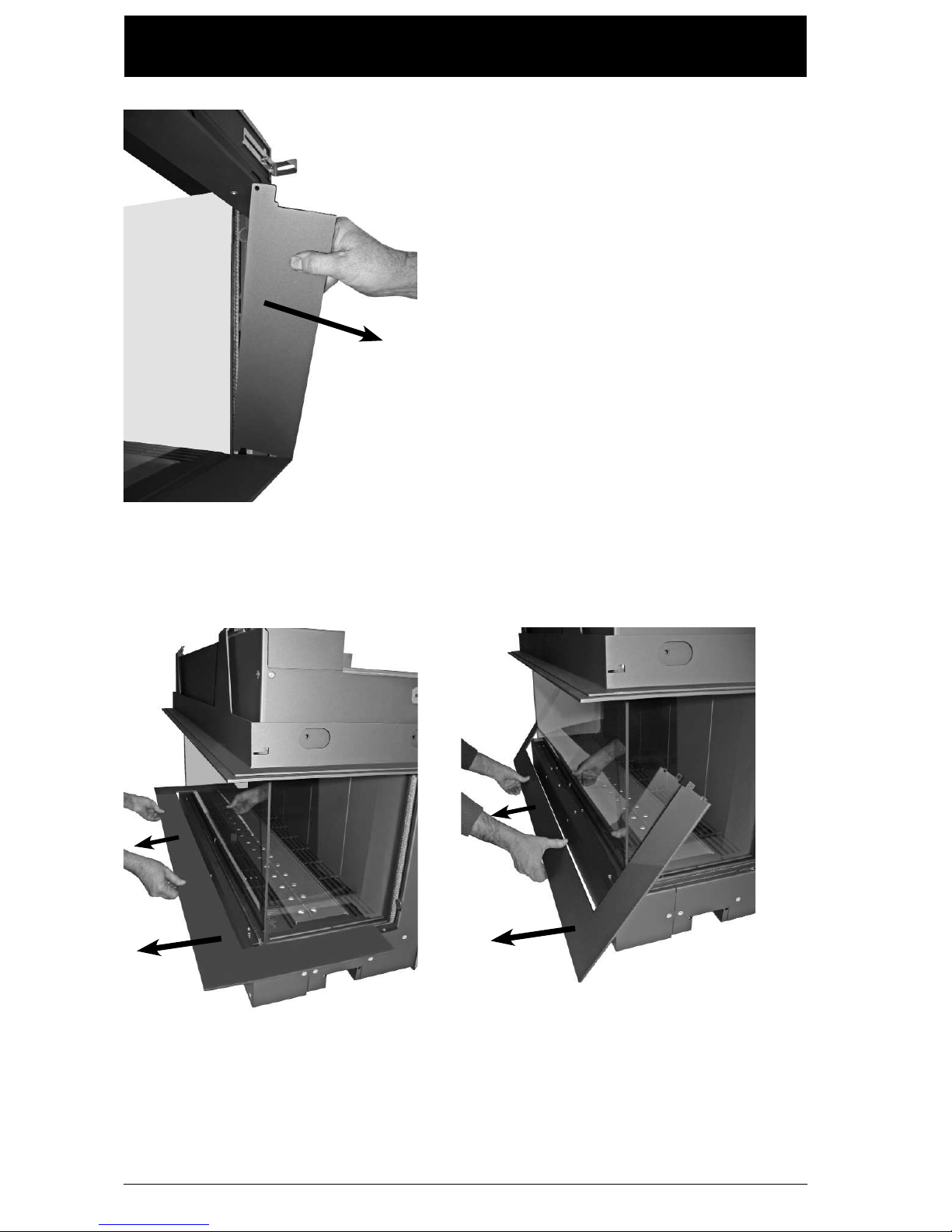

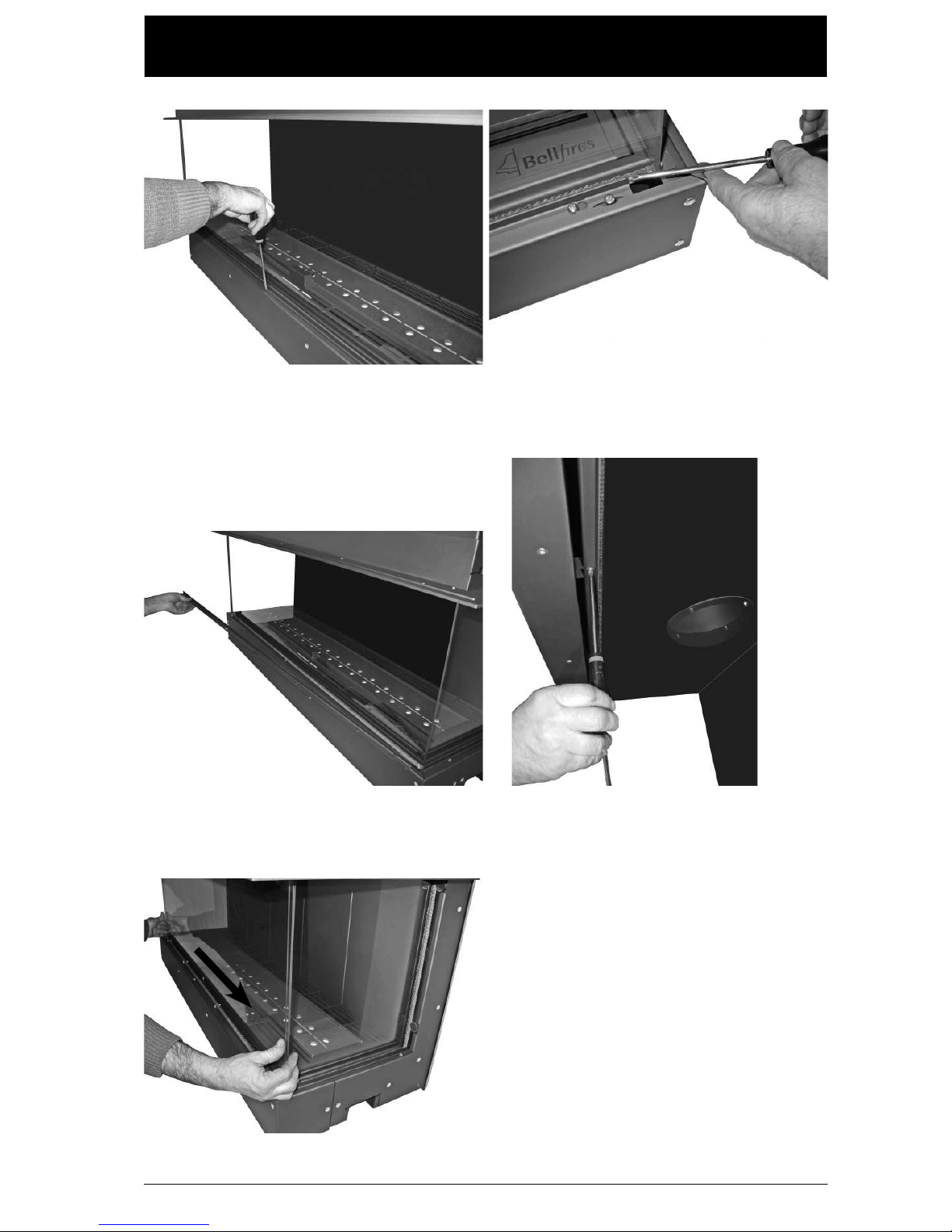

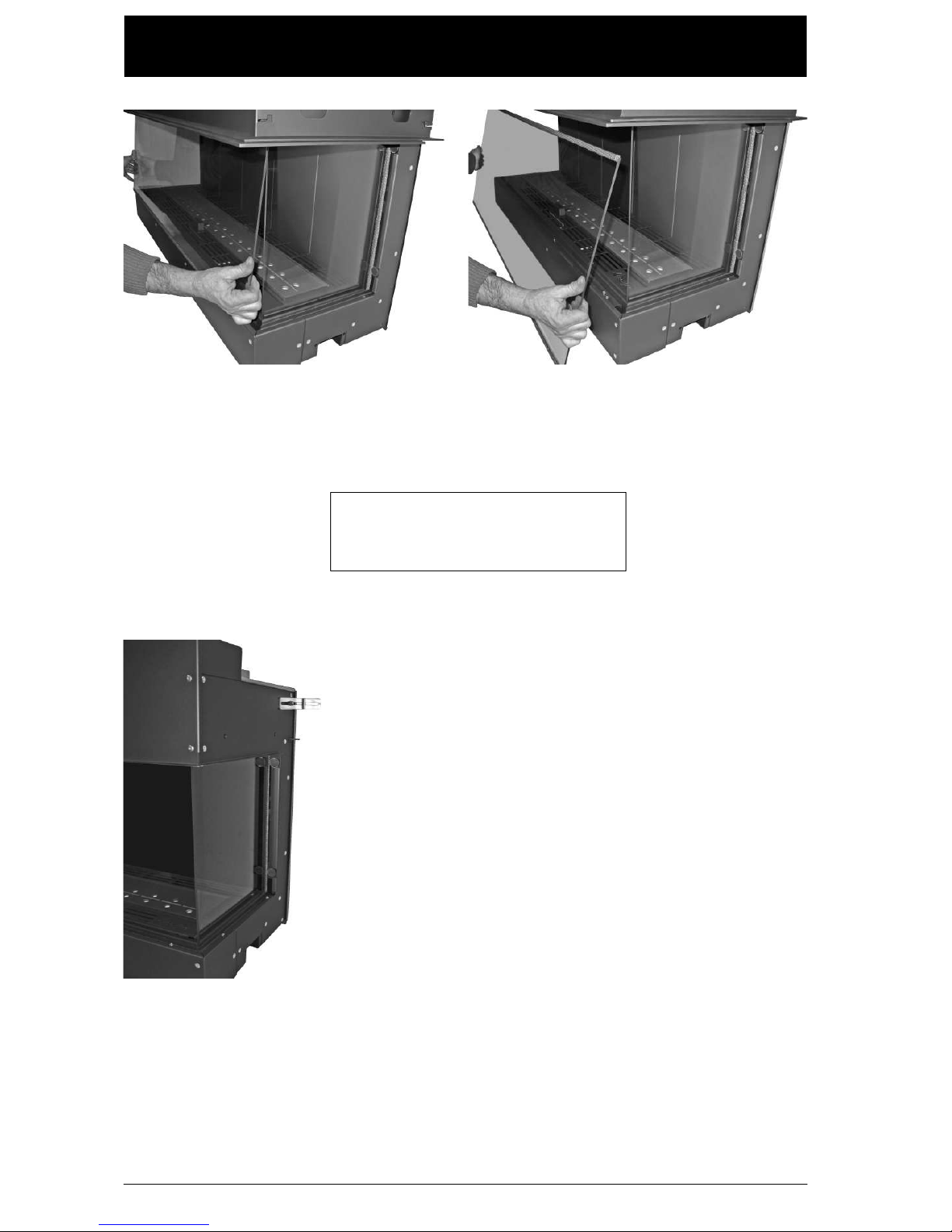

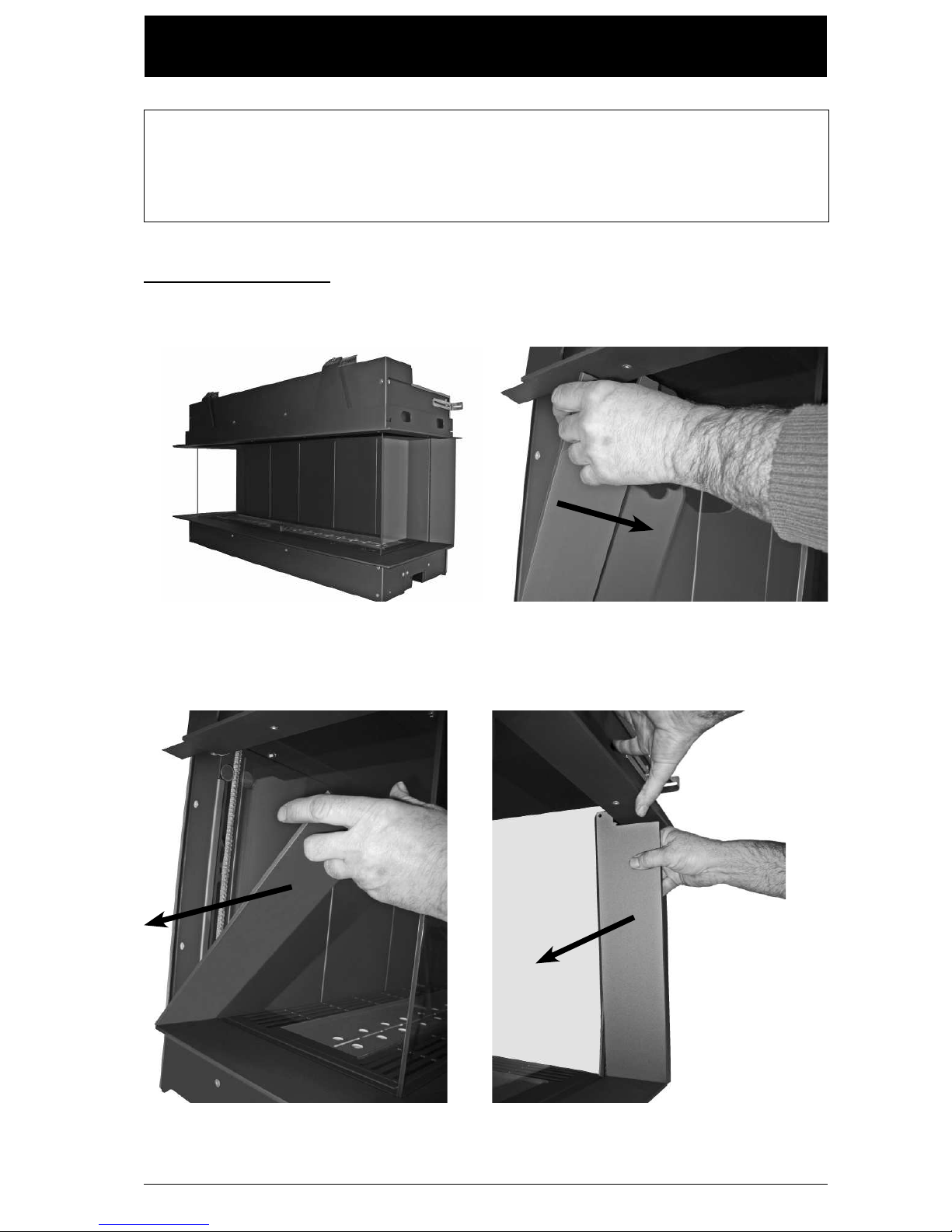

DISMANTLING / ASSEMBLING OF THE GLASS .............

.......

......

.........

......... 63

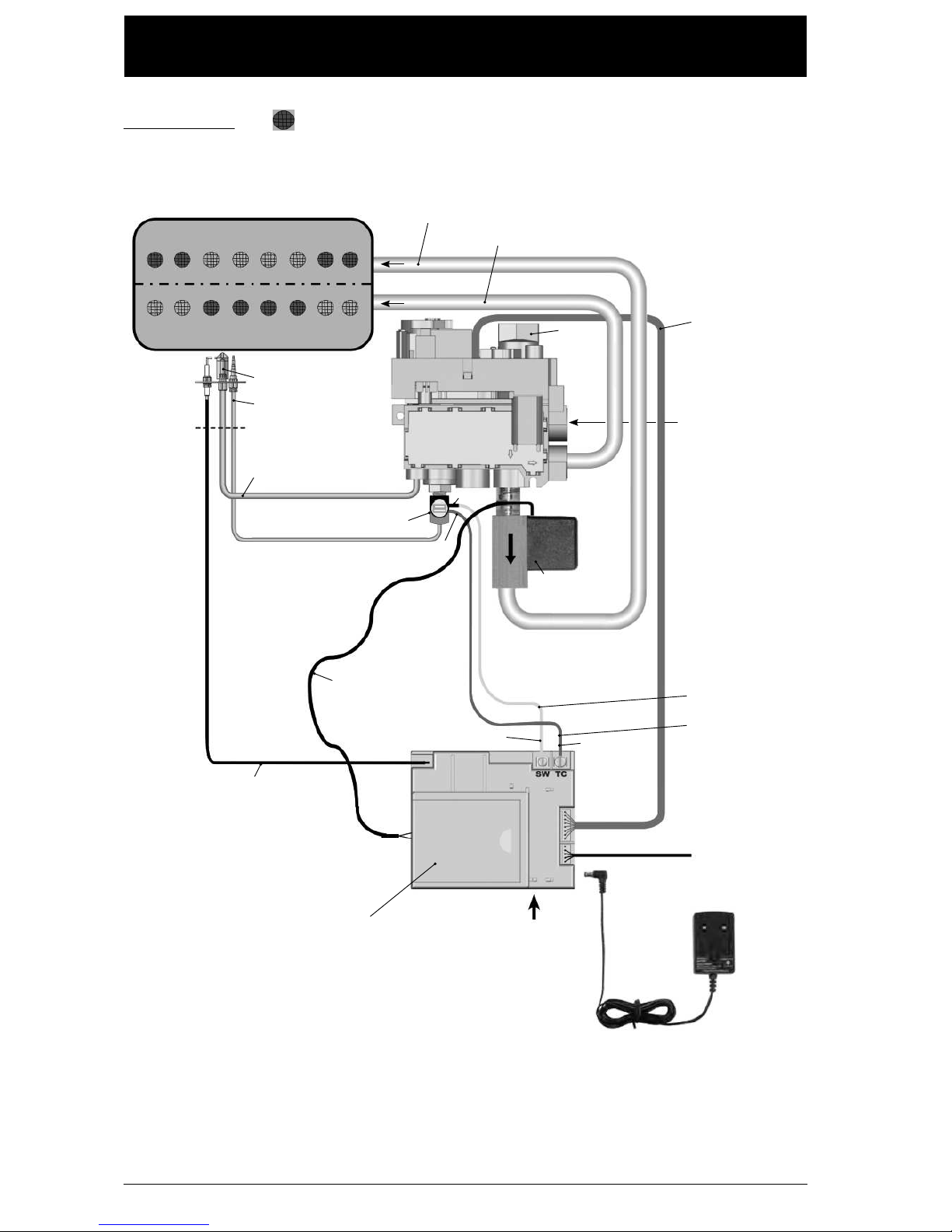

DIAGRAM ELECTRICITY AND GAS ................................................................ 68

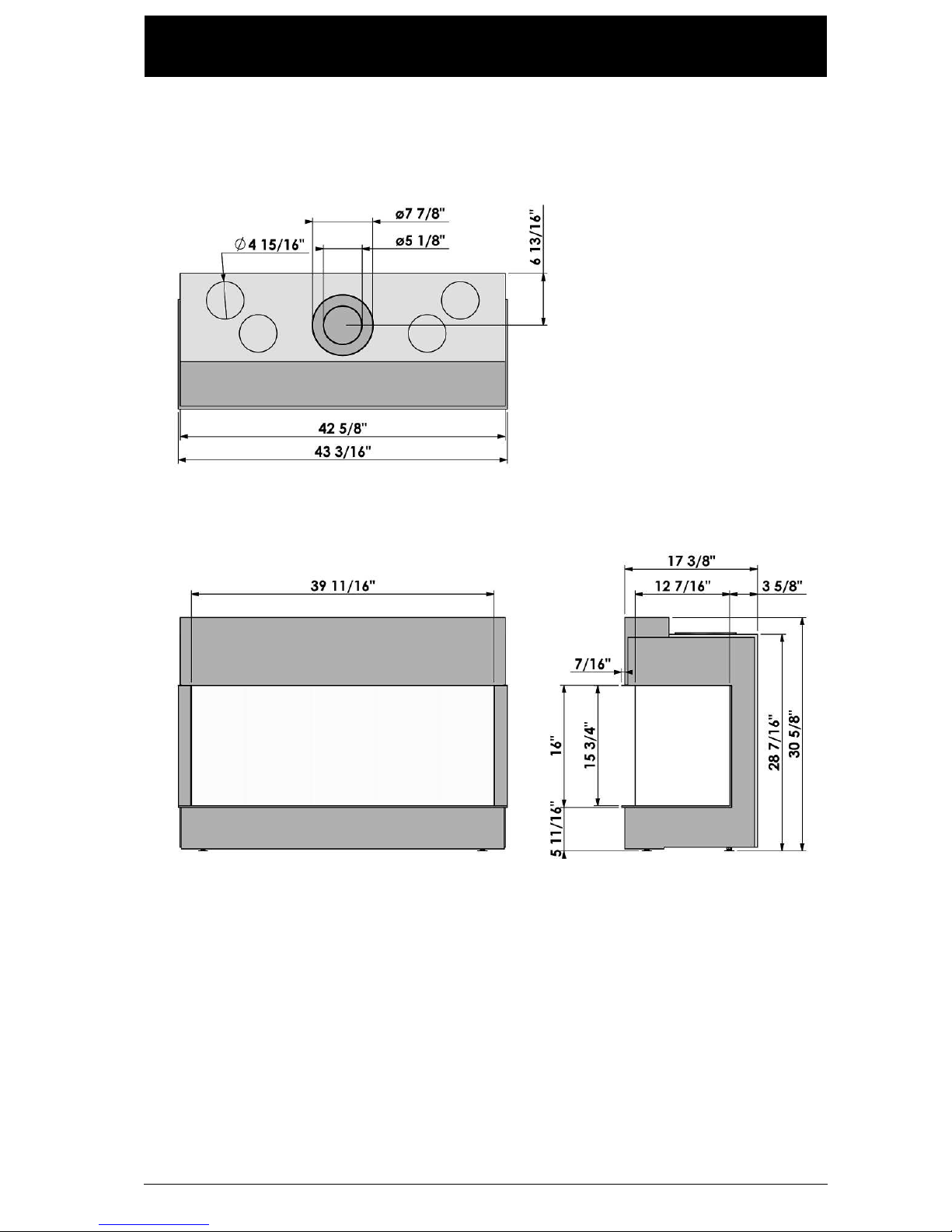

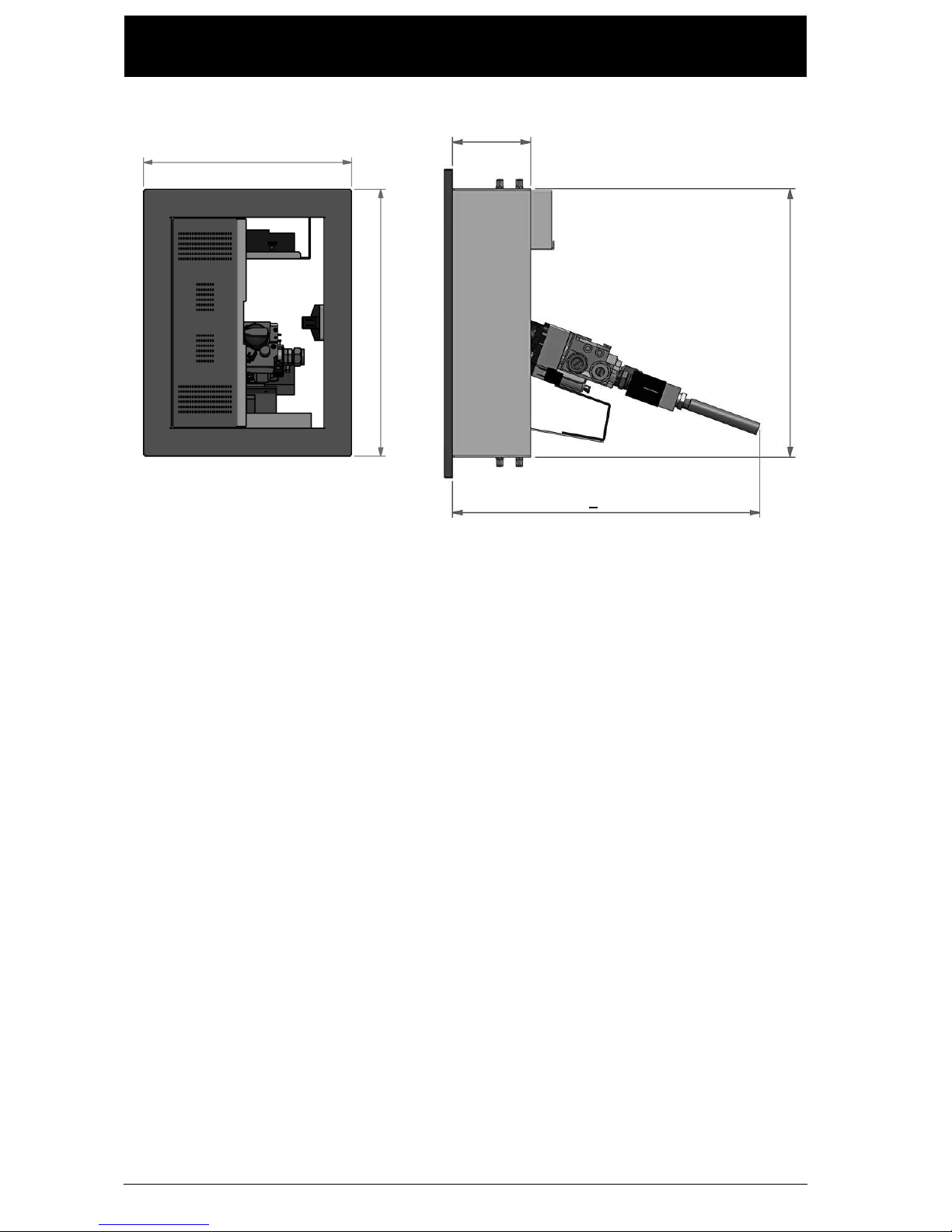

DIMENSIONS

...........................................................................

....................

.... 69

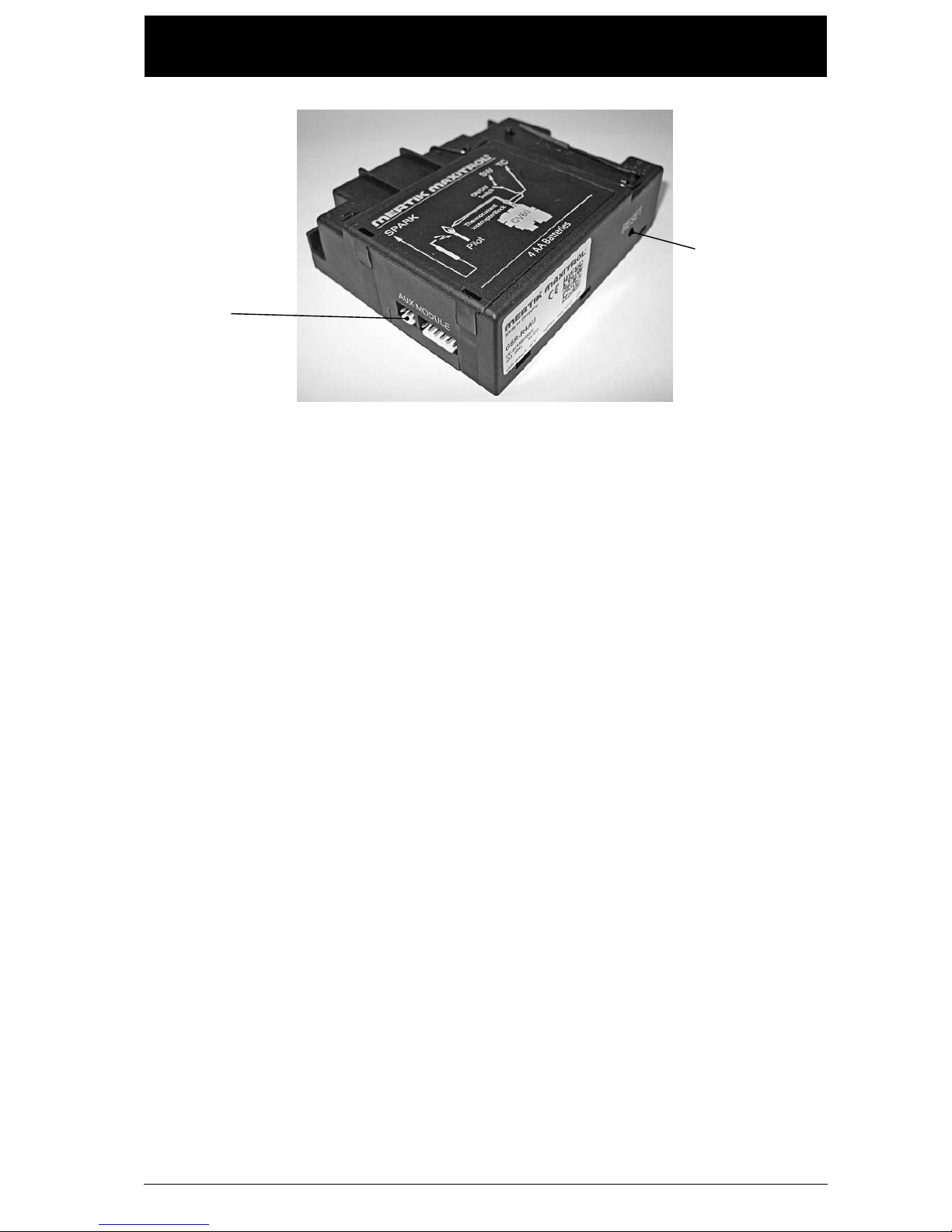

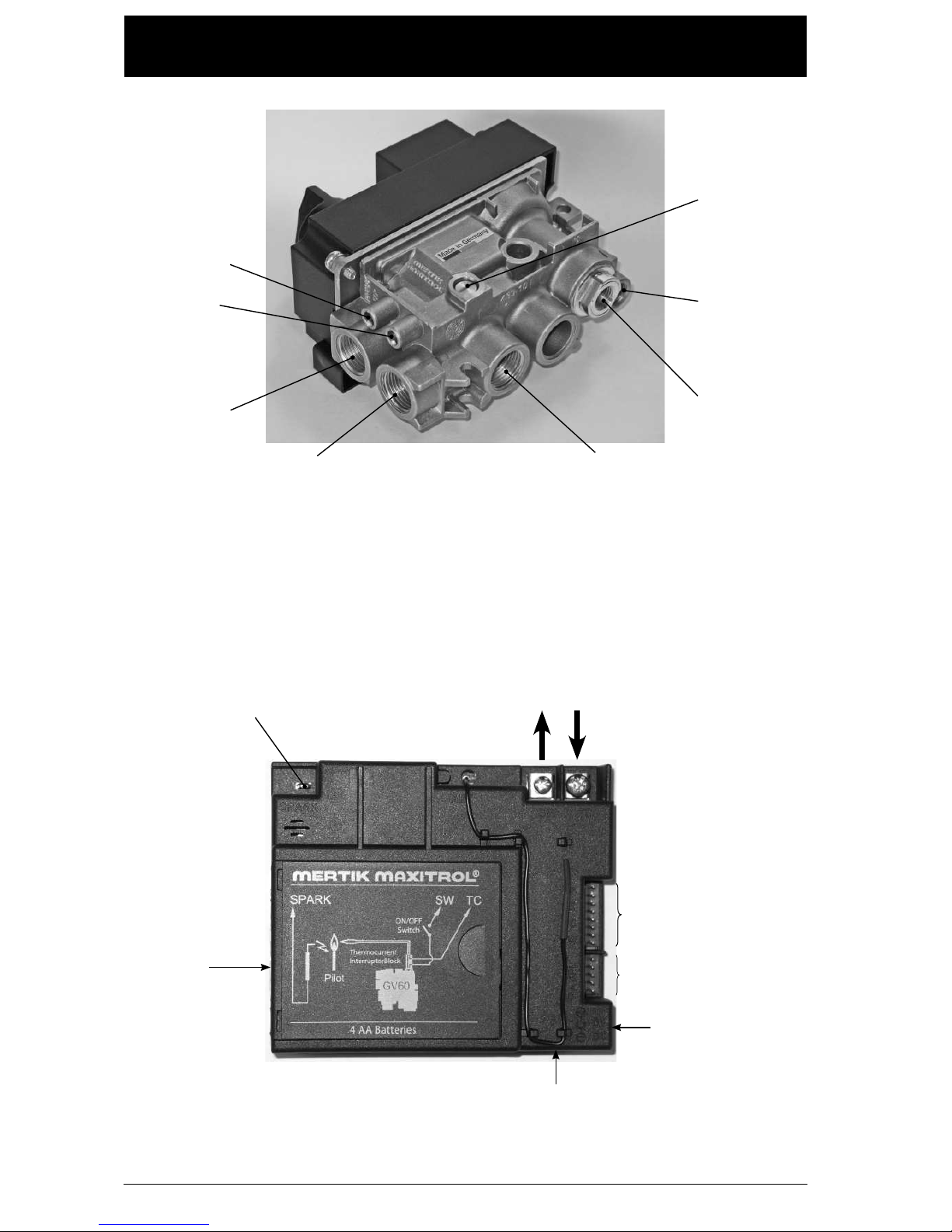

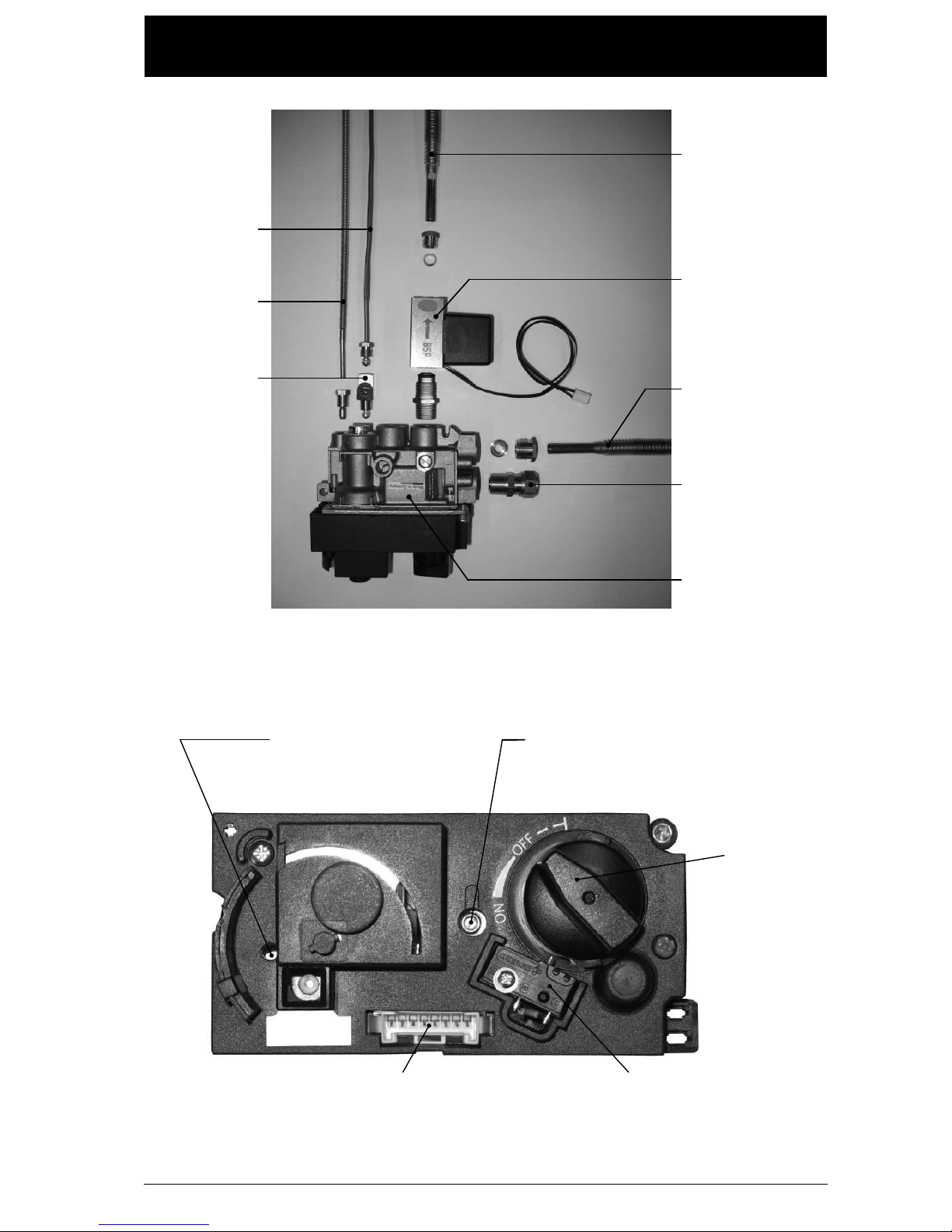

OPERATING UNIT .........................................................

.............

.....

....

.......

.....

. 70

TECHNICAL DETAILS ..................................................

...................................

. 71

REPLACEMENT PART LIST ..........

.........................

...........

................

........

......

. 72

PROPANE CONVERSION KIT

...........................................................

..........

....

WARRANTY TERMS ......................................................

........

.........

......... 76

Page 4

Bellﬁ res

Installation instructions

Page 5

Bellﬁ res

Installation instructions

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Improper installation, adjustment, alteration,

services or maintenance can cause serious injury or property damage. Refer to this manual.

SAVE THESE INSTRUCTIONS

Make yourself fully aware of all the following instructions and the many

features of the Bell! res direct vent gas ! replace appliance.

INSTALLER: Leave this manual with the appliance

CONSUMER: Retain this manual for future reference.

1. This appliance reaches high temperatures. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. The appliance will remain hot for a time after shutdown. Allow surfaces to cool before touching.

2. A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

3. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

4. Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.

5. Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition.

6. Young children MUST be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. The remote control handset should be kept out of reach of children. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a ﬁ replace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

WARNING

Page 6

Bellﬁ res

Installation instructions

IMPORTANT SAFETY INSTRUCTIONS

WARNING: The conversion kit shall be installed by a quali! ed

service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a ! re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The quali! ed service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the converted appliance, is checked as speci! ed in the manufacturer’s instruction supplied with this kit.

13. This appliance must not be connected to a chimney ﬂ ue serving a separate solid-fuel burning appliance.

14. Installation and service must be performed by a qualiﬁ ed installer, service agency or gas supplier.

15. DO NOT operate the appliance with glass removed, cracked or broken.

16. DO NOT use abrasive cleaners on the panels. DO NOT attempt to clean the glass when it is hot.

17. DO NOT strike or slam the glass panel.

18. DO NOT modify the appliance under any circumstances. Any parts removed for servicing must be replaced prior to operating the appliance.

19. Turn the appliance off and let cool before servicing, installing or repairing. ONLY a qualiﬁ ed service person should install, service or repair the appliance. Have burner system inspected annually by a qualiﬁ ed service person.

7. Keep the area around your appliance clear of combustible materials, gasoline and other ﬂ ammable vapor and liquids.

8. Do not place embers, vermiculite granules or wood logs against the pilot light burner. Make sure that the pilot ﬂame can burn at all times freely over the main burner. Only in this way is proper ignition of the main burner ensured. Ignoring these directions could lead to a dangerous situation.

9. Never place anything on top of the appliance.

10. Do not use this appliance to cook food or burn paper or other objects.

11. Do not use any solid or liquid fuels in this appliance. Use only the gas type indicated on the rating plate.

12. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is convertible for use with other gases. A conversion kit is supplied with this appliance.

Page 7

Bellﬁ res

Installation instructions

IMPORTANT SAFETY INSTRUCTIONS

20. Keep control compartments, burners and circulating air passages clean. More frequent cleaning may be needed due to excessive lint and dust. Turn off the gas valve and appliance (OFF on remote control) before cleaning the appliance.

21. The venting system MUST checked annually by a qualiﬁ ed service person. If needed, have the venting system cleaned or repaired.

22. When the appliance is installed directly on carpeting, tile or other combustible material, it must be set on a metal panel or hearth pad extending at least the full width and depth of the appliance.

23. DO NOT obstruct the ﬂ ow of combustion and ventilation air in any way. Provide adequate clearances around air openings into the combustion chamber along with adequate accessibility clearance for servicing and proper operation.

24. DO NOT use the appliance if any part has been exposed to or has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and replace any part of the control system and any gas control which has been submerged in water.

25. DO NOT operate the appliance if any log is broken.

26. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.

27. This appliance, when installed, must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

28. The appliance is equipped with a safety system, whereby hatches will extract any over-pressure in a controlled way. In this, the hatches will brieﬂ y open. To avoid any possible personal harm when the hatches open due to an over-pressure, always maintain a minimum distance of 40 in (100 cm) to the appliance, when igniting and when burning. If an over-pressure situation occurs, the appliance should be thorougly checked by the installer.

WARNING: Never connect unit to private (non-utility) gas wells.

This gas is commonly known as well-headed gas.

IMPORTANT:

Take care that no pipes get damaged and no compression ! ttings come loose when moving the gas regulator block. Prevent twisting the " exible pipes# Check all compression ! ttings for leaks afterwards#

Page 8

Bellﬁ res

Installation instructions

PRE INSTALLATION INSTRUCTIONS

CODE APPROVAL

Direct Vent type appliances draw all combustion air from outside of the dwelling through the vent pipe.

These appliances have been tested by CSA and found to comply with the established standards for VENTED GAS FIREPLACES in the USA and Canada as follows:

LISTED VENTED GAS FIREPLACES

View Bell Medium 3 CF tested to:

- ANSI Z21. 88 - 2009 / CSA 2.33 - 2009 Vented Gas Fireplace Heaters

- ANSI Z21.88a - 2012 / CSA 2.33a - 2012 - Addenda 1 to ANSI Z21.88 - 2009 / CSA 2.33 - 2009

- CSA P4.1 - 09 Testing method for measuring annual ﬁ replace efﬁ ciency (Canada).

A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280, or when such a standard is not applicable, the Standard for Manufactured Home installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.

Page 9

Bellﬁ res

Installation instructions

PRE INSTALLATION INSTRUCTIONS

GENERAL

This ‘direct vent’ gas appliance must be installed by a qualiﬁ ed installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSAB149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1-NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States. If you have any queries regarding the installation, please consult your local gas company.

The appliance is supplied with a “Centre Fire” double burner. This burner has a speciﬁ c ﬂ ame image which is deﬁ ned by the perforation pattern in the burner cover. See Chapter “DIAGRAM ELECTRICITY AND GAS” and the Operating Manual.

The appliance is factory set to the correct nominal heat input. The pilot light is set to the correct level of consumption.

The appliance will be delivered from the factory with a 5⅛" x 7⅞" concentric connection for extracting the ﬂ ue gases and supply of combustion air.

It is possible to install the appliance with either a wall or roof outlet. The roof connection must be carried out using a Bellﬁ res adapter (5⅛" x 7⅞" to 5" x 8") together with a reducer (5" x 8" to 4" x 6⅝") or using a Bellﬁ res adapter (5⅛" x 7⅞" to 4" x 6⅝"), and the concentric ﬂ ue system 4" x 6⅝". The fumes are exhausted naturally to the outside environment through the inner 4" pipe whereas the combustion air supply passes between the 4" and 6⅝" pipes.

The wall connection must be carried out using a Bellﬁ res adapter (5⅛" x 7⅞" to 5" x 8") and the concentric ﬂ ue system 5" x 8". The ﬂ ue gases are evacuated outside by means of natural draft through the internal pipe of 5", whereas the combustion air is supplied between the pipes of 5" and 8".

The appliance can be installed in a completely sealed or mechanically ventilated house without extra ventilation and/or fume extraction.

IMPORTANT:

Before beginning the installation, check that the details on the rating plate correspond to the gas type and pressure to which the appliance will be connected.

WARNING: Due to high temperatures, the appliance should be

located out of traf! c and away from furniture and draperies.

Page 10

Bellﬁ res

Installation instructions

PRE INSTALLATION INSTRUCTIONS

The appliance can be installed as an insert into an existing open ﬁ re place or as a builtin appliance in a new ﬁ re place. In order to prevent the ﬁ replace heating up excessively, it must be properly ventilated by installing vents at the top of the ﬁ replace.

The provided barrier safety screen designed to reduce the risk of burns from the hot viewing glass shall be installed.

If an existing chimney is to be used, please consult your installer ﬁ rst. If the chimney was previously used for a wood or coal ﬁ re, then it should be cleaned by an expert.

CONCENTRIC FLUE SYSTEMS

• M&G

DuraVent - Direct Vent Pro ..................................... 4” x 6⅝” and 5” x 8”

• SELKIRK - DIRECT-TEMP - Direct Vent Products

........

. 4” x 6⅝” and 5” x 8”

• METAL-FAB

- Sure-Seal - Direct Vent Products

...........

. 4” x 6.5” and 5” x 8”

The appliance, in combination with the concentric ﬂue system [4” x 6⅝”] and/or [5” x 8”] (rigid and/or ﬂ exible) for the brands, M&G DuraVent (Direct Vent Pro), Selkirk

(Direct Temp) or Metal-Fab (Sure-Seal) has been approved in accordance with the ANSI / CSA standard for direct vented gas appliances and may therefore be used only with these systems.

The permitted components for these systems are listed in Chapter “Vent Installation”.

The guarantee on the appliance lapses if it is installed, fully or partially, with other components or a different ﬂue system.

The concentric ﬂue [4” x 6⅝”] and [5” x 8”] systems can be used with either a

newly-built

or existing chimney.

N.B. If any part is missing, please contact your dealer.

INCLUDED WITH THE APPLIANCE

Set documentation - Instructions for use

- Installation instructions

Attributes - Barrier

- Ceramic log set

- Propane conversion kit View Bell Medium 3 CF

Page 11

Bellﬁ res

Installation instructions

PRE INSTALLATION INSTRUCTIONS

OPTIONS AND ACCESSORIES

The following options and accessories can be supplied by your dealer:

Part no Accessory

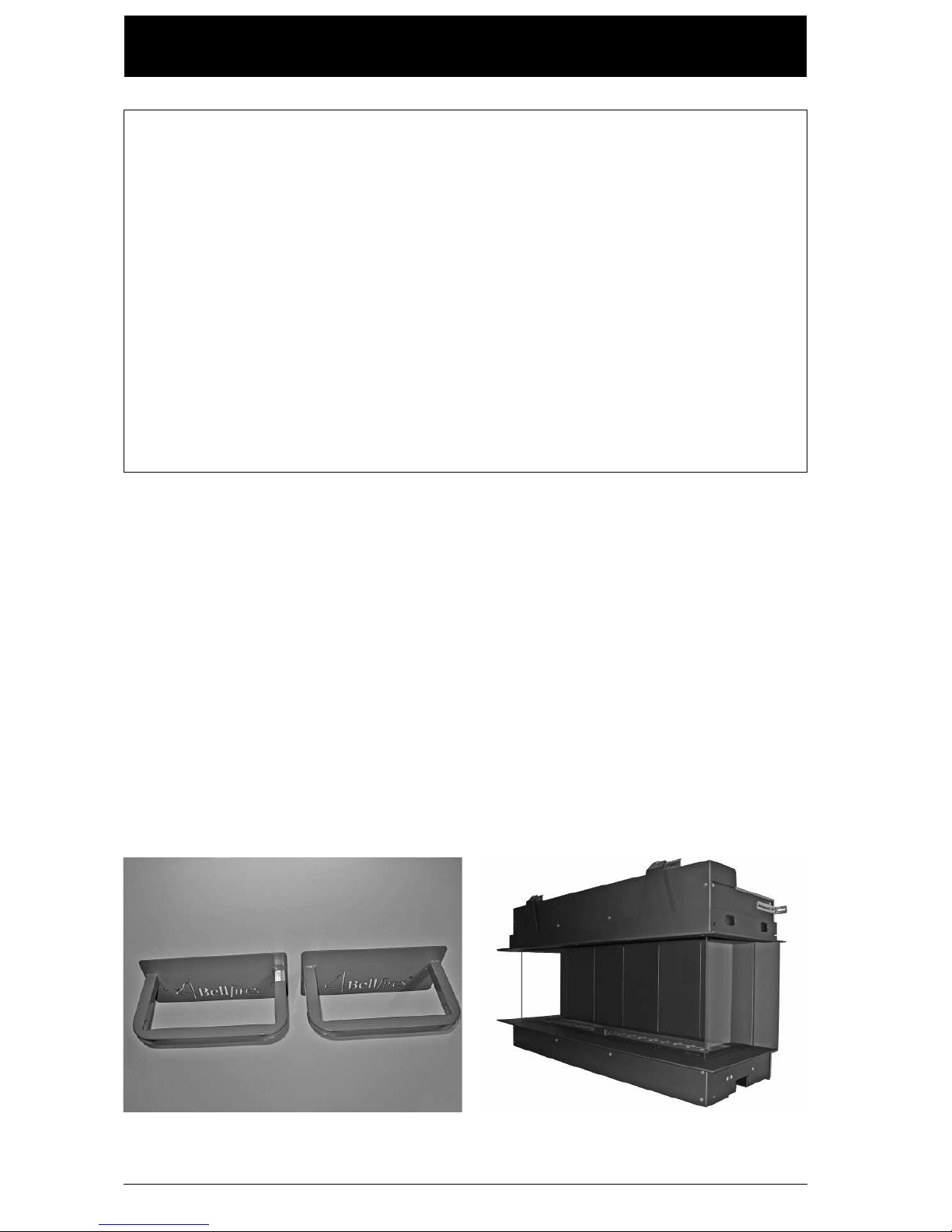

329874 Set carrying brackets (2 pieces)

337670 Set of high adjustable feet (4 pieces) + adapter pieces Feet height: max. +13¾ in.

334765 Mantle iron VWBM3

337810 High altitude kit 2 000 - 4 500 ft View Bell Medium 3 CF (Natural gas and Propane gas)

M&G DuraVent - Direct Vent Pro concentric ﬂ ue system See component summary

SELKIRK - DIRECT-TEMP - Direct Vent Products concentric ﬂ ue system See component summary

METAL-FAB

- Sure-Seal - Direct Vent Products concentric ﬂ ue system See component summary

Page 12

Bellﬁ res

Installation instructions

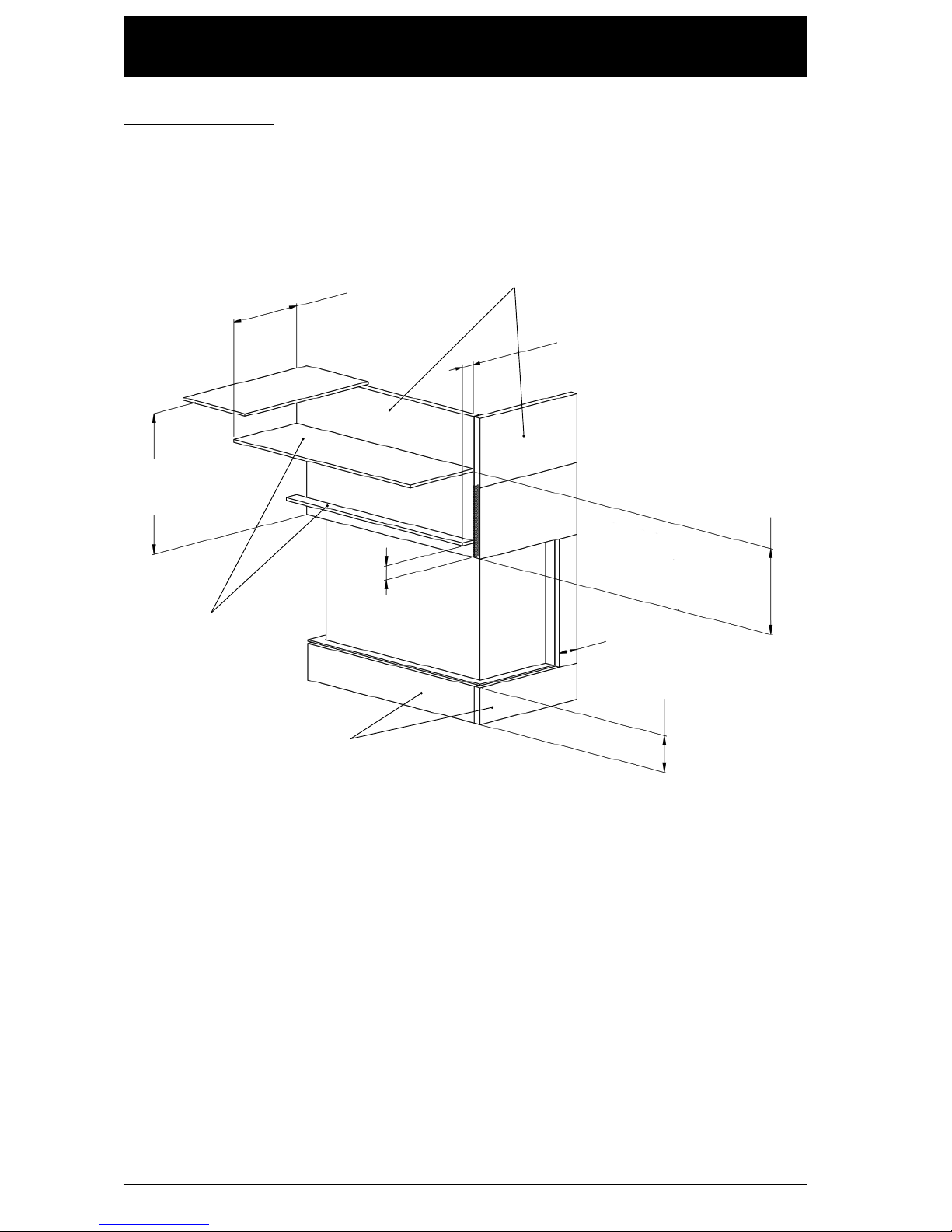

CLEARANCES

WARNING: Follow these instructions carefully to ensure safe

installation. Failure to follow instructions exactly can create a ! re hazard.

UNIT MUST SIT ON NON COMBUSTABLE SURFACE The appliance must be installed on a non-combustible " oor. If installed on, for

example, carpet or vinyl " ooring, the appliance shall be placed on a plate of noncombustible material extending the full width and depth of the appliance.

All clearances to combustible and non-combustible materials must be maintained as described in this manual.

Clearances are in accordance with local installation codes and the requirements of the gas supplier.

Never use combustible materials during the installation.

During installation of the appliance, a clearance of 0.12 in (3 mm) should be maintained on all sides of the appliance to allow for expansion of the appliance during operation.

Do not insulate the appliance! Only the top and sides may be ﬁ tted with a strip of white, loose insulation wool (heat-resistant to 1832°F (1000°C)), width 5.9 in (15 cm) max. to protect the wall.

Do not use ﬁ breglass or Rockwool, or any other sort of insulating material. These emit a pungent odour. This is considered extremely unpleasant. They may also cause discolouring of the column.

Combustible materials, such as curtains, should not be placed in the vicinity of the appliance. Minimum safe distance: 40 in (100 cm).

Never place the appliance directly to a combustible or non-combustible rear wall and side wall.

Page 13

Bellﬁ res

Installation instructions

CLEARANCES

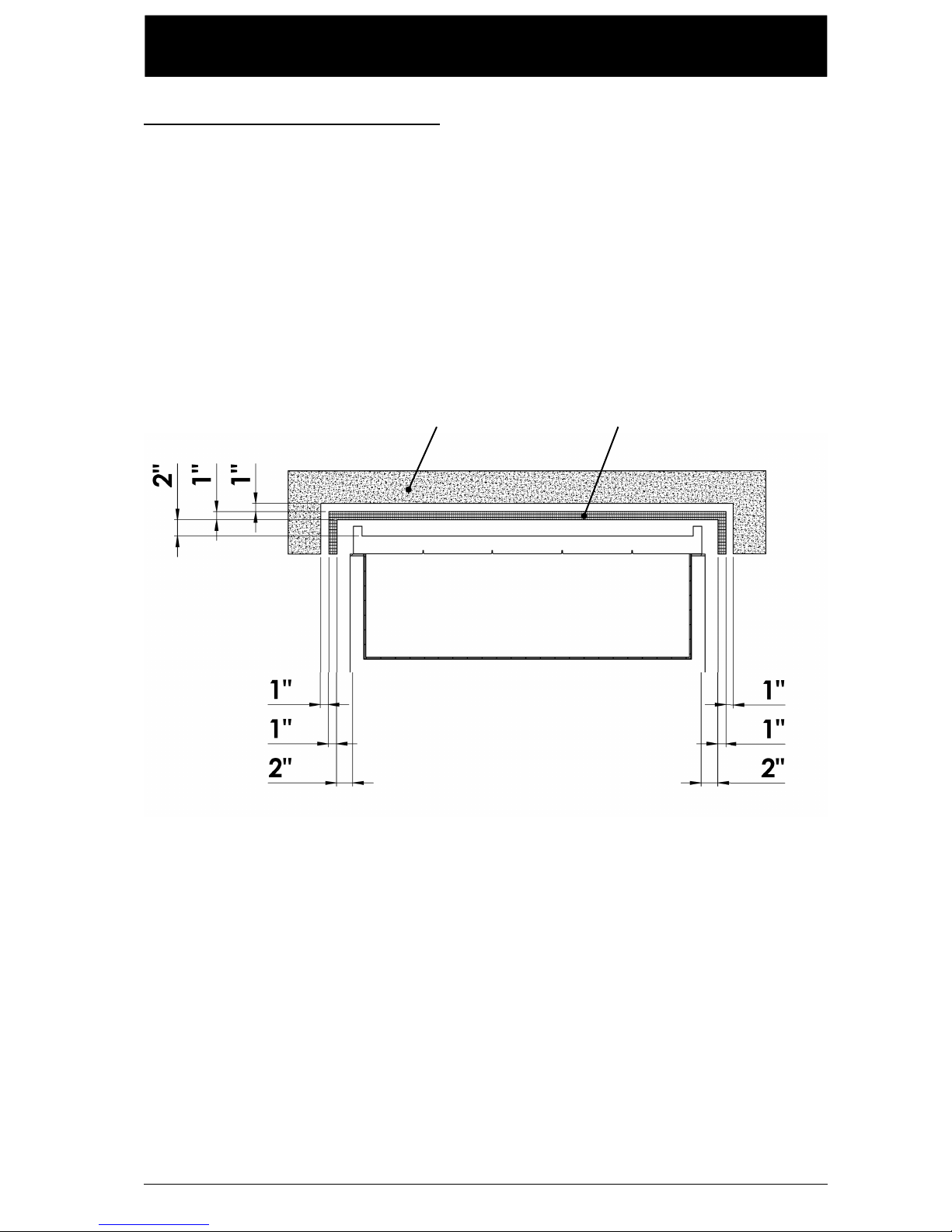

Figure 1: Clearances to combustible material

Appliance

Combustible material Insulation board

Clearances to combustible material Always place a non-combustible insulation plate (false back wall) with a thickness of

min. 1" (2.54 cm) between the appliance and the rear wall and the side wall according to ﬁ gure 1. Minimum clearances to combustible material must be maintained. (See also ﬁ gure 13 and 14.)

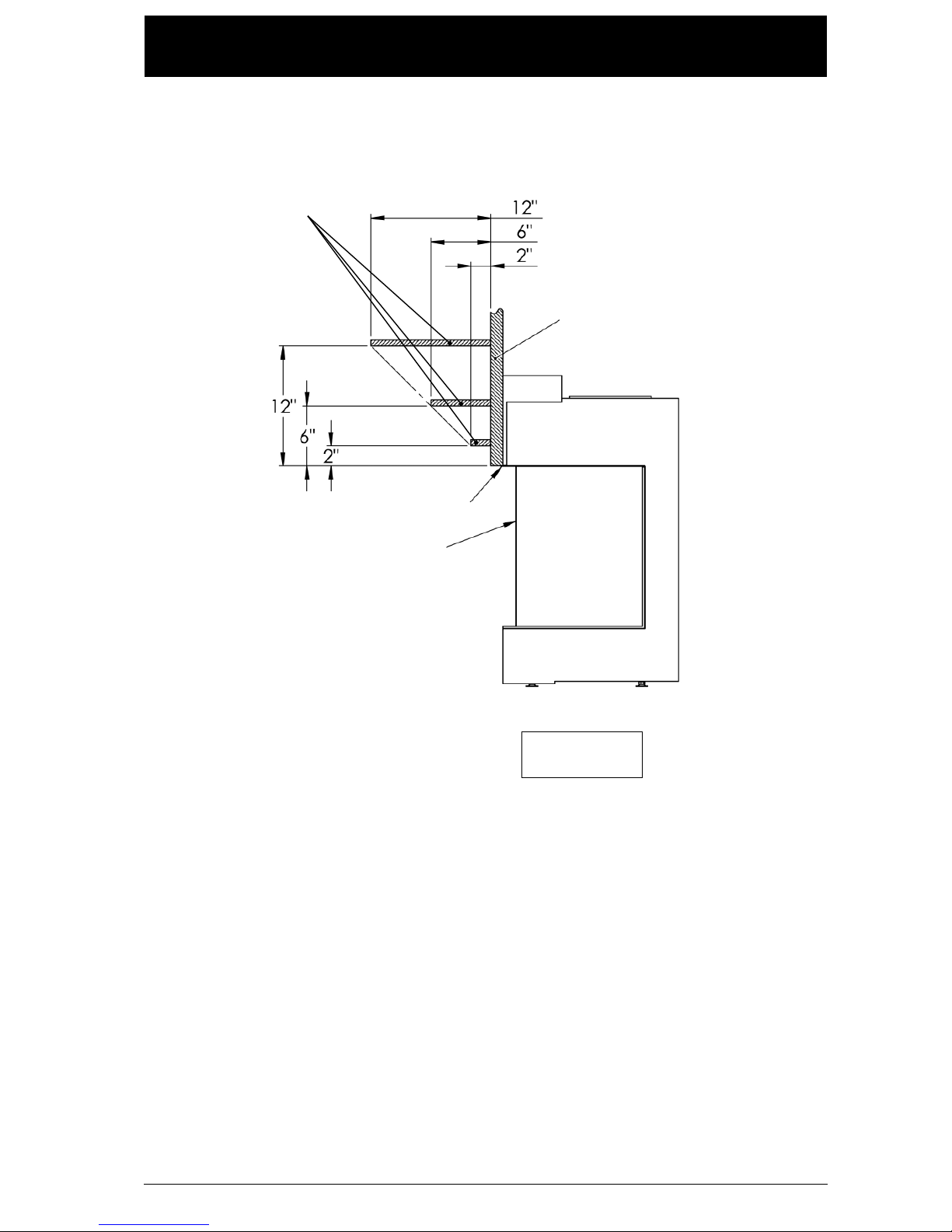

Clearance to combustible ceiling: Place a non-combustible insulation plate (false ceiling) with a thickness of min. 1¼" (3 cm) at a height of minimum 20" (50 cm) above the appliance. Maintain a free space of 4" (10 cm) between the insulation plate and a combustible ceiling. (See also ﬁ gure 13 and 14.)

Page 14

Bellﬁ res

Installation instructions

CLEARANCES

Clearance to non-combustible material

Always place a non-combustible insulation plate (false back wall), at least ½" (12 mm) thick between the appliance and a non-combustible rear and side wall. Maintain a free space of at least

¾" (2 cm) on either side of the insulation plate.

Minimum clearances as shown in ﬁ gure 2 must be maintained.

(See also ﬁ gure 13 and 14.)

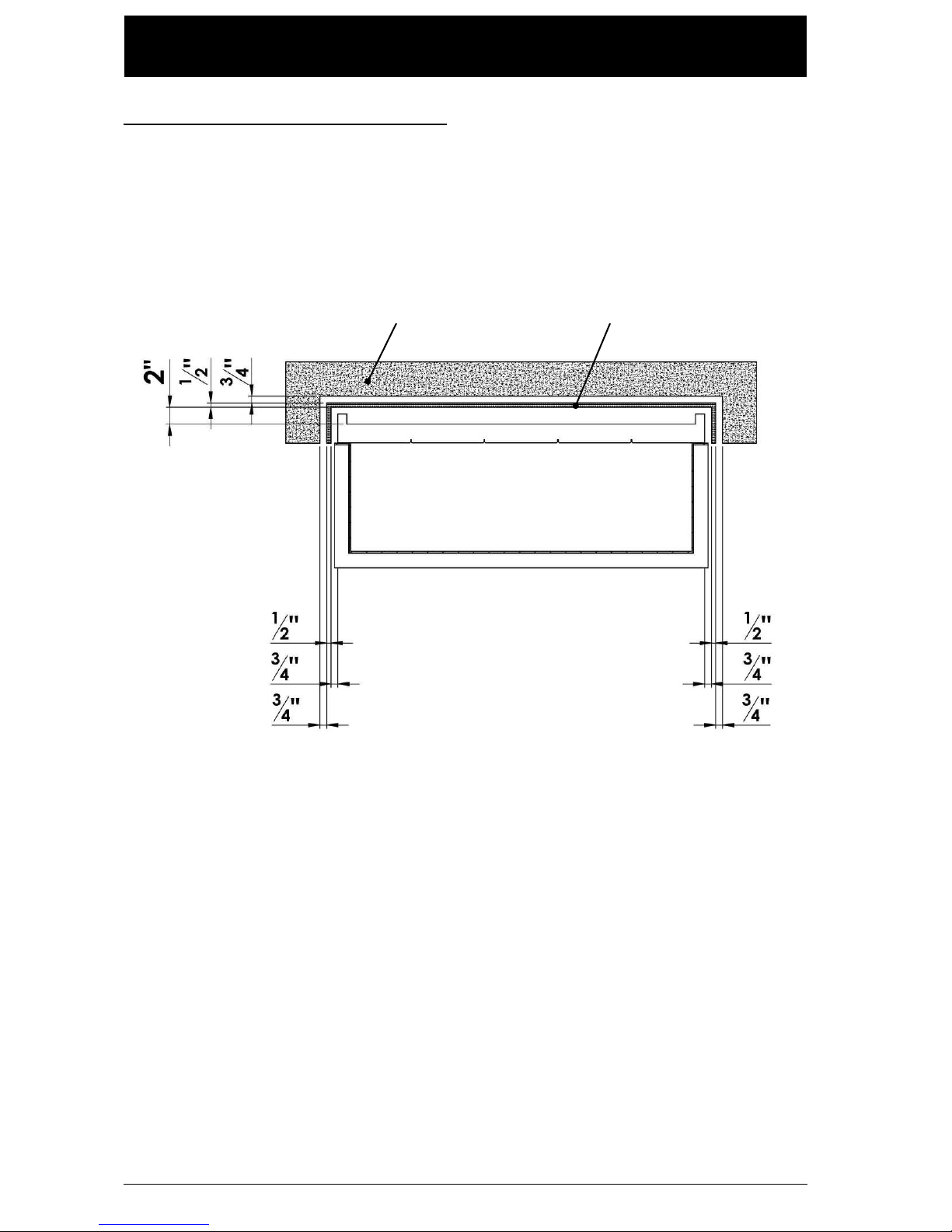

Figure 2: Clearances to non-combustible material

Non combustible material

Appliance

Insulation board

Page 15

Bellﬁ res

Installation instructions

CLEARANCES

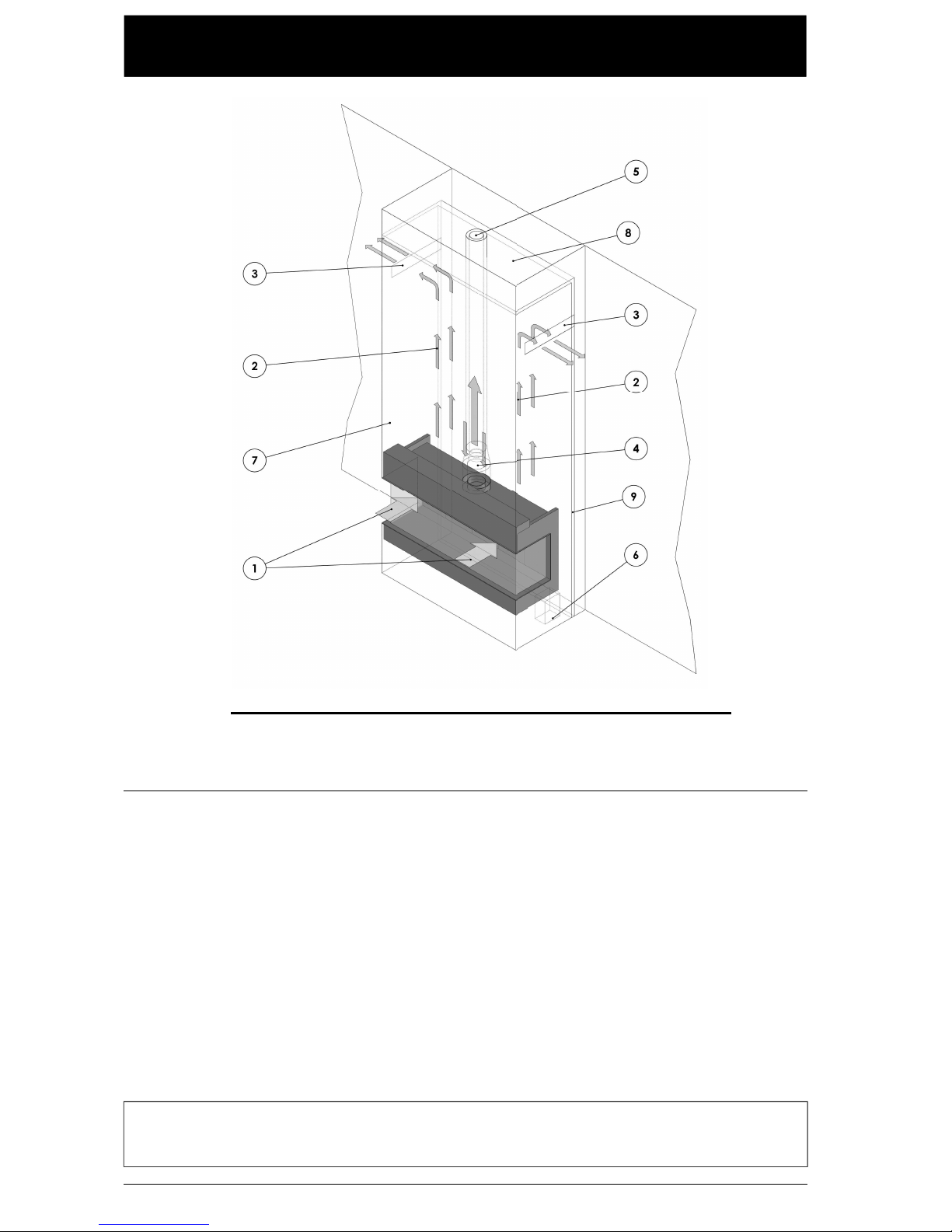

Ventilation

Ventilate the ﬁ replace/chimney breast:

• all spaces between the appliance and the insulation plates

• all spaces between the insulation plates an all surrounding walls by allowing vents above.

Minimal required net vent openings above must be total 46 sq ins (300 cm2).

This can be done by ventilation openings or grills. The design of the ventilation openings/grills is free to choose.

Place the ventilation opening/grills at minimal 4" (10 cm) distance under the ceiling, to prevent discoloration.

Also an open distance between the ﬁ replace/chimney breast and the ceiling of 2" (5 cm), over a minimal width of 23" (60 cm), is sufﬁ cient. (Is also total 46 sq ins (300 cm2).)

Non-combustible insulation plate/board

Any used insulation plates must have a maximum thermal conductivity of

0.69 BTU / (ft2.h.°F/in) (0.10 W/m.K). Suitable insulation materials are listed in table 1.

Do not use ﬁ breglass or Rockwool, or similar material. These materials emit a pungent odour, which is considered extremely unpleasant.

Table 1: Suitable insulation material

Plate material Thermal conductivity BTU/(ft2.h.

°F/in) (W/m.K)

Promat Promatect L insulating board 0.57 (0.083)

Skamol Skamotec 225 0.416 (0.06)

Skamol Super-Isol 0.55 (0.08)

Page 16

Bellﬁ res

Installation instructions

CLEARANCES

Mantel clearances

Any mantel piece made of combustible material should be placed at least 2" from the side and top of the ﬁ replace opening. Minimum mantel clearances are shown in ﬁ gure 3 to 5.

Figure 3: Mantel clearances

12" Max. depth

2" Min.

2" Max. depth

12" Min. from opening

4" Min. to combustible

2" Min. from opening

Ceiling Minimum 20" from opening

(or place a non combustible hearth (ﬂ oor stone) with a depth of minimal 12 in (30 cm) in front of the full width of the glass)

Non combustible Insulation plate / board

Combustible mantel piece

Non combustible Insulation plate / board

Page 17

Bellﬁ res

Installation instructions

CLEARANCES

Figure 4: Top mantel clearances

Depth of mantel [inch]

Heigth of mantel [inch]

Non-combustible material Insulation plate / board

Glass front appliance

Top of ﬁ replace opening

Side view

Combustible mantel piece

Page 18

Bellﬁ res

Installation instructions

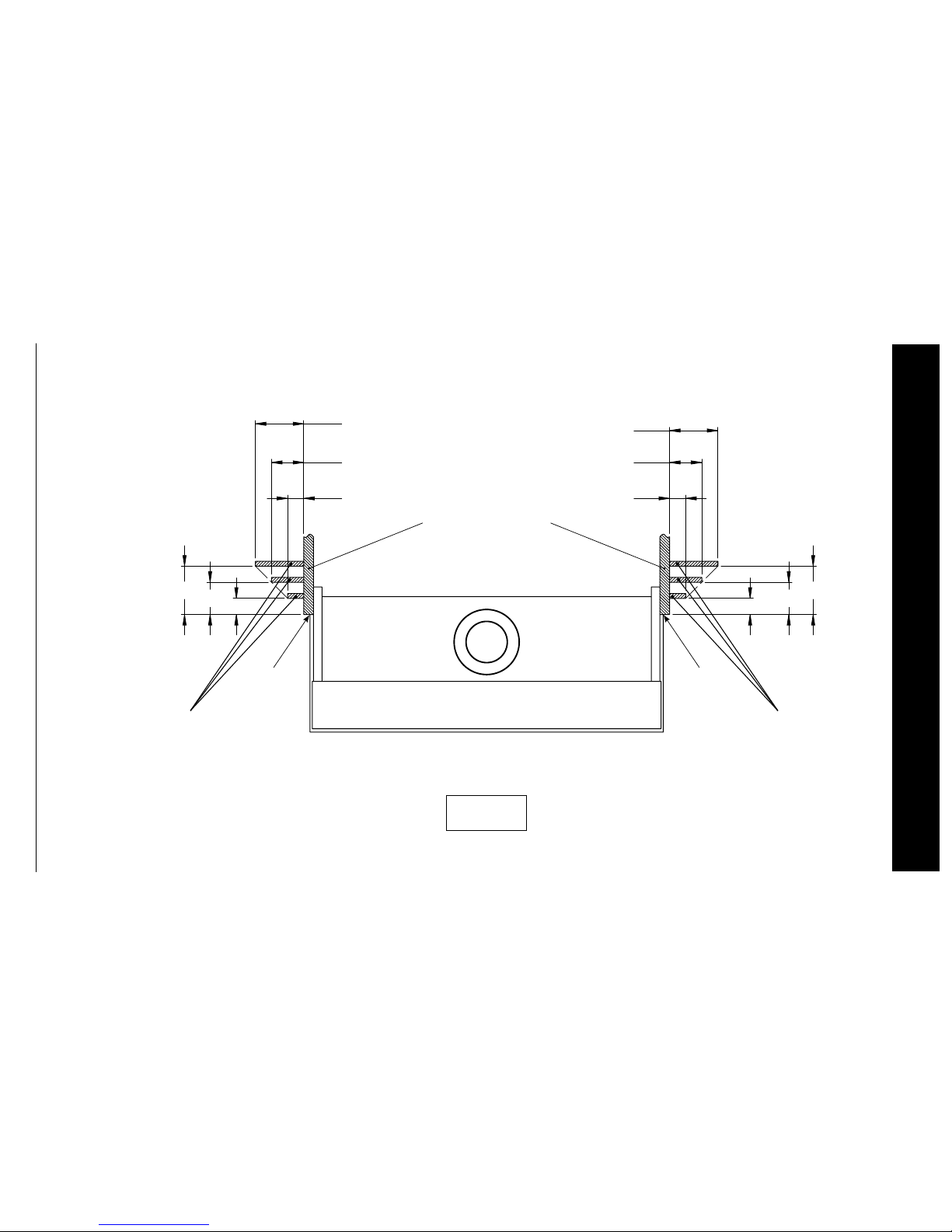

Figure 5: Side mantel clearances

CLEARANCES

Width of mantel [inch]

























Depth of mantel [inch]

Width of mantel [inch]

Side of

ﬁ replace opening

Top view

Side of ﬁ replace opening

Non-combustible material Insulation plate / board

Depth of mantel [inch]

Combustible mantel piece

Page 19

Bellﬁ res

Installation instructions

Figure 6: Safety distance front appliance

Fireplace

VIEW BELL MEDIUM 3

Do not place furniture or other objects in this space in front of the appliance

Hearth

12" (30 cm)

Minimum safe distance: 40" (1.0 m) to ﬂ ammable materials, such as curtains, furniture etc. in front of the ﬁ replace.

• Install a non combustible hearth (ﬂ oor stone) when the underside of the glass is less then 4" (10 cm) above a combustible ﬂ oor.

• The hearth must have a depth of minimal 12" (30 cm) in front of the whole width of the glass.

• The height of the hearth must be minimal 1".

12" (30 cm)

12"

(30 cm)

CLEARANCES

Page 20

Bellﬁ res

Installation instructions

VENT INSTALLATION

Canadian Installations1 US Installations

A= Clearance above, grade, veranda, porch, deck or balcony 12 in (30 cm) 12 in (30 cm)

B= Clearance to window, or door that may be opened 12 in (30 cm) 9 in (23 cm)

C= Clearance to permanently closed window 12 in (30 cm) 9 in (23 cm)

D= Vertical clearance to ventilated sofﬁ t located above the terminal within a 18 in (46 cm) 18 in (46 cm)

horizontal distance of 2 feet (610 mm) from the center line of the terminal

Page 21

Bellﬁ res

Installation instructions

VENT INSTALLATION

Canadian Installations

US Installations

E= Clearance to unventilated sofﬁ t 12 in (30 cm) 12 in (30 cm)

F= Clearance to outside corner 20 in (51 cm) 20 in (51 cm)

G= Clearance to inside corner 20 in (51 cm) 20 in (51 cm)

H= Clearance to each inside of center line extended above meter / regulator 3 ft (91 cm) within a height 3 ft (91 cm) within a height assembly 15 ft (4.5 m) above the 15 ft (4.5 m) above the meter/regulator assembly meter/regulator assembly

I = Clearance to service regulator vent outlet 3 ft (91 cm) 3 ft (91 cm)

J= Clearance to non-mechanical air supply inlet to building or the combustion air 12 in (30 cm) 9 in (23 cm) inlet to any other appliance

K= Clearance to a mechanical air supply inlet 6 ft (1.83 m) 3 ft (91 cm) above if within 10 ft (3 m) horizontally

L= Clearance above paved sidewalk or paved driveway located on public property 7 ft (2.13 m) † 7 ft (2.13 m) †

Clearance under veranda, porch, deck

or balcony 20 in (51 cm) ‡ 20 in (51 cm) ‡

1 In accordance with the current CSA-B149 Installation Codes. 2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes. † A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings. ‡ Permitted only if veranda, porch, deck or balcony is fully open on a minimum of two sides beneath the ﬂ oor.

NOTE: Local codes or regulations may require different clearances. Interfocos assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.

Page 22

Bellﬁ res

Installation instructions

VENT INSTALLATION

M&G DuraVent - DIRECT VENT PRO 4" x 6⅝" - Available approved components:

M&G DuraVent - Direct Vent Pro Concentric (= Co-axial) direct vent system Size Diam. (in.) : 4" x 6⅝" Material Type : 0.020" aluminum inner wall - 0.018" galvanized steel outer wall

Item no. Descrip! on DuraVent Part no.

1 Bellﬁ res Adapter:

5⅛" x 7⅞" to 4" x 6⅝" Direct Vent Pro 46DVA-AD-BF

2 Ver# cal Termina# on - High-Wind Termina# on Cap 46DVA-VCH

3 Ver# cal Wind Guard - Only for High Wind Termina# on Cap 46DVA-VWG

4 Ver# cal Termina# on - Low-Proﬁ le Termina# on Cap 46DVA-VC

5 Ver# cal Termina# on - Extended Ver# cal Termina# on Cap 46DVA-VCE

6 6" Pipe Length 46DVA-06

7 9" Pipe Length 46DVA-09

8 12" Pipe Length 46DVA-12

9 18" Pipe Length 46DVA-18

10 24" Pipe Length 46DVA-24

11 36" Pipe Length 46DVA-36

12 48" Pipe Length 46DVA-48

13 60" Pipe Length 46DVA-60

14 8½" Pipe Extension 46DVA-08A

15 16" Pipe Extension 46DVA-16A

16 11"-17" Adjustable Pipe 46DVA-17TA

17 17"-24" Adjustable Pipe 46DVA-24TA

18 30° Elbow 46DVA-E30

19 45° Elbow 46DVA-E45

20 60° Elbow 46DVA-E60

21 90° Elbow 46DVA-E90

22 Elbow Strap 46DVA-ES

23 Wall Strap 46DVA-WS

24 Ceiling Support / Wall Thimble Cover 46DVA-DC

25 Cathedral Ceiling Support Box 46DVA-CS

26 Ceiling Firestop 46DVA-FS

27 A$ c Insula# on Shield 46DVA-IS

28 Adjustable Roof Flashing, 0/12 to 6/12 Roof Pitch 46DVA-F6

29 Steep Roof Flashing, 7/12 to 12/12 Roof Pitch 46DVA-F12

30 Flat Roof Flashing 46DVA-FF

31 Dead So% Aluminum Flashing, 0/12 to 6/12 Roof Pitch 46DVA-F6DS

32 Dead So% Aluminum Flashing, 7/12 to 12/12 Roof Pitch 46DVA-F12DS

33 Storm Collar 46DVA-SC

34 Flex Liner 4" (25 % . long ) 4DFA-25

35 Flex Coupling 4" 4DFA-FC

36 Connector for Flex Liner 4" 4SL-316

Page 23

Bellﬁ res

Installation instructions

VENT INSTALLATION

M&G DuraVent - Direct Vent Pro Concentric (= Co-axial) direct vent system Size Diam. (in.) : 5" x 8" Material Type : 0.020" aluminum inner wall - 0.018" galvanized steel outer wall

Item no. Descrip! on DuraVent Part no.

101

Bellﬁ res Adapter:

5⅛" x 7⅞" to 5" x 8" Direct Vent Pro

58DVA-AD-BF

102 Horizontal Termina# on - Round Termina# on Cap 58DVA-HRCS

103 Horizontal Termina# on - High Wind Square Termina# on Cap 58DVA-HC

104 Horizontal Termina# on - Sconce Termina# on Cap 58DVA-HSC

105 Horizontal Termina# on - High Wind Sconce Termina# on Cap 58DVA-HSCH

106 6" Pipe Length 58DVA-06

107 9" Pipe Length 58DVA-09

108 12" Pipe Length 58DVA-12

109 18" Pipe Length 58DVA-18

110 24" Pipe Length 58DVA-24

111 36" Pipe Length 58DVA-36

112 48" Pipe Length 58DVA-48

113 60" Pipe Length 58DVA-60

114 8½" Pipe Extension 58DVA-08A

115 16" Pipe Extension 58DVA-16A

116 11"-17" Adjustable Pipe 58DVA-17TA

117 17"-24" Adjustable Pipe 58DVA-24TA

118 30° Elbow 58DVA-E30

119 45° Elbow 58DVA-E45

120 60° Elbow 58DVA-E60

121 90° Elbow 58DVA-E90

122 Elbow Strap 58DVA-ES

123 Wall Strap 58DVA-WS

124 Ceiling Support / Wall Thimble Cover 58DVA-DC

125 Cathedral Ceiling Support Box 58DVA-CS

126 Ceiling Firestop 58DVA-FS

127 A$ c Insula# on Shield 58DVA-IS

128 Wall Thimble 58DVA-WT

129 Wall Thimble - Small 58DVA-WTS

130 Universal Wall Thimble 58DVA-WTU

131 Wall Firestop 58DVA-WFS

132 Vinyl Siding Standoﬀ 58DVA-VSS

133 Vinyl Siding Standoﬀ Kit 58DVA-VSK

134 Vinyl Siding Standoﬀ Kit Small 58DVA-VSKS

135 Counter Flashing 58DVA-CFK /-S

136 Counter Flashing - Small 58DVA-CFKS

137 Flex Liner 5" 5DFA-25

138 Connector for Flex Liner 5" 5SL-316

139 Flex Adapter Starter DVFF8A/8

140

Reducer: 5"x 8" to 4" x 6

⅝"

58DVA-J

M&G DuraVent - DIRECT VENT PRO 5" x 8"

- Available approved components:

Page 24

Bellﬁ res

Installation instructions

VENT INSTALLATION

SELKIRK - DIRECT-TEMP Direct Vent Products 4" x 6⅝" -

Available approved components:

SELKIRK – DIRECT-TEMP Direct Vent Products Concentric (= Co-axial) direct vent system Size Diam. (in.) : 4" x 6⅝" Material Type : 0.012" 304 stainless steel inner wall

0.018" galvanized steel outer wall

Item no. Descrip! on SELKIRK Part no.

1 Bellﬁ res Adapter:

5⅛" x 7⅞" to 4" x 6⅝" Direct Temp 4DT-AAB

2 Ver# cal Termina# on 4DT-VT

6 DT - 6" Pipe 4DT-06

7 DT - 9" Pipe 4DT-09

8 DT - 12" Pipe 4DT-12

9 DT - 18" Pipe 4DT-18

10 DT - 24" Pipe 4DT-24

11 DT - 36" Pipe 4DT-36

12 DT - 48" Pipe 4DT-48

14 Adjustable Length 4-10" 4DT-AJ12

16 Telescopic Length 14-22" 4DT-TL 14

17 Telescopic Length 38-70" 4DT-TL 38

19 Elbow 45° 4DT-EL45

21 Elbow 90° 4DT-EL90S

23 Wall Support/Band 4DTWS/B

24 Ceiling Support 4DT-CS

25 Cathedral Ceiling Support Box 4DT-CCS

26 Firestop Spacer 4DT-FS

27 A$ c Insula# on Shield 4DT-AIS

- Oﬀ set Support 4DT-OS

28 Roof Flashing, Adjustable 0/12 to 6/12 4DT-AF6

29 Roof Flashing, Adjustable 6/12 to 12/12 4DT-AF12

30 Roof Flashing, Rubber Boot URBAK

33 Storm Collar 4DT-SC

- Trim Plate 4DT-TP

Page 25

Bellﬁ res

Installation instructions

VENT INSTALLATION

SELKIRK - DIRECT-TEMP Direct Vent Products 5" x 8" Available approved components:

SELKIRK - DIRECT-TEMP Direct Vent Products Concentric (= Co-axial) direct vent system Size Diam. (in.) : 5" x 8" Material Type : 0.012" 304 stainless steel inner wall

0.018" galvanized steel outer wall

Item no. Descrip! on SELKIRK Part no.

101 Bellﬁ res Adapter:

5⅛" x 7⅞" to 5" x 8" Direct Temp 5DT-AAB

102 Horizontal Insulated Termina# on - Square 5DT-HC

106 DT - 6" Pipe 5DT-06

107 DT - 9" Pipe 5DT-09

108 DT - 12" Pipe 5DT-12

109 DT - 18" Pipe 5DT-18

110 DT - 24" Pipe 5DT-24

111 DT - 36" Pipe 5DT-36

112 DT - 48" Pipe 5DT-48

114 Adjustable Length 4-10" 5DT-AJ12

119 Elbow 45° 5DT-EL45

121 Elbow 90° 5DT-EL90

123 Wall Support/Band 5DTWS/B

124 Ceiling Support 5DT-CS

125 Cathedral Ceiling Support Box 5DT-CCS

126 Firestop Spacer 5DT-FS

127 A$ c Insula# on Shield 5DT-AIS

- Oﬀ set Support 5DT-OS

128 Wall Thimble 5DT-WT

132 Vinyl Siding Standoﬀ 5DT-VS

- Trim Plate 5DT-TP

140 Reducer: 5"x 8" to 4" x 6

⅝" 5DT-R4

Page 26

Bellﬁ res

Installation instructions

VENT INSTALLATION

METAL-FAB - Sure-Seal Direct Vent Products 4" x 6.5" Available approved components:

METAL-FAB - Sure-Seal Direct Vent Products Concentric (= Co-axial) direct vent system Size Diam. (in.) : 4" x 6.5" Material Type : 0.012" 430 stainless steel inner wall

0.018" galvanized steel outer wall

Item no. Descrip! on METAL-FAB Part no.

1 Bellﬁ res Adapter:

5⅛" x 7⅞" to 4" x 6.5" Metal-Fab 54DBA

2 Ver# cal Termina# on - Termina# on Cap 4DVT

6 6" Pipe Straight Length assembly 4D6

8 12" Pipe Straight Length assembly 4D12

9 18" Pipe Straight Length assembly 4D18

10 24" Pipe Straight Length assembly 4D24

11 36" Pipe Straight Length assembly 4D36

12 48" Pipe Straight Length assembly 4D48

14 Adjustable Length 3"-10" 4DAL

19 Elbow 45° 4D45L

21 Elbow 90° 4D90L

23 Wall support 4DWS

26 Firestop 4DFS

- Support Plate 4DSP

- Decora# ve Cover Plate 4DCP

28 Roof Flashing, Roof Pitch ±30˚ 4DF

29 Roof Flashing, Roof Pitch Steep ±45˚ 4DF-S

- Roof Flashing, Roof Pitch Extra Steep ±60˚ 4DF-ES

30 Roof Flashing, Flat Roof 4DF-FR

33 Storm Collar 4DSC

- Painted Roof Support 4DRS

Page 27

Bellﬁ res

Installation instructions

VENT INSTALLATION

METAL-FAB - Sure-Seal Direct Vent Products 5" x 8" Available approved components:

METAL-FAB – Sure-Seal Direct Vent Products Concentric (= Co-axial) direct vent system Size Diam. (in.) : 5" x 8" Material Type : 0.012" 430 stainless steel inner wall

0.018" galvanized steel outer wall

Item no. Descrip! on METAL-FAB Part no.

101 Bellﬁ res Adapter:

5⅛" x 7⅞" to 5" x 8" Metal-Fab 5DBA

102 Horizontal Termina# on -Square Termina# on Cap 5DHT

106 6" Pipe Straight Length assembly 5D6

108 12" Pipe Straight Length assembly 5D12

109 18" Pipe Straight Length assembly 5D18

110 24" Pipe Straight Length assembly 5D24

111 36" Pipe Straight Length assembly 5D36

112 48" Pipe Straight Length assembly 5D48

114 Adjustable Length 3"-10" 5DAL

119 Elbow 45° 5D45L

121 Elbow 90° 5D90L

123 Wall support 5DWS

126 Firestop 5DFS

- Support Plate 5DSP

- Decora# ve Cover Plate 5DCP

128 Wall Thimble 5DWT

132 Vinyl Siding Stand Oﬀ 5DVS

140 Reducer: 5"x 8" to 4" x 6.5" 54DTA

Page 28

Bellﬁ res

Installation instructions

VENT INSTALLATION

CONCENTRIC FLUE SYSTEM

IMPORTANT:

• The direct vent gas appliances have been approved in combination with the

components of the concentric ﬂ ue systems listed in this installation manual, according to the ANSI / CSA standards for gas appliances and may therefore be used only with these components. The use of a snorkel or power vent is not allowed.

• The components of the concentric ﬂ ue system of M&G Duravent (Direct Vent Pro), Selkirk (Direct Temp) and Metal-Fab (Sure-Seal) may not be used together in one installation.

• Check whether the wall or roof termination kit to be used exactly matches one of those listed in this installation manual.

• Due to the high temperature of the outer walls (approx. 300°F 150°C), no ﬂ ammable materials may be located or used in the vicinity of the ﬂ ue system.

• Clearance to combustible materials:

• Do not insulate the concentric ﬂue.

• For all other installation items; the venting must be installed according to the concentric ﬂ ue manufacturer’s installation instructions and local code requirements. (Which allow for installation in a combustible chase as long as a clearance to combustible requirements are met.)

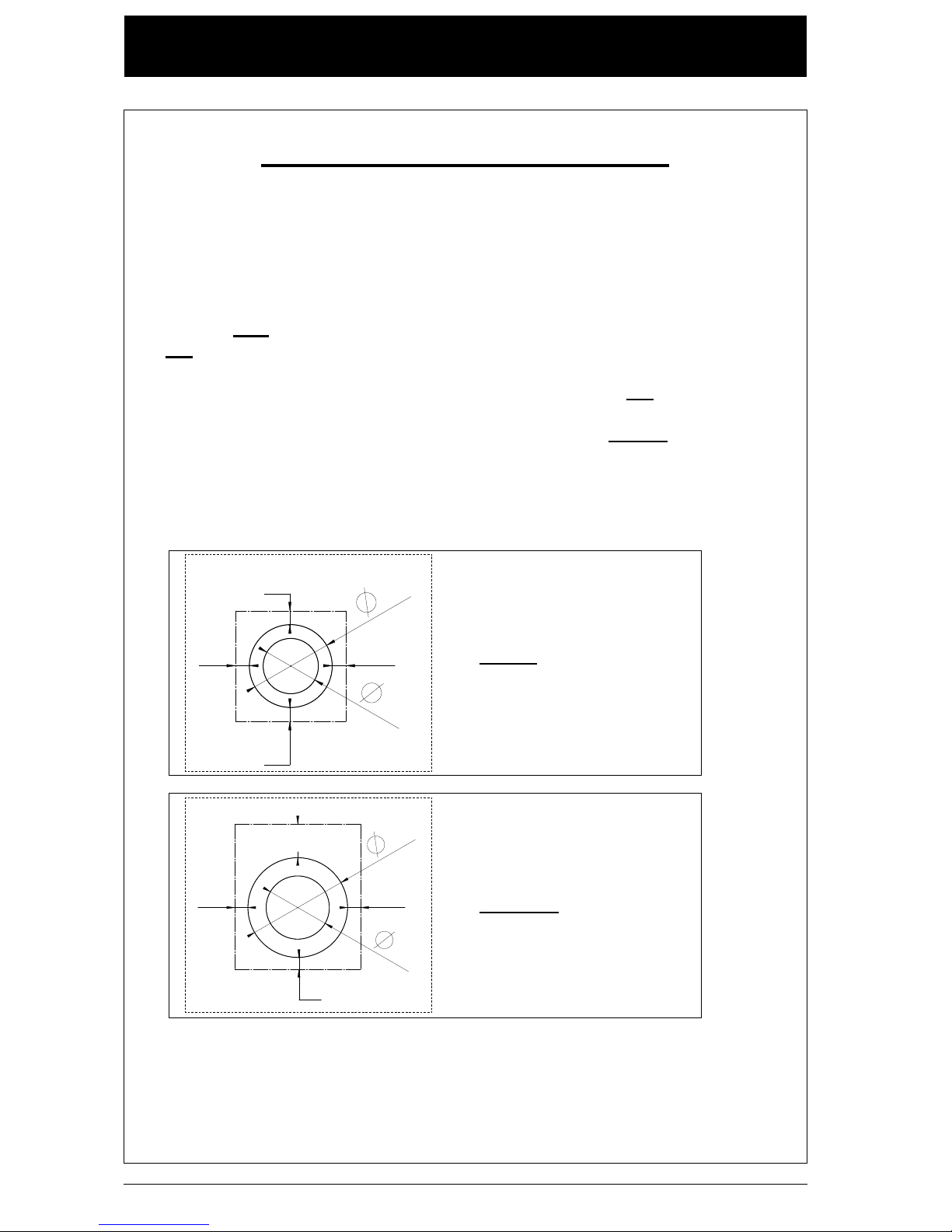

Cross section Vertical concentric ﬂ ue











Cross section Horizontal concentric ﬂ ue









Page 29

Bellﬁ res

Installation instructions

VENT INSTALLATION

Vertical concentric ﬂ ue system in cold climates

In cold climate conditions where temperatures go below 14°F (-10°C ), we

recommend that the chase be insulated and where the concentric ﬂ ue pipe enters into the attic space that the pipe be wrapped with a non-combustible insulation sleeve. This will increase the temperature of the pipe and help the appliance to vent properly in cold weather conditions.

It is also important that appliances with a vertical concentric ﬂ ue system, be operated daily during the winter months. This will help to stop the roof termination from freezing up. We recommend using the thermostat room temperature setting on the remote to allow the appliance to cycle.

IMPORTANT : Do not use Silicone/RTF products, as they will create a white

residue on the glass! When necessary, use an alternative direct vent sealing compound. (for example Mill-Pac Sealant)

There are two basic types of direct-vent installation:

- Horizontal termination

- Vertical termination

The combined ﬂ ue gas channel and combustion air intake requires one of concentric ﬂ ue system conﬁ gurations as depicted in ﬁ gures 7 to 12.

IMPORTANT : Always keep the Pilot in the ON position (burning) when the outside temperature is below freezing.

Page 30

Bellﬁ res

Installation instructions

VENT INSTALLATION

Figure 7: Vertical roof-mounted outlet without bend

RIGID CONCENTRIC FLUE 4" x 6⅝" SYSTEM CONNECTION POSSIBILITIES

Appliance: Concentric ﬂ ue connection 5⅛

" x 7⅞"

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

Assemble restriction plate:

Appliance: Distance Y Concentric connection (min.-max.) on

appliance is 5⅛" x 7⅞"

72" - 144"

Width: B = 65 mm

(2.0 - 4.0 m)

View Bell Medium 3

144" - 432"

Width: B = 80 mm

(4.0 - 12.0 m)

Item descriptions:

see Vent Installation

Page 22-27

2, 3, 4, 5

6 to 17

28, 29

101 + 140 (or 1)

6 to 17

2, 3, 4, 5

Gas appliance

Page 31

Bellﬁ res

Installation instructions

VENT INSTALLATION

Figure 8: Vertical roof-mounted outlet with bend

(*) : (Y1 + Y2) : X > 2 : 1 (Vertical to horizontal ratio (or 45° upwards) is always at least 2 to 1)

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

Assemble restriction plate:

Appliance: Distance Y1 (*) Distance X (*) Distance Y1 + Y2 (*) Concentric connection (min.-max.) (min.-max.) (min.-max.) on

appliance is 5⅛" x 7⅞"

View Bell

36" - 396" 0" - 108" 36" - 396"

Width: B = 40 mm

Medium 3 (1.0 - 11.0 m) (0 - 3.0 m) (1.0 - 11.0 m)

101 + 140 (or 1)

6 to 17

18, 19, 20, 21

28, 29

2, 3, 4, 5

Gas appliance

Item descriptions:

see Vent Installation

Page 22-27

RIGID CONCENTRIC FLUE 4" x 6⅝" SYSTEM CONNECTION POSSIBILITIES

Appliance: Concentric ﬂ ue connection 5⅛

" x 7⅞"

Page 32

Bellﬁ res

Installation instructions

VENT INSTALLATION

Figure 9: Vertical chimney outlet using an existing lined chimney (Flexible 4" and/or rigid 4" x 6⅝")

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

FLEXIBLE CONCENTRIC FLUE 4" x 6⅝" SYSTEM CONNECTION POSSIBILITIES

Appliance: Concentric ﬂ ue connection 5⅛

" x 7⅞"

Assemble restriction plate:

Appliance: Distance Y Concentric connection (min.-max.) on appliance is 5⅛" x 7⅞"

72" - 144"

Width: B = 65 mm

(2.0 - 4.0 m)

View Bell Medium 3

144" - 432"

Width: B = 80 mm

(4.0 - 12.0 m)

101 + 140 (or 1)

6 to 17

2, 3, 4, 5

Gas appliance

Item descriptions:

see Vent Installation

Page 22-27

Page 33

Bellﬁ res

Installation instructions

VENT INSTALLATION

Figure 10: Vertical chimney outlet using a lined chimney with a bend > 45° (Flexible 4" and/or rigid 4" x 6⅝")

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

(*) : (Y1 + Y2 + Y3) : X > 2 : 1 (Vertical to horizontal ratio (or 45° upwards) is always at least 2 to 1)

Assemble restriction plate:

Appliance: Distance Y1 (*) Distance X (*) Distance Y1+Y2+ Y3 (*) Concentric connection (min.-max.) (min.-max.) (min.-max.) on

appliance is 5⅛" x 77/8"

View Bell 36" - 396" 0" - 108" 36" - 396"

Width: B = 40 mm

Medium 3

(1.0 - 11.0 m)

(0 - 3.0 m) (1.0 - 11.0 m)

2, 3, 4, 5

Gas appliance

101 + 140 (or 1)

6 to 17

Item descriptions:

see Vent Installation

Page 22-27

FLEXIBLE CONCENTRIC FLUE 4" x 6⅝" SYSTEM CONNECTION POSSIBILITIES

Appliance: Concentric $ ue connection 5⅛

" x 7%"

Page 34

Bellﬁ res

Installation instructions

VENT INSTALLATION

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

Figure 11: Horizontal wall termination

Assemble restriction plate:

Appliance: Distance Y1 Distance X1 Distance Y2 Distance X2 Concentric connection on (min.-max.) (min.-max.) (min.-max.) (min.-max.) appliance is 5⅛" x 7⅞"

0" - 18" 0" - 18" 18" - 36" 0" - 18" (0 - 0.5 m) (0 - 0.5 m) (0.5 - 1.0 m) (0 - 0.5 m)

18" - 36" 0" - 18" 0" - 18" 0" - 18" View (0.5 - 1.0 m) (0 - 0.5 m) (0

- 0.5 m) (0 - 0.5 m)

Bell Medium 3 36" - 108" 0" - 36" 18" - 72" 0" - 18" (1.0 - 3.0 m) (0 - 1.0 m) (0.5 - 2.0 m) (0 - 0.5 m)

36" - 108" 0" - 108" 36" - 108" 0" - 18" (1.0 - 3.0 m) (0 - 3.0 m) (1.0

- 3.0 m) (0 - 0.5 m)

Appliance: Concentric $ ue connection 5⅛" x 7⅞"

RIGID CONCENTRIC FLUE 5" x 8" SYSTEM CONNECTION POSSIBILITIES and with wall outlet 5" x 8"

Gas appliance

106 to 117

121

101

102 to 105

IMPORTANT :

For propane appliances: Always use a minimum of 12" rise (= 12" pipe length of

5" x 8") on top of the unit ﬁ rst, before working further according to the table above.

Item descriptions:

see Vent Installation

Page 22-27

Page 35

Bellﬁ res

Installation instructions

VENT INSTALLATION

ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION

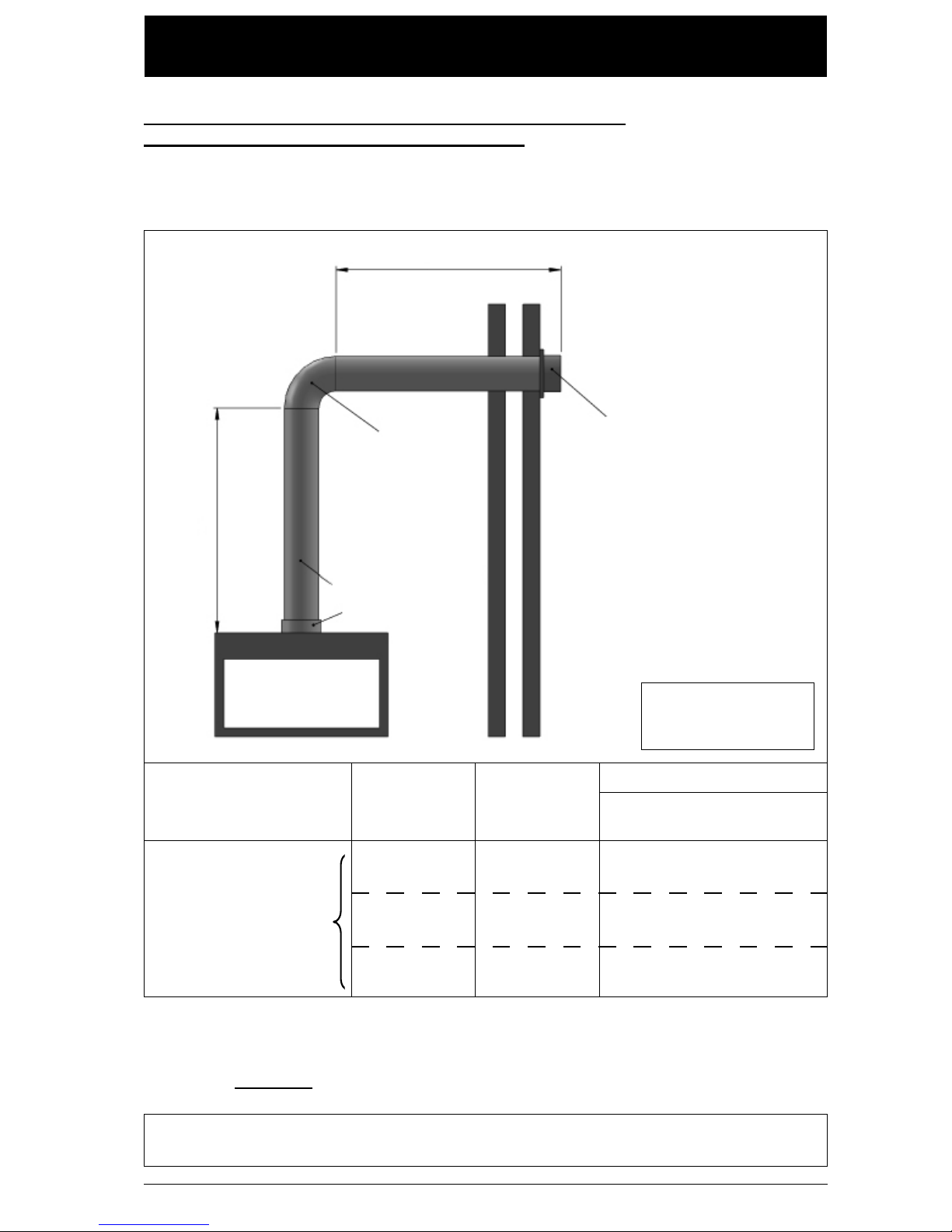

Figure 12: Horizontal wall termination

Appliance: Concentric ﬂ ue connection

5⅛" x 7⅞"

RIGID CONCENTRIC FLUE 5" x 8" SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø5" x Ø8"

Assemble restriction plate:

Appliance: Distance Y Distance X Concentric connection on (min.-max.) (min.-max.)

appliance is 5⅛" x 7⅞"

0" - 18" 0" - 18"

(0 - 0.5 m) (0 - 0.5 m)

18" - 36" 0" - 54"

View Bell Medium 3

(0.5 - 1.0 m) (0 - 1.5 m)

36" - 108" 0" - 162"

(1.0 - 3.0 m) (0 - 4.5 m)

121

Gas appliance

101

106 to 117

102 to 105

IMPORTANT : For propane appliances: Always use a minimum of 12" rise (= 12" pipe length of

5" x 8") on top of the unit ﬁ rst, before working further according to the table above.

Item descriptions:

see Vent Installation

Page 22-27

Page 36

Bellﬁ res

Installation instructions

POSITIONING THE APPLIANCE

• Never position the appliance directly against the rear wall, but always in accordance

with the installation instructions in chapter; “CLEARANCES”. Use only the speciﬁ ed

insulation plates!

• Never use combustible materials during the installation.

• Ventilate the ﬁ replace, by allowing vents above the ﬁ replace.

• During installation of the appliance, a clearance of 0.12" (3 mm) should be maintained on all sides of the appliance to allow for expansion of the appliance during operation.

• Do not insulate the appliance! Only the top and sides may be ﬁ tted with a strip of

white, loose insulation wool (heat-resistant to 1832°F (1000°C)), width 6" (15 cm) max. to protect the wall.

• Do not use ﬁ breglass or Rockwool, or any other sort of insulating material. These emit a pungent odour. This is considered extremely unpleasant. They may also cause discolouring of the column.

• Flammable materials, such as curtains, should not be placed in the vicinity of the appliance. Minimum safe distance: 40" (100 cm). See also chapter; “CLEARANCES”.

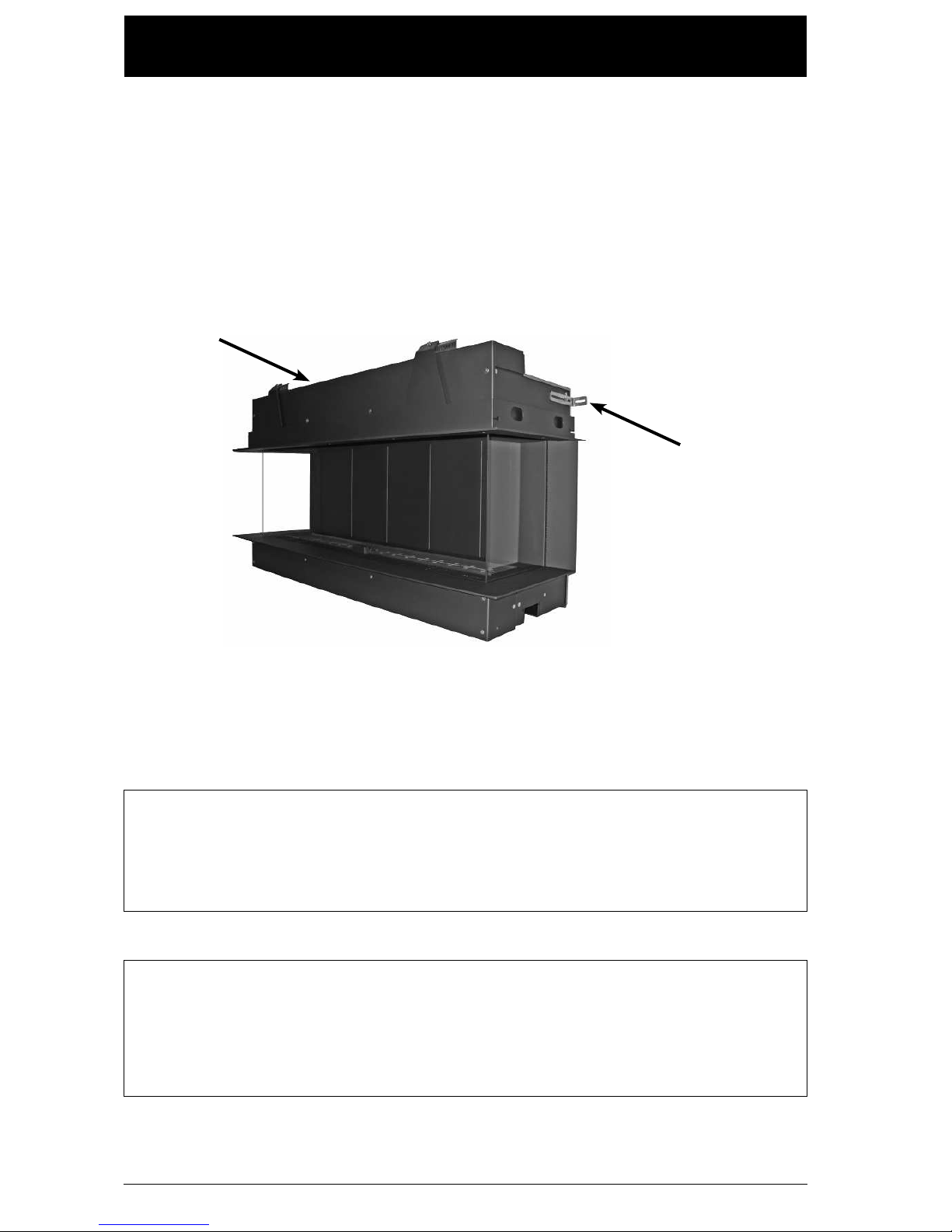

The appliance can be easily installed using a set of carrying brackets (accessory). After installing: remove carrying brackets!

IMPORTANT:

• The appliance must be constructed on a suf! ciently solid " oor that can bear the weight of the appliance.

• Ensure a free space of at least 0.4 in (1 cm) between the bottom of the

appliance and the " oor.

• Ensure that the temperature of the " oor under and in front of the appliance can never rise above 185 °F (85°C)# Make use of a temperature protection plate; Hearth (of noncombustible material) on the " oor if necessary.

• Take care with a " oor made of a combustible material.

• Refer for the minimum clearances to (non)combustible material to the “CLEARANCES” chapter elsewhere in this manual.

• Fit the separate operating unit, where the gas regulator block and receiver

will be placed, on MAXIMUM 20" (50 cm) from either side of the appliance.

Page 37

Bellﬁ res

Installation instructions

POSITIONING THE APPLIANCE

Figure 13: Appliance installed in ventilated chimney breast / Enclosure

Horizontal outlet of the ﬂ ue gas exhaust /combustion air supply via the wall.

• Fitted with the accessory: high adjustable feet

(*) Made of a non-combustible insulation plate / board, according the material

speciﬁ cations in the Chapter: CLEARANCES.

IMPORTANT: Install the appliance and the insulation plate / board according to the Chapter: CLEARANCES.

1 Inlet opening (appliance) convection air for chimney breast/Enclosure 2 Natural convection in the chimney breast/Enclosure 3 Outlet opening (chimney breast/Enclosure) convection air. Total minima

l required

: 46 in2 (300 cm2)

4 Concentric ﬂ ue connection appliance; 5⅛" x 7⅞", with an adapter: Bellﬁ res 5⅛" x 7⅞" to 5" x 8" (See available approved components) for a horizontal wall outlet 5 Concentric ﬂ ue system; 5" x 8" with a horizontal wall outlet 6 Built in operating unit with gas regulator block and receiver 7 Chimney breast/Enclosure (*) 8 False ceiling (*) 9 False back wall (*)

Page 38

Bellﬁ res

Installation instructions

POSITIONING THE APPLIANCE

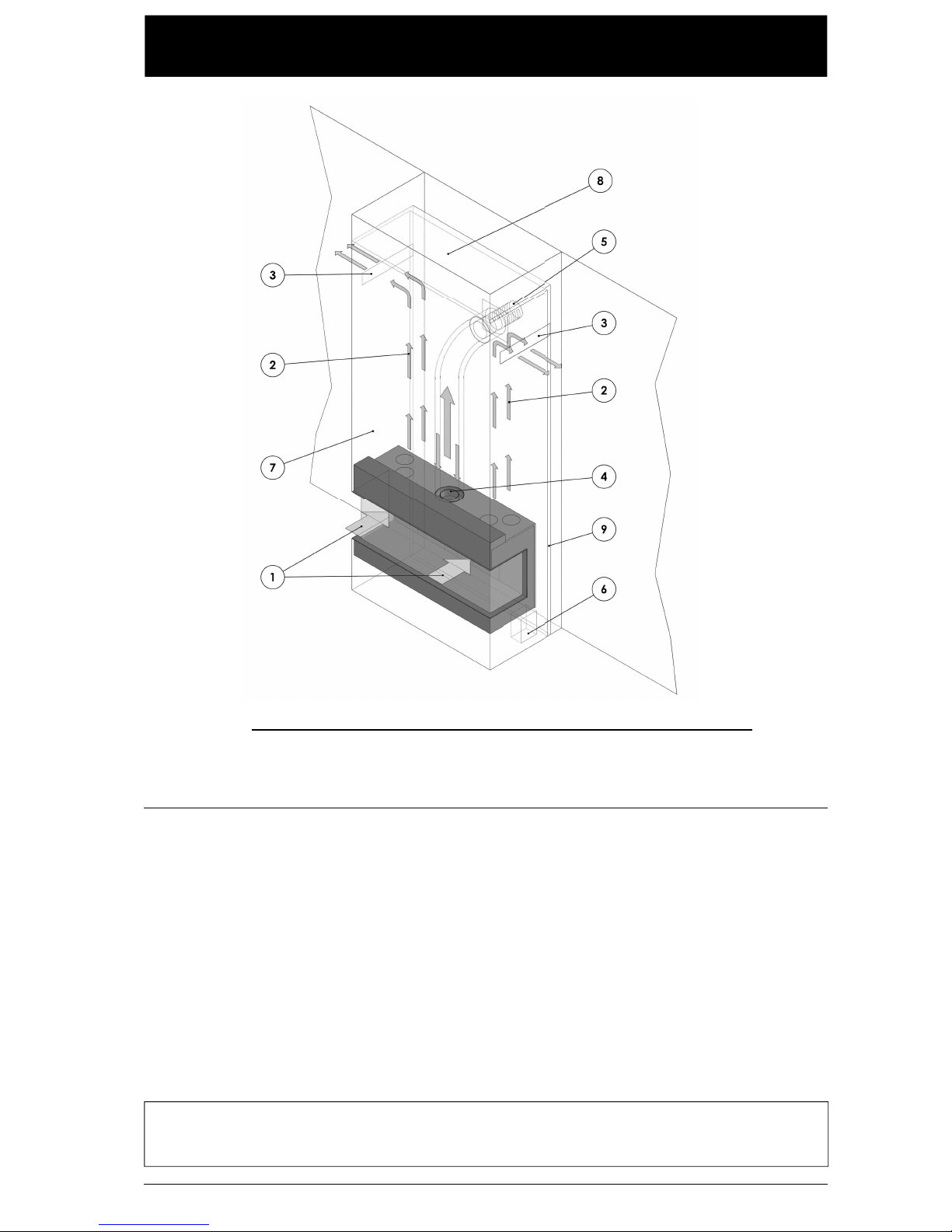

Figure 14: Appliance installed in ventilated chimney breast / Enclosure

Vertical outlet of the ﬂ ue gas exhaust / combustion air supply via the roof.

• Fitted with the accessory: high adjustable feet

(*) Made of a non-combustible insulation plate / board, according the material

speciﬁ cations in the Chapter: CLEARANCES.

IMPORTANT: Install the appliance and the insulation plate / board according to the Chapter: CLEARANCES.

1 Inlet opening (appliance) convection air for chimney breast / Enclosure 2 Natural convection in the chimney breast / Enclosure 3 Outlet opening (chimney breast/Enclosure) convection air. Total minima

l required

: 46 in2 (300 cm2)

4 Concentric ﬂ ue connection appliance; 5⅛" x 7⅞", with an adapter: Bellﬁ res 5⅛" x 7⅞" to 5" x 8" (See available approved components) then a reducer: 5" x 8"

to 4" x 6⅝" (See available approved components)

for a vertical roof outlet 5 Concentric ﬂ ue system;

4" x 6⅝" for a vertical roof outlet

6 Built in operating unit with gas regulator block and receiver 7 Chimney breast / Enclosure (*) 8 False ceiling (*) 9 False back wall (*)

Page 39

Bellﬁ res

Installation instructions

When ﬁ tting the appliance, it can be levelled with the adjustable feet. These adjustable fe

et can be reached via the openings (4x), after removing the protective covers, in the

corners of the ﬂ oor of the combustion chamber. The ﬂ oor of the combustion chamber can be reached after the window and the grill around the burner have been removed (see Chapter: “DISMANTLING / ASSEMBLING OF THE GLASS”). Using an Allen key (no. 5), the appliance can be adjusted to the required height.

POSITIONING THE APPLIANCE

IMPORTANT:

Press the 4 protec• ng covers back into the ﬂ oor.

- Adjustable feet seen from the bottom - Adjust height with Allenkey no. 5.

of the appliance.

Press the

4 protecting covers back into the ﬂ oor.

- Position 4 protecting covers. - Protecting cover.

„

•

‚

Page 40

Bellﬁ res

Installation instructions

POSITIONING THE APPLIANCE

• Position the gas supply pipe such that it can be easily mounted after installation. Because the control system is outside the appliance, the gas pipe must lead to where the operating unit (built in), the gas regulator block (and the receiver) assembly are

ﬁ tted.

• Position the appliance in accordance with the installation instructions in chapter; CLEARANCES. Use only the speciﬁ ed insulation plates.

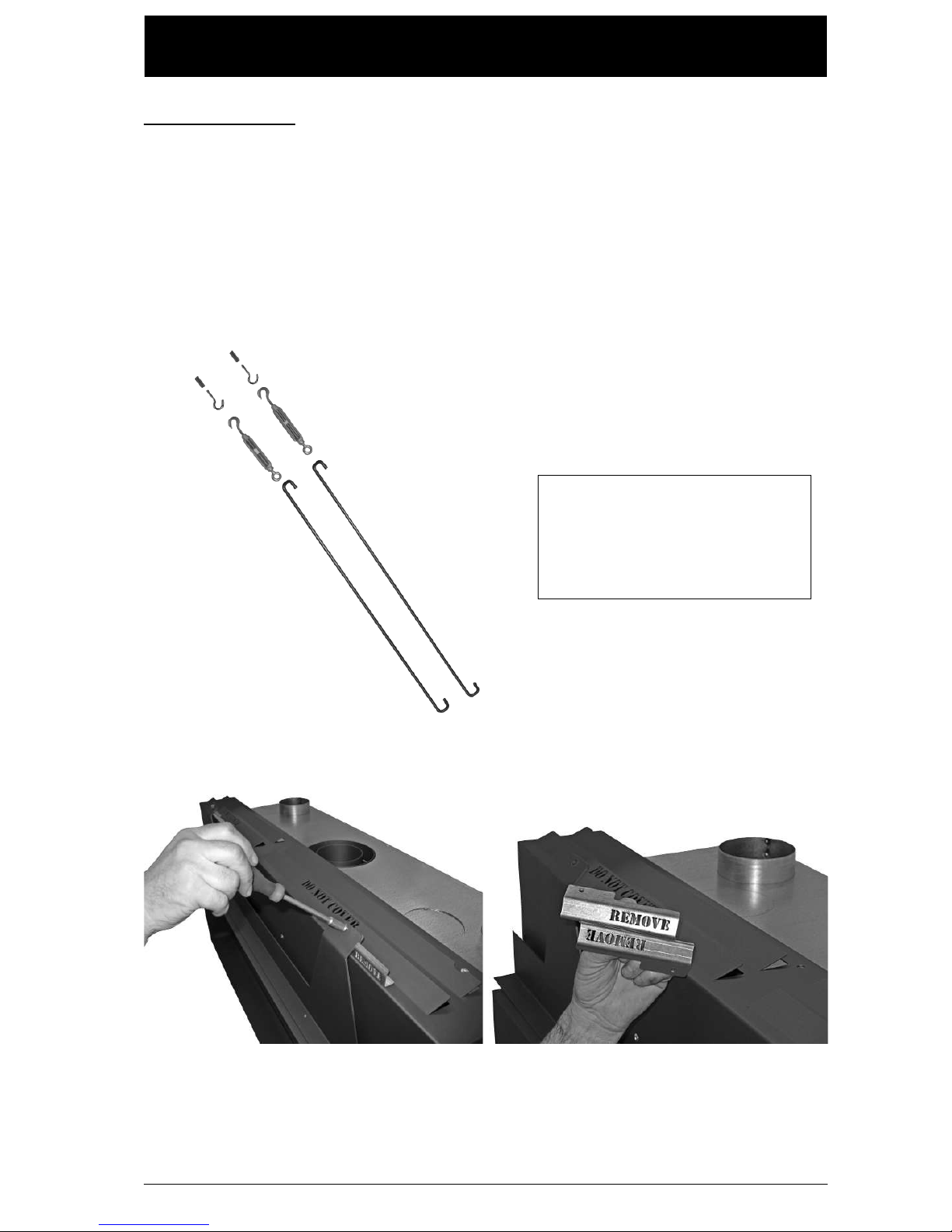

• Attach the appliance to the rear wall with 2 wedge bolts. Use the adjustable mounting brackets at the side of the appliance for this.

- 2x Mounting bracket.

WARNING:

Connection of the appliance to gas supply must be performed by a quali! ed installer, service agency or the gas supplier. Follow the local codes.

IMPORTANT:

During gas connection, take care not to twist the gas regulator block. Make sure that both the gas regulator block and the supply pipes are not subjected to stresses.

Page 41

Bellﬁ res

Installation instructions

GAS LINE INSTALLATION

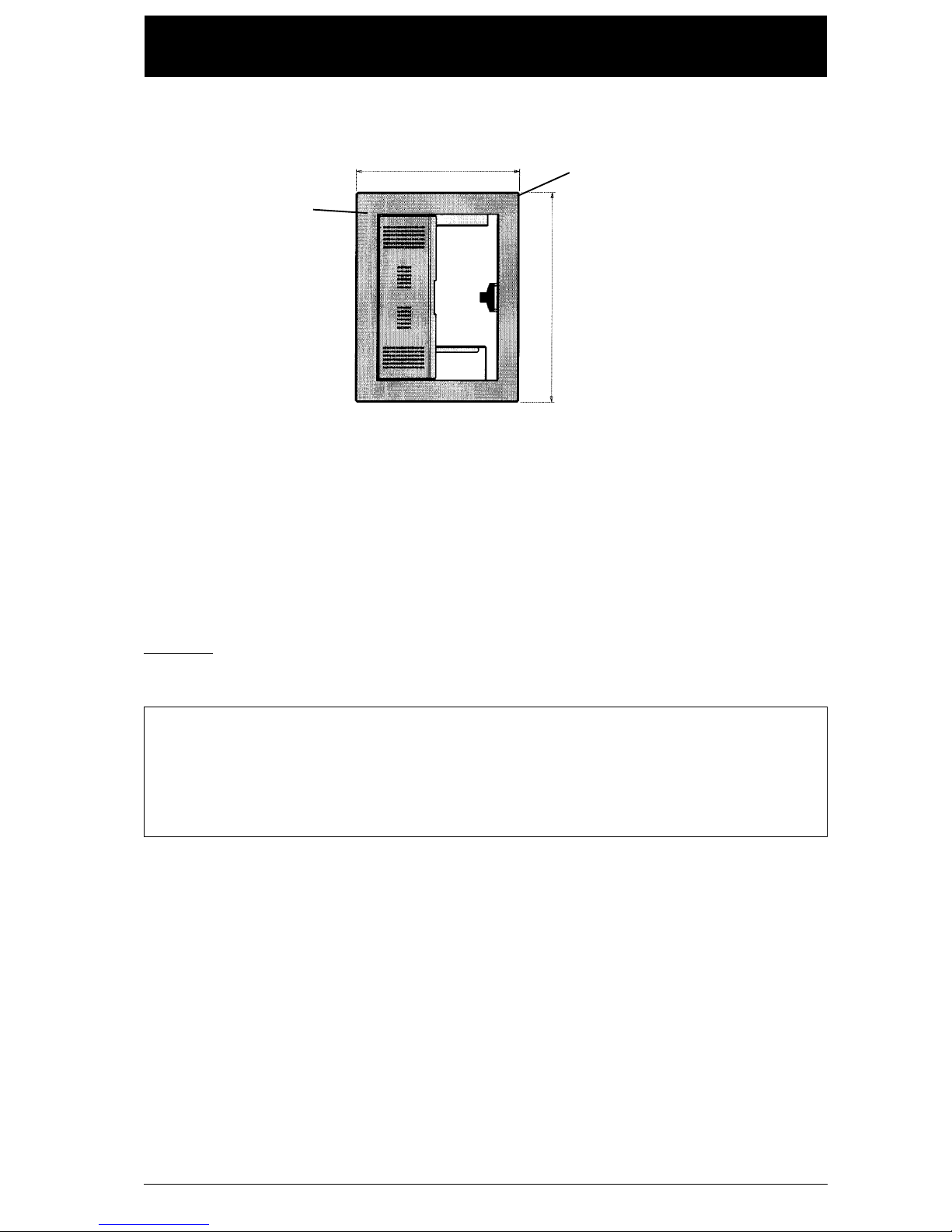

Figure 14: Operating unit

The appliance is supplied with a built-in operating unit.

Frame with

door (white)

Operating unit

9.7”

12.4”

IMPORTANT:

Mount the receiver in the top of the operating unit. Check afterwards that all electric connections are properly connected.

Route all piping and cables from the operating unit to the appliance through an easily accessible hollow cavity. During subsequent installation of the operating unit, protect the gas regulator block and piping against encasement by cement etc.

Note: When the installation of the built-in operating unit is not possible; one can place the gas regulator block and receiver under the appliance. Important:

• Keep a minimal distance of 4" (10 cm) between the gas regulator block / receiver and the bottom of the appliance.

• Attach the gas regulator block ﬁ xed to the wall/ﬂ oor.

• Gas regulator block and receiver must always be accessible for maintenance.

Remove the decorative edging and door of the operating unit. Fit the separate operating unit, where the gas regulator block and receiver will be placed, on MAXIMUM 20" (50 cm) from either side of the appliance.

The burner, gas regulator block and receiver have been fully factory assembled.

Disconnect the bracket with the gas regulator block and receiver from the appliance. Carefully move the bracket with the gas regulator block, receiver, pipes and cables to the operating unit. Mount the bracket at the bottom of the operating unit.

Page 42

Bellﬁ res

Installation instructions

GAS LINE INSTALLATION

The gas line connection can be made using ½” rigid tubing or an approved ﬂ ex connector. Since some municipalities have additional local codes it is always best to consult your local authorities and the current edition of the National Fuel Gas Code ANSI.Z223.1, NFPA54. In Canada CSA-B149 (1 or 2) Installation Code.

A CSA design-certiﬁ ed equipment shutoff valve must be installed upstream of the appliance. Contact your dealer for the purchase of CSA design-certiﬁ ed equipment shutoff valve. The gas regulator block is equipped with a screw type pressure test point (inlet pressure tap in ﬁ gure 18). Therefore it is not necessary to provide a ⅛” test point

up stream of the control.

The CSA design-certiﬁ ed shutoff valve (main gas valve) must be installed in an

accessible location. This main gas valve is used for opening or closing off the gasﬂ ow to the appliance.

IMPORTANT:

Cement and chalk can damage the piping and can, in turn, lead to gas leaks.

IMPORTANT:

Screw the thermocouple connection (and thermocouple interrupter) manually into the gas regulator block. Afterwards, carefully fasten a half turn with a spanner.

Disassembly and assembly of pipes and cables:

If necessary for mounting, all pipe compression ﬁ ttings and cable connectors can be temporarily disassembled. After mounting, carefully reassemble all pipes and cables. Check afterwards all compression ﬁ ttings for leaks and that all electric connections are properly connected.

Note: Check that the ﬂ exible burner pipes are correctly connected! The gas connection of the gas valve “rear burner” must be connected to the “rear burner”! See ﬁ gure 16 and Chapter; DIAGRAM ELECTRICITY AND GAS.

Switching over the ﬂ exible burner pipes during assembly can lead to an explosive ignition. Prevent this at all costs!

The appliance must not be subjected to any test pressures exceeding ½ psi (= 3.45 kPa = 34.5 mbar). Isolate or disconnect this and any other gas appliance control from the gas line when pressure testing.

After connection of the gas supply, check that all connections are completely gas tight using soapy water (mixture of 50/50 water and soap solution) or a leak tester.

Page 43

Bellﬁ res

Installation instructions

GAS LINE INSTALLATION

Gas pipe “rear burner” Ø8 mm Flex.

Gas valve “rear burner”

Gas pipe “front burner” Ø8 mm Flex.

Gas supply connection

⅜” NPT

Gas regulator block

Thermocouple

Pilot light pipe

Ø4 mm Flex.

Thermocouple

interrupter

Figure 16: Gas regulator block and gas valve: Gas and thermocouple connections

Figure 17: Gas regulator block - Front

Pilot Gas Adjustment Screw (Pierce the housing with a small screwdriver)

Adjustment Screw Maximum Burner pressure

Motor-knob

Microswitch8 Wire connecting

cable receiver

Page 44

Bellﬁ res

Installation instructions

GAS LINE INSTALLATION

Inlet

Pressure Tap

Outlet

Pressure Tap

Gas supply connection

Gas connection for to the “front burner”

Gas connection for gas valve to the “rear burner”

Thermocouple interrupter connection

Adjustment Screw Minimum Burner pressure

Pilot light connection

Figure 18: Gas regulator block - Rear

Figure 19: Receiver - Top

Thermocouple

voltage / current

OUT - connection (yellow)

Piezo cable connection

RESET button

AUX: Electrical connection for gas valve “rear burner”

TCSW

Thermocouple voltage / current IN - connection (red)

6 VDC Adapter connection (option)

Connection 8 wire cable gas regulator block

Connection for external operating (option) Domotic

Page 45

Bellﬁ res

Installation instructions

GAS LINE INSTALLATION

Figure 20: Receiver - AUX connection - RESET button

RESET button

AUX: Electrical connection for gas valve “rear burner”

Page 46

Bellﬁ res

Installation instructions

Connecting the concentric ﬂ ue

Assemble the concentric direct vent system according to one of the examples in ﬁ gure 7 to 12 inclusive. Make sure that all connections are completely gas tight.

Building in the appliance

Remove the front of the casing, if applicable. (See Chapter: DISMANTLING / ASSEMBLING OF THE GLASS.)

Decide on positions of the convection vents (openings/grids above the ﬁreplace).

The brickwork must be built up around the

appliance. In connection with the appliance

expanding during burning: there must be at least 0.12" (3 mm) clearance on either side of the appliance. Do not build up the brickwork farther than the angle irons/brackets

(keep in mind the thickness of any plastering!).

IMPORTANT:

Do not use masking tape on the appliance when installing and plastering. Tape can damage the ﬁ nish of the appliance.

If using other materials, such as stone or heat-resistant plating, you should follow the supplier’s instructions.

BUILDING IN THE APPLIANCE

Page 47

Bellﬁ res

Installation instructions

Bar set: • 2x draw bars

• 2x tension sleeves

• 2x M6 hooks

• 2x brass expansion plugs M6

First remove the 2 mantle iron transport-spacers “REMOVE” Note! Temporarily support the mantle iron, so that it does not fall forwards.

Mantle iron (option).

The optional mantle iron is intended for supporting the brickwork above the appliance. The mantle iron must rest on the brickwork on both sides so that upward building is possible. Level the mantle iron with the supplied bar set. Keep a clearance of 0.1" (2 mm) between the mantle iron and the top of the side panels.

The brickwork/plating must never rest directly on the appliance.

BUILDING IN THE APPLIANCE

Page 48

Bellﬁ res

Installation instructions

BUILDING IN THE APPLIANCE

Fix the mantle iron to the rear wall with the bar set. Place the draw bars at an angle of about 60° (between the appliance and the wall). Level the mantle iron with the tension sleeves.

Ensure that the height between the mantle Keep a clearance of 0.1" (2 mm) between iron and the underside of the glass is the the mantle iron and the top of the side same at left, middle and right. panels. The side panels should always be easily removable. Check that the mantle iron is at right angles to the side panels, both left and right.

Put ceramic felt on the top of the mantle iron, before laying bricks or using other non-

ﬂ ammable structural materials.

0.1" 2 mm

Page 49

Bellﬁ res

Installation instructions

Checking the gas connection

After connection of the gas supply, check once again that all connections are completely gas tight using soapy water or a leak tester.

Once the ﬁ replace has been ﬁ nished, you can now, ﬁ t the frame with the small door to the operating unit.

Depending of enclosure: After installation in a new ﬁ replace and/or applying new cement work, the appliance cannot be used for at least four weeks.

Do not cover the top side of the appliance with (built-in) materials.

DO NOT COVER

BUILDING IN THE APPLIANCE

Page 50

Bellﬁ res

Installation instructions

PLACING OF CERAMIC LOG SET

IMPORTANT:

• Carefully place the chips of wood/embers/vermiculite granules and log set, on and around the main burner according to the directions in this chapter.

• Do not place any chips of wood/embers/vermiculite granules or log set

against the pilot light burner. For that reason, the main burner has a protective pilot-light protector. Never remove this protector! Make sure

that the pilot " ame can burn at all times freely over the main burner. Only in this way is proper ignition of the main burner ensured. Ignoring these

directions could lead to a dangerous situation.

• Make sure that all burner ori# ces remains free at all times!

• The burner bed (with chips of wood/embers/vermiculite granules) and the positioning of the logs must not be changed.

• Only use those items supplied! These been rigorously checked and the quantities adapted to the appliance.

• Replacement parts, including the ceramic mat are available from your dealer.

• Fitting may only be carried out by a quali# ed person.

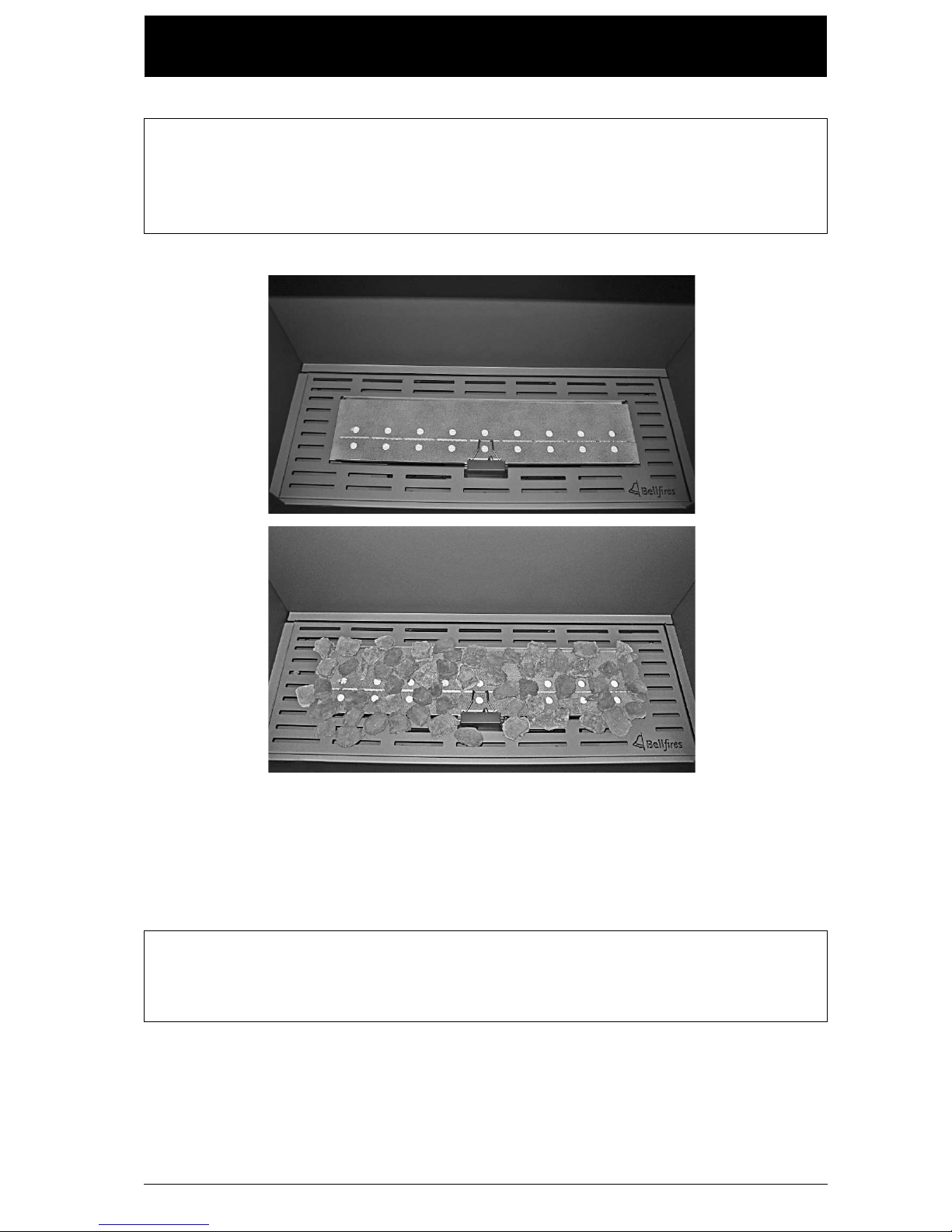

Ceramic log set + embers + vermiculite granules

1. Place the ceramic mat on the burner in such a way that the holes in the mat are in line with the burner openings. (Note: The ceramic mat is already placed on the burner when delivered from the factory.)

2. Remove the embers carefully from their packaging and spread them evenly over the burner mat and the grate around the burner. DO NOT COVER BURNER

OPENINGS !

3. Remove the black vermiculite granules from their packaging and distribute the vermiculite granules (50 gram) evenly over the burner. DO NOT COVER BURNER OPENINGS !

Remove the glass according to the instructions in Chapter: DISMANTLING / ASSEMBLING OF THE GLASS.

This section only applies for appliances delivered with a ceramic log set.

WARNING: Make sure that all burner openings remain free !!

Burner ori# ces, which are not open, could lead to a dangerous situation.

The appliance is supplied with a ceramic log set, embers and vermiculite granules.

Page 51

Bellﬁ res

Installation instructions

WARNING: Embers and vermiculite granules should not block

the large burner openings (Centre ! re burner - 0.62 in (16 mm)).

Embers and vermiculite must not be placed next to the pilot light burner.

PLACING OF CERAMIC LOG SET

4. Place the ceramic logs on the burner as shown in ﬁ gure 21 and ﬁ gure 22. Natural gas burner à refer to ﬁ gure 21 Propane burner à refer to ﬁ gure 22

WARNING: Make sure that the ceramic logs do not cover the

burner openings

Page 52

Bellﬁ res

Installation instructions

PLACING OF CERAMIC LOG SET

Logs:

Log no u Log no v

Log no w Log no x

Log no y Log no z

Log no { Log no |

Page 53

Bellﬁ res

Installation instructions

PLACING OF CERAMIC LOG SET

Keep the burner oriﬁ ces unblocked!

NATURAL GAS :

PROPANE GAS :

Figure 21: Log set View Bell Medium 3 CF Position natural gas burner

Figure 22: Log set View Bell Medium 3 CF Position propane burner

Embers must not be placed next to the pilot light burner

{

Page 54

Bellﬁ res

Installation instructions

GAS FIRE DECORATION KITS

Fire Proof Material Size Colours

Stone Pebbles ½” - 1¼” (12-30 mm) Different

Crushed Glass ½” - 1¼” (12-30 mm) Different

Stone Pebbles

Crushed Glass

Page 55

Bellﬁ res

Installation instructions

GAS FIRE DECORATION KITS

This instruction gives installation instructions for the safe installation of a decoration kit, or the conversion from the original log set to a decoration kit, in your gas appliance.

These decoration kits are only for use in a Bell! res View Bell Medium 3 Centre Fire (CF) gas appliance.

The following decoration kits can be installed in the appliance:

Direct Vent Gas Fireplace: Bell! res View Bell Medium 3 CF

• It is not allowed to mix different decoration kits!

• It is not allowed to use more decoration material (pebbles/glass) then mentioned in above table.

• Put max. 1 layer of decoration material on the burner and grate!

WARNING:

The installation/conversion shall be carried out by quali! ed service agency, in accordance with the requirements of the manufacturer, provincial or territorial authorities having jurisdiction and in accordance with the requirements of the CAN/CGA-B149.1 or CAN/CGA-B149.2 installation codes.

If the information in these instruction is not followed exactly, a ! re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.

The quali! ed service agency is responsible for the proper installation of this kit.

The installation is not proper and complete until the operation of the converted appliance is checked as speci! ed in the manufacturer’s instructions supplied with the kit.

The content of a decoration kit :

• Set of pebbles or glass, in the amount as approved for the appliance.

• Installation instructions

Fire Proof Material Size Weight Volume

Stone Pebbles ½” - 1¼” (12-30 mm) 16.5 lbs (7.5 kg) 0.16 Ft3 (4.5 dm3)

Crushed Glass ½” - 1¼” (12-30 mm) 10.3 lbs (4.7 kg) 0.12 Ft3 (3.3 dm3)

Page 56

Bellﬁ res

Installation instructions

GAS FIRE DECORATION KITS

This instruction describes the replacement of the original log set to a decoration kit of pebbles or glass.

WARNING: The decoration kit must be installed by a quali! ed service technician.

1. Turn off the gas supply with the main gas valve to the appliance

2. Remove the glass front → For instructions see chapter “DISMANTLING /

ASSEMBLING OF THE GLASS”.

3. Remove the ceramic log set.

4. Remove the embers carefully. Prevent damaging the ceramic mat on the burner, which is very fragile!

5. Check the condition of the ceramic mat. Replace the mat when damaged.

6. Check if the holes in the ceramic mat are exactly in line with the burner openings.

7. Spread the ‘stone pebbles’ or ‘crushed glass’ evenly over the whole burner bed (burner and grate around the burner). Make sure that the pilot light remains free.

IMPORTANT:

• Do not place any pebbles/glass in front of the pilot light. Make sure that the pilot light can burn freely over the main burner.

• Keep the burner oriﬁ ces unblocked.

• Keep also the back row of slots in the grate open.

Only this way a proper ignition of the main burner and proper combustion is ensured.

8. Once the ‘stone pebbles’ or ‘crushed glass’ have been positioned, replace the glass front in the appliance, → For instructions see the installation manual of the gas appliance, chapter “DISMANTLING / ASSEMBLING OF THE GLASS”.

9. After installation, check the ignition of the pilot light and main burner. visually check the gas ﬂ ame. When the ﬁ re is ignited, the ﬂ ames should be sh

ort and blue/yellow in colour. These ﬂ ames should gradually increase in height and become more yellow. When all ﬂ ames are yellow, the gas ﬁ re has reached the correct temperature.

10. The gas ﬁ re is now ready for use.

Page 57

Bellﬁ res

Installation instructions

GAS FIRE DECORATION KITS

Stone Pebbles

Crushed Glass

Crushed Glass must not be placed in front of the pilot light burner.

Keep the burner

oriﬁ ces unblocked!

Keep the back row of slots in the grate open.

Keep the burner oriﬁ ces unblocked!

Stone Pebbles must not be placed in front of the pilot light burner.

Keep the back row of slots in the grate open.

Page 58

Bellﬁ res

Installation instructions

Screw fastening (2x)

Assembly restriction plate

MOUNTING OF FLUE GAS RESTRICTION PLATE

Depending on the length and shape of the concentric ﬂ ue system and the chimney construction, you should, if indicated, ﬁt a restriction plate with a certain width (B) into the ceiling of the combustion chamber. To do this, see the set-up options as listed in ﬁ gure 7 through 12.

Figure 23: Positioning restriction plate

The following restriction plates are supplied:







[

Dimensions in mm’s.

Concentric ﬂ ue connection appliance [5⅛” x 7⅞”]

Restriction plate: (Roof terminal)

Width: B = 40 mm Width: B = 50 mm Width: B = 65 mm Width: B = 80 mm

The size of each plate (in mm’s) is printed on the plates.

Page 59

Bellﬁ res

Installation instructions

CHECK OVERPRESSURE HATCHES

Check overpressure hatches

There are two overpressure hatches in the ceiling of the combustion chamber (front).

IMPORTANT:

Check that the hatches are loose, by lifting a little and carefully letting them come down again. Check if the packing under the hatches is sealed.

Check packing of overpressure hatch. If necessary, the packing can be replaced by lifting the hatch, tilting it and removing Check functioning of overpressure hatch. via the opening.

Left overpressure hatch is in the correct Right overpressure hatch is in the correct position. position.

Page 60

Bellﬁ res

Installation instructions

VISUAL CHECK OF GAS FLAMES

After installation, visually check the gas ﬂ ame. When the ﬁ re is ignited, the ﬂ ames should be short and blue/yellow in colour. These ﬂ ames should gradually increase in height and become more yellow. When all ﬂ ames are yellow, the gas ﬁ re has reached the correct temperature.

THE GAS FIRE IS NOW READY FOR USE

Page 61

Bellﬁ res

Installation instructions

ANNUAL MAINTENANCE

Maintenance consists of the following:

• Remove ﬁ rst the embers, vermiculite granules and logs set from the main burner and carefully clean these with a soft and dry brush. Do not use water !!

• Clean and inspect (visually) the main burner, pilot light, combustion chamber, ﬂ ue system and combustion air intake. Dust can be removed using a vacuum cleaner.

• Clean the glass on the inside of the appliance with glass spray or ceramic glass cleaner. This also applies to the black mirror rear wall and side panels, if the appliance is ﬁ tted with these.

• After cleaning; Carefully replace the embers, vermiculite granules and logs set on and around the main burner according to the installation directions in this instruction booklet.

Do not place any embers, vermiculite granules or logs against the pilot light

burner. Make sure that the pilot ﬂ ame can burn at all times freely over the main burner. Only in this way is proper ignition of the main burner ensured. Ignoring these directions could lead to a dangerous situation.

• Check the gas supply, ﬂ ue system, and combustion air supply route for leaks.

• Check the correct operation of the gas regulator block, thermocouple circuit and the

ignition of the main burner.

• Check the gas inlet-pressure (both when the appliance is off and when it burns at maximum) and the burner pressure.

• Check if the overpressure hatches are correctly positioned and check if the packing seals properly under the hatches.

• Check the complete concentric ﬂ ue system including the outlet construction. A camera can be used to inspect the whole length of the ﬂ ue gas outlet and the combustion air intake. Also check that all connections are secure.

IMPORTANT:

It is essential that the appliance, the complete concentric ﬂ ue system (where possible) and the outlet are cleaned and inspected annually by a certiﬁ ed gas technician. The safe operation of the appliance will thus remain guaranteed.

Page 62

Bellﬁ res

Installation instructions

FAULTS

POSSIBLE REASONS

Possible reasons for the gas ﬁ re going out are:

• The concentric ﬂ ue system is not installed according to one of the methods detailed

in Vent Installation.

• An incorrect “ﬂ ue gas restriction plate” is ﬁ tted.

• The pilot light extinguishes if fumes are not exhausted or are insufﬁ ciently exhausted.

• The pilot light is either dirty or defective.

• Insufﬁ cient gas pressure.

• (Internal) leak of the concentric ﬂ ue system.

• Thermocouple voltage is too low. This is usually caused by insufﬁ cient heating of the

thermocouple by the pilot light.

• Dirty electrical contacts in the thermo-electrical system; for example, the

thermocouple connection.

• Batteries in receiver or remote control are ﬂ at.

SAFETY MEASURES IN THE APPLIANCE

Thermo-electric pilot light shut off

The appliance is protected by means of a thermo-electric pilot light shut off in the event of a gas escape from the main burner.

Over pressure safety system

The appliance is equipped with a safety system, whereby hatches will extract any overpressure that arises in a controlled way. In this, the hatches in the ceiling of the combustion chamber, brieﬂy open. A loud noise can occur. A safety bracket limits the maximum opening of the hatches.

If an over-pressure situation occurs, the appliance should be thoroughly checked by the installer.

Page 63

Bellﬁ res

Installation instructions

DISMANTLING / ASSEMBLING OF THE GLASS

WARNING: Do not operate appliance with the glass front removed,

cracked or broken. Replacement of the glass should be done by a licensed or

quali! ed service person.

Dismantling of the glass: Place paperboard on the chimney breast, under the appliance.

This helps prevent damage.

• View Bell Medium 3 • Pull the side panel forwards on the left, alongside the glass.

• Remove the side panel on the left. • Pull the side panel forwards on the right, alongside the glass.

Page 64

Bellﬁ res

Installation instructions

DISMANTLING / ASSEMBLING OF THE GLASS

• Remove the side panel on the right.

• Remove the bottom panel, by pulling it gently to tilt forward and to remove.

Prevent damage to the side glasses !

Page 65

Bellﬁ res

Installation instructions

DISMANTLING / ASSEMBLING OF THE GLASS

• Unscrew the strip at the front under the • Using a screwdriver, slide the strip a

glass. Screws only need a couple of turns! little to the left.

• Remove the strip at the front. • Unscrew the long strip at the top a little and leave the strip in place.

• Pull the glass carefully forwards at the bottom, and slide it a little to one side.

Page 66

Bellﬁ res

Installation instructions

• Lift the glass carefully and pull it • Remove the glass by slanting it forward forwards a little at the bottom. a little at the bottom and taking it out.

DISMANTLING / ASSEMBLING OF THE GLASS

All fastening strips on the top side remain in position!

• The glasses at the sides can be removed in the same way as the front glass.

Page 67

Bellﬁ res

Installation instructions

DISMANTLING / ASSEMBLING OF THE GLASS

• Make sure that the compression • Side glass compression spring spring (Left and Right) stays in the (Left and Right). correct position.

Compression spring position Side glass L/R

Side glass compression spring L/R

Assembling of the glasses:

The assembly of the glass takes place in reverse order.

Important:

• The glass panes ﬁ t together well. There must be no gaps between the glass panes, or there will be a danger of ﬂ ue leakage.

• The glass panes must ﬁ t properly all round the edges of the combustion chamber.

• Check if the fastening strips have been properly mounted all round.

• Check if the compression springs has been replaced in the correct position.

Page 68

Bellﬁ res

Installation instructions

Gas supply connection

Thermocouple

Ignition(piezo)cable

2 Wire cable

Motorknob

Gas pipe “Rear burner”

GAS

REGULATOR

BLOCK

“red”

“black”

AUX

“red”

“yellow”

Pilot light

“Front burner”

“Rear burner”

Pilot light gas pipe

Thermocouple interruptor

8 Wire connecting cable

Gas pipe “Front burner”

Gas valve

“Rear burner”

AC power adapter 110 VAC (option)

Button “RESET”

Receiver (with battery compartment for 4 AA-batteries)

Connection cable (option) for external operating (i.a. Domotica systems)

Thermo-electrical cable TC

Thermo-electrical cable SW

Double burner: : Perforation pattern “Centre Fire” double burner.

DIAGRAM ELECTRICITY AND GAS

Page 69

Bellﬁ res

Installation instructions

DIMENSIONS

VIEW BELL MEDIUM 3 - Hidden Door

Page 70

Bellﬁ res

Installation instructions

OPERATING UNIT

Dimensions in inches

9.7”

12.4”

11”

3.2”

+14”

Page 71

Bellﬁ res

Installation instructions

TECHNICAL DETAILS

APPLIANCE RATINGS

View Bell Medium 3 CF (Centre ! re)

Gas Natural gas Propane

Thermal efﬁ ciency [%] 83.2 84.2

Annual ﬁ replace efﬁ ciency (P4)

[%] 77.8 79.0

Input maximum Btu/hr 40,000 32,000

Input minimum Btu/hr 11,600 8,900

Supply pressure

in. w.c. 7.0 11.0

kPa 1.74 2.74

Manifold pressure maximum (hot)

in. w.c. 6.2 10.8

kPa 1.55 2.69

Manifold pressure maximum (cold)

in. w.c. 6.0 10.8

kPa 1.50 2.69

Manifold pressure minimum

in. w.c. 0.80 0.80

kPa 0.20 0.20

Main burner Injector marking (back)

Nr. 190 (=1xØ1.90 mm) Nr. 110 (=1xØ1.10 mm)

Main burner Injector marking (front)

Nr. 190 (=1xØ1.90 mm) Nr. 125 (=1xØ1.25 mm)

Pilot Injector marking Nr. 36 (SIT 0.977.091) Nr. 23 (SIT 0.977.150)

Page 72

Bellﬁ res

Installation instructions

REPLACEMENT PART LIST

When requesting service or ordering replacement parts, please quote the model type and serial number. All parts listed in this manual may be ordered from a Bellﬁ res dealer.

No Article no Description

1 334987 Main burner “Centre Fire” 827 x 130 mm Natural gas /

Propane Natural gas: 1x Ø12.0 mm front + 1x Ø12.0 mm rear Propane: 1x Ø20.0

+corner

mm + 2x Ø5.0 mm front and

1x Ø20.0

+corner

mm + 2x Ø5.0 mm rear 2 334847 Burner mat L = 827 mm “Centre Fire” 3 334988 Burner injector Natural gas; Front: no 190 (1x Ø1.90 mm) 4 334988 Burner injector Natural gas; Rear: no 190 (1x Ø1.90 mm) 5 335122 Burner injector Propane; Front: no 125 (1x Ø1.25 mm) 6 334992 Burner injector Propane; Rear: no 110 (1x Ø1.10 mm)

7 336506 Gas regulator block; GV 60 (M10 Thermocouple connection) 8 302122 3/8” male x 12 Compression ﬁ tting 9 302084 Nut Ø8 mm for burner supply GV 60 for “front burner” 10 302089 Olive Ø8 mm for burner supply GV 60 for “front burner” 11 333607 Gas valve “rear burner” 12 333608 Adapter 3/8”bsp x 3/8”+ O-ring 13 333610 Nut Ø8 mm for gas valve “rear burner” 14 333611 Olive Ø8 mm for gas valve “rear burner” 15 302086 Cut-off nipple Ø4 mm GV 60 16 333601 Cable (sw): Receiver - Thermocouple interrupter, L = 500 mm 17 333602 Cable (tc): Receiver - Thermocouple interrupter, L = 500 mm 18 336505

Hand-held transmitter: Display screen: Temperature and two programmes 19 333599 Cover battery compartment hand-held transmitter - with imprint: Operating double burner 20 336504 Receiver GV 60 21 302068 8 Wire connecting cable Gas regulator block - Receiver, L = 500 mm 22 302421 Piezo ignition cable, 2x 2.8 x 0.8 mm, L = 1500 mm

23 321926 Thermocouple M10 - 1500 mm 24 333604 Thermocouple interrupter M10

25 310908 Pilot light set outer casing, Double ﬂ ame 26 310909 Pilot gasket set outer casing 27 310910 Pilot light injector; Natural gas; no 36 28 310912 Pilot light injector; Propane; no 23 29 310907 Piezo electrode for pilot light, 2.8 x 0.5 mm 30 302062 Nut piezo electrode 31 319842 Nut thermocouple 32 332552 Pilot light olive; Ø4 mm, steel 33 332553 Pilot light nut; Ø4 mm, steel 34 322552 Pilot light pipe; Ø4 mm, L = 1500 mm, Flexible, Stainless steel 35 325750 Burner pipe; Ø8 mm, L = 1500 mm, Flexible, Stainless steel - 10 kW+, “front burner” 36 325750 Burner pipe; Ø8 mm, L = 1500 mm, Flexible, Stainless steel - 10 kW+, “rear burner”

Page 73

Bellﬁ res

Installation instructions

REPLACEMENT PART LIST

No Article no Description

37 326055 Nut; Ø8 mm, compression elbow main burner 38 326054 Olive; Ø8 mm, compression elbow main burner

39 334767 Glass View Bell Medium 3 front (1007 x 467 x 4 mm) 40 333227 Glass View Bell Medium 3 side (328 x 467 x 4 mm)

41 301669 Tube ceramic glue

42 301593 Black ﬁ bre glass tape 15 x 3 mm, adhesive

43 319664 Black ﬁ bre glass tape 30 x 2 mm, adhesive 44 311006 Black ﬁ bre glass tape 20 x 2 mm, adhesive 45 301617 Black ﬁ bre glass cord Ø10 mm

Page 74

Bellﬁ res

Installation instructions

REPLACEMENT PART LIST

Logs - Chips of wood - Embers - Vermiculite granules

Appliance Log set

Set Log no

Art. no:

I 332584

View Bell Medium 3

331357

331358

331359

331360

331362

331363

331364

331361

3 pieces

xxxxxx

Bag: 125 gr.

301863

Bag: 50 gr.

332583

Chips of

Embers with Vermiculite no 4

wood set

Glow-effect black

Anthracite ﬁ ltered

Page 75

Bellﬁ res

Installation instructions

PROPANE CONVERSION KIT

A propane conversion kit is supplied with this appliance. For safe use of this kit, refer to the installation instructions included with the propane conversion kit.

This conversion kit is only for use in the Bellﬁ res gas appliance model stated on the front page of this manual and also stated on the included propane conversion kit and must only be used when the gas type for this appliance is changed from natural gas to propane.

WARNING:

This conversion kit shall be installed by a quali! ed service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.

If the information in these instruction is not followed exactly, a ! re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.

The quali! ed service agency is responsible for the proper installation of this kit.

The installation is not proper and complete until the operation of the converted appliance is checked as speci! ed in the manufacturer’s instructions supplied with the kit.

Page 76

Bellﬁ res

Installation instructions

WARRANTY TERMS

Warranty terms

Interfocos B.V. develops and manufactures all Bellﬁ res hearths to the highest possible quality standards. All Bellﬁ res hearths (product) are warranted against defects in material and workmanship by Interfocos B.V, subject to the following conditions.

Article 1: Warranty

1.1. Interfocos B.V. will repair or replace, at its option, any parts which upon examination of a Bellﬁ res dealer are found to be defective, subject to the conditions, limitations and exclusions listed under Article 3 and Article 6.

1.2. Repair or replacement of the Bellﬁ res product will be undertaken by a Bellﬁ res dealer as designated by our local importer, at the purchaser’s expense.

Article 2: Warranty Terms

2.1. Should you wish to claim under the Warranty, please contact your Bellﬁ res dealer.

2.2. Complaints should be reported immediately upon discovery.

2.3. Claims will only be accepted if they are reported to the Bellﬁ res dealer together with the serial number of the Bellﬁ res hearth which is stated on the front of the instructions for use.

2.4. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of purchase must also be submitted.

2.5. Repairs and replacements during the Warranty Period do not give any entitlement to an extension of the Warranty Period. After a repair or replacement of Warranty parts, the warranty period shall be deemed to have started on the date of purchase of the product by the consumer.

2.6. If a certain part is eligible for the Warranty and the original part is no longer available, Interfocos B.V. shall ensure that an alternative part of at least the same quality shall be provided.

2.7. Any labour, travel and shipping costs related to Warranty replacement or repair are at the purchaser’s expense.

Article 3: Warranty Exclusions

3.1. The Warranty on the Bellﬁ res product ceases to be in effect if: a. it is not installed according to the supplied installation instructions, and to national and/or local regulations; b. it has been installed, connected or repaired by a non-Bellﬁ res dealer; c. it has not be used or maintained according to the instructions for use; d. it has been changed, neglected or roughly treated; e. it has been damaged as a result of external causes (outside the hearth itself), for example, lightning strike, water damage or ﬁ re;

3.2. In addition, the Warranty ceases to be in effect if the original purchase receipt shows any change, deletion, removal or if it is illegible.

3.3. This Warranty does not cover damage to the barrier (safety screen), log breakage or damage to the product while in transit.

Article 4: Warranty Area

4.1. The Warranty is in effect only where Bellﬁ res product is sold through the ofﬁ cial Bellﬁ res dealer network.

Article 5: Warranty Period

5.1. This Warranty will only be granted during the Warranty Period, as deﬁ ned in Article 6.

Page 77

Bellﬁ res

Installation instructions

WARRANTY TERMS

Article 6: Warranty Limitations

6.1. Limited Lifetime Warranty on Body and Main Burner: The body and main

burner of the Bellﬁ res hearth are warranted against defects in construction, materials or workmanship, during the period in which the product is owned by the original owner and installed in the original installation location.

6.1.1 During the ﬁ rst 10 years Interfocos B.V. will provide a replacement body or burner free of charge (subject to labour costs and shipping costs at the expense of the purchaser). After 10 years from date of purchase, Interfocos B.V. will provide a replacement body or burner at 50% of the current published retail price.

6.1.2 This Limited Lifetime Warranty is not transferrable.

6.1.3 The Limited Lifetime Warranty does not include replacement for discoloration due to corrosion or for other normal wear and tear.

6.1.4 The Limited Lifetime Warranty of the main burner does not include the pilot burner, thermocouple or burner mat.

6.2. One-year parts warranty: All other parts of the Bellﬁ res hearth are warranted for a period of one year from date of purchase by the consumer.

6.3. Warranty until after ! rst burning: Wear items such as glass, glass cord, and the paint, are warranted against manufacturer’s defects up until the time the Bellﬁ res hearth is ﬁ rst ﬁ red.

Article 7: Limitation of Liability

7.1. Interfocos B.V makes no express warranties except as stated in this Warranty. Interfocos’ sole obligation and the purchaser’s exclusive remedy under this Warranty, or under any other express or implied warranty, in tort, contract or otherwise, is limited to the replacement, repair, or refund of parts as speciﬁ ed in this Warranty. In no event is Interfocos B.V. responsible for an incidental, consequential or special damages or expenses caused by defects in the Bellﬁ res hearths, whether such damages occurs or is discovered before or after any replacement and repair provided under this Warranty. Interfocos B.V. makes no representation or warranty, express or implied, of ﬁ tness for a particular use or purpose.

7.2. The provisions of these Warranties are in addition to and not a modiﬁ cation of or subtraction of any statutory warranties or other rights and remedies provided by law.

7.3 All agreements entered into by Interfocos B.V. are, unless speciﬁ cally stated otherwise in writing and to the extent that they are permitted based on applicable law, subject to the Conditions of the Dutch Metal and Engineering Association (METAALUNIEVOORWAARDEN), as ﬁ led with the registrar of the Court of Rotterdam on 1 January 2014.

Interfocos B.V. Hallenstraat 17 5531 AB Bladel The Netherlands Tel: +31-497339200 Email: info@Bellﬁ res.com

Carefully retain the instructions for use; they show the serial number of the hearth. You will need this if you wish to claim under the warranty.

Page 78

Bellﬁ res

Installation instructions

Page 79

Page 80

Serial number:

Production date:

02 - 010715 - 337337

FOR YOUR BELLFIRES DEALER

VISIT

www.nee• replaces.ca

www.neefoyers.ca
