Bellfires BSV 19, BSV 21, BSV 25, BSV 28, BSV 36 Installation Manual

Page 1
Bellfires
®
BSV Models:
BSV 19 BSV 21 BSV 25 BSV 28 BSV 36
SLEEPY HOLLOW CHIMNEY SUPPLY, LTD.
85 Emjay Blvd.
Brentwood, New York 11717
1-800-553-5322 • FAX 631-231-2364
Page 2
Bellfires® BSV
IMPORTANT SAFEGUARDS AND PRECAUTIONS
A properly installed Bellfires®BSV fireplace and its associated components form a safety tested system. This manual serves as a guide for the proper and safe installation of a Bellfires®fireplace. It does not serve as a substitute for the necessary professional judgment and skills of a trained installer. Instead, it should be used in conjunction with standard safety considerations including, but not limited to, applicable state or provin­cial and local fire codes, the National Fire Protection Association Standard NFPA 211 or Canadian Standard B365, building and inspection codes, and the trained installer’s pro­fessional judgment and skills to provide the owner with a safe installation. Please save these instructions for any future repairs or use.
Safe and efficient operation of the Bellfires® BSV fireplace and its associated compo­nents mandates installation of this unit in accordance with this installation guide. Proper installation requires an installer skilled in standard construction techniques. The installer must read and understand the contents of this manual before starting the installation.
WARNING:
DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.!!!!
Consult the local and state or provincial building and fire safety code officials and investigate the requirements for installing a factory-built fireplace in the homeowner’s community. It is the responsibility of the installer to (1) obtain a building permit for installation of a Bellfires®BSV fireplace before construction begins and, (2) assure the installation meets or surpasses all minimum requirements of the homeowner’s jurisdiction.
It is highly recommended the homeowner install a smoke detector.
Failure to use components provided or specified by Sleepy Hollow Chimney Supply, Ltd., manufacturers of Bellfires®, in accordance with this installation guide may create a fire hazard. Use of other components or misuse of Bellfires® components voids the Bellfires® warranty.
2
Page 3
Bellfires® BSV
Table of Contents
Important Safeguards and Precautions 2 Introduction 4 Essential Components 5 BSV Parts 6 BSV Exploded Views 7-9 BSV Spider Damper Parts 10 Safety Guidelines 11 BSV Steps to Installation 13 Measure Old Fireplace 14,15 BSV Firebox Dimension and Liner Size Charts 16 BSV Smoke Dome Customization 17 BSV and Super Flex Installation 18–34 BSV Spider Damper 35,36 Build the Best Fire in the World 37 Operation & Maintenance 38 Warranty 39
3
Page 4
Bellfires® BSV
Introduction
Early fireplaces were very inefficient, drawing a good deal of the heat up the chimney while admitting an unbearable amount of smoke into the room. In the late 1700’s, Benjamin Thompson, Count of Rumford, recognizing that a fireplace heats an area by radiation, began a series of experiments aimed at improving its performance.
He discovered through observations and various constructions that the exaggerated width of the chimney of his time, necessi­tated by the need for room for a chimney sweep to climb through the throat area into the flue, was a primary cause of inefficiency and smokiness. He attributed the problem not only to the chimney, but the width of the throat and also specific fireplace dimensions and configurations. Using the knowledge gained from his studies, Rumford modified the traditional fire­place design into one that burned cleaner and hotter and, most importantly, did not smoke. His efforts greatly improved the performance of the fireplace.
Later, in the 1900’s, a series of scientific experiments were conducted by Professor Peter O. Rosin, Dr. Ing., under the auspices of the British Coal Utilisation Research Association. The results are documented in his report, “The Aerodynamics of Domestic Open Fires”. Through the use of laboratory equip­ment, Dr. Rosin was able to observe air and smoke flow pat­terns and thus developed the ideal firebox and chimney shape for maximum efficiency. While expanding on Rumford’s work, some of Dr. Rosin’s findings varied dramatically from Rumford’s earlier theories; perhaps the most notable being the smoke shelf theory, shown diagrammatically at the left.
to improve the design.
Sleepy Hollow Chimney Supply has optimized the Bellfires® designs, and produced a superior radiant firebox combining advanced casting techniques and high temperature, high alu­mina ladle cast refractory. We feel confident that our Bellfires® units are the finest heat- producing open fireplaces to be found, whether used to upgrade old metal or masonry fireboxes or in new construction.
The Super Vent is the Repair Unit with the addition of a cor­rectly proportioned Smoke Chamber design, constructed of type 316 stainless steel for lifetime durability.
The Smoke Chamber is connected to a properly sized round or oval Super Flex® flexible flue liner. Cera-Foil® space age insulating blanket insulates the entire Super Vent™ system, stopping heat transfer to combustibles–the cause of home fires. In homes where the fireplace is in question for whatever reason, the Bellfire Super Vent has established itself as a safe, state-of-the-art, non smoking super radiant fireplace retrofit system.
A top mounted round damper with a control key at the firebox level helps to prevent cold air from draining into an unused fireplace and help ensure a warm flue for instant draft. Super radiant heat output and thorough combustion provide ample warmth and fuel efficiency that sets new standards for the open hearth. The refractory firebox stores heat and warms the house long after the flames have died out.
The important point of Dr. Rosin’s work is that it was per­formed in a scientific manner and pointed the way to a much more efficient and functional fireplace. Bell of England took this information and applied it to develop the Bellfire Fireplace, providing the ideal firebox and throat shape to guar­antee a smoke-free efficient fireplace capable of producing maximum radiant heat with minimum fuel. It was commonly used to heat the complete home until the second World War. Since then it has been further developed by using more mod­ern aerodynamic concepts and thermal insulation techniques
4
Page 5
Essential Components of a BSV Installation
BSV 19 BSV 21 BSV 25 BSV 28 BSV 36
A 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
B 10” 12 ” 12 ” 14 ” 14 ”
C 12 13 13 ” 13 16”
D 3 3” 3 ” 3 ” 4”
E 10” 11 ” 11 ” 12” 18”
F 21 25” 28” 31” 42 ”
G 25 ” 25 ” 28 ” 28 ” 28 ”
G tall NA 30 ” 33 ” 33 ” 33 ”
H 7 ” 8 ” 8 ” 8 ” 8 ” – 12”
I 17” 17” 21” 19 ” 20 ”
J 21” 23” 27 ” 31 ” 40”
K 48 51 ” 54 ” 56 ” 59”
K tall NA 56 ” 59 ” 61 ” 64”
L 18” 20 ” 25” 29” 37”
M 31 ” 31 ” – 42” –
N 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
O ” ” ” ” ” – 1”
P 14” 18” 18” 18” 18”
Q 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
R 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
S 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
T 5”– 6” 6” – 7” 7” – 8” 8” 9” – 10”
U 1” 1” 1” 1” 1”
V 4 ” 4 ” 4 ” 4 ” 4 ”
Bellfires® BSV

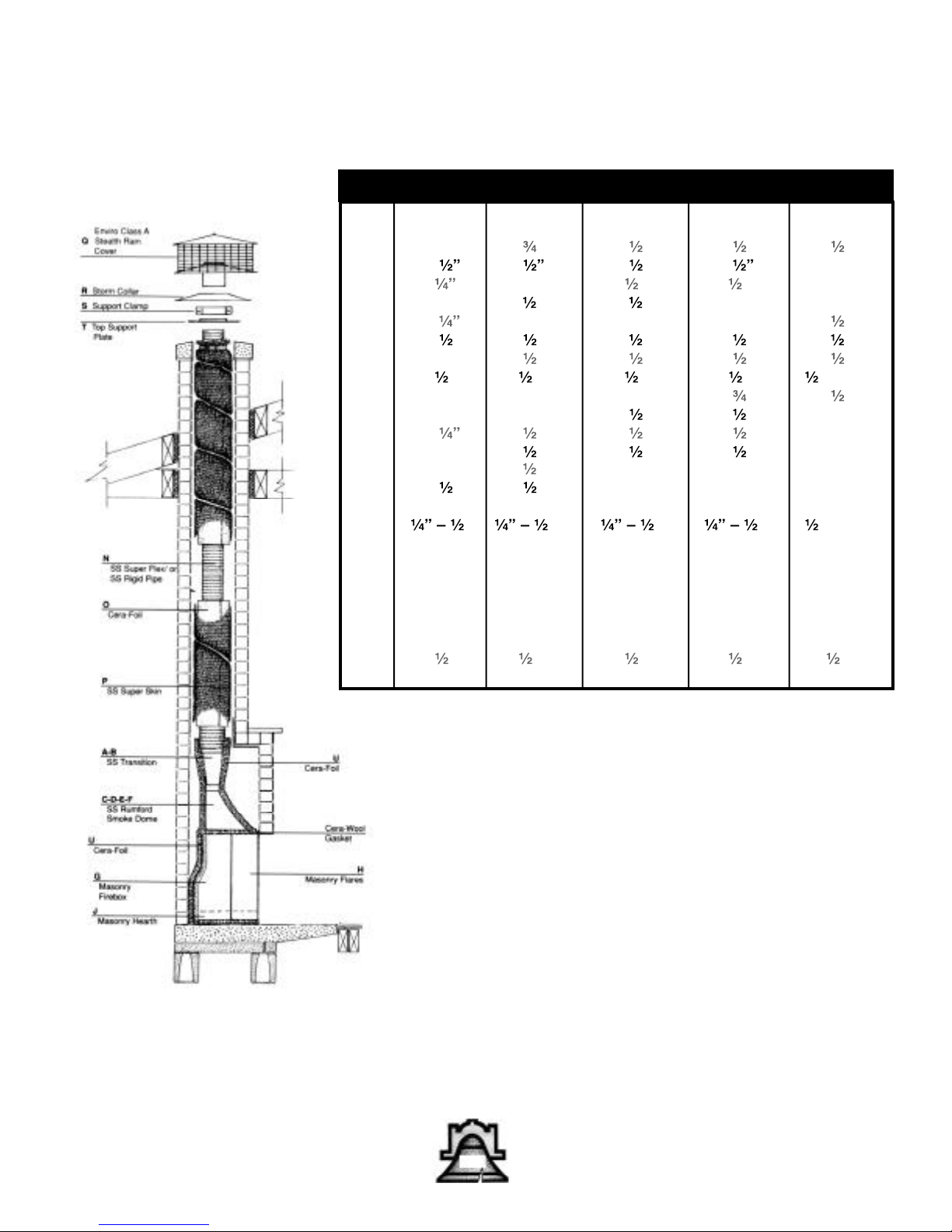

The Bellfires® cutaway diagram at the left shows components necessary for a complete BSV installation.
The key above shows specifications for individual models.
5
Page 6

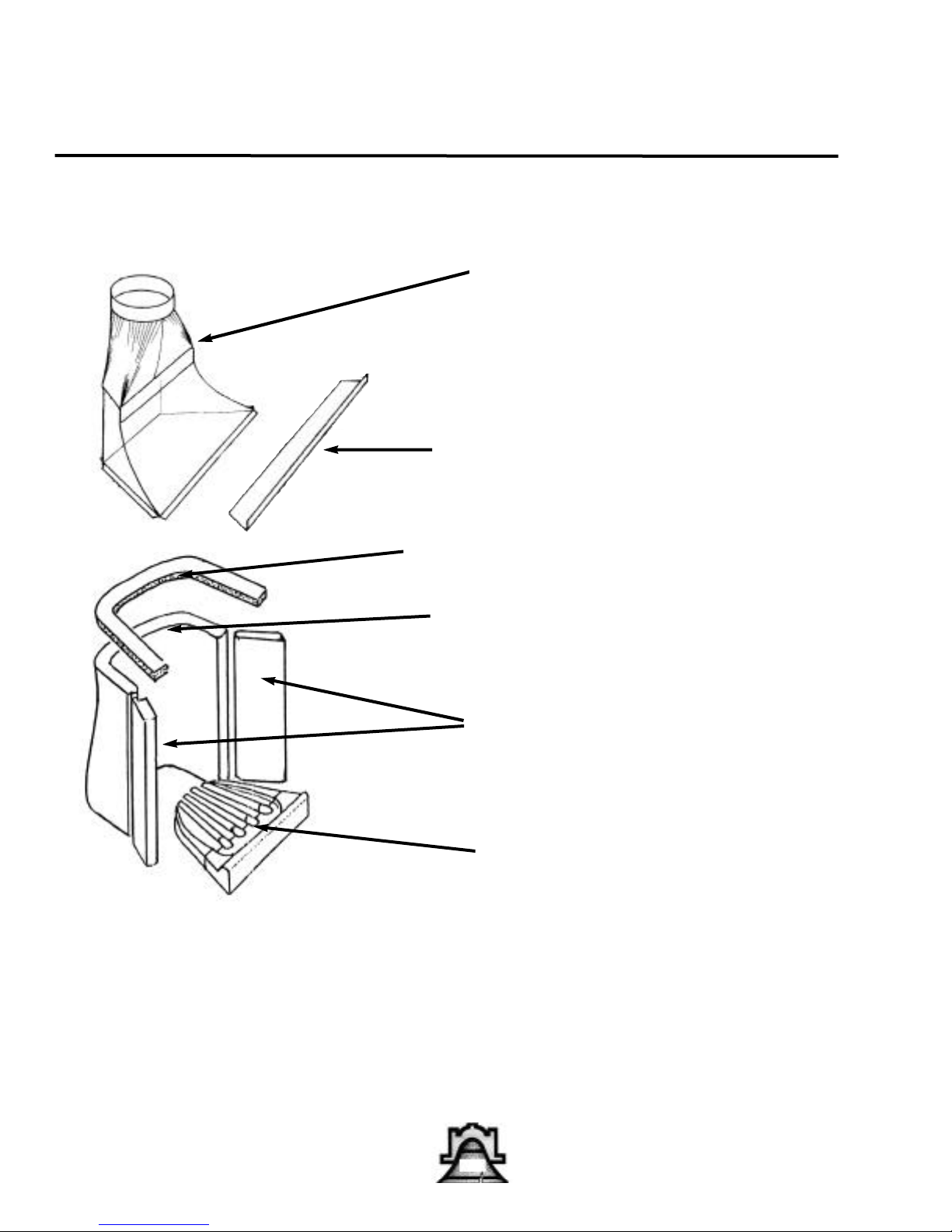

Bellfires® BSV Component Identification
Standard Bellfires® Super Vent Parts
Rumford Smoke
Dome (supplied)
SS Lintel
Hollow Wool Gasket (supplied)
Refractory Firebox (supplied)
Two Refractory Flares (supplied) 8” are standard with the option of ordering 12” wide flares
Two Piece Refractory Hearth (supplied)
6
Page 7

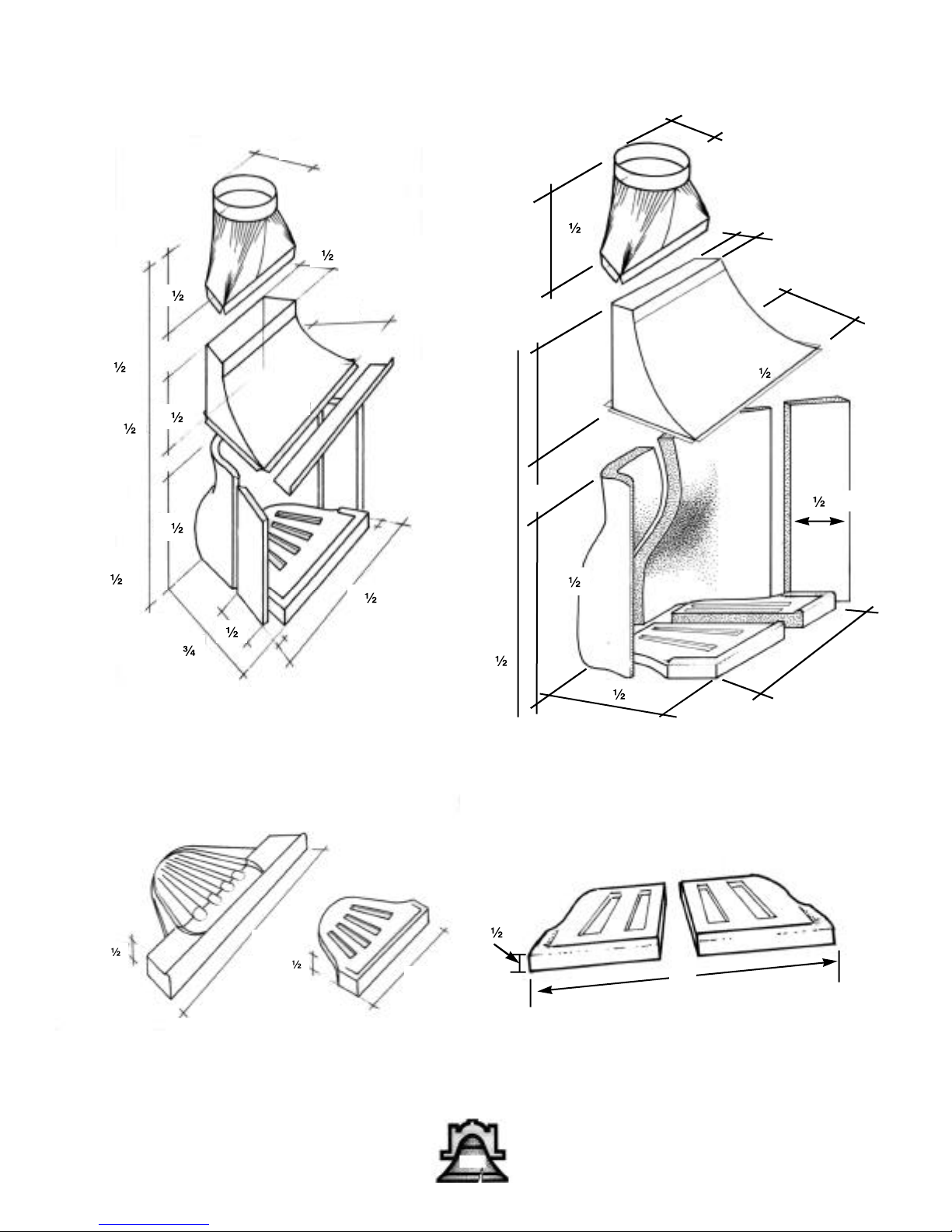

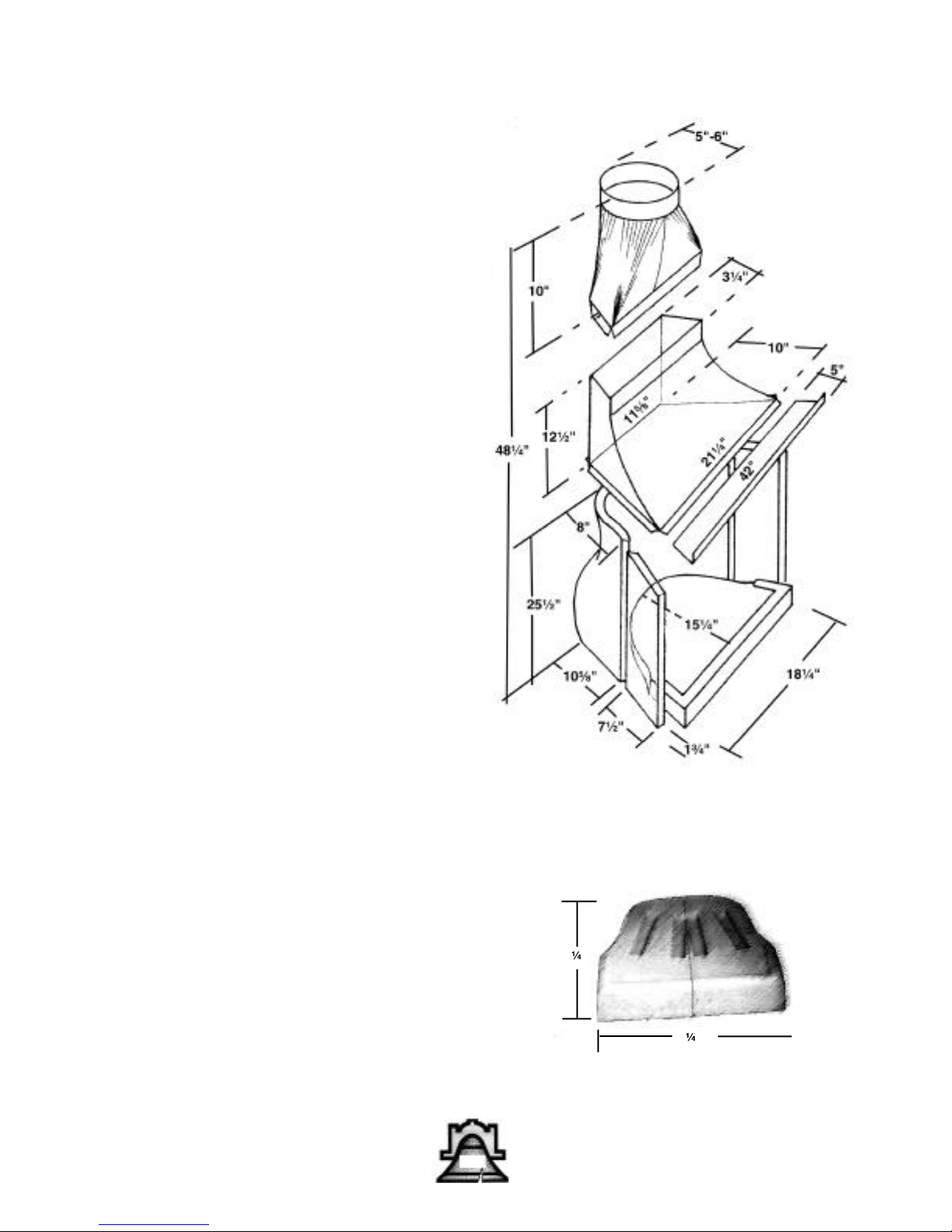

Bellfires® BSV 19 Exploded View
BSV 19
15 ”
18 ”
7
Page 8

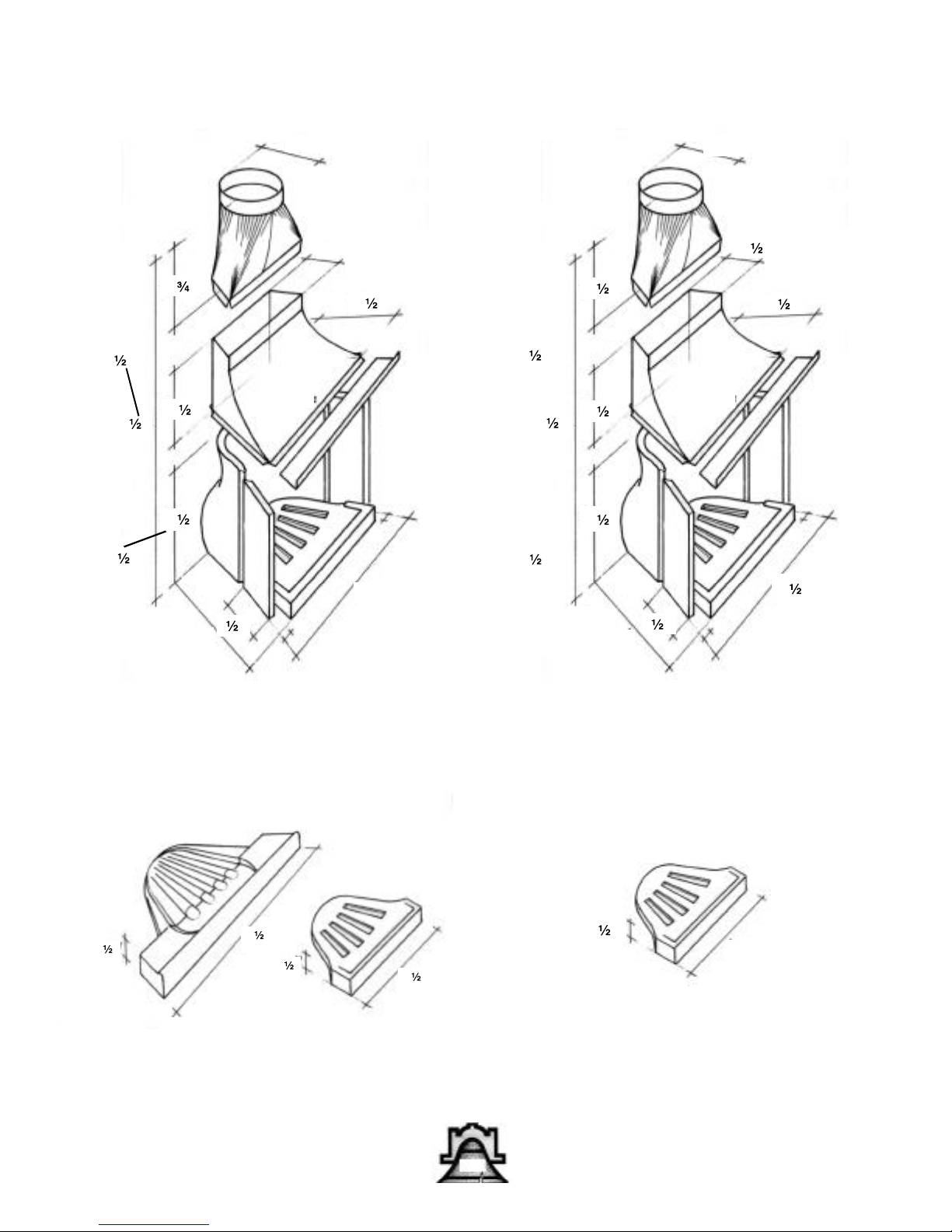

Bellfires® BSV
BSV 21 Tall: 56 ”
51 ”
BSV 21 Tall: 30 ”
12 ”
13 ”
25 ”
6”–7”
25”
3”
11 ”
23”
BSV 25 Tall: 59 ”
54 ”
BSV 25 Tall: 33 ”
7”–8”
3 ”
12 ”
11 ”
28”
13 ”
28 ”
27 ”
4 ”
8 ”
17”
BSV 21
31 ”
4 ”
8 ”
21”
BSV 25
4 ”
25”
20 ”
8
Page 9
8”
Bellfires® BSV
9”–10”
BSV 28 Tall: 61 ”
56 ”
BSV 28 Tall: 33 ”
14 ”
13 ”
28 ”
19 ”
8 ”
31”
3 ”
12”
31 ”
BSV 36 Tall: 64”
59”
BSV 36 Tall: 33 ”
14 ”
4”
18”
42 ”
16”
8 -12”
28 ”
40”
4 ”
BSV 28
42”
4 ”
29”
20 ”
BSV 36
4 ”
37”
9
Page 10
Bellfires® BSV

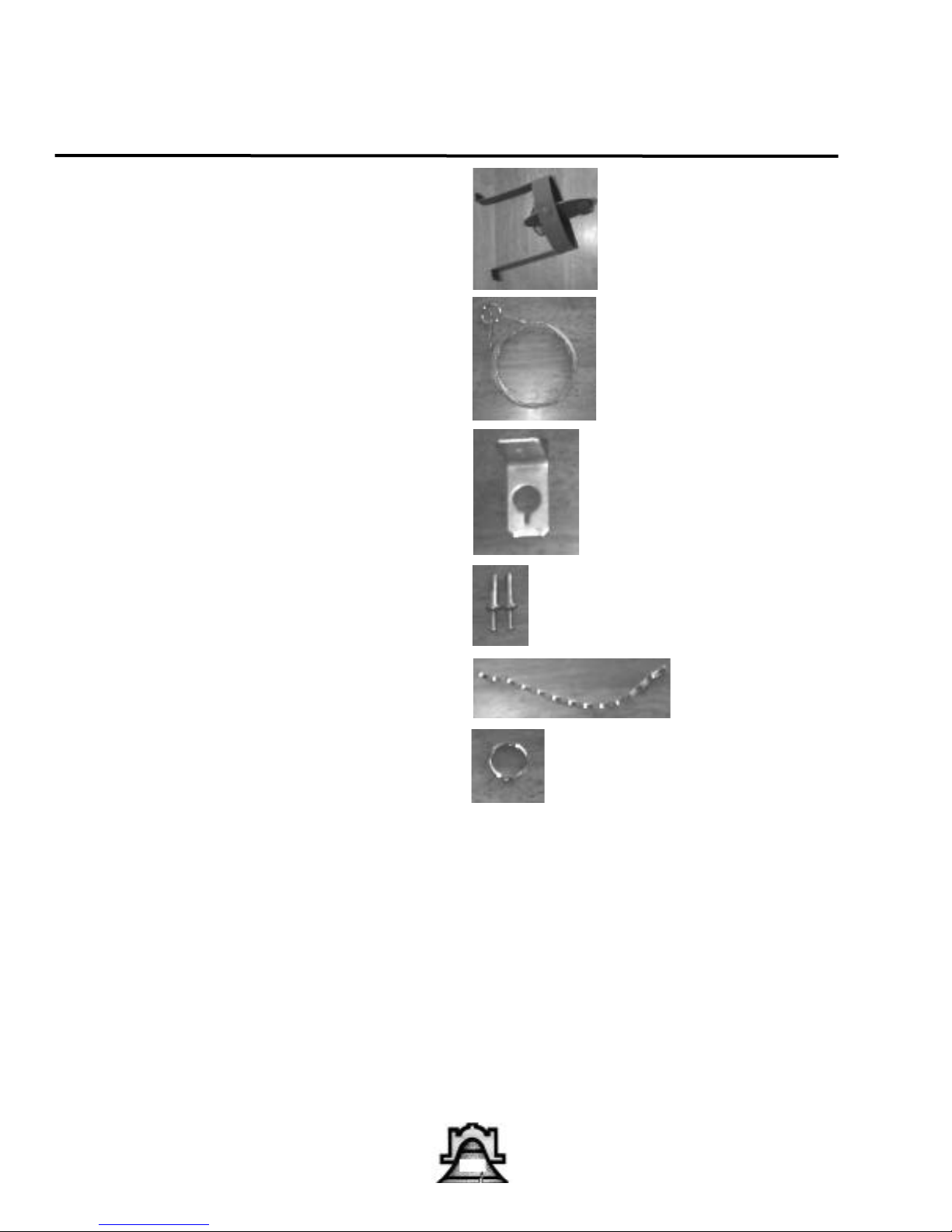

BSV Spider Damper Parts
1- Drop In Damper
28' Stainless Steel Cable
1 -Bracket
2 -Hammer Drive Pins
1- Stainless Steel Sash Chain
1 -Stainless Steel Ring (attach to chain)
1 -Stainless Steel Clamp (attach to cable)
You need....
Ladder
Hammer Drill
1/4 inch Masonry Drill Bit
Safety glasses
Wire Cutters
Marker
Flat Gasket or Silicone Caulk
10
Page 11
Bellfires® BSV
Safety Guidelines
A. Bellfires® fireplaces are not approved for use in mobile homes. B. There must be an air space clearance between the outermost portion of any section of the chimney system and
any combustible surface. Although two inches is a typical clearance, adhere to the requirements set forth by the chim­ney manufacturer. Combustible surfaces include: ceilings, joists, flooring, walls, electrical wiring, insulation and roof structures.
C. Never fill any required air space with insulation or other material. D. The chimney system must be vented to the outside. E. The chimney must extend at least three feet (900mm) above the roof and at least two feet (600mm) above any
portion of the roof within 10 feet (3m). F. Maximum chimney height from the top of the firebox to the top of the chimney should not exceed 40 feet when
supported solely by the fireplace, or 90 feet when resupported at or above 40 feet according to the chimney manufac­turer's resupport specifications.
G. Minimum chimney height from the top of the firebox to the top of the chimney must be 10 feet. H. The chimney must not be inclined more than 30 degrees from vertical. Greater angles result in hazardous
deposits of soot and ash in flue. I. A maximum of two offsets (4 elbows total) is allowed in a chimney. J. Firestops and joist shields must be used at each floor level through which the chimney rises. K. There should not be any forced air furnace registers in the room within ten feet of the fireplace. They can cause
negative pressure and create chimney down-drafts. L. Never mix parts of one chimney system with those of a different manufacturer. Do not install damaged chimney
parts. Remember, more fires are caused by chimneys than by solid-fuel appliances. M. Practice good workmanship. Sloppy work could jeopardize the safety of the installation.
Less than 10 feet
3 feet minimum
2 feet minimum
Ridge
10 feet or more
2 feet minimum
3 feet minimum

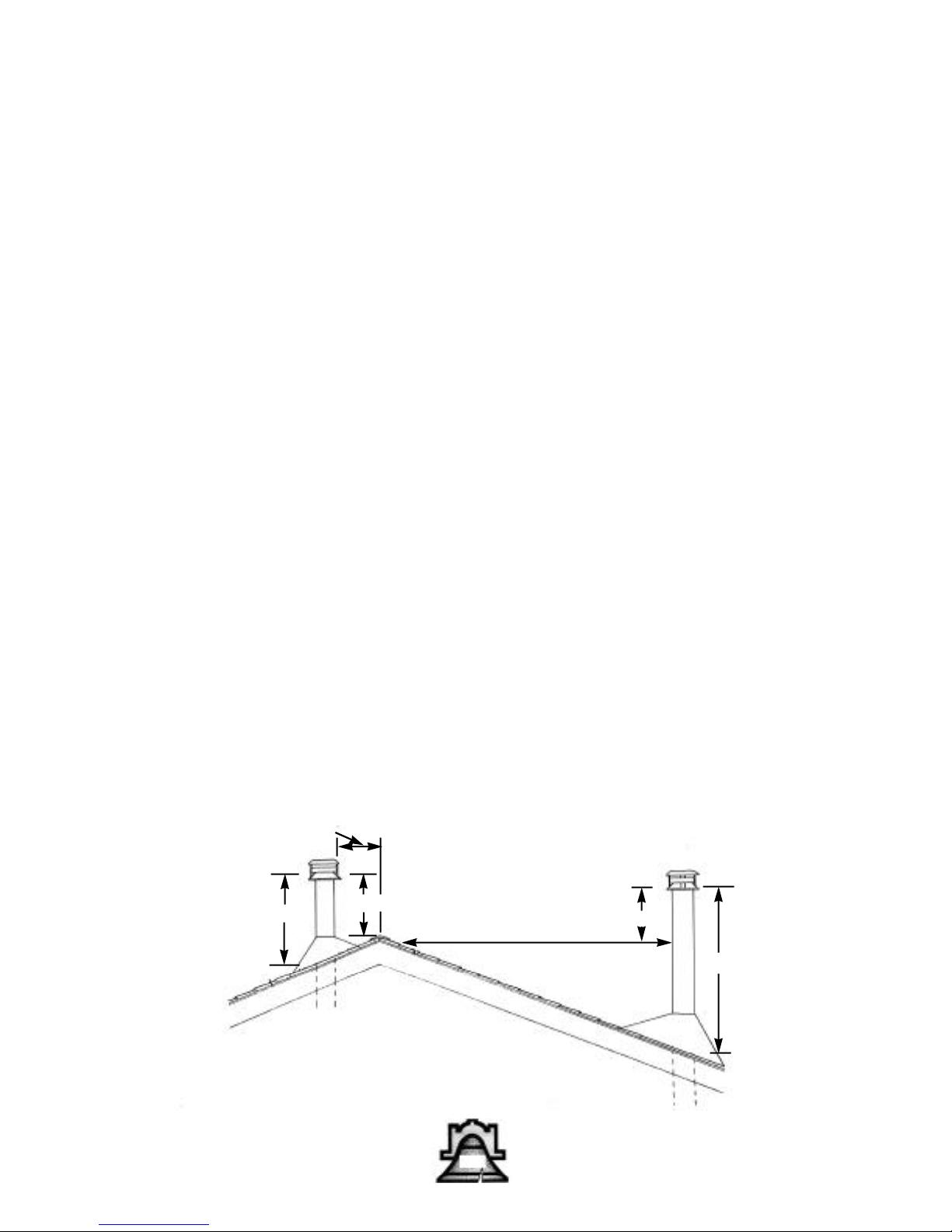

Chimney Height Requirements
11
Page 12
Bellfires® BSV
12
Page 13

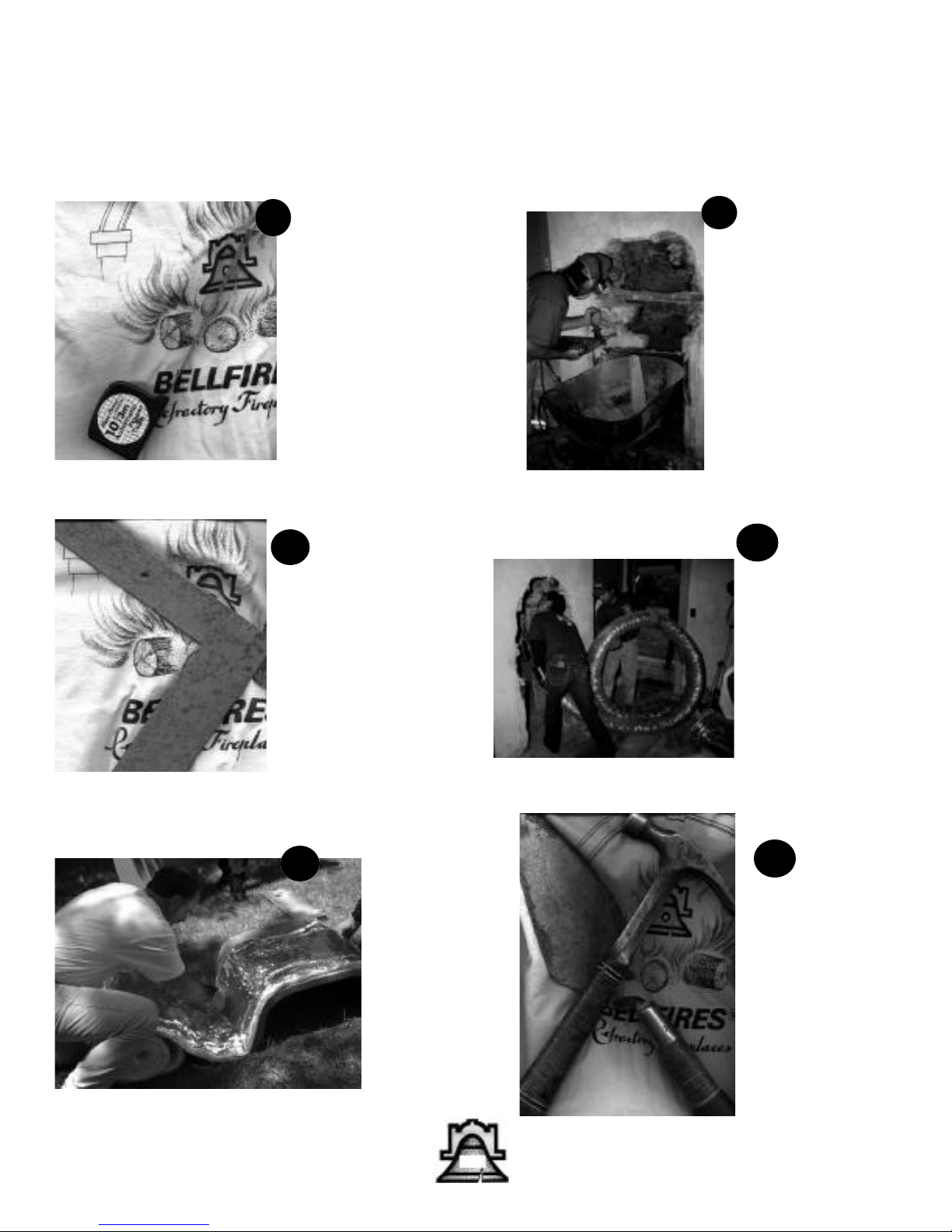

Steps to a Bellfires® BSV Installation
Bellfires® BSV
1
Measurement
3
Layout for
new BSV
2
Demolition and
prep for new BSV
4
Install
Super Flex®
5
Install
new BSV
6
Finish trim
& facade
13
Page 14
Bellfires® BSV

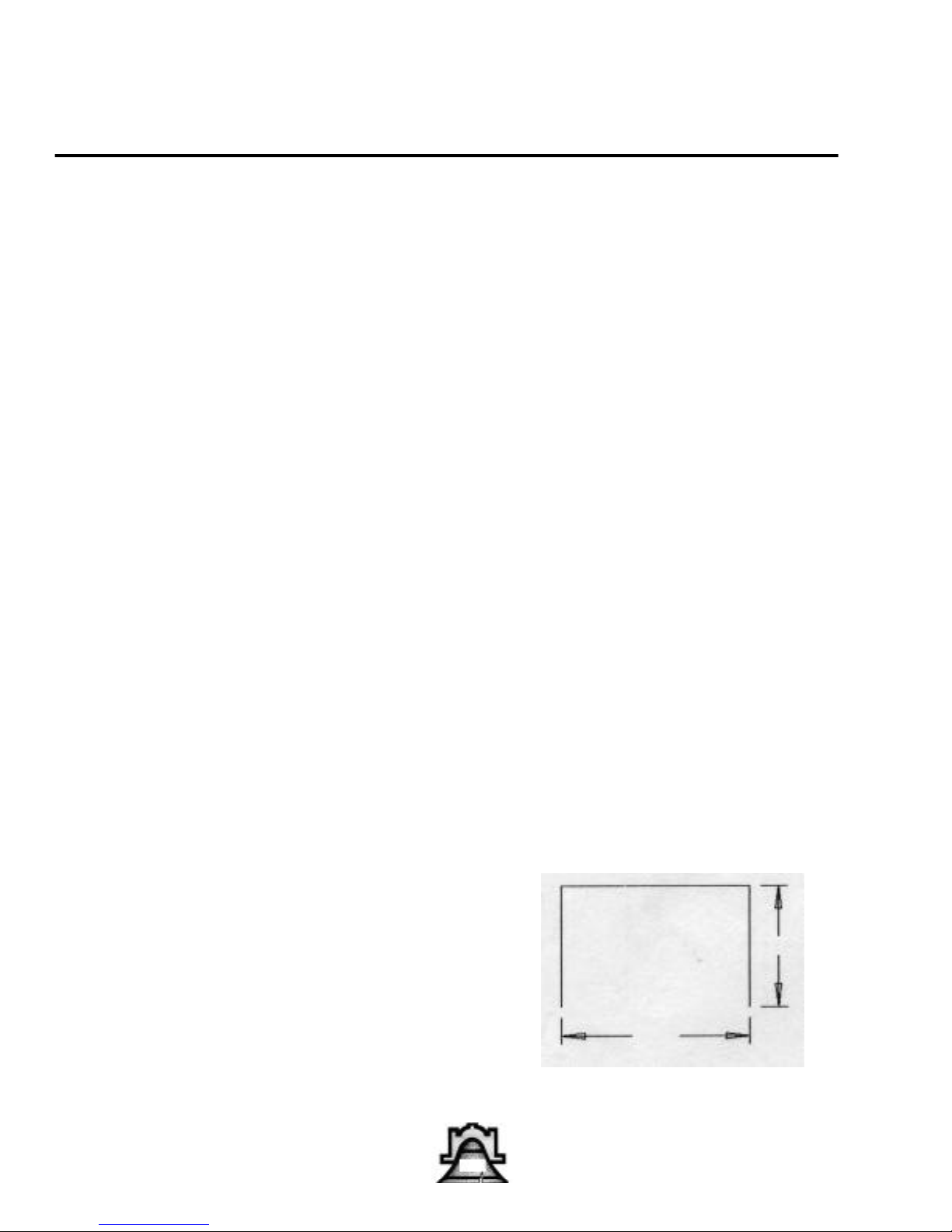

(1) Measure Old Fireplace
There are 6 Steps to a SuperVent
installation.
1. Measure old fireplace to determine what size BSV unit to use, and the appropriate liner size.
2. Demolition of firebox and smoke chamber and preparation for the new BSV.
3. Layout for the new BSV.
4. Installation of the Super Flex® , (or Super
Rigid) liner system.
5. Installation of the BSV.
6. Finish and trim facade.
There are as many different size and shape fireplaces as there are masons who build them. Some are large and cavernous and some are small and tight. It is much easier to install the Super Vent® in a fireplace with a deep firebox and tall, wide smoke chamber, and large flue diameter, than an installation with a shallow fire­box, short, tight chamber, and an undersized or offset flue. Careful measurements should be taken when inspecting and estimating the job. Measurements to take during inspection/esti­mate:
A. Width of opening
B. Height of opening
C. Thickness of opening (lintel size or
arch thickness)
D. Depth of firebox behind face
E. Width of firebox rear
F. Depth of smoke shelf to rear smoke
chamber wall
G. Distance from firebox floor to base of
flue
H. Flue size
I. Total Height

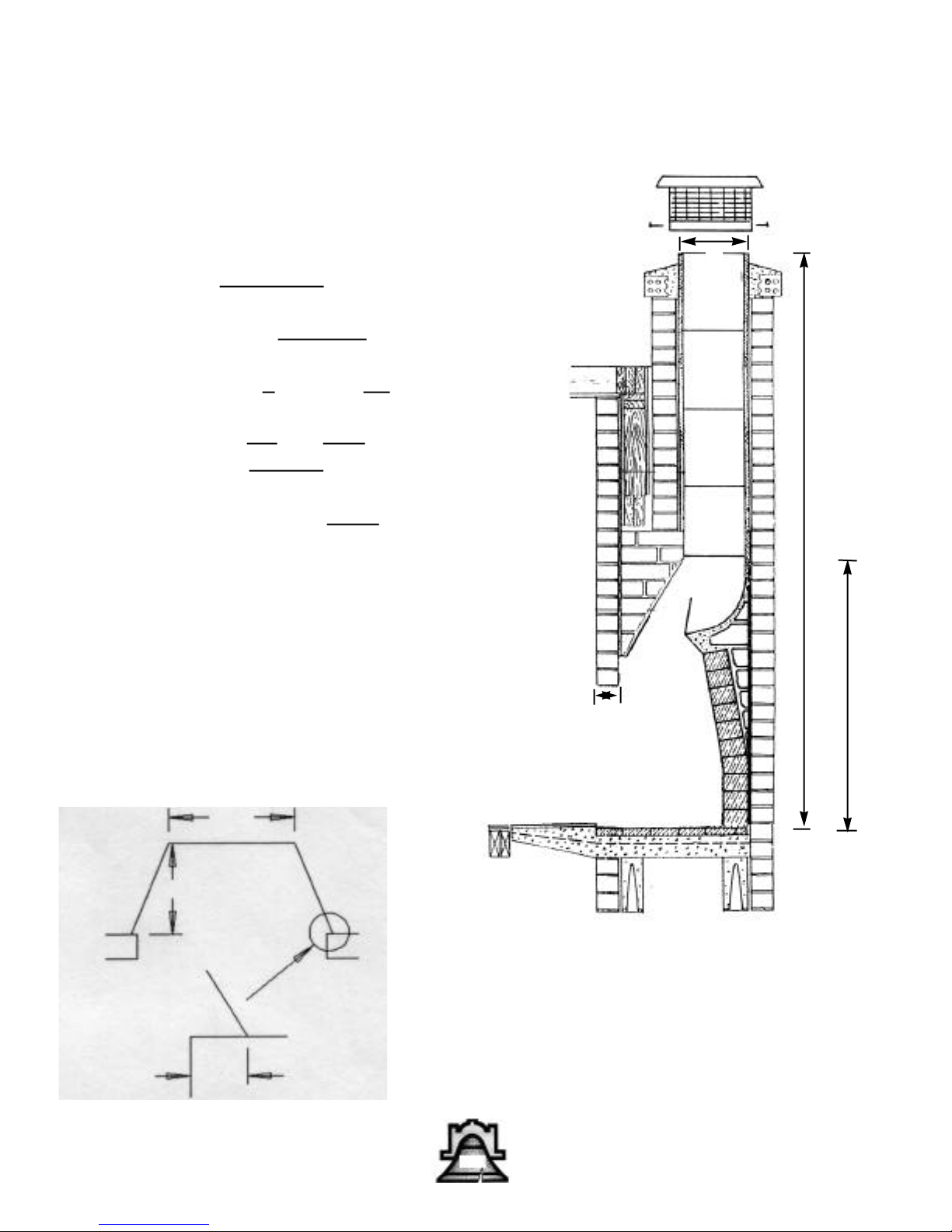

Measuring fireplace (depth of fireplace cavity)
Plumb down to floor from front edge of smoke shelf or damper frame with level or plumb bob and string. Measure from this point on floor to rear of firebox. Subtract this measurement from the depth of smoke shelf measurement. This amount less the thickness of the firebox brick will represent the total depth available with rear fire­box removed.
Measure from firebox floor to base of flue tile. If measurement from floor to flue is greater than height of Bellfires firebox and smoke chamber, and flue size is greater than liner size, installa­tion will be simple and little smoke chamber demolition will be necessary. If measurement from floor to flue is less than height of Bellfires firebox and smoke chamber, and/or flue size is smaller than liner size, demolition of smoke chamber and base of flue will be necessary.
B
A
14
Page 15
Flue size: Chimney height: Firebox: Metal Masonry Offset: Right Left
Back
Bellfires® BSV
H
Chimney top access:
D
I
G
C
15
Page 16
Bellfires® BSV

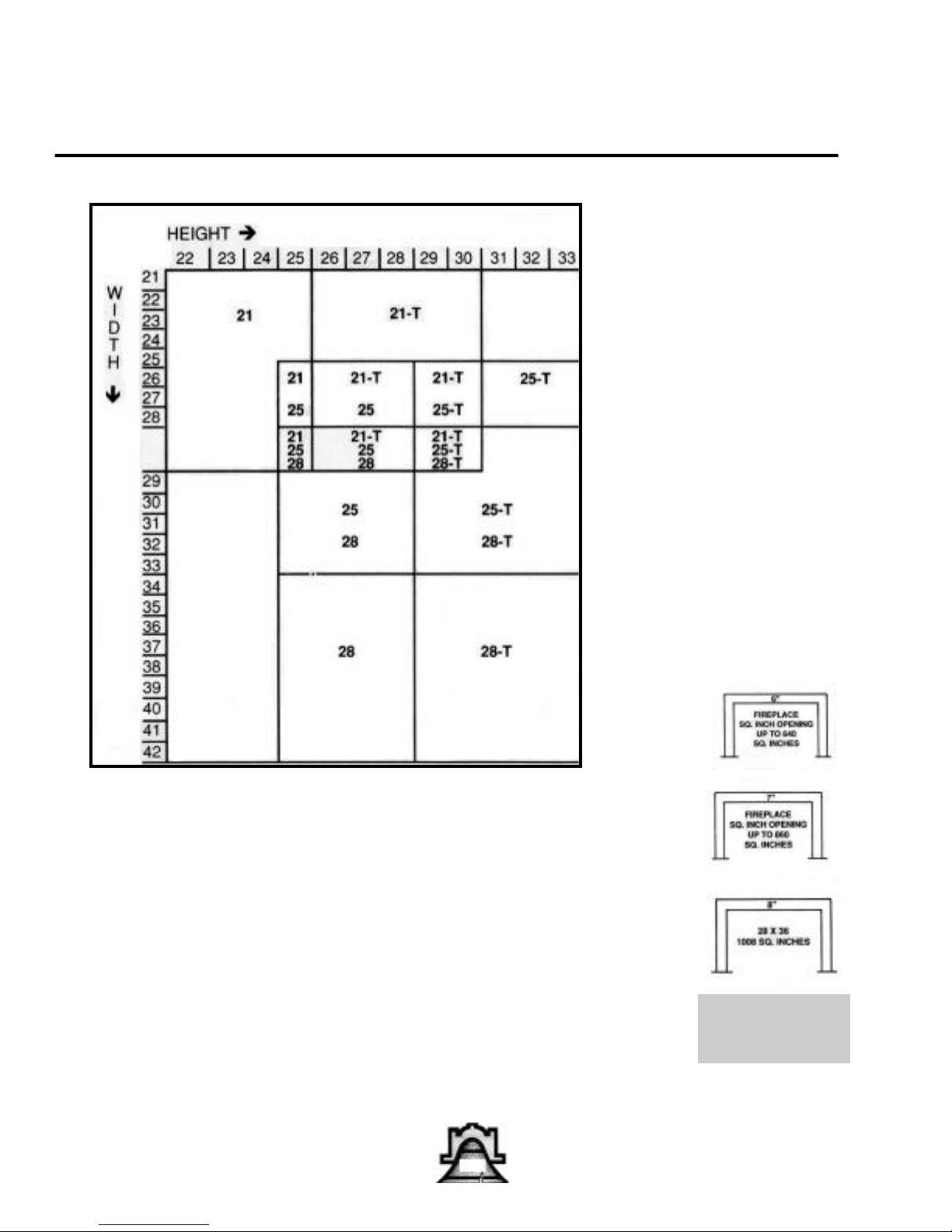

BSV Firebox Dimension and Liner Size Charts
Bellfire Quick Reference Chart
Models BR21, 25, and 28 (includes tall)
Use this chart to determine which BSV model to install.
Use this chart to determine the liner size to
use for your BSV model installation.
SS Flue LIner to
Fireplace Opening
Ratio
Example: 28 x 36 fire­place opening = 1008 8” diameter liner or 6 x 10 Super Flex oval
16
Page 17
Bellfires® BSV
Notes on the Bellfires®

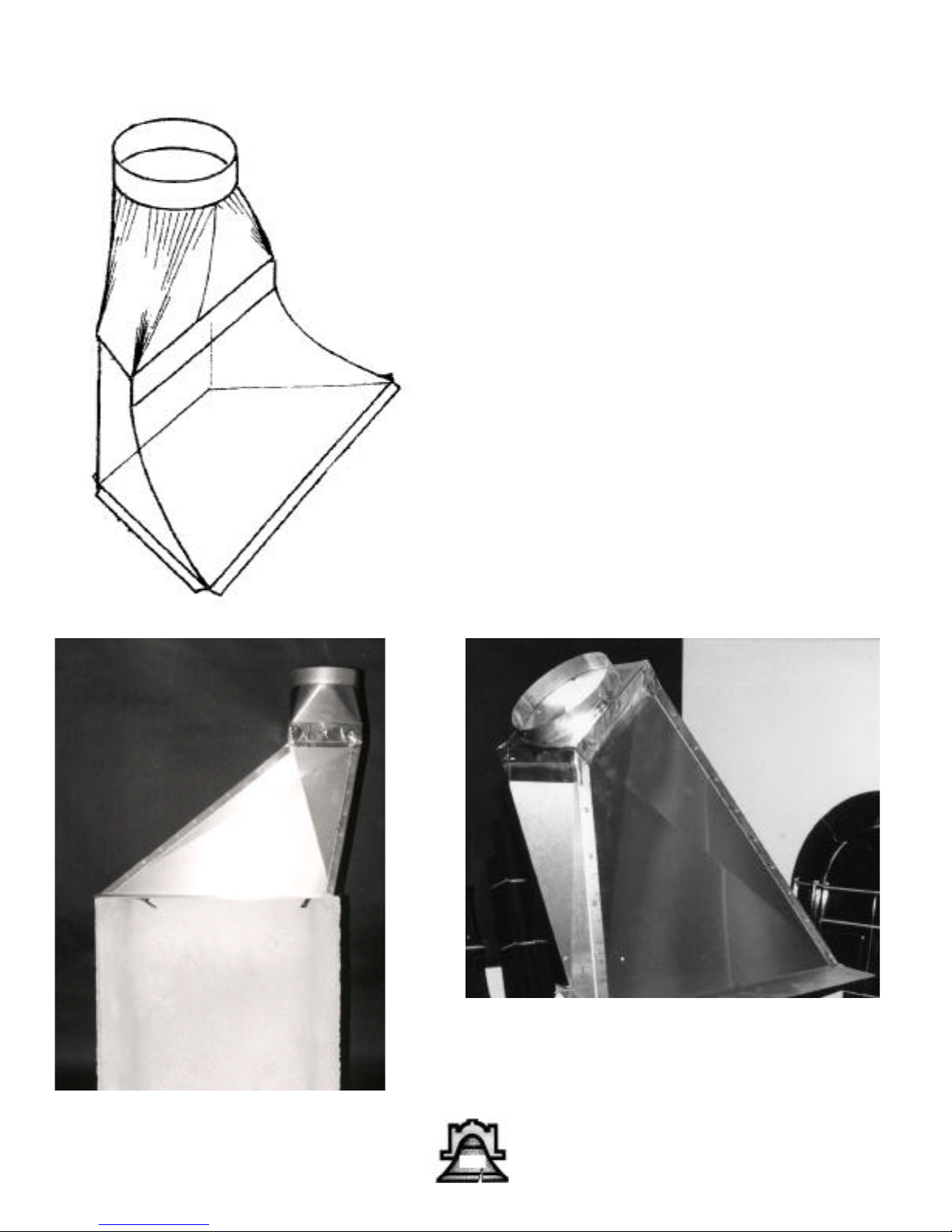

Rumford Smoke Dome
In other installation information that has circu­lated on BSV installations references were made to using stainless steel elbows off of the Smoke Dome for chimneys with offsets.
Sleepy Hollow’s custom fabrication shop makes any dome to the exact dimensions required for your installation. DO NOT USE elbows off of the Smoke Dome.
17
Page 18
Bellfires® BSV
(2) Demolition and Preparation for BSV

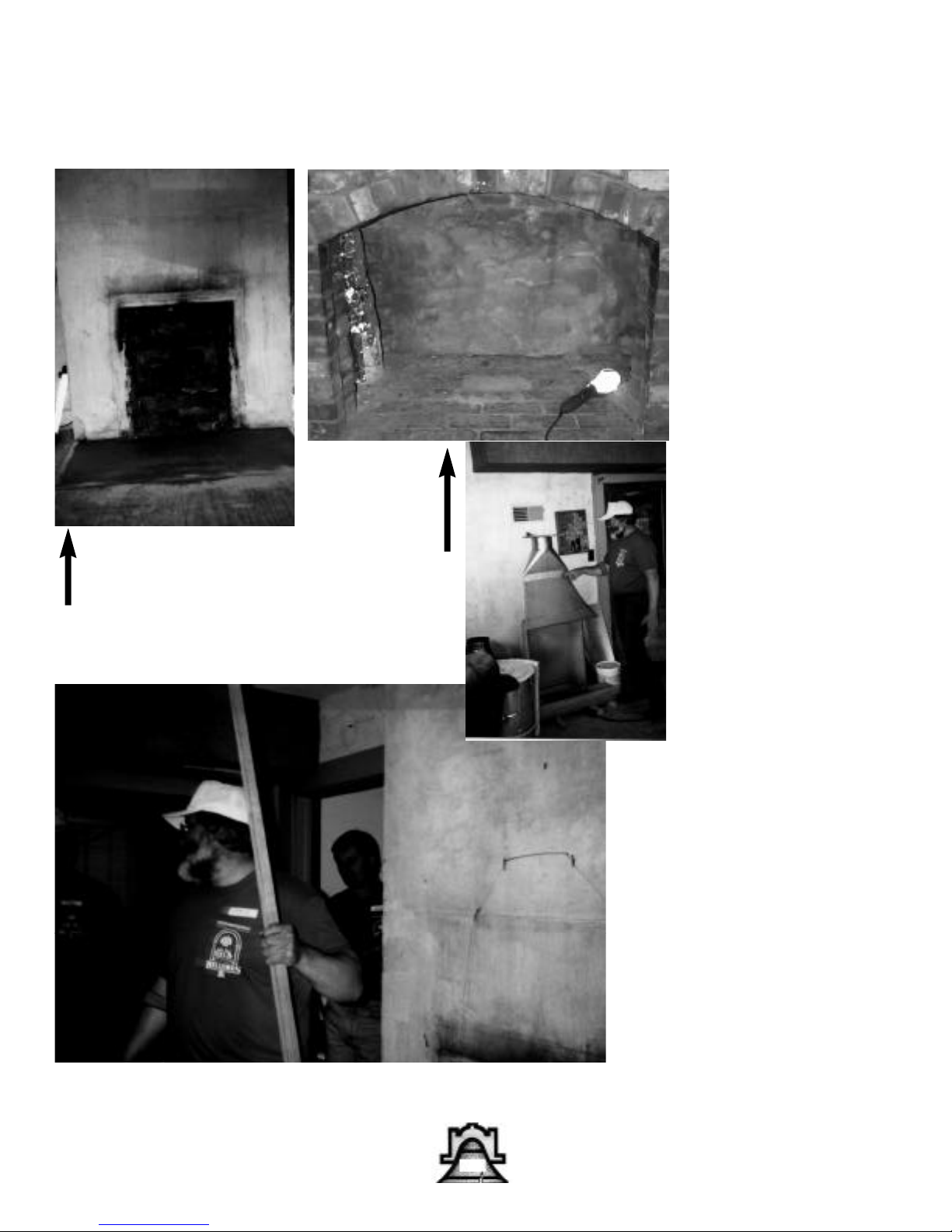

A more common job will require only the removal of the existing
firebox and clay This fireplace will require major demolition to allow for the Bellfires® Super Vent firebox and Super Flex®
It never hurts to lay out a job dry before doing any demolition, and sketching out the exact outlines of the components can save a lot of labor.
liners.
Possibilities for installations are practically endless. Once you have prepared the firebox and chase for placement of the Bellfires® BSV firebox you are ready to trace the dimen­sions of the box and flares on the hearth floor. Some installers wrestle the firebox and flares into place and trace the outlines from the outline of the Bellfires®, and others have found it easier to make a cardboard template and use that to find the exact place­ment of the finished Bellfires® in the existing fireplace. Experience (and your back) will lead you to a preferred method, but both can be used.
Some installations can be done with only minor modifi­cations to the fireplace; others will require more serious demolition. This can include removal of the existing fire­brick (or common red brick if a very old fireplace) firebox, and damper throat, damper, and smoke chamber. Only onsite measurement will tell you how far you will have to go to prepare for a smooth Bellfires® installation.
18
Page 19

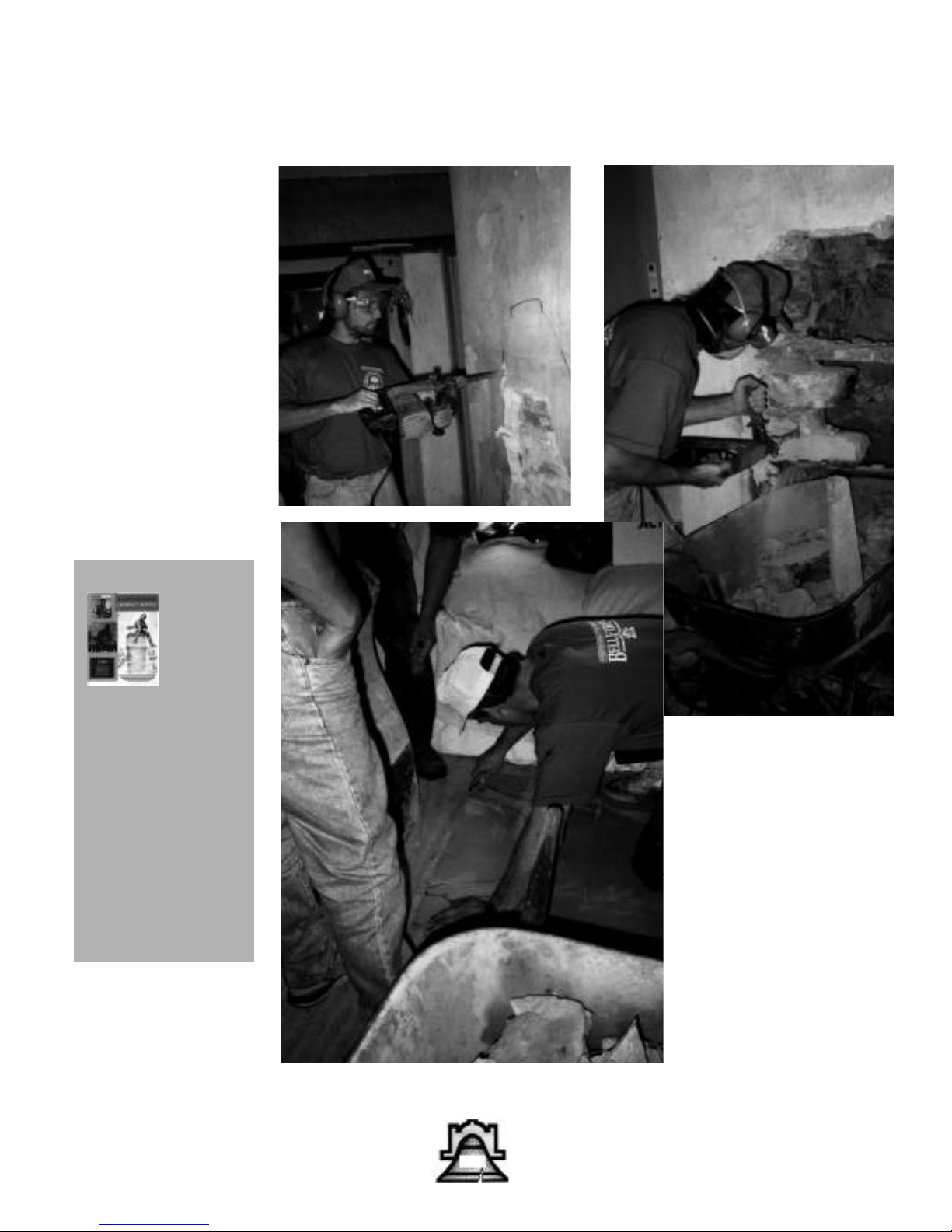

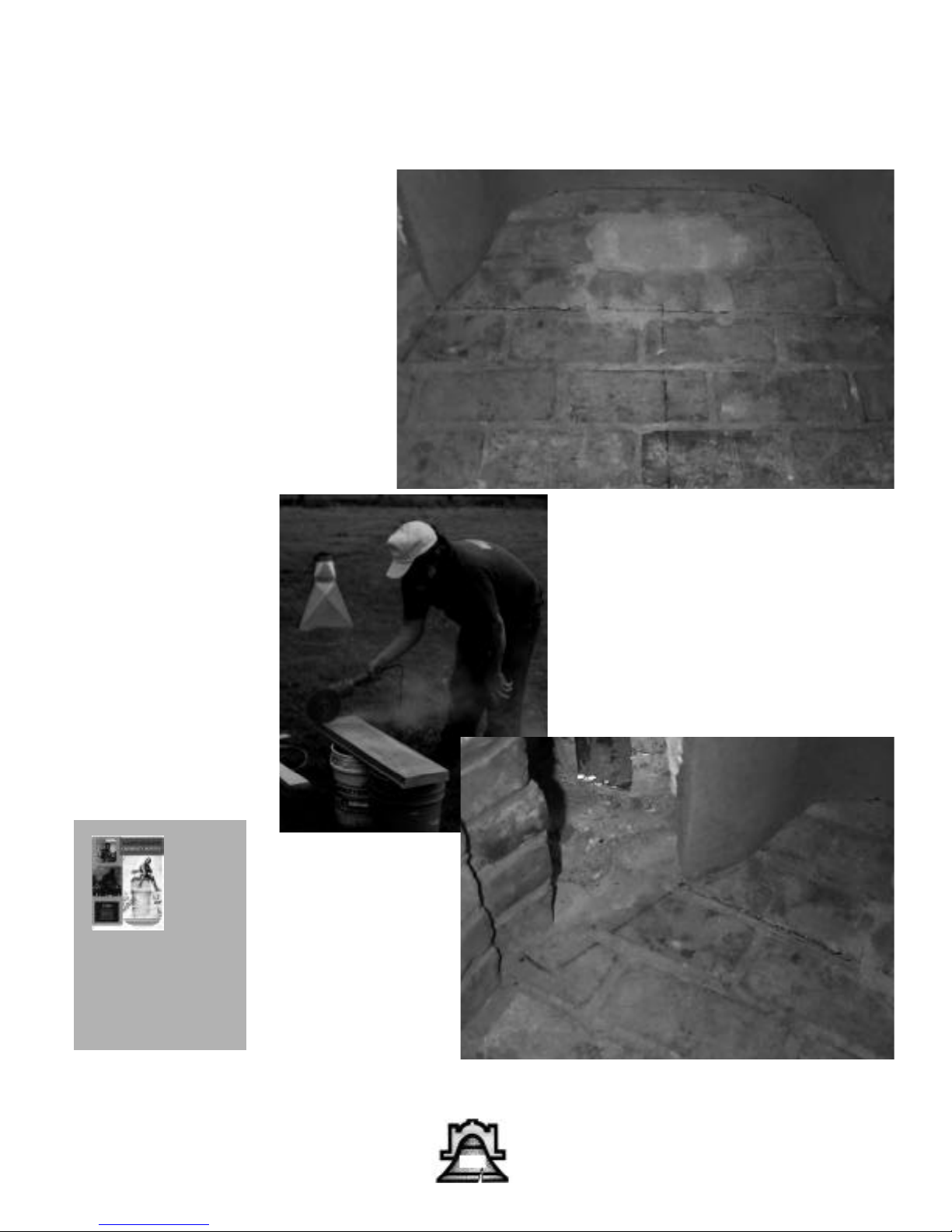

Preparing the customer’s home for installation of Bellfires® BSV fireplaces is very important. Care should be taken to ensure that your customer’s home is protected from the process the installa­tion requires. Cover interior walkways with weather appropriate materials–snow and rain create problems that never come up when working in dry weather . Use vaccuum heads or exhaust fans on the chimney top to help remove dust and soot. Powerful vac­cuums should be used indoors at the points of demo­lition to further control dust.
Bellfires® BSV
Check Catalog for:
Rotary Hammer pg. 89 Hammer Head System
pg. 76 Exhausto fans pg. 48 Drop Cloths pg. 71 Super Vac pg. 72
19
Page 20
Bellfires® BSV
Checking fit with a card­board template, a job that is much easier with cardboard than refractory.
Slipping on Super Skin.
Wrapping Super Flex with Cera-Foil
Wrapping Super Flex, Cera-Foil, and Super Skin with Stainless wire.
Once the firebox and smoke chamber are ready for place­ment of Super Flex® liner and the Bellfires® Super Vent, its time to prepare the Super Vent liner. See Super Vent® installation Guide.
20
Page 21

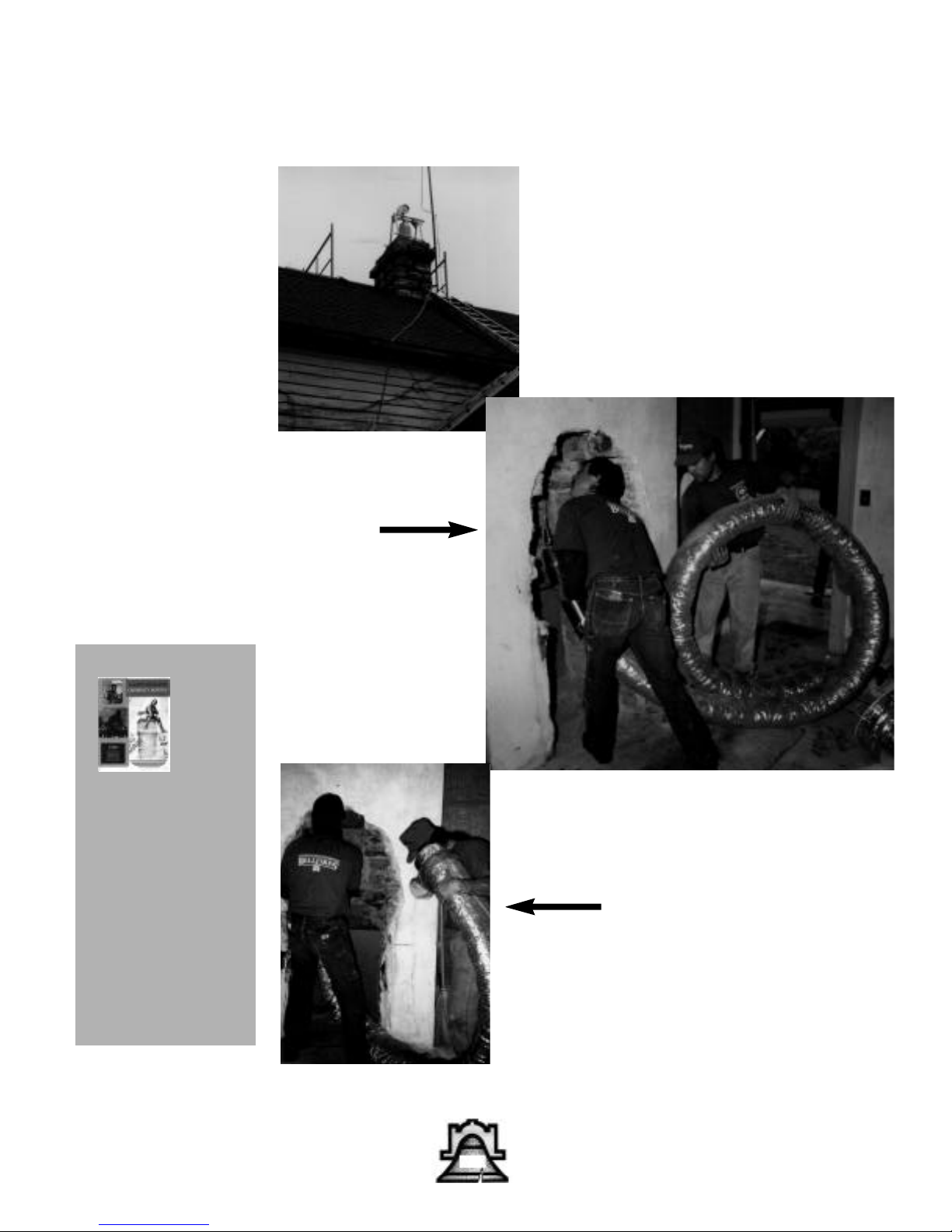

Installing Super Flex® can be done from either the top or bottom of the chimney. Sleepy Hollow introduced to the industry the concept of winching–something that no other lining system had con­sidered. The Super Winch® simplifies flex liner installa­tion in situations where it is possible to use it. Once you have used the Winch you will always look for ways to con­tinue to use it.
Bellfires® BSV
Working safely on the roof is extremely important. Sleepy Hollow offers a number of scaffolding options to help you set up the job on the roof.
See Catalog for:
Super Winch pg. 84 Center Platform pg. 85 Ultimate Ridge Hooks
pg. 86

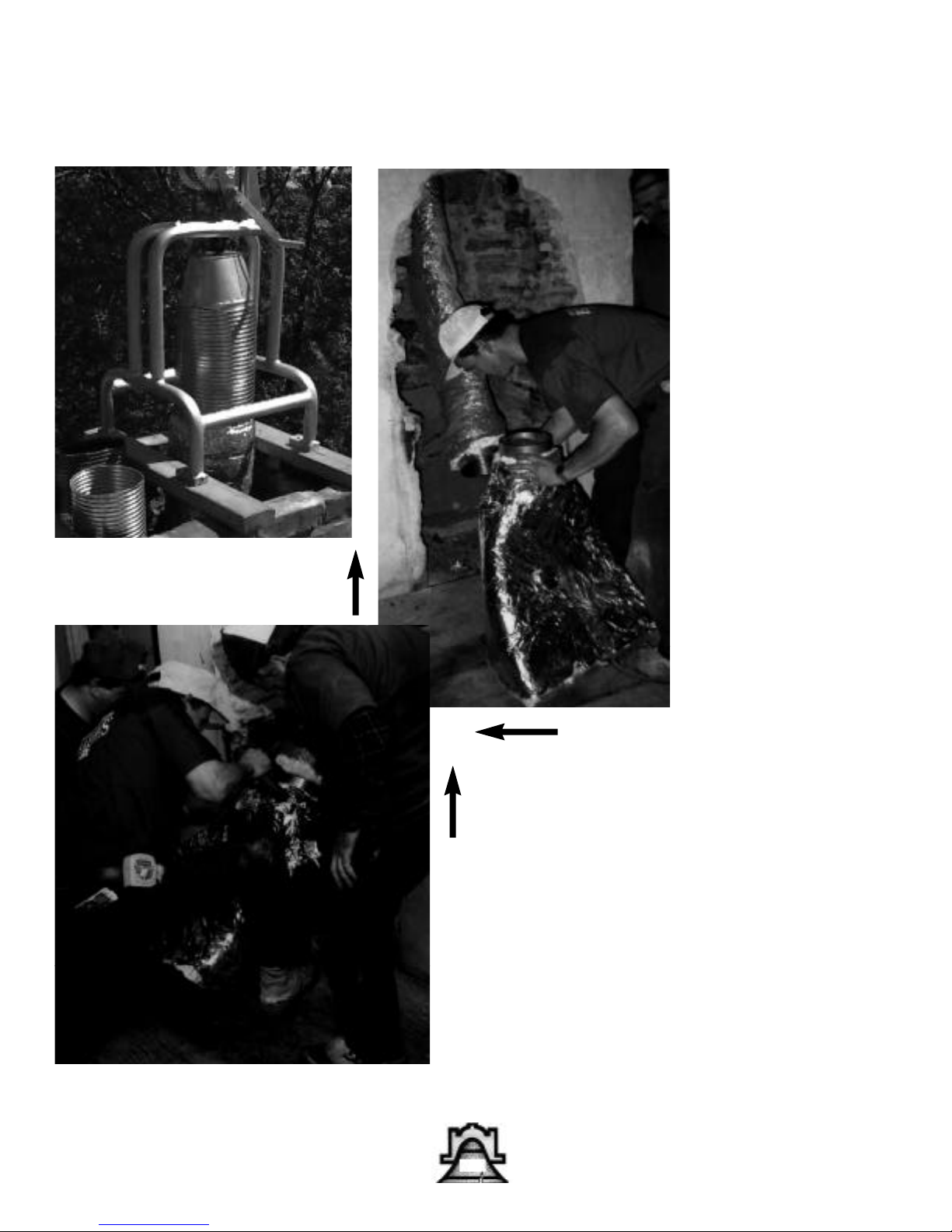

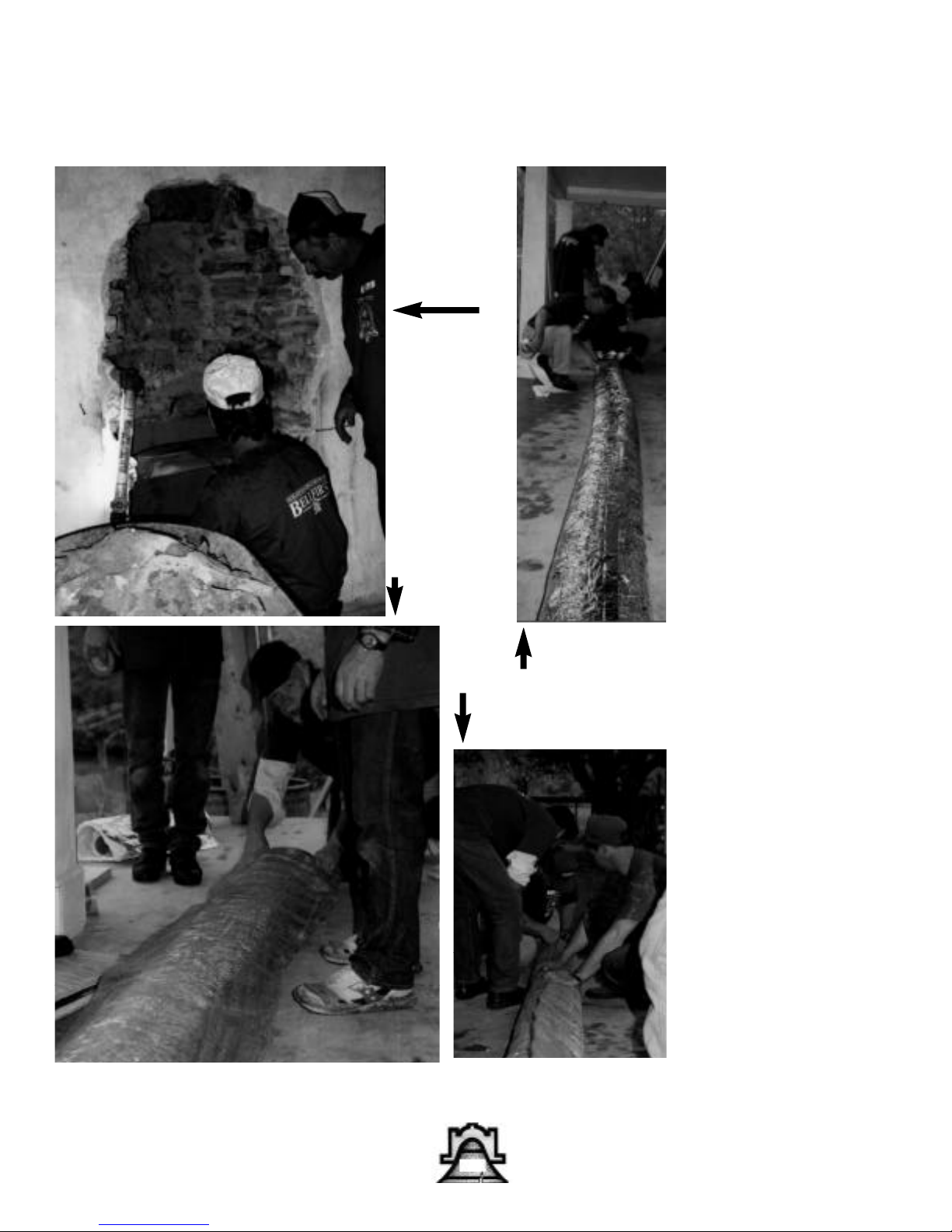

Attach nose cone to flex, clip the winch clip to the nose cone eye and begin winching up.
This installation was winched without the Super Vent
smoke chamber attached. Depending on the length of the
flex it may be easier to handle moving the insulated flex around without the smoke attached before winching. Short lengths of liner may bo easier to install with the smoke chamber securely riveted in place.
21
Page 22
Bellfires® BSV

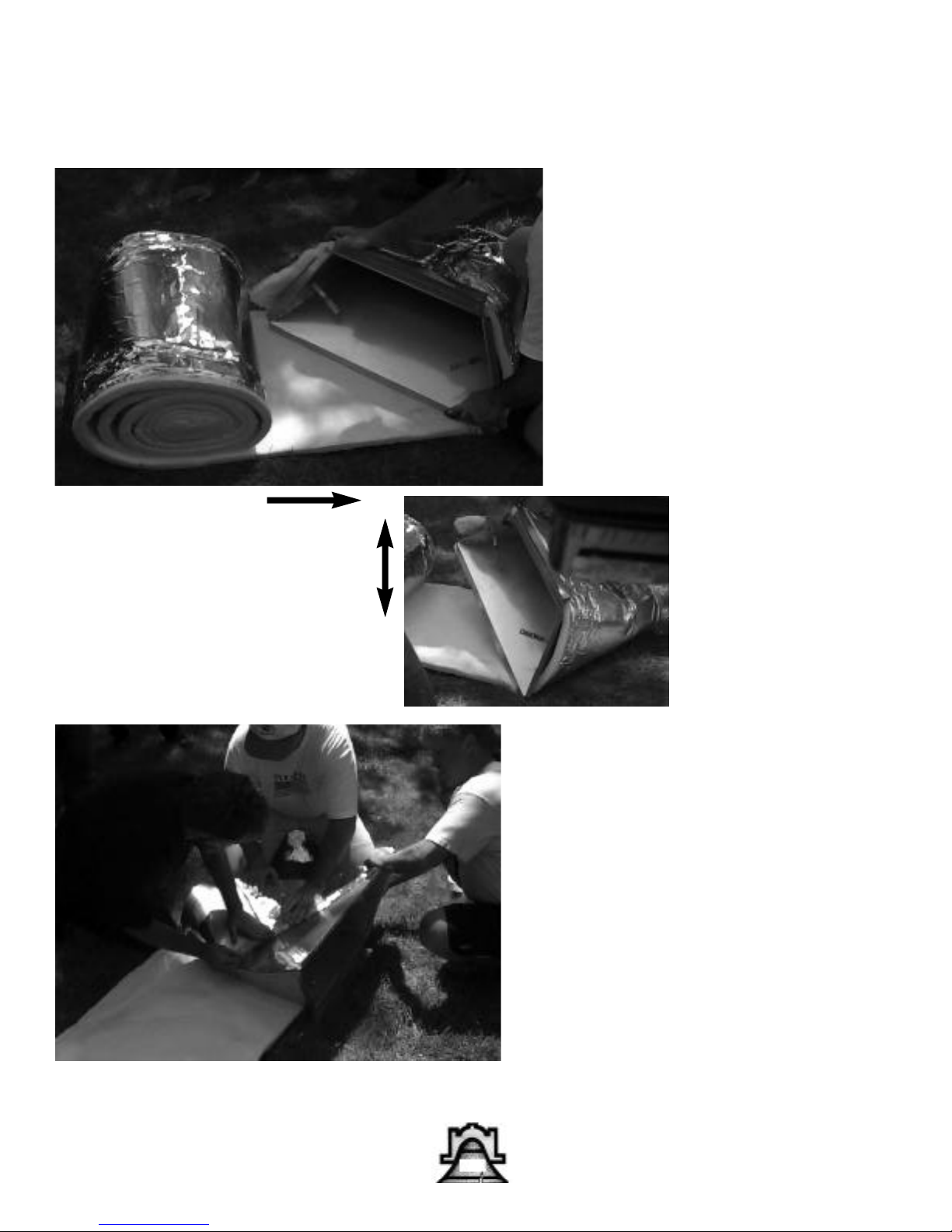

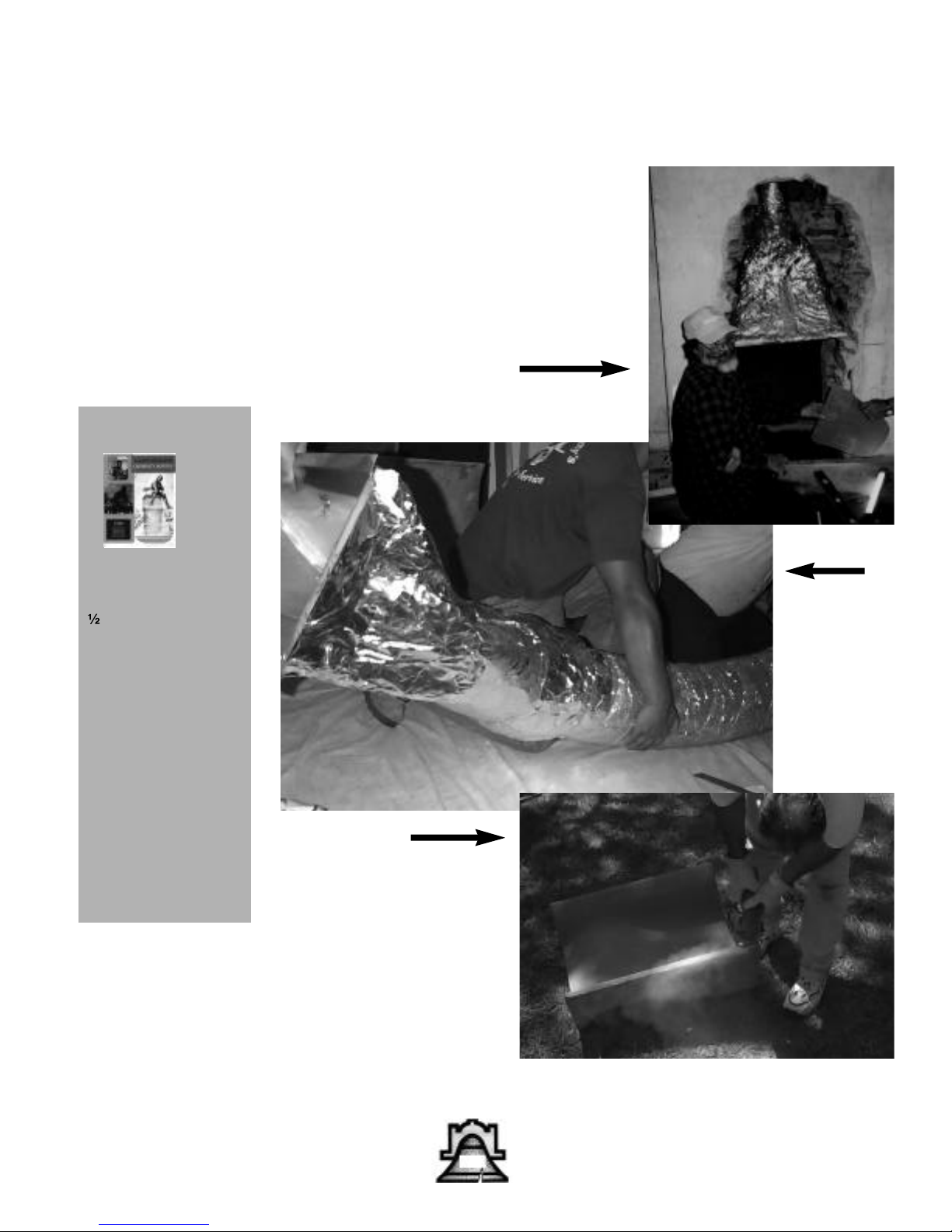

Insulating Smoke Dome
Wrap Cera-Foil® around Smoke Dome. Notice that Smoke Dome can be laid on Cera-Foil and “rolled” to maximize the area covered by a single cut of blanket. Use either Super Cement or Spray Glue to adhere blanket to Dome. Tape all edges and seams with Cera­Foil® Metal Seam Tape. Be sure to cut and fit all small areas that are not easily covered in the first wraps.
22
Page 23

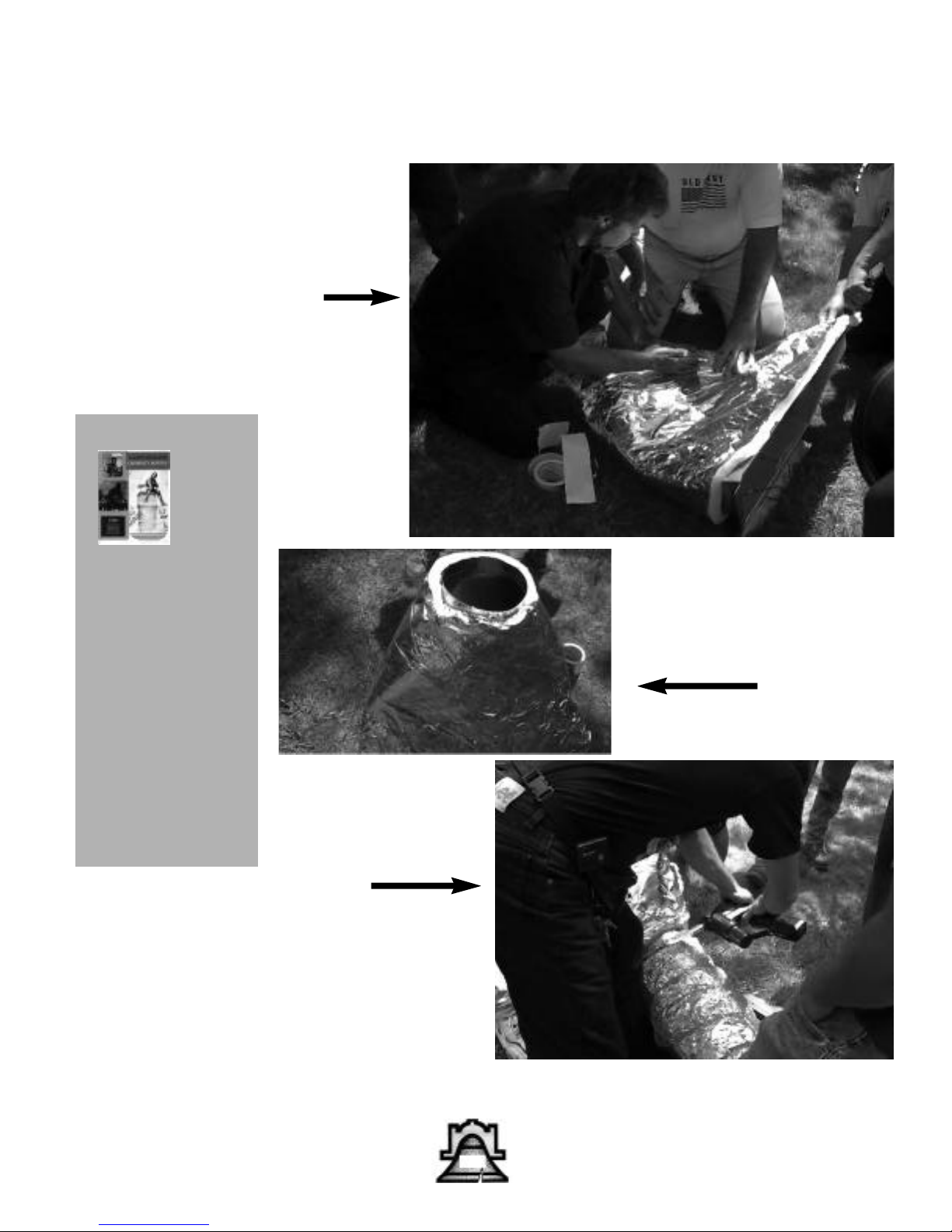

Tape all seams.
Bellfires® BSV
See Catalog for:
Cordless Electric Rivet Gun pg. 92 Ultimate Hand Rivet Gun pg. 92 Cordless Angle Drill
pg. 90
Completely wrapped and insu­lated Smoke Dome waiting to be riveted to Super flex liner
Insulated Smoke Dome being riveted to insulated Super Flex® with Cordless Electric Rivet Gun.
23
Page 24
Bellfires® BSV
!!!IMPORTANT NOTE!!!
The nice thing about using the Super Winch is that it will patiently hold Super Flex in place until you are ready to lower it onto the Bellfires® firebox.
Other installation informa­tion circulating on the Bellfires® has indicated it is possible to use stainless elbows between flex liner and Smoke Domes. That is not true. Sleepy Hollow makes custom stainless domes where chimney off­sets demand them. DO NOT USE ELBOWS in the Bellfires® system.
Attach and rivet the Smoke Dome to Super Flex® liner. Be sure to insulate the con­nection completely and tape the seams with Cera-Foil® Metal Seam Tape.
24
Page 25
Smoke Dome and liner wiched into place, just a few inches above from where it will be lowered onto the installed Bellfires® firebox. The card­board template can be used to check for placement of the firebox and to be sure the Smoke Dome can be lowered and properly seated on the firebox. Now you can prepare the firebox for installation.
Bellfires® BSV
See Catalog for:
4 ” Sander-Grinder
pg. 90
Winching the preattached Smoke Dome and liner into place.
Carefully look over the refrac­tory firebox and flares to check for uneven bumps, etc.,
anything that might prevent a smooth joint and a tight seam between the rear firebox panel and side flares. A grinder can be used to sand down any imperfections.
25
Page 26
Bellfires® BSV
Insulating Bellfires® firebox

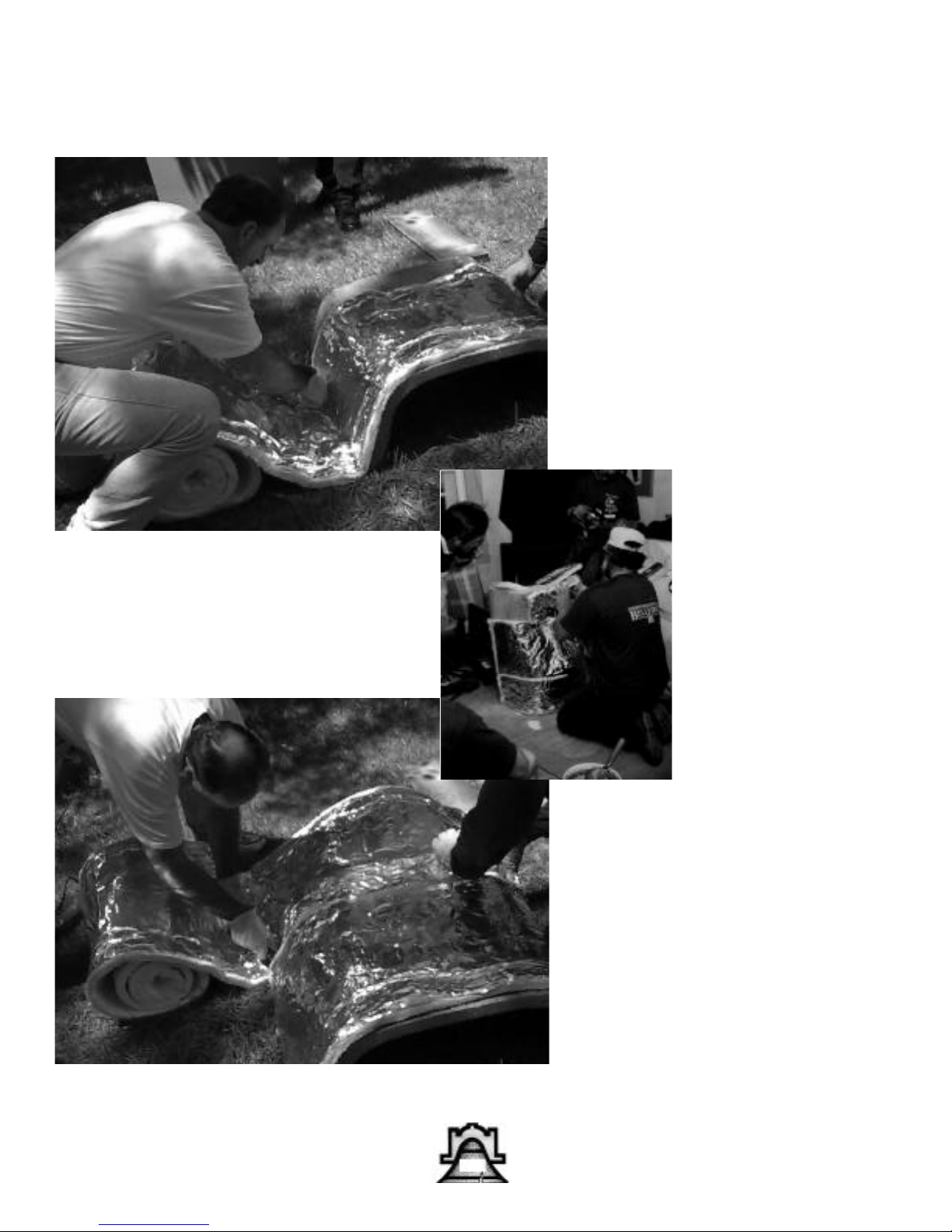

Lay the Bellfires® firebox on its face. Unroll Cera­Foil blanket insulation over the back, from one edge to the other. Carefully cut with a sharp knife. Completely cover all the rear surface area and tape all seams with Cera-Foil® Metal Seam Tape.
26
Page 27
Cutting of Bellfires® refracto­ry components is possible and many times necessary. If you will only be doing limit­ed Bellfires® installations it is possible to get by cutting flares and hearth extensions with circular saws and grinders fitted with diamond blades. Constant application with water to the saw cut will help prevent overheating of the blade and saw. However, this is a very crude method of cutting refractory material. It is also very time consuming and can give less than satisfactory results.
Sleepy Hollow recommends using a masonry wet saw whenever possible to make clean, accurate cuts on refrac­tory flares and hearth exten­sions. Less time will be taken in achieving far more accu­rate cuts and results. If you cannot afford to own such a saw it is advised you look to rent one from a local equip­ment rental yard. You will never want to go back to cut­ting these materials dry and by hand.
Bellfires® BSV
Place insulated Bellfires® fireback on hearth at predrawn outlines.
Flares can be cut with grinders or circular saws outfitted with diamond blades.
See Catalog for:
Diamond Blades pg. 90
27
Page 28
Bellfires® BSV

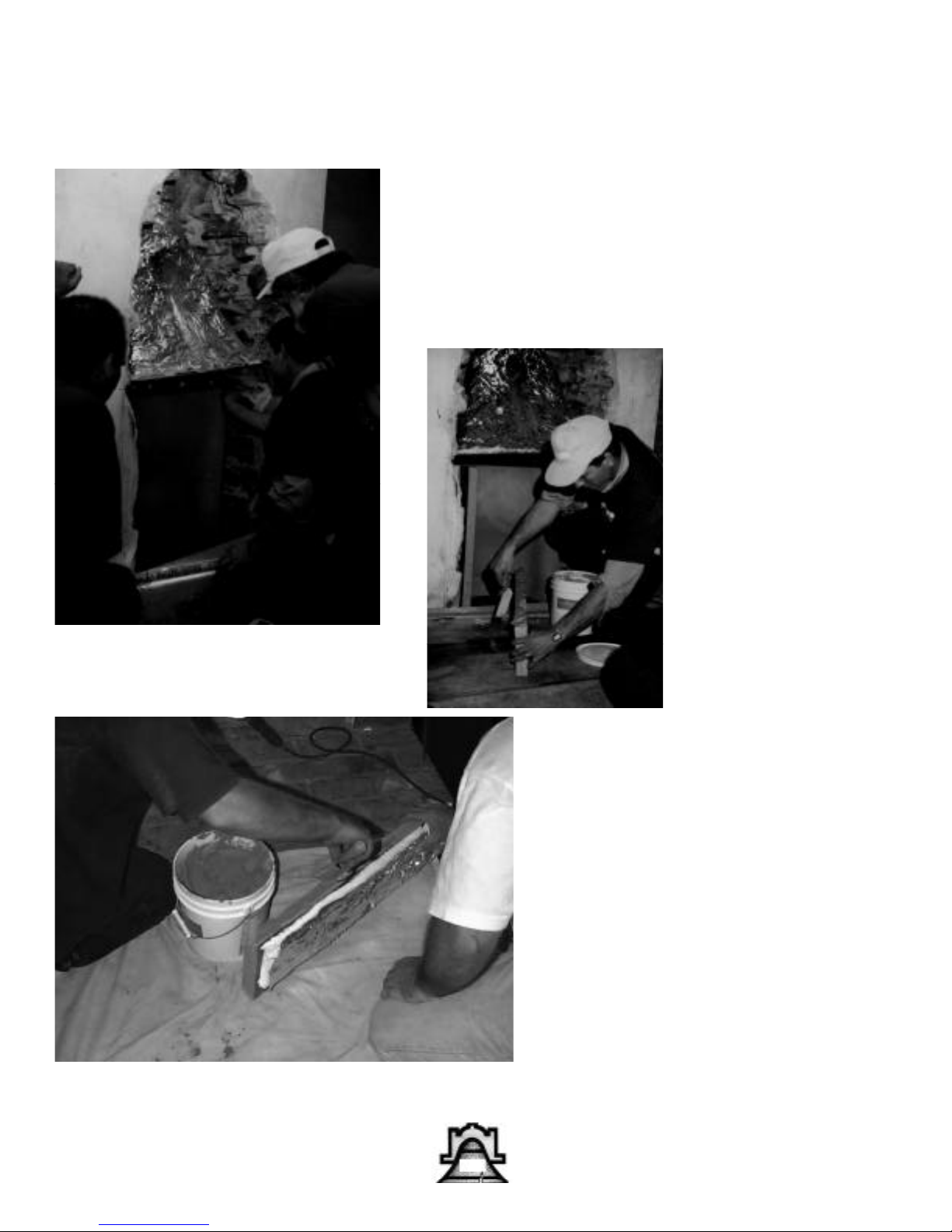

The shiplap edge of the flare is buttered with Super Cement®. The back side of the flare should be insu­lated with Cera-Foil.
28
Page 29
The buttered, insulated flare is fitted to the fireback. A rubber mallet can be used to tap the flare to the fireback. Wipe off any Super Cement that seeps out of the connec­tion shiplap joint.
Bellfires® BSV

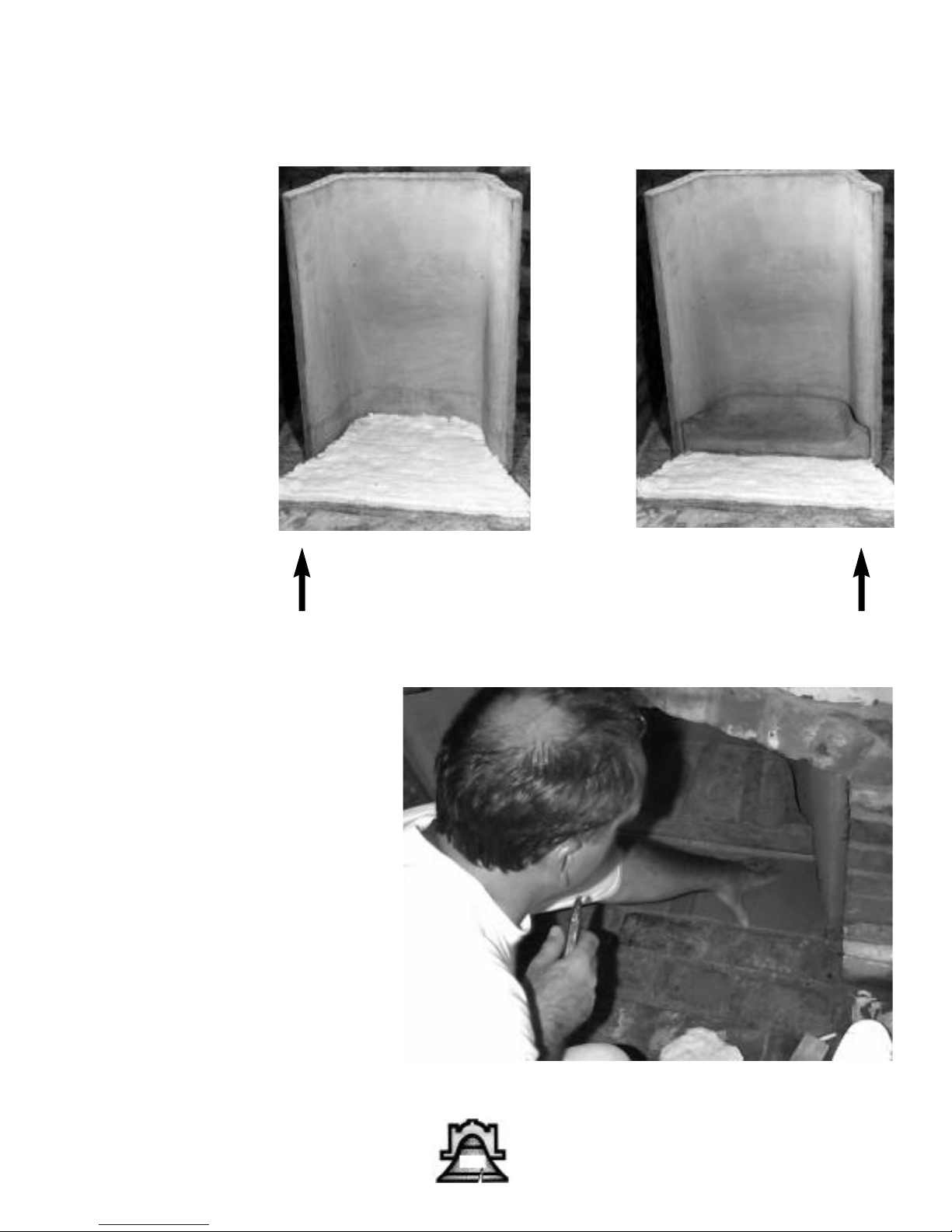

Mix coarse pea size perlite with light masonry cement at a ratio of 7:1 (7 perlite, 1 masonry cement). No sand is needed. Before adding water, mix ingredients thoroughly. Slowly add water, bringing mixture to a potting soil consistency.
29
Page 30
Bellfires® BSV
Before pouring mixture, make sure the 1" Cera-Foil is snugged against back of firebox. Pour mixture behind firebox, tamping lightly inbetween pours. Be sure the mix is at least level with the height of the firebox.
Place Cera-Foil gasket on top of refractory firebox. Lower liner and Smoke Dome onto the firebox, making sure all space between the Smoke Dome and firebox is filled with gasket.
See Catalog for:
Tapcon Fastening System
pg. 99

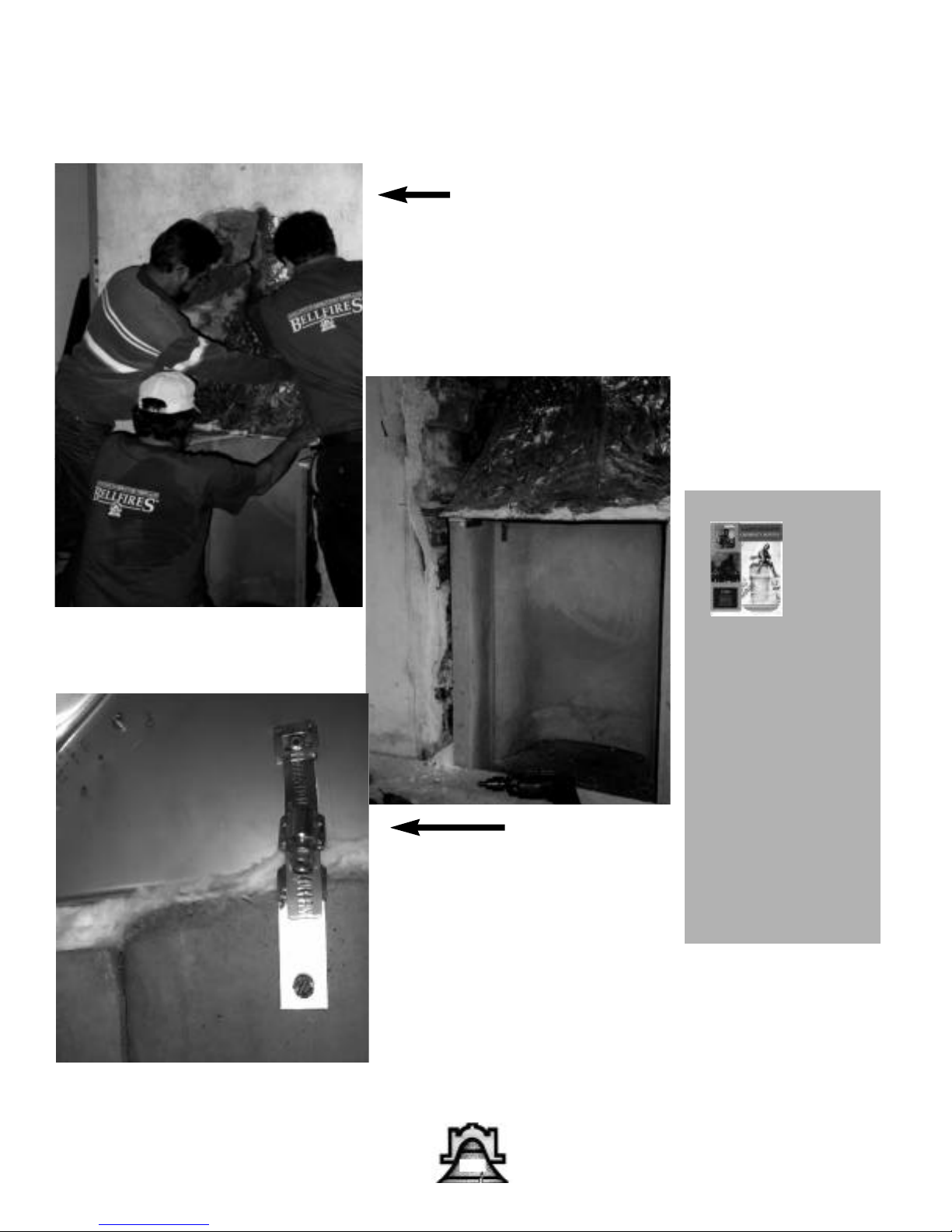

Attach the two Smoke Dome fasteners to the Bellfires® firebox by drilling a hole for the Tapcon screw supplied. Install with the Tapcon fastening sys­tem. Tighten the stainless ratcheting screw until snug. Do not over tighten.
30
Page 31
Bellfires® BSV
You are now ready to lay the hearth. Lay hearth piece (or pieces if two piece) on Cera-Foil blanket, trace outline and cut out the resulting piece and lay it on the floor of the fireplace. Place the rear refractory hearth piece down on the Cera-Foil.
Use cardboard to make a template for the front hearth piece. It is very possible the two outside angles for the flares will be dif­ferent. It is much easier to cut a new cardboard template than to recut the refrac­tory floor piece. Remember: Measure Twice– Cut Once.
31
Page 32
Bellfires® BSV

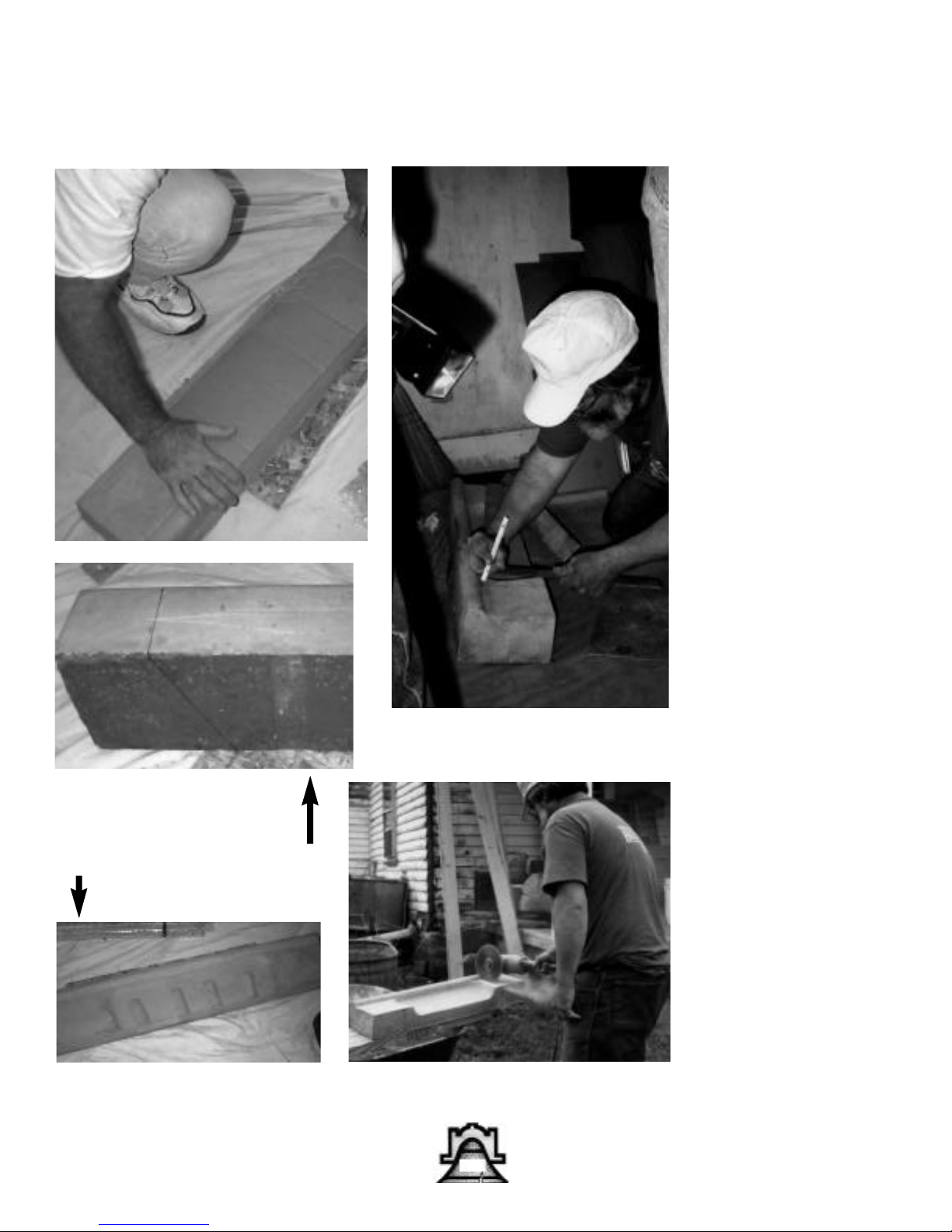

If you will be cutting the hearth piece by hand with a grinder, etc., you will need to carefully mark all four sides to be able align all cuts.
Marked and ready to be cut.
32
Page 33

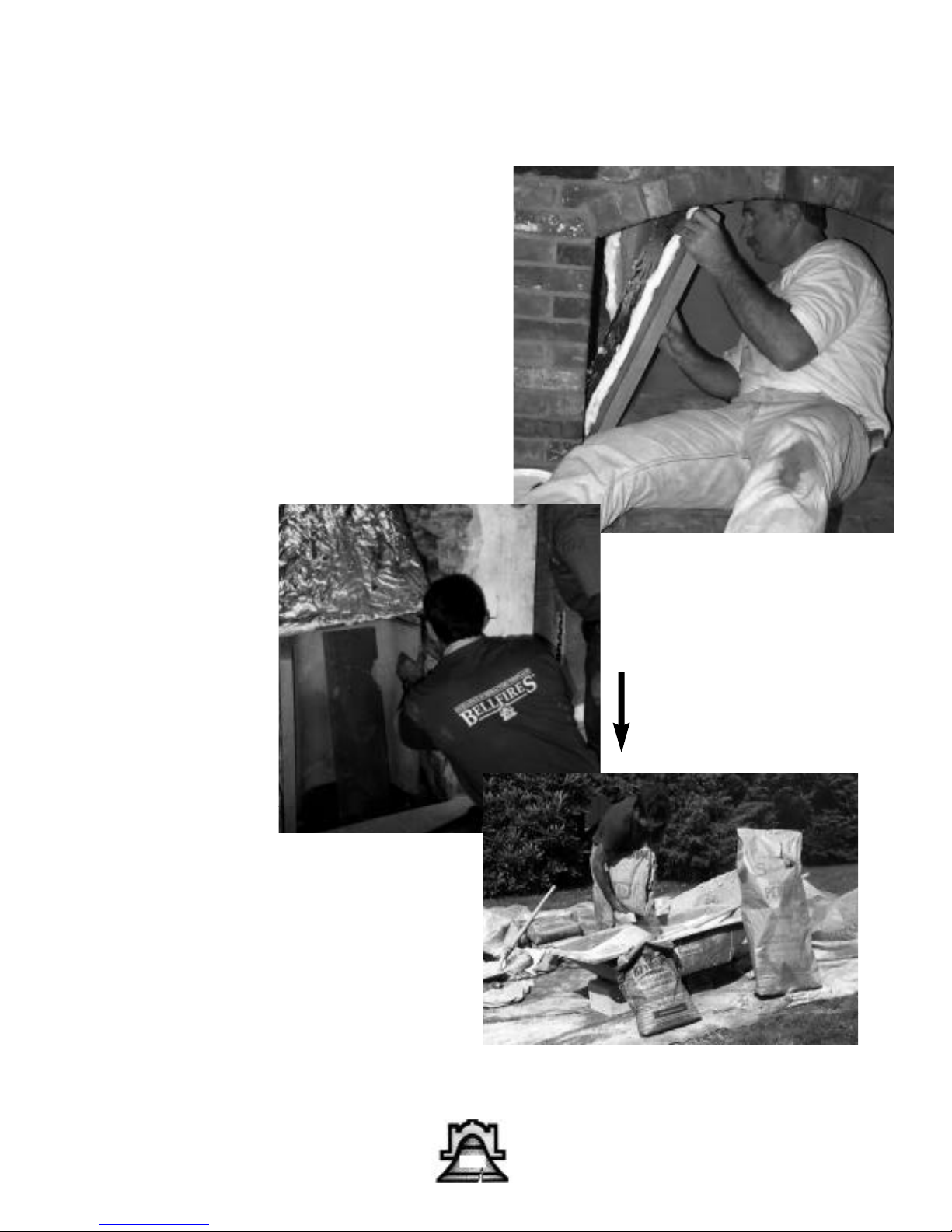

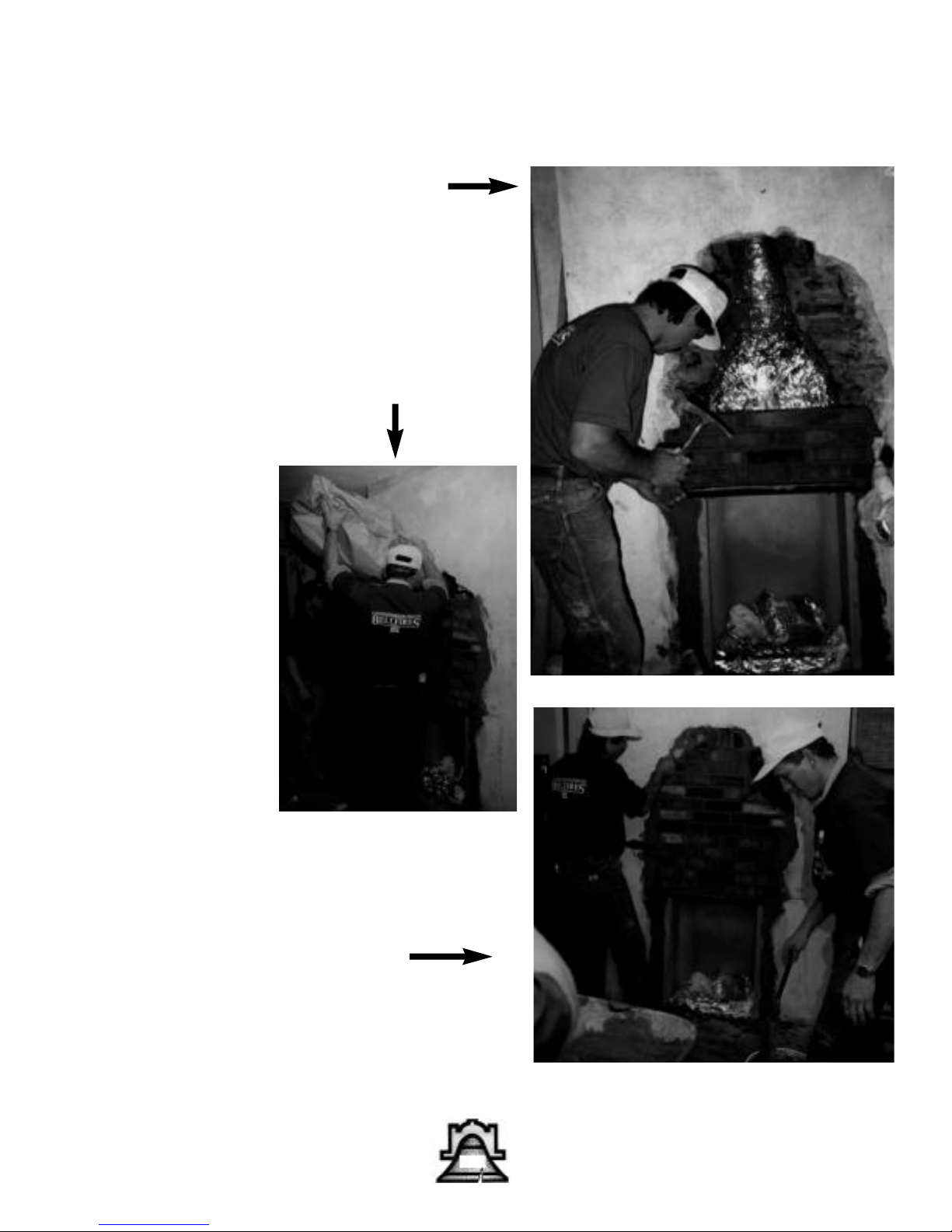

Bricking up the face.
Adding the final backfill of perlite.
Bellfires® BSV
Finishing up the face and cleaning up construction mess. Many possi­bilities exist for finish work to dress up the fireplace facade.
33
Page 34
Bellfires® BSV

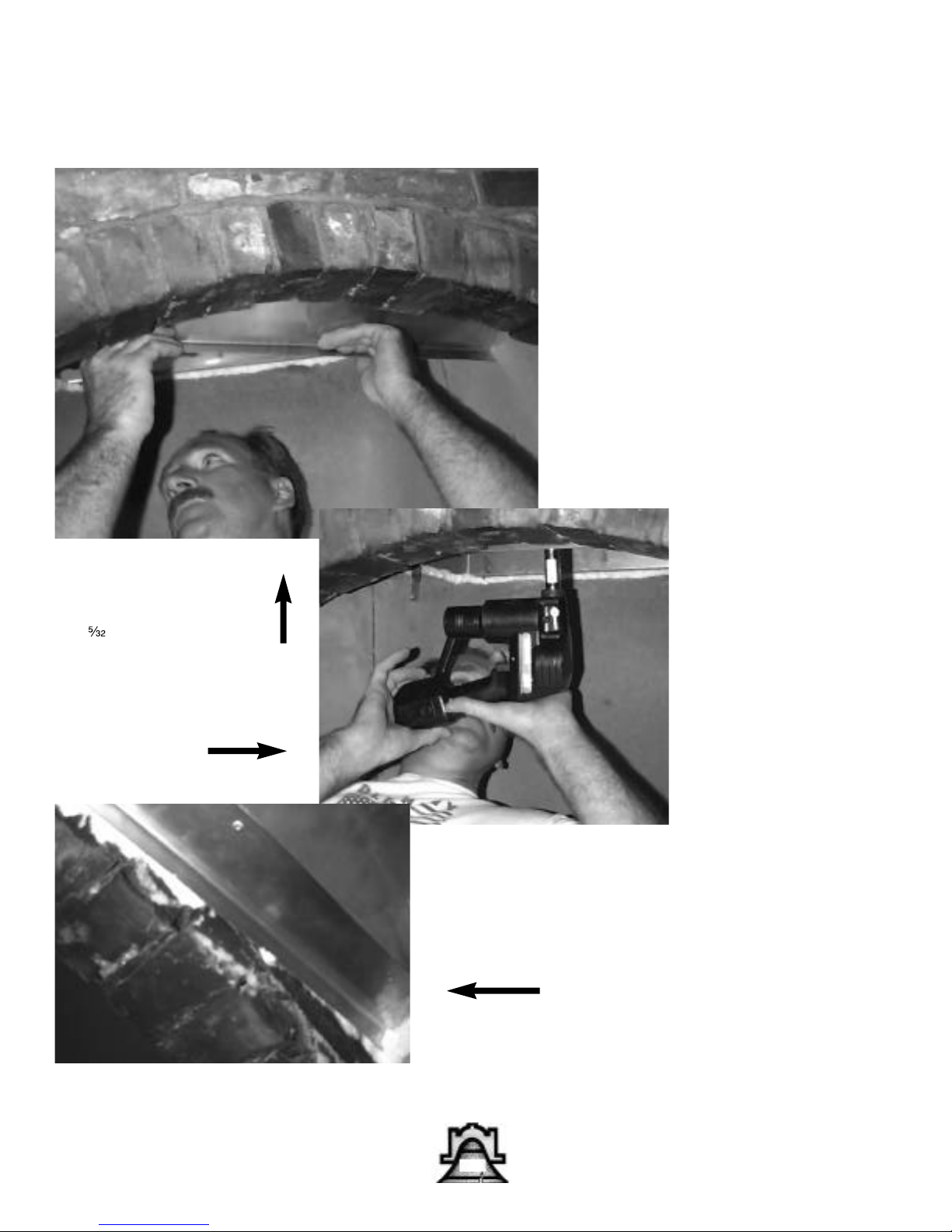

Installing Bellfires® lintel
Place lintel up against fire­place face. This will cover any space between the Smoke Dome and the fireplace face. Drill ” holes for each Super Rivet and then install rivets.
Using the Super Brute to do the heavy duty job of installing Super Rivets.
Its a good idea to use a gasket made from Cera-Wool between the Bellfires® Smoke Dome lin­tel and the fireplace face. Fill any larger holes with extra Cera­Wool.
34
Page 35

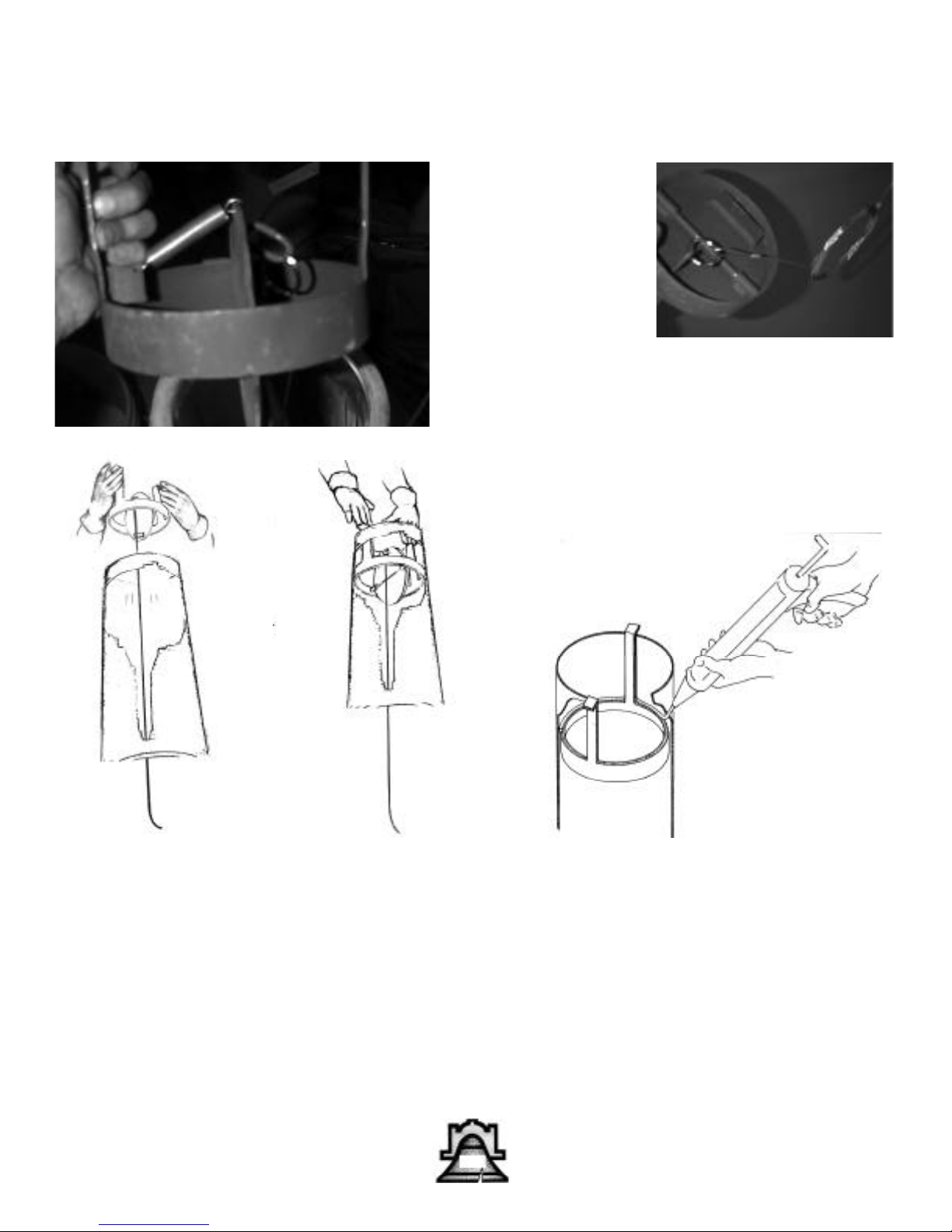

Bellfires® BSV Spider Damper
25-1
25-3
Super Vent® chimney liner
25-2
25-4
25-5
After the Super Flex® chimney liner has been installed, but before the chimney cap is placed, the BSV top mounted Spider Damper must be installed. The Spider Damper is placed in the top section of the Super Vent® chimney liner.
The Spider Drop-in Damper (25-1) (Part #21) installs typically like other top mounted dampers. The bottom hook-up is also typical. Attach the ring on the 28’ stainless cable (Part #22) to the underside ring of the Spider Damper. (25-2) The installer must go to the roof and place the Spider Drop-in Damper inside the top section of the Super Vent® chimney liner until handles of damper don't go any further down. (25-3, 25-4) Unroll cable, dropping it all the way down the flue until cable reaches the firebox. The important installation step to be observed is as follows: check for tightness in between flue walls and outside damper. Any air clearance should be sealed with flat gasket or silicone caulk. (25-5) Check damper plate to be sure it moves freely. Because blade is counterweight, damper should always be in the opening position.
35
Page 36

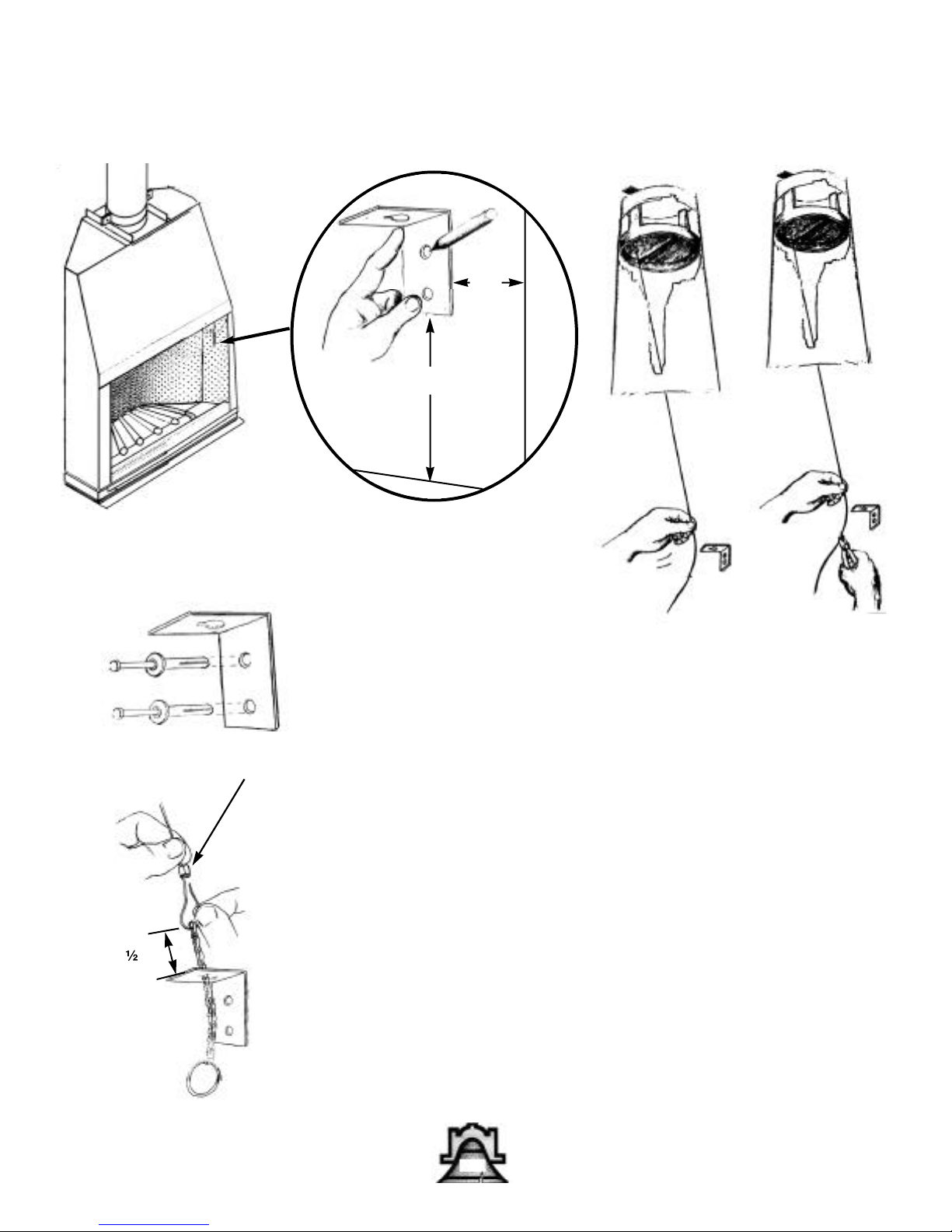

Bellfires® BSV Spider Damper
26-1
3”
20”
26-2
Stainless steel clamp
26-5
26-3
26-4
Hearth
Now, go back inside to the BSV firebox. Take the "L" bracket (Part #23) and place it at wall of firebox (26-1) about 20" from hearth and no less than 3" from outside opening. With a marker, mark the two openings of the “L” bracket onto the side of the firebox. (26-1) Be sure to wear your
safety glasses. Using a masonry drill bit, drill two 4” inch holes into fire­box on the marks you made. Attach "L" bracket with hammer driver. (Part #24) (26-2). Close damper by pulling cable until slight tension is felt. (26-3).
Cut stainless steel wire about 12 inch lower than the horizontal bar of bracket. (26-4).
1 ”
Take opposite end to ring of stainless steel chain and slide it through bracket from bottom to top. Slide end of cable through first link of sash chain (Part # 25)(26-5) and through clamp (Part #26). Attach to cable by squeezing with pliers. At this time damper should remain closed.
Position clamp and be sure that first link of chain is 12 inches over the horizontal of bracket. After the attach clamp is secure against cable your Spider Drop-in Damper is ready to be used.
36
Page 37
Build the World’s Best Fire
Top Down Burn
Handy Items to Have
A Fireplace Screen A Kindling Ax (Be careful) Stove Gloves An Ash Rake
Think of your fuel load as three component parts: The Base Course (can be unsplit if proper diameter) The Middle Course (split) The Top Courses (split finer)
THIS TYPE OF FIRE IS NOT RECOMMENDED FOR THE FIRST EIGHT TO TEN FIRES. BELLFIRES® MUST BE GRADUALLY BROKEN IN AND CURED WITH SMALL FIRES FOR THE FIRST EIGHT TO TEN FIRES.
DO NOT OVERFIRE YOUR BCC!! A fireplace grate is not necessary with the BCC 28. A
grate increases your critical burn rate allowing logs to burn faster than normal. Logs burn best in contact with hot firebrick in a bed of wood ashes.
Helpful Hints & Precautions before you start:
Make sure your fireplace and flue have been inspected for fire worthiness and are cleaned if found dirty (full of flammable cresosote), by a reputable Chimney Sweep. Make sure the damper is open. The damper is controlled from the keyed stainless cable and ring installed to either side of the firebox sidewall. Pull down and unhook to release the tension of the stain­less steel cable. Pull down and rehook the cable to close the damper. There are no other settings than completely open or completely closed. If your fire­place and flue are located on an outside wall or, when the damper is open, you feel a flow of frigid air rush­ing down into the room, pre-heat the flue with a sheet of lit newspaper. Hold the lit newspaper high into the damper area, wearing a pair of stove gloves for protec­tion. This will reverse the cold air plug present in the flue, creating a strong updraft with no smoke into your room. As soon as the newspaper is burned up, light your newspaper on top of your fuel load. Approximately 3-4 hours later when you have a nice bed of hardwood coals, use a fireplace rake to push the coals against the rear wall of the firebox. Next, lay your new logs, minimum of four, on top of the hot coals, lay the bottom two horizontally. The top two, a little short­er in length, place front to back approximately 3 inch­es apart creating a throat.
The greatest volume of smoke and particulate pollu­tion from a wood fire occurs during a cold start up.
Wood fires lit from the bottom, in a conventional man­ner, promote a dirty burn and waste a large amount of potential heat in the form of unburned gases.

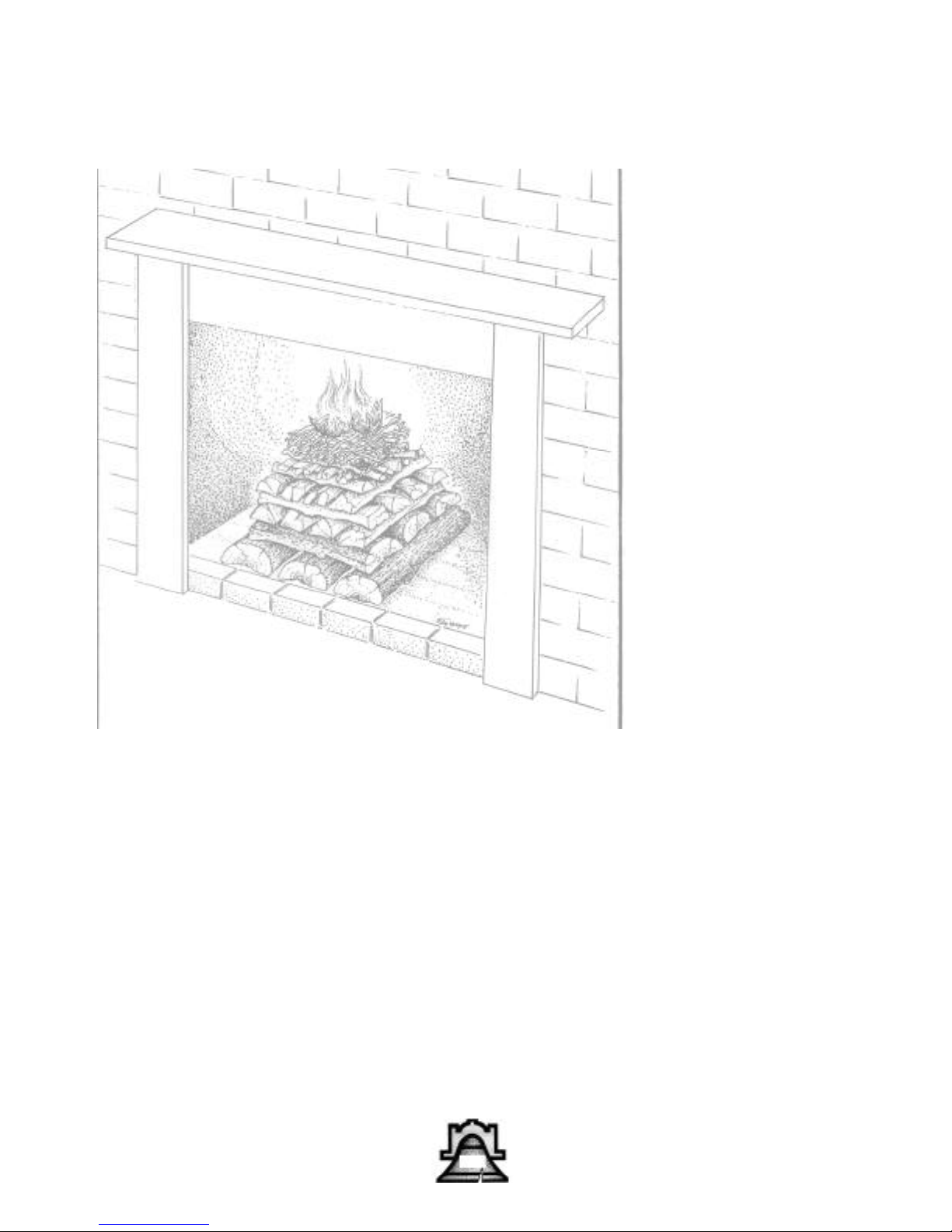

A clean and efficient method for kindling a fire is a top burn. This almost forgotten ancient European tech­nique places the largest wood at the bottom in a criss cross crib fashion. As each tier is laid, the criss cross­ing becomes smaller. Kindling and a small amount of paper are placed on top and lit.
When the top burn fire is lit, the flames are always above the fuel load. The smoke and flammable gas from each tier of wood will always travel up through the flame and burn, thereby reducing particulate pollu­tion and unburned fuel.
A top kindling fire also produces large and less com­pacted glowing coals, providing excellent long-lasting radiant heat.
A top burn fire laid with seasoned hardwood to a height of eighteen to twenty-four inches will burn approximately four hours without adding additional wood. The fire will be mesmerizing as each tier slowly ignites and burns its way down.
TOP BURN RECIPE
Always start with dry, well-seasoned, split firewood and kindling. (Ideally seasoned firewood will have a 20% moisture content. The wood will show radial cracks at the ends and sound like bowling pins when beaten together.)
Bottom layer: Three good sized pieces of split hardwood five to six
inches thick, laid front to back. Second layer:
Three slightly smaller pieces of split firewood three to five inches thick, laid side to side.
Third layer: Four to five smaller pieces of split firewood two to three inches thick, laid front to back. Keep afternating and decreasing in size with split hardwood until they are about one inch thick.
Now alternate two rows with split softwood (pine, spruce, etc.) until pencil thick. Place a small piece of newspaper on top and light.
37
Page 38
Operating Instructions & Maintenance
BSV Operating Instructions & Fireplace & Chimney Maintenance
Keep These Instructions
for Future Use
NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL-
LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR “FRESHEN UP” A FIRE IN THIS FIRE-
PLACE. KEEP ALL SUCH LIQUIDS WELL AWAY
FROM THE FIREPLACEWHILE IT IS IN USE.
Use solid wood or processed
solid fuel firelogs only.
Do not poke or stir logs while they are burning.
Use only firelogs that have been evaluated for the application in fireplace and refer to firelog
warnings and caution markings on packaging
prior to use.
Beware of burning certain materials in your fireplace.
These items include plastic, poison ivy , and chemically
treated woods such as pressure-treated lumber, discarded
telephone poles, or railroad ties. These not only create air
pollution, they can induce extreme illness or irritation for
some individuals. Do not burn driftwood that has been in
the ocean or in salt water as the salt will corrode the chim-
ney. Do not abuse the fireplace by overfiring by burning
paper, cardboard, or construction materials such as
pressed wood, plywood, or lumber. Some fuels, such as
charcoal, natural gas, etc., give off carbon monoxide when
they burn. As this is a toxic gas you should insure that the
fireplace does not spill flue gas into the house.
Disposal of Ashes
Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a noncombustible floor or on the ground well away from all combustible materials pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thorough­ly cooled. Ashes should never be placed in a container with combustible materials.
Chimney Maintenance
CREOSOTE–Formation and Need for Removal
When wood is burned slowly it produces tar and other organic vapors which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow burning fire. As a result creosote residue accumulates on the flue lin­ing. When ignited this creosote makes an extremely hot fire.
The chimney should be inspected at least twice a year during the season to determine if creosote buildup has occurred.
If creosote has accumulated it should be removed to reduce the risk of a chimney fire.
Check the specific chimney manufacturer’s instruc­tions on removal of the chimney cap for chimney cleaning.
When the fireplace is first placed in use inspect the chimney frequently and clean the chimney anytime an accumulation of 8” thick or more is observed on the flue walls. The frequency of these inspections can be increased or reduced appropriately after a pattern of accumulation has been established. Please note how­ever that changes in the outside environmental condi­tions such as temperature and humidity, or changes in the operation of the fireplace can lead to rapid buildup of soot and/or creosote.
To clean the chimney obtain the services of a qualified and reputable chimney sweep or remove the accumula­tion with brushes on wooden, poly, or fiberglass poles. Do not use metal pipes, chains, wires, etc., to clean the chimney because such items can scratch the surface of the stainless steel flue which can shorten the life of the flue and provide a rough surface for soot particles to attach to.
In addition to checking and cleaning the chimney on a regular basis, be sure to inspect the chimney before starting a fire at the beginning of each heating season. Make sure the chimney is clear from any accumula­tion of soot, creosote, or any other debris and that all chimney joints are intact.
38
Page 39
Bellfires® BSV
CONDITIONS OF WARRANTY
LIFETIME WARRANTY
Bellfires® Manufacturing Company extends the following warranty on the BSV, sub­ject to the conditions of guarantee thereon. The fireplace is warranted for the life­time of the original owner from the date of installation. If examination by the Bellfires® representative proves to our satisfaction that any part or portion of the fireplace is defective in material or workmanship, under normal use and service, such part or portion shall be replaced or repaired at no cost to you.
(A) Warranty may not be altered or extended by any of our dealers or agents, and except as provided herein, there are no other warranties. (B) Warranty does not cover damage resulting from misuse, abuse or accident. (C) Warranty shall be void if your unit is not operated in accordance with the oper­ation instructions provided at time of purchase and outlined below, or if the unit has been removed from the place in which it was originally installed. (D) Hairline cracking on the surface of refracto­ry components, a normal condition of use for refractory products, and/or cracking are expressly excluded from this warranty.
Important Instructions For Curing Refractory Fireplaces: (1) If the firebox has gotten wet, it must be dried slowly with a hair dryer or heat lamp before any fire is started. (2) The first eight fires must be built very small and well forward on the hearth so as not to contact the firebox. This will allow the unit to cure slowly by removing excess moisture in the refractory cavity behind the firebox, caused by the environment during storage or transportation, and mortar and materials used for installation. Proper curing eliminates the possibility of fracturing the firebox.
Dealer/Installer Address Dealer Signature Date
39
Page 40
Loading...
