Do find yourself distracted? Perhaps the things that
once held your interest are no longer all that exciting? Don’t feel bad. It’s hard to concentrate on anything else now that the Belles 21A Vacuum Tube
Stereo Preamplifier is available!
David Belles began his engineering career with vacuum tubes before becoming involved with transistors. It was his experience of hearing different vacuum tube preamplifiers with his state-of-the-art amplifier designs that caused the interest in vacuum
tubes to be revived. Further research confirmed the
validity of vacuum tubes as a voltage amplifying
device.
The 21A has the superior sound that you expect
from a David Belles designed vacuum tube preamplifier. The 21A has two stages of amplification. The
first voltage gain stage consists of a vacuum tube triode pair in differential amplifier configuration. The
second stage consists of transistor emitter followers.
The result is reduced distortion and improved ability
to drive preamplifer loads.
The Belles 21A, when coupled with a Belles solidstate power amplifier, creates a three dimensional
image, with dynamics and a greater level of musicality.

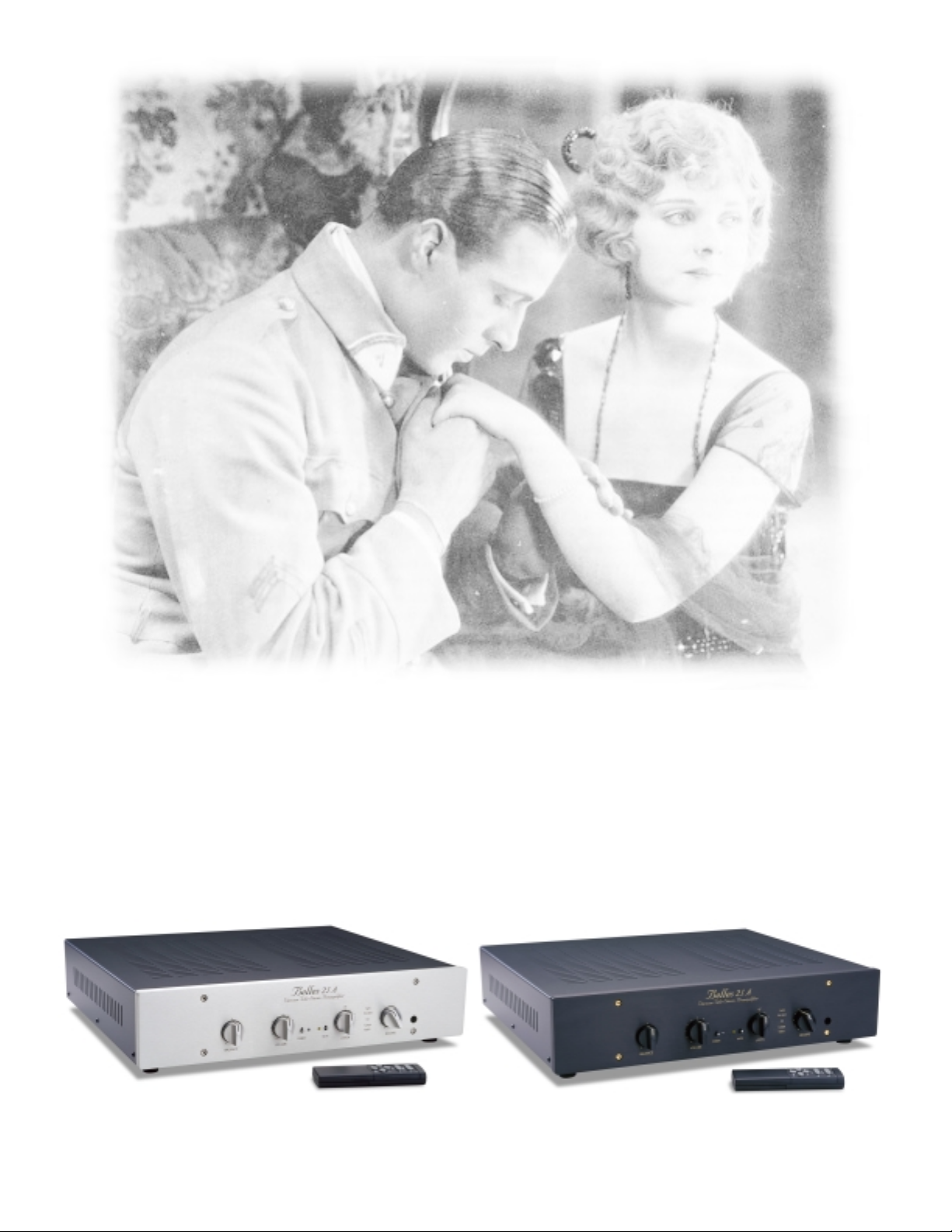

Belles 21A
Vacuum Tube Stereo Preamplifier
Power Modules Inc. 479 East St. Pittsford, NY 15434 PH: (585) 586-0740 FAX: (585) 586-4203 www.powermodules.com
Page 2
Features
• Remote controlled power, volume and mute via a conviently sized hand-held unit.
• Anodized aluminum control knobs.
• (2) high quality 12AU7 vacuum tubes
• Gold-plated RCA and XLR input and output connectors
• Single-ended input differential vacuum tube pair with emitterfollower, buffered balanced outputs.
• Toroidal power transformers, to eliminate stray magnetic fields.
• Fiberglass epoxy circuit board material
• All aluminum chassis with black textured finish.
• Black or Silver anodized alumimun front panel.
• 1% metal film resistors used throughout.
• Polypropylene coupling capacitors used throughout.
• Servo controlled volume potentiometer.
and many others...
The Belles 20A Phono preamplifier is available as a separate optional component.
Specifications
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 Hz to 200,000 Hz within 3 dB
Distortion THD & IM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.05%
Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90dB A weighted
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50,000 ohms
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115-120 VAC or 220-240 AC @
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50/60 Hz

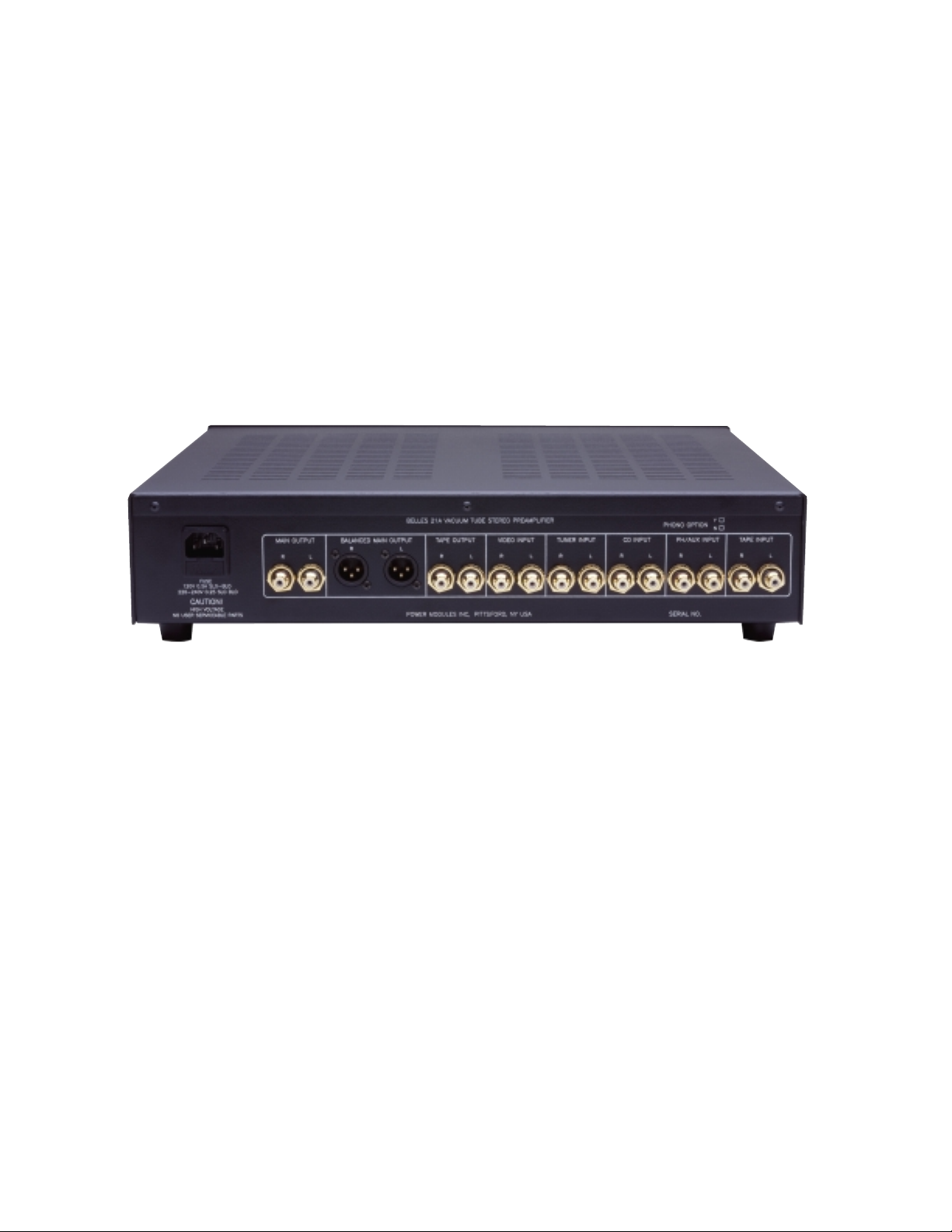

Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Unbalanced Stereo
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Unbalanced Stereo Main output
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Balanced Stereo Main output
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Unbalanced Stereo Tape output
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(all connections gold-plated)
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Listen, Record, Volume and Balance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Knobs. Power and
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mute (Toggle switches)
Remote Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Power On-Off, Mute On-Off, and
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Volume Up-Down
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17”W x 3.5”H x 14”D (excluding
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Jacks, Knobs and Feet)
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 lbs.
