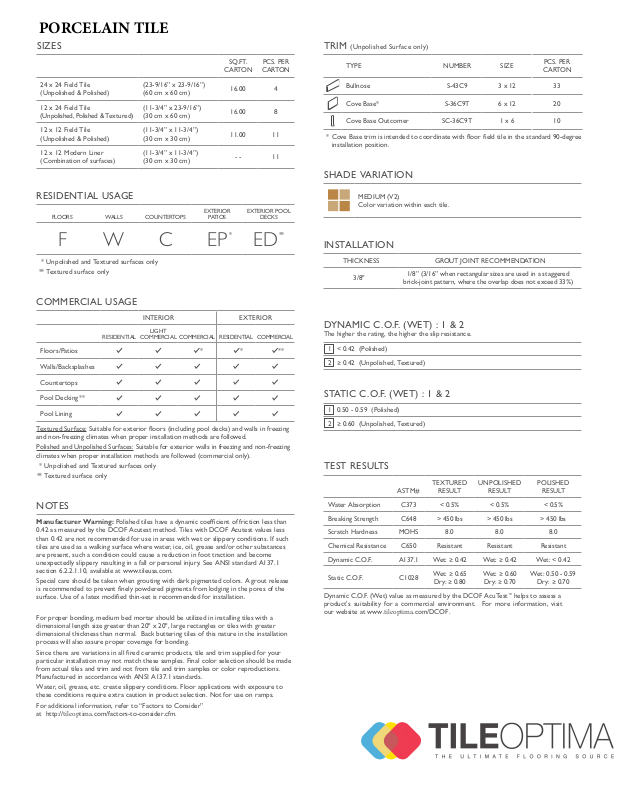

PORCELAIN TILE
SI
ZES
24 x 24 Field Tile
(Unpolished & Polished)
12 x 24 Field Tile
(Unpolished, Polished & Textured)
12 x 12 Field Tile
(Unpolished & Polished)
12 x 12 Modern Liner
(Combination of surfaces)
(23-9/16” x 23-9/16”)
(60 cm x 60 cm)
(11-3/4” x 23-9/16”)
(30 cm x 60 cm)
(11-3/4” x 11-3/4”)
(30 cm x 30 cm)
(11-3/4” x 11-3/4”)
(30 cm x 30 cm)
SQ.FT.
CARTON
16.00 4
16.00 8
11.00 11
- - 11
PCS. PER
CARTON
TRIM (Unpolished Surface only)
TYPE NUMBER SIZE
Bullnose S-43C9 3 x 12 33
Cove Base* S-36C9T 6 x 12 20
Cove Base Outcorner SC-36C9T 1 x 6 10
* Cove Base trim is intended to coordinate with floor field tile in the standard 90-degree
installation position.
PCS. PER
CARTON
SHADE VARIATION
RESIDENTIAL USAGE
FLOORS WALLS COUNTERTOPS
F W C EP
* Unpolished and Textured surfaces only
** Textured surface only
EXTERIOR
PATIOS
EXTERIOR POOL
*
DECKS
**
ED
COMMERCIAL USAGE
INTERIOR EXTERIOR
RESIDENTIAL
Floors/Patios
Walls/Backsplashes
Countertops
Pool Decking**
Pool Lining
Textured Surface: Suitable for exterior floors (including pool decks) and walls in freezing
and non-freezing climates when proper installation methods are followed.
Polished and Unpolished Surfaces: Suitable for exterior walls in freezing and non-freezing
climates when proper installation methods are followed (commercial only).
* Unpolished and Textured surfaces only
** Textured surface only
LIGHT
COMMERCIAL COMMERCIAL RESIDENTIAL COMMERCIAL
* * **
NOTES
Manufacturer Warning:
0.42 as measured by the DCOF Acutest method. Tiles with DCOF Acutest values less
than 0.42 are not recommended for use in areas with wet or slippery conditions. If such
tiles are used as a walking surface where water, ice, oil, grease and/or other substances
are present, such a condition could cause a reduction in foot traction and become
unexpectedly slippery resulting in a fall or personal injury. See ANSI standard A137.1
section 6.2.2.1.10, available at www.tileusa.com.
Special care should be taken when grouting with dark pigmented colors. A grout release
is recommended to prevent finely powdered pigments from lodging in the pores of the
surface. Use of a latex modified thin-set is recommended for installation.
For proper bonding, medium bed mortar should be utilized in installing tiles with a
dimensional length size greater than 20" x 20", large rectangles or tiles with greater
dimensional thickness than normal. Back buttering tiles of this nature in the installation
process will also assure proper coverage for bonding.
Since there are variations in all fired ceramic products, tile and trim supplied for your
particular installation may not match these samples. Final color selection should be made
from actual tiles and trim and not from tile and trim samples or color reproductions.
Manufactured in accordance with ANSI A137.1 standards.
Water, oil, grease, etc. create slippery conditions. Floor applications with exposure to
these conditions require extra caution in product selection. Not for use on ramps.
For additional information, refer to “Factors to Consider”
at http://tileoptima.com/factors-to-consider.cfm.
Polished tiles have a dynamic coecient of friction less than
MEDIUM (V2)
Color variation within each tile.
INSTALLATION
THICKNESS GROUT JOINT RECOMMENDATION
3/8"
1/8” (3/16” when rectangular sizes are used in a staggered
brick-joint pattern, where the overlap does not exceed 33%)
DYNAMIC C.O.F. (WET) : 1 & 2
The higher the rating, the higher the slip resistance.
1 < 0.42 (Polished)
2 ≥ 0.42 (Unpolished, Textured)
STATIC C.O.F. (WET) : 1 & 2
1 0.50 - 0.59 (Polished)
2 ≥ 0.60 (Unpolished, Textured)
TEST RESULTS
ASTM#
Water Absorption C373 < 0.5% < 0.5% < 0.5%
Breaking Strength C648 > 450 lbs > 450 lbs > 450 lbs
Scratch Hardness MOHS 8.0 8.0 8.0
Chemical Resistance C650 Resistant Resistant Resistant
Dynamic C.O.F. A137.1 Wet: ≥ 0.42 Wet: ≥ 0.42 Wet: < 0.42
Static C.O.F. C1028
Dynamic C.O.F. (Wet) value as measured by the DCOF AcuTest
product’s suitability for a commercial environment. For more information, visit
our website at www.tileoptima.com/DCOF.
TEXTURED
RESULT
Wet: ≥ 0.65
Dry: ≥ 0.80
UNPOLISHED
RESULT
Wet: ≥ 0.60
Dry: ≥ 0.70
™
helps to assess a
POLISHED
RESULT
Wet: 0.50 - 0.59
Dry: ≥ 0.70
