Bellari PP532 User Manual

OUT

PP532

MADE IN USA

1

2

3

4

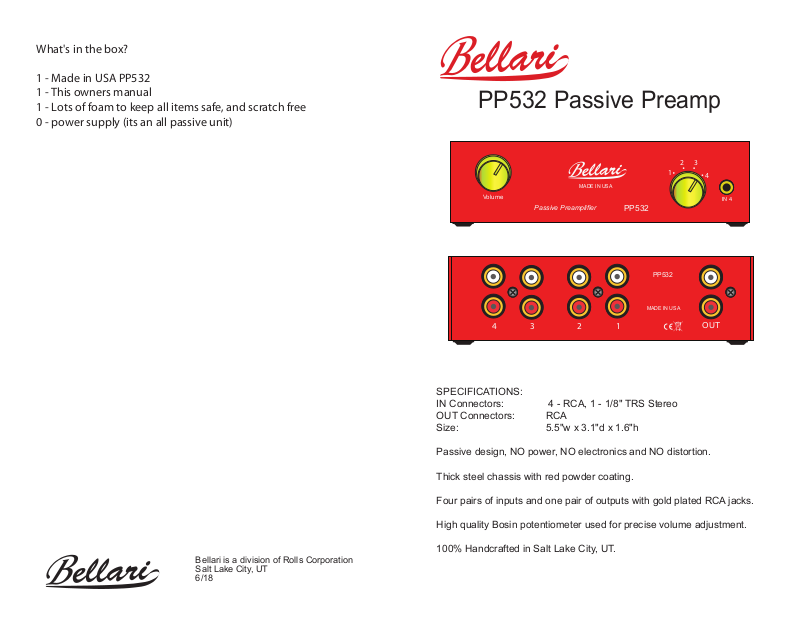

What's in the box?

1 - Made in USA PP532
1 - This owners manual
1 - Lots of foam to keep all items safe, and scratch free
0 - power supply (its an all passive unit)

PP532 Passive Preamp

3

2

Volume

MADE IN USA

Passive Preamplifier

1

PP532

4

IN 4

4

3

2

1

PP532

MADE IN USA

OUT

SPECIFICATIONS:
IN Connectors: 4 - RCA, 1 - 1/8" TRS Stereo
OUT Connectors: RCA
Size: 5.5"w x 3.1"d x 1.6"h

Passive design, NO power, NO electronics and NO distortion.

Thick steel chassis with red powder coating.

Four pairs of inputs and one pair of outputs with gold plated RCA jacks.

High quality Bosin potentiometer used for precise volume adjustment.

100% Handcrafted in Salt Lake City, UT.

Bellari is a division of Rolls Corporation
Salt Lake City, UT
6/18

OUT

PP532

MADE IN USA

1

2

3

4

Thank you for purchasing the PP532. We hope you enjoy

using the PP532, and that it makes listening to your music

collection rewarding. We sincerely appreciate the opportunity

to build a product for you and participate in your love of qual-

ity music and sound. We love what we do and we’re happy

to help. All Bellari products are hand built in Salt Lake City,
Utah by people who care about high quality music.

More and more audiophiles and DIY audio enthusiasts are

discovering the benets of passive preamps. Why? Because

more often than not, a passive preamp does the essential
job of a preamp (input switching and controlling volume)
while doing the least amount of harm to the audio signal.

3

2

Volume

MADE IN USA

Passive Preamplifier

1

PP532

4

IN 4

Connection of the PP532 is easy. The rear pannel 1-4 RCA's
connect your input signals. The OUT RCA on the rear pannel

goes to your amplier or other device. Volume knob sets the

level of the selected signal via the 1-4 front panel switch.

The PP532 pre amplier is a completely passive design with

absolutely nothing added to your audio signal path.

That means NO power required, NO electronics used and
NO distortion will ever be added to your music.

It is the most e󰀨ective way to reach high-end audio quality,

and you will save enough coin that you can buy the more
expensive speakers you have been eyeing.

The chassis is made from .090 steel, meaning it is 3 times
thicker than most chassis. Four pairs of RCA inputs allow for
connection to all your music sources, and one pair of RCA

jacks to go to your amplier.

All this and it is 100% Handcrafted in Salt Lake City, UT.

The audiophile in you will approve of the 0% distortion added
and 100% original signal preservation, but the cheapskate in
you will use the savings to buy more gear, of course.

The IN 4 on the front is a 3.5mm (1/8") stereo input in parel­lel with RCA input #4 on the rear of the unit. It is a great way
to plug your phone into your system without needing accesss
to the back of the unit.

PP532

MADE IN USA

4

3

2

1

OUT
