Bella CORE BCRE1105 Specifications

Page 1

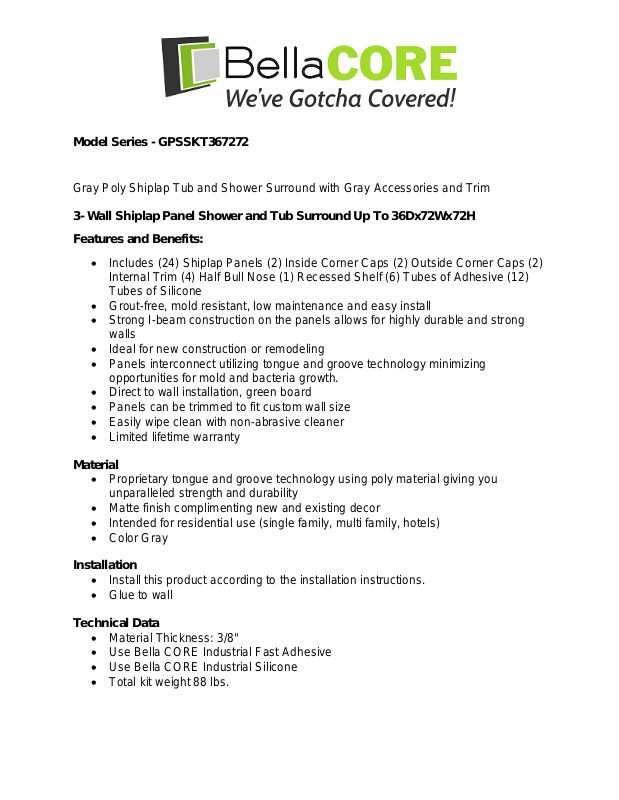

Model Series - GPSSKT367272

Gray Poly Shiplap Tub and Shower Surround with Gray Accessories and Trim

3- Wall Shiplap Panel Shower and Tub Surround Up To 36Dx72Wx72H Features and Benefits:

• Includes (24) Shiplap Panels (2) Inside Corner Caps (2) Outside Corner Caps (2) Internal Trim (4) Half Bull Nose (1) Recessed Shelf (6) Tubes of Adhesive (12) Tubes of Silicone

• Grout-free, mold resistant, low maintenance and easy install

• Strong I-beam construction on the panels allows for highly durable and strong

walls

• Ideal for new construction or remodeling

• Panels interconnect utilizing tongue and groove technology minimizing

opportunities for mold and bacteria growth.

• Direct to wall installation, green board

• Panels can be trimmed to fit custom wall size

• Easily wipe clean with non-abrasive cleaner

• Limited lifetime warranty

Material

• Proprietary tongue and groove technology using poly material giving you unparalleled strength and durability

• Matte finish complimenting new and existing decor

• Intended for residential use (single family, multi family, hotels)

• Color Gray

Installation

• Install this product according to the installation instructions.

• Glue to wall

Technical Data

• Material Thickness: 3/8"

• Use Bella CORE Industrial Fast Adhesive

• Use Bella CORE Industrial Silicone

• Total kit weight 88 lbs.

Page 2

Designed to fit Shower and Tub dimensions Up to 36”Dx72”Wx72”H - trim to fit any size wall

The National Fire Protection Association Life Safety Code 101, Chapter 10, Section 10.2.3 “Interior

Wall and Ceiling Finish Classification”, has a means of classifying materials with respect to Flame Spread and Smoke Developed when tested in accordance with ASTM E84, UL723 “Method of Test of

Surface Burning Characteristics of Building Materials”.

Internal Building Code, Chapter 8, Interior Finishes, Section 803 “Wall and Ceiling Finishes”, was

classified in accordance with ASTM E84 or UL 723. Such interior finish materials shall be grouped in the following classes in accordance with their flame spread and smoke-developed indexes.

Class A

Class B

Class C

Flame Spread Index

0-25

26-75

76-200

Smoke-Developed Index

0-450

This product has been tested under these standards and has resulted in a Class A rating with a FSI of 5 and an SDI of 395. It is rated for interior use as a building material.
