Belkin H3800 User Manual

Charging your iPAQ handheld through a

powered USB port:

Plug the Sync Charger’s USB connector into
an available USB port on a desktop or
laptop computer.

Slide the cables switch to the Charge position
(fig. 1)

Plug the other end of the Sync Charger cable into
the sync connector at the base of the iPAQ
handheld. The iPAQ’s charging indicator will flash
while charging.

To remove the cable from the iPAQ’s connector,
depress both release levers located on either
side of the Sync Charger’s connector and gently
slide out.

1

2

3

Charging your iPAQ handheld through an

automobile cigarette lighter socket:

Plug the USB cigarette lighter adapter into the
car’s cigarette lighter socket

Slide the cables switch to the Charge position
(fig. 1.)

Plug the Sync Charger’s USB connector into the
USB receptacle located in the tip of the cigarette
lighter adapter.

Plug the other end of the Sync Charger cable into
the sync connector at the base of the iPAQ
handheld. The iPAQ’s charging indicator will flash
while charging.

1

2

3

4

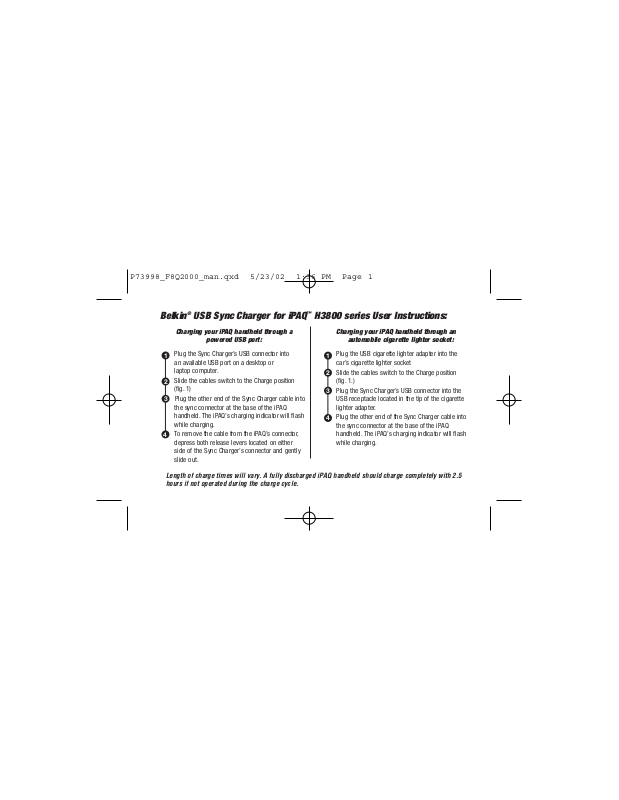

Belkin®USB Sync Charger for iPAQ™H3800 series User Instructions:

4

Length of charge times will vary. A fully discharged iPAQ handheld should charge completely with 2.5
hours if not operated during the charge cycle.

P73998_F8Q2000_man.qxd 5/23/02 1:36 PM Page 1

Synchronizing your iPAQ series handheld:

Note: To enable the synchronization function, ActiveSync®

Desktop software must be previously installed on the host
computer using a Microsoft® Windows operating system
with USB support.

Plug the Sync Charger’s USB connector into an
available USB port on a desktop or laptop computer.

Slide the cables switch to the Sync position (fig. 2)

With the iPAQ handheld powered on, plug the Sync
Charger’s connector into the sync connector at the
base of the iPAQ handheld.

If ActiveSync doesn’t automatically synchronize, select
ActiveSync from the Start Menu, select tools, and then
select options.

Click “Enable synchronization when cradled using:”
and select “USB”. Click OK and Exit. ActiveSync should
begin to synchronize your iPAQ with your PC.

© 2002 Belkin Components. All rights reserved.All trade names

are registered trademarks of respective manufacturers listed.

Belkin Components, Ltd.

Unit 13 • Gatelodge Close • Round Spinney
Northampton • NN3 8RX • United Kingdom
Tel: [phone]
Fax: [phone]

Belkin Components

501 West Walnut Street
Compton • CA • 90220 • USA
Tel: [phone]
Fax: [phone]

Belkin Components, Ltd.

7 Bowen Cresent • West Gosford
NSW 2250 • Australia
Tel: [phone]
Fax: [phone]

P73998

1

2

4

5

3

SYNC

CHARGE

FIG.2

FIG. 1

P73998_F8Q2000_man.qxd 5/23/02 1:36 PM Page 2
