Belkin F8E461 User Manual

Belkin Corporation

501 West Walnut Street

Compton • CA • 90220 • USA

Tel: [phone]
Fax:[phone]

Belkin Components,Ltd.

Express Business Park • Shipton Way

Rushden • NN10 6GL • United Kingdom

Tel: [phone]
Fax: [phone]

Belkin Components B.V.

Starparc Building • Boeing Avenue 333

1119 PH Schiphol-Rijk • The Netherlands

Tel: [phone]

Fax: [phone]

Belkin,Ltd.

7 Bowen Crescent • West Gosford

NSW 2250 • Australia
Tel: [phone]
Fax: [phone]

Tech Suppo rt

US:310.898.1100 ext.2263

800.223.5546 ext.2263

Europe:00 800 223 55 460

Australia: 1800 666 040

© 2003 Belkin Corporation.All rights reserved.All trade names are registered

trademarks of respective manufacturers listed. M acintosh is a trademark of

Apple Computer,Inc., registered in the U.S.and other countries.

iPod and iPhoto are trademarks of Apple Computer,Inc.

P74297

belkin.com

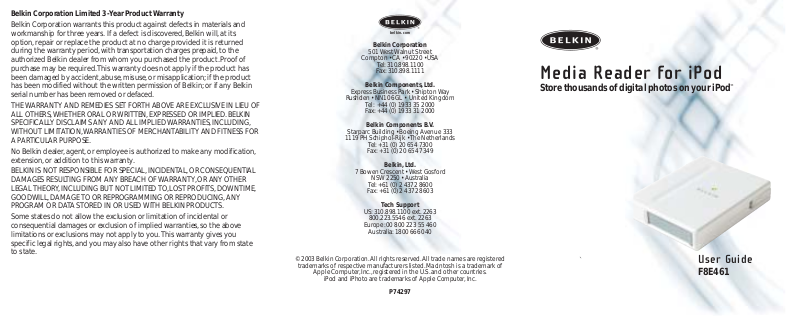

Media Reader for iPod

Store thousands of digital photos on your iPod

™

` User Guide

F8E461

Belkin Corporation Limited 3-Year Product Warranty

Belkin Corporation warrants this product against defects in materials and
workmanship for three years. If a defect is discovered,Belkin will, at its
option,repair or replace the product at no charge provided it is returned
during the warranty period,with transportation charges prepaid,to the
authorized Belkin dealer from whom you purchased the product.Proof of
purchase may be required.This warranty does not apply if the product has
been damaged by accident,abuse, misuse, or misapplication;if the product
has been modified without the written permission of Belkin;or if any Belkin
serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF
ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED.BELKIN
SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,INCLUDING,
WITHOUT LIMITATION,WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE.

No Belkin dealer,agent,or employee is authorized to make any modification,
extension,or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL,INCIDENTAL,OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY,OR ANY OTHER
LEGAL THEORY, INCLUDING BUT NOT LIMITED TO,LOST PROFITS,DOWNTIME,
GOODWILL,DAMAGE TO OR REPROGRAMMING OR REPRODUCING,ANY
PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or
consequential damages or exclusion of implied warranties,so the above
limitations or exclusions may not apply to you.This warranty gives you
specific legal rights,and you may also have other rights that vary from state
to state.

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY

We,Belkin Corporation,of 501 West Walnut Street,Compton,CA 90220,
declare under our sole responsibility that the product:

F8E461
to which this declaration relates:
Complies with Part 15 of the FCC Rules.Operation is subject to the

following two conditions:(1) this device may not cause harmful
interference,and (2) this device must accept any interference received,
including interference that may cause undesired operation.

CE Declaration of Conformity

We,Belkin Corporation,declare under our sole responsibility that the
product F8E461, to which this declaration relates,is in conformity with
Emissions Standard EN55022 and with Immunity Standard EN55024,
LVP EN61000-3-2, and EN61000-3-3.

ICES

This Class B digital apparatus complies with Canadian ICES-003.Cet
appareil numérique de la classe B est conforme á la norme NMB-003 du
Canada.

NOTE:Disconnect the Media Reader when not in use to preserve battery life.
Belkin recommends use of high-quality alkaline batteries in the Media Reader.
Battery life depends greatly on the type of media being used and the type of
battery being used;however,a single set of high-quality alkaline batteries
should allow transfer of 24 or more typical 128MB CompactFlash cards (3GB
or more of data).

Illuminated LED Reference

Solid Green – Power/Full Battery
Solid Amber – Low Battery
Flash – Media transfer to and from the Media Reader

NOTE: You can still transfer data until the battery dies.We strongly suggest
verifying on the iPod user interface that all files were transferred if performed
during low-battery status.If the transfer did not go through,inser t new
batteries and redo the entire transfer again.

Compatibility Chart – Types of Media

Supports CompactFlash® (Type 1 and 2)
SmartMedia™
Secure Digital (SD)
Memory Stick®
MultiMediaCard (MMC)

.

Setup Instructions

1. Turn the iPod on.

2. Inser t a media card into the Media Reader and connect the device to

the iPod.

3.

Select “Extras > Photos > Import Photos > Import”.

4. Photos are listed on the iPod by roll number.

NOTE: The Photos menu item doesn’t appear unless you connect the
Media Reader.

To vie w informa tion about photos stored on iPod:

1. Select “Extras > Photos”and choose the roll number.

2. The t ype of media, number of photos,and size of the roll are

displayed.

NOTE: You CANNOT view the actual photos on the iPod.

To era se photos from a photo card:

1. Inser t a media card into the Media Reader and connect the device to

the iPod.

2. Select “Extras > Photos > Import Photos > Erase”.

NOTE:ALL photos are deleted from the Media Reader when this function
is performed.

To tra nsf er photos to your computer:

•Connect iPod to your computer and open the application you use to
transfer photos from your digital camera or media device. See the
documentation that came with the application for more information.
If you are using a Macintosh® computer,you can use iPhoto™ or
Image Capture to transfer photos.

•Photos are stored in a DCIM folder (digital camera images) on your
iPod.You can also transfer images to your computer by opening this
folder and dragging them to the desktop. iPod must be enabled for
use as a hard disk.For more information about using an iPhoto or
Image Capture,see the instructions that came with the application.

Graphic image indicates label/graphic side of
media card faces up

front

1.5

1.2
