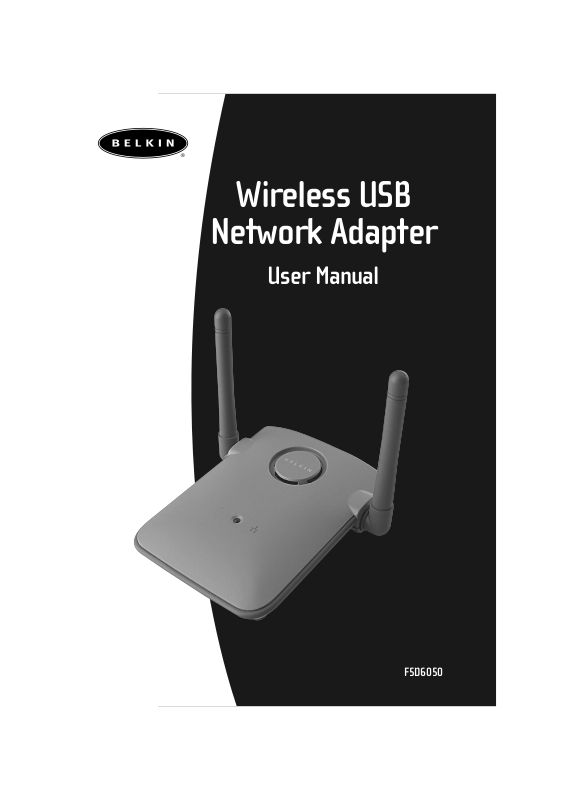

Belkin F5D6050 User Manual

F5D6050

Wireless USB

Network Adapter

User Manual

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Knowing your Belkin Wireless USB Network Adapter . . . . . . . . . . . . . . . . . . 3

Quick Setup – Setting up your Belkin Wireless USB Network Adapter . . . . . . 4

Placing the Belkin Wireless USB Network Adapter . . . . . . . . . . . . . . . . . . . . 5

Installing Windows 98/Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Belkin Wireless USB Adapter Manager . . . . . . . . . . . . . . . . . . 10

Using the Belkin Wireless USB Adapter Manager . . . . . . . . . . . . . . . . . . . . 12

Installing the Belkin SOHO Networking Software for Windows 98/Me . . . . 17

Configuring Your Windows 98/Me Computer Using Belkin NetSetup . . . . . . 18

Configuring Additional Computers Using Belkin NetSetup Software . . . . . . 20

Configuring Network Settings for Windows 2000 . . . . . . . . . . . . . . . . . . . . 22

Sharing Files and Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Accessing Resources on Other Computers . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Glossary of Wireless Networking Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Glossary of Wired Networking Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

Introduction

Thank You for purchasing the Belkin Wireless USB Network Adapter (the Adapter). Now you can take advantage of this great new technology and gain the freedom you need around the home or office without using cables. The Wireless USB Network Adapter works like a conventional network card, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this manual completely to be sure that you are getting the most out of your Wireless USB Network Adapter.

Key Features

• Adds wireless capabilities to virtually any USB-equipped desktop or laptop

• Installs with the Plug-and-Play convenience of USB to have you up and running in minutes

• Configures with wireless setup software

• Connects to your PC's USB port—so you don’t need to open your computer case

• Transports easily with its small and compact design

• Provides data and network security with 64-bit or 128-bit WEP data encryption

• Offers interoperability with any 802.11b-compliant wireless device

• Comes with a Belkin Lifetime Warranty and free technical support

Applications and Advantages

• Wireless roaming with a laptop around the home or office Offers the freedom of networking—without cables.

• Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areas where wiring is difficult to install.

• Frequently changing environments Adapts easily in offices or environments that frequently rearrange or change locations.

• Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, and construction sites, which need networks on a short-term basis—also companies who need additional workstations for a peak activity period.

Introduction

• SOHO (Small Office/Home Office) networking needs Provides the easy and quick small network installation SOHO users need.

Package Contents

• Belkin Wireless USB Network Adapter

• USB Cable

• Installation Software CD

• User Manual

System Requirements

• PC-compatible desktop computer or laptop with one available USB port

• Windows

, 98, 2000, Me

Knowing your Belkin Wireless USB Network Adapter

Status Light Indicates network activity and power

Adjustable

Antennas

USB "B" Socket

Quick Setup – Setting up your Belkin Wireless

USB Network Adapter

Placing the Belkin Wireless USB Network Adapter

A six-foot USB cable is provided with the Adapter to allow you to place it as high as possible. The best location is on top of your computer’s monitor. Placing the Adapter on your desktop is acceptable, however, avoid placing the Adapter near metal objects such as a computer case or speakers. Any object that is metal has the ability to block the radio signals from the Adapter.

Installing the Belkin Wireless USB Network Adapter

1. Insert the CD into your CD-ROM drive.

2. Plug the USB cable into an available port on your PC. Connect the other end of the cable to your Wireless USB Network Adapter.

3. Windows will detect that new hardware has been installed. Follow the directions on the screen to install the drivers. Windows will prompt you to restart the computer. Please do so.

Install the Belkin Wireless USB Adapter Manager software

1. Make sure the CD is inserted into the CD-ROM drive.

2. Access your CD-ROM drive and double-click on the “Setup” icon.

3. Follow the Installation Wizard to install the software.

Setup the TCP/IP Settings of the Adapter

1. Go to the TCP/IP properties of the Adapter and select "Obtain IP address automatically".

2. Restart the computer. When the computer restarts, the Adapter will automatically get an IP address from the wireless network. All network resources should now be available.

Placing the Belkin Wireless USB Network Adapter

Installing Windows 98/Me

1. Insert the Installation Driver CD-ROM into your CD-ROM drive.

2. Connect your Adapter to an available USB port on your PC or USB hub. If you are connecting this device to a USB hub, the hub must be a self-powered hub (connected to a power adapter that is plugged into the wall).

3. Windows will detect that a new device has been installed and will proceed to install it. The following screen will appear. Click "Next".

4. Windows will ask "What do you want to do?" Select "Search for the best driver for your device (Recommended)". Click "Next" to continue.

5. The following screen will appear. Make sure that your Belkin CD is inserted into your CD-ROM drive and select "CD-ROM drive. Click "Next" to continue.

Installing Windows 98/Me

6. Windows will find the location of the correct driver files. Click "Next".

7. The following screen will appear. Click "OK" to continue.

8. The following screen will appear. Click "Finish". Windows may prompt you to restart the computer. If so, restart the computer.

When the computer restarts, your Adapter will be installed. Go to the section called "Installing the Belkin Wireless USB Adapter Manager" on page 10.

Installing Windows 2000

1. Insert the Installation Driver CD-ROM into your CD-ROM drive.

3. Windows will detect that a new device has been installed. Click "Next" to continue.

4. Next, the following screen will appear. Under "What do you want the wizard to do?" Select "Search for a suitable driver for my device (recommended)”. Click "Next".

5. Select "CD-ROM drives" from the list below. Make sure that your Installation Driver CD-ROM is inserted into the CD-ROM drive, then click "Next".

Installing Windows 2000

6. Windows will find the appropriate driver. The following screen will appear. Click "Next".

7. The "Digital Signature Not Found" screen will appear. This does not mean there is a problem. Although the driver has not been certified by Microsoft

, the driver has been fully tested under Windows 2000 and will operate properly. Click "Yes" to continue.

8. Windows will install the driver. Click "Finish". Windows may prompt you to restart the computer. If so, restart the computer.

When the computer restarts, your Adapter will be installed. Go to the section called "Installing the Belkin Wireless USB Network Adapter Manager" on page 10.

Installing the Belkin Wireless USB Adapter Manager

1. Insert the Installation Driver CD-ROM into your CD-ROM drive.

2. Access your CD-ROM drive by double-clicking on the “CD-ROM” icon in the "My Computer" window. Double-click on the "Setup" icon to start the installation process.

3. The following screen will appear. Click "Next".

4. The installer will install the needed files to a folder named "C:\Belkin\Wireless USB Adapter". If you wish to change this, click "Browse" and select a folder. Click "Next" to continue.
