Belkin AP30800fc10-BLK User Manual

Home Theater Battery Backup with AVR Technology

Batterie de secours avec technologie AVR pour cinéma maison

User Manual

Guide d’utilisation

AP30800fc10-BLK

Table of Contents

Belkin PureAV Battery Backup

Page

Introduction .......................................................................................... 2

Package Contents ................................................................................ 2

Belkin PureAV Battery Backup Features and Functions ............

Alarms ................................................................................................... 4

Product Features ...........................................................................

Installation ..................................................................................

Troubleshooting ..............................................................................

Technical Specifications ...............................................................

Storage ............................................................................................

Belkin Connected Equipment Warranty .................................

Information ...................................................................................

6 -7

10-12

Introduction

Congratulations and thank you for purchasing the Belkin PureAV Home Theater Battery Backup with AVR Technology (the Belkin PureAV Battery Backup). Frequent electrical disturbances, both natural and man-made, degrade the quality of power supplied to your home theater system. Brownouts or blackouts can cause you to lose your complex settings, and ultimately damage your valuable equipment along with the overall quality of your home theater experience. In addition to providing battery power in case of a blackout, our Belkin PureAV Battery Backup provides outstanding surge protection and power conditioning while ensuring that you experience the clearest picture and cleanest sound directly from the source.

Belkin PureAV Battery Backup

Please save this manual.

It contains important operating instructions and warranty information pertaining to your Belkin PureAV Battery Backup.

Please save or recycle the packaging materials

The Belkin PureAV Battery Backup packaging is designed with great care to provide protection during shipment and delivery. Please keep the packaging materials in the unlikely event that you must return this product for service. Damage sustained during transit is not covered under the warranty.

Package Contents

• 1 Belkin PureAV Battery Backup unit

• 2 Rack-Mount Brackets

• User manual

Belkin PureAV Battery Backup Features and Functions

Belkin PureAV Battery Backup

On/Off/Test Switch

LED Indicator

Site Wiring Fault Battery On Replace Battery Overload

Battery Load

Indicator Condition Meaning

The Belkin PureAV Battery Backup is on battery-backup mode and an intermittent audible alarm is on. The Battery Backup will begin shutdown procedure.

Battery is low. The Belkin PureAV Battery Backup will start shutdown. The buzzer sounds an audible alarm.

The Belkin PureAV Battery Backup shut down due to an overload or short-circuit condition.

Battery output is drawing more power than the Battery Backup can provide.

Battery is weak or bad; the battery needs to be replaced.

BATTERY ON

(Green LED)

OVERLOAD

(Yellow LED)

REPLACE BATTERY (Red LED)

Solid

Green

Flashing

Green

Solid

Yellow

Flashing

Yellow

Solid

Red

SITE WIRING

FAULT

(Red LED)

LOAD

(Yellow LED) Solid

BATTERY

(Green LED) Solid

Solid

Red

Yellow

Green

There is either no ground circuit or a reversed polarity in the building wiring.

This display shows the Belkin PureAV Battery Backup output load percentage level of 17%, 33%, 50%, 67%, and 85%.

This display shows the battery capacity percentage level of 20%, 40%, 60%, 80%, and 100%.

Alarms

Battery Backup (Slow Alarm)

When the Belkin PureAV Battery Backup is in battery-backup mode, the “Battery On” LED (green) illuminates and the Belkin PureAV Battery Backup sounds an audible alarm. The alarm stops when the Belkin PureAV Battery Backup returns to normal online operation.

Low Battery (Rapid Alarm)

When the Belkin PureAV Battery Backup is in battery-backup mode and the battery’s energy begins to run low, the Belkin PureAV Battery Backup will beep rapidly until it shuts down from a depleted battery or returns to online normal operation.

Overload (Continuous alarm)

When the Belkin PureAV Battery Backup is overloaded (the connected loads exceed the maximum rated capacity), the Belkin PureAV Battery Backup emits a continuous alarm to warn of an overload condition. Disconnect nonessential equipment from the Belkin PureAV Battery Backup to eliminate the overload.

Belkin PureAV Battery Backup

Product Features

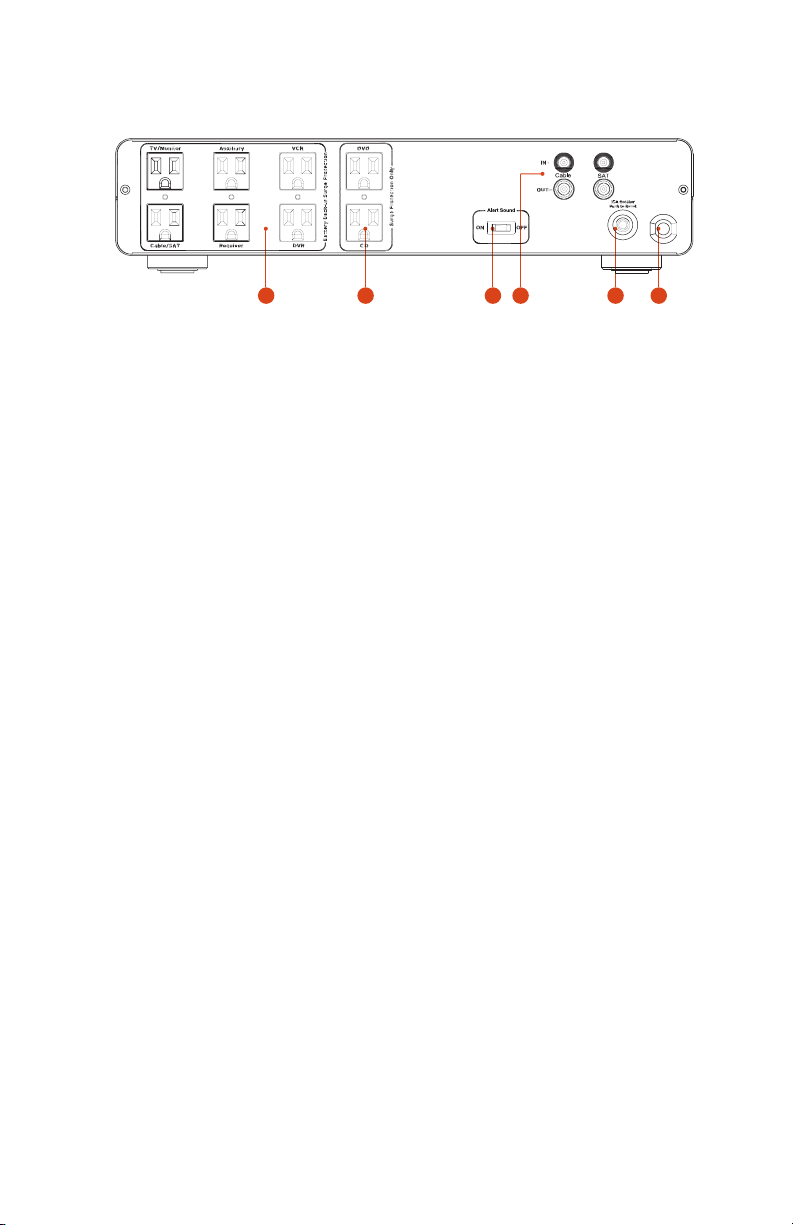

B A E C DF

Rear Panel

A. Surge-Protection-Only Outlets Equipment such as printers, fax machines, scanners, or desk lamps can

be plugged into these outlets. These outlets do not provide power during a power outage. These outlets are always on (when AC power is available) and are not controlled by the front-panel switch.

B. Battery-Backup Surge-Protection Outlets Only critical equipment such as TVs, DVRs, cable/satellite receivers,

VCRs, and other hardware that could potentially lose settings should be plugged into these outlets. Battery power is automatically provided in case of a power outage. Power (AC or battery) is not supplied to these outlets when the Belkin PureAV Battery Backup is switched off. (Do not plug surge protectors or power strips into the battery backup outlets.)

Note: During the AVR Mode, the total load that you will be placing on the battery-backup outlets should not exceed 85% of the unit’s capacity.

C. AC Input Breaker (Circuit Breaker) The circuit breaker button will be triggered if an overload condition

forces the Belkin PureAV Battery Backup to disconnect itself from utility power. If the button sticks out, disconnect nonessential equipment and depress breaker to reset.

D. AC Input Power Cord

E. Audio Video Surge Protection Ports

F. Alert Sound ON/OFF Switch This switch turns the audible alarm ON or OFF.

Installation

Note:

Before installation, please inspect the Belkin PureAV Battery Backup upon receipt to make sure it is not damaged.

Connect To AC Utility Power

Connect the AC inlet to utility power via the power cord. Check whether the “Site Wiring Fault” indicator is lit or not. If so, please check the utility wiring.

Belkin PureAV Battery Backup

Charging The Battery

For best results, charge the battery for eight hours prior to initial use. The Belkin PureAV Battery Backup charges its battery whenever it is connected to the utility power.

Plug In Power Devices

Plug your devices into the AC outlets on the rear of the Belkin PureAV Battery Backup. To use the Belkin PureAV Battery Backup as a master on/off switch, make sure all of the loads are switched on.

Caution: never connect a laser printer or scanner to the battery-backup outlets of the Belkin PureAV Battery Backup. A laser printer or scanner draws significantly more power when in use than when idle. This may overload the Belkin PureAV Battery Backup.

Turning On the Belkin PureAV Battery Backup

Turn on your Belkin PureAV Battery Backup by pressing and holding the “On/Off/Test” button for approximately two seconds until the green “ON LINE” light comes on.

Turning Off the Belkin PureAV Battery Backup

Turn off the Belkin PureAV Battery Backup by pressing and holding the “On/Off/Test” button for more than two seconds until the “ON LINE” or “ON BATTERY” light goes off.

To Conduct a Self-test

Use the self-test to verify both the operation of the Belkin PureAV Battery Backup and the condition of the battery. In normal utility power, push the “On/Off/Test” button less than 1.5 seconds and the Belkin PureAV Battery Backup performs a self-test function. During the self-test, the Belkin PureAV Battery Backup operates in backup mode.

Note: During the self-test, the Belkin PureAV Battery Backup briefly operates on battery-backup power (the “ON BATTERY” LED comes on). If the Belkin PureAV Battery Backup passes the self-test, it returns to online operation. If the Belkin PureAV Battery Backup fails the self-test, it immediately returns to online operation and lights the “REPLACE BATTERY” LED. The loads are not affected. Recharge the battery overnight and perform the self-test again. If the “REPLACE BATTERY” LED is still on, the battery will need to be replaced. Please contact Belkin Customer Service for assistance.

Belkin PureAV Battery Backup

Installation

To Silence Audible Alarm

There are two ways to disable the audible alarm:

1. Set the Alert Sound ON/OFF Switch to the OFF position. When in the OFF position, the audible alarm will not sound when the Belkin PureAV Battery Backup is in the backup mode.

2. While the Battery Backup is in battery-backup mode, push the “ON/ OFF/TEST” button less than 1.5 seconds to silence the audible alarm. (This does not work if the Belkin PureAV Battery Backup is under lowbattery or overload condition.)

All equipment must be turned off prior to hardware installation.

Connect Audio Video Coaxial Cable

Connect a modular coaxial cable between the cable wall outlet and the surge protector jack marked “IN”. Connect another coaxial cable between the surge protector jack marked “OUT” and the cable equipment or cable modem being protected.

*All equipment must be turned off prior to hardware installation.

Troubleshooting

Problem

Belkin PureAV

Battery Backup not

on, LED not lit

Belkin PureAV

Battery Backup

always on battery

mode

Backup time

too short

The Belkin PureAV

Battery Backup

continuously beeps

Red LED lit Battery failure

Possible Cause

On/Off/Test button not

pushed or pushed less

than 2 seconds

Battery voltage is too

Battery Backup fault

Power cord loose Re-plug the power cord

AC breaker is burned

out or tripped

AC utility voltage is too

high or too low, or there

is a blackout

Battery not fully

charged

Battery Backup is

overloaded

Charger fault or other

reason

Overload

low

Solution

Press the On/Off/Test

button for more than 2

seconds

Recharge the Battery

Backup at least 8 hours

Contact Belkin Customer

Service

Replace or reset the breaker

Normal condition

Recharge the Battery

Backup at least 8 hours

Remove some unnecessary

loads

Replace battery.

Contact Belkin Customer

Service or go to belkin.com.

Remove the non-critical

loads

Replace battery.

Contact Belkin Customer

Service or go to belkin.com.

Belkin PureAV Battery Backup

Technical Specifications

Belkin PureAV Battery Backup

Model AP30800fc10-BLK

Capacity 1200VA/640W

INPUT

OUTPUT

BATTERY

ENVIRONMENT

CONFORMANCE Surge

PHYSICAL

Voltage Range 90-136VAC

Frequency

Voltage

Frequency

(On Battery)

Backup time

15%-100% load

Typical

Recharge Time

Ambient

Operation

Dimensions

(W x H x D)

Net Weight 14.5kg.

60Hz ( ±3Hz )

Simulated sine wave,

120VAC

60Hz ( ±1Hz )

≤ 12 hours recover

85% capacity

0~85% humidity

non-condensing, 0~35°C

IEEE C62.41

Category A standard

435mm x 88mm x 330mm

±8%

1.5~40 min.

All specifications are subject to change without prior notice.

Storage

Storage Conditions

Store the Belkin PureAV Battery Backup covered and upright in a cool, dry location with its battery fully charged. Before storing, charge the Belkin PureAV Battery Backup for at least four hours.

Extended Storage

During extended storage in environments where the ambient temperature is +5 degrees to +86 degrees F, charge the Belkin PureAV Battery Backup’s battery every six months. During extended storage in environments where the ambient temperature is +86 degrees F to +113 degrees F, charge the Belkin PureAV Battery Backup’s battery every three months.
