BELKIN ADAPTATEUR USB BLUETOOTH User Manual

Bluetooth

™

USB Adapter

Connect your peripherals and computing devices, without cables

Connectez vos périphériques et appareils informatiques sans utiliser de câble Verbindet Ihre Peripherie- und Computergeräte – ganz ohne Kabel Verbind uw randapparatuur en computers met elkaar, zonder kabels Conecte sus periféricos y dispositivos informáticos sin necesidad de cables Per collegare tra loro i vostri computer e le vostre periferiche senza l’utilizzo di cavi.

User Manual

Manuel de l'utilisateur Benutzerhandbuch Handleiding Manual del usuario Manuale utente

F8T008 - F8T009

En Fr De Nl Es It

Bluetooth

™

USB Adapter

Connect your peripherals and computing devices, without cables

User Manual

F8T008 - F8T009

Table of Contents

Introduction ............................................................................................................ 2

Product Features ..................................................................................................... 3

System Requirements ............................................................................................... 4

Package Contents ................................................................................................... 5

USB Adapter Specifications ..................................................................................... 6

Supported Profiles ................................................................................................... 7

Software Setup ........................................................................................................ 9

Hardware Setup ..................................................................................................... 14

Initial Configuration Wizard ..................................................................................... 17

Uninstalling the Software ........................................................................................ 20

Glossary ................................................................................................................ 21

Information ............................................................................................................ 23

Introduction

Thank you for purchasing the Bluetooth USB Adapter (the USB Adapter) from Belkin. The USB Adapter features the breakthrough Bluetooth wireless technology that lets you create efficient communications between your USB desktop PC or notebook and devices using Bluetooth wireless technology—without physical connectors or cables.

Before you install and start using your new USB Adapter, please take a few minutes to review some of the terms that you will be seeing throughout the document. You will find a brief Glossary on page 21 of this manual.

Product Features

The USB Adapter is compliant with

• Compliancy with Bluetooth specification v1.2 devices

• USB bus powering: no external power supply necessary ®

• Support for Microsoft

• Compatible with Mac OS

• Operating distance of up to 10 meters (F8T009) or 100 meters (F8T008)**

• Point-to-multipoint connections

• Support for data rates up to 723/57.6Kbps

• Built-in security: up to 128-bit encryption and authentication

• Compatibility with USB desktop and notebook computers

*Mac OS X driver and software provided by Apple®. ** 10m/100m range is dependent upon environment, number of users, and other wireless devices within proximity.

Windows® 98 SE, Me, 2000, and XP

Bluetooth

X v10.3 and higher*

standard version 1.2 and provides:

System Requirements

PC System Requirements

• PC-compatible computer, CPU speed of 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available USB port, USB 1.1 standard

• Windows 98 SE, Me, 2000, and XP

System Requirements

Mac

• One available USB port, USB 1.1 standard

• Mac OS X v10.3 and higher*

*Mac OS X driver and software provided by Apple.

Package Contents

• Bluetooth USB Adapter

• CD-ROM for installation software and documentation

• User Manual

• Quick Installation Guide

• Registration Card

For a complete explanation of the Belkin Bluetooth software, refer to the software manual contained in the included CD-ROM.

USB Adapter Specifications

Bluetooth Compliance: Version 1.2 Physical Interface: USB UHCI/OHCI 1.2-compliant Operating Frequency: 2.4 to 2.4835GHz Output Power: (F8T008) 4~20 dBm, Class I

Sensitivity: <0.1% BER @ -80 dBm Data Rate: 723/57.6Kbps Typical Power

Consumption: (F8T008) Tx: 150mA, Rx 80mA

Operating Range: (F8T008) 100-meter radius indoors (F8T009) 10-meter radius indoors

Network Topology: Point-to-Multipoint Packet Support: 1/3/5 Slots Packet Operation: Master/Slave Frequency Stability: +/- 10PPM LED Indicator: Power On/Data Traffic Antenna Type: Integrated, 0 +/- 1 dBi

(F8T009) -6~4 dBm, Class II

(F8T009) Tx: 65mA, Rx 45mA

Dimensions: 58mm (L) x 18mm (W) x 8mm (H) Weight: 0.2oz. (7g) Operating Temp: 0 to 70 degrees Celsius Storage Temp: -30 to 80 degrees Celsius Humidity: 5-90% (non-condensing) Supply Voltage: 5.0V DC Nominal Current: 100mA Spread Spectrum: FHSS (Frequency Hopping

Spread Spectrum)

Modulation: GFSK (Gussian Frequency

Shift Keying)

Certifications: FCC, CE, ICES, C-Tick, BQB,

WHQL for XP

Warranty: Manufacturer’s Lifetime Warranty

Supported Languages: English, German, Japanese,

Spanish, French

Specifications are subject to change without notice.

Supported Profiles

The services supported by your USB Adapter are defined as “Profiles”. Available profiles include:

• Generic Access

• Service Discovery

• Personal Area Network

• Hardcopy Cable Replacement

• Serial Port

• LAN Access

• Dial-Up Networking

• Generic Object Exchange

• Object Push

• File Transfer

• Synchronization

• Fax

• Human Interface Device

• Headset

• Audio Gateway

Supported Profiles

Your USB Adapter gives you the ability to do the following—without cables:

• Transfer files

• Access dial-up networks

• Connect to local area networks

• Perform an ActiveSync

• Connect to serial ports

The basic functions of the

• Device Discovery

• Service Discovery

• Establishing links with remote devices

session

Bluetooth

Neighborhood include:

• Exchange PIM data

• Send or exchange business cards

• Connect to mice and keyboards

• Print

Software Setup

Software Setup for Windows 98 SE, Me, 2000, and XP

To install the software for the USB Adapter, follow the instructions below:

Note: The installation process for Windows XP may look slightly different from

Windows 98 SE, Me, and 2000.

Note: Do not insert the USB Adapter into the USB port prior to software installation.

1. Insert the software installation CD-ROM

into the PC’s CD-ROM drive.

2. The “Software InstallShield Wizard”

window appears. Click on “Next” to begin the installation process.

Software Setup

3. Choose “I accept the terms in the

license agreement” to accept the license agreement. Click on “Next” to continue.

4. Specify the location where the software

files will be installed on your hard drive. It is recommended that you install the software in the default directory “C:\Program Files\belkin\Bluetooth\ Software\”. Click on “Next” to continue.

Software Setup

1110

5. Confirm that the device software

is ready to be installed and click on “Install”.

6. The InstallShield Wizard will begin to

install the Belkin Bluetooth Software. This may take several minutes.

1110

Software Setup

7. During the installation process you may be prompted to insert your USB Adapter.

If your USB Adapter is not plugged into your computer at this time, you may insert it into an available USB 1.1-compliant port on your desktop or notebook computer, then click “OK” to continue. Click on “Cancel” to continue installation without the Bluetooth device inserted. Refer to the “Hardware Installation” section of this User Manual for instructions for installing the hardware.

Note: If at any time during the installation process you receive a “Driver Signature

Notice”, click “OK” to continue the installation process.

Software Setup

1312

8. Confirm the completion of the software installation; click “Finish” and restart the

system if prompted to do so.

1312

Hardware Setup

Hardware Setup for Windows 98 SE, Me, 2000, and XP

Follow these instructions to install your USB Adapter on your PC.

Note: Your USB Adapter is sensitive to static electricity, which can damage its delicate

electrical components. To protect your device, always touch the metal chassis of your computer before handing the USB Adapter. This will ground any potential electrostatic discharge. Avoid touching the metal connector when handling the USB Adapter. Dry weather conditions or walking across carpeted floors may cause you to acquire an electrostatic charge.

1. Connect the USB Adapter directly to an

available USB A-type connector on your desktop or notebook computer. Your system should register a new USB device found.

2. Choose “Install from a list or specific

location”; then click “Next”.

Hardware Setup

1514

3. Browse for the location of the device

driver “:\Program Files\Belkin\ Bluetooth\Software\bin\” then click “Next”.

4. If you receive the following “Hardware

installation notice”, click on “Continue Anyway” to continue with the installation process.

1514

Hardware Setup

5. A window will appear that confirms the completion of the hardware installation; click

on “Finish” to complete the installation process.

Initial Configuration Wizard

1716

Configuring your computer for Windows 98 SE, Me, 2000, and XP

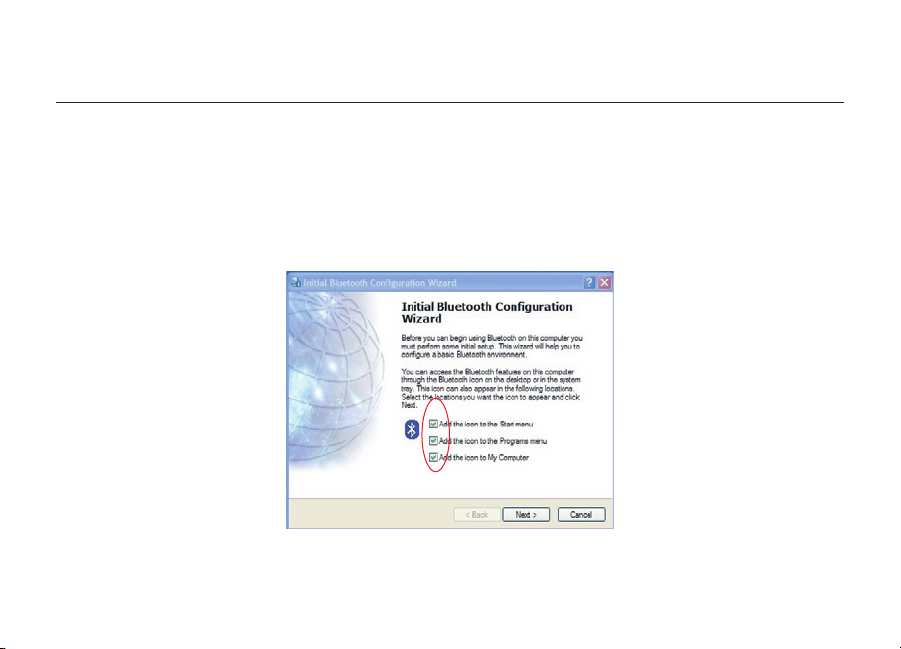

Once the installation process is complete you will be prompted by the “Initial

Bluetooth Configuration Wizard”. This Wizard will guide you through the initial setup of your Bluetooth device. Please follow the Wizard as prompted.

2. Name your computer with a friendly name. This is name will be made available when

your computer is discovered by other Bluetooth devices.

1716

Initial Configuration Wizard

3. Choose the type of computer you have

installed the USB Adapter to in the drop-down menu.

4. Continue the Wizard to configure the

Bluetooth services that this computer will make available of other Bluetooth devices to use. Click “Next”.

Initial Configuration Wizard

1918

5. Choose the Bluetooth services your

computer will offer. The most common service for your computer type will be checked by default.

6. If you have another Bluetooth device

and you want to configure the way this computer will use its services, click “Next”. Otherwise click “Skip”.

1918

Uninstalling the Software

Uninstalling the Software for Windows 98 SE, Me, 2000, and XP

Follow these instructions to uninstall your USB Adapter on your PC.

1. Insert the CD-ROM included with your USB Adapter.

2. This “InstallShield Wizard” should automatically load.

If it does not load, explore the CD and run the “Setup.exe” file.

3. The “InstallShield” window should now appear.

Click “Next” to continue with the uninstall process.

Glossary

2120

Authentication

Security feature that requires users to verify a numeric password before exchanging data.

Authorization Security

feature that requires user approval before another user is allowed to share data.

Bluetooth Neighborhood

A collection of Bluetooth devices.

Bonded Device

Recognized by your device so as not to require authentication or authorization.

Device

Device enabled with Bluetooth technology.

Device Address

Unique electronic address of a Bluetooth device.

Device Discovery

The location and recognition of one Bluetooth device by another.

2120

Glossary

Device Group

Compilation of several Bluetooth devices into a group, normally to conduct related tasks.

Device Name

Name that a Bluetooth device provides when discovered by another device.

Service Discovery

Determines which applications other devices have in common with yours.

Information

2322

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product,

F8T008, F8T009

to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Exposure to Radio Frequency Radiation.

The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such manner that the potential for human contact normal operation is minimized.

When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

2322

Information

This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin Corporation may void the users authority to operate the equipment.

Canada-Industry Canada (IC)

The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This Class B digital complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.

Europe-European Union Notice

Radio products with the CE alert marking comply with the R&TTE Directive (1995/5/EC) issued by the Commission of the European Community.

Information

2524

Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards).

• EN 60950 (IEC60950) – Product Safety

• EN 300 328 Technical requirement for radio equipment

• ETS 300 826 General EMC requirements for radio equipment.

To determine the type of transmitter, check the identification label on your Belkin product.

Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in brackets are the equivalent inter national standards).

• EN 55022 (CISPR 22) – Electromagnetic Interference

• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity

• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics

• EN 61000-3-3 (IEC610000) – Power Line Flicker

• EN 60950 (IEC60950) – Product Safety

Products that contain the radio transmitter are labeled with CE alert marking and may also carry the CE logo.

2524

Information

Manufacturer’s Lifetime Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for its warranty period. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied warranties, so the above limitations of exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
