Belinea 101927 User Manual

USER MANUAL

LCD-Monitor

[ ]

Belinea 10 19 27

BELINEA PREMIUM SERVICE

The three-year return to base warranty for your Belinea monitor includes all parts and labour. In

English

Deutsch

Français

Country Phone number Additional swap out service
Land Telefonnummer Zusätzlicher Austausch-Service
Pays Numéro de téléphone Service supplémentaire d’échange sur site

addition many countries offer a free of charge swap out warranty programme. This does not affect
your Statutory Rights. Please visit http://www.belinea.com or call the numbers below for further
warranty or service information.

Please have the serial and model number ready when calling.

Die Garantie für Ihren Belinea-Monitor beträgt drei Jahre und umfasst alle Bauteile. Darüber
hinaus bieten wir in vielen Ländern einen zusätzlichen, kostenlosen Austausch-Service an.
Von dieser o. g. Garantie bleiben etwaige gesetzliche Gewährleistungsrechte unberührt.
Nähere Informationen zu Garantie- und Servicefragen erhalten Sie im Internet unter
http://www.belinea.com sowie unter den u. g. Rufnummern.

Bitte halten Sie für Ihren Anruf Serien- und Modellnummer bereit.

La garantie internationale de trois ans sur les écrans Belinea s’entend pièces et main d’œuvre. Pour
obtenir plus d’informations sur la garantie et le service après-vente contactez-nous sur Internet
http://www.belinea.com ou aux numéros de téléphone ci-dessous. Vous pouvez obtenir également
plus de détails sur les possibilités d’échange gratuit, service offert dans de nombreux pays.

Pour votre appel, tenez les numéros de série et d’article à portée de main.

Belgie/Belgique 0900 10630 (0,45 €/min) 3 year on-site warranty (swap out)

Deutschland 02365 952 1010 3 Jahre Garantie-Austausch-Service

Česká republika [phone] Záruka 3 roky

España 090 21 96 497 3 años de garantia con intercambio a domicilio

Ελλαδα 210 48 05 800 Εγγυηση 3 χρονια επιτοπου αντικατασταση

France 0820 091820 3 ans de garantie avec échange standard sur site

Hrvatska [phone] 3 godine jamstva

Italia 199 156 169 3 anni di Garanza di sostituzione a domicilio

Ireland 00 353 12861343 3 year on-site warranty (swap out)

Luxemburg/Luxembourg 0900 74235 (0,45 €/min) 3 year on-site warranty (swap out)

Magyarország 01 340 99 51/53 3 év helyi szerviz

Nederland 0900 BELINEA (02354632) 3 year on-site warranty (swap out)
(0,70 €/Gesprek)

Österreich 01 277 89 88 3 Jahre Vor-Ort-Austausch-Garantie

Polska 071 337 19 55/022 863 27 77 3 lata gwarancji (door to door)

Portugal 090 21 96 497 3 Anos de Troca em Garantia On-Site

Россия [phone]

Трехлетняя гарантия с заменой на рабочем месте

Schweiz 0900 575 111 (2,13 CHF/min) 3 Jahre Vor-Ort-Austausch-Service

Slovenija [phone] 3 leta garancije

United Kingdom 01344 788920 3 year on-site swap out warranty
(UK mainland only)

All other countries
Alle anderen Länder [phone]
Les autres pays

ENGLISH

INTRODUCTION

This manual will familiarize you with the installation and
use of your Belinea monitor. Please take the time to
look through these instructions even if you are familiar
with monitors.

We have taken all possible care to ensure that this
manual contains correct, accurate information. However,
the manufacturer cannot assume liability for any possible
errors. In addition, the manufacturer cannot guarantee
that the hardware will meet the purpose you require. We
would appreciate reports of any errors, suggestions or
criticism.

© Copyright 2005
MAXDATA Systeme GmbH
45768 Marl, Germany
www.maxdata.com

Editing, DTP and translation by think’Z GmbH,
www.thinkz.de.

All rights reserved. No part of this manual may be
reproduced, processed or distributed in any form (print,
photocopy, microfi lm or any other process) or processed
by an electronic system without prior written permission
from the manufacturer.

We reserve the right to make changes according to technical
progress. Belinea is an internationally registered trademark.
Other brand names may be registered trademarks and must
be treated as such.

TABLE OF CONTENTS

INTRODUCTION ........................................................ 2

IMPORTANT INFORMATION .....................................3

CARING FOR YOUR LCD MONITOR ........................ 3

WALL MOUNTING ......................................................3

UNPACKING .............................................................. 4

CONNECTING ........................................................... 4

STARTUP ...................................................................4

CONFIGU RATION ...................................................... 5

BASIC SETUP ............................................................5

IMAGE SETTINGS USING THE OSD MENU ............ 5

OSD MENU FUNCTIONS ........................................... 6

TROUBLESH OOTING ................................................ 7

TECHNICAL SPECIFICATIONS .................................7

DEFINITION OF THE MAXDATA WARRANTY .........8

Important Safety Instructions

Some Belinea monitor models come with 2 power cords.
Please ensure you use the UK plug (3 pin) in the UK and
not the European plug (2 pin).

Do not place the monitor in very hot or cold, nor damp or
dusty surroundings. Do not put vases etc. on the monitor,
water may cause short circuits. Do not block or cover the
ventilating openings. All products that produce magnetic
fi elds, i.e. laser printers, loud-speakers, etc., must not be
placed close to the monitor. Do not install this monitor
in areas where too much light or sunshine might directly
hit the screen, otherwise the brightness of the picture
will be poor due to refl ections. Refer all servicing and
maintenance to authorised service personnel only!

CAUTION

Do not remove the cover!
Serious electrical shock hazards exist inside
this monitor.

NOTE

Removal of cover invalidates your warranty.

Guide to Symbols

The symbols below are used in this manual to indicate
where there is risk of injury or damaging devices or to
indicate especially useful information:

DANGER! Indicates risk of injury. When not
following instructions, severe injury or death
may result.

ATTENTION! Indicates possible damage
to devices. When not following instructions,
devices may be heavily damaged.

IMPORTANT! Indicates hints on operation
and other useful information.

We are all responsible for the environment: this manual was printed from front to back on
paper that was produced without chlorine.

Belinea 10 19 27 - Operating Instructions - 2

IMPORTANT INFORMATION

ENGLISH

Note on monitor placement

• The setup location must not be extremely hot,
cold, humid or dusty. Heat and cold can impair
the functionality of the monitor. Humidity and dust
can cause the monitor to fail.

• Don’t place the monitor near heaters such as
radiators or the like. Don’t expose the monitor to
mechanical vibrations or jarring.

• Position the monitor so that no direct light or sun
strikes the screen, which could cause refl ections
that reduce the quality of the image.

Notes on power connection

Only use the power cord designated for use in

your country.

The wall outlet should be within easy reach. Pull-

ing the power plug is the only way to disconnect
the monitor from the power source.

• This monitor is ENERGY STAR
MAXDATA is an ENERGY STAR
guarantees that this device complies with the
ENERGY STAR
consumption.

®

guidelines for optimizing power

®

-compatible.

®

partner and

Safety instructions for operation

The power cord must not be damaged. Do not

place any objects on the power cord and make
sure it does not have any knots. To unplug the
cord, alway s pu ll on the pl ug an d not on t he cable
itself. Damage to the power cord may result in fi re
or cause electric shocks.

• Avoid covering the ventilation slots. Air circula­tion is necessary to prevent the monitor from
overheating. If the air circulation is restricted it
could cause fi re or damage the monitor.

• Do not use any solvents to clean the monitor, as
the housing could be damaged. For more infor­mation about cleaning the monitor, please see
“Caring for Your LCD Monitor”.

Never open the monitor housing yourself. There

is a danger of electric shock and other hazards.
The monitor may only be opened and serviced
by qualifi ed professionals.

Note on resolution

All resolutions provided by the graphics card that

deviate form the physical resolution of the panel
ar e adjusted by interpolati on. T his c an im pair the
image quality.

Notes on ergonomics

To protect your eyes, neck and shoulder muscles

when working with a computer, we recommend
that you maintain a viewing distance of between
50 and 75 cm from the monitor. Furthermore, you
should regularly focus on an object around 6 m
aw ay f rom yo u to h elp y our eyes re lax. Er gonom i­cally, your posture is best when elbows, pelvis,
knees and ankles are all at right angles.

CARING FOR YOUR LCD MONITOR

• First, unplug the power cord from the wall socket.

• If the LCD screen is extremely dirty, clean it with a
moist cloth. Use only warm water and then wipe the
monitor dry. Solvents or harsh cleaners can damage
the housing. Clean the display surface only with a
soft cloth, otherwise you may damage the display’s
coating.

• If the monitor is only slightly dirty, clean it using a
soft, dry and antistatic cloth.

• The LCD monitor’s screen surface is very sensitive.
Please avoid any contact with the surface (fi nger,
pencil, etc.) and be especially cautious during
transportation since jolts and shocks can cause the
screen to become scratched (always use the original
packaging).

WALL MOUNTING

The Belinea monitor is shipped with the standard desktop confi guration. However, you can optionally mount the
device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions
(4-hole assembly with a spacing of 4 × 4 inches (100 × 100 mm) according to the international VESA FDMI stan­dard).

Belinea 10 19 27 - Operating Instructions - 3

UNPACKING

Carefully lift the monitor out of the packaging and make
sure that all components are included (see fi g. 1).

Save the original box and packing material in case you
have to ship or transport the monitor.

To set up the device, you must fi t the monitor base
together.

CONNECTING

± To connect the monitor to your PC ........................

1. Make sure that the PC and monitor are unplugged.

2. Connect the 15-pin signal cable to the monitor and

the PC (see fi g. 2a).

3. If you have a graphic card with a digital DVI-D con­nector (24-pin socket), then connect one end of the
DVI-D cable (optional) to the DVI-D connector of
your monitor (see fi g. 2b), the other end to the com­puter.

ENGLISH

Power cord

Audio cable

MENU

SELECT/AUTO

Figure 1. LCD Monitor

DVI-D cable

VGA cable

DVI- D cable
(optional)

Signal cable

Figure 2a. Connecting the monitor to the PC

± Connecting the audio cable ....................................

If your computer is equipped with an audio output port,
then connect one end of the sound cable to the audio
input connector of the monitor (

in fi g. 3) and the other



end to the Line-Out connector of the computer.

STARTUP

Figure 2b. Connection via the DVI-D interface

2

Figure 3. Connecting the monitor to the power source

1

± To connect the monitor to the power source ........

Connect the separate power cable (

in fi g. 3) to the



monitor and a grounded outlet.

1. First start your PC and then turn on your Belinea

monitor using the power switch (
status indicator (

in fi g. 4) should light up green.



in fi g. 4). The



2. Adjust th e ima ge to meet yo ur r equi rements (see the
following sections “Basic Setup” and “Image settings
using the OSD menu”).

3. If there is no image displayed on the monitor, consult
the section “Troubleshooting”.

Belinea 10 19 27 - Operating Instructions - 4

CONFIGURATION

ENGLISH

± Monitor setup under Windows® 9x/ME/2000
and XP:

®

If using the monitor under Windows
XP, we strongly recommend installing the Belinea con­fi guration fi le. You can obtain this fi le from your Belinea
dealer or download it from the MAXDATA FTP server
at ftp.maxdata.com.
Here, click the “Belinea_Treiber_Driver” directory and
download the Belinea.inf and README_Belinea.TXT
fi les. Follow the installation instructions in the README_
Belinea.TXT fi l e .

9x/ME/2000 or

BASIC SETUP

➧ Automatic image adjustment ..................................

You can adjust the image settings (such as brightness,
contrast, image position, phase, etc.) manually or by
using the LCD monitor’s automatic image adjustment
feature. This will adjust the image parameters to their
optimal settings for the current graphics mode. Press
SELECT/AUTO (
adjustment. The process will take a short while until
completed.

± Setting the volume directly .....................................

You can adjust the speaker volume of the integrated
audio system directly by pressing the
(

and  in fi g. 4) while the OSD menu is inactive.



Next, press the

 button (



in fi g. 4) to launch the automatic



 or  buttons

 button to increase the volume or the

and  in fi g. 4) to decrease it.

®

± Monitor setup under Windows

Under Windows
required. Select the vertical frequency and the number
of colors directly from within the “Settings”  “Control
Panel”  “Display”  “Settings” menu.

± Shortcut for adjusting brightess and contrast .....

You c an adj ust b rightne ss and c ontrast dire ctly by press ­ing the
OSD menu is not displayed. Next, press the
buttons (
the
contrast.

➧ Disabling the sound (MUTE) ...................................

You can mute sound playback by pressing the

 or  buttons (



 or  buttons (

 or  buttons (

menu is not displayed. Next, press the
mute the sound or the
reactivate it.

®

NT 4.0 no separate setup file is



and  in fi g. 4) to adjust the brightness or

and  in fi g. 4) to adjust the



and  in fi g. 4) while the OSD



 button (

NT 4.0:

and  in fi g. 4) while the

 or 

 button to

and  in fi g. 4) to



IMAGE SETTINGS USING THE OSD MENU

The OSD menu is a window on your screen that allows
you to view and change display settings. To change an
OSD setting:

in fi g. 4) to display the

1. Press the MENU button (
OSD menu on the screen.

1

3

2

Figure 4. Monitor features



5

4

7

6

2. There are a total of 5 OSD submenus divided by

categories. Select the desired submenu by pressing
the OSD button
section “OSD Menu Functions”).

3. Press the OSD button SELECT/AUTO (

4) to activate the selected function or associated
submenu.

4. If you selected a submenu, now select the subfunc­tion you want using the  or  OSD buttons (
and

5. Set the desired value using the OSD button
( and  in fi g. 4).

6. Press the SELECT/AUTO (
save the setting. Repeat steps 2–5 to make further
adjustments as needed.

7. The OSD menu automatically disappears if no
changes are made for more than 45 seconds (default
setting). The current settings will be saved. You can
close it manually by pressing the MENU button (
in fi g. 4).

in fi g. 4).



 or  (



and

in fi g. 4; see





 or 

in fi g. 4) button to



in fi g.



Belinea 10 19 27 - Operating Instructions - 5

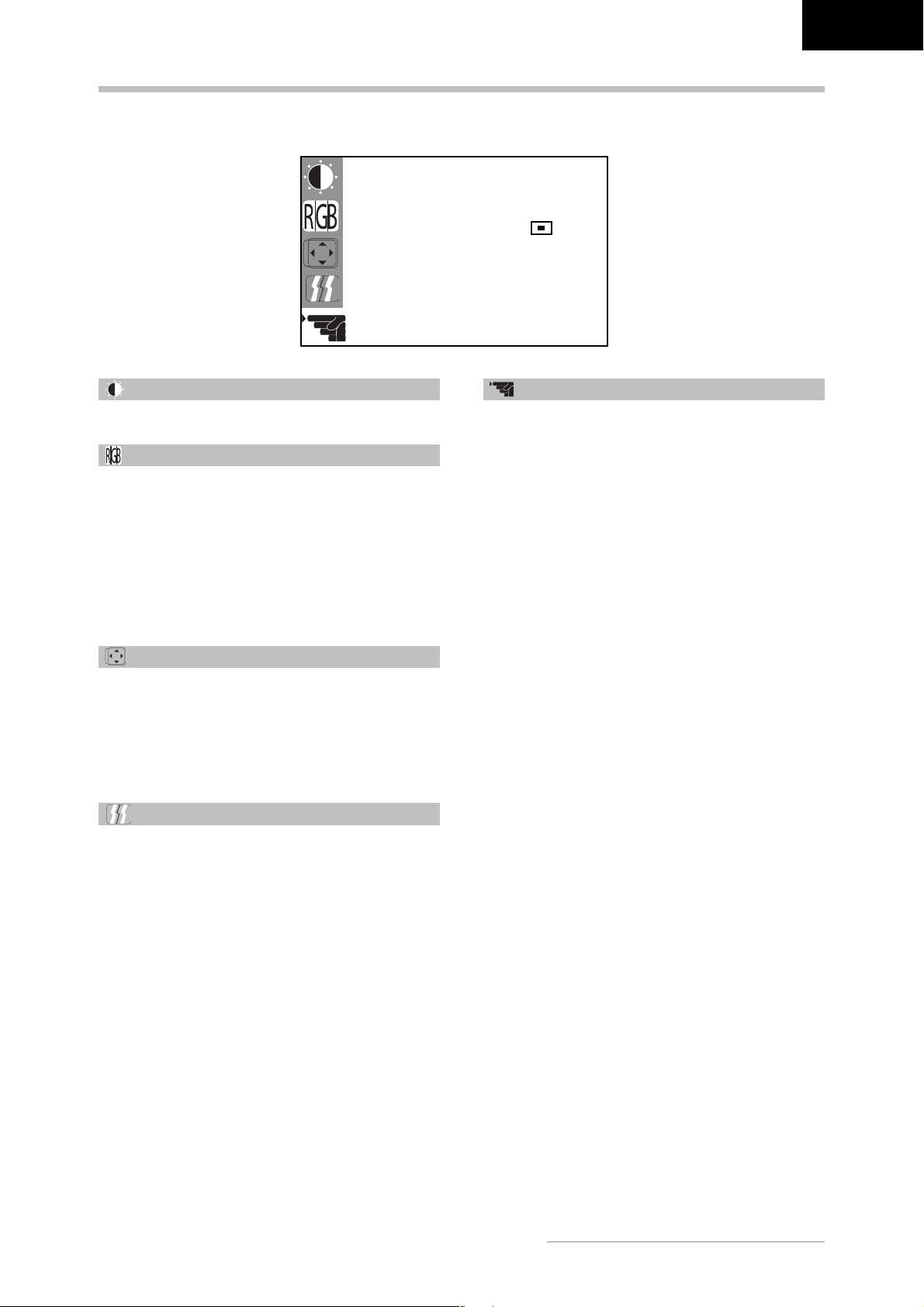

OSD MENU FUNCTIONS

ENGLISH

OTHER

LANGUAGE ENGLISH
OSD POSITION 
INPUT ANALOG
INFORMATION OFF
RESET RUN

1280x1024@60 Hz

PRESET MODE

Brightness/Contrast

Controls the picture’s contrast, brightness.

Color

Regulates the color temperature settings. Activate the
OSD window using the MENU button. G o to t he COLOR
option by pressing the
SELECT/AUTO button and
G (green) or B (blue). Then you can change the color
values using the
You can also choose one of the preprogrammed color
temperatures 9300 K, 6500 K or sRGB (D65).

 or  buttons.

 or  buttons. Press the

 or  to select R (red),

Position

Regulates the horizontal and vertical position of the
image. Activate the OSD window using the MENU button.
Go to the POSITION option by pressing the
buttons. Use the SELECT/AUTO button and
to set the vertical position and
zontal position.

 or  to set the hori-

 or 
 or 

Trac k i ng

Other

Displays the current graphic resolution including vertical
frequency as well as letting you choose from among the
following settings:

Language: Selects the OSD menu language: English,
German, French, Spanish, Italian, Dutch, Polish,
Russian.

OSD Position: Controls the OSD menu’s position.

Input: Controls the selection of the input signal. The

monitor allows you to make the following connections:
analog graphics card via the D-Sub interface (see fi g.
2a), digital graphics card via the DVI-D-interface (see
fi g . 2 b ) .

Information: There is an optional OSD window (On/
Off) that displays the newly adjusted screen resolution

settings.

Reset: Restores factory display settings.

Resolution Notice: The optimum resolution for this

monitor is 1280 × 1024.

Clock: Sets up the internal clock. Larger values make
the displayed image appear wider; smaller values make
it appear compressed.

Phase: Adjusts the internal clock’s time lag in order to
optimize the screen image.

Belinea 10 19 27 - Operating Instructions - 6

TROUBLESHOOTING

Blank Screen

Power indicator is off

- Check if the power cable is connected properly (see section “Connecting”).

- Make sure that the monitor was turned on using the power switch (see section “Startup”).

Power indicator lights orange

- Perhaps a power saving mode is active? Press any key on your keyboard or move the mouse.

Power indicator lights green

- A screen saver may have activated automatically after a certain period of inactivity. Press any key on your keyboard
or move the mouse.

“No Signal” message

- Is the signal cable connected to the monitor and the PC’s graphics port (see section “Connecting”)?

- Is the PC turned on (see your PC’s documentation)?

Display Problems

Image is displaced to the left/right or to the top/bottom

- If the image appears normal but off-center, you can adjust it using the OSD functions. For further information, see
chapter “Basic Setup”, section “Automatic Image Adjustment” or chapter “OSD Menu Functions”, section “Posi­tion”.

Image flickers or is shaky

- Perhaps setup fi le chosen for the monitor is incorrect. For information on monitor setup under Windows®
9x/ME/2000/NT/XP consult the “Confi guration” section.

ENGLISH

Image is blurred

- Check brightness and contrast settings (see chapter “OSD Menu Functions”, section “Brightness/Contrast”).

- Check the resolution setting (see “Other” functions in the “OSD Menu Functions” section).

Color problems

- If the colors are off (e.g. white is not really displayed as white, etc.), you should adjust the color temperature (see
“Color” function in section “OSD Menu Functions”).

TECHNICAL SPECIFICATIONS

LCD panel 19 inch diagonal size (48.3 cm visible), low radiation according to TCO ’99, certifi ed

to ISO 13406-2, pixel fault class II, TN panel technology

Contrast ratio 550:1 (typical) / 650:1 (max.)
Viewing angle (Contrast ratio ≥ 10:1) horizontal 140°, vertical 135° (typical)

(Contrast ratio ≥ 5:1) horizontal 160°, vertical 150° (typical)

Response time 3,9 ms (with overdrive)
Brightness 270 cd/m
Input signal Video: analog (15-pin Mini-D-SUB) and digital (24-pin DVI-D)
Display colors 16.2 mill. colors
Synchronization 31–83 kHz horizontal, 56–75 Hz vertical
Video band width 135 MHz (pixel rate)
Ergonomic resolution 1280 × 1024 (60 Hz)
Audio Amplifi er: 1 W at 8 Ohms

Loudspeaker: 1 W continuous load, 1.5 W peak power

Power connection 100–240 V AC, 50/60 Hz
Power consumption ON status: < 45 W; color of the status LED: green

SLEEP status: < 4 W; color of the status LED: orange
Power saving functions EPA certifi ed

Dimensions/weight Width: 426 mm, height: 437 mm, depth: 198 mm; 5.0 kg (net)
Operating environment Operation: 0 to +40 °C, humidity: 20–80 % (without condensation)

Storage: -20 to +60 °C, humidity: 8–95 % (without condensation)

2

(typical) / 290 cd/m2 (max.)

Belinea 10 19 27 - Operating Instructions - 7

DEFINITION OF THE MAXDATA WARRANTY

The MAXDATA warranty covers all failures resulting from defective components and manufacturing defects that occur
within the product specifi c warranty period. The warranty period begins on the date of purchase (date of original cus­tomer invoice).

Please be aware that in order to maintain your warranty claim the product concerned has to be received by MAXDATA
together with the serial number and a copy of the original customer invoice within the warranty period.

MAXDATA’s obligation under the warranty is restricted to repairing or exchanging defective components.

Defective components removed during repair process become the property of MAXDATA.

Components replaced within warranty coverage assume the remaining valid warranty period of the system.

Scope of the MAXDATA warranty:

MAXDATA’s obligation under the warranty is limited to failures resulting from defective components and manufacturing
defects, defects in the CRT, panel and background lighting for electrical errors (please also refer to the term defi nition
and liability restriction).

ENGLISH

Exclusions from the MAXDATA warranty:

The MAXDATA warranty does not cover damage of any kind that results from:

• The use of peripheral devices

• Improper use/operating faults

• Non-adherence to the user instructions

• Attempted repairs by the customer or third-parties without authorisation by MAXDATA

• Defective maintenance by third parties

• Device defects due to power failure, heat losses, missing EMC (electro-magnetic compatibility) cabling or similar
reasons

• Accidents, storms, lightening, fi re, water/other liquids, other natural catastrophes, theft, riots, plundering, the effects
of war or other instances of acts of god

• The use of third-party components

• Non-authorised system changes

• BIOS versions/fi rmware updates/programmes to remove defects of all kinds (e.g. service packs, bug-fi xes, hot­fi x e s )

• Resetting safety functions, deletion of passwords etc.

• Loss of customer-specifi c data or software from repair and installation processes

• Improper use of machine capacity or output

• Inappropriate customer operating environment

The MAXDATA warranty also does not cover the following:

• MAXDATA products from which the category plates, serial numbers, part numbers on the machine of machine parts
have been removed or changed

• Decline in rechargeable battery capacity after the end of the 6 month warranty period

• The provision and installation of BIOS, driver or software updates/upgrades

• The new installation of software/operating systems that are no longer able to run (e.g. because of the deletion of
system-relevant fi les, incorrect system settings or self-copying programs, e.g. computer viruses)

• Wear and tear on data storage media, LCD background lighting, CRTs on CRT monitors, picture tube burn-in or
loss of brightness

• MAXDATA products for which the warranty seal has been broken by entities other than MAXDATA or those autho­rised by MAXDATA

• Breaks and scratches on TFT panels and CRT displays

• Damage through use of force and external impact respectively

• Spots on the panel caused by external impacts

Belinea 10 19 27 - Operating Instructions - 8

• Colour spots resulting from falls

• Error class 2 pixel errors (please note the information on ISO 13406-2 on the website of the MAXDATA subsidiary
concerned)

If the device received by MAXDATA demonstrates two defects and only one of these is covered by the MAXDATA
warranty claim, the customer only has the right to repair for the damage to his device covered by the warranty.

In this case MAXDATA reserves the right to offer the customer several options on resolution in the form of a quotation
and to charge the relevant processing costs.

This also applies to those devices for which upon receipt, it is found that they are not covered by the warranty. In these
cases, MAXDATA reserves ownership of the exchange device provided and is entitled to demand its return.

MAXDATA reserves the right to charge costs incurred for unsuccessful attempts to collect a device that has been
registered as defective from the customer.

If an exchange device is not provided in spite of a period having been set, MAXDATA is entitled to charge the net sales
price as per the current price list plus the processing costs incurred. The customer has the right to provide evidence
for the existence of lower damages.

MAXDATA restriction to liability:

MAXDATA expressly excludes customer claims that go beyond the warranty conditions if there is no obligation of
liability imposed on MAXDATA by the laws of the country where the device was bought. This also applies in particular
with regard to claims for damages as a result of default, damages for claims arising as a result of defects, loss of profi t,
transport damage that was not registered within a period of 6 days after receipt of the goods, loss of data or information
through repair processes or damage resulting from interruption to operations.

ENGLISH

Governing law:

All rights and duties are subject to the law of the country in which the MAXDATA product was purchased. The Agree­ment on Contracts for the International Sale of Goods (CISG) is not applicable.

Data Backup:

The responsibility for complete data backups, including of applications and operating system software remains exclu­sively with the customer. The data must be backed up before the warranty claim is made. MAXDATA excludes liability
for any data or information lost for this reason during a warranty claim.

For further details regarding the MAXDATA warranty conditions please refer to www.maxdata.co.uk.

Belinea 10 19 27 - Operating Instructions - 9

Congratulations!

You have just purchased a TCO99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your
purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics
products.

This product meets the requirements for the TCO99 scheme which provides for an international environmental and quality labelling of personal
computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and
SEMKO AB.

The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and
electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment.
The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in
the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these
potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal)
and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate­influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby
consumes a lot of energy.

What does the environmenal labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These
demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated
solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must
be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to
a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be
ordered from:

TCO Development - SE-114 94 Stockholm, Sweden - Fax: [phone] - Email (Internet): [e-mail]

Current information regarding TCO99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread
of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and
those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or
chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to
the bio-accumulative

*

processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development

may occur.

The relevant TCO99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically
bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous
system and is toxic in high doses. The relevant TCO99 requirement states that batteries, the colour-generating layers of display screens and the

**

electrical or electronics components must not contain any cadmium.

**

Mercury

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO99
requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics
components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat
panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is
available.

CFCs (freons)

The relevant TCO99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs
(freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere,
causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

**

Lead

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead
poisoning. The relevant TCO´99 requirement permits the inclusion of lead since no replacement has yet been developed.

*

Bio-accumulative is defined as substances which accumulate within living organisms

**

Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Austria

MAXDATA Computer GmbH

Ignaz-Köck-Straße 9 • A-1210 Wien

Benelux

MAXDATA Benelux B.V.

Bredaseweg 113-115 • NL-4872 LA Etten-Leur

Germany

MAXDATA Computer GmbH & Co. KG

Elbestraße 12-16 • D-45768 Marl

France

MAXDATA S.A.R.L.

1, rue du Gevaudan • SILIC 1726

F-91017 EVRY-LISSES

Italy

MAXDATA Italia S.r.l.

Strada 1, Palazzo F1

I-20090 Milanofi ori, Assago (MI)

Poland

MAXDATA Sp. z o.o.

Ursynów Business Park

Ul. Puławska 303 • PL-02-785 Warszawa

Spain • Portugal

MAXDATA Iberia

C/Collado mediano, s/n • Edifi cio Prisma

Portal 1 - Pta. 1a B • E-28230 - Las ROZAS, Madrid

Switzerland

MAXDATA Computer AG

Haldenstrasse 5 • CH-6340 Baar

United Kingdom

MAXDATA UK Limited

The MAXDATA Centre • Downmill Road

Bracknell, Berkshire RG12 1QS • UK

www.maxdata.com

Art. No.: 11 19 25
