ENGLISH

INTRODUCTION

This manual will familiarize you with the installation and
use of your Belinea monitor. Please take the time to look
through these instructions even if you are familiar with
monitors.

We have taken a ll po ssible car e to ensur e that this m anual
contains correct, accurate information. However, the
manufacturer cannot assume liability for any possible
errors. In addition, the manufacturer cannot guarantee
that the hardware will meet the purpose you require. We
would appreciate reports of any errors, suggestions or
criticism.

© Copyright 2005
MAXDATA Systeme GmbH
45768 Marl, Germany
www.maxdata.com

Editing, DTP and translation by think’Z GmbH,
www.thinkz.de.

All rights reserved. No part of this manual may be repro­duced, processed or distributed in any form (print, photo­copy, microfi lm or any other process) or processed by an
electronic system without prior written permission from
the manufacturer.

We reserve the right to make changes according to technical
progress. Belinea is an internationally registered trademark.
Other brand names may be registered trademarks and must be
treated as such.

TABLE OF CONTENTS

INTRODUCTION ......................................................... 2

IMPORTANT INFORMATION ..................................... 3

CARING FOR YOUR LCD MONITOR ........................ 3

WALL MOUNTING ...................................................... 3

UNPACKING .............................................................. 4

CONNECTING ........................................................... 4

STARTUP ................................................................... 4

CONFIGURATION ...................................................... 5

BASIC SETUP ............................................................ 5

IMAGE SETTINGS USING THE OSD MENU ............ 5

OSD MENU FUNCTIONS ........................................... 6

TROUBLESHOOTING ................................................ 7

TECHNICAL SPECIFICATIONS ................................. 7

DEFINITION OF THE MAXDATA WARRANTY .......... 8

Important Safety Instructions

Some Belinea monitor models come with 2 power cords.
Please ensure you use the UK plug (3 pin) in the UK and
not the European plug (2 pin).

Do not place the monitor in very hot or cold, nor damp or
dusty surroundings. Do not put vases etc. on the monitor,
water may cause short circuits. Do not block or cover the
ventilating openings. Do not install this monitor in areas
where too much light or sunshine might directly hit the
screen, otherwise the brightness of the picture will be poor
due to refl ections. Refer all servicing and maintenance to
authorised service personnel only!

CAUTION

Do not remove the cover!
Serious electrical shock hazards exist inside
this monitor.

NOTE

Removal of cover invalidates your warranty.

Guide to symbols

The symbols below are used in this manual to indicate
where there is risk of injury or damaging devices or to
indicate especially useful information:

DANGER! Indicates risk of injury. When not
following instructions, severe injury or death
may result.

ATTENTION! Indicates possible damage to
devices. When not following instructions,
devices may be heavily damaged.

IMPORTANT! Indicates hints on operation
and other useful information.

We are all responsible for the environment: this manual was printed from front to back on
paper that was produced without chlorine.

Belinea 10 19 03 - Operating Instructions - 2

IMPORTANT INFORMATION

ENGLISH

Note on monitor placement

• The setup location must not be extremely hot,
cold, humid or dusty. Heat and cold can impair the
functionality of the monitor. Humidity and dust can
cause the monitor to fail.

• Do not place the monitor near heaters such as
radiators or the like. Do not expose the monitor to
mechanical vibrations or jarring.

• Position the monitor so that no direct light or sun
strikes the screen, which could cause refl ections
that reduce the quality of the image.

Notes on power connection

Only use the power cord designated for use in your

country.

The wall outlet should be within easy reach. Pulling

the power plug is the only way to disconnect the
monitor from the power source.

• This monitor is ENERGY STAR
MAXDATA is an ENERGY STAR
guarantees that this device complies with the
ENERGY STAR
consumption.

®

guidelines for optimizing power

®

-compatible.

®

partner and

Safety instructions for operation

The power cord must not be damaged. Do not

place any objects on the power cord and make
sure it does not have any knots. To unplug the
cord, always pull on the plug and not on the cable
itself. Damage to the power cord may result in fi re
or cause electric shocks.

• Avoid covering the ventilation slots. Air circula tion is
necessary to prevent the monitor from overheating.
If the air circulation is restricted it could cause fi re
or damage the monitor.

• Do not use any solvents to clean the monitor, as the
housing could be damaged. For more information
about cleaning the monitor, please see “Caring for
Your LCD Monitor”.

Never open the monitor housing yourself. There

is a danger of electric shock and other hazards.
The monitor may only be opened and serviced by
qualifi ed professionals.

Note on resolution

All resolutions provided by the graphics card that

deviate from the physical resolution of the panel
are adjusted by interpolation. This can impair the
image quality.

Notes on ergonomics

To protect your eyes, neck and shoulder muscles

when working with a computer, we recommend that
you maintain a viewing distance of between 50 and
75 cm from the monitor. Furthermore, you should
reg ularly focus o n an o bject ar ound 6 m awa y from
you to help your eyes relax. Ergonomically, your
posture is best when elbows, pelvis, knees and
ankles are all at right angles.

CARING FOR YOUR LCD MONITOR

• First, unplug the power cord from the wall socket.

• If the LCD screen is extremely dirty, clean it with a
moist cloth. Use only warm water and then wipe the
monitor dry. Solvents or harsh cleaners can damage
the housing. Clean the display surface only with a soft
cloth, otherwise you may damage the display’s coat­ing.

• If the monitor is only slightly dirty, clean it using a soft,
dry and antistatic cloth.

• The LCD monitor’s screen surface is very sensitive.
Please avoid any contact with the surface (fi nger,
pencil, etc.) and be especially cautious during trans­portation since jolts and shocks can cause the screen
to become scratched (always use the original packag­ing).

WALL MOUNTING

The Belinea monitor is shipped with the standard desktop confi guration. However, you can optionally mount the
device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions
(4-hole assembly with a spacing of 75 × 75 mm according to the international VESA FDMI standard).

Belinea 10 19 03 - Operating Instructions - 3

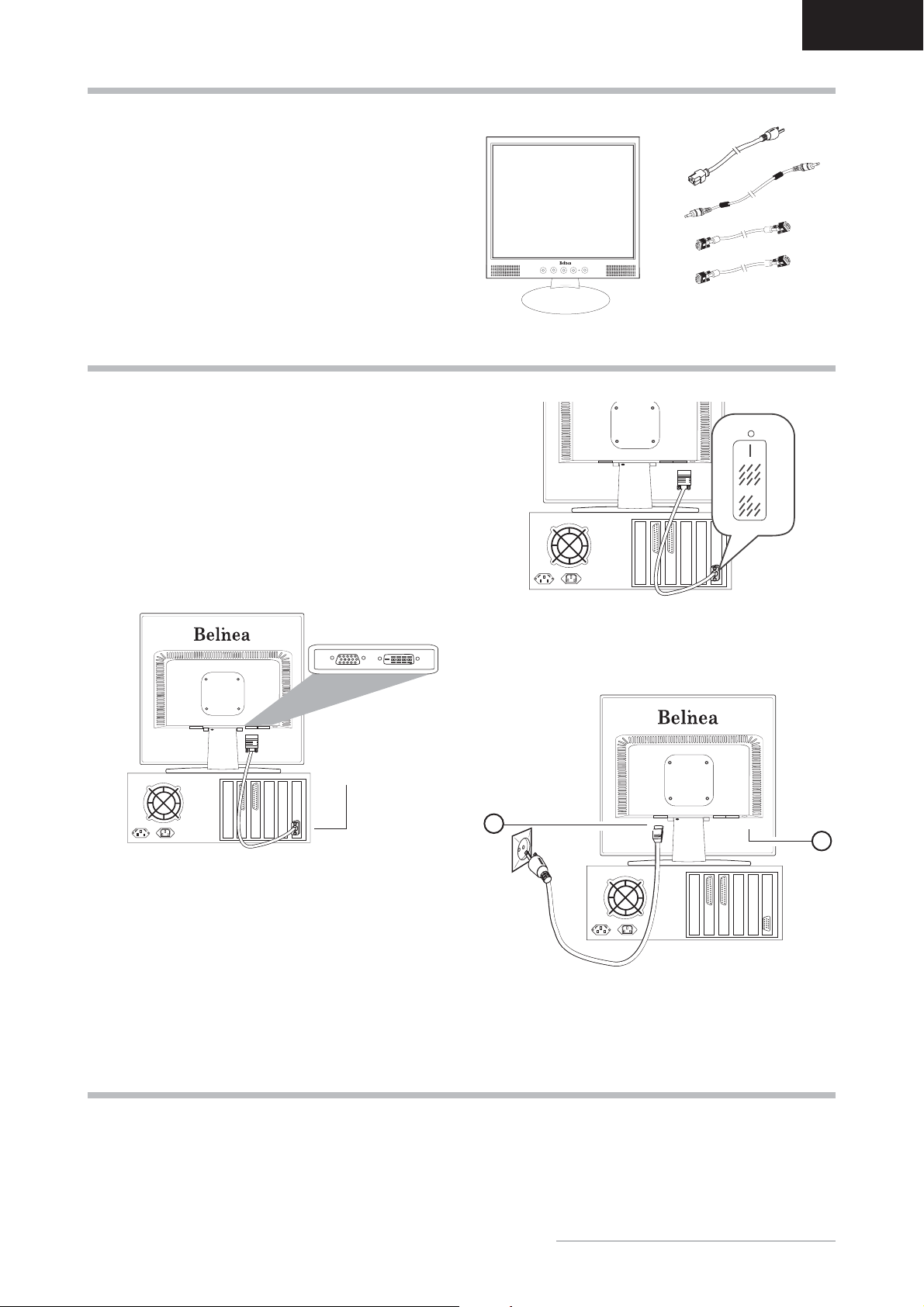

UNPACKING

Carefully lift the monitor out of the packaging and make
sure that all components are included (see fi g. 1).

Save the original box and packing material in case you
have to ship or transport the monitor.

To set up the device, you must fit the monitor base
together.

CONNECTING

± To connect the monitor to your PC ...........................

1. Make sure that the PC and monitor are unplugged.

2. Connect the 15-pin signal cable to the monitor and the

PC (see fi g. 2a).

3. If you have a graphic card with a digital DVI-D con­nector (24-pin socket), then connect one end of the
DVI-D cable (optional) to the DVI-D connector of your
monitor (see fi g. 2b), the other end to the computer.

AUTO

MENU

UP

DOWN

POWER

Figure 1. LCD Monitor

AC IN

Power cord

D-SUB

DVI

ENGLISH

Audio cable

VGA cable

DVI-D cable

(optional)

AUDIO

AUDIO

AC IN

Figure 2a. Connecting the monitor to the PC

D-SUB

DVI

Signal cable

± Connecting the audio cable ......................................

If your computer is equipped with an audio output port,
then connect one end of the sound cable to the audio input
connector of the monitor (

in fi g. 3) and the other end



to the Line-Out connector of the computer.

± To connect the monitor to the power source ..........

Connect the separate power cable (

in fi g. 3) to the



monitor and a grounded outlet.

Figure 2b. Connection via the DVI-D interface

2

Figure 3. Connecting the monitor to the power source

AC IN

AUDIO

D-SUB

DVI

1

STARTUP

1. F irst star t your P C and t hen t urn on y our Bel inea m oni-

tor using the power switch (
indicator (

in fi g. 4) should light up green.



in fi g. 4). The status



2. Adjust the image to meet your requirements (see the
following sections “Basic Setup” and “Image settings
using the OSD menu”).

3. If there is no image displayed on the monitor, consult
the section “Troubleshooting”.

Belinea 10 19 03 - Operating Instructions - 4

CONFIGURATION

ENGLISH

± Monitor setup under Windows
and XP:

If using the monitor under Windows
we strongly recommend installing the Belinea confi gura­tion fi le. You can obtain this fi le from your Belinea dealer
or download it from the MAXDATA FTP server at

ftp.maxdata.com.

Here, click the “Belinea_Treiber_Driver” directory and
download the Belinea.inf and README_Belinea.TXT
fi les. Follow the installation instructions in the README_
Belinea.TXT fi l e .

®

9x/ME/2000

®

9x/ME/2000 or XP,

BASIC SETUP

➧ Automatic Image Adjustment ....................................

You can adjust the image settings (such as brightness,
contrast, image position, phase, etc.) manually or by using
the LCD monitor’s automatic image adjustment feature.
This will adjust the image parameters to their optimal set­tings for the current graphics mode. Press AUTO ( in
fi g. 4) to launch the automatic adjustment. The process
will take a short while until completed.

➧ Locking and Unlocking the OSD ...............................

Holding down the MENU button (
onds locks the OSD menu and a corresponding message
is displayed. You can deactivate this function by holding
down the MENU button for 10 seconds once again.

in fi g. 4) for 10 sec-



± Monitor setup under Windows

Under Windows
Select the vertical frequency and the number of colors
directly from within the “Settings”  “Control Panel” 
“Display”  “Settings” menu.

➧ Setting the volume directly ........................................

You can adjust the volume directly by pressing buttons
DOWN or UP (
not displayed on screen. You can then change the volume
by pressing buttons DOWN or UP (

➧ Disabling the sound (MUTE) ......................................

You can mute sound playback by holding down the button
combination UP and DOWN (
the OSD menu is not displayed. Press the UP or DOWN
button again to activate sound playback.

®

NT 4 .0 no s eparat e set up fi le is required.

and  in fi g. 4) when the OSD menu is



®

NT 4.0:

and  in fi g. 4).



and  in fi g. 4) while



IMAGE SETTINGS USING THE OSD MENU

The OSD menu is a window on your screen that allows
you to view and change display settings. To change an
OSD setting:

1. Press the MENU button (
OSD menu on the screen.

2. There are a total of 12 OSD submenus divided by
categories. Select the desired submenu by pressing
the OSD button DOWN or UP ( and  in fi g. 4; see
section “OSD Menu Functions”).

MENU

DOWN

1

2

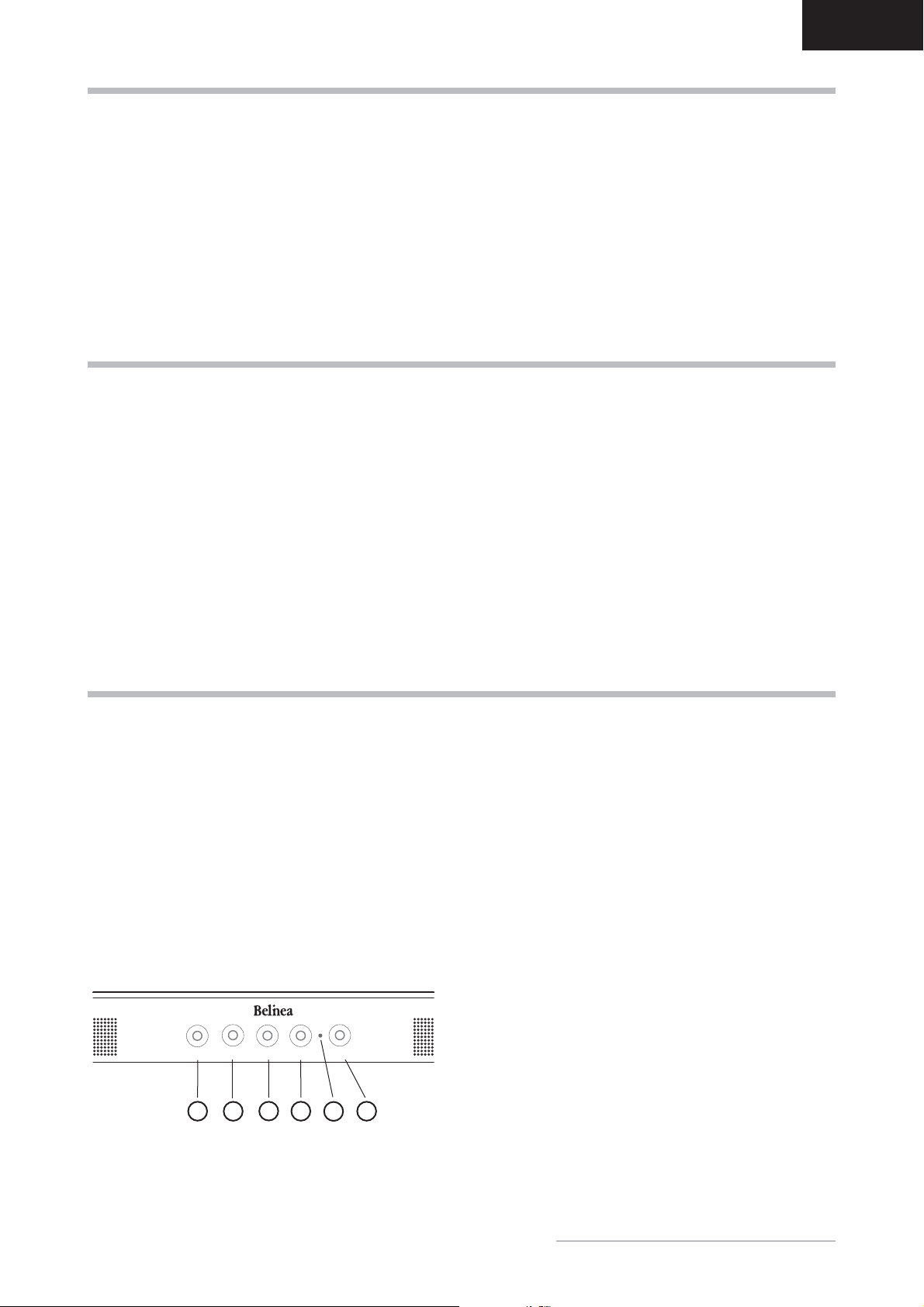

Figure 4. Monitor features

in fi g. 4) to display the



AUTO

UP

3

POWER

4

6

5

3. Press the OSD button MENU (

the selected function or associated submenu.

4. If you selected a submenu, now select the subfunction
you want using the DOWN or UP OSD buttons (



5. Activate the selected option with the MENU button.
Set the desired value using the OSD button DOWN
or UP (
effect immediately.

6. Press the MENU button (
option. Repeat steps 2–5 to make further adjustments
as needed.

7. The OSD menu automatically disappears if no changes
are made for more than 30 seconds (default setting).
The current settings will be saved. You can also close
it manually by activating the EXIT category.

in fi g. 4) to activate



in fi g. 4).

and  in fi g. 4). The new settings will take



in fi g. 4) to deselect the





and

Belinea 10 19 03 - Operating Instructions - 5

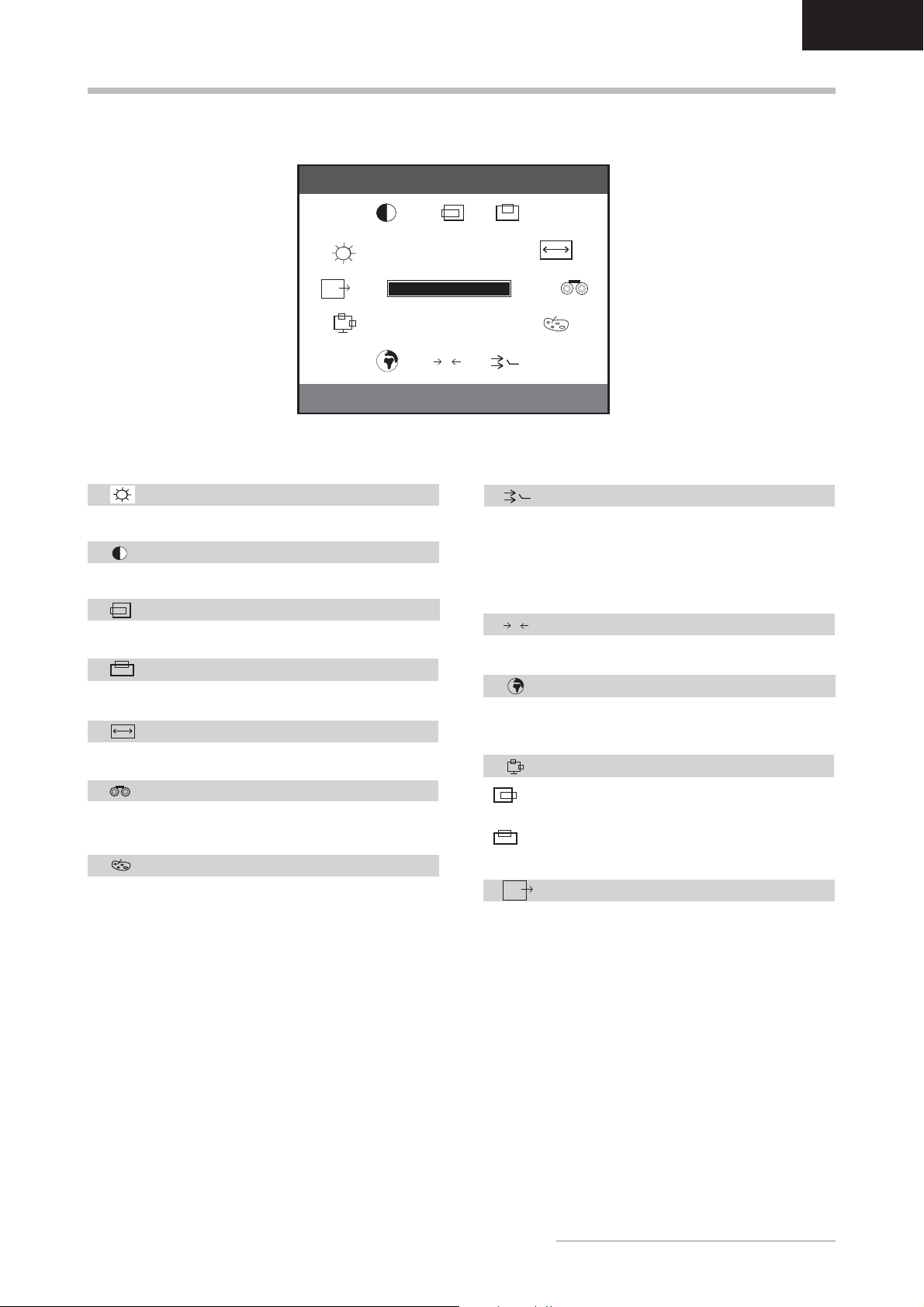

OSD MENU FUNCTIONS

ENGLISH

X

Brightness

Controls the picture brightness.

Contrast

Controls the picture contrast.

H Position

Controls the picture’s horizontal position.

V Position

Controls the picture’s vertical position.

H Size

%

XIT

100

2

(+(Z6(Z

BRIGHTNESS

Input Select

Controls the selection of the input signal. The monitor
allows you to make the following connections: analog
graphics card via the 15-pin mini D-Sub interface (see
fi g. 2a), digital graphics card via the DVI-D interface
(see fi g. 2b).

Recall

,

Restores the image settings to their fac to ry values.

Language

OSD menu language sel ec tion: English, French, German,
Ita lian, Spa nish, Polish, Dutch and Russian.

Controls the picture’s horizontal size.

Phase

Adjusts the internal clock’s time lag in order to optimize
the screen image.

Color

Three different preset color temperatures are available:
9300K, 6500K and sRGB (D65). Select the desired set­ting by pressing the MENU button (
You can also defi ne the RGB values yourself. Press the
buttons DOWN or UP (
red, green and blue settings and then press the MENU
button (

in fi g. 4).



and  in fi g. 4) to select the



in fi g. 4).



OSD Position

OSD H Position: Controls the OSD menu’s

horizontal position.

OSD V Position: Controls the OSD menu’s
vertical position.

%

Exit

XIT

The OSD menu disappears when you select this menu
item and confi rm with MENU.

Belinea 10 19 03 - Operating Instructions - 6

ENGLISH

TROUBLESHOOTING

Blank Screen

Power indicator is off

- Make sure the power cable is connected properly (see section “Connecting”).

- Make sure that the monitor was turned on using the power switch (see section “Startup”).

Power indicator lights green

- A screen saver may have activated automatically after a certain period of inactivity. Press any key on your keyboard
or move the mouse.

Power indicator lights orange

- Could a power saving mode be active? Press any key on your keyboard, or move the mouse.

“No Signal” message

- Is the signal cable connected to the monitor and the PC’s graphics port (see section “Connecting”)?

- Is the PC turned on (see your PC’s documentation)?

Display Problems

Image is displaced to the left/right or to the top/bottom

- If the image appears normal but off-center, you can adjust it using the OSD functions. For further information, see
section “Basic Setup” under “Automatic Image Adjustment” or section “OSD Menu Functions”.

Image flickers or is shaky

- Perhaps setup fi le chosen for the monitor is incorrect. For information on monitor setup under Windows® 9x/ME/2000/
NT/XP consult the “Confi guration” section.

Image is blurred

- Check brightness and contrast settings (see section “OSD Menu Functions”, functions “Contrast” and “Brightness”).

- Check the sharpness setting (see “Phase” function in the “OSD Menu Functions” section).

Color problems

- If the colors are off (e.g. white is not really displayed as white, etc.), you should adjust the color temperature (see
“Color” function in section “OSD Menu Functions”).

TECHNICAL SPECIFICATIONS

LCD panel 19 inch diagonal size (48.3 cm visible), low radiation according to TCO ’99, certifi ed

to ISO 13406-2, pixel fault class II, TN panel technology

Contrast ratio 500:1 (typical) / 600:1 (max.)

Viewing angle (Contrast ratio ≥ 10:1) horizontal 150°, vertical 130° (typical)

(Contrast ratio ≥ 5:1) horizontal 170°, vertical 170° (typical)

Response time 8 ms (typical)

2

Brightness 270 cd/m

Input signal Video: analog (15-pin mini D-Sub) and digital (24-pin DVI-D)

Display colors 16.2 mill. colors

Synchronization 31–83 kHz horizontal, 56–75 Hz vertical

Video band width 135 MHz (pixel rate)

Ergonomic resolution 1280 × 1024 (60 Hz)

Audio Amplifi er: 2 W at 8 Ohms

Loudspeaker: 2 W continuous load, 2,5 W peak power

Power connection Input: 100–240 V AC, 50–60 Hz

Power consumption ON status: < 50 W; color of the status LED: green

SLEEP status: < 4 W; color of the status LED: orange
Power saving functions EPA certifi ed

Dimensions/weight Width: 426 mm, height: 423 mm, depth: 170 mm; 6.1 kg (net)

Operating environment Operation: 0 to 40 °C, humidity: 20–80% (without condensation)

Storage: -20 to +60 °C, humidity: 8–95% (without condensation)

(typical) / 290 cd/m2 (max.)

Belinea 10 19 03 - Operating Instructions - 7

ENGLISH

DEFINITION OF THE MAXDATA WARRANTY

The MAXDATA warranty covers all failures resulting from defective components and manufacturing defects that occur
within the product specifi c warranty period. The warranty period begins on the date of purchase (date of original customer
invoice).

Please be aware that in order to maintain your warranty claim the product concerned has to be received by MAXDATA
together with the serial number and a copy of the original customer invoice within the warranty period.

MAXDATA`s obligation under the warranty is restricted to repairing or exchanging defective components.

Defective components removed during repair process become the property of MAXDATA.

Components replaced within warranty coverage assume the remaining valid warranty period of the system.

Scope of the MAXDATA warranty:

MAXDATA`s obligation under the warranty is limited to failures resulting from defective components and manufacturing
defects, defects in the CRT, panel and background lighting for electrical errors (please also refer to the term defi nition
and liability restriction).

Exclusions from the MAXDATA warranty:

The MAXDATA warranty does not cover damage of any kind that results from:

• The use of peripheral devices

• Improper use/operating faults

• Non-adherence to the user instructions

• Attempted repairs by the customer or third-parties without authorisation by MAXDATA

• Defective maintenance by third parties

• Device defects due to power failure, heat losses, missing EMC (electro-magnetic compatibility) cabling or similar
reasons

• Accidents, storms, lightening, fi re, water/other liquids, other natural catastrophes, theft, riots, plundering, the effects
of war or other instances of acts of god

• The use of third-party components

• Non-authorised system changes

• BIOS versions/fi rmware updates/programmes to remove defects of all kinds (e.g., service packs, bug-fi xes, hot­fi x e s )

• Resetting safety functions, deletion of passwords etc.

• Loss of customer-specifi c data or software from repair and installation processes

• Improper use of machine capacity or output

• Inappropriate customer operating environment

The MAXDATA warranty also does not cover the following:

• MAXDATA products from which the category plates, serial numbers, part numbers on the machine of machine parts
have been removed or changed

• Decline in rechargeable battery capacity after the end of the 6 month warranty period

• The provision and installation of BIOS, driver or software updates/upgrades

• The new installation of software/operating systems that are no longer able to run (e.g., because of the deletion of
system-relevant fi les, incorrect system settings or self-copying programs, e.g. computer viruses)

• Wear and tear on data storage media, LCD background lighting, CRTs on CRT monitors, picture tube burn-in or loss
of brightness

• MAXDATA products for which the warranty seal has been broken by entities other than MAXDATA or those authorised
by MAXDATA

• Breaks and scratches on TFT panels and CRT displays

• Damage through use of force and external impact respectively

• Spots on the panel caused by external impacts

Belinea 10 19 03 - Operating Instructions - 8

ENGLISH

• Colour spots resulting from falls

• Error class 2 pixel errors (please note the information on ISO 13406-2 on the website of the MAXDATA subsidiary
concerned)

If the device received by MAXDATA demonstrates two defects and only one of these is covered by the MAXDATA warranty
claim, the customer only has the right to repair for the damage to his device covered by the warranty.

In this case MAXDATA reserves the right to offer the customer several options on resolution in the form of a quotation
and to charge the relevant processing costs.

This also applies to those devices for which upon receipt, it is found that they are not covered by the warranty. In these
cases, MAXDATA reserves ownership of the exchange device provided and is entitled to demand its return.

MAXDATA reserves the right to charge costs incurred for unsuccessful attempts to collect a device that has been regis­tered as defective from the customer.

If an exchange device is not provided in spite of a period having been set, MAXDATA is entitled to charge the net sales
price as per the current price list plus the processing costs incurred. The customer has the right to provide evidence for
the existence of lower damages.

MAXDATA restriction to liability:

MAXDATA expressly excludes customer claims that go beyond the warranty conditions if there is no obligation of liability
imposed on MAXDATA by the laws of the country where the device was bought. This also applies in particular with regard
to claims for damages as a result of default, damages for claims arising as a result of defects, loss of profi t, transport
damage that was not registered within a period of 6 days after receipt of the goods, loss of data or information through
repair processes or damage resulting from interruption to operations.

Governing law:

All rights and duties are subject to the law of the country in which the MAXDATA product was purchased. The Agreement
on Contracts for the International Sale of Goods (CISG) is not applicable.

Data Backup:

The responsibility for complete data backups, including of applications and operating system software remains exclusively
with the customer. The data must be backed up before the warranty claim is made. MAXDATA excludes liability for any
data or information lost for this reason during a warranty claim.

For further details regarding the MAXDATA warranty conditions please refer to www.maxdata.co.uk.

Belinea 10 19 03 - Operating Instructions - 9

Congratulations!

You have just purchased a TCO99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your
purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics
products.

This product meets the requirements for the TCO99 scheme which provides for an international environmental and quality labelling of personal
computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and
SEMKO AB.

The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and
electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment.
The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in
the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these
potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal)
and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate­influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby
consumes a lot of energy.

What does the environmenal labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These
demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated
solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must
be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to
a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be
ordered from:

TCO Development - SE-114 94 Stockholm, Sweden - Fax: [phone] - Email (Internet): [e-mail]

Current information regarding TCO99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread
of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and
those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or
chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to
the bio-accumulative

*

processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development

may occur.

The relevant TCO99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically
bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous
system and is toxic in high doses. The relevant TCO99 requirement states that batteries, the colour-generating layers of display screens and the

**

electrical or electronics components must not contain any cadmium.

**

Mercury

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO99
requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics
components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat
panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is
available.

CFCs (freons)

The relevant TCO99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs
(freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere,
causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

**

Lead

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead
poisoning. The relevant TCO´99 requirement permits the inclusion of lead since no replacement has yet been developed.

*

Bio-accumulative is defined as substances which accumulate within living organisms

**

Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Austria

MAXDATA Computer GmbH

Ignaz-Köck-Straße 9 • A-1210 Wien

Benelux

MAXDATA Benelux B.V.

Bredaseweg 113-115 • NL-4872 LA Etten-Leur

Germany

MAXDATA Computer GmbH & Co. KG

Elbestraße 12-16 • D-45768 Marl

France

MAXDATA S.A.R.L.

1, rue du Gevaudan • SILIC 1726

F-91017 EVRY-LISSES

Italy

MAXDATA Italia S.r.l.

Strada 1, Palazzo F1

I-20090 Milanofi ori, Assago (MI)

Poland

MAXDATA Sp. z o.o.

Ursynów Business Park

Ul. Puławska 303 • PL-02-785 Warszawa

Spain • Portugal

MAXDATA Iberia

C/Collado mediano, s/n • Edifi cio Prisma

Portal 1 - Pta. 1a B • E-28230 - Las ROZAS, Madrid

Switzerland

MAXDATA Computer AG

Haldenstrasse 5 • CH-6340 Baar

United Kingdom

MAXDATA UK Limited

The MAXDATA Centre • Downmill Road

Bracknell, Berkshire RG12 1QS • UK

www.maxdata.com

Art. No.: 11 19 28
