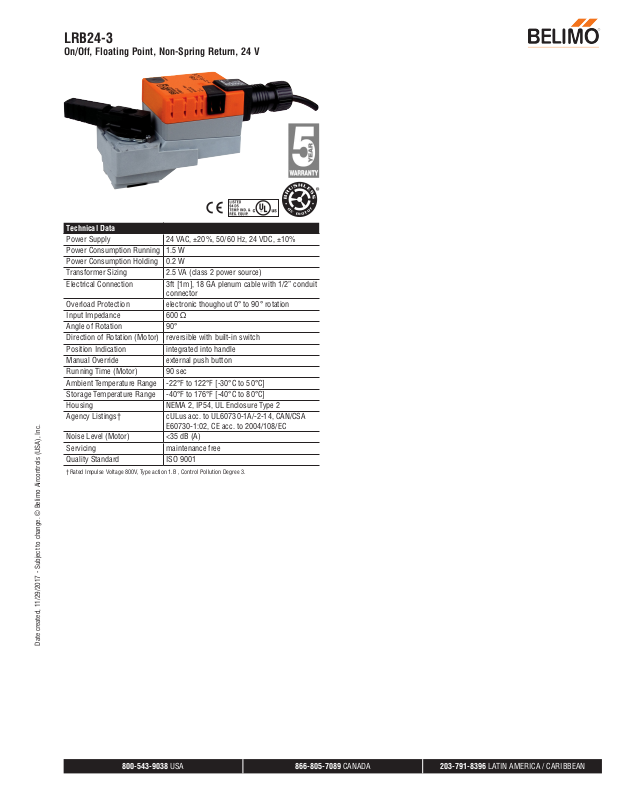

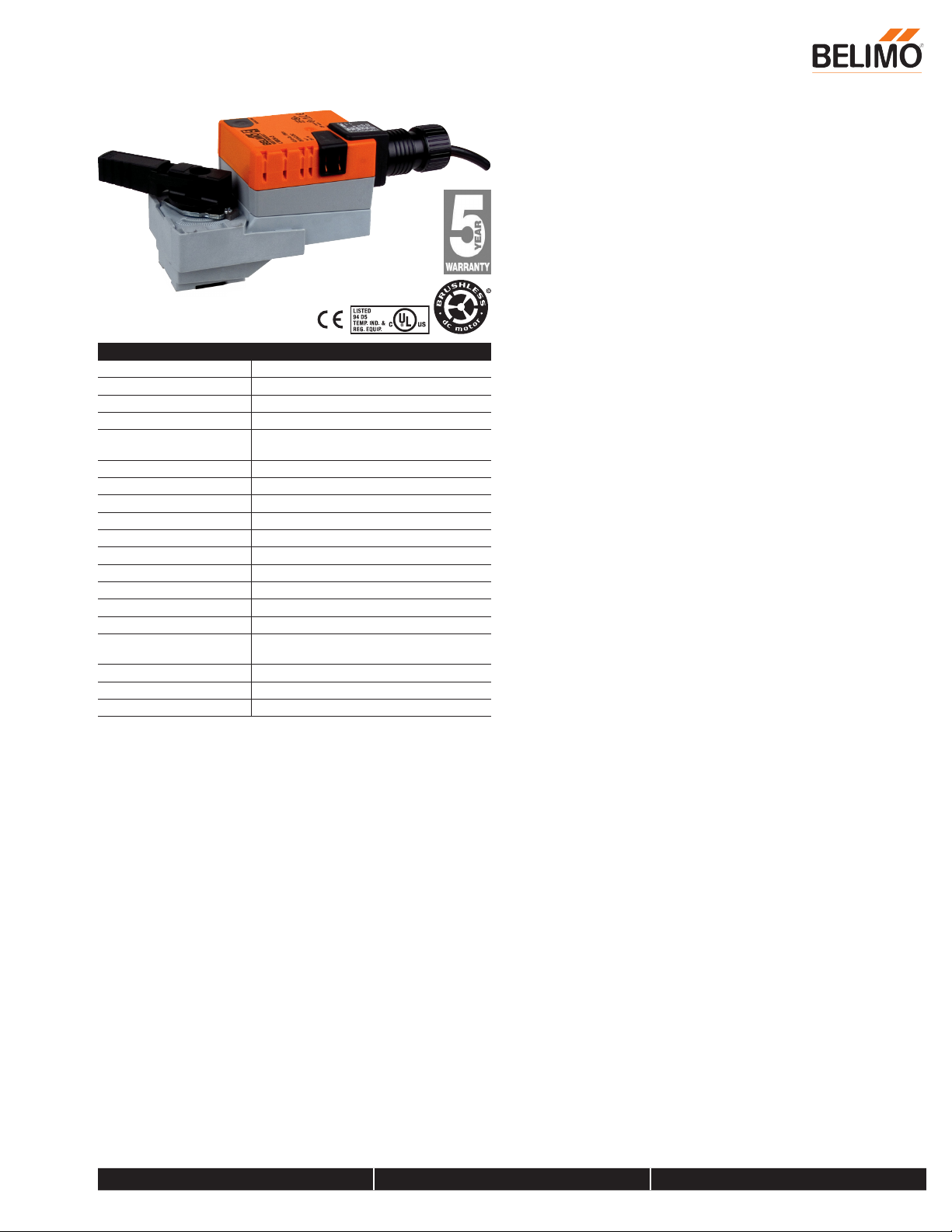

LRB24-3
On/Off, Floating Point, Non-Spring Return, 24 V
Technical Data
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption Running 1.5 W
Power Consumption Holding 0.2 W
Transformer Sizing 2.5 VA (class 2 power source)
Electrical Connection 3ft [1m], 18 GA plenum cable with 1/2” conduit
connector
Overload Protection electronic thoughout 0° to 90° rotation
Input Impedance 600 Ω
Angle of Rotation 90°
Direction of Rotation (Motor) reversible with built-in switch
Position Indication integrated into handle
Manual Override external push button
Running Time (Motor) 90 sec
Ambient Temperature Range -22°F to 122°F [-30°C to 50°C]
Storage Temperature Range -40°F to 176°F [-40°C to 80°C]
Housing NEMA 2, IP54, UL Enclosure Type 2
Agency Listings† cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC
Noise Level (Motor) <35 dB (A)
Servicing maintenance free
Quality Standard ISO 9001
†Rated Impulse Voltage 800V, Type action 1.B , Control Pollution Degree 3.
2253
Date created, 11/29/2017 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Page 2

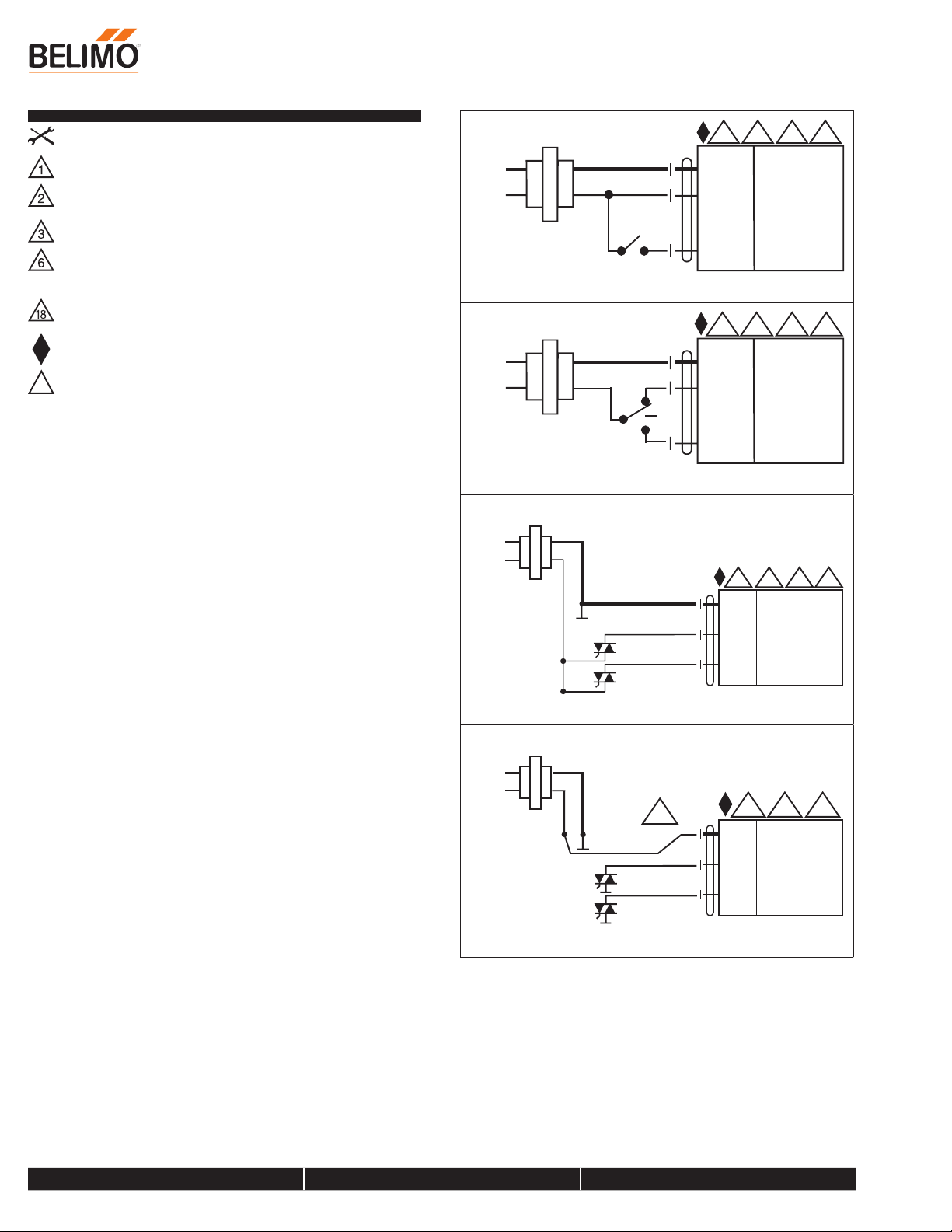

Wiring Diagrams
Line
V
Line
V
Line
V
24 VAC Transformer
Line
V
24 VAC Transformer
INSTALLATION NOTES
On/Off, Floating Point, Non-Spring Return, 24 V
24 VAC Transformer
1
LRB24-3
2 3 18
Provide overload protection and disconnect as required.
Actuators may be connected in parallel. Power consumption and input
impedance must be observed.
Actuators may also be powered by 24 VDC.
Actuators Hot wire must be connected to the control board common.
Only connect common to neg. (-) leg of control circuits. Terminal
models (-T) have no-feedback.
Actuators with plenum cable do not have numbers; use color codes
instead.
Meets cULus requirements without the need of an electrical ground
connection.
WARNING! LIVE ELECTRICAL COMPONENTS!
!
During installation, testing, servicing and troubleshooting of this
product, it may be necessary to work with live electrical components.
Have a qualified licensed electrician or other individual who has been
properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to
live electrical components could result in death or serious injury.
olts
On/Off
24 VAC Transformer
olts
Floating Point
olts
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
2 3 18
1
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
2 3 18
ComHot
1
Blk (1) Common
olts
ComHot
Floating Point - Triac Sink
Red (2) + Hot
Wht (3) Y Input
2
6
1
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
18
