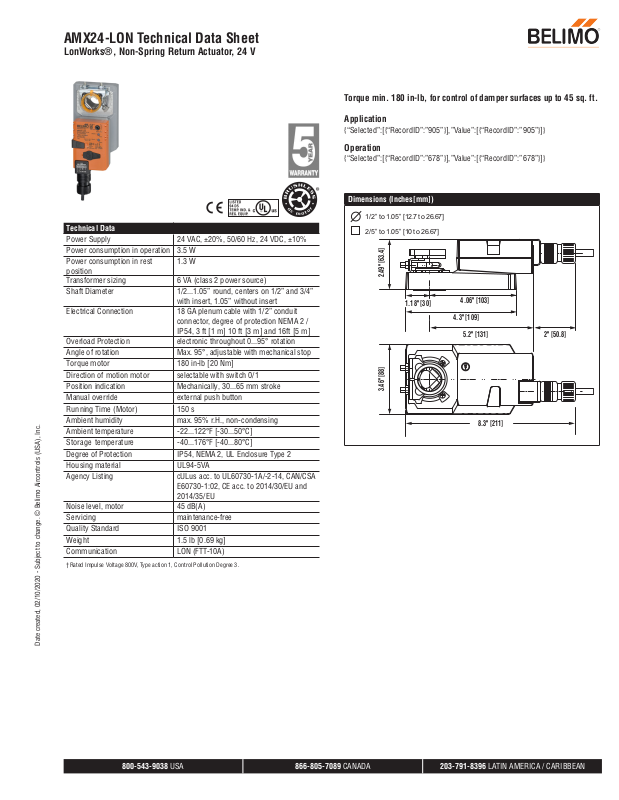

AMX24-LON Technical Data Sheet
LonWorks®, Non-Spring Return Actuator, 24 V
Technical Data
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power consumption in operation 3.5 W
Power consumption in rest
position
Transformer sizing 6 VA (class 2 power source)
Shaft Diameter 1/2...1.05” round, centers on 1/2” and 3/4”
Electrical Connection 18 GA plenum cable with 1/2” conduit
Overload Protection electronic throughout 0...95° rotation
Angle of rotation Max. 95°, adjustable with mechanical stop
Torque motor 180 in-lb [20 Nm]
Direction of motion motor selectable with switch 0/1
Position indication Mechanically, 30...65 mm stroke
Manual override external push button
Running Time (Motor) 150 s
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP54, NEMA 2, UL Enclosure Type 2
Housing material UL94-5VA
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA
Noise level, motor 45 dB(A)
Servicing maintenance-free
Quality Standard ISO 9001
Weight 1.5 lb [0.69 kg]
Communication LON (FTT-10A)
†Rated Impulse Voltage 800V, Type action 1, Control Pollution Degree 3.
1.3 W
with insert, 1.05” without insert
connector, degree of protection NEMA 2 /
IP54, 3 ft [1 m] 10 ft [3 m] and 16ft [5 m]
E60730-1:02, CE acc. to 2014/30/EU and
2014/35/EU
1496
Torque min. 180 in-lb, for control of damper surfaces up to 45 sq. ft.
Application
{“Selected”:[{“RecordID”:”905”}],”Value”:[{“RecordID”:”905”}]}
Operation
{“Selected”:[{“RecordID”:”678”}],”Value”:[{“RecordID”:”678”}]}

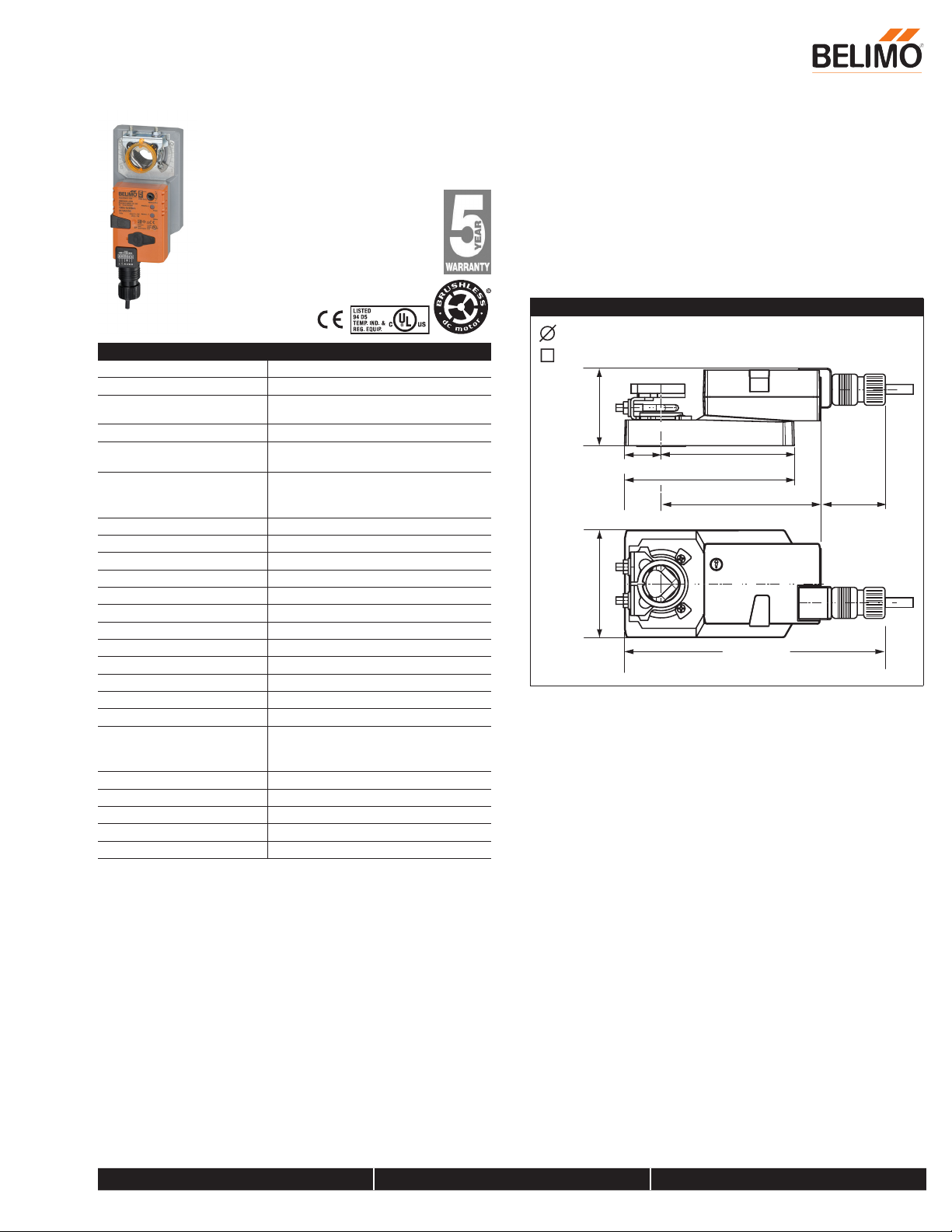

Dimensions (Inches[mm])
1/2” t o 1.05” [12.7 to 26.67]
2/5” t o 1.05” [10 to 26.67]
1.18" [30]
3.46" [88] 2.49" [63.4]
4.06" [103]
4.3" [109]
5.2" [131]
2" [50.8]
8.3" [211]
Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Page 2
~
••••
~
~
AMX24-LON Technical Data Sheet
LonWorks®, Non-Spring Return Actuator, 24 V

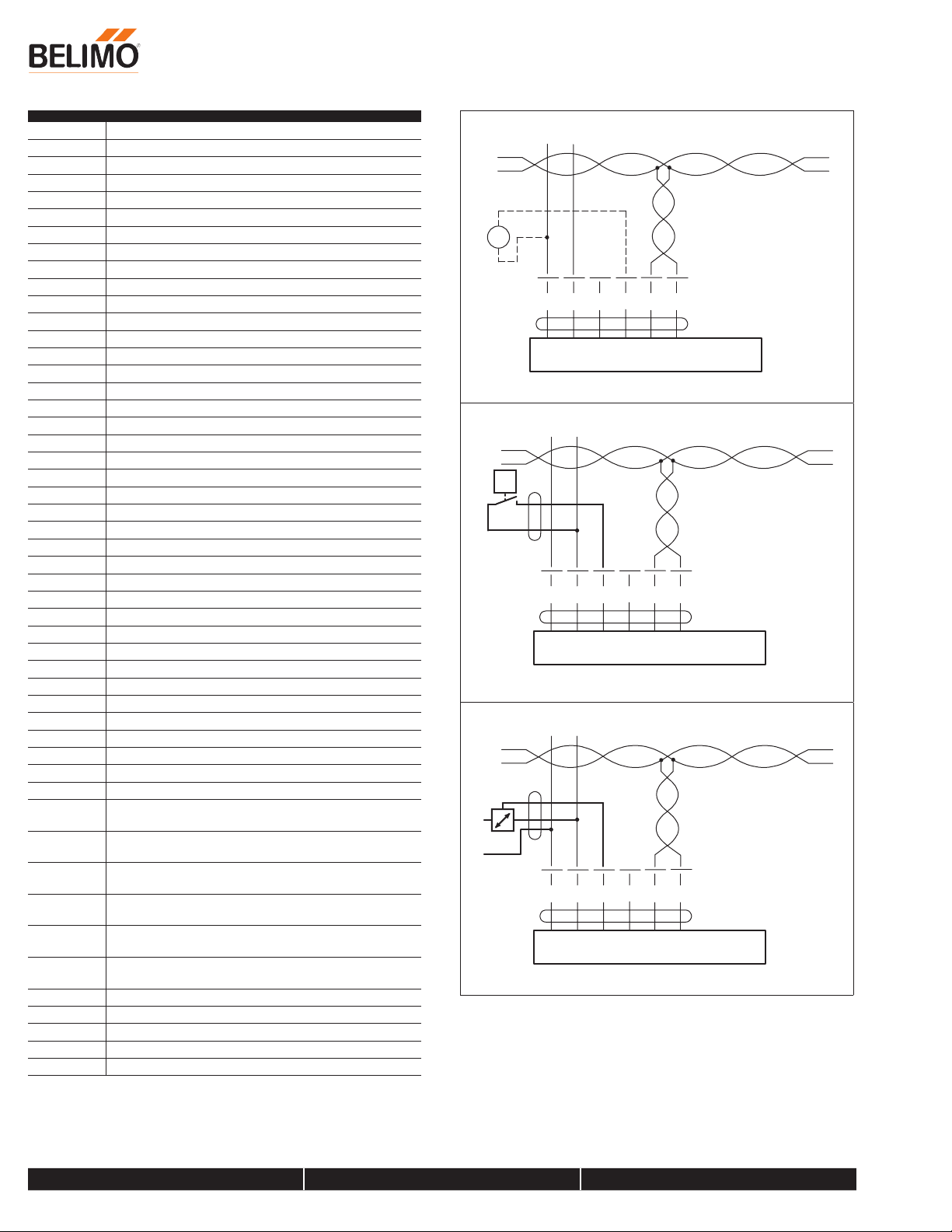

Accessories
KH8 Damper crank arm
KH10 Damper crank arm
KG8 Ball joint
KG10A Ball joint
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
SH10 Push rod for KG10A ball joint (36” L, 3/8” diameter).
ZG-DC1 Damper clip for damper blade, 3.5” width.
ZG-DC2 Damper clip for damper blade, 6” width.
ZS-100 Weather shield - galvaneal 13x8x6” (LxWxD).
ZS-101 Base plate for ZS-100.
ZS-150 Weather shield - PC w/ foam seal 16x8-3/8x4” (LxWxD).
AV8-25 Shaft extension
TF-P Anti-rotation bracket TF/NKQ/AM/NM/LM.
ZG-100 Univ. right angle bracket 17”x11-1/8”x6” (HxWxbase).
ZG-101 Univ. right angle bracket 13x11x7-7/16” (HxWxbase).
TOOL-06 8 mm and 10 mm wrench.
Z-SPA Adapter
PS-100 Low voltage and control signal simulator.
AH-25 Actuator arm
K-AM25 Standard NKQ/AM/NM clamp (1/2” to 1.05”).
K-SA Shaft clamp reversible
ZG-109 Right angle bracket for ZS-260.
ZG-110 Stand-off bracket for ZS-260.
ZG-112 LF right angle bracket 4-1/2x5-1/2x2-1/2” (HxWxD).
ZG-JSA-1 1” diameter jackshaft adaptor (11” L).
ZG-JSA-2 1-5/16” diameter jackshaft adaptor (12” L).
ZG-JSA-3 1.05” diameter jackshaft adaptor (12” L).
ZG-NMA Mounting kit for linkage operation
ZS-260 Explosion proof housing.
ZS-300 NEMA 4X, 304 stainless steel enclosure.
ZS-300-5 NEMA 4X, 316L stainless steel enclosure.
ZS-300-C1 1/2” shaft adaptor, standard wtih ZS-300(-5).
ZS-300-C2 3/4” shaft adaptor for ZS-300(-5).
ZS-300-C3 1” shaft adaptor for ZS-300(-5).
Z-SMA Base plate extension
S1A Auxiliary switch for damper actuators and rotary actuators
S2A Auxiliary switch for damper actuators and rotary actuators
P475 Shaft mount, non-Mercury aux. switch for 1/2” dia. shafts.
P475-1 Shaft mount, non-Mercury aux. switch for 1” dia. shafts.
P140A GR Feedback potentiometer for damper actuators and rotary
P500A GR Feedback potentiometer for damper actuators and rotary
P1000A GR Feedback potentiometer for damper actuators and rotary
P2800A GR Feedback potentiometer for damper actuators and rotary
P5000A GR Feedback potentiometer for damper actuators and rotary
P10000A GR Feedback potentiometer for damper actuators and rotary
NSV24 US Battery back-up module for non-spring return actuators.
NSV-BAT 12V 1.2AH battery (two required for NSV24 US).
ZG-X40 120 to 24 VAC, 40 VA transformer.
TF-CC US Cable conduit connector, 1/2”.
43442-00001 Cable gland (for NEMA 4 models).
actuators
actuators
actuators
actuators
actuators
actuators
T
+
–
V
567321
T
~
+
–
MFT
LON
LON
Connection without Sensor
T
+
–
567321
~
T
+
–
MFT
LON
LON
Connection with Switching Contact, e.g. p-monitor
T
+
–
567321
~
T
+
–
Connection with Active Sensor, e.g. 0... 10 V @ 0...50 C
MFT
LON
LON
Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Page 3
AMX24-LON Technical Data Sheet
LonWorks®, Non-Spring Return Actuator, 24 V
Typical Specification
Proportional control damper actuators shall be electronic direct-coupled type,
which require no crank arm and linkage and be capable of direct mounting
to a shaft from 1/4” to 1/2” diameter. Actuators must provide proportional
damper control response to a 2 to 10 VDC or, with the addition of a 500Ω
resistor, a 4 to 20 mA control input from an electronic controller or positioner.
Actuators shall have brushless DC motor technology and be protected from
overload at all angles of rotation. Actuators shall have manual override on the
cover. Run time shall be constant and independent of torque. Actuators shall
be cULus listed, have a 5-year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as manufactured
by Belimo.
Wiring Diagrams
