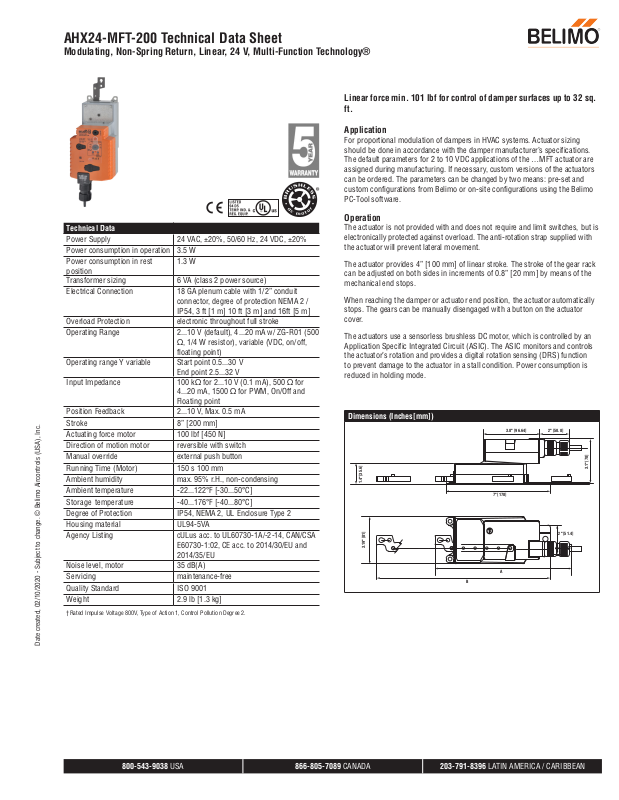

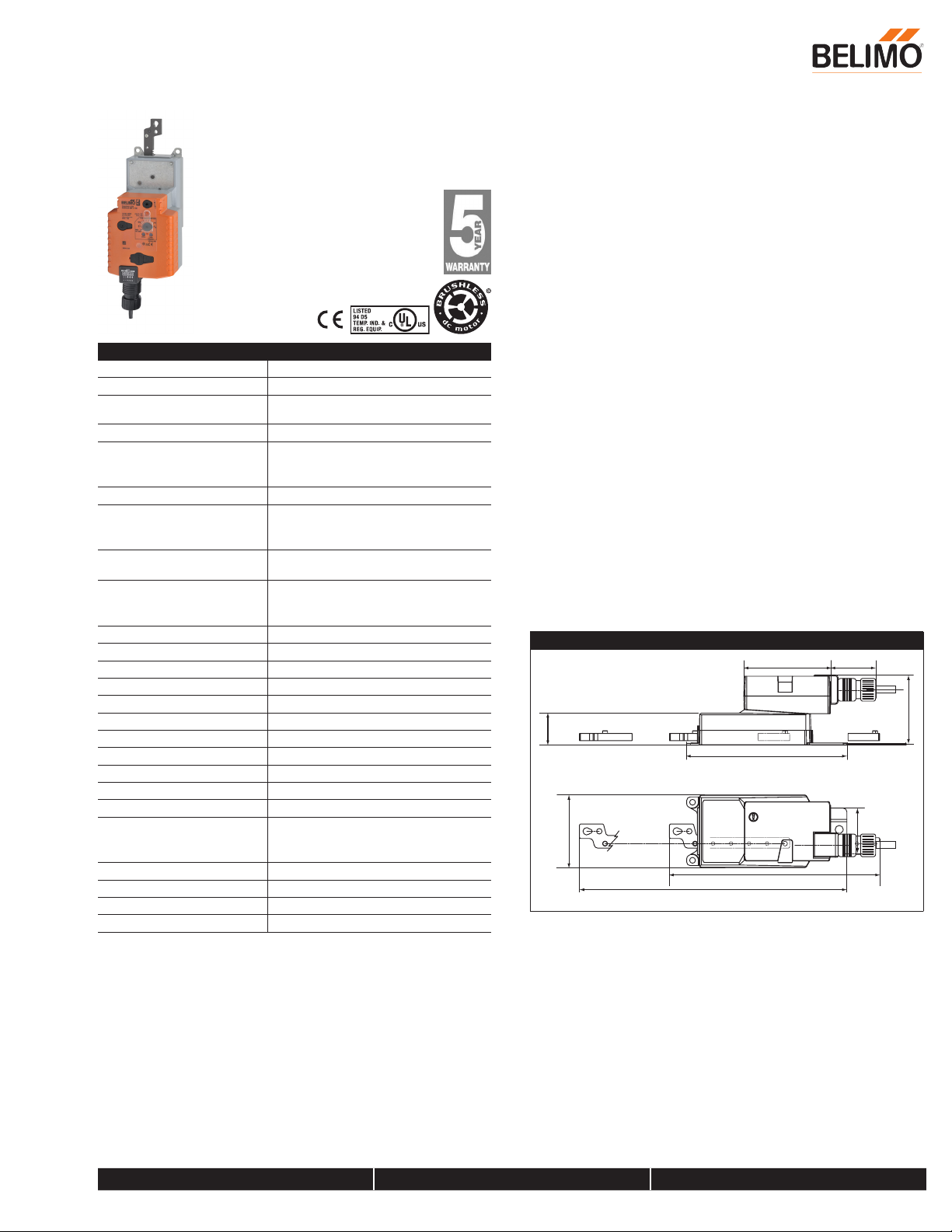

Belimo AHX24-MFT-200 Technical Data Sheet

2" [50.8]

3.8" [96.64]

B

AHX24-MFT-200 Technical Data Sheet

Modulating, Non-Spring Return, Linear, 24 V, Multi-Function Technology®

Linear force min. 101 lbf for control of damper surfaces up to 32 sq.
ft.

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing
should be done in accordance with the damper manufacturer’s specifications.
The default parameters for 2 to 10 VDC applications of the …MFT actuator are
assigned during manufacturing. If necessary, custom versions of the actuators
can be ordered. The parameters can be changed by two means: pre-set and
custom configurations from Belimo or on-site configurations using the Belimo

PC-Tool software.

Operation

Technical Data

1569

Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±20%
Power consumption in operation 3.5 W
Power consumption in rest

1.3 W
position
Transformer sizing 6 VA (class 2 power source)

Electrical Connection 18 GA plenum cable with 1/2” conduit

connector, degree of protection NEMA 2 /
IP54, 3 ft [1 m] 10 ft [3 m] and 16ft [5 m]

Overload Protection electronic throughout full stroke
Operating Range 2...10 V (default), 4...20 mA w/ ZG-R01 (500

Ω, 1/4 W resistor), variable (VDC, on/off,
floating point)

Operating range Y variable Start point 0.5...30 V

End point 2.5...32 V

Input Impedance 100 kΩ for 2...10 V (0.1 mA), 500 Ω for

4...20 mA, 1500 Ω for PWM, On/Off and

Floating point

Position Feedback 2...10 V, Max. 0.5 mA
Stroke 8” [200 mm]
Actuating force motor 100 lbf [450 N]
Direction of motion motor reversible with switch
Manual override external push button
Running Time (Motor) 150 s 100 mm
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP54, NEMA 2, UL Enclosure Type 2
Housing material UL94-5VA
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA

E60730-1:02, CE acc. to 2014/30/EU and
2014/35/EU

Noise level, motor 35 dB(A)
Servicing maintenance-free
Quality Standard ISO 9001
Weight 2.9 lb [1.3 kg]

†Rated Impulse Voltage 800V, Type of Action 1, Control Pollution Degree 2.

The actuator is not provided with and does not require and limit switches, but is
electronically protected against overload. The anti-rotation strap supplied with
the actuator will prevent lateral movement.

The actuator provides 4” [100 mm] of linear stroke. The stroke of the gear rack
can be adjusted on both sides in increments of 0.8” [20 mm] by means of the
mechanical end stops.

When reaching the damper or actuator end position, the actuator automatically
stops. The gears can be manually disengaged with a button on the actuator
cover.

The actuators use a sensorless brushless DC motor, which is controlled by an
Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls
the actuator’s rotation and provides a digital rotation sensing (DRS) function
to prevent damage to the actuator in a stall condition. Power consumption is
reduced in holding mode.

Dimensions (Inches[mm])

1.4" [35.6]

3.1" [78]

3.19" [81]

7" [178]

2" [51.4]

A

Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN

Position
Feedback VDC

Position
Feedback VD

Line
V

Line
Volt

Modulating, Non-Spring Return, Linear, 24 V, Multi-Function Technology®

Accessories

KG10A Ball joint
KG8 Ball joint
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
Z-DS1 Rotary support
Z-KSC 3/8”-16 shaft clevis for AHK/AH.
ZG-119 Bracket for AHK/AH/LH linear actuators.
IRM-100 Input rescaling module for modulating actuators.
MFT-P Belimo PC-Tool
PS-100 Low voltage and control signal simulator.
PTA-250 Pulse width modulation interface for modulating actuators.
SGA24 Positioners suitable for use with the modulating damper

actuators LM..A-SR, NM..A-SR, SM..A-SR and GM..A-SR

SGF24 Positioners suitable for use with the modulating damper

actuators LM..A-SR, NM..A-SR, SM..A-SR and GM..A-SR
TF-CC US Cable conduit connector, 1/2”.
UK24BAC Gateway MP to BACnet MS/TP
UK24LON Gateway MP to LonWorks
UK24MOD Gateway MP to Modbus RTU
ZG-R01 4 to 20 mA adaptor, 500Ω, 1/4 W resistor w 6” pigtail wires.
ZG-R02 50% voltage divider kit (resistors with wires).
ZG-SGF Mounting plate for SGF.
ZG-X40 120 to 24 VAC, 40 VA transformer.
ZK1-GEN Connection cable
ZK2-GEN Connection cable
ZTH US Handheld programming tool w/ ZK1-GEN, ZK2-GEN, ZK6-GEN.
NSV24 US Battery back-up module for non-spring return actuators.
NSV-BAT 12V 1.2AH battery (two required for NSV24 US).

Typical Specification

Proportional control damper actuators shall be electronic type, with integrated
linear stroking arm. Actuators must provide control in response to a control
input from an electronic controller or positioner. Actuators shall have
Brushless DC motor technology and be protected from overload at all angles
of rotation. Actuators shall have reversing switch and manual override on the
cover. Run time shall be constant and independent of torque. Actuators shall
be cULus listed, have a 5-year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as manufactured
by Belimo.

AHX24-MFT-200 Technical Data Sheet

24 VAC Transformer

Line
Volts

(–)

(+)

On/Off

24 VAC Transformer (AC Only)

Line
Volts

(–)
(+)

Floating Point

24 VAC Transformer

olts

Control Signal

VDC/mA Control

C

VDC / mA

Ω

(–)

(+)

7

500

Ω

1/4 watt

Blk (1)

Red (2)

Wht (3)

Pnk (4)

Org (5)

1

Blk (1)

Red (2)

Wht (3)

Pnk (4)

Org (5)

1 3

Blk (1)

Red (2)

Wht (3)

Pnk (4)

Org (5)

1 3

Common

Hot +

Input

Y

1

Input

Y

2

U Output

Common

Hot +

Input

Y

1

Input

Y

2

U Output

Common

Hot +

Input

Y

1

Input

Y

2

U Output

11

1110

5

11

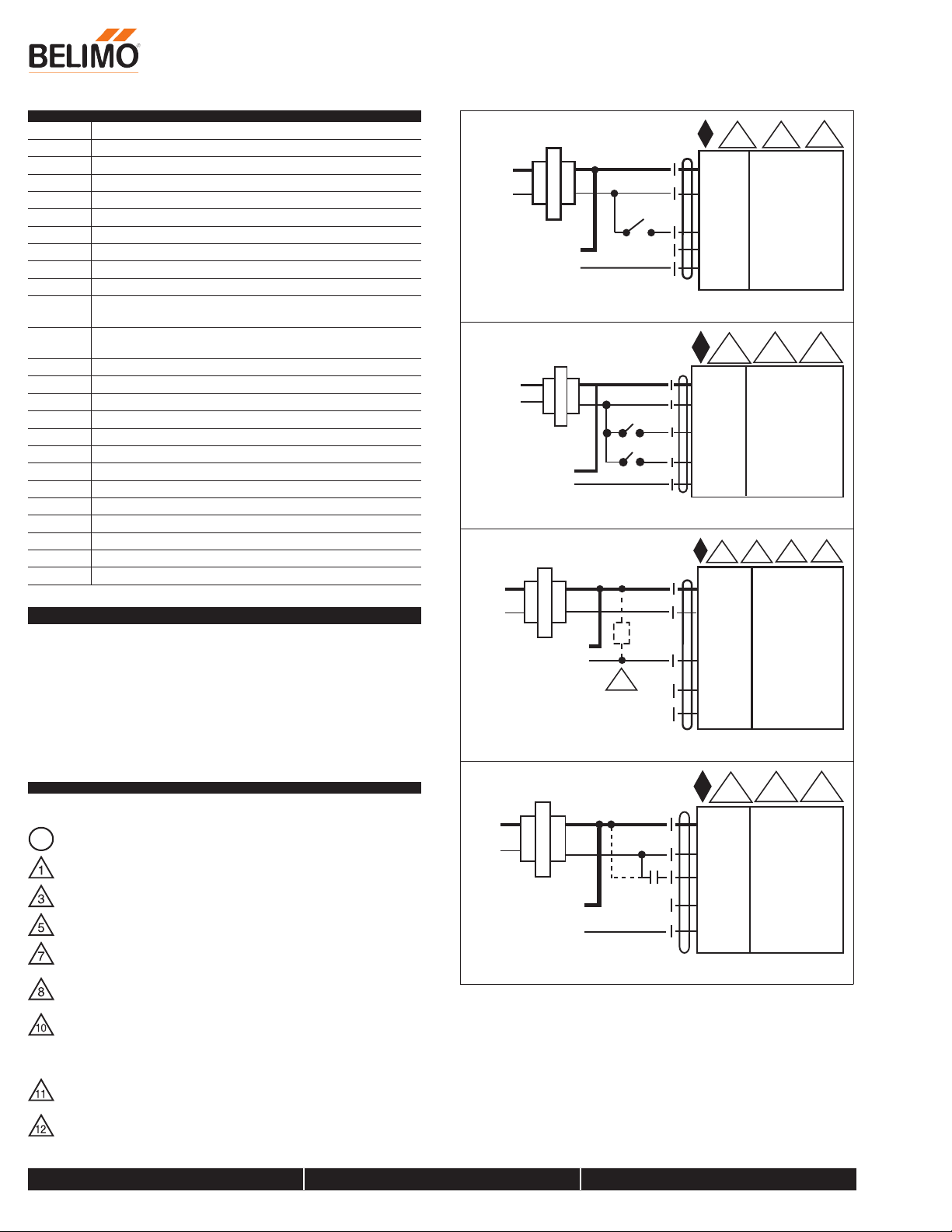

Wiring Diagrams

Actuators with appliance cables are numbered.

A

Provide overload protection and disconnect as required.

Actuators may also be powered by 24 VDC.

Only connect common to negative (-) leg of control circuits.

A 500 Ω resistor (ZG-R01) converts the 4 to 20 mA control signal to 2
to 10 VDC.

Control signal may be pulsed from either the Hot (Source) or Common
(Sink) 24 VAC line.

For triac sink the Common connection from the actuator must be
connected to the Hot connection of the controller. Position feedback
cannot be used with a triac sink controller; the actuator internal
common reference is not compatible.

Actuators may be connected in parallel if not mechanically linked. Power
consumption and input impedance must be observed.

IN4004 or IN4007 diode. (IN4007 supplied, Belimo part number

40155).

24 VAC Transformer (AC Only)

s

Position
Feedback VDC

(–)

(+)

1

Blk (1)

Red (2)

Wht (3)

Pnk (4)

Org (5)

8

Common

Hot +

Input

Y

1

Input

Y

2

U Output

11

PWM Control

800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN

Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.

1

Normal

AHX24-MFT-200 Technical Data Sheet

Modulating, Non-Spring Return, Linear, 24 V, Multi-Function Technology®

24 VAC Transformer (AC Only)

Line
Volts

Control Signal

VDC / mA

Functions

Min

Mid

Max

Control mode acc. to Y

(–)

(+)

0%

50%

100%

Ω

7

A
B

C

12

abc

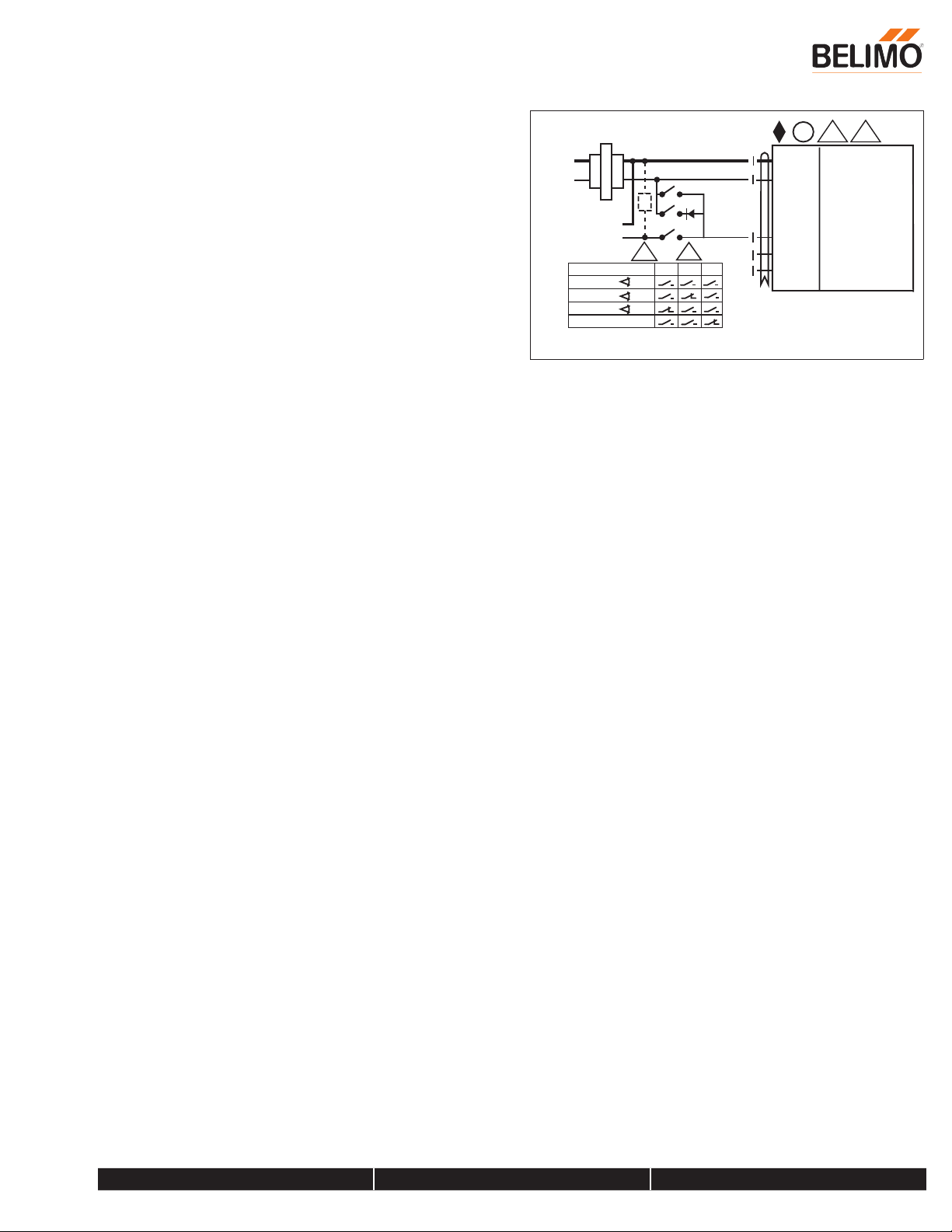

Override Control

A

1 5

Blk (1) Common

Red (2) + Hot

Wht (3)

Pnk (4)
Org (5)

Input

Y

1

Y

Input

2

U Output

Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.
