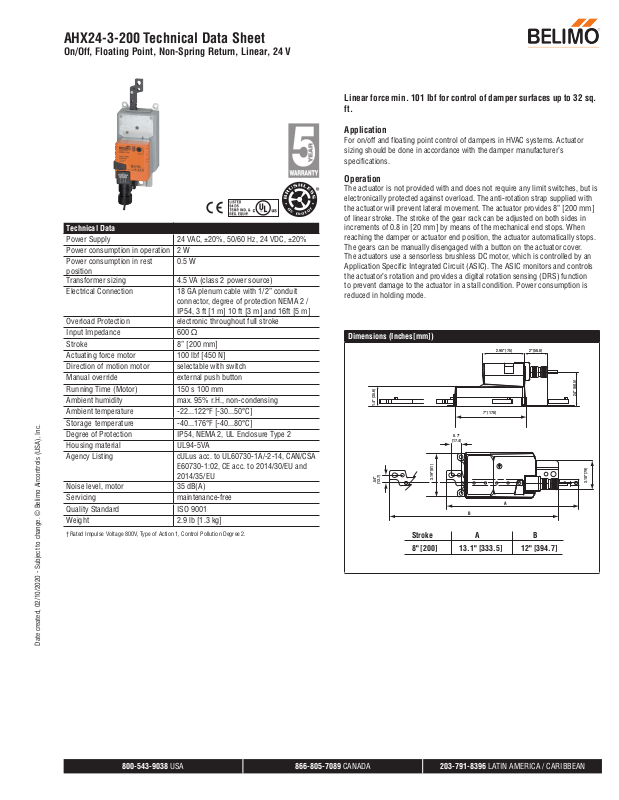

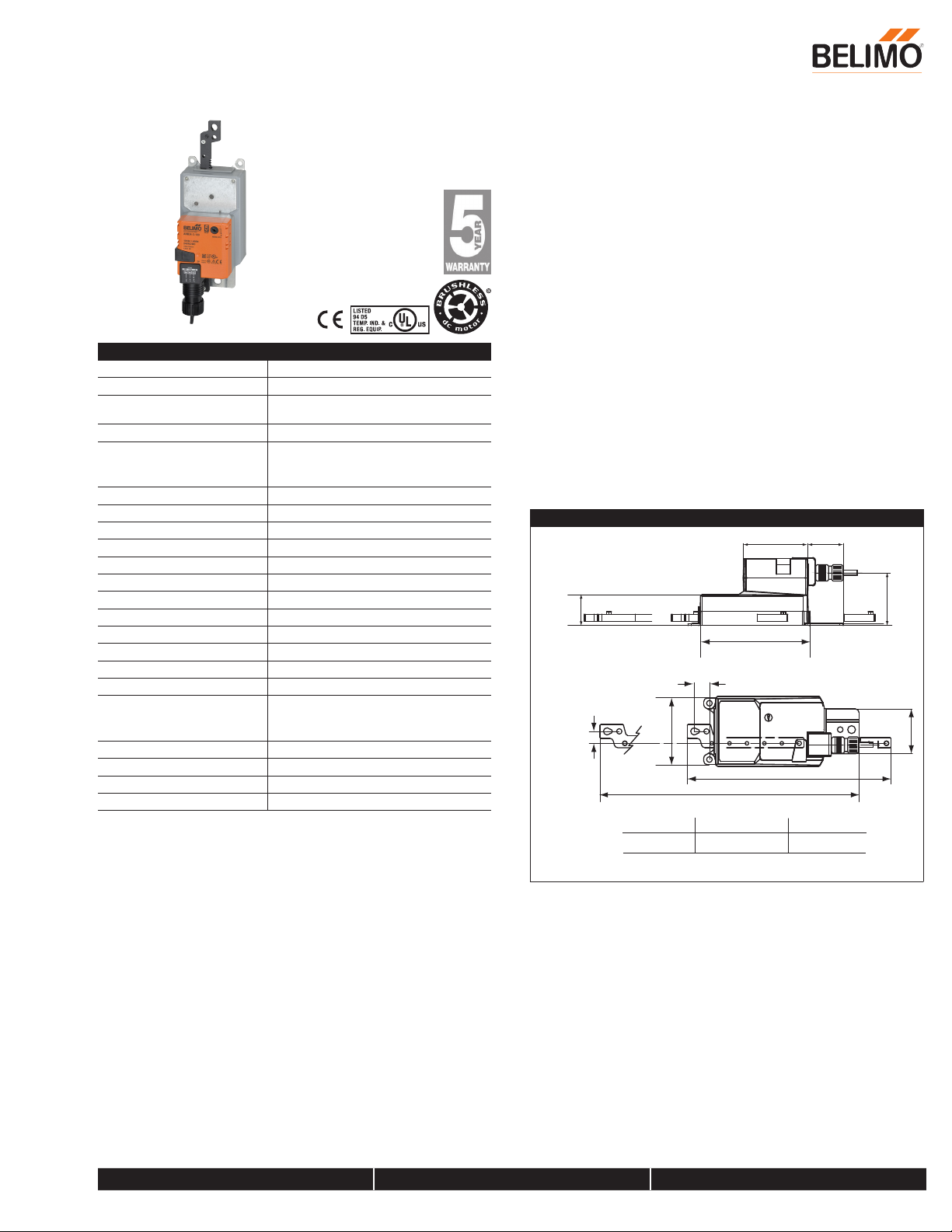

AHX24-3-200 Technical Data Sheet
On/Off, Floating Point, Non-Spring Return, Linear, 24 V
Technical Data
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±20%
Power consumption in operation 2 W
Power consumption in rest
0.5 W
position
Transformer sizing 4.5 VA (class 2 power source)
Electrical Connection 18 GA plenum cable with 1/2” conduit
connector, degree of protection NEMA 2 /
IP54, 3 ft [1 m] 10 ft [3 m] and 16ft [5 m]
Overload Protection electronic throughout full stroke
Input Impedance 600 Ω
Stroke 8” [200 mm]
Actuating force motor 100 lbf [450 N]
Direction of motion motor selectable with switch
Manual override external push button
Running Time (Motor) 150 s 100 mm
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP54, NEMA 2, UL Enclosure Type 2
Housing material UL94-5VA
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2014/30/EU and
2014/35/EU
Noise level, motor 35 dB(A)
Servicing maintenance-free
Quality Standard ISO 9001
Weight 2.9 lb [1.3 kg]
†Rated Impulse Voltage 800V, Type of Action 1, Control Pollution Degree 2.
1557
Linear force min. 101 lbf for control of damper surfaces up to 32 sq.
ft.
Application
For on/off and floating point control of dampers in HVAC systems. Actuator
sizing should be done in accordance with the damper manufacturer’s
specifications.
Operation
The actuator is not provided with and does not require any limit switches, but is
electronically protected against overload. The anti-rotation strap supplied with
the actuator will prevent lateral movement. The actuator provides 8” [200 mm]
of linear stroke. The stroke of the gear rack can be adjusted on both sides in
increments of 0.8 in [20 mm] by means of the mechanical end stops. When
reaching the damper or actuator end position, the actuator automatically stops.
The gears can be manually disengaged with a button on the actuator cover.
The actuators use a sensorless brushless DC motor, which is controlled by an
Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls
the actuator’s rotation and provides a digital rotation sensing (DRS) function
to prevent damage to the actuator in a stall condition. Power consumption is
reduced in holding mode.
Dimensions (Inches[mm])
1.4" [35.6]
[17.4]
.54"
[13.7]
3.19" [81]
Stroke
8" [200]
0.7"
B
A
13.1" [333.5]
7" [178]
A
B
12" [394.7]
2.4" [60.5]
3.10" [79]
Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Page 2
Accessories
Line
V
Line
V
Line
V
24 VAC Transformer
Line
V
24 VAC Transformer
KG10A Ball joint
KG8 Ball joint
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
Z-DS1 Rotary support
Z-KSC 3/8”-16 shaft clevis for AHK/AH.
ZG-119 Bracket for AHK/AH/LH linear actuators.
PS-100 Low voltage and control signal simulator.
NSV24 US Battery back-up module for non-spring return actuators.
NSV-BAT 12V 1.2AH battery (two required for NSV24 US).
ZG-X40 120 to 24 VAC, 40 VA transformer.
TF-CC US Cable conduit connector, 1/2”.
Typical Specification
Floating point, on/off control damper actuators shall be electronic type, with
integrated linear stroking arm. Actuators shall have brushless DC motor
technology and be protected from overload at all positions of linear stroke.
Actuators shall have reversing switch and manual override on the cover.
Run time shall be constant and independent of torque. Actuators shall be
cUL listed, have a 5-year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as manufactured
by Belimo.

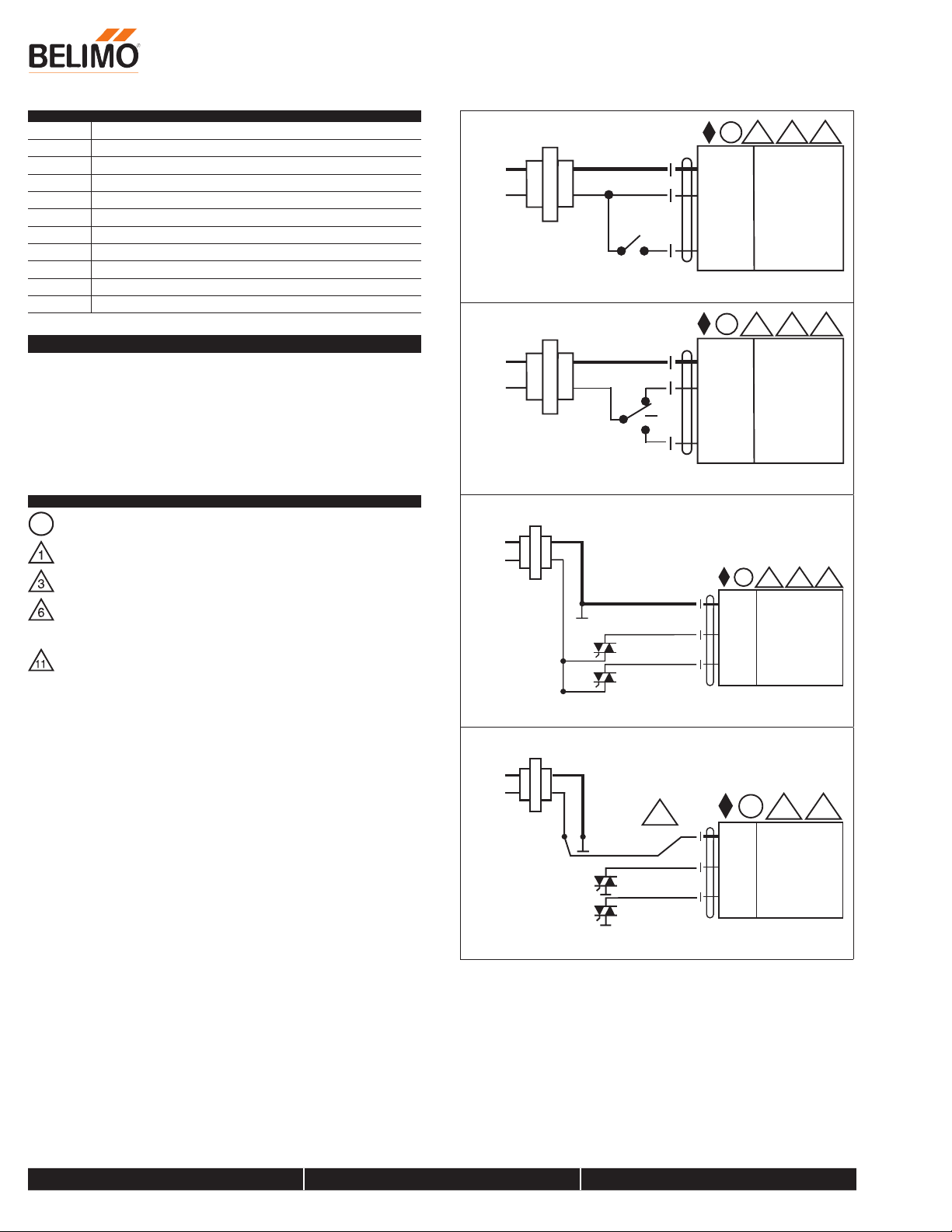

Wiring Diagrams
Actuators with appliance cables are numbered.
A
AHX24-3-200 Technical Data Sheet
On/Off, Floating Point, Non-Spring Return, Linear, 24 V
24 VAC Transformer
olts
On/Off
24 VAC Transformer
olts
Floating Point
A
1 3 11
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
A
1 3 11
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
Provide overload protection and disconnect as required.
Actuators may also be powered by 24 VDC.
Actuators Hot wire must be connected to the control board common.
Only connect common to neg. (-) leg of control circuits. Terminal
models (-T) have no-feedback.
Actuators may be connected in parallel if not mechanically linked. Power
consumption and input impedance must be observed.
olts
ComHot
Floating Point - Triac Source
olts
ComHot
Floating Point - Triac Sink
A
1 3 11
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
A
1
6
Blk (1) Common
Red (2) + Hot
Wht (3) Y Input
11
