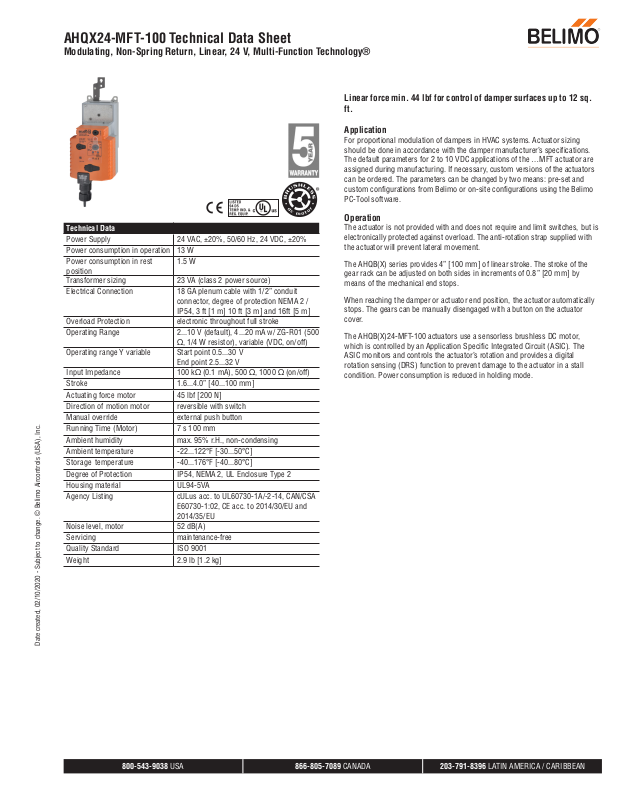

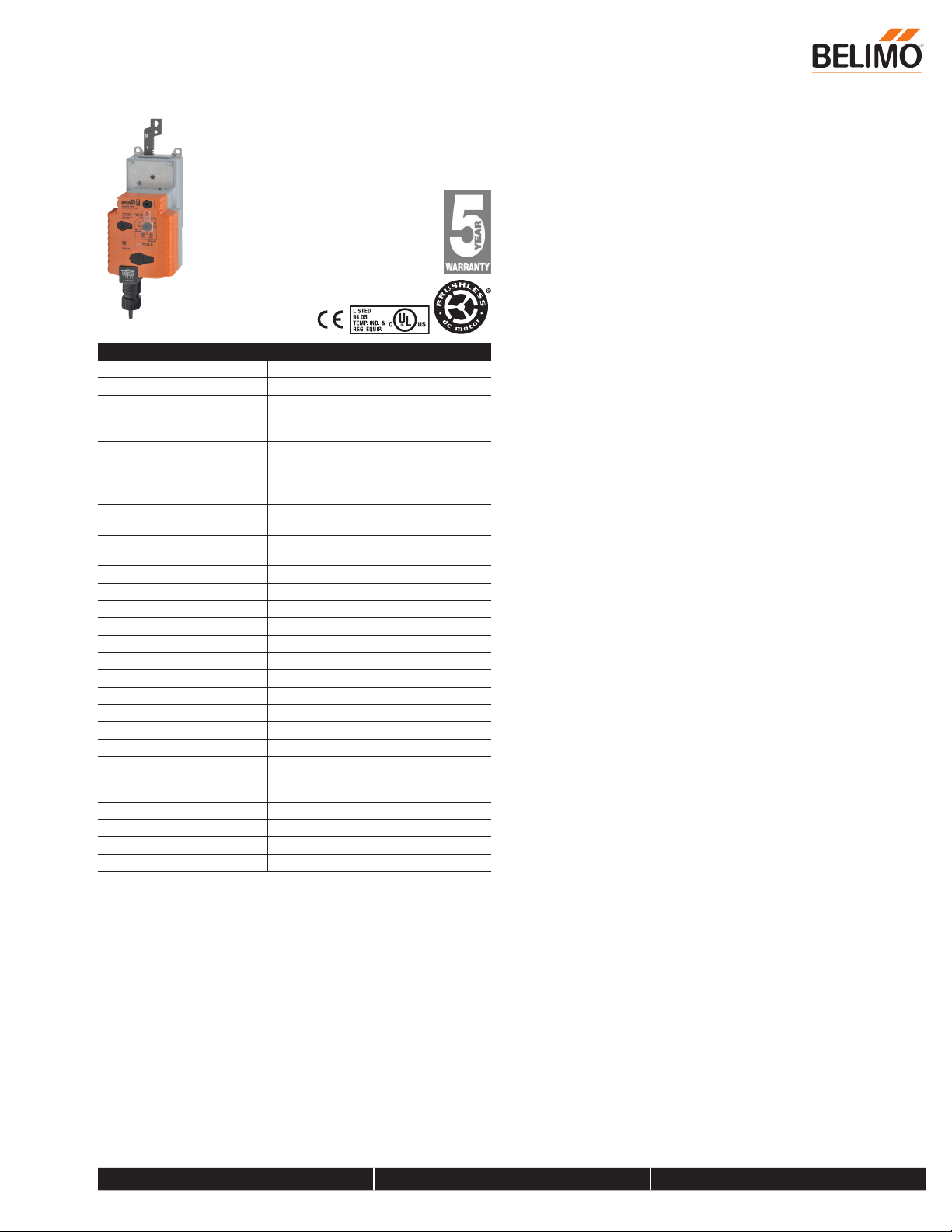

AHQX24-MFT-100 Technical Data Sheet
Modulating, Non-Spring Return, Linear, 24 V, Multi-Function Technology®
Linear force min. 44 lbf for control of damper surfaces up to 12 sq.
ft.
Application
For proportional modulation of dampers in HVAC systems. Actuator sizing
should be done in accordance with the damper manufacturer’s specifications.
The default parameters for 2 to 10 VDC applications of the …MFT actuator are
assigned during manufacturing. If necessary, custom versions of the actuators
can be ordered. The parameters can be changed by two means: pre-set and
custom configurations from Belimo or on-site configurations using the Belimo
PC-Tool software.
Operation
Technical Data
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±20%
Power consumption in operation 13 W
Power consumption in rest
position
Transformer sizing 23 VA (class 2 power source)
Electrical Connection 18 GA plenum cable with 1/2” conduit
Overload Protection electronic throughout full stroke
Operating Range 2...10 V (default), 4...20 mA w/ ZG-R01 (500
Operating range Y variable Start point 0.5...30 V
Input Impedance 100 kΩ (0.1 mA), 500 Ω, 1000 Ω (on/off)
Stroke 1.6...4.0” [40...100 mm]
Actuating force motor 45 lbf [200 N]
Direction of motion motor reversible with switch
Manual override external push button
Running Time (Motor) 7 s 100 mm
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP54, NEMA 2, UL Enclosure Type 2
Housing material UL94-5VA
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA
Noise level, motor 52 dB(A)
Servicing maintenance-free
Quality Standard ISO 9001
Weight 2.9 lb [1.2 kg]
1.5 W
connector, degree of protection NEMA 2 /
IP54, 3 ft [1 m] 10 ft [3 m] and 16ft [5 m]
Ω, 1/4 W resistor), variable (VDC, on/off)
End point 2.5...32 V
E60730-1:02, CE acc. to 2014/30/EU and
2014/35/EU
64326
The actuator is not provided with and does not require and limit switches, but is
electronically protected against overload. The anti-rotation strap supplied with
the actuator will prevent lateral movement.
The AHQB(X) series provides 4” [100 mm] of linear stroke. The stroke of the
gear rack can be adjusted on both sides in increments of 0.8” [20 mm] by
means of the mechanical end stops.
When reaching the damper or actuator end position, the actuator automatically
stops. The gears can be manually disengaged with a button on the actuator
cover.
The AHQB(X)24-MFT-100 actuators use a sensorless brushless DC motor,
which is controlled by an Application Specific Integrated Circuit (ASIC). The
ASIC monitors and controls the actuator’s rotation and provides a digital
rotation sensing (DRS) function to prevent damage to the actuator in a stall
condition. Power consumption is reduced in holding mode.
Date created, 02/10/2020 - Subject to change. © Belimo Aircontrols (USA), Inc.
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Page 2
Position
Feedback VDC
Line
V
Normal
Modulating, Non-Spring Return, Linear, 24 V, Multi-Function Technology®
Accessories
KG10A Ball joint
KG8 Ball joint
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
Z-DS1 Rotary support
Z-KSC 3/8”-16 shaft clevis for AHK/AH.
ZG-119 Bracket for AHK/AH/LH linear actuators.
IRM-100 Input rescaling module for modulating actuators.
MFT-P Belimo PC-Tool
PS-100 Low voltage and control signal simulator.
PTA-250 Pulse width modulation interface for modulating actuators.
SGA24 Positioners suitable for use with the modulating damper
actuators LM..A-SR, NM..A-SR, SM..A-SR and GM..A-SR
SGF24 Positioners suitable for use with the modulating damper
actuators LM..A-SR, NM..A-SR, SM..A-SR and GM..A-SR
TF-CC US Cable conduit connector, 1/2”.
UK24BAC Gateway MP to BACnet MS/TP
UK24LON Gateway MP to LonWorks
UK24MOD Gateway MP to Modbus RTU
ZG-R01 4 to 20 mA adaptor, 500Ω, 1/4 W resistor w 6” pigtail wires.
ZG-R02 50% voltage divider kit (resistors with wires).
ZG-SGF Mounting plate for SGF.
ZG-X40 120 to 24 VAC, 40 VA transformer.
ZK1-GEN Connection cable
ZK2-GEN Connection cable
ZTH US Handheld programming tool w/ ZK1-GEN, ZK2-GEN, ZK6-GEN.
NSV24 US Battery back-up module for non-spring return actuators.
NSV-BAT 12V 1.2AH battery (two required for NSV24 US).
Typical Specification
Proportional control damper actuators shall be electronic direct-coupled type,
which require no crank arm and linkage and be capable of direct mounting
to a shaft up to 1.05” diameter. Actuators must provide proportional damper
control in response to a 2 to 10 VDC or, with the addition of a 500 Ω resistor,
a 4 to 20 mA control input from an electronic controller or positioner.
Actuators shall have Brushless DC motor technology and be protected from
overload at all angles of rotation. Actuators shall have reversing switch and
manual override on the cover. Run time shall be constant and independent
of torque. Actuators shall be cULus listed, have a 5-year warranty, and be
manufactured under ISO 9001 International Quality Control Standards.
Actuators shall be as manufactured by Belimo.
AHQX24-MFT-100 Technical Data Sheet
24 VAC Transformer
Line
Volts
(–)
(+)
On/Off
24 VAC Transformer
olts
Control Signal
VDC / mA
VDC/mA Control
24 VAC Transformer (AC Only)
Line
Volts
Control Signal
VDC/mA
Functions
Min
0%
Mid
50%
Max
100%
Control mode acc. to Y
Override Control
(–)
(+)
Ω
7
(–)
(+)
abc
500 Ω
1/4 watt
Ω
7
A
B
C
12
A
1 3
Blk (1)
Red (2)
Wht (3)
Org (5)
Common
Hot +
Y Input
U Output
1 3
Blk (1)
Red (2)
Wht (3)
Org (5)
A
Blk (1)Common
Red (2)Hot +
Wht (3)Y Input
Org (5)U Output
Common
Hot +
Y Input
U Output
11
5
11
1
5

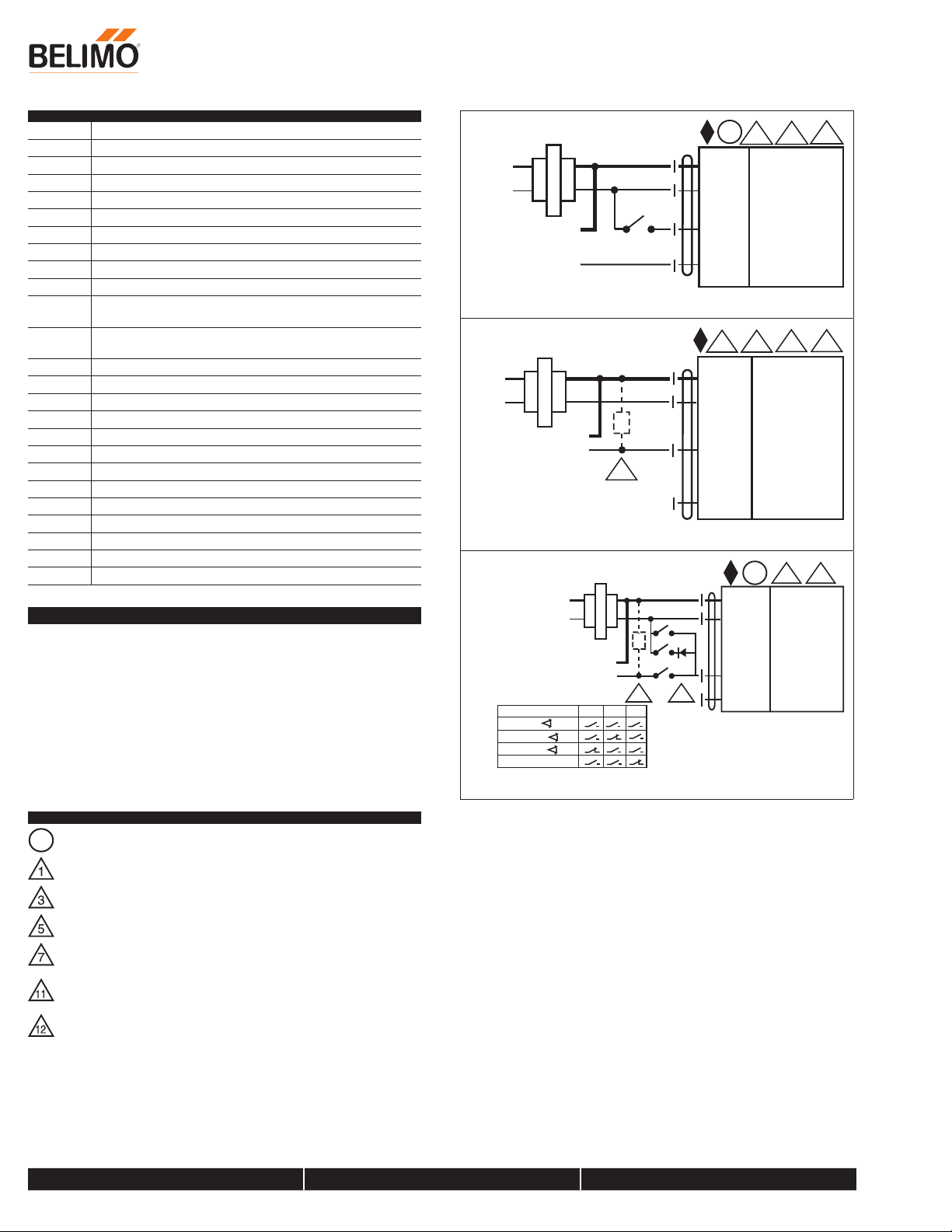

Wiring Diagrams
Actuators with appliance cables are numbered.
A
Provide overload protection and disconnect as required.
Actuators may also be powered by 24 VDC.
Only connect common to negative (-) leg of control circuits.
A 500 Ω resistor (ZG-R01) converts the 4 to 20 mA control signal to 2
to 10 VDC.
Actuators may be connected in parallel if not mechanically linked. Power
consumption and input impedance must be observed.
IN4004 or IN4007 diode. (IN4007 supplied, Belimo part number
40155).
