Page 1

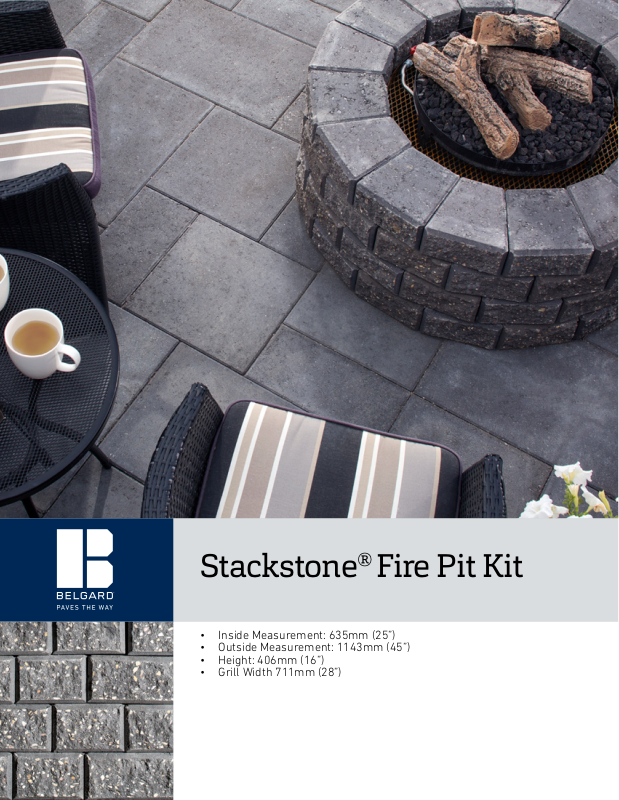

Stackstone® Fire Pit Kit
• Inside Measurement: 635mm (25”)
• Outside Measurement: 1143mm (45”)
• Height: 406mm (16”)
• Grill Width 711mm (28”)
Page 2
©2019 Oldcastle. All Rights Reserved. BEL19-EXPO-STACKSTONEFIREPIT
StackStone Fire Pit
Stackstone
®
Fire Pit Kit
Installation Information
• Time to Complete - Approximately 1 hour
• Degree of Diculty - Beginner
Additional Materials Required
Colours:
Victorian Charcoal Rustic
Installation:
1. Excavate a 45” diameter, 6” deep area.
2. Fill the area with 4” angular gravel (road crush) and compact to 2” below
grade ensuring area is level.
3. Place the 1st row on the prepared base by alternating Standard and Tight
Radius units. Note you will use eight Standard and eight Tight Radius units
per row.
4. Sweep the tops of the stones clean.
5. Place the 2nd row on top of the 1st row by centering the stone on the joint
of the two stones below. Alternate between Standard and Tight Radius
units.
6. Repeat for the third row.
7. For the top row, alternate Coping and Tight Radius unit and place spark
arrestor on top layer.
• Tamper
• Household Level
• 2 Bags of Leveling Sand
• 2 Tubes of Concrete Adhesive
• 3 Bags of Gravel Rock
• Shovel
• Optional Marking Paint or Chalk
Please ensure you follow all local bylaws regarding
fire pits, their installation, placement and usage in
your community.
Always observe open fire and fire pit safety rules.
Expocrete, a division of Oldcastle Building Products
Canada, Inc. accepts no liability for the use of any
fire pit built with our materials.
Fire Pit Components
Standard Unit
Expocrete Concrete Products
British Columbia Alberta Saskatchewan Manitoba
800.232.9443
Belgard.com | Expocrete.com
Tight Radius Unit Coping Unit 25” Spark Arrestor
