Page 1
Description and Operating Instructions

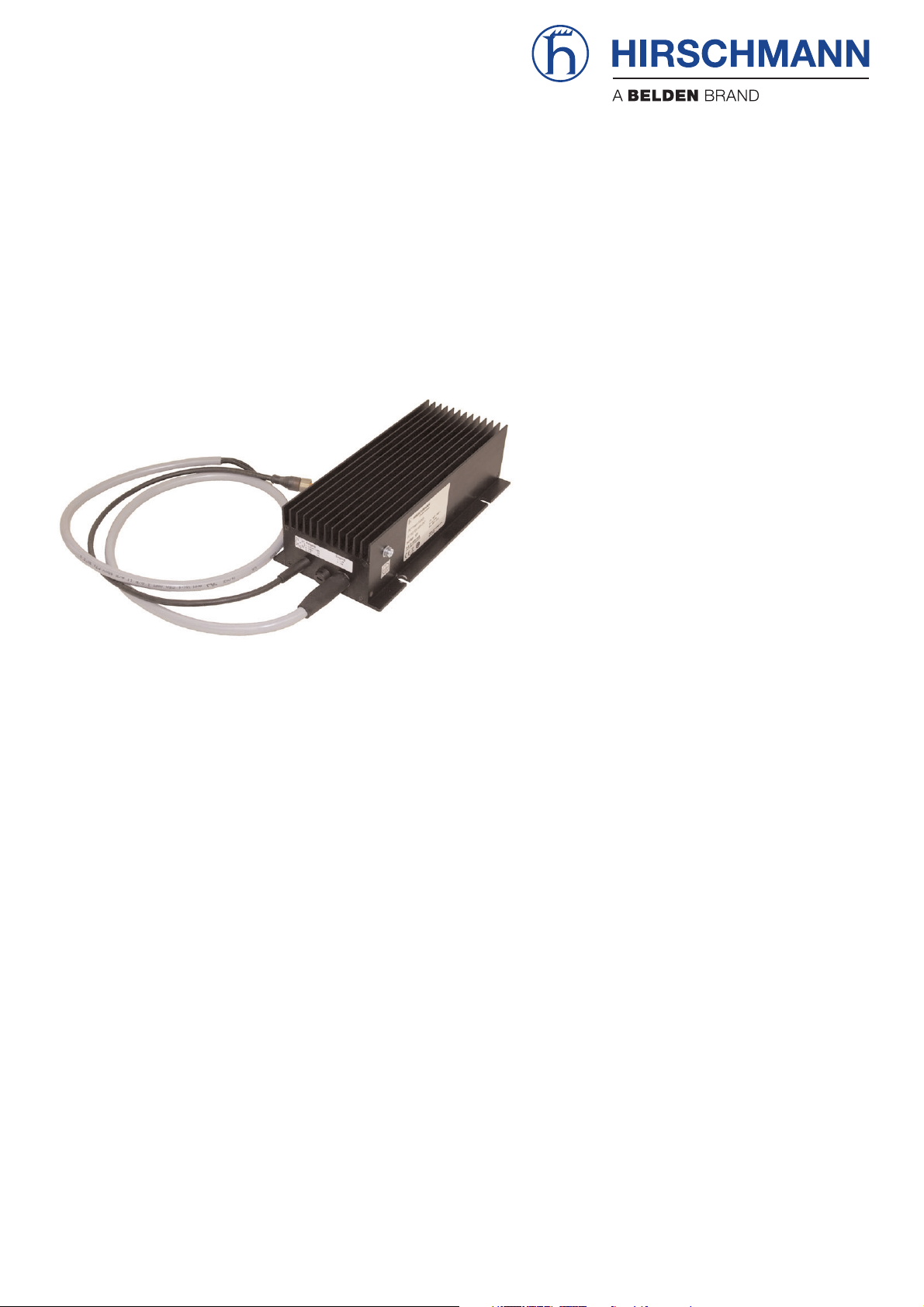

IP67 Power Supply 150W
PC150/xx/48V-IP67
For supplying power to Hirschmann Power
over Ethernet products of the OCTOPUS
family.
The PC150/36V/48V-IP67 power unit supplies an output voltage of 48 VDC from an
input voltage of 24-48 VDC.
The PC150/72V/48V-IP67 power unit supplies an output voltage of 48 VDC from an
input voltage of 72-110 VDC.
– Permitted ambient temperature -40 to +70
°C (in accordance with EN50155 for max.
10 minutes up to +85 °C).
– No additional cooling element necessary,
voltage transformer is integrated into
cooling element.
– 150 W power output.
– Class I equipment.
– IP67 enclosure type.
– Conforms to EN50155 class C1 S2.
– Output has short-circuit protection.
–
Input has polarity reversal protection.
– Integrated fuse, exchangeable.
– Secondary line has suitable connectors for
OCTOPUS supply voltage.
Order No.
943 968-001
943 968-101
Page 2
2
EN
The performance features described here
are binding only if they have been expressly guaranteed in the contract. We have
checked that the contents of the technical
publication agree with the hardware and
software described. However, it is not possible to rule out deviations completely, so
we are unable to guarantee complete
agreement. However, the details in the
technical publication are checked regularly. Any corrections which prove necessary
are contained in subsequent editions. We
are grateful for suggestions for improvement.
We reserve the right to make technical
modifications.
Permission is not given for the circulation
or reproduction of this document, its use
or the passing on of its contents unless
granted expressly. Contravention renders
the perpetrator liable for compensation for
damages. All rights reserved, in particular
in the case of patent grant or registration
of a utility or design.
Certified usage
Please observe the following:
z
Warning
The device may only be employed
for the purposes described in the
catalog and technical description,
and only in conjunction with external devices and components
recommended or approved by
Hirschmann. The product can only
be operated correctly and safely if
it is transported, stored, installed
and assembled properly and correctly. Furthermore, it must be
operated and serviced carefully.
z
Safety instructions
– Please read carefully this
safety instructions!
Before you start working on the power
module, read the operating instructions
completely. Make sure that you understood everything.
Please follow all notes.
– Installation and elimination of errors
have to be made only by electrical qualified persons. Switch all wires to be
mounted idle. Make sure to prevent
unintentional switch-on.
– As long as the unit is activated, it is not
allowed to make any changes of the
installation.
– Operate with the connecting terminals
only without voltage.
– Inside the unit are components and con-
ductors which can store perilous high voltage – also in the case of errors. The inappropriate use might result in an electric
shock or serious burns.
7
Notes on CE
identification
The devices comply with the regulations of the following European
directive:
FCC Note:
This device complies with part 15 of FCC
rules. Operation is subject to the following
two conditions:
– This device may not cause harmful inter-
ference, and
– this device must accept any interference
received, including interference that may
cause undesired operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
area is likely to cause harmful interference
in which case the user will be required to
correct the interference at his own expense.
,
Recycling Note:
After its use, this product has to be
processed as electronic scrap and
disposed of according to the prevailing waste disposal regulations of
your community / district / country /
state.
Copyright
© Hirschmann
Automation and Control GmbH 2019
All Rights Reserved
2014/30/EU (EMC)
Directive of the European Parliament and the council for standardizing the regulations of member
states with regard to electromagnetic compatibility.
Additional for PC150/72V/48V-IP67:
2014/35/EU
Directive of the European Parliament
and of the Council on the
harmonisation of the laws of the
Member States relating to the making
available on the market of electrical
equipment designed for use within
certain voltage limits.
The EU declaration of conformity is
kept available for the responsible
authorities in accordance with the
above-mentioned EU directives at:
Hirschmann
Automation and Control GmbH
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
www.hirschmann.com
The product can be used in the residential sphere (residential sphere,
business and trade sphere and small
companies) and in the industrial
sphere.
–
Interference immunity:
EN 61000-6-2
–
Radio interference level:
EN 55032
Security: EN 60950-1
Warning!
z
This is a Class A device. This equipment may cause radio interference if
used in a residential area; in this
case it is the operator´s responsibility to take appropriate measures.
The precondition for compliance
with EMC limit values is strict adherence to the construction guidelines
specified in this description and
operating instructions.
Page 3
3
1. Device description
1.1 DIMENSIONS
The current training courses to technology
and products can be found under
http://www.hicomcenter.com.
3.2 HIRSCHMANN COMPETENCE
CENTER
In the long term, excellent products alone
do not guarantee a successful customer
relationship. Only comprehensive service
makes a difference worldwide. In the current global competition scenario, the
Hirschmann Competence Center is ahead of
its competitors on three counts with its
complete range of innovative services:
– Consulting incorporates comprehensive
technical advice, from system evaluation
through network planning to project
planning.
Fig. 1: Dimensions of the PC150/36V/48V-IP67 and PC150/72V/48V-IP67 power supply units
2.2 ATTACHING THE FERRITE
A ferrite, incorporated into the secondary
cable, is included in the delivery.
Fig. 2: Ferrite mounted on the secondary
cable of the device
2.3 CONNECTING THE SUPPLY
VOLTAGE AND MOUNTING THE
PROTECTIVE CONDUCTOR
M Connect the protective conductor (see
chapter 1.2 “Pin assignments”), before
you set up the other connections.
When removing the connections, you remove the protective conductor last.
M Connect the supply voltage. Pay attenti-
on to the connections (see chapter 1.2
“Pin assignments”).
2.4 DISCONNECTING FROM THE
MAINS VOLTAGE
M Make sure that the disconnecting device
is easily accessible so that the device
can be disconnected from the mains
voltage.
If you disconnect the device from the
mains voltage using
– the plug in the socket
– an on/off switch
it must be easily accessible.
2.5 LIMITED ACCESS
M The device is intended to be installed in
an operating site with limited access.
Make sure that qualified personnel
exclusively has access to the device.
1.2 PIN ASSIGNMENTS
Pin assignment primary cable
Number Assignment
1 +IN
2 -IN
Pin assignment secondary cable
1 = brown 48 V
2 = white n.C.
3 = blue 0 V
4 = black n.C.
5 = green-yellow n.C.
2. Installation
2.1 INSTALLATION OF THE DEVICE
Convection cooling is sufficient for cooling
the device.
Warning!
z
When installing the device, make
sure the cooling element of the
device remains free, as otherwise
damage can occur through overheating.
The clearance to the cooling element of the device housing must be
at least 2 cm (0.79 in).
Warning!
z
To make sure that the housing of the
power supply fulfills the fire
protection requirements according
to EN60950-1
M mount the device completely on a
metal plate or on a metal surface.
M or use a fire protection housing
according to EN 60950-1.
Warning!
z
To meet the fire protection reqirements
according to EN 45545-2, observe the
following:
The device is compliant to the
requirements of EN 45545-2 (2015),
Hazard Level HL1 and HL2.
For applications with HL3 installation
in a cabinet item 4.2h of EN 45545-2
is required.
3. Further Support
3.1 TECHNICAL QUESTIONS AND
TRAINING COURSES
In the event of technical queries, please
contact your local Hirschmann distributor or
Hirschmann office.
You can find the addresses of our distributors on the Internet:
www.hirschmann.com
A list of local telephone numbers and email
addresses for technical support directly from
Hirschmann is available at
https://hirschmann-support.belden.com.
This site also includes a free of charge
knowledge base.
– Training offers you an introduction to the
basics, product briefing and user training
with certification.
– Support ranges from the first installation
through the standby service to maintenance concepts.
With the Hirschmann Competence Center,
you have decided against making any compromises. Our client-customized package
leaves you free to choose the service components you want to use.
Internet: http://www.hicomcenter.com.
Page 4
4
4. T
echnical data
Input PC150/36V/48V-IP67
Rated voltage range 24 V DC to 48 V DC
Rated input current 8.0 A DC to 3.8 A DC
Power failure bridging min. 10 ms across entire voltage range
Polarity reversal protection Yes, via longitudinal diode
Fuse (exchangeable) 16 A (T)
Connection type Lapp Cable Olflex 150,
Cable cross-section 2 x 2.5 mm
2
2 x terminal sleeve
Input PC150/72V/48V-IP67
Rated voltage range 72 V DC to 110 V DC
Rated input current 2.4 A DC to 1.5 A DC
Power failure bridging min. 10 ms across entire voltage range
Polarity reversal protection Yes, via longitudinal diode
Fuse (exchangeable) 6,3 A (T)
Connection type Lapp Cable Olflex 150,
Cable cross-section 2
x 2.5 mm
2
2 x terminal sleeve
Efficiency
PC150/36V/48V-IP67 > 80%
PC150/72V/48V-IP67 > 80%
Output
Output voltage 48 V DC (0 to +2% accuracy), safety low voltage (SELV) EN 60950-1
Output current (max.) 3,2 A
Connection type Lumberg Automation RKT 5-228
5-pin, cable cross-section 5 x 0.5 mm
2
Safety
Standards IEC/EN60950-1, IEC/EN61131-2:2007
Class of protection Class I equipment
Enclosure type IP 67
Insulation resistance Primary secondary: 2000 V AC
Primary housing: 1000 V AC
Secondary housing: 1500 V AC
Insulation resistance > 500 Megaohm
Approvals
Standards IEC/EN 60950-1:2006
VDE certification: pending
IEC/EN61131-2:2007 CE Declaration – programmable logic controllers
EN50155 Class S1 C2 Railway applications electronic systems in
railway vehicles (environmental requirements)
Operating Conditions
Operating temperature -40 to +70 °C permanently
-40 to +85 °C for max. 10 minutes
Storage temperature -55 to +85 °C
Protection and monitoring
Current limitation Yes, permanent short-circuit protection
High voltage test Routine testing in series
EMC: emitted interference - radiated
EN50022 Class A 30 MHz to 230 MHz, max. 40 dB (µV)/m quasi-peak, 10 m distance
230 MHz to 1000 MHz, max. 47 dB (µV)/m quasi-peak, 10 m distance
1000 MHz to 2000 MHz, max. 56 dB (µV)/m, average, 3 m distance
FCC47 CFR Part 15 Class A 30 MHz to 88 MHz, max. 39 dB (µV)/m, quasi-peak, 10 m distance
88 MHz to 216 MHz, max. 43.5 dB (µV)/m, quasi-peak, 10 m distance
216 MHz to 960 MHz, max. 46.5 dB (µV)/m, quasi-peak, 10 m distance
960 MHz to 2,000 MHz, max. 49.5 dB (µV)/m, quasi-peak, 10 m distance
Page 5
5
EMC: emitted interference - line related / Power Port DC
EN50155 Class A 0.15 MHz to 0.5 MHz, max. 99 dB (µV)/m, quasi-peak
0.5 MHz to 30 MHz, max. 93 dB (µV)/m, quasi-peak
EMC: interference immunity- radiated
IEC/EN61000-4-3 Electromagnetic field
80 to 2700 MHz 20 V/m
EMC: interference immunity- line related
IEC/EN61000-4-2 Electrostatic discharge
Contact discharge 6 kV
Air discharge 8 kV
IEC/EN61000-4-4 Fast transients (burst)
Power input 4 kV
IEC/EN61000-4-5 Voltage surges
Power input 1 kV line / line
Power input 2 kV line/earth
IEC/EN61000-4-6 Line-conducted interference voltages
150 kHz to 80 MHz 10 V
Mechanical components
Dimensions - without cables (W x H x L) 115 mm x 65 mm x 240 mm
Weight 3,100 g
Housing material Aluminum, UL94-V0
Casting compound Polyurethane
Vibration resistance
IEC60068-2-6 Test Fc Test level according to IEC61131-2
EN61373, category 1 Class A (broadband noise), installation according to EN50155
Shock resistance
IEC60068-2-27 Test Ea Test level according to IEC61131-2
EN61373, category 1 Class A (broadband noise), installation according to EN50155
Scope of delivery
Power supply unit incl. ferrite on secondary cable, startup instructions and dispatch note for returning product
Page 6
Hirschmann Automation and Control GmbH
Printed in Germany
Subject to alterations
Stuttgarter Straße 45-51
D-72654 Neckartenzlingen
Germany
www.hirschmann.com
Technical support:
https://hirschmann-support.belden.com
03-0519
Loading...
