Belden Hirschmann BAT-F User Manual

User Manual

Installation
Open Dual-Band Industrial Access-Point / Client / Access-

Bridge
OpenBAT-Family: BAT-F

Installation BAT-F

Release 09 08/2015

Technical support

https://hirschmann-support.belden.eu.com

The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.

© 2015 Hirschmann Automation and Control GmbH

Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use. For devices with embedded software, the end-user license agreement on the
enclosed CD/DVD applies.

The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

BAT-F 039 799-101-09-0815- 03.09.2015

Contents

Safety instructions 5

About this manual 18

Key 18

1 Description 19

1.1 General description 19

1.2 Device name and product code 21

1.3 Device view 24

1.4 Power supply 26

1.4.1 Supply voltage with the characteristic value C 26

1.4.2 Supply voltage with the characteristic value K 26

1.4.3 Supply voltage with the characteristic value P 26

1.4.4 Supply voltage with the characteristic value W 26

1.5 Ethernet ports 27

1.5.1 Gigabit combo port 27

1.5.2 10/100/1000 Mbit/s twisted-pair connection (optional) 28

1.5.3 Pin assignments 29

1.6 Connections for antennas 29

1.7 Display elements 30

1.7.1 Meaning of the LEDs 30

1.7.2 Device state 31

1.7.3 Port state 32

1.8 Management interfaces 32

1.8.1 V.24 interface (external management) 32

1.8.2 ACA21-M12 interface 34

1.9 Signal contact 34

1.10 Operation element (reset button) 35

2 Installation 36

2.1 Checking the package contents 36

2.2 Installing and grounding the device 37

2.2.1 Installing the device onto or on a flat surface 37

2.2.2 Installing the device on a pole 37

2.2.3 Grounding the device 38

2.3 Installing an SFP transceiver (optional) 38

2.4 Installing the antennas 39

Installation BAT-F

Release 09 08/2015

3

2.5 Connecting the power supply and signal lines 40

2.5.1 Supply voltage with the characteristic value C 40

2.5.2 Supply voltage with the characteristic value K 41

2.5.3 Supply voltage with the characteristic value W 42

2.5.4 Signal contact 42

2.6 Operating the device 43

2.6.1 Connecting the power supply through a 7/8"
connector 43

2.6.2 Connecting the power supply through PoE 43

2.7 Connecting data cables 44

2.7.1 Gigabit combo port 44

2.7.2 10/100/1000 Mbit/s twisted-pair connection (optional) 44

3 Making basic settings 45

4 Configuring the transmit power 46

5 Resetting the device 48

5.1 Restarting the device (soft reset) 48

5.2 Resetting the configuration (hard reset) 48

5.3 Loading a customer-specific version 49

6 Maintenance and service 50

7Disassembly 51

7.1 Removing the device 51

7.2 Removing an SFP transceiver (optional) 51

8 Technical data 52

A Further support 70

Installation BAT-F

4

Release 09 08/2015

Safety instructions

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

 General safety instructions

You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
 Before connecting any cable, read this document, and the safety

instructions and warnings.

 Operate the device with undamaged components exclusively.
 The device is free of any service components. In case of a damaged

or malfunctioning the device, turn off the supply voltage and return the
device to Hirschmann for inspection.

 Intended usage

 Use the product only for the application cases described in the

Hirschmann product information, including this manual.

 Operate the product only according to the technical specifications.

See “Technical data” on page 52.

 Connect to the product only components suitable for the requirements

of the specific application case.

 Installation site requirements

Restricted access location:

 The location is outside the operator access area.
 The location is accessible to the service personnel even when the

device is switched on.

Installation BAT-F

Release 09 08/2015

5

Indoor operator access area:

 The location is accessible without tools.
 The person responsible for the area has provided access for the

operator intentionally.

 The operator knows of the access possibilities, regardless of whether

they need a tool.

If all the following requirements are fulfilled, you have the option of
installing the device in the indoor operator access area.

 You supply 24 V DC to 48 V DC SELV voltage to the device.
 You install the device inside a building.
 The surrounding air temperature is ≤ 140 °F (60 °C).
 Applies exclusively for Finland, Norway, and Sweden:

You supply Power over Ethernet (PoE) to the device, with the PoE
data cable laid inside a building exclusively.

 In any case, install this device in a switch cabinet or in an operating

site with restricted access, to which maintenance staff have exclusive
access if 1 of the following requirements is fulfilled:

 You supply 60 V DC to 250 V DC or 110 V AC to 230 V AC to the

device.

 You install the device outside a building.
 The surrounding air temperature is > 140 °F (60 °C).
 Applies exclusively for Finland, Norway, and Sweden:

You supply Power over Ethernet (PoE) to the device, with the PoE
data cable laid outside a building or between buildings.

 Applies to device variants featuring supply voltage with the

characteristic value K:

See “Device name and product code” on page 21.

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

 Device casing

Only technicians authorized by the manufacturer are permitted to open
the casing.
 Install the device in the vertical position, with the antenna connections

pointing upwards..

 At ambient temperatures > 140 °F (60 °C):

The surfaces of the device housing may become hot. Avoid touching
the device while it is operating.

Installation BAT-F

6

Release 09 08/2015

 Qualification requirements for personnel

 Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

 Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.

 Qualified personnel are aware of the dangers that exist in their work.
 Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

 Qualified personnel receive training on a regular basis.

 National and international safety regulations

 Verify that the electrical installation meets local or nationally applicable

safety regulations.

 When installing antennas, observe the regulations of the country in

which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.

 Install and operate this equipment with a minimum distance of

19.7 inches (50 cm) between the antenna and your body.

 Grounding the device

Grounding the device is by means of a separate ground connection on the
device.

 Ground the device before connecting any other cables.
 Disconnect the grounding only after disconnecting all other cables.

The overall shield of a connected shielded twisted-pair cable is connected
to the metal housing as a conductor.

 Lightning protection

 See the information in the “WLAN Outdoor Guide”, chapter “Lightening

and Surge Voltage Protection”.

 Install over voltage protector devices on every outdoor Ethernet cable.
 Protect antennas installed outside with lightening protection devices

(e.g. lightening conductors).

 Take lightening protection measures which mitigate the effects of

lightning strikes.

 The installation of the device occurs in accordance with valid

standards (such as VDE 0185 and IEC 62305), and in accordance
with the lightening protection procedures recognized and proven for
the application and the environment.

Installation BAT-F

Release 09 08/2015

7

 Supply voltage

The supply voltage is electrically isolated from the housing.
 Connect only a supply voltage that corresponds to the type plate of

your device.

 Only for device variants featuring supply voltage with the characteristic

value K:

See “Device name and product code” on page 21.

Every time you connect the electrical conductors, make sure that the
following requirements are met:

 The power supply conforms to overvoltage category I or II.
 The power supply has an easily accessible disconnecting device

(e.g., a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which power supply cable.

 The electrical wires are voltage-free.
 Supply with AC voltage:

A fuse is located in the outer conductor of the power supply.
The neutral conductor is on ground potential. Otherwise, a fuse is
also located in the neutral conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 Supply with DC voltage:

A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 Supply with AC voltage:

The wire diameter of the power supply cable is at least 0.75 mm²
(North America: AWG18) on the supply voltage input.

 Supply with DC voltage:

The wire diameter of the power supply cable is at least 1 mm²
(North America: AWG16) on the supply voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

Installation BAT-F

8

Release 09 08/2015

 The cables used are permitted for the temperature range of the

application case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Start connecting the electrical wires only if all the above safety
requirements are fulfilled.

 Only for device variants featuring supply voltage with the characteristic

value C or W:

See “Device name and product code” on page 21.

Every time you connect the electrical conductors, make sure that the
following requirements are met:

 The power supply conforms to overvoltage category I or II.
 The power supply is Class 2 compliant.
 The supply voltage inputs are designed for operation with safety

extra-low voltage. Connect only SELV circuits with voltage
restrictions in line with IEC/EN 60950-1 to the supply voltage
connections.

 The power supply has an easily accessible disconnecting device

(e.g., a switch or a plug). This disconnecting device is clearly
identified. So in the case of an emergency, it is clear which
disconnecting device belongs to which power supply cable.

 The electrical wires are voltage-free.
 A fuse suitable for DC voltage is located in the plus conductor of the

power supply.
The minus conductor is on ground potential. Otherwise, a fuse is
also located in the minus conductor.
Regarding the properties of this fuse: See “General technical data”

on page 52.

 The wire diameter of the power supply cable is at least 1 mm²

(North America: AWG16) on the supply voltage input.

 The cross-section of the protective conductor is the same size as

or bigger than the cross-section of the power supply cables.

 The cables used are permitted for the temperature range of the

application case.

 Relevant for North America:

The power cords are suitable for ambient air temperatures of at
least 167 °F (75 °C). The power cord wires are made of copper.

Start connecting the electrical wires only if all the above safety
requirements are fulfilled.

 Use undamaged parts.
 Internal fuses are triggered only in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the
supply voltage and return the device to the plant for inspection.

Installation BAT-F

Release 09 08/2015

9

 Relevant for use in Ex Zone 2 according to ATEX 95

(European directive 94/9/EC)

In Ex zone 2, only devices with a corresponding label may be operated.

When operating the BAT-F types with the characteristic value G for
approvals 1 (ATEX zone 2), the following applies:

 Never use the supply voltage with the characteristic value K in Ex

zone 2.

II 3 G Ex nA IIC T4 Gc

−40 °F ... +158 °F (−40 °C ... +70 °C ) for temperature range
with the characteristic value T and E
+32 °F ... +140 °F (0 °C ... +60 °C) for temperature range with

the characteristic value S

DEKRA 13ATEX0027 X

Temperature code T4 Ambient temperature −40 °F ... +158 °F (−40 °C ... +70 °C ;

temperature range with the characteristic value ST and E)
Ambient temperature +32 °F ... +140 °F (0 °C ... +60 °C;

temperature range with the characteristic value S)

List of technical standards EN 60079-0:2012 + A11

EN 60079-15: 2010

DO NOT OPEN THE DEVICE WHEN IT IS ELECTRICALLY CHARGED.
THE USB CONNECTOR MUST NOT BE USED WHEN THE DEVICE IS
OPERATED IN EXPLOSIVE HAZARDOUS LOCATIONS.

Special conditions for safe use

 For supply voltage with the characteristic value C and W:

Take appropriate protective measures to prevent the voltage caused
by transients from exceeding 119 V on the working voltage
connection.

 When the temperature under rated conditions exceeds 158 °F (70 °C)

on the cable or at conduit entry point, or 176 °F (80 °C) at the
branching point of the conductors, take measures so that the
temperature specification of the selected cable is in compliance with
the actual measured temperature values.

 The modules shall be installed in a suitable enclosure in accordance

with EN 60079-15 providing a degree of protection of at least IP54
according to EN 60529, taking into account the environmental
conditions under which the equipment will be used.

10

Installation BAT-F

Release 09 08/2015

 Relevant for use in explosion hazard areas (Hazardous

Locations, Class I, Division 2):

In Ex zone 2, only the devices with a corresponding label may be
operated in explosion hazard areas Class I, Division 2.

When operating the BAT-F types in explosion hazard areas Class I,
Division 2, the following applies:

Class I, Div. 2 Goups A, B, C and D

Temperature code T4 Ambient: −40 °F ... +158 °F (−40 °C ... +70 °C; for

characteristic value T and E for temperature range)
Ambient: +32 °F ... +140 °F (0 °C ... +60 °C; for characteristic

value S for temperature range)

List of standards FM3600,

FM3611

DO NOT OPEN THE DEVICE WHEN IT IS ELECTRICALLY CHARGED.

 Use this device only with the impact protection.

WARNING

EXPLOSION HAZARD

Do not disconnect or open equipment unless power has been switched off
or the area is known to be non-hazardous.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

WARNING

EXPLOSION HAZARD

Do not disconnect or open equipment unless power has been switched off
or the area is known to be non-hazardous.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Installation BAT-F

Release 09 08/2015

11

 E marking

The labeled devices comply with the regulations contained in the following
European directive(s):

Rule No. 10 of the Economic Commission for Europe (ECE): Devices with
an approval are labeled with the E type-approval mark.

The optical transceivers M-SFP-SX/LC EEC und M-SFP-LX/LC EEC can
be used (relevant for devices with certificates characteristic value M).
Devices featuring supply voltage with the characteristic value C are not
specified for operation during the motor start phase.

 CE marking

The labeled devices comply with the regulations contained in the following
European directive(s):

2011/65/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.

1999/5/EC (R&TTE)
Directive of the European Parliament and the council for radio
installations and telecommunication systems and for the mutual
recognition of their conformity.
This directive also contains the goals of directive 2004/108/EC of the
European Parliament and the council for standardizing the regulations of
member states relating to electromagnetic compatibility, and directive
2006/95/EC of the European Parliament and the council for standardizing
the regulations of member states relating to electrical equipment to be
used within specific voltage ranges, but without applying the lower voltage
threshold.

This product may be operated in all EU (European Union)

countries under the condition that it has been configured correctly.

In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:

Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
Tel.: [phone]

12

Installation BAT-F

Release 09 08/2015

The product can be used in living areas (living area, place of business,
small business) and in industrial areas.

Notes:

 Applies to the operation of devices with antennas having a gain of

more than 8 dBi:
At temperatures lower than −25 °C a power reduction of 4 dB using a
software setting has to be applied. This reduction applies in addition to
the antenna gain setting.

 Applies to the operation of antennas having a gain of more than

18 dBi:
For the operation of 5 GHz indoor channels (channels 36 to 64) a
power reduction of 4 dB using a software setting has to be applied.
This reduction applies in addition to the antenna gain setting.

 Applies to the operation of the BAT-ANT-N-14G-IP23 antenna:

In addition to the antenna cable supplied, the use of the BAT-CLB-2 N
m-f antenna is required.

See “Accessories” on page 66.

The frequency band 5725 MHz - 5875 MHz is subject to special operation
conditions. In Germany the usage of this band is restricted to commercial
public telecommunication services (BFWA - Broadband Fixed Wireless
Access). Registration at the Federal Network Agency is required. In other
European countries the terms of use of the local frequency regulation
authorities need to be followed.

 LED or laser components

LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

Installation BAT-F

Release 09 08/2015

13

 FCC note:

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.

Note for the use in the USA and in Canada

The following section applies to BAT-F variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN1
IC: 4019A-EWLAN1

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. Install and operate this
equipment with a minimum distance of 19.7 inches (50 cm) (related to a
9 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

Installation BAT-F

14

Release 09 08/2015

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
in point-to-multipoint systems, and having a maximum gain of 9 dBi:

Antennas operating with this device

model:

BAT-ANT-RSMA-2AGN-R

BAT-ANT-N-3AGN-IP67 Yes Yes Yes

BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes

BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes

BAT-ANT-N-8G-DS-IP65 Yes No No

(1)

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

Yes Yes Yes

5.725 GHz ...

5.825 GHz band

The use of antennas missing in this list is strictly prohibited. The required
antenna impedance is 50 ohms.

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Note for the use in the USA and in Canada

The following section applies to BAT-F variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:

Contains Transmitter Module
FCC ID: U99EWLAN2
IC: 4019A-EWLAN2

This equipment complies with FCC and IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 19.7 inches (50 cm)
(related to a 18 dBi antenna) between the radiator and your body.

The antenna used for this transmitter must not be co-located with any
other transmitters within a host device, except in accordance with FCC
multi-transmitter product procedures.

Installation BAT-F

Release 09 08/2015

15

This transmitter is restricted to indoor use only within the 5.15-5.25 GHz
band to reduce potential for harmful interference to co-channel mobile
satellite systems.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.

To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.

This device has been designed to operate with the antennas listed below
having a maximum gain of 18 dBi:

Antennas operating with this device
model:

BAT-ANT-RSMA-2AGN-R
BAT-ANT-N-3AGN-IP67 Yes Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes Yes
BAT-ANT-N-MiMo5-9N-IP65 No Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No No
BAT-ANT-N-MiMo-18N-IP65

(1)

(2)

Permitted band of operation

2.4 GHz band 5.15 GHz ...

5.25 GHz band

Yes Yes Yes

No No Yes

5.725 GHz ...

5.825 GHz band

The use of antennas missing in this list is strictly prohibited. The required
antenna impedance is 50 ohms.

Note (1): When using 3 antennas type BAT-ANT-RSMA-2AGN-R, you
must align each antenna in another spatial direction (x-y-z) so that one
antenna is arranged vertically to the device and the other two antennas
are arranged at right angles to each other.

Note (2): Connect the BAT-ANT-N-MiMo-18N-IP65 antenna to the WLAN
module as follows:

 Connect the antenna port "Ver" with the WLAN antenna port 1.
 Connect the antenna port "+45°" with the WLAN antenna port 2.
 Connect the antenna port "+45°" with the WLAN antenna port 3.

 Connect the BAT-ANT-N-MiMo-18N-IP65 in this way exclusively.

Differing connection configurations are illegal.

16

Installation BAT-F

Release 09 08/2015

 Note for the use in the Japan

„5GHz band: この製品は屋内においてのみ使用可能です“

This note applies to BAT-F variants with the characteristic
value JP (Japan) for country approvals that are labeled as follows:

 "Contains MIC ID: 204-310014"


Devices with the characteristic value JP for country approvals are suitable
for usage with the following antennas:

Antennas for operation with this device: Permissible frequency bands

2.4 GHz band 5 GHz band
BAT-ANT-N-3AGN-IP67 Yes Yes
BAT-ANT-RSMA-2AGN-R Yes Yes
BAT-ANT-6ABG-IP65 Yes Yes
BAT-ANT-N-MiMoDB-5N-IP65 Yes Yes
BAT-ANT-N-8G-DS-IP65 Yes No
BAT-ANT-N-9A-DS-IP65 No Yes
BAT-ANT-N-6G-IP65 Yes No
BAT-ANT-N-5A-IP65 No Yes
BAT-ANT-N-MiMo-9N-IP65 No Yes

The use of antennas missing in this list is prohibited. The 5 GHz band is
restricted to indoor usage.

 Note for the use in the Thailand

This note applies to BAT-F variants with the characteristic
value TH (Thailand) for country approvals:
This telecommunication equipment complies with the technical
requirements of the National Telecommunications Commission (NTC).

 Recycling note

After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

Installation BAT-F

Release 09 08/2015

17

About this manual

The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.

The following manuals are available as a PDF file on the CD/DVD supplied:

 Mounting instruction
 User Manual “Installation” with additional information on the device

 Device description
 Interfaces
 Configuration

 EMC and immunity
 User Manual “Configuration and Administration Guide”
 User Manual “Operation and Maintenance Guide”
 Reference Manual “Command Line Interface”

The Industrial HiVision network management software provides you with
additional options for smooth configuration and monitoring:

 ActiveX control for SCADA integration
 Auto-topology discovery
 Browser interface
 Client/server structure
 Event handling
 Event log
 Simultaneous configuration of multiple devices
 Graphical user interface with network layout
 SNMP/OPC gateway

Key

The symbols used in this manual have the following meanings:

 Listing

 Work step



Subheading

18

Installation BAT-F

Release 09 08/2015

1 Description

1.1 General description

The devices allow you to set up WLANs (Wireless Local Area Networks) in a
local network. In contrast to a conventional network connection through
copper cables and fiber optic cables, some of the communication is
performed by means of a radio link.

The devices allow you to install a new LAN or expand an existing LAN.
Thanks to their high level of flexibility, the OpenBAT device is suitable for a
wide range of applications. Anywhere that high bandwidths, stable operation
and network security is required, WLAN with these devices provides the ideal
solution.

The devices are dual-band industrial high-performance wireless LAN access
points or clients complying with IEEE 802.11a/b/g/h/n. They provide a high
radio output with a bandwidth of up to 450 Mbit/s. The devices support MIMO
(Multiple Input Multiple Output) and Multipath. The bandwidth is increased by
using the multipath transmission by means of reflections. Each WLAN
module has 3 antennas for sending and receiving, to ensure stable network
coverage with few shadow areas.

You can choose from between a wide range of variants. You have the option
to set up your device individually based on different criteria:

 Access point or client
 Number of WLAN modules
 Number of ports
 Supply voltage range
 Configuration (with or without equipment package)
 Software options
 Temperature range
 Approvals

The BAT-F devices are designed for the special requirements of industrial
automation. They meet the relevant industry standards, provide very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.

The devices work without a fan.

The devices comply with the degrees of protection IP65/67.

Installation BAT-F

Release 09 08/2015

19

The following installation options are available:

 Mounting on a flat surface
 Mounting on a pole

You have the option of choosing various media to connect to the terminal
devices and other network components:

 twisted pair cable
 multimode F/O
 singlemode F/O

There are convenient options for managing the device. Administer your
devices via:

 a Web browser
 SSH
 Telnet
 HiDiscovery (Software for putting the device into operation)
 management software (e.g. Industrial HiVision, LANconfig/LANmonitor)
 a V.24 interface (locally on the device)

The devices provide you with a large range of functions, which the manuals
for the operating software inform you about. You will find these manuals as
PDF files on the enclosed CD/DVD, or you can download them from the
Internet on the Hirschmann product pages (www.hirschmann.com).
The Hirschmann network components help you ensure continuous
communication across all levels of the company.

20

Installation BAT-F

Release 09 08/2015

1.2 Device name and product code

The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden E-Catalog (www.e-catalog.beldensolutions.com) on
the web page of the device.

Item Characteristic Characteri

stic value

1 ... 5 Devices of the OpenBAT

family

6 ... 7 Country approvals AU Australia/New Zealand

8 Slot 1 W WLAN module
9 Slot 2 W WLAN module

10 Slot 3 9 Not assembled
11 Access point or client A Access Point

12 Supply voltage 1 C Power supply solely through a 7/8"

BAT-F IP65/67 housing

BR Brazil
EU Europe (CE)
CN China
IN India
JP Japan
KO Korea
SG Singapore
TH Thailand
US United States/Canada (FCC/ICC)

9 Not assembled

C Client

K Power supply solely through a 7/8"

P Power supply solely through PoE
W Power supply through a 7/8" connector

Description

connector
Rated voltage range DC

24 V ... 48 V

connector
Rated voltage range DC

60 V ... 250 V
Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz

Nominal voltage DC
24 V

Table 1: Device name and product code

Installation BAT-F

Release 09 08/2015

21

Item Characteristic Characteri

Description

stic value

13 Supply voltage 2 C Power supply solely through a 7/8"

connector
Rated voltage range DC

24 V ... 48 V

K Power supply solely through a 7/8"

connector
Rated voltage range DC

60 V ... 250 V
Rated voltage range AC

110 V ... 230 V, 50 Hz ... 60 Hz

W Power supply through a 7/8" connector

Nominal voltage DC
24 V

9 Not present

14 Approvals 1 F Class I, Division 2 Groups A, B, C, D

Hazardous Locations
G ATEX Zone 2
I Substation applications (EN 61850)
K Rail applications (EN 50155)
M Motor vehicles applications (E type

approval indicator, ECE No. 10)
9 No additional approvals

15 Approvals 2 H WLAN module version for high-gain

antennas
M Motor vehicles applications (E type

approval indicator, ECE No. 10)
9 No additional approvals

16 Mounting A Indoor operator access area

B Indoor service access area

a

b

17 ... 18 Ethernet port 1 O5 Combo port – you can use these ports for

alternative purposes:

 alternatively, depending on device

variant

 Supply voltage with the

characteristic value C and K:
8-pin, X-coded M12 plug for
10/100/1000 Mbit/s twisted-pair
port

 Supply voltage with the

characteristic value P and W:
8-pin, X-coded M12 plug for
10/100/1000 Mbit/s PoE PD port

 SFP slot for 1000 Mbit/s F/O port

Design: IP67-V1 connector according
to IEC 61076-3-106, variant 1

19 ... 20 Ethernet port 2 T6 8-pin, X-coded M12 plug for 10/100/1000

Mbit/s twisted-pair port
99 Not present

Table 1: Device name and product code

22

Installation BAT-F

Release 09 08/2015

Item Characteristic Characteri

stic value

21 Temperature range E Extended with conformal coating

K Extended with conformal coating and

S Standard

T Extended

22 Software option 1 A VPN-5

BVPN-50
C VPN-100

9 Not present
23 Software option 2 9 Not present
24 Software option 3 A AutoWDS

DPublic Spot

PPRP

9 Not present
25 Configuration Z Equipment package

9 Hirschmann standard
26 Device model H Hirschmann standard

Description

−40 °F ... +158 °F (−40 °C ... +70 °C)

approvals 1, characteristic value K,
railway applications:

-40 °C ... +55 °C

0 °C ... +60 °C (+32 °F ... +140 °F)

−40 °F ... +158 °F (−40 °C ... +70 °C)

Table 1: Device name and product code

a. Location for which one of the following conditions apply when one operates it correctly:

- The area is accessible without tools.

- The person responsible for the area has provided access for the operator intentionally.

- The operator knows of the access possibilities, regardless of whether they need a tool.

b. Location outside the operator area to which the service personnel has access, even when

the device is switched on.

Installation BAT-F

Release 09 08/2015

23

1.3 Device view

12

3

12 11 10 9 8 7 6 5 4b 4a 4

Front view (using the example BAT-FEUWW9ACK99DO5T1SA99)
1 alternatively, depending on

device variant

2 alternatively, depending on

device variant

3 LED display elements

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 1

For device variants with 1 WLAN module:
Not present

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 2

For device variants with 1 WLAN module:
3 × N socket for WLAN module 1

24

Installation BAT-F

Release 09 08/2015

4 Ethernet port 1

Combo port – you can use these ports for alternative purposes:
4a SFP slot for 1000 Mbit/s F/O port

Design: IP67-V1 connector according to IEC 61076-3-106, variant 1

4b alternatively, depending on

device variant

5 Optional:

Ethernet port 2
6 8-pin, A-coded M12 plug for V.24 access
7 5-pin, A-coded M12 socket for USB interface
8 alternatively, depending on

device variant

9 Only for device variants featuring supply voltage with the characteristic value C, K or W:

4-pin, A-coded M12 plug for signal contact
10 Power supply connection 1

alternatively, depending on

device variant

11 Power supply connection 2

alternatively, depending on

device variant

12 Connection for protective grounding

Supply voltage with the characteristic value C and K:
8-pin, X-coded M12 plug for 10/100/1000 Mbit/s
twisted-pair port

Supply voltage with the characteristic value P and W:
8-pin, X-coded M12 plug for 10/100/1000 Mbit/s PoE
PD port

8-pin, X-coded M12 plug for 10/100/1000 Mbit/s
twisted-pair port

Approvals 1 with characteristic value F and G:
The reset button below a screwable IP67 pressure
compensating cap

Approvals 1 with characteristic value I, K, M and 9:
The reset button below a screwable IP67 protective cap

Supply voltage with the characteristic value C:
4-pin, 7/8" connector

Supply voltage with the characteristic value K:
3-pin, 7/8" connector

Supply voltage with the characteristic value P:
Not present

Supply voltage with the characteristic value W:
4-pin, 7/8" connector

Supply voltage with the characteristic value C:
4-pin, 7/8" connector

Supply voltage with the characteristic value K:
3-pin, 7/8" connector

Supply voltage with the characteristic value P:
Not present

Supply voltage with the characteristic value W:
4-pin, 7/8" connector

Installation BAT-F

Release 09 08/2015

25

1.4 Power supply

Only for device variants featuring supply voltage with the characteristic
value C, K or W:
For redundant and failure-resistant power supply, you have the option of
connecting multiple voltage sources in any combination at the same time.
The device selects the used voltage source automatically.
Switching to a redundant voltage source possibly occurs with a short delay.
If the active power source is lost and another power source takes over the
power supply to the device, the device reboots if necessary to activate the
redundant power supply.

1.4.1 Supply voltage with the characteristic value C

A 4-pin 7/8" plug is available for the power supply to the device.

For further information see “Supply voltage with the characteristic value C”

on page 40.

1.4.2 Supply voltage with the characteristic value K

A 3-pin 7/8" plug is available for the power supply to the device.

For further information see “Supply voltage with the characteristic value K”

on page 41.

1.4.3 Supply voltage with the characteristic value P

Note: With supply voltage with the characteristic value P, the signal contact
is omitted.

Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate power
supply is required for your device.

For further information see “10/100/1000 Mbit/s PoE PD port” on page 44.

1.4.4 Supply voltage with the characteristic value W

You have the following options to supply your device with voltage:

 Power supply through a 7/8" connector

A 4-pin 7/8" plug is available for the power supply to the device.

For further information see “Supply voltage with the characteristic

value K” on page 26.

Installation BAT-F

26

Release 09 08/2015

 Power supply through PoE

Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate
power supply is required for your device.

For further information see “10/100/1000 Mbit/s PoE PD port” on page 27.

1.5 Ethernet ports

You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
You find information on pin assigments for making patch cables here:

“Pin assignments” on page 29

1.5.1 Gigabit combo port

You have the option of alternatively connecting a twisted pair cable via a
RJ45 socket or an optical fiber via a SFP transceiver to a combo port.
Only plug a connector or SFP transceiver that you want to use for the data
transmission into the socket of the combo port.

 10/100/1000 Mbit/s PoE PD port

Device variants featuring supply voltage with the characteristic value P
or W have this port exclusively.
The 10/100/1000 Mbit/s PoE PD port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T and IEEE 802.3af/at standard.
This port supports:

 Autocrossing
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex

The socket housing is electrically connected with the device housing.

Installation BAT-F

Release 09 08/2015

27

 10/100/1000 Mbit/s twisted pair port

Device variants featuring supply voltage with the characteristic value C
or K have this port exclusively.
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE­TX/1000BASE-T standard.
This port supports:

 Autocrossing
 Autonegotiation
 Autopolarity
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 1000 Mbit/s full duplex

The socket housing is electrically connected with the device housing.

 1000 Mbit/s F/O port

This port is designed as an IP67-V1 connector according to IEC 61076-3­106, variant 1.
The 1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 1000BASE-SX/1000BASE-LX
standard.
This port supports:

 Full duplex mode

1.5.2 10/100/1000 Mbit/s twisted-pair connection (optional)

See the properties of this port “10/100/1000 Mbit/s twisted pair port” on

page 28.

28

Installation BAT-F

Release 09 08/2015

1.5.3 Pin assignments

M12 4-pin (D coded) Pin Data PoE

4

M12 8-pin (X-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE

7

1

23

18

2

36

45

1 TX+ Positive V
2 RX+ Negative V
3TX− Positive V
4RX− Negative V

1 RX+ BI_DB+ Negative V
2RX− BI_DB− Negative V
3 TX+ BI_DA+ Positive V
4TX− BI_DA− Positive V
5— BI_DC+ —
6— BI_DC− —
7— BI_DD− —
8— BI_DD+ —

PSE

PSE

PSE

PSE

PSE

PSE

PSE

PSE

1.6 Connections for antennas

The devices have 3 N sockets on each WLAN module.
The “Antenna Guide” document provides an overview of the antennas that
can be used as well as the suitable antenna accessories.
This document is available as a PDF file on the enclosed CD/DVD or as a
download from the Hirschmann product pages (www.hirschmann.com).

Installation BAT-F

Release 09 08/2015

29

1.7 Display elements

P1

WLAN2P2

WLAN1 ETH1

ETH2

After the working voltage is set up, the software starts and initializes itself.
Afterwards, the device performs a self-test. During this process, various
LEDs light up.
These actions take less than 1 minute.

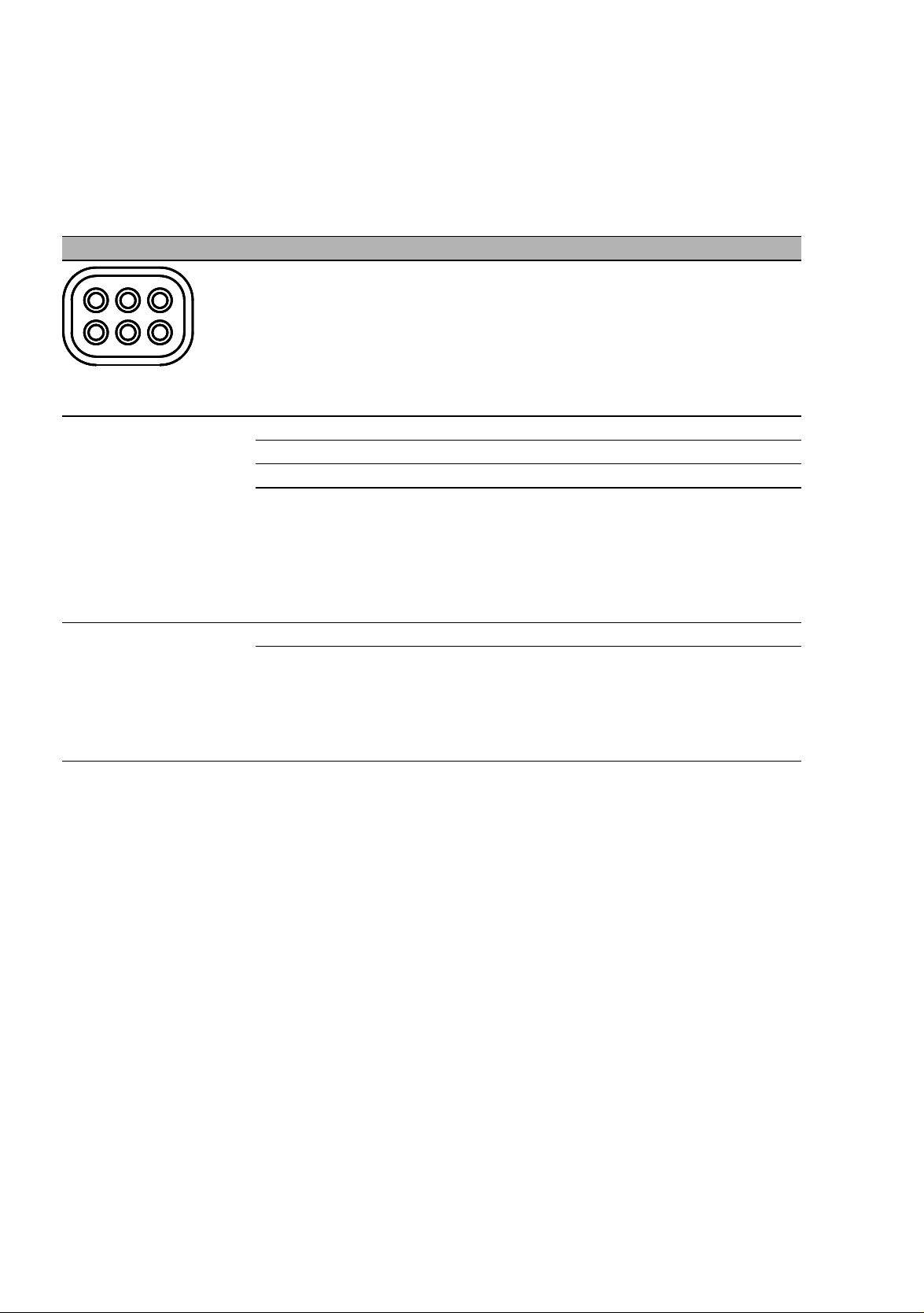

LED display elements for device status and port status

LED display elements
for device status:

LED display elements
for port status:

P1 Power supply connection 1
P2 Power supply connection 2
WLAN1 WLAN module 1
WLAN2 For device variants with 2 WLAN modules:

WLAN module 2

Note: For device variants with 1 WLAN module, this LED is
unlabeled and solely lights up after the configuration is
reset (hard reset).

ETH1 Ethernet port 1
ETH2 Optional:

Ethernet port 2

Note: For device variants without this port, this LED is
unlabeled.

1.7.1 Meaning of the LEDs

The following terms describe the behavior of the LEDs:

 Regular flashing: the LED switches on and off at regular intervals in the

specified sequence (e.g. red/off).

 Brief flashing: the LED lights up very briefly, then remains inactive for a

much longer time (about 10 × as long).

 Inverse flashing: the LED remains inactive for a very short time (about

10 × as long), then lights up for a much longer time (about 10 × as long).

 Flickering: the LED switches on and off at irregular intervals.
 Running light: coordinated glowing of several LEDs which gives the

optical impression that a light source is moving from left to right and back.

30

Installation BAT-F

Release 09 08/2015

1.7.2 Device state

These LEDs provide information about conditions which affect the operation
of the whole device.

P1, P2 (green/red LED) Power

off Connection is voltage-free
green on continuously Voltage present, device is operational.
red/green flashing (slowly) Charge lock active.

b

red/green flashing (quickly) Unprotected configuration as no password or the default

password is set.

a

red/off flashing (quickly) Hardware error detected.
red/green Running light of P1

and P2

green Running light of P1

A BAT controller WLC with an incompatible protocol is
connected.

Device is searching for a BAT controller WLC.

and P2

a. If both connections are voltage-free, the power supply is possibly running via an active

Ethernet connection on the PoE port.The port status LEDs directly on the port show you
whether an Ethernet connection is active.

b. Which LED displays the corresponding response depends on the configuration of the power

supply connections.P2 always performs signaling if a voltage is solely present on the
connection for working voltage 2.In all other cases, signaling is performed by P1.

a

b

WLAN 1, WLAN 2
(green/red LEDs)

WLAN connection and WLAN data traffic
of internal WLAN modules

Off No WLAN network defined or WLAN module deactivated. The

WLAN module does not send any beacons.

Green At least one WLAN network defined and WLAN module

activated. The WLAN module sends beacons.

Green flashing inversely Number of flashes = number of connected WLAN stations and

P2P radio lines, then there is a break.
Green flashing DFS scanning or another scan procedure.
Red flashing Hardware error detected in the WLAN module.

Installation BAT-F

Release 09 08/2015

31

1.7.3 Port state

These LEDs display port-related information.

ETH1, ETH2
(green/yellow
LED)

Off No network device connected
green on continuously Ethernet connection active
Yellow flickering Data traffic

Data, link status
Status of the LAN interfaces

1.8 Management interfaces

1.8.1 V.24 interface (external management)

This interface is designed as an 8-pin, A-coded M12 plug.
The V.24 user interface is serial and allows you to connect the following
devices directly:

 External management station (VT100 terminal or PC with appropriate

terminal emulation). With this management station, the Command Line
Interface (CLI) is available to you. Furthermore, the system monitor is
available to you at the system start.
You will find more information here:
– table 3 on page 33

 BAT-F device. Connecting the BAT-F device allows you to automate the

configuration of a point-to-point WLAN line by connecting two devices
directly via the serial interface.
You will find more information here:
– User Manual Configuration and Administration Guide
– table 4 on page 33

VT 100 terminal settings

Speed 115200 bit/s
Data 8 bit
Stopbit 1 bit
Handshake Hardware
Parity none

The socket housing is electrically connected to the housing of the device. The
V.24 interface is electrically insulated from the working voltage.
 Only use a shielded cable.

Installation BAT-F

32

Release 09 08/2015

Pins of the M12 socket

1
2
3
4
5
6
7
8

5
4
3
2
1
6
7
8

1

8

5

8

2

3

4

7

6

1

5

on the device

1

8

7

6

5

Table 2: Pin assignment of the V.24 interface, 8-pin, A-coded M12 socket

2

3

4

Pin Function Description of functions

1 GND Ground
2 DTR Data terminal ready
3 TxD Transmit data
4 RxD Receive data
5 DCD Data carrier detect
6 DSR Dataset ready
7 RTS Request to send
8 CTS Clear to send

Pins of the M12 socket on
the device

1

8

7

6

5

Table 3: Pin assignment for the connection with a cable:

2

3

4

8-pin, A-coded M12 plug to DB9 connector

Pin assignment for the connection
with a cable

Pins of the DB9 plug on
the external device

You can order a terminal cable M12, 8-pin, to DB9 as an accessory.

See “Accessories” on page 66.

Pins of the M12 socket on
the device

Pin assignment for the connection
with a cable

Pins of the M12 socket on
the device

1

8

7

6

5

Table 4: Pin assignment for the connection with a cable:

Installation BAT-F

Release 09 08/2015

2

3

4

8-pin, A-coded M12 plug to 8-pin, A-coded M12 plug (point-to-point
WLAN line)

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

33

Note: With the point-to-point WLAN line, the following pins are short-circuited
at both ends:

 2 (DTR) + 6 (DSR)
 7 (RTS) + 8 (DSR)

1.8.2 ACA21-M12 interface

This interface offers you the ability to connect the storage medium
AutoConfiguration AdapterACA21-M12. This storage medium is used for
saving/loading the configuration and diagnostic functions, and for loading the
software.
This interface is a 5-pin, A-coded M12 socket with shielding.

Note: The AutoConfiguration adapter ACA11-M12 available for certain
Hirschmann devices is incompatible with BAT-F devices.

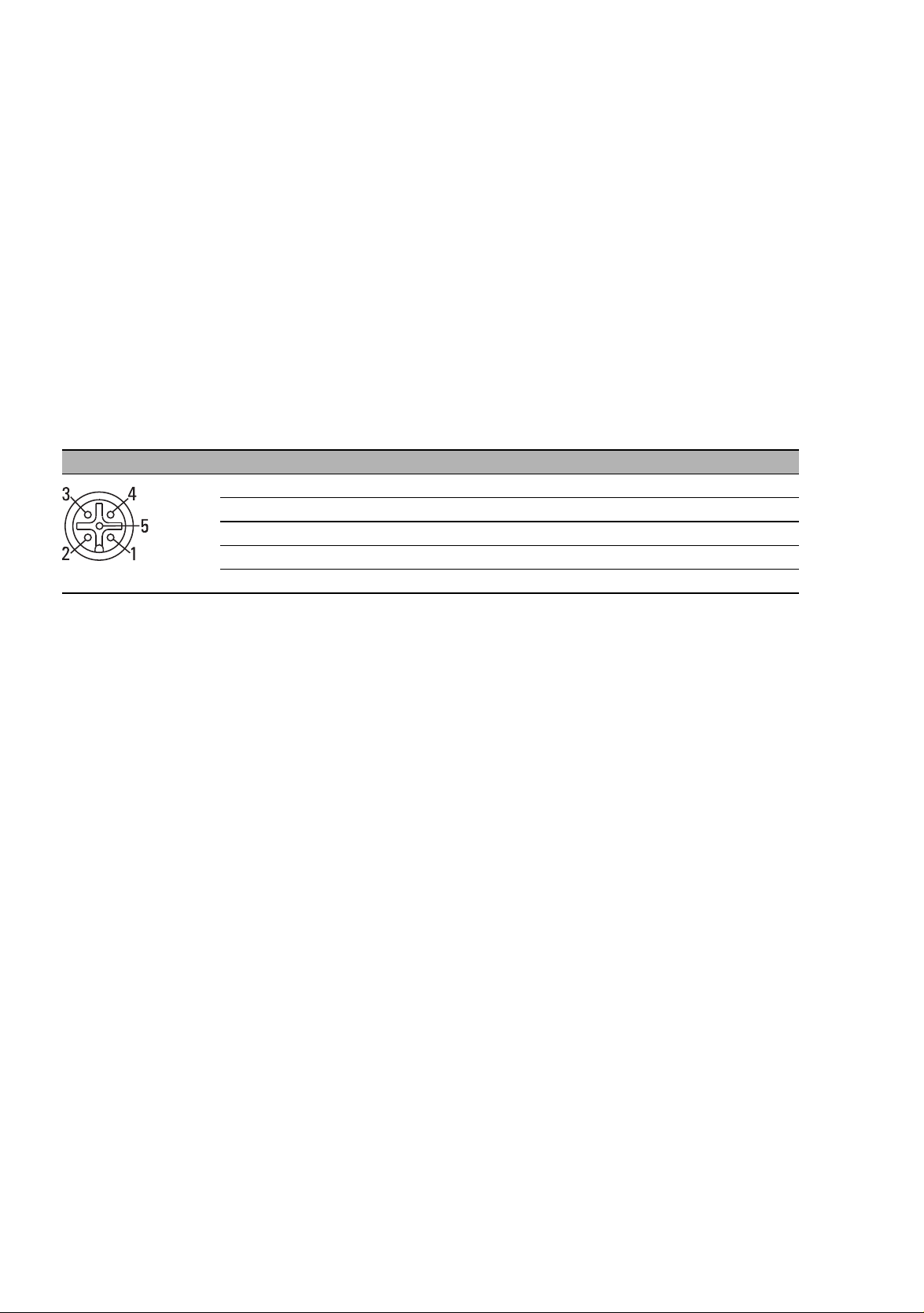

Pin Function

1U
2 N.C. Not used
3 D- Data ­4 GND Ground (0 V)
5 D+ Data +

in

5 V

Table 5: Pin assignment of the USB interface, 5-pin, A-coded M12 socket

1.9 Signal contact

Device variants featuring supply voltage with the characteristic value C, K
or W have a signal contact exclusively.
You have the option of setting the signal contact manually using the device
management.

For further information see “Signal contact” on page 42.

34

Installation BAT-F

Release 09 08/2015

1.10 Operation element (reset button)

The device has a reset button.

Note: The reset button is located behind a screwable IP67 pressure­equalization element (Approvals 1 with characteristic value F and G), or IP67
protection cap (Approvals 1 with characteristic value I, K, M and 9). The
tightening torque is 4.42 lb-in to 8.85 lb-in (0.5 Nm to 1.0 Nm).

For further information see “Resetting the device” on page 48.

Installation BAT-F

Release 09 08/2015

35

2 Installation

The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
To protect the exposed uninstalled contacts of the components from dirt,
connect the individual system components in a dry and clean working area.
The device fulfills the protection class IP65/67 under the following conditions,
exclusively:

 All the connectors and cables connected also fulfill protection class

IP65/67.

 The locking screws seal all unused connections and ports. The locking

screws also fulfill the protection class IP65/67.
If your device is equipped with an impact protection, proceed as follows when
mounting the components:

 Remove the impact protection.
 Mount the components.
 Mount the impact protection.

Perform the following steps to install and configure the device:

 Checking the package contents
 Installing and grounding the device
 Installing an SFP transceiver (optional)
 Installing the antennas
 Connecting the power supply and signal lines
 Operating the device
 Connecting data cables

2.1 Checking the package contents

 Check whether the package includes all items named in the section

“Scope of delivery” on page 64.

 Check the individual parts for transport damage.

36

Installation BAT-F

Release 09 08/2015

2.2 Installing and grounding the device

2.2.1 Installing the device onto or on a flat surface

You have the option of attaching the device with suitable hardware to a
vertical flat surface.
Requirements for the fastening components:

 The diameter of the fastening components itself is maximum 0.2 in.

(5 mm).

 The head diameter is maximum 0.47 in. (12 mm).
 The diameter of a possibly used washer is maximum 0.47 in. (12 mm).

 Prepare the assembly at the installation site.

See “Dimension drawings” on page 54.

 Install the device with suitable fastening components.
 Seal all unused connections and ports with locking screws (available as

accessories).

See “Accessories” on page 66.

2.2.2 Installing the device on a pole

You have the option of installing the device on a pole, pipe, strut, or on a
similarly stable construction using a pole mounting set.
The pole mounting set you obtain as an accessory.

Installation BAT-F

Release 09 08/2015

37

See “Accessories” on page 66.

 The clamp diameter of the mast clamp included in the pole mounting set

is maximum 2.56 in. (65 mm).

 For larger pole diameters, you have the option of using tightening straps,

which are available in specialized trade.

 maximum width of the tightening strap: 0.63 in. (16 mm)

 maximum thickness of the tightening strap: 0.05 in. (1.3 mm)

2.2.3 Grounding the device

The device is grounded via the separate ground screw.

 Terminate the ground conductor between the fastening plates.
 Make sure the fastening plates cover the insulated part of the ground

conductor completely.
 Tightening the ground screw.

2.3 Installing an SFP transceiver (optional)

Use only Hirschmann SFP transceivers which are suitable for usage with the
device.

See “Accessories” on page 66.

The SFP mounting tool available as an accessory makes it easier for you to
insert the SFP transceivers.

See “Removing an SFP transceiver (optional)” on page 51.

 Remove the protective cap from the SFP transceiver.
 Push the SFP transceiver with the lock closed into the slot.

38

Installation BAT-F

Release 09 08/2015

2.4 Installing the antennas

1

1b 1c 2a 2b 2c

1a

2

1 alternatively, depending on

device variant

1a Antenna connection 1
1b Antenna connection 2
1c Antenna connection 3

2 alternatively, depending on

device variant

2a Antenna connection 1
2b Antenna connection 2
2c Antenna connection 3

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 1

For device variants with 1 WLAN module:
Not present

For device variants with 2 WLAN modules:
3 × N socket for WLAN module 2

For device variants with 1 WLAN module:
3 × N socket for WLAN module 1

Table 6: Antenna connections

If you connect to 2 BAT-F devices antennas to 2 WLAN modules, ensure that
there is a distance of at least 2 m between the BAT-F devices.
If you would like to connect several antennas to a WLAN module, align the
antennas so that the points of the antennas point away form each other in a
star shape.
 Install at least one antenna on the WLAN module that you would like to

use.

 Insert the terminators supplied into the unused sockets to avoid radio

signals from one WLAN module being received by the other WLAN
module.

Relevant for use of BAT-ANT-N-MiMo-18N-IP65 with FCC and approval 2,
characteristic value H. The devices are labeled as follows:

 “FCC ID: U99EWLAN2 and IC: 4019A-EWLAN2”

Connect the BAT-ANT-N-MiMo-18N-IP65 to the WLAN module as follows:

 Connect the antenna port "Ver" with the WLAN antenna port 1.
 Connect the antenna port "+45 °" with the WLAN antenna port 2.
 Connect the antenna port "−45 °" with the WLAN antenna port 3.

 Connect the BAT-ANT-N-MiMo-18N-IP65 in this way exclusively.

Installation BAT-F

Release 09 08/2015

39

2.5 Connecting the power supply and signal

N.C.

P+ P-

N.C.

lines

WARNING

ELECTRIC SHOCK

Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not touch
the connection terminals.
Start connecting the electrical wires only if all the above safety
requirements are fulfilled.

See “Supply voltage” on page 8.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

The supply voltage is electrically isolated from the housing.
You have the option of supplying the supply voltage redundantly, without
load distribution.

2.5.1 Supply voltage with the characteristic value C

Perform the following steps for the supply voltage to be connected, or for
device variants with 2 supply voltage connections of this type, for every
supply voltage to be connected.

Type and specification of the
supply voltage

Rated voltage range DC
24 V ... 48 V

Voltage range DC incl. maximum
tolerances
18 V ... 60 V

Table 7: Supply voltage with the characteristic value°C: type and specification of

the supply voltage, pin assignment on the device

Pin assignment on the device

P- Minus terminal of the supply voltage

N.C.—

N.C.—

P+ Plus terminal of the supply voltage

For every supply voltage to be connected, perform the following steps:
 Connect the wires for the supply voltage according to the pin assignment

with a suitable socket.

40

Installation BAT-F

Release 09 08/2015

2.5.2 Supply voltage with the characteristic value K

P-P+

PE

NL

PE

WARNING

ELECTRIC SHOCK

Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.

Failure to follow these instructions can result in death, serious injury,
or equipment damage.

Type of the
voltages that
can be
connected

DC voltage Rated voltage range DC

AC voltage Rated voltage range AC

Specification of the supply
voltage

60 V ... 250 V
Voltage range DC incl.

maximum tolerances
48 V ... 320 V

110 V ... 230 V, 50 Hz ...
60 Hz

Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz

Pin assignment on the device

PE Protective conductor

P+ Plus terminal of the

supply voltage

P- Minus terminal of the

supply voltage

PE Protective conductor

L Outer conductor
N Neutral conductor

Table 8: Supply voltage with the characteristic value K: type and specification of

the supply voltage, connections

 Connect the wires for the supply voltage and the protective grounding

according to the pin assignment with a suitable socket.

Installation BAT-F

Release 09 08/2015

41

2.5.3 Supply voltage with the characteristic value W

1

23

4

Type and specification of the
supply voltage

Nominal voltage DC
24 V

Voltage range DC incl. maximum
tolerances
18 V ... 32 V

Pin assignment on the device

P- Minus terminal of the supply

P+ P-

voltage

N.C.—

N.C.

N.C.

N.C.—

P+ Plus terminal of the supply

voltage

Table 9: Supply voltage with the characteristic value W: type and specification of

the supply voltage, pin assignment on the device

For every supply voltage to be connected, perform the following steps:
 Connect the wires for the supply voltage according to the pin assignment

with a suitable socket.

2.5.4 Signal contact

Pin Function

1 Signal contact 2
2 Signal contact 2
3 Signal contact 1
4 Signal contact 1

Table 10: Pin assignment of the signal contact, 4-pin, A-coded M12 plug

Device variants featuring supply voltage with the characteristic value C, K
or W have a signal contact exclusively.
For the signal contact to be connected, make sure the following requirements
are met:

 The electrical wires are voltage-free.
 The connected voltage is limited by a current limitation device or a fuse.

 Observe the electrical threshold values for the signal contact.

See “General technical data” on page 52.

 Connect the signal contact lines according to the pin assignment with a

suitable socket.
 Plug the socket into the M12 plug on the device.

42

Installation BAT-F

Release 09 08/2015

2.6 Operating the device

By connecting the supply voltage via a 7/8" plug or a twisted pair cable
(Power over Ethernet), you start the operation of the device.

2.6.1 Connecting the power supply through a 7/8" connector

 Plug the socket into the 7/8" connector on the device.
 Enable the supply voltage.

2.6.2 Connecting the power supply through PoE

NOTICE

MATERIAL DAMAGE

In a PoE installation, use only devices that comply with the IEEE 802.3af/at
standard.

Non-adherence to these instructions can lead to equipment damage.

Only for device variants featuring supply voltage with the characteristic
value P or W:
By connecting the supply voltage via PoE, you start the operation of the
device.

Installation BAT-F

Release 09 08/2015

43

2.7 Connecting data cables

2.7.1 Gigabit combo port

 10/100/1000 Mbit/s PoE PD port

For further information see “10/100/1000 Mbit/s PoE PD port” on page 27.

 Connect the data cables according to your requirements.

 1000 Mbit/s F/O port

For further information see “1000 Mbit/s F/O port” on page 28.
Make sure that you connect LH ports exclusively with LH ports, SX ports
exclusively with SX ports, and LX ports exclusively with LX ports.
 Connect the data cables according to your requirements.

2.7.2 10/100/1000 Mbit/s twisted-pair connection (optional)

For further information see “10/100/1000 Mbit/s twisted-pair connection

(optional)” on page 28.

 Connect the data cables according to your requirements.

44

Installation BAT-F

Release 09 08/2015

3 Making basic settings

The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:

 Entry via V.24 connection
 Entry with the aid of the HiDiscovery logs on the applications HiDiscovery

or Industrial HiVision

 Configuration via BOOTP
 Configuration via DHCP (Option 82)
 AutoConfiguration Adapter

You find information on the basic settings of the device and on the state on
delivery in the following documentation on the supplied CD/DVD:

 User Manual Configuration and Administration Guide
 User Manual Operation and Maintenance Guide

Installation BAT-F

Release 09 08/2015

45

4 Configuring the transmit power

Note: The operator of a WLAN radio installation must adhere to the
applicable transmission threshold values.

Use the LANconfig or Webconfig software, which you find on the supplied
CD/DVD.
Proceed as follows:
 In the menu tree, open the Configuration > Wireless LAN > General

dialog.

 In the “General” tab, specify in the “General” frame the country in which

you install the device, and click the “Send” button.

46

Installation BAT-F

Release 09 08/2015

 In the menu tree, open the Configuration > Wireless LAN > General >

Physical WLAN settings - Radio dialog.

 In the “General” tab, click in the “Interface” column the physical WLAN

interface to which you connect the antenna.

 Subtract the cable and installed over voltage protector attenuation from

the antenna gain. Enter the calculated value in the “Antenna gain” field.

 To save the value, click the “Send” button.

Installation BAT-F

Release 09 08/2015

47

5 Resetting the device

4

15

91

a

a

b

c

6

11

≥ 16

[s]

The device has a reset button.
Depending on how many seconds you press and hold the reset button, the
device executes one of the following actions.

Figure 1: Functions of the reset button

a – Resetting the device to the current configuration (soft reset/reboot)
b – Resetting the device to the delivery settings (hard reset)
c – Loading a customer-specific version

5.1 Restarting the device (soft reset)

Performing a reboot, you reset the device to the current configuration.
 Press and hold the reset button 1 to 4 seconds or 11 to 15 seconds.

5.2 Resetting the configuration (hard reset)

If the connection to the device configuration is interrupted or if you want to re­configure the device, you can reset the configuration to the default settings
of the firmware that you are using.
During this process the user settings are lost. Therefore, before resetting you
must save the current configuration on an external medium.
 Press and hold the reset button for 6 to 9 seconds.

During this process, all LEDs light up.

Subsequently, the device reboots applying the delivery settings.

48

Installation BAT-F

Release 09 08/2015

5.3 Loading a customer-specific version

You have the option of loading a customer-specific configuration saved on
the device as an alternative to the default configuration.
 Press and hold the reset button for minimum 16 seconds.
If no customer-specific configuration is saved on the device, the device
reboots (= soft reset).

Installation BAT-F

Release 09 08/2015

49

6 Maintenance and service

 When designing this device, Hirschmann largely avoided using high-wear

parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.

 Relays are subject to natural wear. This wear depends on the frequency

of the switching operations. Check the resistance of the closed relay
contacts and the switching function depending on the frequency of the
switching operations.

 Hirschmann is continually working on improving and developing their

software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (www.hirschmann.com).

Note: You will find information about the complaints and returns procedures
on the Internet under

http://www.beldensolutions.com/en/Service/Repairs/index.phtml .

50

Installation BAT-F

Release 09 08/2015

7Disassembly

132

7.1 Removing the device

 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the power supply cables and signal lines.
 Remove the antennas.
 Disconnect the grounding.

7.2 Removing an SFP transceiver (optional)

To disassemble SFP transceivers, you require the SFP mounting tool
available as an accessory .

See “Accessories” on page 66.

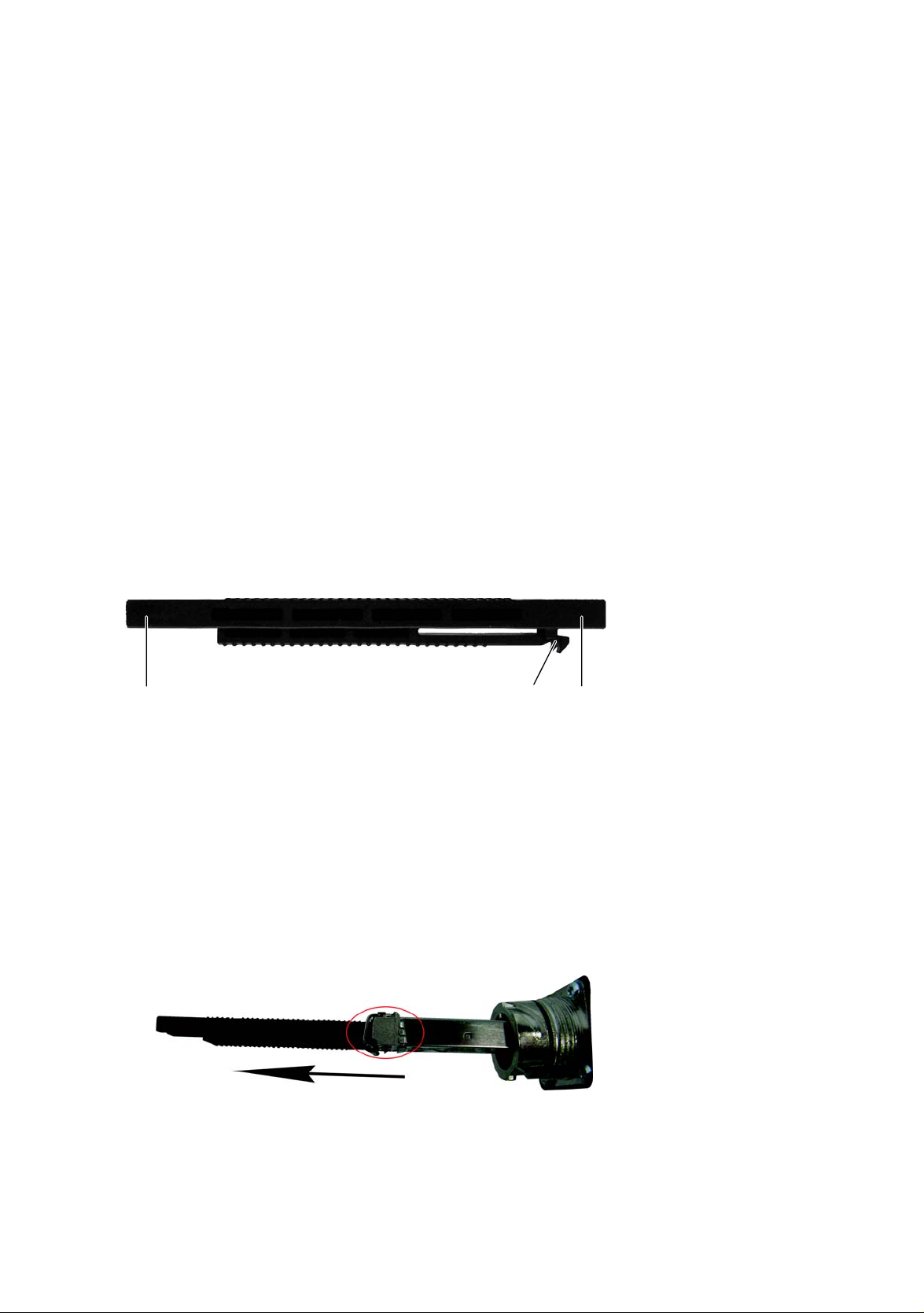

Figure 2: SFP mounting tool

1 – mounting side
2 – barbed hooks
3 – disassembly side

 Insert the SFP mounting tool so into the SFP transceiver that the barbed

hooks point to the locking handle of the SFP transceivers.

 Gently press the SFP mounting tool in the direction of the lock so that the

barbed hooks link into the strap.

 Pull the SFP transceiver out of the slot using the mounting tool.

 Close the slot with the protection cap.

Installation BAT-F

Release 09 08/2015

51

8 Technical data

 General technical data

Weight Device variants featuring supply voltage with the

characteristic value P
Device variants featuring supply voltage with the

characteristic value C or K
Device variants featuring supply voltage with the

characteristic value W
and approvals 1 with the characteristic value I,
M or 9

Device variants featuring supply voltage with the
characteristic value W
and approvals 1 with the characteristic value F
or G

Device variants featuring supply voltage with the
characteristic value W
and approvals 1 with the characteristic value K

Supply voltage with
the characteristic
value C

Supply voltage with
the characteristic
value K

Supply voltage with
the characteristic
value P

Power supply solely through a 7/8" connector
Rated voltage range DC 24 V ... 48 V

Class 2

Voltage range DC incl.
maximum tolerances

Connection type 4-pin, 7/8" connector
Power loss buffer > 10 ms at 20.4 V DC
Overload current protection at

input
Back-up fuse Nominal rating:

Peak inrush current 14 A
Power supply solely through a 7/8" connector
Rated voltage range AC 110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.

maximum tolerances
Rated voltage range DC 60 V ... 250 V
Voltage range DC incl.

maximum tolerances
Connection type 3-pin, 7/8" connector
Power loss buffer > 10 ms at 98 V AC
Overload current protection at

input
Back-up fuse for each voltage

input
Peak inrush current 14 A
Power supply solely through PoE

18 V ... 60 V

Non-replaceable fuse

Characteristic:

88 V ... 265 V, 47 Hz ... 63 Hz

48 V ... 320 V

Non-replaceable fuse

Nominal rating:
Characteristic:

approx. 2800 g

approx. 114.64 oz
(3250 g)

approx. 105.82 oz
(3000 g)

approx. 145.33 oz
(4120 g)

approx. 109.35 oz
(3100 g)

Max. 6.3 A
slow blow

2.5 A
slow blow

52

Installation BAT-F

Release 09 08/2015

Supply voltage with
the characteristic
value W

Power supply through a 7/8" connector
Nominal voltage DC 24 V

Class 2

Voltage range DC incl.

18 V ... 32 V

maximum tolerances
Connection type 4-pin, 7/8" connector
Power loss buffer > 10 ms at 20.4 V DC
Overload current protection at

Non-replaceable fuse

input
Back-up fuse Nominal rating:

Characteristic:

Max. 6.3 A
slow blow

Peak inrush current 14 A

Climatic conditions
during operation

Ambient air temperature

a

Devices with operating temperature
characteristic value S (standard):
0 °C ... +60 °C (+32 °F ... +140 °F)

Devices with operating temperature
characteristic value E and T (extended):

−40 °F ... +158 °F (−40 °C ... +70 °C)

b

Humidity 10 % ... 95 %
Air pressure Up to 2000 m (795 hPa), higher altitudes

on request
maximum 1060 hPa (−1312 ft; −400 m)

Climatic conditions
during storage

Minimum clearance around the
device

Top and bottom device side: 3.94 in
(10 cm)
Left and right device side: 0.79 in (2 cm)

Ambient air temperature

a

−40 °F ... +185 °F (−40 °C ... +85 °C)

Humidity 10 % ... 95 %
Air pressure minimum 700 hPa (+9842 ft; +3000 m)

maximum 1060 hPa (−1312 ft; −400 m)

“FAULT”
signal contact

Switching current max. 1 A, SELV
Switching voltage Supply voltage with the characteristic

value C and K:
max. 60 V DC or max. 30 V AC, SELV

Supply voltage with the characteristic
value W:

max. 30 V DC, SELV
Pollution degree 2
Protection classes Laser protection Class 1 in compliance with IEC 60825-1

Degree of protection IP65/67

a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device
b. Use SFP transceivers with the “EEC” extension only, otherwise the standard temperature

range applies.

Installation BAT-F

Release 09 08/2015

53

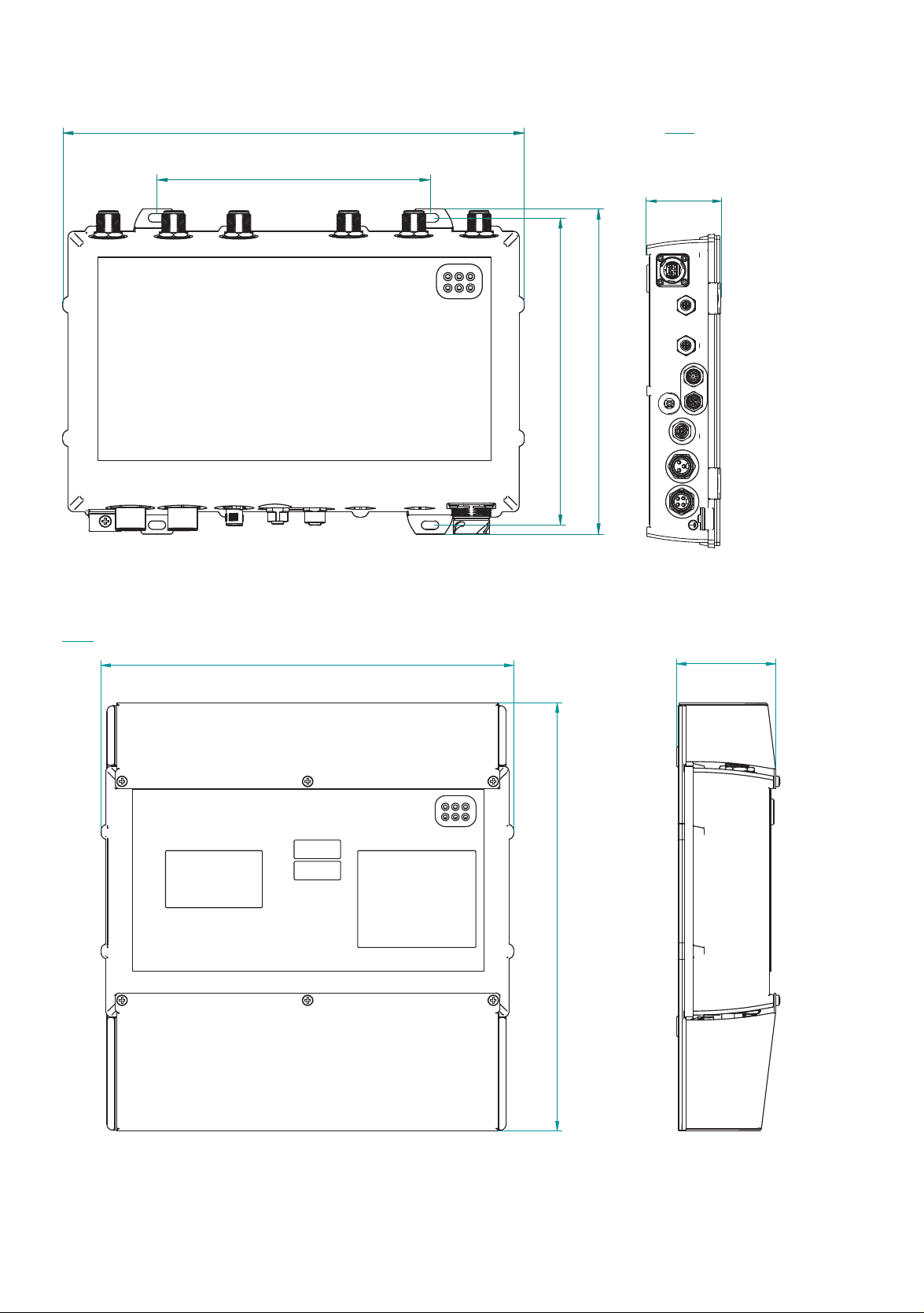

 Dimension drawings

73

184

31 1

207

2

19

mm
in

12.24

7.24

8.15

8.62

2.87

311

322,46

74,37

mm
inch

12.24

2.93

12.70

Figure 3: Dimensions of device variants and distance between suspensions.

Figure 4: Dimensions of the device variants with impact protection.

54

Installation BAT-F

Release 09 08/2015

Figure 5: Distances of the suspension with impact protection.

184

207 38,69

mm
inch

7.24

1.52

8.15

Installation BAT-F

Release 09 08/2015

55

 Radio technology

Antenna connection For each WLAN module: 3 × N socket
Range Up to 12.4 miles (20 km, depending on antenna used, frequency

range and data rate)

Encryption

Frequency range Support of 2.4 GHz and 5 GHz: 2400 MHz to 2483.5 MHz (ISM) and

Modulation technology 22M0F7D (DSSS/OFDM) with 2.4 GHz

Radio topology Access point device variants:

Roaming Seamless handover, IAPP support, IEEE 802.11d support,

 IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and

hardware-accelerated AES/TKIP

 User authentication with IEEE 802.1x/EAP or LEPS
 IEEE-802.1x supplicant in the Client Mode
 AES/TKIP
 WEP
 Access Control Lists
 WLAN port and protocol filter
 RADIUS client and server
 Integrated firewall with QoS
 Port filter
 Protocol filter
 IDS and DoS protection
 PMK caching and preauthentication for faster roaming with

IEEE 802.1x

5170 MHz to 5850 MHz

20M0G7D (OFDM) with 5 GHz

WLAN access point, bridge, router, point-to-point, client, client­bridge mode, fixed mesh with RSTP

Client device variants:
WLAN client, client-bridge mode

background scanning for rogue AP detection and fast roaming

a

a

a. With encryptions type TKIP and WEP, the device falls back on IEEE 802.11b/g or IEEE

802.11a (depending on frequency).

 Receive sensitivity, transmission power and data rate

according to IEEE 802.11a/b/g/n

The values shown in the following tables show maximum values of the
WLAN module version for high-gain antennas. The values are in no case
to be perceived as a guaranteed property of the overall product. In some
country profiles, the module automatically reduces the data rate and
transmit power downward. This is due to national standards.

Data rate Typical transmission power Typical receive sensitivity

06 Mbps 16 dBm -93 dBm

09 Mbps 16 dBm -93 dBm

12 Mbps 16 dBm -93 dBm

18 Mbps 16 dBm -91 dBm

Table 11: Receive sensitivity, transmission power and data rate according to

IEEE 802.11a

56

Installation BAT-F

Release 09 08/2015

Data rate Typical transmission power Typical receive sensitivity

24 Mbps 16 dBm -88 dBm

36 Mbps 15 dBm -84 dBm

48 Mbps 13 dBm -80 dBm

54 Mbps 12 dBm -79 dBm

Table 11: Receive sensitivity, transmission power and data rate according to

IEEE 802.11a

Data rate Typical transmission

power

1 Mbps 19 dBm -94 dBm

11 Mbps 19 dBm -94 dBm

Typical receive sensitivity

Table 12: Receive sensitivity, transmission power and data rate according to

IEEE 802.11b

Data rate Typical transmission

power

06 Mbps 22 dBm −94 dBm

09 Mbps 22 dBm −94 dBm

12 Mbps 22 dBm −90 dBm

18 Mbps 22 dBm −89 dBm

24 Mbps 22 dBm −85 dBm

36 Mbps 21 dBm −82 dBm

48 Mbps 20 dBm −78 dBm

Typical receive sensitivity

54 Mbps 19 dBm −77 dBm

Table 13: Receive sensitivity, transmission power and data rate according to

IEEE 802.11g

Data rate Typical transmission power Typical receive sensitivity

MCS0 18 dBm -87 dBm

MCS1 18 dBm -90 dBm

MCS2 18 dBm -86 dBm

MCS3 18 dBm -82 dBm

MCS4 18 dBm -79 dBm

MCS5 16 dBm -75 dBm

MCS6 16 dBm -73 dBm

Table 14: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

Installation BAT-F

Release 09 08/2015

57

Data rate Typical transmission power Typical receive sensitivity

MCS7 15 dBm -72 dBm

MCS8 22 dBm -87 dBm

MCS9 21 dBm -90 dBm

MCS10 22 dBm -86 dBm

MCS11 21 dBm -82 dBm

MCS12 16 dBm -79 dBm

MCS13 16 dBm -75 dBm

MCS14 15 dBm -73 dBm

MCS15 15 dBm -72 dBm

MCS16 23 dBm -87 dBm

MCS17 23 dBm -90 dBm

MCS18 23 dBm -86 dBm

MCS19 23 dBm -82 dBm

MCS20 16 dBm -79 dBm

MCS21 17 dBm -75 dBm

MCS22 17 dBm -73 dBm

MCS23 16 dBm -72 dBm

Table 14: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

Data rate Typical transmission power Typical receive sensitivity

MCS0 17 dBm -92 dBm

MCS1 17 dBm -91 dBm

MCS2 17 dBm -89 dBm

MCS3 17 dBm -84 dBm

MCS4 17 dBm -81 dBm

MCS5 15 dBm -77 dBm

MCS6 14 dBm -75 dBm

MCS7 14 dBm -73 dBm

MCS8 20 dBm -92 dBm

MCS9 20 dBm -91 dBm

MCS10 19 dBm -89 dBm

MCS11 20 dBm -84 dBm

Table 15: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

Installation BAT-F

58

Release 09 08/2015

Data rate Typical transmission power Typical receive sensitivity

MCS12 18 dBm -81 dBm

MCS13 15 dBm -77 dBm

MCS14 15 dBm -75 dBm

MCS15 14 dBm -73 dBm

MCS16 21 dBm -92 dBm

MCS17 21 dBm -91 dBm

MCS18 21 dBm -89 dBm

MCS19 21 dBm -84 dBm

MCS20 16 dBm -81 dBm

MCS21 15 dBm -77 dBm

MCS22 14 dBm -75 dBm

MCS23 14 dBm -73 dBm

Table 15: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

 Receiver sensitivity, transmit power, and data rate of the

WLAN module version for high-gain antennas (approvals 2,
characteristic value H) according to IEEE 802.11a/b/g/n

The values shown in the following tables show maximum values of the
WLAN module version for high-gain antennas. The values are in no case
to be perceived as a guaranteed property of the overall product. In some
country profiles, the module automatically reduces the data rate and
transmit power downward. This is due to national standards.

Data rate Typical transmission power Typical receive sensitivity

06Mbps 10 dBm -93 dBm

09Mbps 10 dBm -93 dBm

12Mbps 10 dBm -93 dBm

18Mbps 10 dBm -91 dBm

24Mbps 10 dBm -88 dBm

36Mbps 9 dBm -84 dBm

48Mbps 7 dBm -80 dBm

54Mbps 6 dBm -79 dBm

Table 16: Receive sensitivity, transmission power and data rate according to

IEEE 802.11a

Installation BAT-F

Release 09 08/2015

59

Data rate Typical transmission

power

1Mbps 19 dBm -94 dBm

11Mbps 19 dBm -94 dBm

Typical receive sensitivity

Table 17: Receive sensitivity, transmission power and data rate according to

IEEE 802.11b

Data rate Typical transmission

power

06Mbps 22 dBm -94 dBm

09Mbps 22 dBm -94 dBm

12Mbps 22 dBm -90 dBm

18Mbps 22 dBm -89 dBm

24Mbps 22 dBm -85 dBm

36Mbps 21 dBm -82 dBm

48Mbps 20 dBm -78 dBm

54Mbps 19 dBm -77 dBm

Typical receive sensitivity

Table 18: Receive sensitivity, transmission power and data rate according to

IEEE 802.11g

Data rate Typical transmission power Typical receive sensitivity

MCS0 18 dBm -87 dBm

MCS1 18 dBm -90 dBm

MCS2 18 dBm -86 dBm

MCS3 18 dBm -82 dBm

MCS4 18 dBm -79 dBm

MCS5 16 dBm -75 dBm

MCS6 16 dBm -73 dBm

MCS7 15 dBm -72 dBm

MCS8 22 dBm -87 dBm

MCS9 21 dBm -90 dBm

MCS10 22 dBm -86 dBm

MCS11 21 dBm -82 dBm

MCS12 16 dBm -79 dBm

MCS13 16 dBm -75 dBm

Table 19: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

60

Installation BAT-F

Release 09 08/2015

Data rate Typical transmission power Typical receive sensitivity

MCS14 15 dBm -73 dBm

MCS15 15 dBm -72 dBm

MCS16 23 dBm -87 dBm

MCS17 23 dBm -90 dBm

MCS18 23 dBm -86 dBm

MCS19 23 dBm -82 dBm

MCS20 16 dBm -79 dBm

MCS21 17 dBm -75 dBm

MCS22 17 dBm -73 dBm

MCS23 16 dBm -72 dBm

Table 19: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 2.412 GHz – 2.472 GHz bandwidth

Data rate Typical transmission power Typical receive sensitivity

MCS0 11 dBm -92 dBm

MCS1 11 dBm -91 dBm

MCS2 11 dBm -89 dBm

MCS3 11 dBm -84 dBm

MCS4 11 dBm -81 dBm

MCS5 9 dBm -77 dBm

MCS6 8 dBm -75 dBm

MCS7 8 dBm -73 dBm

MCS8 7 dBm -92 dBm

MCS9 7 dBm -91 dBm

MCS10 6 dBm -89 dBm

MCS11 7 dBm -84 dBm

MCS12 5 dBm -81 dBm

MCS13 2 dBm -77 dBm

MCS14 2 dBm -75 dBm

MCS15 1 dBm -73 dBm

MCS16 8 dBm -92 dBm

MCS17 8 dBm -91 dBm

MCS18 8 dBm -89 dBm

Table 20: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

Installation BAT-F

Release 09 08/2015

61

Data rate Typical transmission power Typical receive sensitivity

MCS19 8 dBm -84 dBm

MCS20 3 dBm -81 dBm

MCS21 2 dBm -77 dBm

MCS22 1 dBm -75 dBm

MCS23 1 dBm -73 dBm

Table 20: Receive sensitivity, transmission power and data rate according to

IEEE 802.11n and for the 5.180 GHz – 5.825 GHz bandwidth

 EMC and immunity

EMC interference
immunity

EN 61000-4-2 Electrostatic discharge

Contact discharge, test level 4 ± 8 kV
Air discharge, test level 4 ± 15 kV

EN 61000-4-3 Electromagnetic field

80 MHz ... 1000 MHz 20 V/m
1400 MHz ... 2700 MHz 10 V/m

EN 61000-4-4 Fast transients (burst), test level 4

DC power line ± 4 kV
AC Power Line ± 4 kV
Data line ± 4 kV

EN 61000-4-5 Voltage surges

DC power line ± 2 kV line/ground; ± 1 kV line/line
AC Power Line ± 4 kV line/ground; ± 2 kV line/line
Data line, shielded ± 4 kV line/ground
Data line, unshielded ± 2 kV line/ground
Data line, unshielded ± 1 kV line/line

EN 61000-4-6 Conducted interference voltages, test level 3

150 kHz ... 80 MHz 10 V

EN 61000-4-9 Pulse magnetic fields 300 A/m

EMC interference
emission

EN 55022 Class B
FCC 47 CFR Part 15 Class A

Stability

Vibration IEC 60068-2-6 Test FC test level according to IEC 61131-2
Shock IEC 60068-2-27 Test Ea test level in accordance with IEC 61131-2,

EN 50155

Installation BAT-F

62

Release 09 08/2015

 Network range

Note: The line lengths specified for the transceivers apply for the
respective fiber data (fiber attenuation and BLP/dispersion).

Product
code
M-SFP-...

-SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m 3.0 dB/km 400 MHz×km

-SX/LC... MM 850 nm 62.5/125 µm 0-7.5 dB 0-275 m 3.2 dB/km 200 MHz×km

-LX/LC... MM 1310 nm

-LX/LC... MM 1310 nm

-LX/LC... SM 1310 nm 9/125 µm 0-10.5 dB 0-20 km

-LH/LC... LH 1550 nm 9/125 µm 5-22 dB 23-80 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-108 km 0.25 dB/km 19 ps/(nm×km)

-LH+/LC LH 1550 nm 9/125 µm 15-30 dB 71-128 km 0.21 dB/km

Wave
length

Fiber System

attenuatio
n

c

50/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 800 MHz×km

c

62.5/125 µm 0-10.5 dB 0-550 m 1.0 dB/km 500 MHz×km

Example
for F/O line
length

a

d

Fiber
attenuatio
n

0.4 dB/km 3.5 ps/(nm×km)

(typically)

BLPb/
dispersion

19 ps/(nm×km)

Table 21: Fiber port 1000BASE-FX (SFP fiber optic Gigabit Ethernet Transceiver)

a. including 3 dB system reserve when compliance with the fiber data is observed
b. Using the bandwidth length product is inappropriate for expansion calculations.
c. With F/O adapter compliant with IEEE 802.3-2002 clause 38 (single-mode fiber offset-launch

mode conditioning patch cord)

d. including 2.5 dB system reserve when compliance with the fiber data is observed

MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul

10/100/1000 Mbit/s twisted pair port

Length of a twisted pair segment max. 100 m (for cat5e cable)

 Power consumption/power output

Conditions Maximum

power consumption

When equipped with 1 WLAN module 12.95 W 44.19 BTU (IT)/h
When equipped with 2 WLAN

modules

17.5 W 59.71 BTU (IT)/h

Power output

Installation BAT-F

Release 09 08/2015

63

 Scope of delivery

Number Article

1× Device
1 × Installation user manual
1 × CD/DVD with manual
1 × Terminal cable: M12 connector, 8-pin on DB9 socket
3 × per WLAN module 3-dBi dipole dual-band antennas for initial operation
2 × Power supply plug, for cable diameters of 0.24 to 0.32 in. (6 to 8 mm;

model dependent on the characteristic value of the socket)
You find power supply plugs with a larger thread here:

“Accessories” on page 66

1× or2×
(depending on the
device variant)

2×
premounted

3 ×
premounted

2×
premounted

1×per WLAN module
premounted

1×
premounted

1×
premounted

3× or4×
premounted
(depending on the
device variant)

X-coded M12 plug

50-Ω terminators for equipping free antenna connections
(for device variants with 1 wireless module exclusively)

50-Ω terminators for equipping free antenna connections
(only for device variants with 2 wireless modules)

Protection cap (7/8", plastic) for supply voltage connection

Protection cap (7/8", plastic) for N socket

Protection cap (7/8", plastic) for SFP slot

Protection screw (M12, metal) for signal contact

Protection screw (M12, metal) for interfaces

Figure 6: Accessory list for device variants featuring Configuration with the

characteristic value Z

64

Installation BAT-F

Release 09 08/2015

Number Article

1 × Device
1 × Installation user manual
1 × CD/DVD with manual
1 × Power supply plug, for cable diameters of 0.24 to 0.32 in. (6 to 8 mm;

model dependent on the characteristic value of the socket)
You find power supply plugs with a larger thread here:

“Accessories” on page 66

3 × per WLAN module
premounted

1×
premounted

1×
premounted

1×
premounted

1×
premounted

3× or4×
premounted
(depending on the
device variant)

Protection cap (7/8", plastic) for N socket

Protection cap (7/8", plastic) for SFP slot

Protection cap (7/8", plastic) for supply voltage connection

Protection cap (7/8", plastic) for supply voltage connection

Protection screw (M12, plastic) for signal contact

Protection screw (M12, plastic) for interfaces

Figure 7: Accessory list for device variants featuring Configuration with the

characteristic value 9

Installation BAT-F

Release 09 08/2015

65

 Accessories

Note that products recommended as accessories may have different
characteristics to those of the device, which may limit the application
range of the overall system. For example, if you add an accessory with IP
20 to a device with IP 65, the IP of the overall system is reduced to 20.
To sustain the IP65/67 suitability for your device, use the accessories with
IP65/67 properties exclusively.
The following accessory parts are not suitable for use within IP65/67
areas:

 RJ45 adapters
 Terminal cable

For reliable receive power and transmission power, you require antennas
that pertain to your application case. The Hirschmann BAT planner,
available free of charge under www.hirschmann.com, provides support in
selecting suitable antennas.
The “Antenna Guide” document provides an overview of the antennas
that can be used as well as the suitable antenna accessories.
This document is available as a PDF file on the enclosed CD/DVD or as
a download from the Hirschmann product pages (www.hirschmann.com).

Gigabit Ethernet SFP transceiver Order number

M-SFP-SX/LC 943 014-001
M-SFP-SX/LC EEC 943 896-001
M-SFP-LX/LC 943 015-001
M-SFP-LX/LC EEC 943 897-001
M-SFP-LH/LC 943 042-001
M-SFP-LH/LC EEC 943 898-001
M-SFP-LH+/LC 943 049-001

Other accessories Order number

0986 EMC 600, field-attachable M12 plug for Gigabit Ethernet data
cables

0986 EMC 102, field-attachable M12 plug for Fast Ethernet data
cables

50-Ω terminators for equipping unused antenna connections, N (10
pieces)

7/8″ plug for supply voltage with the characteristic value K, for cable
diameters 0.24 in. to 0.32 in. (6 mm to 8 mm)

7/8″ plug for supply voltage with the characteristic value K, for cable
diameters 0.32 in. to 0.39 in. (8 mm to 10 mm)

7/8″ plug for supply voltage with the characteristic value W and C, for
cable diameters 0.24 in. to 0.32 in. (6 mm to 8 mm)

7/8″ plug for supply voltage with the characteristic value W and C, for
cable diameters 0.24 in. to 0.32 in. (8 mm to 10 mm)

Antenna cable BAT-CLB-2 N m-f 943 903-514

Available at ICOS
934 637-032

Available at
Lumberg Automation
71327

942 118-001

942 086-003

Available at
Lumberg Automation:
11206

942 086-004

Available at
Lumberg Automation:
11216

66

Installation BAT-F

Release 09 08/2015

Other accessories Order number

AutoConfiguration Adapter, M12 943 913-001
BAT-ANT-N-3AGN-IP67 (10 pcs.) 942 110-001
BAT Protector 943 903-373
EM12S, field-attachable M12 plug for Fast Ethernet data cables 934 445-001
Pole mounting set for OpenBAT device 942 116-001
Network management software Industrial HiVision 943 156-xxx
PoE power supply unit PC150/36V/48V-IP67, working voltage

16.8 V DC ... 64 V DC
PoE power supply unit PC150/72 V/48V-IP67, working voltage

50.4 V DC ... 154 V DC
SFP mounting tool for IP67 socket 942 079-001
Plug casing for IP67 V1 plug acc. to IEC 61076-3-106 (variant 1) Available at BTR

Terminal cable: M12 connector, 8-pin on DB9 socket 942 087-001
Locking screw for M12 socket, metal, IP67 (25 pieces) 942 057-001
Locking screw for M12 plug, metal, IP67 (10 pieces) 942 115-001
Locking screw for 7/8“ plug, metal, IP67 (10 pieces) 942 111-001

943 968-001

943 968-101

NETCOM GmbH

Installation BAT-F

Release 09 08/2015

67

 Underlying technical standards

Name

ATEX 95 (94/9/EG) ATEX – Intended use of equipment and protection systems in in

potentially explosive areas.

CSA 22.2 No. 60950-1 Information Technology Equipment – Safety – Part 1: General

Requirements
ECE Nr. 10 E type approval for use in vehicles
EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM)

- bandwidth transfer systems - data transmission equipment

operating in 2.4 GHz ISM band and using spread spectrum

modulation technology
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and

services - specific conditions for 2.4 GHz broadband transmission

systems and 5 GHz high-performance RLAN equipment
EN 302 502 Broadband radio access networks (BRAN) – permanently

installed broadband data transmission systems with 5.8 GHz band
EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high

performance Remote Local Area Network (RLAN)
EN 45545-1 Railway applications - Fire protection on railway vehicles - Part 1:

General
EN 45545-2 Railway applications - Fire protection on railway vehicles - Part 2:

Requirements for fire behaviour of materials and components.
EN 50155 Railway applications - Electronic equipment used on rolling stock
EN 55022 Information technology equipment – Radio disturbance

characteristics – Limits and methods of measurement
EN 60529 Degrees of protection provided by enclosures – IP code.
EN 60950-1 Information technology equipment – Safety – Part 1: General

requirements
EN 60950-22 Installations of IT equipment – Security – Part 22: Outdoor

equipments
EN 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic

standards – Immunity for industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and

tests
FCC 47 CFR Part 15 Code of Federal Regulations
FM3600 Approval Standard for Electrical Equipment for Use in Hazardous

(Classified) Locations - General Requirements
FM3611 Approval Standard for Nonincendive Electrical Equipment for Use

in Class I and Class II, Division 2, and Class III, Divisions 1 and 2,

Hazardous (Classified) Locations
IEEE 802.1D MAC Bridges (switching function)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.1w Rapid Reconfiguration
IEEE 802.11a/b/g/h/n WLAN
IEEE 802.3 Ethernet
IEEE 802.3af Power over Ethernet
UL 60950-1 Safety for Information Technology Equipment

68

Installation BAT-F

Release 09 08/2015

The device has an approval based on a specific standard only if the
approval indicator appears on the device casing.
If your device has a shipping approval according to Germanischer Lloyd,
you find the approval mark printed on the device label. You will find out
whether your device has other shipping approvals on the Hirschmann
website under www.hirschmann.com in the product information.
The device generally fulfills the technical standards named in their current
versions.

Installation BAT-F

Release 09 08/2015

69

A Further support

 Technical questions

For technical questions communicated in the regional language, please
contact any Hirschmann dealer in your area or Hirschmann directly.

You find the addresses of our partners on the Internet at

http://www.hirschmann.com

Contact our support at

https://hirschmann-support.belden.eu.com

Contact us

in the EMEA region at

 Tel.: [phone]
 Email: [e-mail]

in the America region at

 Tel.: [phone]
 Email: [e-mail]

in the Asia-Pacific region at

 Tel.: [phone]
 Email: [e-mail]

 Hirschmann Competence Center

The Hirschmann Competence Center is ahead of its competitors on three
counts with its complete range of innovative services:

 Consulting incorporates comprehensive technical advice, from system

evaluation through network planning to project planning.

 Training offers you an introduction to the basics, product briefing and

user training with certification.
You find the training courses on technology and products currently
available at http://www.hicomcenter.com

 Support ranges from the first installation through the standby service

to maintenance concepts.

With the Hirschmann Competence Center, you have decided against
making any compromises. Our client-customized package leaves you
free to choose the service components you want to use.
Internet:

http://www.hicomcenter.com

70

Installation BAT-F

Release 09 08/2015

Installation BAT-F

Release 09 08/2015

71
