User Manual
Installation
Industrial Access-Point / Client / Access-Bridge
BAT867-F
Installation BAT867-F
Release 01 12/2019
Technical support
https://hirschmann-support.belden.com
Page 2
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2019 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
2019-12-18
Installation BAT867-F
Release 01 12/2019
Page 3
Contents
Safety instructions 5
About this manual 15
Key 16
1 Description 17
1.1 General description 17
1.2 Device name and product code 18
1.3 Device view 20
1.4 Power supply 20
1.4.1 Supply voltage with the characteristic value W
(24 V DC) 20
1.4.2 Supply voltage with the characteristic value P (Power
supply only through PoE) 21
1.5 Ethernet port 21
1.5.1 10/100/1000 Mbit/s PoE port 21
1.5.2 Pin assignments 22
1.6 Connections for antennas 23
1.7 Display elements 23
1.7.1 Device state 23
1.8 Reset button 24
2 Installation 25
2.1 Checking the package contents 25
2.2 Installing and grounding the device 25
2.2 Mounting the device 25
2.2.2 Grounding the device 26
2.3 Installing the antennas 27
2.4 Connecting the power supply 27
2.5 Operating the device 28
2.6 Connecting data cables 28
3 Making basic settings 30
Installation BAT867-F
Release 01 12/2019
3
Page 4
4 First login (Password change) 31
5 Obtain compliance for operation in the European
Union 32
6 Configuring the transmit power 35
7 Monitoring the ambient air temperature 37
8 Maintenance and service 38
9Disassembly 39
10 Technical data 40
10.1 General technical data 40
10.2 Dimension drawings 41
10.3 Radio technology 42
10.4 Roaming 42
10.5 Receiving sensitivity, transmit power and data rate 43
10.5.1 IEEE 802.11b 43
10.5.2 IEEE 802.11g 43
10.5.3 IEEE 802.11a 44
10.5.4 IEEE 802.11n 44
10.5.5 IEEE 802.11ac 46
10.6 EMC and immunity 47
10.7 Network range 48
10.8 Power consumption/power output 48
11 Scope of delivery, order numbers and
accessories 49
12 Underlying technical standards 51
A Further support 52
Installation BAT867-F
4
Release 01 12/2019
Page 5
Safety instructions
WARNING
UNCONTROLLED MACHINE ACTIONS
To avoid uncontrolled machine actions caused by data loss, configure all
the data transmission devices individually.
Before you start any machine which is controlled via data transmission, be
sure to complete the configuration of all data transmission devices.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 40.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation BAT867-F
Release 01 12/2019
5
Page 6
Installation site requirements
Use the device only indoors.
Restricted access location:
The location is outside the operator access area.
The location is accessible to the service personnel even when the
device is switched on.
Indoor operator access area:
The location is accessible without tools.
The person responsible for the area has provided access for the
operator intentionally.
The operator knows of the access possibilities, regardless of whether
they need a tool.
Relevant for Europe:
Supply only 24 V DC to the device and use a fuse.
Regarding the properties of this fuse: See “General technical data”
on page 40.
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
See “General technical data” on page 40.
Mount the device in the vertical position.
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
Installation BAT867-F
6
Release 01 12/2019
Page 7
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
When installing antennas, observe the regulations of the country in
which you are operating the WLAN device with regard to the general
operating permission and the maximum emission levels.
Install and operate this equipment with a minimum distance of
19.7 inches (50 cm) between the antenna and your body.
Grounding the device

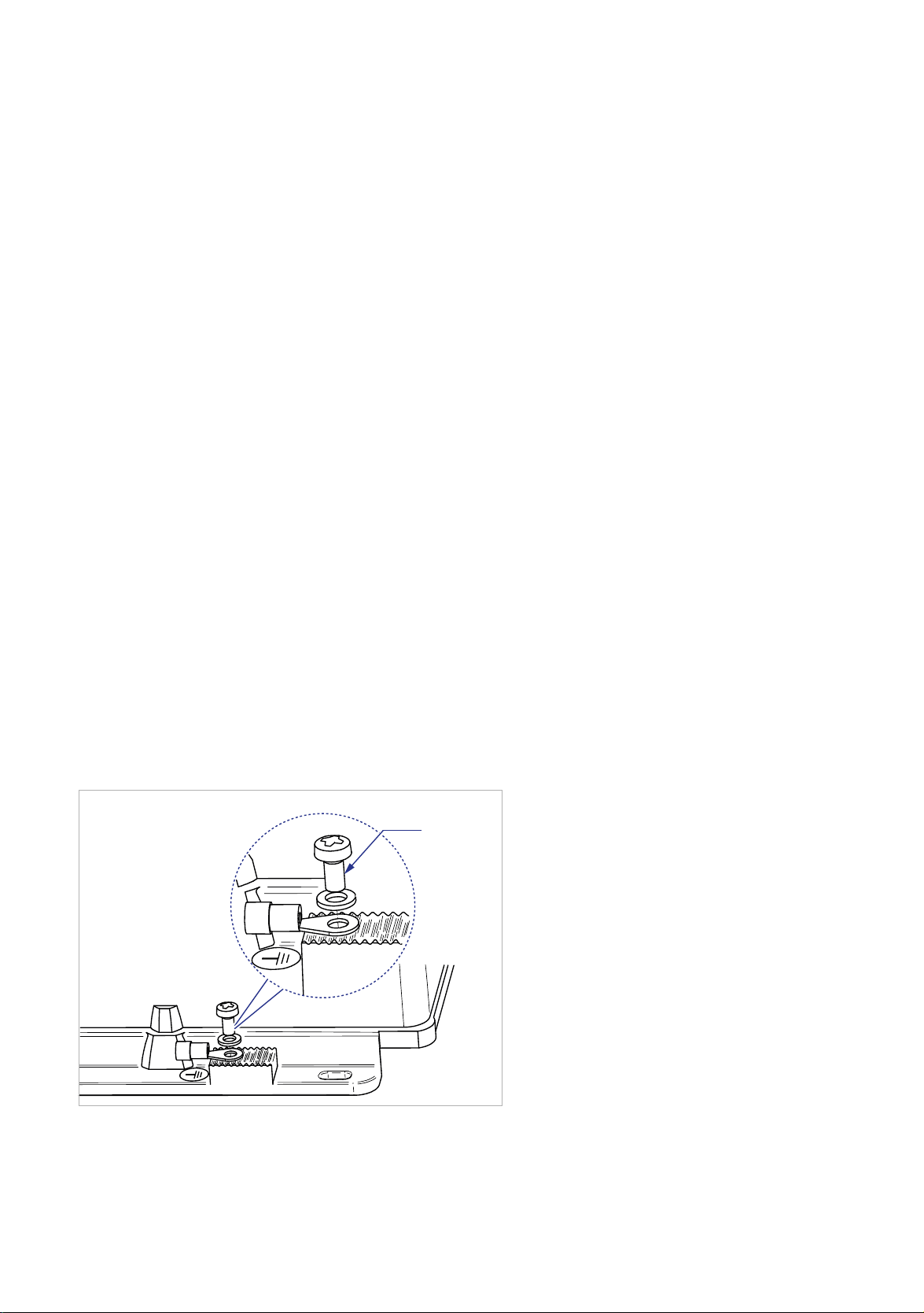

For the functional earth (FE), there is a separate functional earth screw on
top of the device. The functional earth is electrically connected to the
circuit ground and the metal housing of the device.
Shielding ground
The overall shield of a connected shielded twisted pair cable is connected
to the grounding connector on the front panel as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.
Installation BAT867-F
Release 01 12/2019
7
Page 8
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
The connected voltage complies with the requirements for a safety extra-low voltage
(SELV) or ES1 as per IEC/EN 62368-1.
Relevant for North America:
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
Table 1: Requirements for connecting electrical wires
Installation BAT867-F
8
Release 01 12/2019
Page 9
Requirements for connecting the supply voltage
The following requirements apply without restrictions:
All of the following requirements are complied with:
The supply voltage corresponds to the voltage specified on the type plate of the
device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for example a
switch or a plug). This disconnecting device is clearly identified. So in the case of an
emergency, it is clear which disconnecting device belongs to which power supply
cable.
The power supply cable is suitable for the voltage, the current and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to
AWG18).
The cross-section of the ground conductor is the same size as or bigger than the
cross-section of the power supply cables.
The following requirements apply alternatively:
Alternative 1 The power supply complies with the requirements for a limited power
source (LPS) as per IEC/EN 60950-1 or IEC/EN 62368-1.
Alternative 2 Relevant for North America:
The power supply complies with the requirements according to
NEC Class 2.
Alternative 3 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-
low voltage (SELV) or ES1 as per IEC/EN 62368-1.
A fuse suitable for DC voltage is located in the plus conductor of the
power supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse:
See “Technical data” on page 40.
Table 2: Requirements for connecting the supply voltage
The supply voltage is connected to the device casing through protective
elements exclusively.
Installation BAT867-F
Release 01 12/2019
9
Page 10
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/53/EU (RED)
Directive of the European Parliament and of the council on the
harmonization of the laws of the Member States relating to the making
available on the market of radio equipment.
This product may be operated in all EU (European Union)
countries under the condition that it has been configured correctly.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The product can be used in residential areas (residential, commercial and
light-industrial environments) and in industrial areas.
Interference immunity: EN 61000-6-1
Emitted interference: EN 55032
Safety: EN 62368-1
You find more information on technical standards here:
“Underlying technical standards” on page 51
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
10
Installation BAT867-F
Release 01 12/2019
Page 11
AT
BE
BG
CH
CY
CZ
DE
DK
EE
EL
ES
FI
FR
HR
HU
IE
IT
LI
LT
LU
LV
MT
NL
NO
PL
PT
RO
RS
SE
SI
SK
TR
UK
Notes for countries with the following country codes:
The RED compliance requires compliant operation of the device in the
5 GHz band channels. Compliant operation of the device is achieved
by an unchangeable determination of the country setting. To obtain
RED compliance, perform the work steps described in chapter “Obtain
compliance for operation in the European Union” on page 32.
Installation BAT867-F
Release 01 12/2019
11
Page 12
Notes for Germany (DE), Ireland (IE), and the United Kingdom (UK):
DE
IE
UK
Operation in the 5.8 GHz band at a radiated power (EIRP) >25 mW is
subject to meeting the following conditions:
Germany (DE)
Frequency range: 5725 MHz to 5875 MHz
Condition: The usage of this band is restricted to commercial public
telecommunication services. Registration at the Federal Network
Agency is required.
Name and website of the competent authority:
Bundesnetzagentur
www.bundesnetzagentur.de
Ireland (IE)
Frequency range: 5725 MHz to 5875 MHz
Condition: Registration of operational base stations
Name and website of the competent authority:
Commission for Communications Regulation
www.comreg.ie
United Kingdom (UK):
Frequency range: 5725 MHz to 5850 MHz
Condition: Light-licensing regime
Name and website of the competent authority:
Ofcom
www.ofcom.org.uk
12
Installation BAT867-F
Release 01 12/2019
Page 13
FCC note
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
BAT867-F
U.S. Contact Information
Belden – St. Louis
1 N. Brentwood Blvd. 15th Floor
St. Louis, Missouri 63105, United States
Phone: 314.854.8000
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reposition the receiver antenna or change the angle of the receiver
antenna.
Increase the separation between the device and the receiver.
Connect the device to a different power supply from that to which the
receiver is connected.
Consult a specialist retailer or an electronic systems engineer for help.
Changes or modifications not expressly approved by the holder of the
certificate could void the user’s authority to operate this equipment.
Note for the use in the USA and in Canada
The following section applies to BAT867-F variants with the characteristic
value US (USA/Canada) for country approvals which are labeled as
follows:
Contains Transmitter Module
FCC ID: TK4WLE600VX
Installation BAT867-F
Release 01 12/2019
13
Page 14
14
IC: 7849A-WLE600VX
This equipment complies with FCC and IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. Install and operate this equipment with a minimum distance of 19.7 in (50 cm) (related to a 9 dBi
antenna) between the radiation source and your body.
The antenna used for this transmitter must not be co-located with any other transmitters within a host device, except
in accordance with FCC multi-transmitter product procedures.
This transmitter is restricted to indoor use only within the 5.15 to 5.25 GHz band to reduce potential for harmful
interference to co-channel mobile satellite systems.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication.
Installation BAT867-F
Release
01
12/2019
Antenna(s) for operation with this
device:
BAT-ANT-N-3AGN-IP67 Yes Yes Yes Yes Yes
Permitted band of operation
2.4 GHz band 5 GHz band
5180 ... 5240 MHz 5260 ... 5320 MHz 5500 ... 5720 MHz 5745 ... 5825 MHz
The FCC approval is valid only in conjunction with the listed antennas. If other antennas are used, the approval
expires. The responsibility lies with the operator of the system. The required antenna impedance is 50 .
Recycling note
After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal
regulations of your county, state, and country.
Page 15
About this manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet at: https://www.doc.hirschmann.com
Installation BAT867-F
Release 01 12/2019
15
Page 16
Key
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading
16
Installation BAT867-F
Release 01 12/2019
Page 17
1 Description
1.1 General description
The devices allow you to set up WLANs (Wireless Local Area Networks) in a
local network. In contrast to a conventional network connection through
copper cables and fiber optic cables, some of the communication is
performed by means of a radio link.
The devices allow you to install a new LAN or expand an existing LAN.
Thanks to their high level of flexibility, the BAT867-F device is suitable for a
wide range of applications. Anywhere that high bandwidths, stable operation
and network security is required, WLAN with these devices provides the ideal
solution.
The devices are dual-band industrial high-performance wireless LAN access
points or clients complying with IEEE 802.11a/b/g/n/ac. They provide a high
radio output with a bandwidth of up to 867 Mbit/s. The devices support MIMO
(Multiple Input Multiple Output) and Multipath. The bandwidth is increased by
using the multipath transmission by means of reflections. 2 antennas for
sending and receiving help ensure stable network coverage with few shadow
areas.
The device is designed for the special requirements of industrial automation.
The device meets the relevant industry standards, provides very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.
The device works without a fan.
The device complies with the degrees of protection IP65/67.
There are convenient options for managing the device. Manage your devices
via:
Web browser
SSH
Telnet
HiDiscovery (software for putting the device into operation)
Management software (for example Industrial HiVision, LANconfig/
LANmonitor)
The device provides you with a large range of functions, which the manuals
for the operating software inform you about. You can download these
manuals as PDF files from the Internet on the Hirschmann product pages
(http://www.doc.hirschmann.com).
Installation BAT867-F
Release 01 12/2019
17
Page 18
The Hirschmann network components help you ensure continuous
communication across all levels of the company.
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Item Characteristic Character
istic value
1 ... 8 Product BAT867-F IP65/67 housing
9 ... 10 Country approvals
Example:
Singapore
11 Slot 1 W WLAN module
12 Slot 2 9 Not assembled
13 Slot 3 9 Not assembled
14 Access point or client A Access Point
15 Supply voltage 1 W Rated voltage
16 Supply voltage 2 9 Not assembled
17 Approvals 1 9 No additional approvals
18 Approvals 2 9 No additional approvals
19 Mounting A Standard
20 ... 21 Ethernet port 1 T1 8-pin, “X”-coded M12 plug for 10/100/1000
22 ... 23 Optional:
Ethernet port 2 or interface
24 Temperature range L +14 °F ... +140 °F (10 °C ... +60 °C)
25 Software option 1 9 Not present
26 Software option 2 9 Not present
27 Software option 3 9 Not present
XX
Example:
SG
C Client
P Power supply solely through PoE
J Railway applications (trackside) as per
99 Not assembled
T Extended
E Extended with Conformal Coating
Description
You can determine the current country
approvals using the configurator (https://
catalog.belden.com)
24 V DC
with PoE support
EN 50121-4
Mbit/s PoE port
-40 °F ... +158 °F (-40 °C ... +70 °C)
-40 °F ... +158 °F (-40 °C ... +70 °C)
Table 3: Device name and product code
18
Installation BAT867-F
Release 01 12/2019
Page 19
Item Characteristic Character
istic value
28 Configuration Z Accessory package
9 Not present
29 Device model H Hirschmann standard
Description
Table 3: Device name and product code
Installation BAT867-F
Release 01 12/2019
19
Page 20

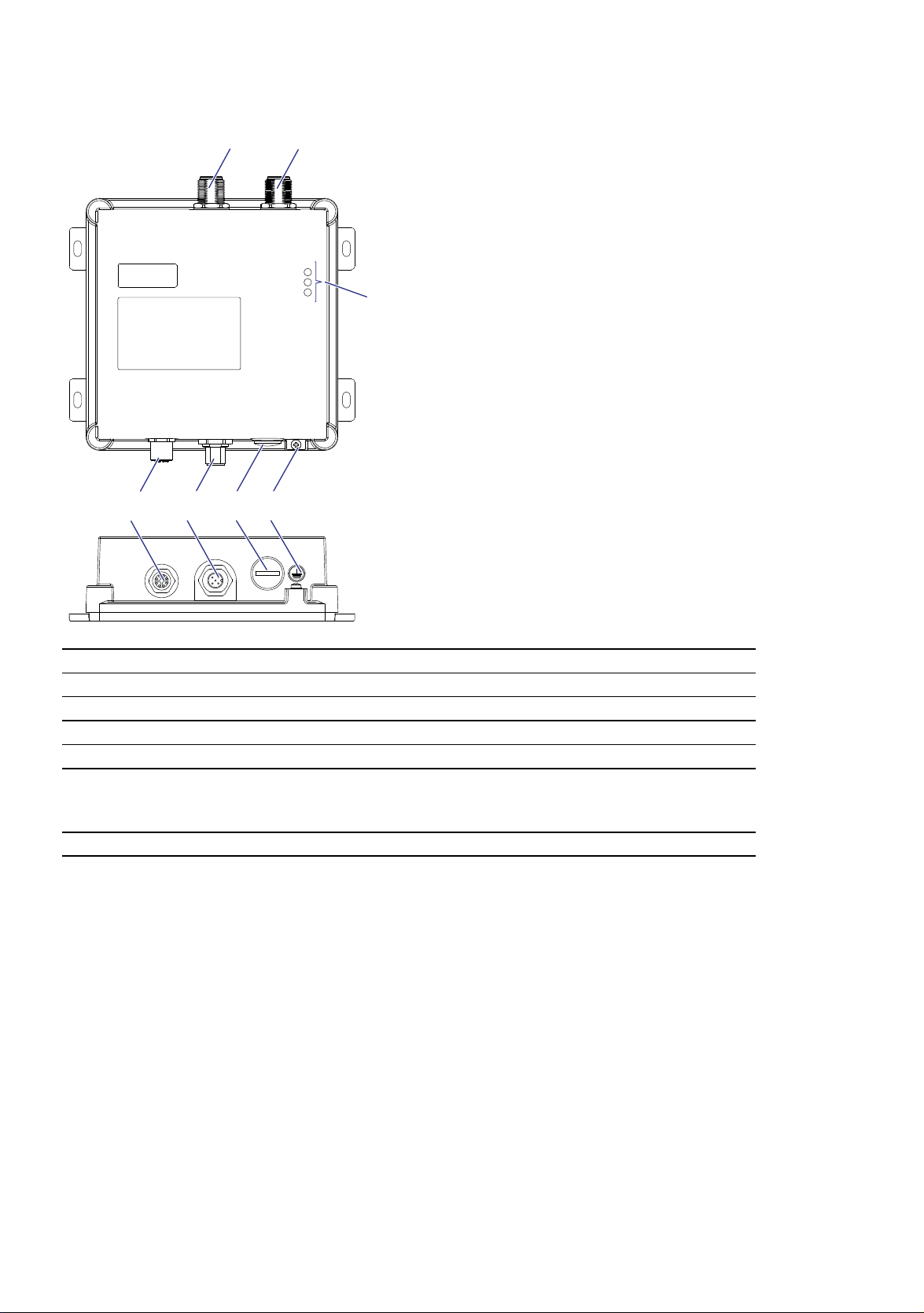

1.3 Device view
1
2
3
4
5
6
7
1 Antenna connection 2
2 Antenna connection 1
3 LED display elements
4 Functional earth screw
5 Reset button behind a screwable IP65/67 protection cap
6 Applies to device variants featuring supply voltage with characteristic value W
(24 V DC):
5-pin, “A”-coded M12 socket
7 8-pin, “X”-coded M12 plug for 10/100/1000 Mbit/s PoE port
1.4 Power supply
1.4.1 Supply voltage with the characteristic value W
(24 V DC)
Power supply via an 8-pin, “X”-coded M12 socket for PoE
port
Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate
power supply is required for your device.
20
Installation BAT867-F
Release 01 12/2019
Page 21
Power supply via a 5-pin, “A”-coded M12 plug
For the power supply of the device, a 5-pin, “A”-coded M12 plug is
available.
1.4.2 Supply voltage with the characteristic value P (Power supply only through PoE)
Power supply via an 8-pin, “X”-coded M12 socket for PoE
port
Your device is a PD (powered device). PSE (power sourcing equipment)
connected via a twisted pair cable on the PoE PD port serves as the PoE
power supply voltage. The PoE power supply means that no separate
power supply is required for your device.
1.5 Ethernet port
1.5.1 10/100/1000 Mbit/s PoE port
This port is an 8-pin, “X”-coded M12 socket.
The 10/100/1000 Mbit/s PoE port allows you to connect network components
as a PoE power source according to standards IEEE 802.3 10BASE-T/
100BASE-TX/1000BASE-T and IEEE 802.3af.
This port supports:
Autocrossing (if autonegotiation is activated)
Autonegotiation
Autopolarity
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
1000 Mbit/s full duplex
Power over Ethernet
The socket housing is electrically connected with the device housing.
Delivery state: Autonegotiation activated
The PoE power is supplied via the wire pairs transmitting the signal (phantom
voltage).
The pin assignment corresponds to MDI-X.
Installation BAT867-F
Release 01 12/2019
21
Page 22

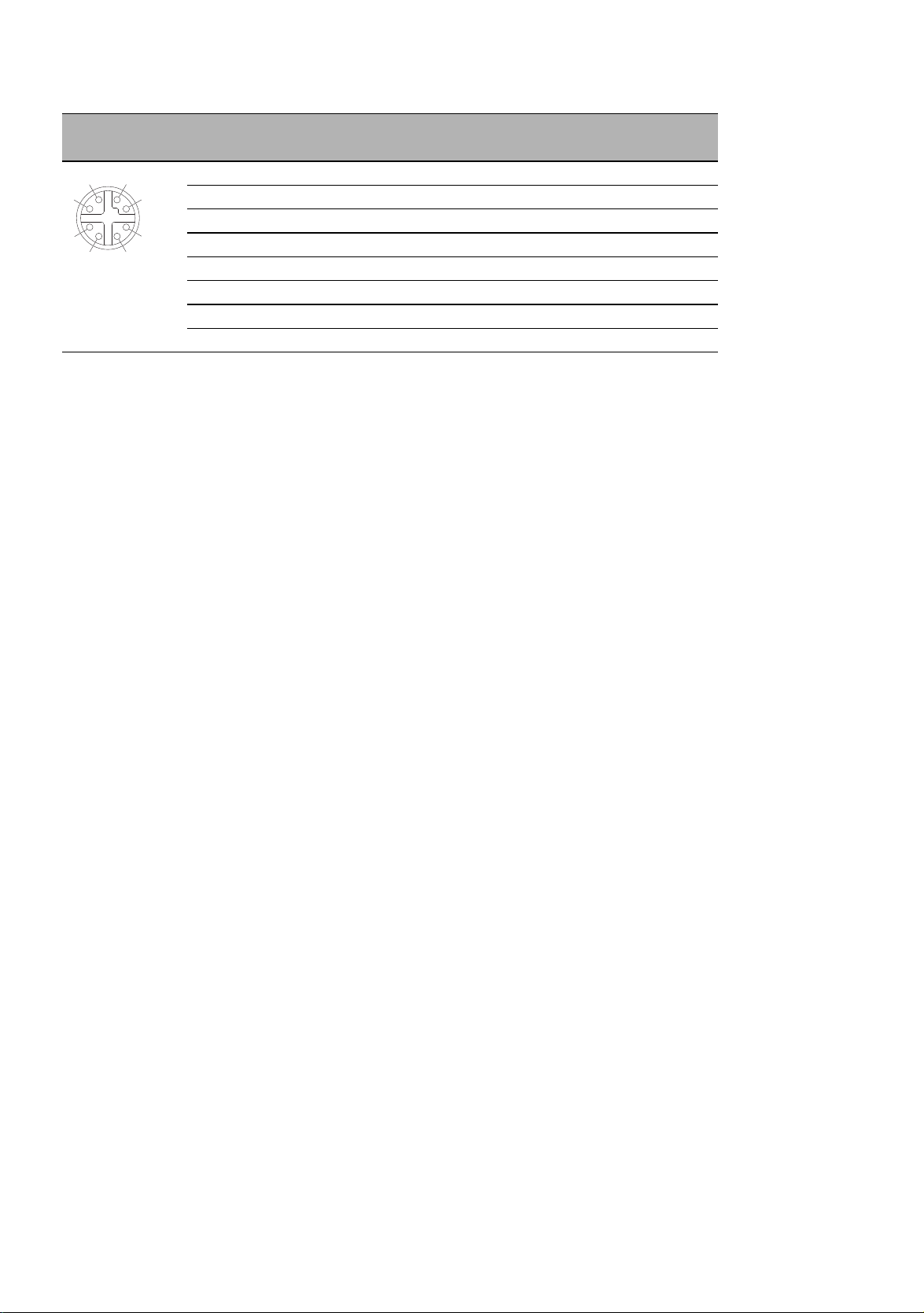

1.5.2 Pin assignments
18
2
36
7
45
M12 8-pin
(“X”-coded)
Pin 10/100 Mbit/s 1000 Mbit/s PoE
(applies to Twisted Pair port) (applies to PoE port)
1 RX+ BI_DB+ Negative V
2RX BI_DB Negative V
3 TX+ BI_DA+ Positive V
4TX BI_DA Positive V
5 — BI_DC+ Negative V
6— BI_DC Negative V
7— BI_DD Positive V
8 — BI_DD+ Positive V
PSE
PSE
PSE
PSE
PSE
PSE
PSE
PSE
22
Installation BAT867-F
Release 01 12/2019
Page 23
1.6 Connections for antennas
P
LS/DA
WLAN
The device has connections for external antennas. These connections are N
sockets.
The "Antenna Guide" document provides an overview of the antennas that
can be used as well as the suitable antenna accessories.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
1.7 Display elements
After the supply voltage is set up, the Software starts and initializes the
device. Afterwards, the device performs a self-test. During this process,
various LEDs light up.
1.7.1 Device state
These LEDs provide information about conditions which affect the operation
of the whole device.
P
Color
green lights up LED lights up after the configuration
red flashing Device has detected at least one hardware error.
green/red Short flashing No password or the default password is set
LS/DA
Color
— off No network device connected
green lights up Ethernet connection active
yellow flashing Data traffic
Activity Meaning
Activity Meaning
WLAN
Color
—off No WLAN network specified
green lights up
green inverse flashing Number of flashes corresponds to number of connected
Installation BAT867-F
Release 01 12/2019
Activity Meaning
WLAN module deactivated
WLAN module does not send any beacons
At least one WLAN network defined
WLAN module activated
WLAN stations and P2P radio lines.
23
Page 24
WLAN
Color
green flashing DFS scanning or another scan procedure
re
d
Activity Meaning
Display of signal strength in client or P2P
flashing Device has detected at least one hardware error.
1.8 Reset button
The device has a reset button. The reset button is located behind a
screwable IP65/67 protection cap.
The tightening torque is 4.42 lb-in to 8.85 lb-in (0.5 Nm to 1.0 Nm).
Prerequisite: Keep the working area dry and clean when you are carrying
out a reset.
After pressing the reset button, replace the protection cap. Degrees of
protection IP65/67 are only achieved when the protection cap is closed.
You will find more information in the “User Manual Configuration Guide”, in
the chapter “Using the Boot Configurations”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
24
Installation BAT867-F
Release 01 12/2019
Page 25
2Installation
The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
Perform the following steps to install and configure the device:
Checking the package contents
Installing and grounding the device
Installing the antennas
Connecting the power supply
Operating the device
Connecting data cables
Making basic settings
Configuring the transmit power
2.1 Checking the package contents
Check whether the package includes all items named in the section
“Scope of delivery” on page 49.
Check the individual parts for transport damage.
2.2 Installing and grounding the device
2.2.1 Mounting the device
WARNING
ELECTRIC SHOCK
Install this device only in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
Installation BAT867-F
Release 01 12/2019
25
Page 26
Verify that the device maintains the minimum clearance to meet the climatic
M4x8
conditions during operation:
Top and bottom sides of device: 2 in (5 cm)
Left and right device side: 0.79 in (2 cm)
To protect the exposed uninstalled contacts of the components from dirt,
connect the individual system components in a dry and clean working area.
Prepare the drill holes at the installation point.
Mount the device on a level surface with 4 M4 screws.
To preserve the suitability of your device for IP65/67, proceed as follows:
Remove the provided transport protection caps and the transport
protection screws from the device.
Seal unused sockets and plugs with your desired type of protection
screws which you can order separately.
2.2.2 Grounding the device
Grounding the device is by means of a separate ground connection on the
device.
The overall shield of a connected shielded twisted pair cable is connected to
the ground connection on the metal housing as a conductor.
The device variants have a connection for protective grounding.
Note: Use toothed washers to ensure good electrical conductivity at the
connection.
Ground the device via the provided M4 screw.
26
Installation BAT867-F
Release 01 12/2019
Page 27
2.3 Installing the antennas
Install the antennas only indoors.
The device has connections for external antennas. These connections are N
sockets.
On delivery, the connections are sealed with protection caps.
Proceed as follows:
Remove the protection caps from the connections to which you want to
connect external antennas.
Install at least one antenna on the radio module that you would like to use.
Seal an unused socket with a terminating resistor to avoid interferences
from radio signals. The terminating resistor is included in the scope of
delivery for device variants with the Configuration characteristic value "Z"
and available as accessory.
You will find information on setting the transmit power in chapter “Configuring
the transmit power” on page 35.
2.4 Connecting the power supply
WARNING
ELECTRIC SHOCK
Before connecting the electrical wires, always verify that the requirements
listed are complied with.
See “Requirements for connecting electrical wires” on page 8.
See “Requirements for connecting the supply voltage” on page 9.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
The supply voltage is electrically isolated from the casing.
Installation BAT867-F
Release 01 12/2019
27
Page 28

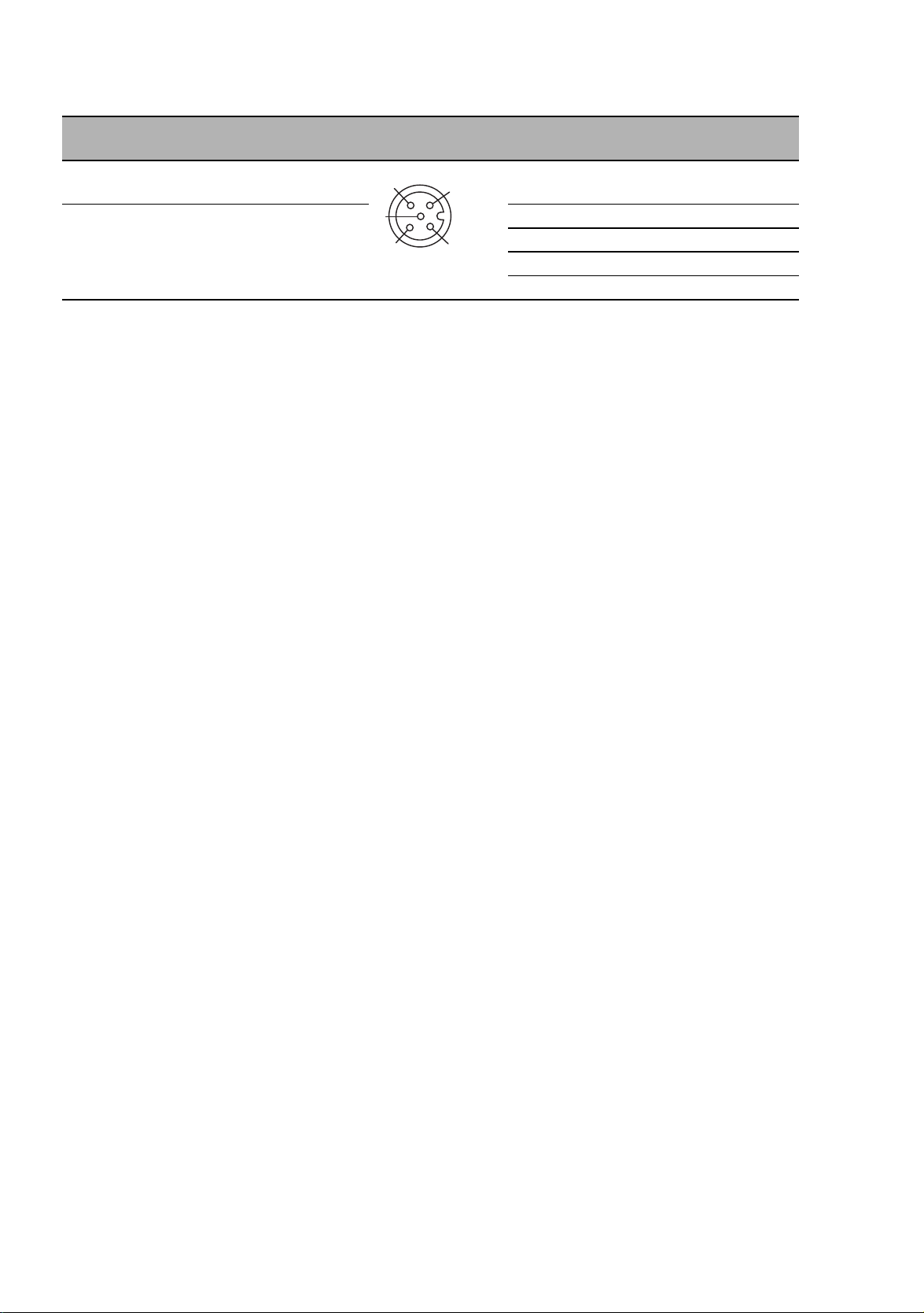

Supply voltage with the characteristic value W (24 V DC)
4
3
2
1
5
Type and specification of the supply
voltage
Rated voltage DC:
24 V DC
Voltage range DC incl. maximum
tolerances:
18 V DC ... 32 V DC
Table 4: Type and specification of the supply voltage
Pin assignment on the device
1+24V DC
20VDC
30VDC
4N.C.
5N.C.
Connect the wires for the supply voltage according to the pin
assignment with a suitable socket.
2.5 Operating the device
Only connect the device to a PoE network indoors.
You start up the device by connecting the power supply via the 8-pin, “X”coded M12 socket for PoE port or via a 5-pin, “A”-coded M12 socket.
You find the prescribed tightening torque of the locking screw in chapter:
“General technical data” on page 40
2.6 Connecting data cables
Only run data links indoors (IEEE 802.3 area A).
Note the following general recommendations for data cable connections in
environments with high electrical interference levels:
Keep the length of the data cables as short as possible.
Use optical data cables for the data transmission between the buildings.
When using copper cables, provide a sufficient separation between the
power supply cables and the data cables. Ideally, install the cables in
separate cable channels.
Verify that power supply cables and data cables do not run parallel over
longer distances. If reducing the inductive coupling is necessary, verify
that the power supply cables and data cables cross at a 90° angle.
Use SF/UTP cables as per ISO/IEC 11801:2002.
Connect the data cables according to your requirements.
28
Installation BAT867-F
Release 01 12/2019
Page 29
Further information:
“10/100/1000 Mbit/s PoE port” on page 21
Installation BAT867-F
Release 01 12/2019
29
Page 30
3 Making basic settings
The IP parameters must be entered when the device is installed for the first
time. The device provides the following options for configuring IP addresses:
Entry via the HiDiscovery protocol in the applications HiDiscovery or
Industrial HiVision
Configuration via BOOTP
You will find more information in the “User Manual Configuration Guide”.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
30
Installation BAT867-F
Release 01 12/2019
Page 31
4 First login (Password change)
Applies to devices with the following software release and later:
HiLCOS 10.12-RU2
To help prevent undesired access to the device, it is imperative that you
change the default password during initial setup.
Perform the following steps:
Open the Graphical User Interface, the Command Line Interface or
LANconfig the first time you log on to the device.
Log on to the device with the default password “private”.
The device prompts you to type in a new password.
Note: When you log on with LANconfig, the device prompts you to type in
a new password before your first configuration change.
Type in your new password.
Choose a password that contains at least 8 characters which includes
upper-case characters, lower-case characters, numerical digits and
special characters.
Confirm your new password.
For further information see:
https://hirschmann-support.belden.com/en/kb/required-password-changenew-procedure-for-first-time-login
Installation BAT867-F
Release 01 12/2019
31
Page 32
5 Obtain compliance for operation in the
European Union
For operation in the European Union, the device must comply with the Radio
Equipment Directive (RED) 2014/53/EU. The RED compliance requires
compliant operation of the device in the 5 GHz band channels. Compliant
operation of the device is achieved by an unchangeable determination of the
country setting.
Make the country setting unchangeable using the Command Line Interface
(CLI), the graphical user interface or the LANconfig software. You can
download the LANconfig software as an ISO image from the Hirschmann
product pages (www.hirschmann.com).
Perform the following work steps:
Command Line Interface (CLI)
To access the possible country settings, execute the following
command:
set Setup/WLAN/Country ?
Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.
Select the desired country setting with the following command:
set Setup/WLAN/Country [Country]
Example:
set Setup/WLAN/Country France
Execute the following command:
> REDcompliance
32
Installation BAT867-F
Release 01 12/2019
Page 33
Note: To check the country setting and correct it, type no. Then check
the country setting with the following command: ls Setup/WLAN/
Country.
To obtain RED compliance, type yes. This makes the country setting
unchangeable. Subsequently, the device restarts.
Graphical user interface
Open the Configuration > Wireless LAN > General dialog and select
the desired country setting.
Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.
To confirm your choice, click the “Send” button.
Open the Extras > RED compliance dialog.
Note: To check the country setting and correct it, open the
Configuration > Wireless LAN > General dialog.
To obtain RED compliance, click the “Confirm RED compliance”
button. This makes the country setting unchangeable. Subsequently,
the device restarts.
LANconfig
In the LANconfig device overview, highlight the row containing the
desired device.
In the menu bar, select Device > Configure.
Open the Configuration > Wireless LAN > General dialog and select
the desired country setting.
Note: The country setting “Europe” is valid for all European countries.
Specific country settings such as “France” or “Germany” include
additional country specific channels in comparison to the “Europe”
country setting.
The device ignores specific country settings and uses the country
setting “Europe” until the RED compliance has been obtained.
Installation BAT867-F
Release 01 12/2019
33
Page 34
To confirm your choice, click the “OK” button.
In the LANconfig device overview, highlight the row containing the
desired device.
In the menu bar, select Device > RED compliance.
Note: To check the country setting and correct it, click the “No” button.
Then open the Configuration > Wireless LAN > General dialog.
To obtain RED compliance, click the “Yes” button. This makes the
country setting unchangeable. Subsequently, the device restarts.
34
Installation BAT867-F
Release 01 12/2019
Page 35
6 Configuring the transmit power
Note: The operator of a WLAN radio installation must adhere to the
applicable transmission threshold values.
Use the graphical user interface or the LANconfig software. You can
download the LANconfig software as an ISO image from the Hirschmann
product pages (www.hirschmann.com).
In the graphical user interface, proceed as follows:
In the menu tree, open the Configuration > Wireless LAN > General
dialog.
In the “General” tab, specify in the “General” frame the country in which
you install the device, and click the “Send” button.
Note: For devices that are operated in the European Union perform the
work steps described in chapter “Obtain compliance for operation in the
European Union” on page 32.

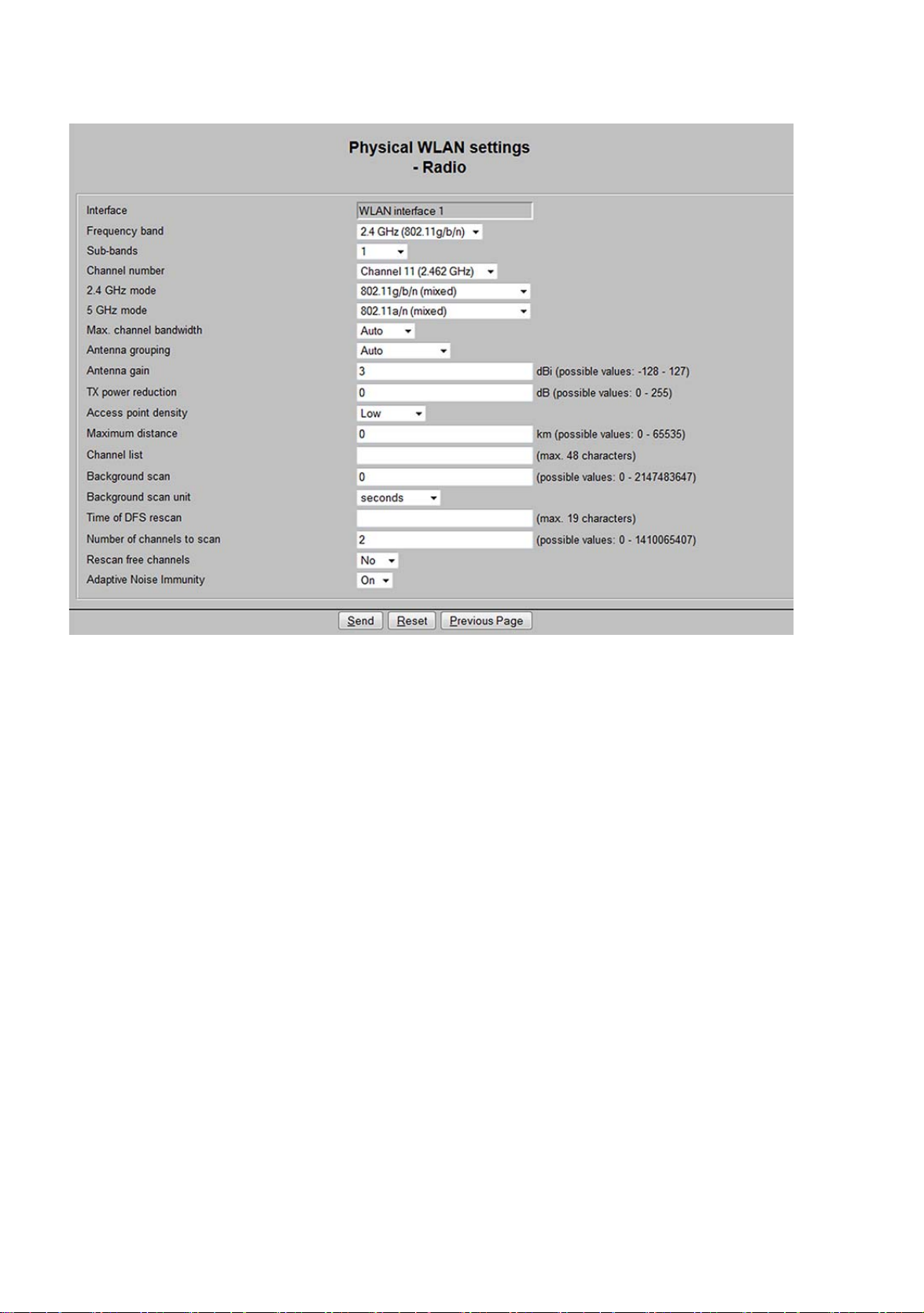

In the menu tree, open the Configuration > Wireless LAN > General >
Physical WLAN settings - Radio dialog.
In the “General” tab, click in the “Interface” column the physical WLAN
interface to which you connect the antenna.
Installation BAT867-F
Release 01 12/2019
35
Page 36
Subtract the cable and installed overvoltage protector attenuation from
the antenna gain. Enter the calculated value in the “Antenna gain” field.
To save the value, click the “Send” button.
36
Installation BAT867-F
Release 01 12/2019
Page 37
7 Monitoring the ambient air temperature
Operate the device below the specified maximum ambient air temperature
exclusively.
See “General technical data” on page 40.
The ambient air temperature is the temperature of the air at a distance of 2 in
(5 cm) from the device. It depends on the installation conditions of the device,
for example the distance from other devices or other objects, and the output
of neighboring devices.
The temperature displayed in the CLI and the GUI is the internal temperature
of the device. It is higher than the ambient air temperature. The maximum
internal temperature of the device named in the technical data is a guideline
that indicates to you that the maximum ambient air temperature has possibly
been exceeded.
Installation BAT867-F
Release 01 12/2019
37
Page 38
8 Maintenance and service
When designing this device, Hirschmann largely avoided using high-wear
parts. The parts subject to wear and tear are dimensioned to last longer
than the lifetime of the product when it is operated normally. Operate this
device according to the specifications.
Hirschmann is continually working on improving and developing their
software. Check regularly whether there is an updated version of the
software that provides you with additional benefits. You find information
and software downloads on the Hirschmann product pages on the
Internet (http://www.hirschmann.com).
Depending on the degree of pollution in the operating environment, check
at regular intervals that the ventilation slots in the device are not
obstructed.
Note: You find information on settling complaints on the Internet at http://
www.beldensolutions.com/en/Service/Repairs/index.phtml.
38
Installation BAT867-F
Release 01 12/2019
Page 39
9Disassembly
WARNING
ELECTRIC SHOCK
Disconnect the grounding only after disconnecting all other cables.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
Disconnect the data cables.
Disable the supply voltage.
Disconnect the power supply cable.
Remove the antennas.
Disconnect the grounding.
Installation BAT867-F
Release 01 12/2019
39
Page 40
10 Technical data
10.1 General technical data
Dimensions
W × H × D
Weight approximately 31.75 oz (900 g)
Supply voltage Rated voltage 24 V DC
Climatic
conditions during
operation
Climatic
conditions during
storage
Pollution degree 2
Protection classes Degree of protection IP65/67
BAT867-F See “Dimension drawings” on page 41.
Voltage range incl. maximum
tolerances
Connection type 8-pin, “X”-coded M12 socket for PoE port or
Power loss buffer 10 ms at 19.2 V DC
Overload current protection on
the device
Back-up fuse Nominal rating: 3.5 A
Peak inrush current (slow
voltage increase)
Current integral I²t 0.373 A
Minimum clearance around the
device
Ambient air temperature
Maximum inner temperature of
device (guideline)
Humidity 10 % ... 95 % (non-condensing)
Air pressure min. 700 hPa (+9842 ft; +3000 m)
Ambient air temperature
Humidity 10 % ... 95 % (non-condensing)
Air pressure min. 700 hPa (+9842 ft; +3000 m)
a
a
18 V DC ... 32 V DC
a 5-pin, “A”-coded M12 plug
Tightening
torque of the
locking screw
Non-replaceable fuse
Characteristic: slow blow
<3.5 A
2
s
Top and bottom sides of device: 2 in (5 cm)
Left and right device side: 0.79 in (2 cm)
Devices with operating temperature
characteristic value L (standard):
+14 °F ... +140 °F (10 °C ... +60 °C)
Devices with operating temperature
characteristic value E and T (extended):
-40 °F ... +158 °F (-40 °C ... +70 °C)
194 °F (90 °C)
max. 1060 hPa (-1312 ft; -400 m)
-40 °F ... +158 °F (-40 °C ... +70 °C)
max. 1060 hPa (-1312 ft; -400 m)
b
5.3 lb-in (0.6 Nm)
a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device
b. To preserve the suitability of your device for IP65/67, proceed as follows: Remove all
provided transport protection caps and transport protection screws. Seal unused sockets
and plugs with your desired type of protection screws which you can order separately.
Installation BAT867-F
40
Release 01 12/2019
Page 41

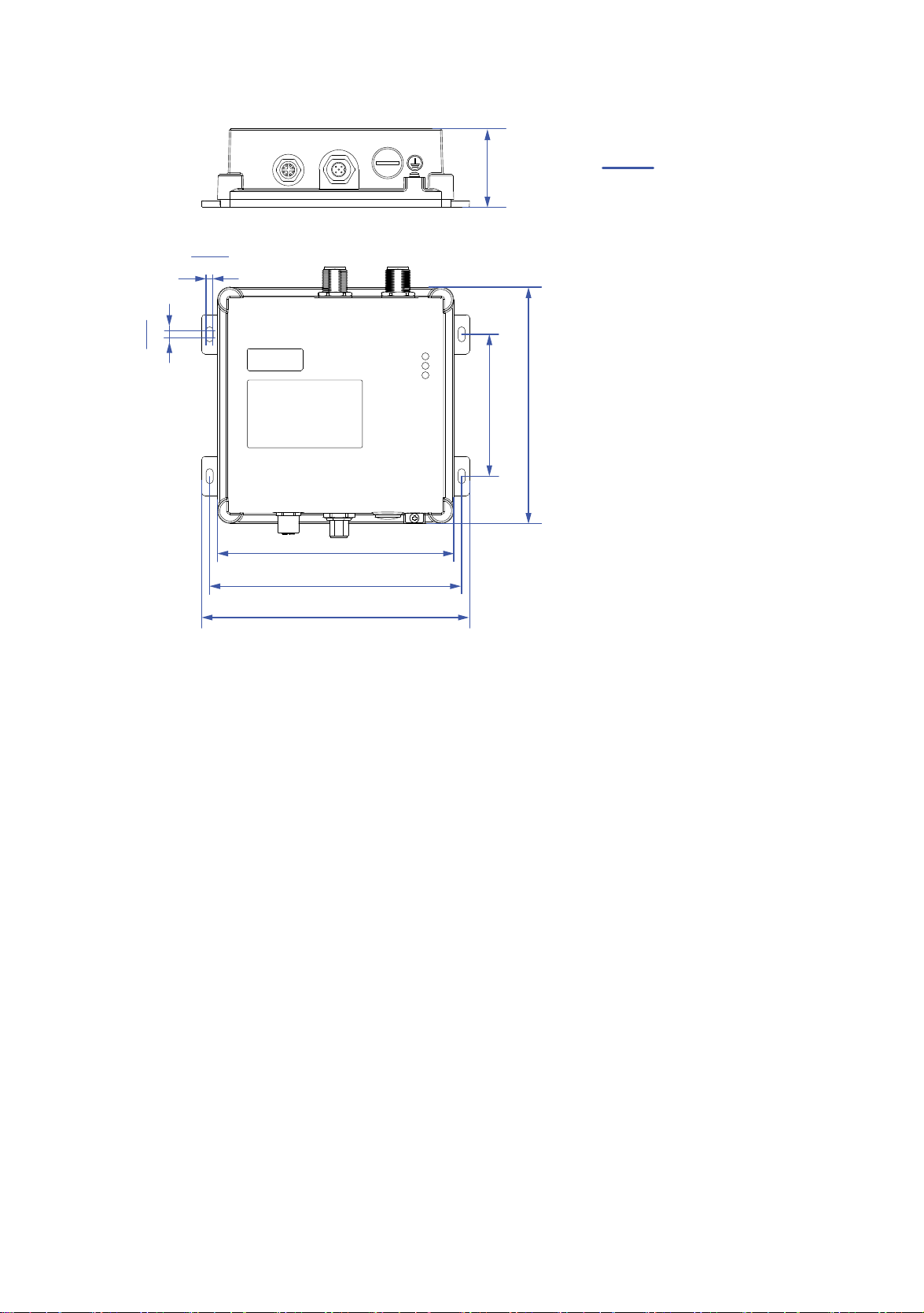

10.2 Dimension drawings
50
mm
1.97
4,5
0.18
5
0.2
5.9
150
90
3.54
150
5.9
160
6.3
170
6.7
in
Installation BAT867-F
Release 01 12/2019
41
Page 42
10.3 Radio technology
Antenna connection 2 × N socket for WLAN module
Range Depending on the antenna used, frequency range and data rate
Encryption
Frequency range
Modulation technology
Radio topology WLAN Access-Point, Bridge-, Router-, Point-to-Point-, Client-, Client-
IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and
hardware-accelerated AES
Closed Network
WEP 64
WEP 128
WEP 152
User authentication
802.1x/EAP
LEPS
WPA1/TKIP
For more information, see the HiLCOS data sheet.
Support of 2.4 GHz and 5 GHz: 2412 MHz to 2472 MHz and
5180 MHz to 5825 MHz
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
DSSS/CCK, DSSS/DBPSK, DSSS/DQPSK
Bridge-Mode
10.4 Roaming
IEEE 802.11F (Inter-Access Point Protocol)
IEEE 802.11r (Fast Roaming)
PMK caching
Pre authentification
OKC (Opportunistic key caching)
42
Installation BAT867-F
Release 01 12/2019
Page 43
10.5 Receiving sensitivity, transmit power and data rate
The values of the WLAN module shown in the following tables are subject to
a tolerance of ±2 dB. If you use only 1 antenna, the transmit power is reduced
by 3 dB. The values are in no case to be perceived as a guaranteed property
of the overall product. For some country profiles, the module reduces data
rate and transmit power automatically. The reason for this are national
standards.
10.5.1 IEEE 802.11b
IEEE 802.11b
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
1 Mbit/s 23 dBm 95 dBm
2 Mbit/s 23 dBm 94 dBm
5.5 Mbit/s 23 dBm 92 dBm
11 Mbit/s 23 dBm 90 dBm
Table 5: IEEE 802.11b, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
10.5.2 IEEE 802.11g
IEEE 802.11g
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
6 Mbit/s 24 dBm 94 dBm
9 Mbit/s 24 dBm 93 dBm
12 Mbit/s 24 dBm 92 dBm
18 Mbit/s 24 dBm 90 dBm
24 Mbit/s 24 dBm 88 dBm
36 Mbit/s 23 dBm 85 dBm
48 Mbit/s 22 dBm 81 dBm
54 Mbit/s 21 dBm 80 dBm
Table 6: IEEE 802.11g, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
Installation BAT867-F
Release 01 12/2019
43
Page 44
10.5.3 IEEE 802.11a
IEEE 802.11a
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Data rate Transmit power Receiving sensitivity
6Mbit/s 23dBm 94 dBm
9Mbit/s 23dBm 94 dBm
12 Mbit/s 23 dBm 92 dBm
18 Mbit/s 23 dBm 90 dBm
24 Mbit/s 23 dBm 86 dBm
36 Mbit/s 21 dBm 84 dBm
48 Mbit/s 19 dBm 81 dBm
54 Mbit/s 18 dBm 80 dBm
Table 7: IEEE 802.11a, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
10.5.4 IEEE 802.11n
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 0 / 8 24 dBm 93 dBm
MCS 1 / 9 24 dBm 91 dBm
MCS 2 / 10 24 dBm 89 dBm
MCS 3 / 11 23 dBm 84 dBm
MCS 4 / 12 23 dBm 83 dBm
MCS 5 / 13 23 dBm 78 dBm
MCS 6 / 14 21 dBm 78 dBm
MCS 7 / 15 19 dBm 76 dBm
Table 8: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 0 / 8 23 dBm 92 dBm
MCS 1 / 9 23 dBm 88 dBm
Table 9: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
40 MHz
Installation BAT867-F
44
Release 01 12/2019
Page 45
IEEE 802.11n
Frequency range 2.412 GHz to 2.472 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 2 / 10 23 dBm 85 dBm
MCS 3 / 11 22 dBm 82 dBm
MCS 4 / 12 22 dBm 79 dBm
MCS 5 / 13 22 dBm 75 dBm
MCS 6 / 14 21 dBm 75 dBm
MCS 7 / 15 19 dBm 73 dBm
Table 9: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth
40 MHz
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 0 / 8 22 dBm 93 dBm
MCS 1 / 9 22 dBm 90 dBm
MCS 2 / 10 22 dBm 87 dBm
MCS 3 / 11 21 dBm 83 dBm
MCS 4 / 12 21 dBm 80 dBm
MCS 5 / 13 20 dBm 77 dBm
MCS 6 / 14 19 dBm 74 dBm
MCS 7 / 15 17 dBm 73 dBm
Table 10: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 0 / 8 21 dBm 90 dBm
MCS 1 / 9 21 dBm 88 dBm
MCS 2 / 10 21 dBm 85 dBm
MCS 3 / 11 20 dBm 82 dBm
MCS 4 / 12 20 dBm 79 dBm
Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
Installation BAT867-F
Release 01 12/2019
45
Page 46
IEEE 802.11n
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 5 / 13 19 dBm 75 dBm
MCS 6 / 14 18 dBm 73 dBm
MCS 7 / 15 17 dBm 73 dBm
Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
10.5.5 IEEE 802.11ac
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 20 MHz
Coding Transmit power Receiving sensitivity
MCS 0 22 dBm 93 dBm
MCS 1 22 dBm 90 dBm
MCS 2 22 dBm 87 dBm
MCS 3 21 dBm 83 dBm
MCS 4 21 dBm 80 dBm
MCS 5 20 dBm 77 dBm
MCS 6 19 dBm 74 dBm
MCS 7 17 dBm 73 dBm
MCS 8 16 dBm 71 dBm
Table 12: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
20 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 0 21 dBm 90 dBm
MCS 1 21 dBm 88 dBm
MCS 2 21 dBm 85 dBm
MCS 3 20 dBm 82 dBm
MCS 4 20 dBm 79 dBm
Table 13: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
Installation BAT867-F
46
Release 01 12/2019
Page 47
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 40 MHz
Coding Transmit power Receiving sensitivity
MCS 5 19 dBm 75 dBm
MCS 6 18 dBm 73 dBm
MCS 7 17 dBm 73 dBm
MCS 8 16 dBm 69 dBm
MCS 9 16 dBm 66 dBm
Table 13: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
40 MHz
IEEE 802.11ac
Frequency range 5.180 GHz to 5.825 GHz
Bandwidth 80 MHz
Coding Transmit power Receiving sensitivity
MCS 0 21 dBm 88 dBm
MCS 1 21 dBm 86 dBm
MCS 2 21 dBm 84 dBm
MCS 3 20 dBm 81 dBm
MCS 4 20 dBm 77 dBm
MCS 5 19 dBm 74 dBm
MCS 6 18 dBm 73 dBm
MCS 7 17 dBm 70 dBm
MCS 8 16 dBm 67 dBm
MCS 9 16 dBm 65 dBm
Table 14: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth
80 MHz
10.6 EMC and immunity
EMC interference
immunity
EN 61000-4-2 Electrostatic discharge
Contact discharge ±4 kV
Air discharge ±8 kV
Installation BAT867-F
Release 01 12/2019
47
Page 48
EMC interference
immunity
EN 61000-4-3 Electromagnetic field
80 MHz ... 1000 MHz 10 V/m
1400 MHz ... 2700 MHz 10 V/m
EN 61000-4-4 Fast transients (burst)
DC power line ±2 kV
Data line ±4 kV
EN 61000-4-5 Voltage surges
DC power line ±1 kV line/ground; ±0.5 kV
line/line
Data line, shielded ±2 kV line/ground
EN 61000-4-6 Conducted disturbances
150 kHz ... 80 MHz 10 V
EMC interference
emission
EN 55032 Class A
Immunity
IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 0.14 in (3.5 mm)
amplitude
8.4 Hz ... 150 Hz with 1 g
IEC 60068-2-27, test Ea Shock 15 g at 11 ms
10.7 Network range
10/100/1000 Mbit/s twisted pair port
Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable)
Table 15: Network range: 10/100/1000 Mbit/s twisted pair port
10.8 Power consumption/power output
Power consumption Power output
9 W 31.0 Btu (IT)/h
Table 16: Power consumption/power output
48
Installation BAT867-F
Release 01 12/2019
Page 49
11 Scope of delivery, order numbers and
accessories
Scope of delivery
Number Article
1× Device
1 × Safety and general information sheet
1 × EU Declaration of Conformity
1×
premounted
2×
premounted
Figure 1: Scope of delivery for device variants featuring Configuration with the
characteristic value 9
Number Article
1× Device
1 × Safety and general information sheet
1 × EU Declaration of Conformity
1×
premounted
2×
premounted
2×
included
1×
premounted
1×
included
1×
included
Protection cap (M12, plastic) for supply voltage connection
Protection cap (plastic) for N socket
Protection cap (M12, plastic) for supply voltage connection
Protection cap (plastic) for N socket
BAT-ANT-N-3AGN-IP67
50 terminating resistor for sealing unused antenna connections
“X”-coded M12 plug for Ethernet port
M12 power supply plug ELKA 5012 PG7
Figure 2: Scope of delivery for device variants featuring Configuration with the
characteristic value Z
Accessories
Note that products recommended as accessories may have different
characteristics to those of the device, which may limit the application
range of the overall system. For example, if you add an accessory with
IP20 to a device with IP65, the degree of protection of the overall system
is reduced to IP20.
For reliable receive power and transmission power, you require antennas
that pertain to your application case.
Installation BAT867-F
Release 01 12/2019
49
Page 50
The "Antenna Guide" document provides an overview of the antennas
that can be used as well as the suitable antenna accessories.
The manual is available for download on the Internet: https://
www.doc.hirschmann.com
Designation Order number
BAT-ANT-N-3AGN-IP67 for N socket
(10 pieces)
50 terminating resistors for closing unused antenna connections
(10 pieces)
Applies to device variants featuring supply voltage with
characteristic value W (24 V DC):
M12 power supply plug ELKA 5012 PG7
942-110-001
942 118-001
933 170-100
50
Installation BAT867-F
Release 01 12/2019
Page 51
12 Underlying technical standards
Name
EN 50121-4 Railway applications – EMC – Emission and immunity of the
signaling and telecommunications apparatus (Rail Trackside)
EN 55032 Electromagnetic compatibility of multimedia equipment –
Emission Requirements
EN 60529 Degrees of protection provided by housing – IP-Code
EN 61000-6-1 Electromagnetic compatibility (EMC) – Part 6-1: Generic
standards – Immunity for residential, commercial and light-
industrial environments
EN 61131-2 Programmable controllers – Part 2: Equipment requirements and
tests
EN 62368-1 Equipment for audio/video, information and communication
technology - Part 1: safety requirements
EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM)
- bandwidth transfer systems - data transmission equipment
operating in 2.4 GHz ISM band and using spread spectrum
modulation technology
EN 301 893 Broadband radio access networks (BRAN) – 5 GHz high
performance Remote Local Area Network (RLAN)
EN 301 489-1 Electromagnetic compatibility for radio equipment and services
EN 301 489-17 Electromagnetic compatibility (EMC) for radio equipment and
services - specific conditions for 2.4 GHz broadband transmission
systems and 5 GHz high-performance RLAN equipment
FCC 47 CFR Part 15 Code of Federal Regulations
IEEE 802.1D MAC Bridges (switching function)
IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree)
IEEE 802.11a/b/g/n/ac WLAN
IEEE 802.3af Power over Ethernet (PoE)
The device has an approval based on a specific standard exclusively if the
approval indicator appears on the device casing.
The device generally fulfills the technical standards named in their current
versions.
Installation BAT867-F
Release 01 12/2019
51
Page 52
A Further support
Technical questions
For technical questions, please contact any Hirschmann dealer in your area
or Hirschmann directly.
You find the addresses of our partners on the Internet at http://
www.hirschmann.com.
A list of local telephone numbers and email addresses for technical support
directly from Hirschmann is available at https://
hirschmann-support.belden.com.
This site also includes a free of charge knowledge base and a software
download section.
Hirschmann Competence Center
The Hirschmann Competence Center is ahead of its competitors on three
counts with its complete range of innovative services:
Consulting incorporates comprehensive technical advice, from system
evaluation through network planning to project planning.
Training offers you an introduction to the basics, product briefing and user
training with certification.
You find the training courses on technology and products currently
available at http://www.hicomcenter.com.
Support ranges from the first installation through the standby service to
maintenance concepts.
With the Hirschmann Competence Center, you decided against making any
compromises. Our client-customized package leaves you free to choose the
service components you want to use.
Internet:
http://www.hicomcenter.com
52
Installation BAT867-F
Release 01 12/2019
Page 53
Installation BAT867-F
Release 01 12/2019
53
Page 54
Loading...
