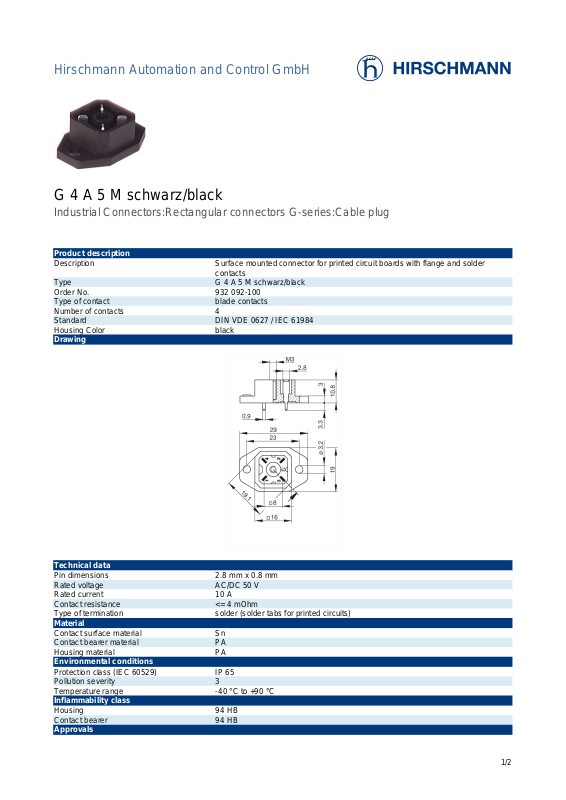

Hirschmann Automation and Control GmbH
G 4 A 5 M schwarz/black
Industrial Connectors:Rectangular connectors G-series:Cable plug
Product description
Description Surface mounted connector for printed circuit boards with flange and solder
contacts
Type G 4 A 5 M schwarz/black
Order No. 932 092-100
Type of contact blade contacts
Number of contacts 4
Standard DIN VDE 0627 / IEC 61984
Housing Color black

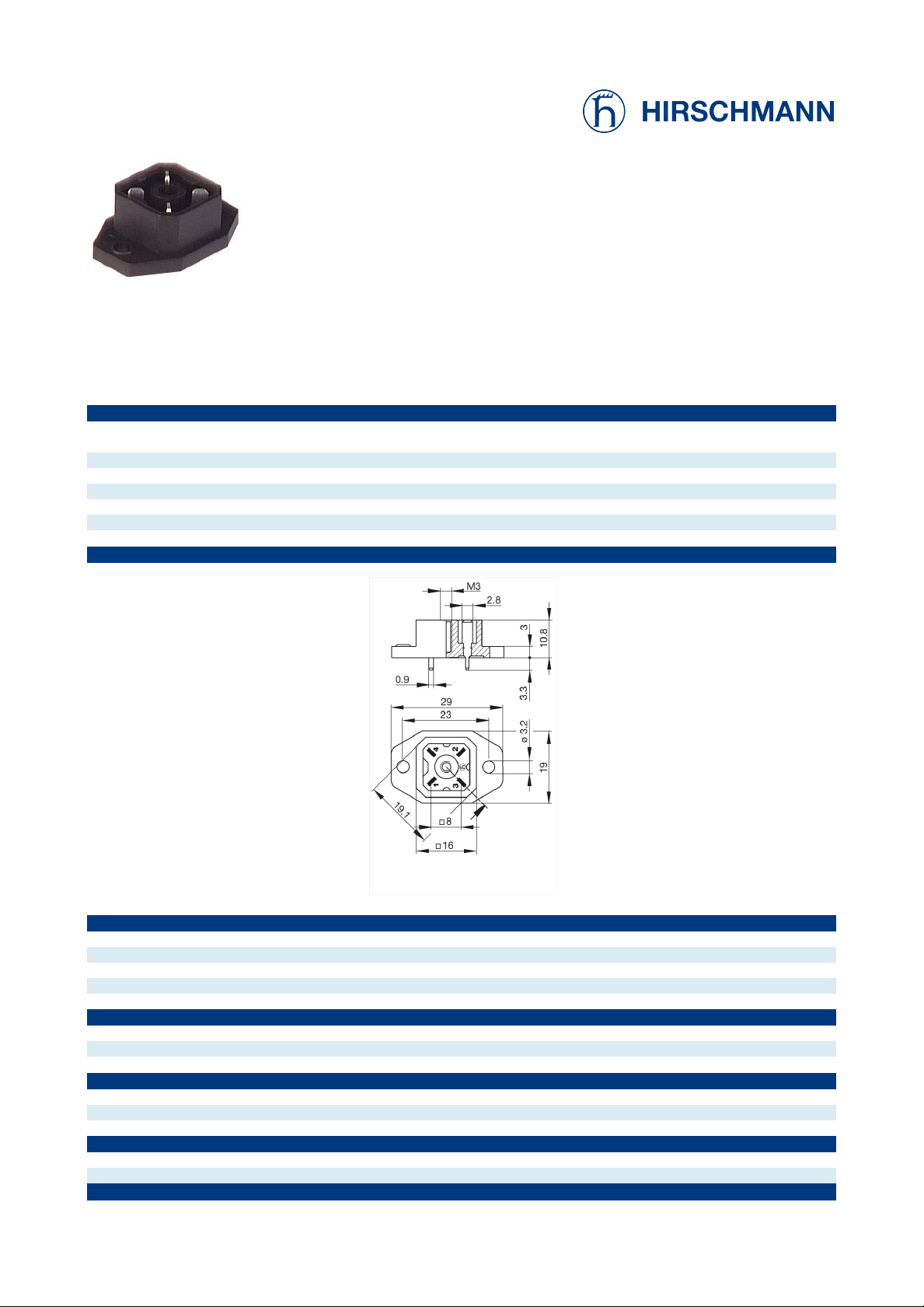

Drawing
Technical data
Pin dimensions 2.8 mm x 0.8 mm
Rated voltage AC/DC 50 V
Rated current 10 A
Contact resistance <= 4 mOhm
Type of termination solder (solder tabs for printed circuits)
Material
Contact surface material Sn
Contact bearer material PA
Housing material PA
Environmental conditions
Protection class (IEC 60529) IP 65
Pollution severity 3
Temperature range -40 °C to +90 °C
Inflammability class
Housing 94 HB
Contact bearer 94 HB
Approvals
1/2
Page 2
VDE VDE
Packaging unit
Packaging unit 100 pieces
Scope of delivery and accessories
Scope of delivery 1 surface mounted connector
Accessories to order separately can be plugged into G 4 W 1 F schwarz/black,
G 4 KW 1 F 2m;
flat gasket G 30 E-2,
order no. 733 415-002
2/2
