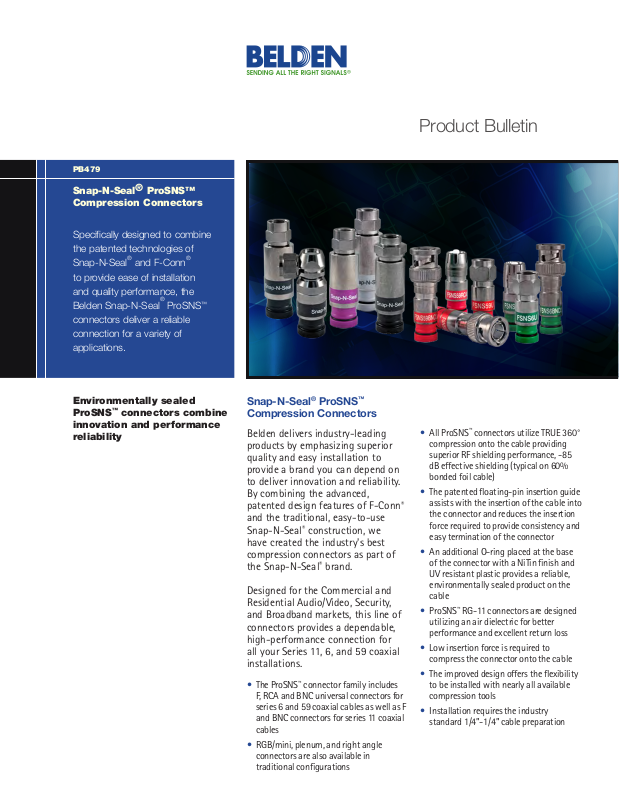

Page 1
PB479
Snap-N-Seal® ProSNS™
Compression Connectors
Specifically designed to combine
the patented technologies of
Snap-N-Seal
to provide ease of installation
and quality performance, the
Belden Snap-N-Seal® ProSNS™
connectors deliver a reliable
connection for a variety of
applications.
®
and F-Conn®
Product Bulletin
Environmentally sealed
ProSNS
innovation and performance
reliability
™
connectors combine
Snap-N-Seal® ProSNS™
Compression Connectors
Belden delivers industry-leading
products by emphasizing superior
quality and easy installation to
provide a brand you can depend on
to deliver innovation and reliability.
By combining the advanced,
patented design features of F-Conn
and the traditional, easy-to-use
®
Snap-N-Seal
construction, we
have created the industry's best
compression connectors as part of
®
the Snap-N-Seal
brand.
Designed for the Commercial and
Residential Audio/Video, Security,
and Broadband markets, this line of
connectors provides a dependable,
high-performance connection for
all your Series 11, 6, and 59 coaxial
installations.
• The ProSNS™ connector family includes
F, RCA and BNC universal connectors for
series 6 and 59 coaxial cables as well as F
and BNC connectors for series 11 coaxial
cables
• RGB/mini, plenum, and right angle
connectors are also available in
traditional configurations
All ProSNS™ connectors utilize TRUE 360°
•
compression onto the cable providing
superior RF shielding performance, -85
dB effective shielding (typical on 60%
bonded foil cable)
• The patented floating-pin insertion guide
®
assists with the insertion of the cable into
the connector and reduces the insertion
force required to provide consistency and
easy termination of the connector
• An additional O-ring placed at the base
of the connector with a NiTin finish and
UV resistant plastic provides a reliable,
environmentally sealed product on the
cable
• ProSNS™ RG-11 connectors are designed
utilizing an air dielectric for better
performance and excellent return loss
• Low insertion force is required to
compress the connector onto the cable
• The improved design offers the flexibility
to be installed with nearly all available
compression tools
• Installation requires the industry
standard 1/4”-1/4” cable preparation
Page 2
Innovation & Performance Reliability
Installations in Commercial and Residential Audio/Video, Security, and
Broadband markets will be a "snap", thanks to the low compression force
associated with traditional Snap-N-Seal
non-blind entry with a floating pin design from F-Conn
®
connectors along with the patented
®
.
ProSNS™ Universal F Connector
ProSNS
ProSNS
FSNS6U
FSNS59RCAU
™
Universal RCA Connector
FSNS59BNCU
™
Universal BNC Connector
ProSNS™ Universal F Connector
The ProSNS™ F type connectors use a
patented, removeable plastic sleeve
guide designed to assist with the
insertion of the cable center conductor
to simplify the installation. As the
cable center conductor is inserted into
the back end of the connector, the
removeable plastic guide is pushed
forward and out from the front end
of the connector. When the guide
is completely pushed out from the
front of the connector, it will detach
and fall out. This design feature is to
guide the insertion of the cable, and
to help identify when the cable center
conductor is fully and properly inserted
into the connector.
A patented internal O-ring at the base
of the nut facilitates a free-spinning nut
design to ease installation.
ProSNS™ Universal RCA
Connector
The patented removeable plastic sleeve
guide is also a design feature of the
ProSNS™ RCA connector. The plastic
guide is attached to the front of the
RCA pin. As the cable center conductor
is inserted into the RCA pin and pushed
forward, the removeable plastic guide
is pushed up and out of the front end
of the connector. The plastic guide will
need to be detached and removed from
the RCA pin, once the cable and pin are
properly inserted into the connector.
the pin basket at the back end of the
connector, the insertion of the cable
center conductor is easier and more
accurate. Once the pin basket is properly
seated inside the connector, it is then
compressed around the cable center
conductor by an outer plastic sleeve.
ProSNS™ RG-11 Connector
The ProSNS™ RG-11 connectors True 360º
compression technology provides high
quality 75Ω performance and superior
return loss. The floating pin allows for
non-blind entry.
The ProSNS™ RG-11 connector family
comes in a variety of configurations to
meet nearly every RG-11 installation need.
This includes plenum and quad-shield
cable. A 90º connector is also available for
greater installation flexibility.
Like our 59 and 6 connectors, the
ProSNS™ RG-11 F connectors utilize a
plastic pin guide for greater connector
performance and easy installation.
Detachable Plastic
Sleeve
SNS1P11H and 716SNS1P11HPLA
™
Universal RG-11 Connectors
ProSNS
ProSNS™ Universal BNC
Connector
A patented 360º floating-pin basket
is incorporated into the design of the
ProSNS™ BNC connector. By positioning
Floating Pin
FSNS6BNCU
ProSNS™ Universal BNC Series 6 Connector
Page 3
Quality in Design
The ProSNS™ connector series combines
patented technologies and traditional,
easy-to-use installation techniques
together to create a high-quality
connector family.
These connectors are designed using a
patented guide and pin basket design.
By positioning the floating-pin 360º
basket at the back end of the connector,
it simplifies the insertion of the cable
center conductor. The pin basket is
compressed around the center conductor
by a plastic compression ring.
The ProSNS™ RG-11 compression
connector utilizes an air dielectric within
the transition area of the connector
contributing to an improved return loss
result.
Internal Depiction of a ProSNS™ RG-11 Connector
O-Ring Located Behind
Nut for Excellent
Protection Against
Water Migration
A Patented Internal
"O" Ring Permits
Nut to Spin Freely
Utilizing an Air
Dielectric Guarantees
75 OHM Performance
and Superior Return
Loss Results
Insertion Guide
Helps To Identify
When The
Connector Is
Installed Correctly
NiTin Plating
Protects Against
Weathering
Elements
Center Pin Ceases and
Retains Cable Center
Conductor as Cable
is Inserted
Patented Center
Pin Eliminates Blind
Entry Simplifying and
Providing Consistent
Cable Insertion
Sleeves' Sealing
"O" Ring Prevents
Moisture Migration
Patented, Industry
Leading, Removable
Sleeve Reduces
Compression Force
Return Loss Performance
The return loss performance should be
one of the most important factors in
choosing a connector. Return loss (RL)
represents the quality and consistency of
the signal path. Better (more negative)
RL measurements are the result of better
impedance stability within the signal
path and, therefore, lower reflected
signal loss in the path.
All Belden connectors meet or exceed
SCTE return loss standards, providing
superior return loss results and a
dependable, high-quality signal. The
data shown represents the standard
performance of a ProSNS™ RG-11
connector.
-29.21 dB up to 1 GHz -19.12 dB up to 4 GHz
-20.14 dB up to 2 GHz -19.04 dB up to 4.5 GHz
-18.81 dB up to 3 GHz
ProSNS™ RG-11 Connector RL Performance
Page 4
Product Offering
The ProSNS™ connector family includes F, RCA and BNC universal (fits standard through quad-shield cable) connectors for series 6 and 59
coaxial cables. RGB/mini, plenum and right angle configurations are available in traditional F-Conn® or Snap-N-Seal® configurations.
RG-59 Cable
Part Number* Cable Type Description
FSNS59U RG-59 Universal "F" Connector for Standard or Quad-Shield Cable 75 Red CPLCCT-SLM
FSNS59BNCU RG-59 Universal BNC Connector for Standard or Quad-Shield Cable 75 Red CPLCCT-SLM
FSNS59RCAU RG-59 Universal RCA Connector for Standard or Quad-Shield Cable 75 Red CPLCCT-SLM
(ohms)
RG-6 Cable
Impedance
Part Number* Cable Type Description
FSNS6U RG-6 Universal "F" Connector for Standard or Quad-Shield Cable 75 Green CPLCCT-SLM
FSNS6BNCU RG-6 Universal BNC Connector for Standard or Quad-Shield Cable 75 Green CPLCCT-SLM
FSNS6RCAU RG-6 Universal RCA Connector for Standard or Quad-Shield Cable 75 Green CPLCCT-SLM
Impedance
(ohms)
RG-11 Cable
Part Number* Cable Type Description
716SNS1P11H RG-11 7/16" Universal "F" Connector for Standard or Quad-Shield Cable 75 Black CPLCCT-LS59/11
716SNS1P11HPLA RG-11 Plenum 7/16" "F" Connector for Plenum Cable 75 Gray CPLCCT-LS59/11
716SNS1P11HQ RG-11 Quad 7/16" "F" Connector for Quad-Shield Cable 75 Purple CPLCCT-LS59/11
SNS1P11H RG-11 9/16" Universal "F" Connector for Standard or Quad-Shield Cable 75 Black CPLCCT-LS59/11
90SNS1P11H RG-11 "F" Connector, Right Angle for Standard or Quad-Shield Cable 75 Black CPLCCT-LS59/11
FSNS11HBNC RG-11 Universal BNC Connector for Standard or Quad-Shield Cable 75 Black SNSUNI
FSNS11HBNCPLA RG-11 Plenum BNC Connector for Plenum Cable 75 Gray SNSUNI
FSNS11QHBNC RG-11 Quad BNC Connector for Quad-Shield Cable 75 Purple SNSUNI
* RG59 and RG6 ProSNS™ connectors are also available in retail packaging when ordered with [Part Number]-R (see photo below).
Impedance
(ohms)
Color
Band Tool Required
Color
Band Tool Required
Color
Band Tool Required
Belden Customer Support 1.800.685.9452
©Copyright 2012, Belden Inc.
www.belden.com PB479
