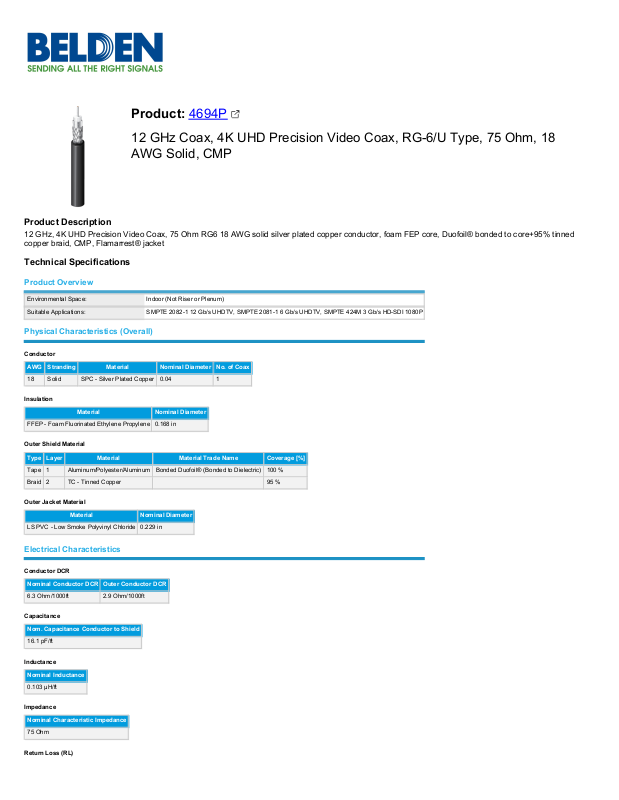

Page 1
Product: 4694P
12 GHz Coax, 4K UHD Precision Video Coax, RG-6/U Type, 75 Ohm, 18
AWG Solid, CMP
Product Description
12 GHz, 4K UHD Precision Video Coax, 75 Ohm RG6 18 AWG solid silver plated copper conductor, foam FEP core, Duofoil® bonded to core+95% tinned
copper braid, CMP, Flamarrest® jacket
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid SPC - Silver Plated Copper 0.04 1
Insulation
Material Nominal Diameter
FFEP - Foam Fluorinated Ethylene Propylene 0.168 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil® (Bonded to Dielectric) 100 %
Braid 2 TC - Tinned Copper 95 %
Outer Jacket Material
Material Nominal Diameter
LS PVC - Low Smoke Polyvinyl Chloride 0.229 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Outer Conductor DCR
6.3 Ohm/1000ft 2.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.1 pF/ft
Inductance
Nominal Inductance
0.103 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Page 2
Frequency [MHz] Minimum Return (RL)
5 MHz - 1600 MHz 23 dB
1600 MHz - 4500 MHz 21 dB
4500 MHz - 12000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.23 dB/100ft
3.58 MHz 0.46 dB/100ft
5 MHz 0.54 dB/100ft
6 MHz 0.58 dB/100ft
7 MHz 0.63 dB/100ft
10 MHz 0.73 dB/100ft
12 MHz 0.80 dB/100ft
25 MHz 1.11 dB/100ft
55 MHz 1.57 dB/100ft
67.5 MHz 1.73 dB/100ft
71.5 MHz 1.77 dB/100ft
88.5 MHz 1.92 dB/100ft
100 MHz 2.07 dB/100ft
135 MHz 2.39 dB/100ft
143 MHz 2.46 dB/100ft
180 MHz 2.76 dB/100ft
270 MHz 3.42 dB/100ft
360 MHz 4.02 dB/100ft
540 MHz 5.08 dB/100ft
720 MHz 6.01 dB/100ft
750 MHz 6.15 dB/100ft
1000 MHz 7.29 dB/100ft
1500 MHz 9.27 dB/100ft
2000 MHz 11.02 dB/100ft
2250 MHz 11.84 dB/100ft
3000 MHz 14.12 dB/100ft
4500 MHz 18.19 dB/100ft
6000 MHz 21.53 dB/100ft
12000 MHz 33.02 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.22 ns/ft 83 %
Voltage
UL Voltage Rating
300 V
Electrical Characteristics Notes: Return Loss: Fixed bridge and termination
Temperature Range
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 41 lbs/1000ft
Max Recommended Pulling Tension: 69 lbs
Min Bend Radius/Minor Axis: 2.3 in
Standards
NEC/(UL) Specification: CMP
RG Type: 6/U Type
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
Page 3
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2017-08-16
CA Prop 65 (CJ for Wire & Cable): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Y
Part Number
Non-Plenum Number: 4694R
Related Parts: 4694R
Variants
Item # Color UPC Length
4694P 0101000 Black 612825406808 1,000 ft
4694P 0105000 Black 612825406815 5,000 ft
4694P 0061000 Blue, Light 612825406785 1,000 ft
4694P N3U1000 Green, Mil 612825406754 1,000 ft
4694P 0031000 Orange 612825406778 1,000 ft
4694P 0021000 Red 612825406761 1,000 ft
4694P 0071000 Violet 612825406792 1,000 ft
History
Update and Revision: Revision Number: 0.87 Revision Date: 01-31-2020
