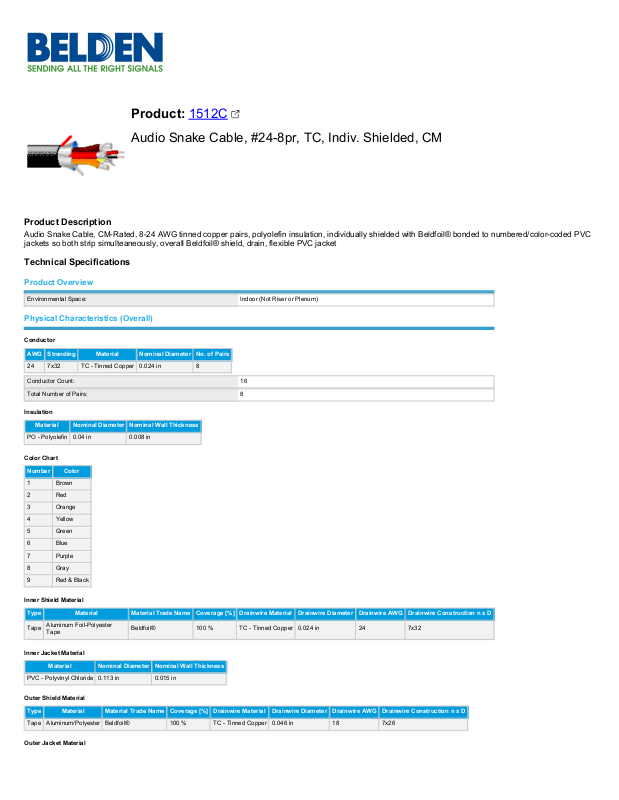

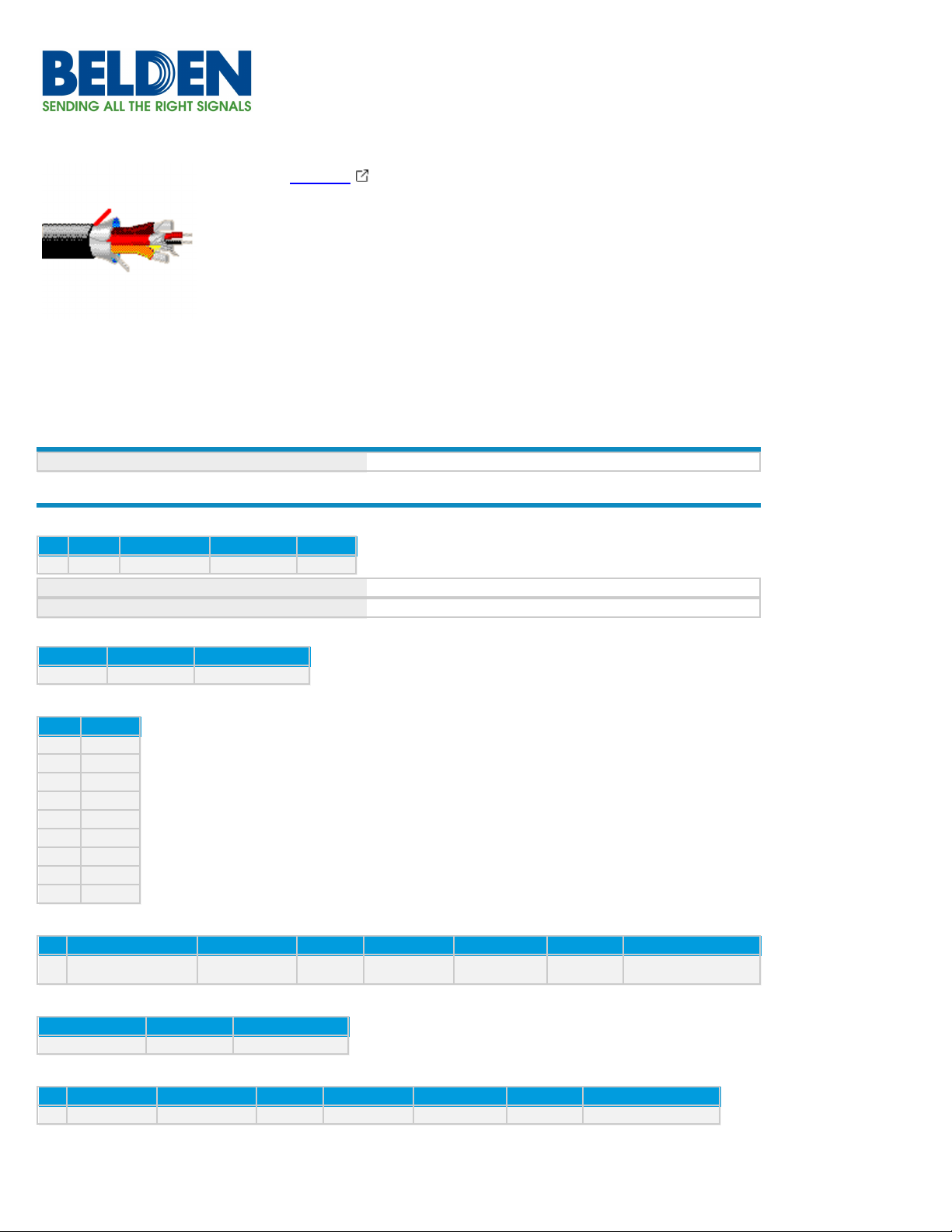

Page 1
Product: 1512C
Audio Snake Cable, #24-8pr, TC, Indiv. Shielded, CM
Product Description
Audio Snake Cable, CM-Rated, 8-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC
jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 7x32 TC - Tinned Copper 0.024 in 8
Conductor Count: 16
Total Number of Pairs: 8
Insulation
Material Nominal Diameter Nominal Wall Thickness
PO - Polyolefin 0.04 in 0.008 in
Color Chart
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
5 Green
6 Blue
7 Purple
8 Gray
9 Red & Black
Inner Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape
Aluminum Foil-Polyester
Tape
Beldfoil® 100 % TC - Tinned Copper 0.024 in 24 7x32
Inner Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.113 in 0.015 in
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Aluminum/Polyester Beldfoil® 100 % TC - Tinned Copper 0.046 in 18 7x26
Outer Jacket Material
Page 2
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.452 in 0.033 in Yes
0.452
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
15.9 Ohm/1000ft 23.3 Ohm/1000ft 23.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft 58 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
1.05 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Operating Temp Range: -35°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 117 lbs/1000ft
Max Recommended Pulling Tension: 152 lbs
Min Bend Radius/Minor Axis: 4.5 in
Standards
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Page 3
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color UPC Length Footnote
1512C B591000 Black, Matte 612825116820 1,000 ft C
1512C B59500 Black, Matte 612825116837 500 ft C
1512C B595000 Black, Matte 612825431251 5,000 ft
Footnote: C - CRATE REEL PUT-UP.
History
Update and Revision: Revision Number: 0.253 Revision Date: 01-31-2020
