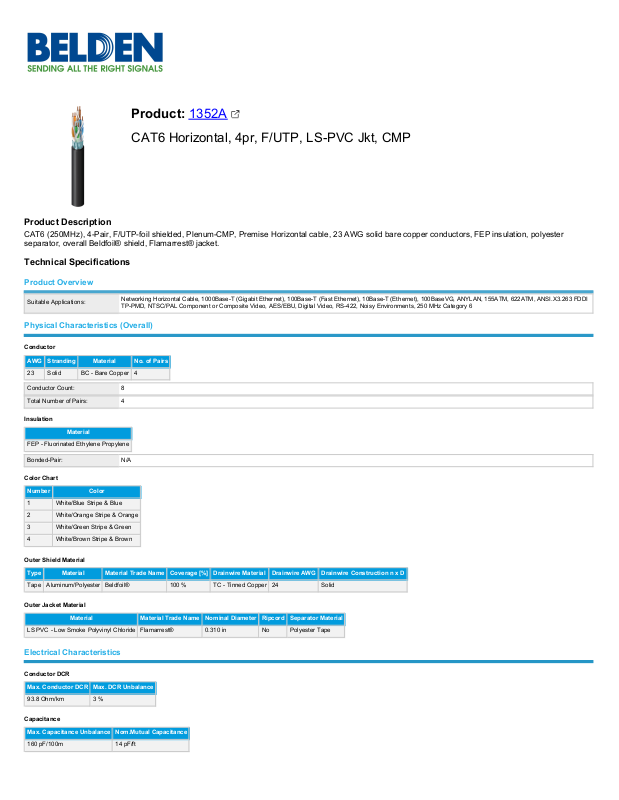

Page 1

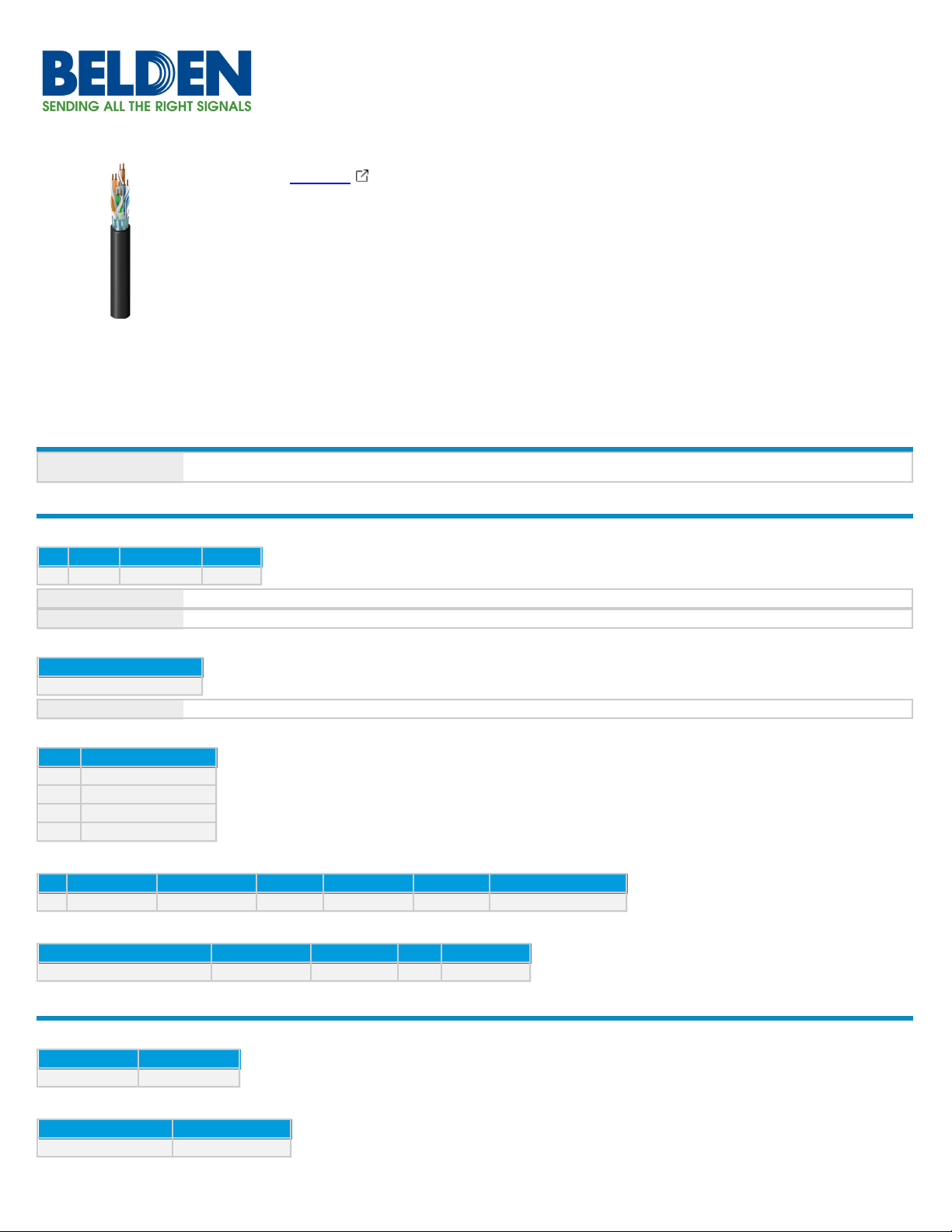

Product: 1352A
CAT6 Horizontal, 4pr, F/UTP, LS-PVC Jkt, CMP
Product Description
CAT6 (250MHz), 4-Pair, F/UTP-foil shielded, Plenum-CMP, Premise Horizontal cable, 23 AWG solid bare copper conductors, FEP insulation, polyester
separator, overall Beldfoil® shield, Flamarrest® jacket.
Technical Specifications
Product Overview
Suitable Applications:
Networking Horizontal Cable, 1000Base-T (Gigabit Ethernet), 100Base-T (Fast Ethernet), 10Base-T (Ethernet), 100BaseVG, ANYLAN, 155ATM, 622ATM, ANSI.X3.263 FDDI
TP-PMD, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 250 MHz Category 6
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material
FEP - Fluorinated Ethylene Propylene
Bonded-Pair: N/A
Color Chart
Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Aluminum/Polyester Beldfoil® 100 % TC - Tinned Copper 24 Solid
Outer Jacket Material
Material Material Trade Name Nominal Diameter Ripcord Separator Material
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest® 0.310 in No Polyester Tape
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 3 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
160 pF/100m 14 pF/ft
Page 2
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 72 %
High Freq
Frequency
[MHz]
Max. Insertion Loss
(Attenuation)
Min.
NEXT
[dB]
Min.
PSNEXT
[dB]
Min.
PSACR
[dB]
Min. ACRF
(ELFEXT) [dB]
Min. PSACRF
(PSELFEXT) [dB]
Min. RL
(Return Loss)
[dB]
Max./Min. Input
Impedance (unFitted)
Max./Min. Fitted
Impedance
Min.
TCL
[dB]
Min.
ELTCTL
[dB]
1 MHz 2.0 dB/100m 74.3 dB 72.3 dB 70.3 dB 67.8 dB 64.8 dB 20.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 40.0 dB 35.0 dB
4 MHz 3.8 dB/100m 65.3 dB 63.3 dB 59.5 dB 55.7 dB 52.7 dB 23.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 40.0 dB 23.0 dB
8 MHz 5.3 dB/100m 60.8 dB 58.8 dB 53.4 dB 49.7 dB 46.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 40.0 dB 16.9 dB
10 MHz 6.0 dB/100m 59.3 dB 57.3 dB 51.4 dB 47.8 dB 44.8 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 40.0 dB 15.0 dB
16 MHz 7.6 dB/100m 56.3 dB 54.3 dB 46.7 dB 43.7 dB 40.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 38.0 dB 10.9 dB
20 MHz 8.5 dB/100m 54.8 dB 52.8 dB 44.3 dB 41.7 dB 38.7 dB 25.0 dB 100 ± 15 Ohm 100 ± 15 Ohm 37.0 dB 9.0 dB
25 MHz 9.5 dB/100m 53.3 dB 51.3 dB 41.8 dB 39.8 dB 36.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm 36.0 dB 7.0 dB
31.25 MHz 10.7 dB/100m 51.9 dB 49.9 dB 39.2 dB 37.9 dB 34.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm 35.1 dB 5.1 dB
62.5 MHz 15.4 dB/100m 47.4 dB 45.4 dB 30.0 dB 31.8 dB 28.8 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm 32.0 dB
100 MHz 19.8 dB/100m 44.3 dB 42.3 dB 22.5 dB 27.8 dB 24.8 dB 20.1 dB 100 ± 15 Ohm 100 ± 15 Ohm 30.0 dB
155 MHz 25.2 dB/100m 41.5 dB 39.5 dB 14.3 dB 23.9 dB 20.9 dB 18.8 dB 100 ± 22 Ohm 100 ± 15 Ohm 28.1 dB
200 MHz 29.0 dB/100m 39.8 dB 37.8 dB 8.8 dB 21.7 dB 18.7 dB 18.0 dB 100 ± 22 Ohm 100 ± 15 Ohm 27.0 dB
250 MHz 32.8 dB/100m 38.3 dB 36.3 dB 3.5 dB 19.8 dB 16.8 dB 17.3 dB 100 ± 32 Ohm 100 ± 15 Ohm 26.0 dB
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Installation Temp Range: 0°C To +50°C
UL Temp Rating: 75°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 44 lbs/1000ft
Max Recommended Pulling
Tension:
25 lbs
Min Bend Radius During
Installation:
2.25 in
Min Bend Radius/Minor Axis: 1.0 in
Standards
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
CPR Euroclass: Eca
Data Category: Category 6
ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Third Party Performance
Verification:
Category 6
Applicable Environmental and Other Programs
Environmental Space: Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/96/EC
(WEEE):
Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS
II):
Yes
Page 3
EU Directive 2012/19/EU
(WEEE):
Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance
(yyyy-mm-dd):
2017-07-10
EU RoHS Compliance Date
(yyyy-mm-dd):
2004-01-01
CA Prop 65 (CJ for Wire &
Cable):
Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Non-Halogenated: No
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No
Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum (UL 910)
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Non-Plenum Number: 1351A
Variants
Item # Color UPC Length Footnote
1352A D151000 Blue 612825112457 1,000 ft C
1352A 0081000 Gray 612825112471 1,000 ft C
1352A 0091000 White 612825112488 1,000 ft C
1352A 0041000 Yellow 612825112464 1,000 ft C
Footnote: C - CRATE REEL PUT-UP.
Patent: https://www.belden.com/resources/patents
Product Notes
Notes: Shield is Bonded to Jacket Inner Wall for Electrical Stability. Print Includes Descending Footage Markings from Max. Put-Up Length to 0.
History
Update and Revision: Revision Number: 0.367 Revision Date: 01-31-2020
