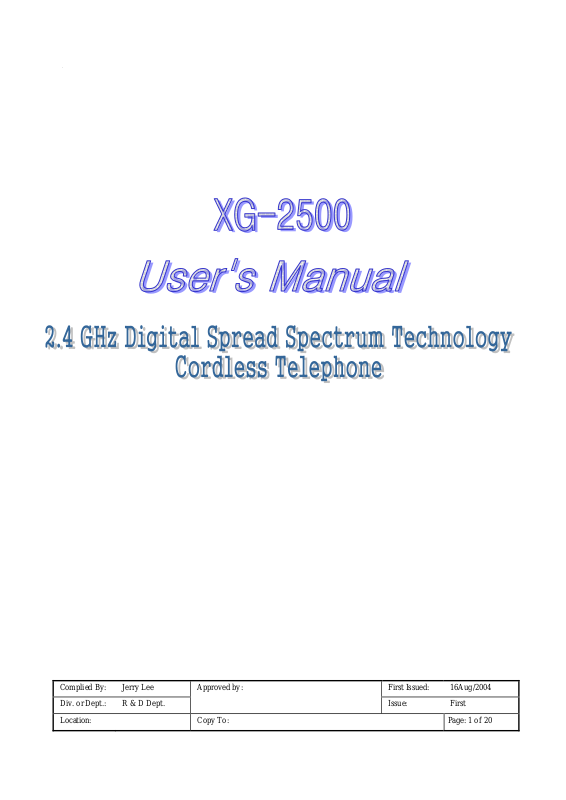

Belco Co XG2500 Users manual

3
Complied By: Jerry Lee Approved by: First Issued: 16Aug/2004 Div. or Dept.: R & D Dept. Issue: First Location: Copy To:
Page: 1 of 20
3
TABLE OF CONTENTS
1. FUNCTIONAL SUMMARY _________________________________________________3
1.1. Scope -----------------------------------------------------------------------------------------------------------------------------3
1.2. Features--------------------------------------------------------------------------------------------------------------------------3
1.3. Unit as Received---------------------------------------------------------------------------------------------------------------3
1.4. Appearance ---------------------------------------------------------------------------------------------------------------------4
1.5. Date Coding---------------------------------------------------------------------------------------------------------------------4
1.6. Labeling -------------------------------------------------------------------------------------------------------------------------4
1.7. Standards & References----------------------------------------------------------------------------------------------------5
1.8. Regulatory Approvals Required------------------------------------------------------------------------------------------5
1.9. Safety -----------------------------------------------------------------------------------------------------------------------------5
1.10. Factory or After Sales Service Interface-------------------------------------------------------------------------------6
1.11. Compatibility -------------------------------------------------------------------------------------------------------------------7
1.12 Security Code Information-------------------------------------------------------------------------------------------------7
2. USER INTERFACE DESCRIPTION __________________________________________8
2.1. Initial Factory Settings ------------------------------------------------------------------------------------------------------8
2.2. Default Settings----------------------------------------------------------------------------------------------------------------8
2.3. Ringing and Tones -----------------------------------------------------------------------------------------------------------8
2.4. Display ------------------------------------------------------------------------------------------------------------------------- 10
2.7. Operating Procedures ---------------------------------------------------------------------------------------------------- 11
3. ELECTRICAL SPECIFICATIONS___________________________________________14
3.1. Test Conditions-------------------------------------------------------------------------------------------------------------- 14
3.2. RF --------------------------------------------------------------------------------------------------------------------------------14
3.3. Line Interface ----------------------------------------------------------------------------------------------------------------16
4. ENVIRONMENTAL ______________________________________________________18
4.1. Purpose of Specification ------------------------------------------------------------------------------------------------- 18
4.2. Temperature Performance-----------------------------------------------------------------------------------------------18
4.3. Electrostatic Discharge---------------------------------------------------------------------------------------------------18
4.4. Humidity------------------------------------------------------------------------------------------------------------------------ 18
3
1.1. SCOPE
This specification defines the product features and requirements of the 2.4GHz Digtal Spread Spectrum Technology (DSST) features. 40 channels 2.4 GHz Basic Cordless telephone.
1.2. FEATURES:
⇒ 2.4 GHz Digital Spread Spectrum Technology (DSST) ⇒ Mechanical T/P select switch
⇒ Page button on the Basease unit
⇒ Built in Buzzer on Base unit ⇒ Earloop on handset ⇒ Any Key Talk ⇒ Built in Battery on Handset ⇒ Auto ON-HOOK:
⇒ # of Channels: 40 ⇒ # of Memories: N.A ⇒ # of digits in the memory: N.A ⇒ # of digits in Redial buffer: 32 Digit
1. FUNCTIONAL SUMMARY
The unit shall automatically be placed on-hook when the handset is placed in the charging cradle, or when the handset has been determined to be Out-of-Range for a sufficient period of time.
1.3. UNIT AS RECEIVED -
The package as received shall consist of the following:
1.3.1. Telephone Base unit Model XG-2500 DSST
Pulse/Tone switch setting to the Tone mode
1.3.2. Telephone Handset model XG-2500 DSST
Volume set to Nominal Position Consumer-replaceable Earloop installed
1.3.3. Accessory:
Item Description/Model #
AC/DC Converter External
Telephone Line Cord Ear loop (Clip) Accessory Item (included)
Length 6 feet, straight; terminated in USOC RJ11C modular plug.
3
1.3.4. Printed Materials:
1.3.5. Packaging:
1.4. APPEARANCE
1.5. DATE CODING
1.5.1. Location
1.5.2. Format
1.5.3. Encoding
1.6. LABELING:
1.6.1. Base Unit:
1.6.2. Handset
1.6.3. Other Marking and Labeling:
1.6.3.1. AC-DC Adapter Marking The following information must appear on the AC-DC Adapter:
BELCO INTERNATIONL CLASS 2 POWER SUPPLY MODEL NO. : aaaaaaaa INPUT : 120VAC 60HZ 5W/6W OUTPUT : 9 VDC 300 mA MADE IN aaaaaaaaaa
Where AAA is Country Of Origin The cETLus symbol with control number located near symbol Plug connection symbol.
In addition, there shall be a caution marking per UL requirement.
CAUTION : RISK OF ELECTRICAL SHOCK. DRY LOCATION USE ONLY.
3
1.6.4. Country Of Origin
1.6.4.1. Acceptable Phrase
1.6.4.2. AC-DC Adapter Country of Origin
1.7. STANDARDS & REFERENCES:
FCC and UL Rules and Regulations are mandatory. Other documents are reference.
1.7.1. EIA 470B
Telecommunications - Telephone Terminal Equipment - Performance and Compatibility Requirements for Telephone Sets with Loop Signalling.
1.7.2. FCC Rules and Regulations
1.7.2.1.47 CFR Part 2
Frequency Allocations and Radio Treaty Matters; General Rules and Regulations
1.7.2.2.47 CFR Part 15
Radio Frequency Devices
1.7.2.3.47 CFR Part 68
Connection of Terminal Equipment to the Telephone Network
1.7.3. Industry Canada (IC) rules and regulations.
1.7.3.1.CS-03
Standard for Terminal Equipment, Terminal Systems, Network Protection Devices, Connection Arrangements and Hearing Aid Compatibility
1.7.4. Items not Included in Specification
Any item (measurement parameter or subjective criterion), not included in this product specification shall be subject to the approval of Bellsouth .
1.8. REGULATORY APPROVALS REQUIRED
This product shall be tested for compliance with all applicable regulatory requirements listed below. Testing shall be performed, and reports generate d by a c ertified test fac ility.
1.8.1. FCC Telephone Network Terminal Equipment Registration
The product shall be designed and manufactured so that it may be operated in accordance with Parts 2, 15, and 68 of FCC Rule s and Regulations. The product shall be filed for FCC registration.
3
1.8.2. ETL / cETL Approval and Listing
The unit shall be designed and manufactured so that it may be operated in accordance with UL60950-1.
1.8.3. Industry Canada Approval (IC)
The unit shall be designed and manufactured so that it may be operated in accordance with the latest revision of the Industry Canada regulations.
1.9. SAFETY
The unit must meet all specifications as set forth in Bellsouth Safety Practices Manual. The unit must meet any and all applicable UL standards, including UL60950-1. The unit will be examined by the Bell south Safety Department. In the interest of safety, all decisions and recommendations of the Department must be incorporated in the design and manufacture of the unit.
1.10. FACTORY OR AFTER SALES SERVICE INTERFACE
Product service information shall be provided from which Product Field Service Manual will be generated.
The following items are required in a timely manner to assist the Product Service department in creating service data.
A) Schematic diagram - on mylar. Schematic must show DC voltages in all modes
of operation for all active devices - or a separate voltage chart drawing may be
submitted. B) Conductor pattern for each PCB - on mylar C) Component layout for each circuit board - on mylar. 2 drawings, one to show
components as viewed from conductor side of PCB and one from component
side. D) Wiring diagram showing interconnection of PCB's and off PCB components such
as LED's, switches, etc. E) Complete parts list - mechanical and electrical F) Assembly drawing of complete unit showing ca binet sections , knobs, antenna,
etc. G) Block diagram of circuit H) Alignment procedure giving test equipment type, connection information, and
tune up procedure. I) Pin out drawing of all transistors and IC's.
3
1.11.
COMPATIBILITY
1.11.1. Operation With Other Devices
1.11.2. Operation With Central Offices
This product shall be capable of operating with any FCC/UL approved Central Office without causing any harm to the Central Office.
1.12. SECURITY CODE INFORMATION
We provide a fixed code that is continuously varied among 1,048,576 discrete digital codes as each telephone is manufactured.
3
2. USER INTERFACE DESCRIPTION
2.1. INITIAL FACTORY SETTINGS:
Tone / Pulse Switching: Tone Volume Control: Nominal ( FCC HAC compatible) Talk Button: OFF All LEDs” OFF
2.2. DEFAULT SETTINGS
2.3. RINGING AND TONES:
2.3.1. Warning tone:
Low Battery Indicator: The handset shall provide an audible and visual alert when
its battery charge will soon be inadequate to continue conversation
Beat 1 2 Time (ms) ON 80 Time (ms) OFF 4000 Beep Frequency (Khz) 2.048
Out of Range Indicator: The handset shall provide an audible and visual alert for 25
seconds when the distance between handset and base does not permit adequate transmission quality. The last beat shall be error beep.
Beat 1 2 Time (ms) ON 80 80 Time (ms) OFF 80 4000 Beep Frequency (kHz) 2.048 2.048
2.3.2. Ring:
2.3.2.1 Base unit
2.3.2.1.1 Base Incoming call Ring: Shall meet the para 8.3.3.3.
2.3.2.2.2 Distinctive Ring from CO:
To support telephone-company-supplied Distinctive Ringing features, the unit ringer(s) shall reproduce ring cadences present on the telephone line, according to detailed requirements referenced by Distinctive Ring Timing, in standard specification (para. 8.3.2.3)
