Belco Co PM2420 User Manual

PhoneMate and the PhoneMate Logo are registered trademarks of PhoneMate
Corporation and are used under license from PhoneMate Corporation.
Thank you for purchasing this PhoneMate Telephone.
Please read this manual carefully prior to using.
IMPORTANT SAFETY INSTRUCTIONS ........................................................................1
FCC REGULATIONS...................................................................................................3
IC REGULATIONS ......................................................................................................5
BATTERY CAUTIONARY INSTRUCTIONS....................................................................6
PM2420 PARTS CHECKLIST.......................................................................................7
CONTROLS AND FEATURES ......................................................................................8
CHOOSING A LOCATION .......................................................................................12
TELEPHONE SET-UP.................................................................................................13
BATTERY INSTALLATION .........................................................................................15
HEADSET AND BELT CLIP........................................................................................16
BASIC OPERATION..................................................................................................17
SETTINGS................................................................................................................18
SPEED DIALING.......................................................................................................24
CALLER ID...............................................................................................................29
OTHER FEATURES....................................................................................................33
CARE AND MAINTENANCE.....................................................................................34
TROUBLE SHOOTING..............................................................................................35
GLOSSARY...............................................................................................................37
WARRANTY STATEMENT.........................................................................................38

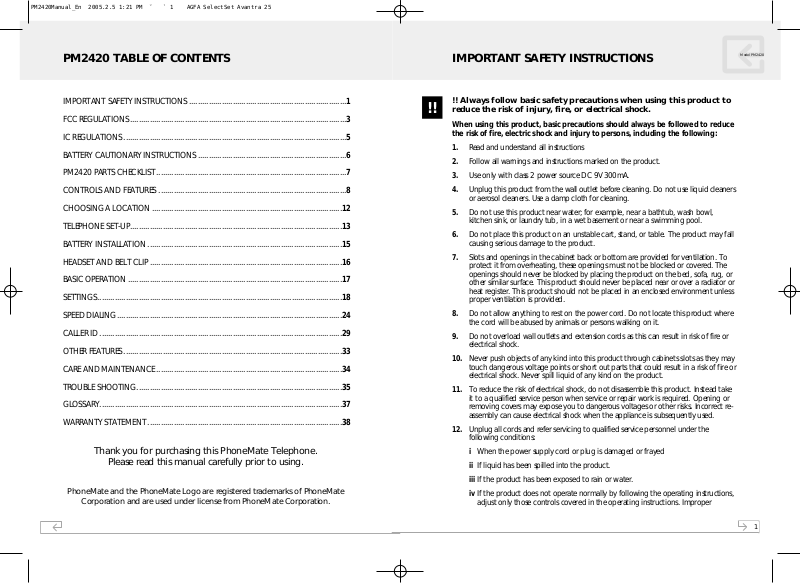

PM2420 TABLE OF CONTENTS
1
When using this product, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions
2. Follow all warnings and instructions marked on the product.
3. Use only with class 2 power source DC 9V 300mA.
4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
6. Do not place this product on an unstable cart, stand, or table. The product may fall causing serious damage to the product.
7. Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation is provided.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinets slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product.
11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re­assembly can cause electrical shock when the appliance is subsequently used.
12. Unplug all cords and refer servicing to qualified service personnel under the following conditions:
i When the power supply cord or plug is damaged or frayed ii If liquid has been spilled into the product. iii If the product has been exposed to rain or water. iv If the product does not operate normally by following the operating instructions,
adjust only those controls covered in the operating instructions. Improper
Model PM2420
IMPORTANT SAFETY INSTRUCTIONS
!!
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 1 AGFA SelectSet Avantra 25
2
adjustment of other controls may result in damage and require work by a qualified technician to restore the product to normal operation.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There maybe a remote risk of electric shock from lightning.
14. Do not use a telephone to report a gas leak in the vicinity of the leak.
IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED:
1. Use only the type and size of batteries specified in the users manual.
2. Do not dispose of batteries in a fire. The cells may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It maybe toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
5. Do not attempt to recharge the batteries with or identified for use for use with this product. The batteries may leak corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin.
7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the discharged batteries.
8. When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of the batteries can cause charging, which may result in leakage or explosion. If a batter is installed incorrectly it may explode.
9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product.
10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product.
11. Do not store this product, or the batteries provided with or identified for use with this product, in high temperature areas.
12. If your product uses a rechargeable battery, charge the battery (ies) only in accordance with the instructions and limitation specified in the User Manual.
13.
Plug the adaptor to the socket-outlet that is nearest to the equipment and shall be easily accessible.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
3
1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US : AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
2. The USOC number of the registration jack for the equipment is RJ11C.
3. A FCC compliant telephone cord and modular plug is provided with this
equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.
4. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.
5. If this terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is unnecessary.
6. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted services.
7. The equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.
8. Please follow all instructions when replacing any parts (e.g. battery replacement section), otherwise do not attempt to alternate or repair any parts of the device except those specified.
9. This equipment, if it uses a telephone handset is hearing aid compatible.
10. If trouble is experienced with this equipment, for repair or warranty information,
please contact the service center below. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
FCC REGULATIONS
Model PM2420
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 3 AGFA SelectSet Avantra 25
4
Service can be obtained at:
PhoneMate Service Center 14515 Valley View Ave. #B Santa Fe Springs, CA 90670
INTERFERENCE INFORMATION: PART 15 OF FCC RULES
Some telephone equipment generates and uses radio frequency energy, which if not properly installed, may cause interference to radio and television reception.
This unit has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation.
If this equipment does cause interference to radio or television reception, when it’s in use, the user is encourage to try to correct the interference by one or more of the following measures:
A. Where it can be done safely, reorient the radio or TV receiving antenna. B. To the extent possible, relocate the television, radio, or other receiver with
respect to the telephone equipment.
C. If your telephone products run on AC power, plug your product into an AC outlet
that’s not on the same circuit as the one used by the radio or television.
NOTICE : If your home has a wired alarm equipment system connected to the telephone line, ensure the installation of this PM2420 does not disable your alarm equipment. If you have questions about what will disable the alarm equipment, consult your telephone company or a qualified installer.
FCC REGULATIONS
This device complies with Part15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.
5
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
Notice:
The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on any interface may consist of Ringer Equivalence Numbers of all the device does not exceed 5.
Privacy of communications may not be ensured when using this telephone.
Interference Information
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
IC REGULATIONS
Model PM2420
Notice : This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 5 AGFA SelectSet Avantra 25
6
CAUTION :
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions:
g
For the cordless handset, use only 3.6V 400mAh Nickel-Cadmium (Ni-CD), SN05­AS003-215 made by SANIK BATTERY CO.,Ltd, cordless telephone battery pack. (included).
g
Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions.
g
Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
g
Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
g
Do not attempt to rejuvenate the batteries identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin.
g
When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging, and that may result in leakage or explosion.
g
Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the battery could leak in the product.
g
Do not store this product, or the batteries identified for use with this product, in high temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting.
Batteries should be stabilized at room temperature prior to use after cold storage.
BATTERY CAUTIONARY INSTRUCTIONS
7
Model PM2420
Handset Base AC power adapter Cord for desk use Belt Clip Ni-CD battery pack
PM2420 PARTS CHECKLIST
2
1
1 2 3 4
6
5
6
4
5
3
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 7 AGFA SelectSet Avantra 25
8
Talk
The Talk is used to access the telephone line or end a call.
Caller ID Key (CID)
The Caller ID key is used to recall and review the Caller ID information stored in Memory. The PM2420 stores up to 40 Names and Numbers.
Redial Key (REDIAL/DELETE)
When the phone is off-hook, press Redial key to redial the last number dialed. The REDIAL/DELETE key is also used to erase digits and single or multiple entries in the PhoneBook and Caller ID log. Redial is also used to insert a measured pause into a number stored in the phone book.
Channel Key (CH)
The CH key, if pressed when the line is off-hook, will scan up to 40 channels and select the clearest one to provide the best possible reception.
MUTE/PROG Key
The Mute/Prog key is used to temporarily mute the handset microphone. It is also used to access the programmable functions of your telephone.
Dial Pad
Numeric keys are used in the conventional manner for dialing.
FLASH/EDIT Key
The Flash key is used to access telephone company services, such as call waiting. It is also used to enter or edit entries in the Phone Book.
MEM/SAVE Key
Use the MEM/SAVE key to program and retrieve the numbers in the speed dial directory. The MEM/SAVE key is also used to save other programmable settings as well as store numbers into the Phone Book.
Temporary Tone/View Left Key
If the base is set to pulse dialing, pressing
▲
❋
causes subsequent digits to be dialled out using tone until the line is put back on hook. It is also used to scroll the left part of the display and move the cursor left when editing or programming.
CONTROLS AND FEATURES
1
2
3
4
5
6
7
8
9
8
3
7
6
1
9
2
9
Model PM2420
CONTROLS AND FEATURES
View Right Key
The View Right Key ▼▲ is used to scroll the right part of the display as well as move the cursor right when editing or programming.
Ringer Switch
The RINGER switch is used to adjust the handset ringer level between Off, On.
VOL/SCROLL
The ▼▲ key allows you to scroll through the logs and menus as well as adjust the handset volume.
CALL BACK KEY
Used for changing from 10 to 11 digit dialing.
New Call Indicator
When there are new calls that have not been reviewed on the Caller ID display, this Indicator will flash. If you subscribe to any Voice Mail service that maybe offered by your local Telephone company, it will also flash when there are new messages that you have not heard.
10
11
12
13
14
12
14
11
4
10
5
13
12
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 9 AGFA SelectSet Avantra 25
10
CONTROLS AND FEATURES
Page
Used to initiate a handset page.
IN USE/CHARGE LED
On (red) when the handset is on the cradle being charged or when the handset is in use. On if the line is in use.
Charging Contacts
Used to recharge battery and reset the security code in the handset.
Tone/Pulse Switch
Used to set the dialing method for tone or pulse dialing. It is located at the bottom of the base unit.
3
1
2
4
1
3
4
2
BASE
11
Model PM2420
CONTROLS AND FEATURES
Name Character Field
Displays the Caller’s name as well as various operational menus.
Number Field
Displays the Caller’s phone number, as well as the numbers in your Phone Book and the numbers you are dialing.
Date/Time Display
Displays the date and time of the calls from the Caller ID log, as well as the current date and time when the phone is not in use.
New Icon
When the phone is not in use, and a new Caller ID has been received, this icon will flash slowly. Beside this icon the number of new calls in the Caller ID log will be displayed.
Call/Entry Number
This indicates the position of the call in the Caller ID log and/or the position of a particular entry in the Phone Book.
RPT Counter
This identifies repeat callers in the Caller ID log, since the Caller ID log was last reviewed. Beside the RPT icon is a counter that indicates how many times that caller has called.
Total Call Counter
Depending on the menu being used, the Total Call Counter will indicate the total number of calls in the Caller ID log or the total number of entries in the Phone Book.
1
2
3
4
5
6
7
LCD DISPLAY
3 4 5 6 7
1
2
PM2420Manual_En 2005.2.5 1:21 PM ˘ ` 11 AGFA SelectSet Avantra 25
