Belco Co PM2400 User Manual

PhoneMate and the PhoneMate Logo are registered trademarks of PhoneMate
Corporation and are used under license from PhoneMate Corporation.
Thank you for purchasing this PhoneMate Telephone.
Please read this manual carefully prior to using.
IMPORTANT SAFETY INSTRUCTIONS ........................................................................1
FCC REGULATIONS...................................................................................................3
BATTERY CAUTIONARY INSTRUCTIONS....................................................................5
PM2400 PARTS CHECKLIST.......................................................................................6
CONTROLS AND FEATURES ......................................................................................7
CHOOSING A LOCATION .........................................................................................9
TELEPHONE SET-UP.................................................................................................10
BATTERY INSTALLATION .........................................................................................12
BASIC OPERATION..................................................................................................14
SPEED DIALING.......................................................................................................15
OTHER FEATURES....................................................................................................16
CARE AND MAINTENANCE.....................................................................................17
TROUBLE SHOOTING..............................................................................................18
GLOSSARY...............................................................................................................20
WARRANTY STATEMENT.........................................................................................21

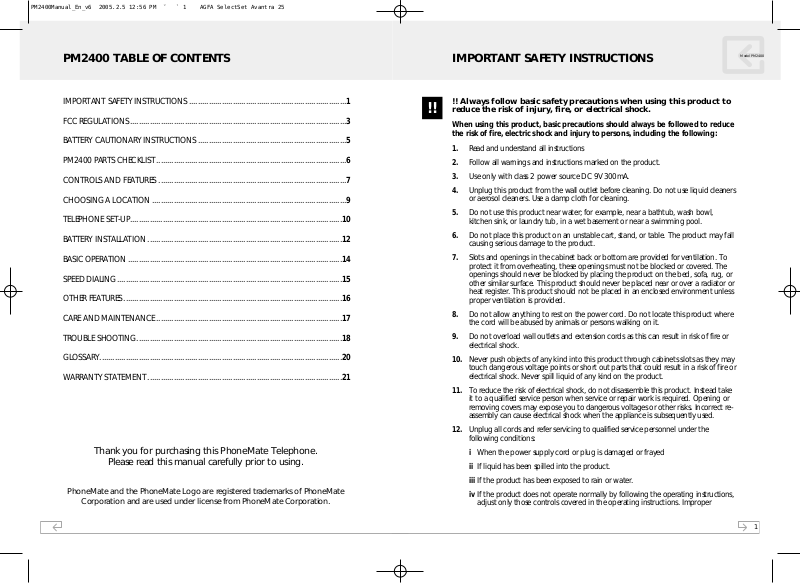

PM2400 TABLE OF CONTENTS
1
When using this product, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions
2. Follow all warnings and instructions marked on the product.
3. Use only with class 2 power source DC 9V 300mA.
4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
6. Do not place this product on an unstable cart, stand, or table. The product may fall causing serious damage to the product.
7. Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation is provided.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinets slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product.
11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re­assembly can cause electrical shock when the appliance is subsequently used.
12. Unplug all cords and refer servicing to qualified service personnel under the following conditions:
i When the power supply cord or plug is damaged or frayed ii If liquid has been spilled into the product. iii If the product has been exposed to rain or water. iv If the product does not operate normally by following the operating instructions,
adjust only those controls covered in the operating instructions. Improper
Model PM2400
IMPORTANT SAFETY INSTRUCTIONS
!!
PM2400Manual_En_v6 2005.2.5 12:56 PM ˘ ` 1 AGFA SelectSet Avantra 25
2
adjustment of other controls may result in damage and require work by a
qualified technician to restore the product to normal operation.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
14. Do not use a telephone to report a gas leak in the vicinity of the leak.
IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED:
1. Use only the type and size of batteries specified in the users manual.
2. Do not dispose of batteries in a fire. The cells may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It maybe toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
5. Do not attempt to recharge the batteries with this product or identified for use with this product. The batteries may leak corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin.
7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the discharged batteries.
8. When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of the batteries can cause charging, which may result in leakage or explosion. If a battery is installed incorrectly it may explode.
9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product.
10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product.
11. Do not store this product, or the batteries provided with or for identified use with this product, in high temperature areas.
12. If your product uses a rechargeable battery, charge the battery (ies) only in accordance with the instructions and limitation specified in the User Manual.
13.
Plug the adaptor to the socket-outlet that is nearest to the equipment and shall be easily accessible.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
3
FCC REGULATIONS
Model PM2400
1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US : AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
2. The USOC number of the registration jack for the equipment is RJ11C.
3. A FCC compliant telephone cord and modular plug is provided with this
equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.
4. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.
5. If this terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is unnecessary.
6. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted services.
7. The equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.
8. Please follow all instructions when replacing any parts (e.g. battery replacement section), otherwise do not attempt to alternate or repair any parts of the device except those specified.
9. This equipment, if it uses a telephone handset is hearing aid compatible.
10. If trouble is experienced with this equipment, for repair or warranty information,
please contact the service center below. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
PM2400Manual_En_v6 2005.2.5 12:56 PM ˘ ` 3 AGFA SelectSet Avantra 25
4
Service can be obtained at:
PhoneMate Service Center 14515 Valley View Ave. #B Santa Fe Springs, CA 90670
INTERFERENCE INFORMATION: PART 15 OF FCC RULES
Some telephone equipment generates and uses radio frequency energy, which if not properly installed, may cause interference to radio and television reception.
This unit has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation.
If this equipment does cause interference to radio or television reception, when it’s in use, the user is encouraged to try to correct the interference by one or more of the following measures:
A. Where it can be done safely, reorient the radio or TV receiving antenna. B. To the extent possible, relocate the television, radio, or other receiver with
respect to the telephone equipment.
C. If your telephone products run on AC power, plug your product into an AC outlet
that’s not on the same circuit as the one used by the radio or television.
NOTICE : If your home has a wired alarm equipment system connected to the telephone line, ensure the installation of this PM2400 does not disable your alarm equipment. If you have questions about what will disable the alarm equipment, consult your telephone company or a qualified installer.
FCC REGULATIONS
This device complies with Part15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.
5
CAUTION :
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions:
For the cordless handset, use only 3.6V 400mAh Nickel-Cadmium (Ni-CD), SN05­AS003-215 made by SANIK BATTERY Co.,Ltd, cordless telephone battery pack. (included).
Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions.
Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
Do not attempt to rejuvenate the batteries identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin.
When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging, and that may result in leakage or explosion.
Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the battery could leak in the product.
Do not store this product, or the batteries identified for use with this product, in high temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting.
Batteries should be stabilized at room temperature prior to use after cold storage.
BATTERY CAUTIONARY INSTRUCTIONS
Model PM2400
PM2400Manual_En_v6 2005.2.5 12:56 PM ˘ ` 5 AGFA SelectSet Avantra 25
6
Handset Base AC power adapter Cord for desk use Ni-CD battery pack
PM2400 PARTS CHECKLIST
2
1
1 2 3 4 5
5
4
3
7
Talk
The Talk is used to access the telephone line or end a call.
Redial Key
When the phone is off-hook, press Redial key to redial the last number dialed. Redial is also used to insert a measured pause into a number stored in the phone book.
Channel Key (CH)
The CH key, if pressed when the line is off-hook, will scan up to 40 channels and select the clearest one to provide the best possible reception.
Mute Key
The Mute key is used to temporarily mute the handset microphone.
Dial Pad
Numeric keys are used in the conventional manner for dialing.
Flash Key
The Flash key is used to access telephone company services, such as call waiting.
Memory Key (MEM)
Use MEM to program and retrieve the numbers in the speed dial directory.
Temporary Tone key *
If the base is set to pulse dialing, pressing * causes subsequent digits to be dialled out using tone until the line is put back on hook.
In Use LED
On (red) when line is in use. Flashes steadily when the phone is muted.
Volume Switch
The Volume switch is used to adjust the handset receiving level among Hi, Low.
CONTROLS AND FEATURES
Model PM2400
9
10
7
8
2
3
1
10
1 6
2 7
8
3
9
4
10
5
6
5
4
