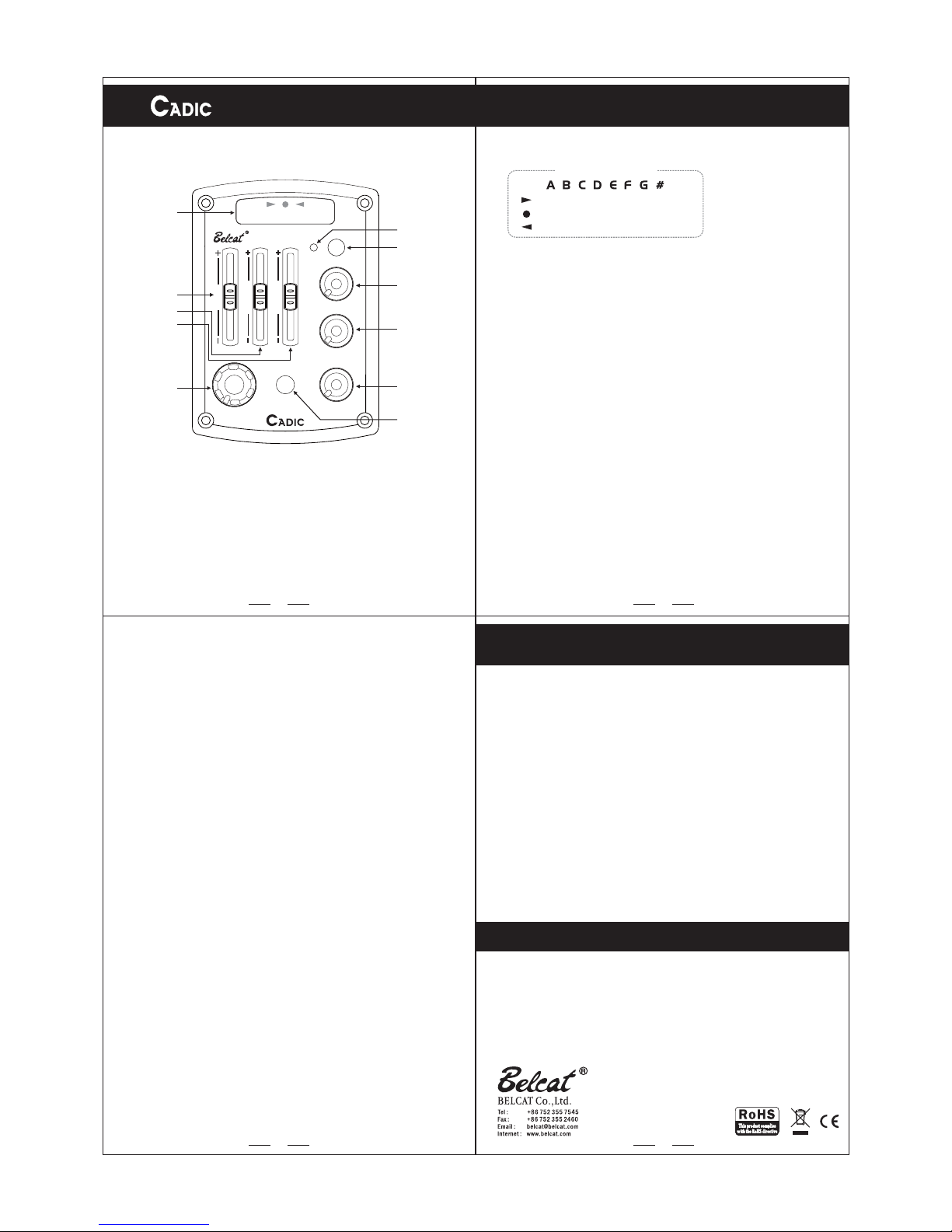

Page 1

: Tuning Guide LED for Sharp tune : Tuning Guide LED for right tune : Tuning Guide LED for flat tune

4Band Pardmetric EQ with Chromatic LED tuner

DCBAGFE

Chromatic Tuner

BASS

MIDDLE

TREBLE

BRIGHT

MIDDLE FREQ.

NOTCH

VOLUME

TUNER

Low Batt.

PHASE

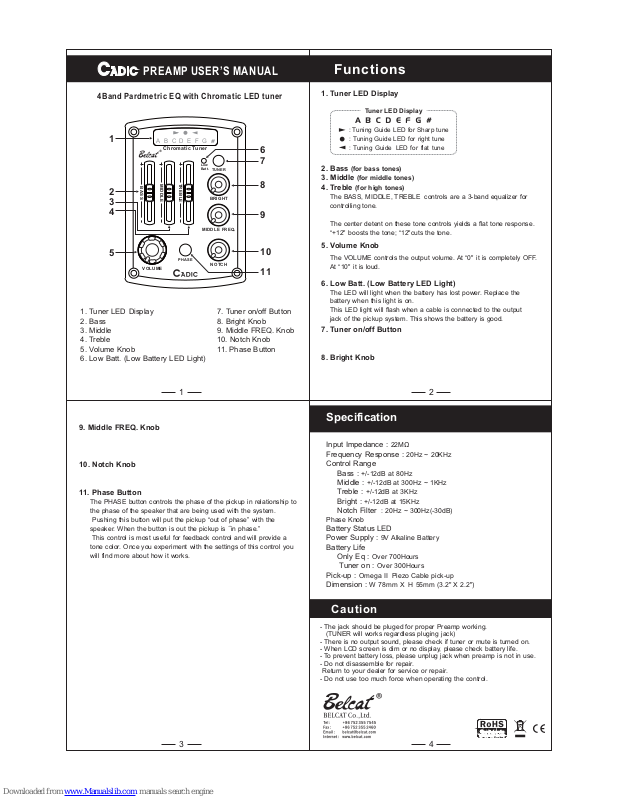

PREAMP USER’S MANUAL

Functions

2 3

6 7

1. Tuner LED Display

2. Bass

3. Middle

4. Treble

5. Volume Knob

6. Low Batt. (Low Battery LED Light)

7. Tuner on/off Button

8. Bright Knob

9. Middle FREQ. Knob

10. Notch Knob

11. Phase Button

Tuner LED Display

The BASS, MIDDLE, TREBLE controls are a 3-band equalizer for controlling tone.

The center detent on these tone controls yields a flat tone response. “+12" boosts the tone; “12"cuts the tone.

The LED will light when the battery has lost power. Replace the battery when this light is on. This LED light will flash when a cable is connected to the output jack of the pickup system. This shows the battery is good.

The PHASE button controls the phase of the pickup in relationship to the phase of the speaker that are being used with the system.

Pushing this button will put the pickup “out of phase” with the

speaker. When the button is out the pickup is in phase.”“

This control is most useful for feedback control and will provide a tone color. Once you experiment with the settings of this control you will find more about how it works.

The VOLUME controls the output volume. At “0" it is completely OFF. At “10" it is loud.

Caution

- The jack should be pluged for proper Preamp working. (TUNER will works regardless pluging jack)

- There is no output sound, please check if tuner or mute is turned on.

- When LCD screen is dim or no display, please check battery life.

- To prevent battery loss, please unplug jack when preamp is not in use.

- Do not disassemble for repair.

Return to your dealer for service or repair.

- Do not use too much force when operating the control.

Input Impedance : 22MΩ Frequency Response : 20Hz ~ 20KHz Control Range

Bass :

+/-12dB at 80Hz

Middle : +/-12dB at 300Hz ~ 1KHz Treble : +/-12dB at 3KHz Bright : +/-12dB at 15KHz Notch Filter : 20Hz ~ 300Hz(-30dB)

Phase Knob

Battery Status LED Power Supply :

9V Alkaline Battery

Battery Life

Only Eq :

Over 700Hours

Tuner on : Over 300Hours Pick-up : Omega II Piezo Cable pick-up Dimension : W 78mm X H 55mm (3.2" X 2.2")

Specification

1. Tuner LED Display

2. Bass

(for bass tones)

3. Middle (for middle tones)

4. Treble (for high tones)

5. Volume Knob

6. Low Batt. (Low Battery LED Light)

7. Tuner on/off Button

8. Bright Knob

9. Middle FREQ. Knob

10. Notch Knob

11. Phase Button

Page 2

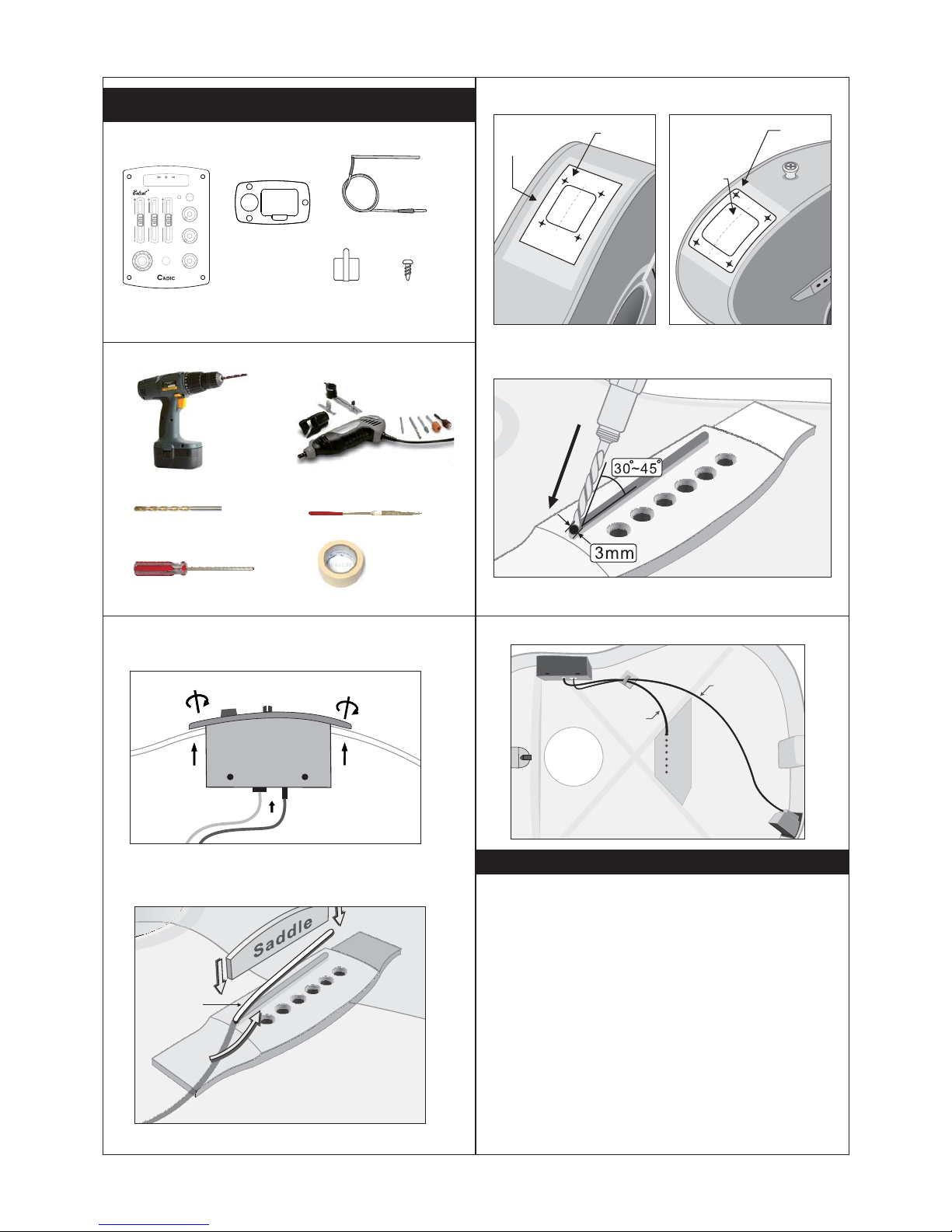

INSTALLATION MANUAL

1. Electric Drill

2. Drill Bit (2.3mm or 3mm)

3. Phillips Screwdriver

4. Router and Grinder (cutting-edge 3mm)

5. Round File

6. Masking Tape

Masking Tap e

1. Preamp

2. Battery Box

3. Pick-Up

4. Clip

8. Fix wire with clip

5. Screw

1. Contents

2. Tool

2.Drilling hole for pick-up

3. Insert EQ and battery box into hole of guitar.

1. Cut out the hole with template

4. Fasten screws properly.

5. Put plugs into jacks.

6.Installing the pick-up

Cutting Template

1) When there is no sound or sound is stopped,

- Check guitar cable, amp or Mixer

- Check if there is batter or not. When it happens noise or distortion, please exchange battery.

- Check if the pickup and battery connector is connected correctly or not.

- Check if out put jack is connected correctly.

2) When there is hum-noise,

- Check the pickup is connected well or not.

- Check if the connectors are connected to correct position well

or not.

3) Some causes of the balance problem

- When the bottom of saddle or the groove of saddle is not flat.

- When saddle is installed to the groove of saddle loosly.

- When the connection is not good between the bottom of saddle

and the groove of saddle.

- When Saddle is very short

- When there is grounds on the groove of saddle.

- When Saddle is declined toward front or back.

- When the top of guitar is bended.

- When the pickup is installed to only a part of the groove of saddle.

Solution

Pick-up Wire

Clip

Battery box Cable

Battery Box

Pick-up wire

(back page)

Preamp

Battery Box

DCBAGFE

Chromatic Tuner

BASS

MIDDLE

TREBLE

BRIGHT

MIDDLE FREQ.

NOTCH

VOLUME

TUNER

Low Batt.

PHASE

Page 3

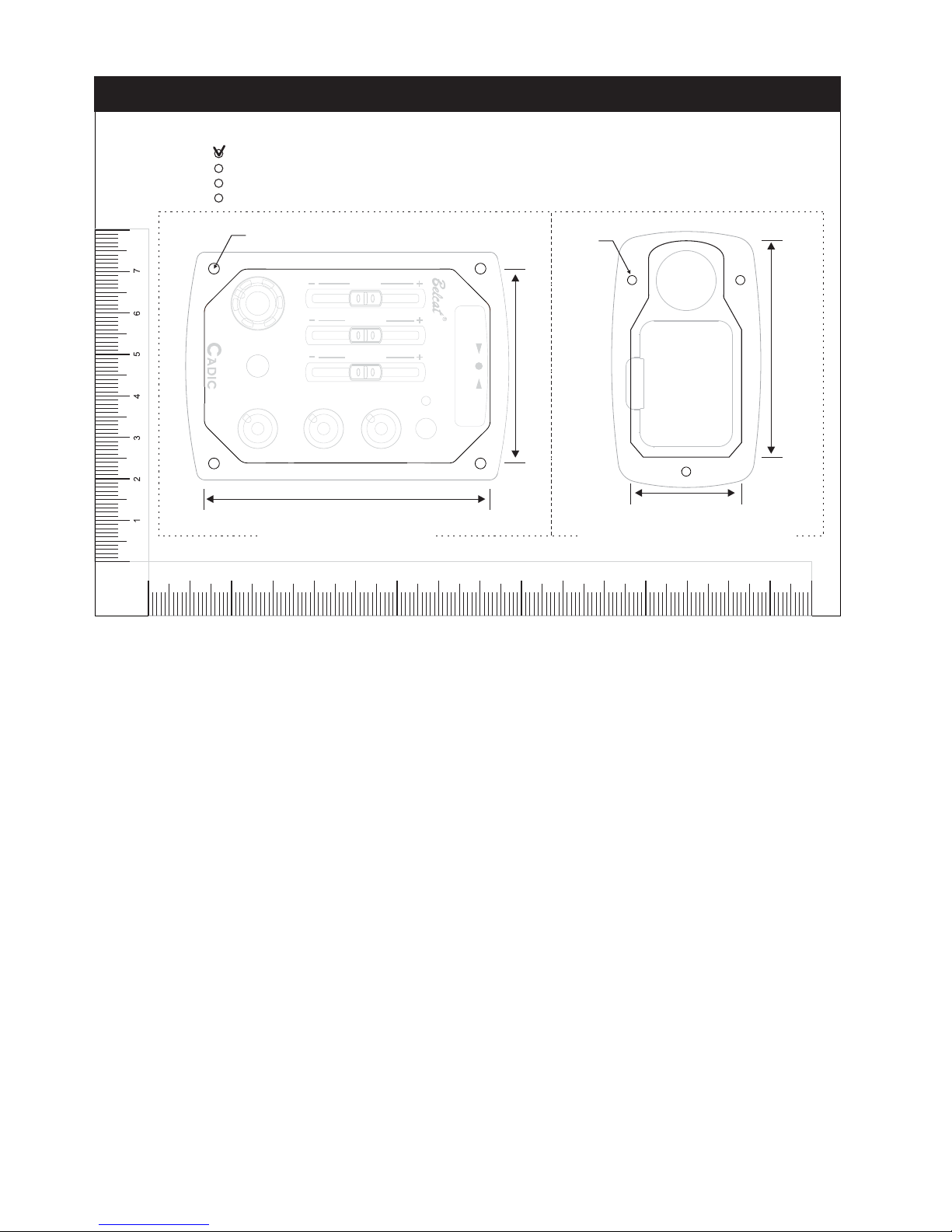

Cutting Template

1.Print this file without scaling option.

2.Check the size with actual ruler.

3. Cut out the dotted line or desire model.

4. Adhere to location use double stick tape.

5. Cut follow solid line use cutter.

Print>Page Handling>Page Scaling

None Fit to print margins Reduce to print margins Multiple pages per sheet

123

8 9 10 11 12 13 14 15

Preamp Opening

Battery Box Opening

Ø2.0mm

DCBA

GFE

Chromatic Tuner

BASS

MIDDLE

TREBLE

BRIGHT

MIDDLE

FREQ.

NOTCH

VOLUME

TUNER

Low

Batt.

PHASE

47.0mm

69.0mm

52.2mm

26.1mm

Ø2.0mm
