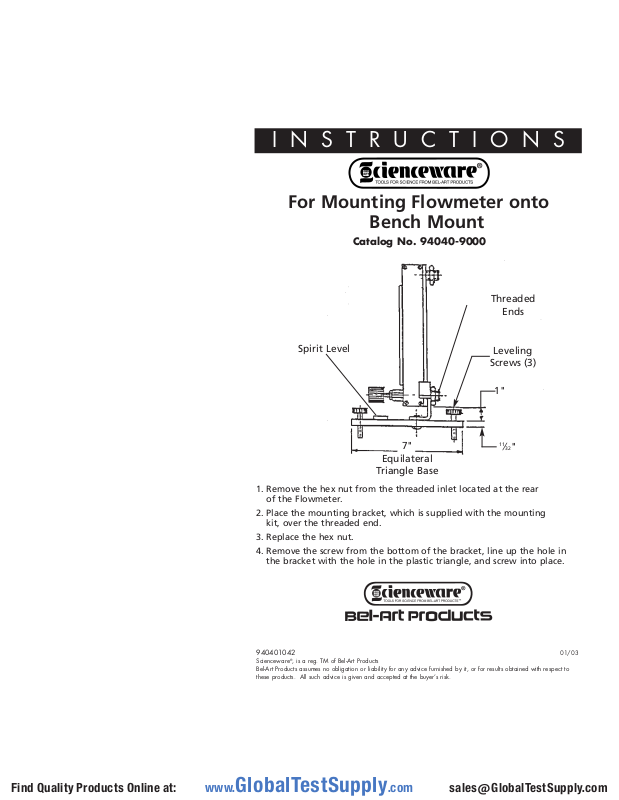

I N S T R U C T I O N S
For Mounting Flowmeter onto
Bench Mount
Catalog No. 94040-9000
Threaded
Ends
Spirit Level
Leveling
Screws (3)
1"
7"
11
⁄32"
Equilateral
Triangle Base
1. Remove the hex nut from the threaded inlet located at the rear
of the Flowmeter.
2. Place the mounting bracket, which is supplied with the mounting
kit, over the threaded end.
3. Replace the hex nut.
4. Remove the screw from the bottom of the bracket, line up the hole in
the bracket with the hole in the plastic triangle, and screw into place.
940401042 01/03
