I N S T R U C T I O N S
OTHER FINE SCIENCEWARE
®
PRODUCTS FOR YOUR

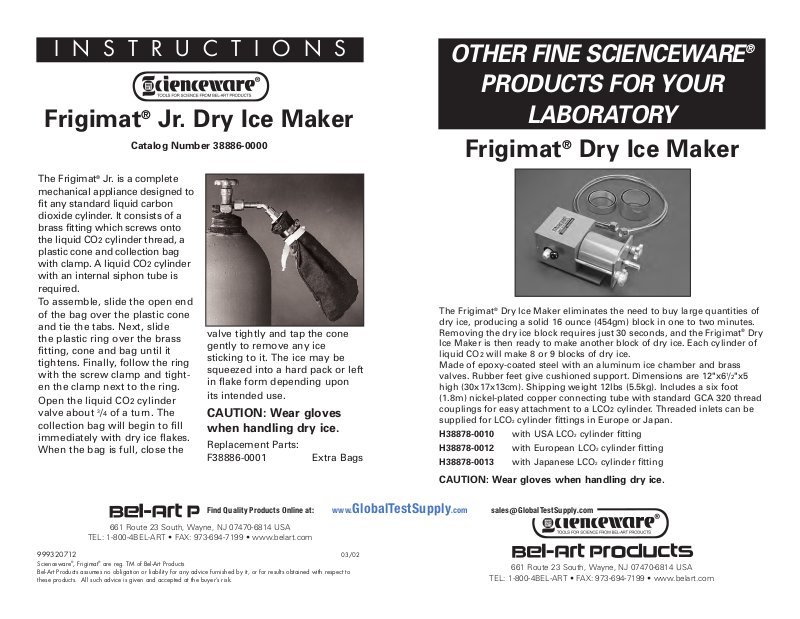

Frigimat®Jr. Dry Ice Maker
Catalog Number 38886-0000
The Frigimat®Jr. is a complete
mechanical appliance designed to
fit any standard liquid carbon
dioxide cylinder. It consists of a
brass fitting which screws onto
the liquid CO
plastic cone and collection bag
with clamp. A liquid CO
with an internal siphon tube is
required.
To assemble, slide the open end
of the bag over the plastic cone
and tie the tabs. Next, slide
the plastic ring over the brass
fitting, cone and bag until it
tightens. Finally, follow the ring
with the screw clamp and tighten the clamp next to the ring.
Open the liquid CO
valve about
collection bag will begin to fill
immediately with dry ice flakes.
When the bag is full, close the
2 cylinder thread, a
2 cylinder
3
2 cylinder
/4 of a turn. The
valve tightly and tap the cone
gently to remove any ice
sticking to it. The ice may be
squeezed into a hard pack or left
in flake form depending upon
its intended use.
CAUTION: Wear gloves
when handling dry ice.
Replacement Parts:
F38886-0001 Extra Bags
LABORATORY
Frigimat®Dry Ice Maker
The Frigimat®Dry Ice Maker eliminates the need to buy large quantities of
dry ice, producing a solid 16 ounce (454gm) block in one to two minutes.
Removing the dry ice block requires just 30 seconds, and the Frigimat
Ice Maker is then ready to make another block of dry ice. Each cylinder of
liquid CO2 will make 8 or 9 blocks of dry ice.
Made of epoxy-coated steel with an aluminum ice chamber and brass
valves. Rubber feet give cushioned support. Dimensions are 12"x6
high (30x17x13cm). Shipping weight 12lbs (5.5kg). Includes a six foot
(1.8m) nickel-plated copper connecting tube with standard GCA 320 thread
couplings for easy attachment to a LCO2 cylinder. Threaded inlets can be
2
supplied for LCO
H38878-0010 with USA LCO2cylinder fitting
H38878-0012 with European LCO2cylinder fitting
H38878-0013 with Japanese LCO2cylinder fitting
cylinder fittings in Europe or Japan.
1
/2"x5
®
Dry
CAUTION: Wear gloves when handling dry ice.
