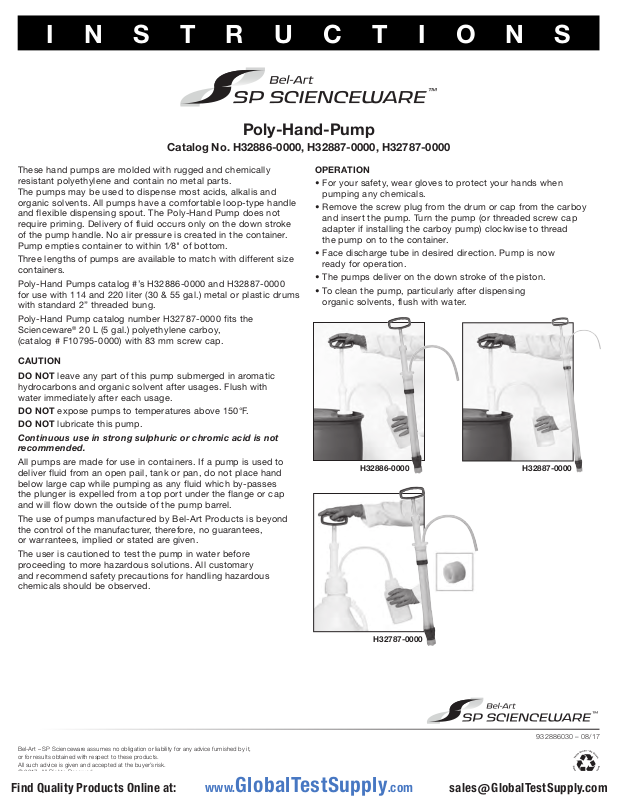

INSTRUCTIONS
Poly-Hand-Pump
Catalog No. H32886-0000, H32887-0000, H32787-0000
These hand pumps
resistant polyethylene and contain no metal parts.
The pumps may be used to dispense most acids, alkalis and
organic solvents. All pumps have a comfortable loop-type handle
and flexible dispensing spout. The Poly-Hand Pump does not
require priming. Delivery of fluid occurs only on the down stroke
of the pump handle. No air pressure is created in the container.
Pump empties container to within 1⁄8" of bottom.
Three lengths of pumps are available to match with different size
containers.
Poly-Hand Pumps catalog #’s H32886-0000 and H32887-0000
for use with 114 and 220 liter (30 & 55 gal.) metal or plastic drums
with standard 2” threaded bung.
Poly-Hand Pump catalog number H32787-0000 fits the
Scienceware® 20 L (5 gal.) polyethylene carboy,
(catalog # F10795-0000) with 83 mm screw cap.
CAUTION
DO NOT leave any part of this pump submerged in aromatic
hydrocarbons and organic solvent after usages. Flush with
water immediately after each usage.
DO NOT expose pumps to temperatures above 150°F.
DO NOT lubricate this pump.
Continuous use in strong sulphuric or chromic acid is not
recommended.
All pumps are made for use in containers. If a pump is used to
deliver fluid from an open pail, tank or pan, do not place hand
below large cap while pumping as any fluid which by-passes
the plunger is expelled from a top port under the flange or cap
and will flow down the outside of the pump barrel.
The use of pumps manufactured by Bel-Art Products is beyond
the control of the manufacturer, therefore, no guarantees,
or warrantees, implied or stated are given.
The user is cautioned to test the pump in water before
proceeding to more hazardous solutions. All customary
and recommend safety precautions for handling hazardous
chemicals should be observed.
are molded with rugged and chemically
OPERATION
• For your safety, wear gloves to protect your hands when
pumping any chemicals.
• Remove the screw plug from the drum or cap from the carboy
and insert the pump. Turn the pump (or threaded screw cap
adapter if installing the carboy pump) clockwise to thread
the pump on to the container.
• Face discharge tube in desired direction. Pump is now
ready for operation.
• The pumps deliver on the down stroke of the piston.
• To clean the pump, particularly after dispensing
organic solvents, flush with water.
H32886-0000
H32887-0000
H32787-0000
932886030 – 08/17
Bel-Art – SP Scienceware assumes no obligation or liability for any advice furnished by it,
or for results obtained with respect to these products.
All such advice is given and accepted at the buyer’s risk.
© 2017. All Rights Reserved.
Bel-Art® – SP Scienceware® is a division of SP Industries, Inc.
