INSTRUCTIONS
Splash Shields
Catalog No. F24966 Series
SINGLE ARM SHIELD
1 arm with neck fitting
2 handles with bolts/washers
(these shields need 1 attachment bracket!)

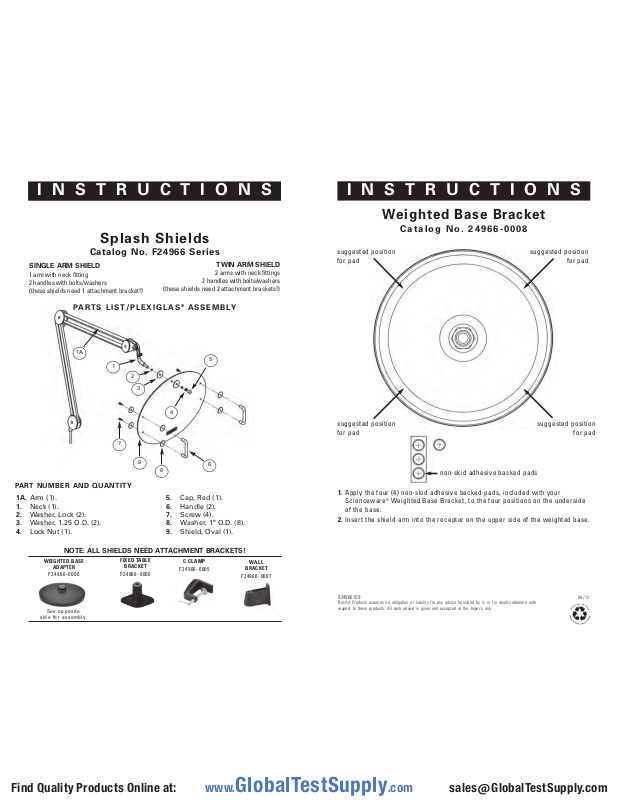

PARTS LIST/PLEXIGLAS®ASSEMBLY
(these shields need 2 attachment brackets!)
TWIN ARM SHIELD
2 arms with neck fittings
2 handles with bolts/washers
INSTRUCTIONS
Weighted Base Bracket
Catalog No. 24966-0008
suggested position
for pad
suggested position
for pad
1A
1
7
PART NUMBER AND QUANTITY
1A. Arm (1).
1. Neck (1).
2. Washer, Lock (2).
3. Washer, 1.25 O.D. (2).
4. Lock Nut (1).
NOTE: ALL SHIELDS NEED ATTACHMENT BRACKETS!
WEIGHTED BASE
ADAPTER
F24966-0008
See opposite
side for assembly.
FIXED TABLE
F24966-0006
2
3
9
BRACKET
5
4
8
6
5. Cap, Red (1).
6. Handle (2).
7. Screw (4).
8. Washer, 1" O.D. (8).
9. Shield, Oval (1).
C CLAMP
F24966-0005
WALL
BRACKET
F24966-0007
suggested position
for pad
suggested position
for pad
non-skid adhesive backed pads
1. Apply the four (4) non-skid adhesive backed pads, included with your
Scienceware
®
Weighted Base Bracket, to the four positions on the underside
of the base.
2. Insert the shield arm into the receptor on the upper side of the weighted base.
924966109
Bel-Art Products assumes no obligation or liability for any advice furnished by it, or for results obtained with
respect to these products. All such advice is given and accepted at the buyer’s risk.
08/12
