Page 1

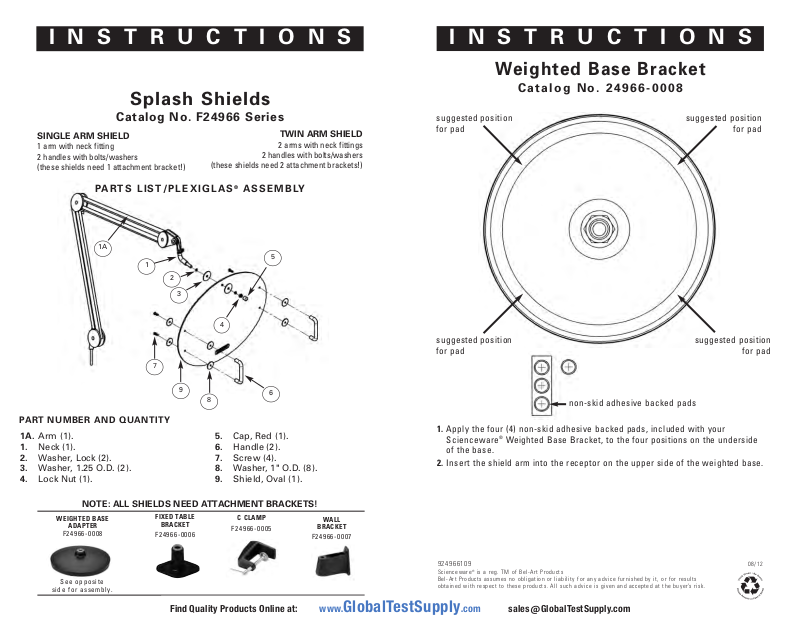

I N S T R U C T I O N S
Splash Shields
Catalog No. F24966 Series
SINGLE ARM SHIELD
1 arm with neck fitting
2 handles with bolts/washers
(these shields need 1 attachment bracket!)
PA R T S LI S T / P L EXIGL A S®AS S E M B LY
(these shields need 2 attachment brackets!)
TWIN ARM SHIELD
2 arms with neck fittings
2 handles with bolts/washers
I N S T R U C T I O N S
Weighted Base Bracket
Ca t al o g No . 2 49 6 6- 0 00 8
suggested position
for pad
suggested position
for pad
1A
1
7
PART NUMBER A ND QUANTITY
1A. Arm (1).
1. Neck (1).
2. Washer, Lock (2).
3. Washer, 1.25 O.D. (2).
4. Lock Nut (1).
NOTE: ALL SHIELDS NEED ATTACHMENT BRACKETS!
WEI GHTED BAS E
ADA PTER
F2 49 66- 00 08
FIX ED TAB LE
BRA CKET
F2 49 66- 00 06
5
2
3
4
suggested position
for pad
9
8
5. Cap, Red (1).
6. Handle (2).
7. Screw (4).
8. Washer, 1" O.D. (8).
6
non-skid adhesive backed pads
1. Apply the four (4) non-skid adhesive backed pads, included with your
Scienceware®Weighted Base Bracket, to the four positions on the underside
of the base.
2. Insert the shield arm into the receptor on the upper side of the weighted base.
suggested position
for pad
9. Shield, Oval (1).
C CLAM P
F2 49 66- 00 05
WAL L
BRA CKET
F2 49 66- 00 07
Se e oppo site
si de for a ss embl y.
92 49 661 09 08 /1 2
Sc ie nce wa re
Be l- Art P ro duc ts as su mes n o obl ig ati on o r l ia bil it y for a ny ad vi ce fu rni sh ed by i t, or f or re su lts
ob ta ine d wi th re spe ct t o t he se pr od uct s. Al l su ch ad vic e is gi ve n and a cce pt ed at t he bu ye r’s ri sk.
