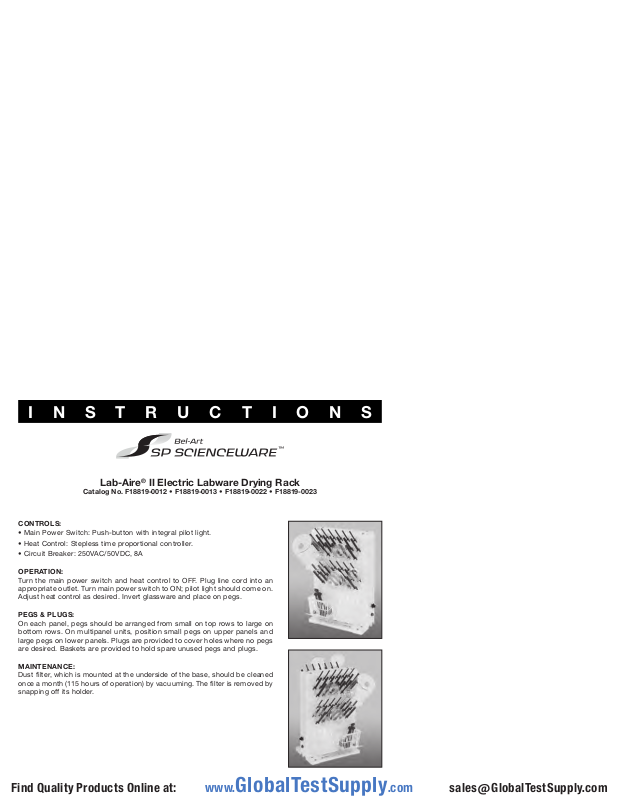

INSTRUCTIONS
Lab-Aire® II Electric Labware Drying Rack
Catalog No. F18819-0012 • F18819-0013 • F18819-0022 • F18819-0023
CONTROLS:
• Main Power Switch: Push-button with integral pilot light.
• Heat Control: Stepless time proportional controller.
• Circuit Breaker: 250VAC/50VDC, 8A
OPERATION:
Turn the main power switch and heat control to OFF. Plug line cord into an
appropriate outlet. Turn main power switch to ON; pilot light should come on.
Adjust heat control as desired. Invert glassware and place on pegs.
PEGS & PLUGS:
On each panel, pegs should be arranged from small on top rows to large on
bottom rows. On multipanel units, position small pegs on upper panels and
large pegs on lower panels. Plugs are provided to cover holes where no pegs
are desired. Baskets are provided to hold spare unused pegs and plugs.
MAINTENANCE:
Dust filter, which is mounted at the underside of the base, should be cleaned
once a month (115 hours of operation) by vacuuming. The filter is removed by
snapping off its holder.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
INSTRUCTIONS
Lab-Aire® II Electric, 230VAC
Labware Drying Rack
Catalog No. F18819-2301 • F18819-2302 • F18819-2303 • F18819-2304
CONTROLS:
• Main Power Switch: Push-button with integral pilot light.
• Heat Control: Stepless time proportional controller.
• Circuit Breaker: 250VAC/50VDC,4A
POWER REQUIREMENTS: 230VAC, 50HZ, 431 Watts
OPERATION:
Dry laboratory glassware quickly and safely with this bench
mount unit. While providing continuous warm air circulation
though drying pegs, labware is never too hot to handle.
Three sizes of pegs accept glassware.
Use only with Ambient Temperature Range from 5 °C to 40 °C.
• Indoor Use Only
• Do not place near another heating device
• Do not place in direct sunlight
• Do not place near any explosive, hazardous
or flammable chemicals.
• Do not autoclave.
Turn the main power switch and heat control to OFF. Plug line
cord into an appropriate 230 VAC outlet with suitable adapter
(**not included). Turn main power switch to ON; pilot light should
come on. Adjust heat control as desired. Invert glassware and
place on pegs.
Locate the unit such that the operator will have easy access to the
AC plug for disconnecting power if needed in an emergency.
The user should be aware that, if the equipment is used in a
manner not specified by the manufacturer, the protection provided
by the equipment may be impaired. The Dryers are molded in
sections and fastened with steel bolts. The unit is factory
assembled and no attempt should be made to loosen the nuts.
PEGS & PLUGS:
On each panel, pegs should be arranged from small on top rows
to large on bottom rows. On multipanel units, position small
pegs on upper panels and large pegs on lower panels. Plugs are
provided to cover holes where no pegs are desired. Baskets are
provided to hold spare unused pegs and plugs.
MAINTENANCE:
Dust filter, which is mounted at the underside of the base, should
be cleaned once a month (115 hours of operation) by vacuuming.
The filter is removed by snapping off its holder.
* The symbol indicates that this is a Class II or double
** Adapter to convert USA 3-pin grounded plug (type B)
2302 2304
insulated electrical appliance. It does not require a safety
connection to electrical earth.
to local outlet type.
REPLACEMENT PARTS
Description Part No.
Dust Filter & Holder 99932-1563
Bag of 19 Small Pegs & 6 Plugs 18931-0001
